Description

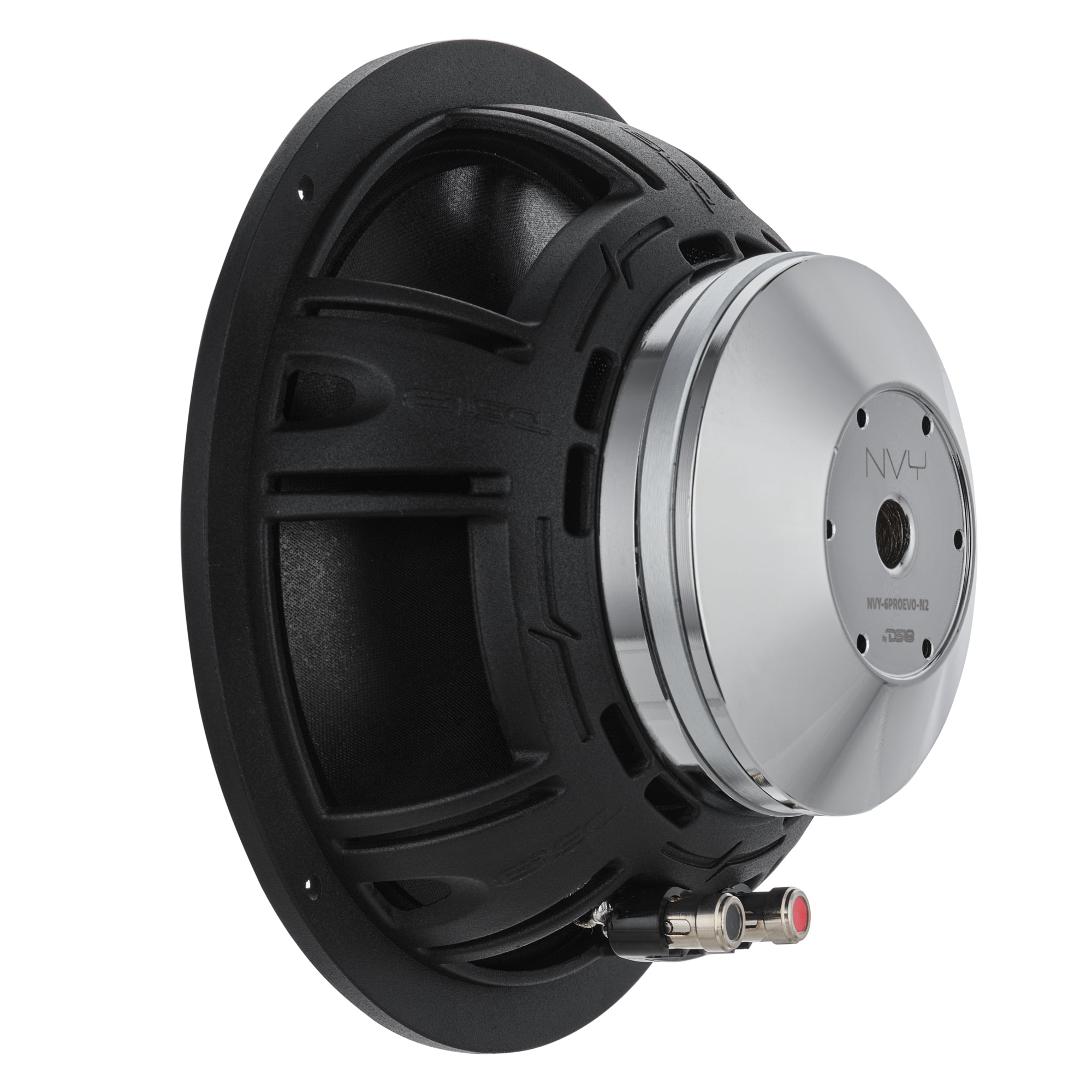

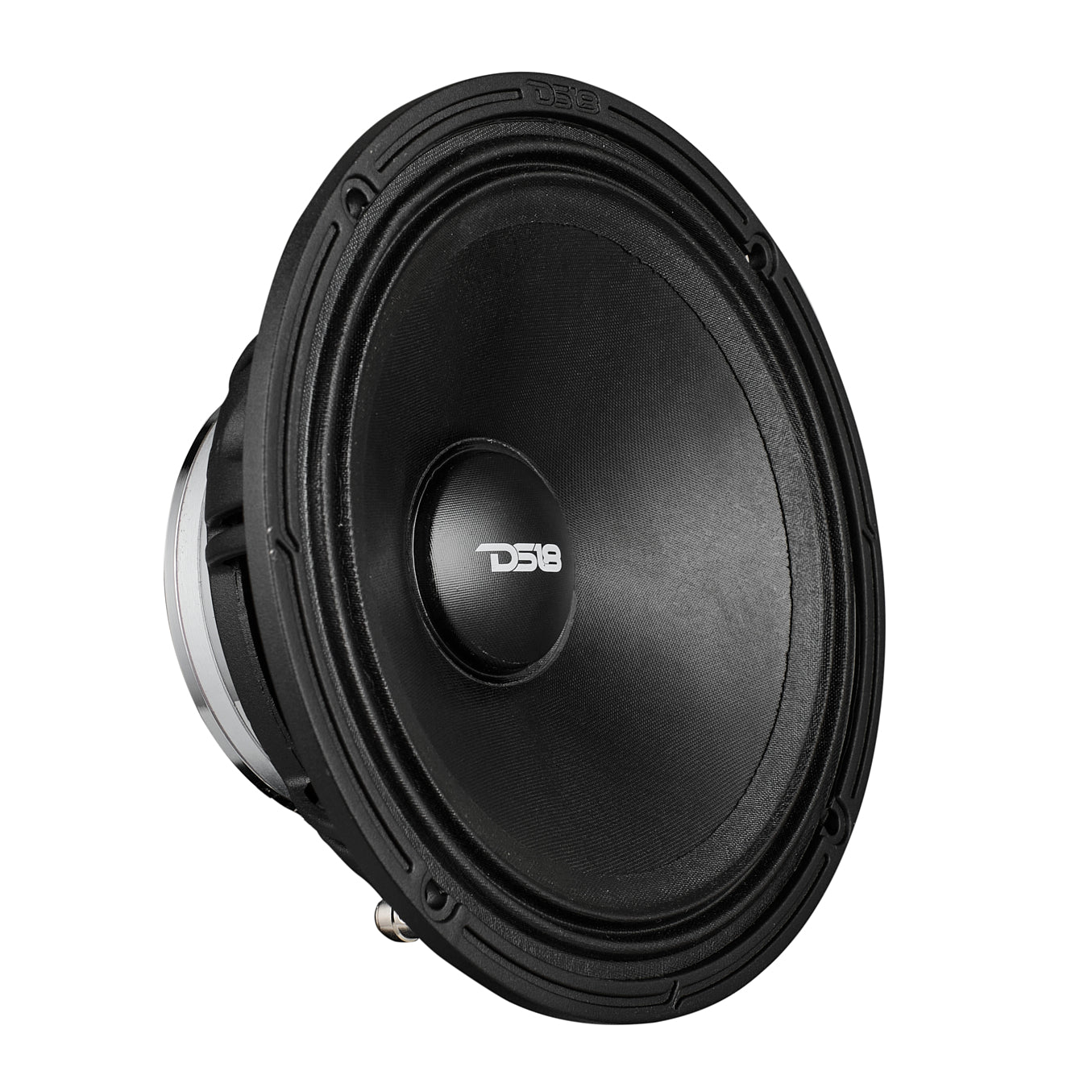

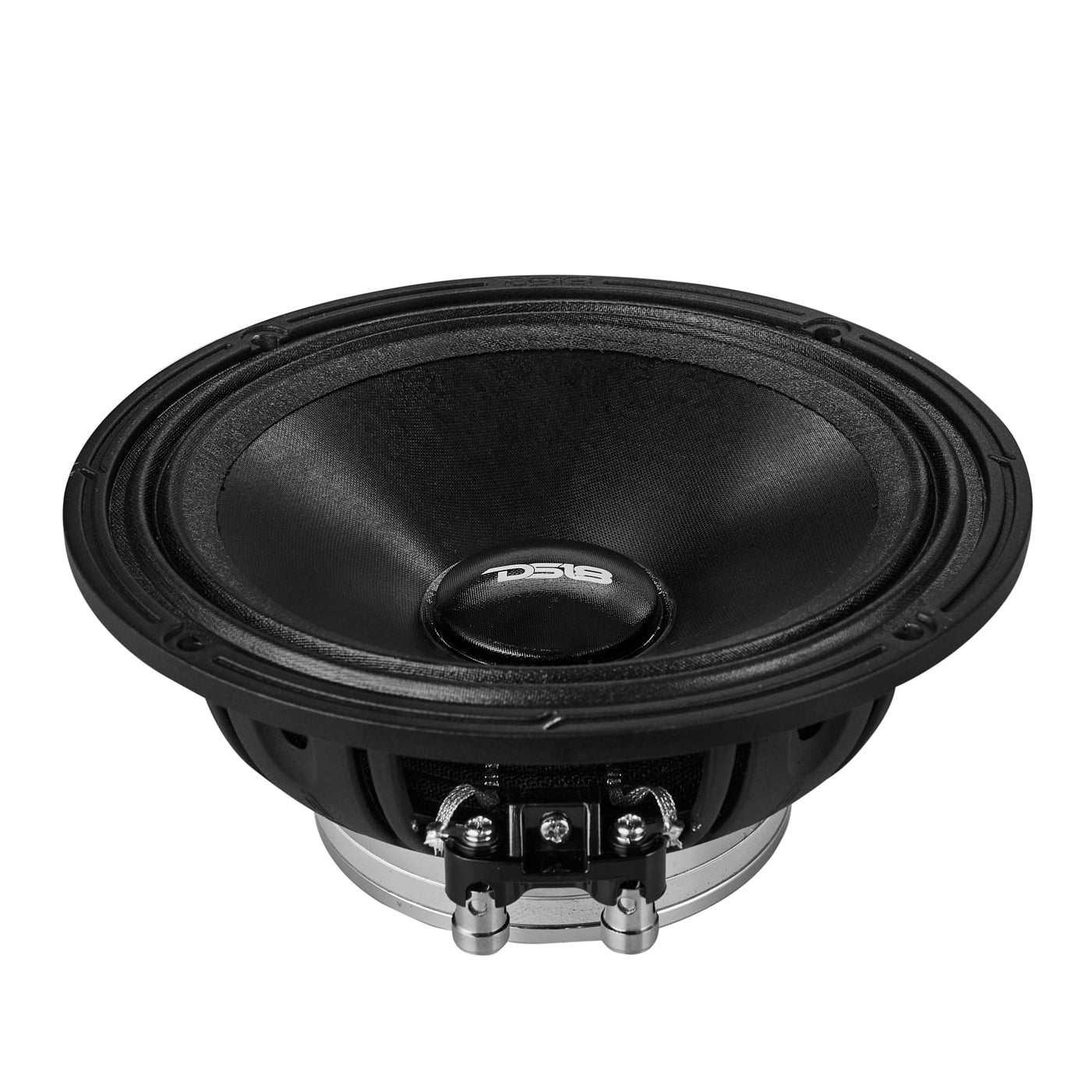

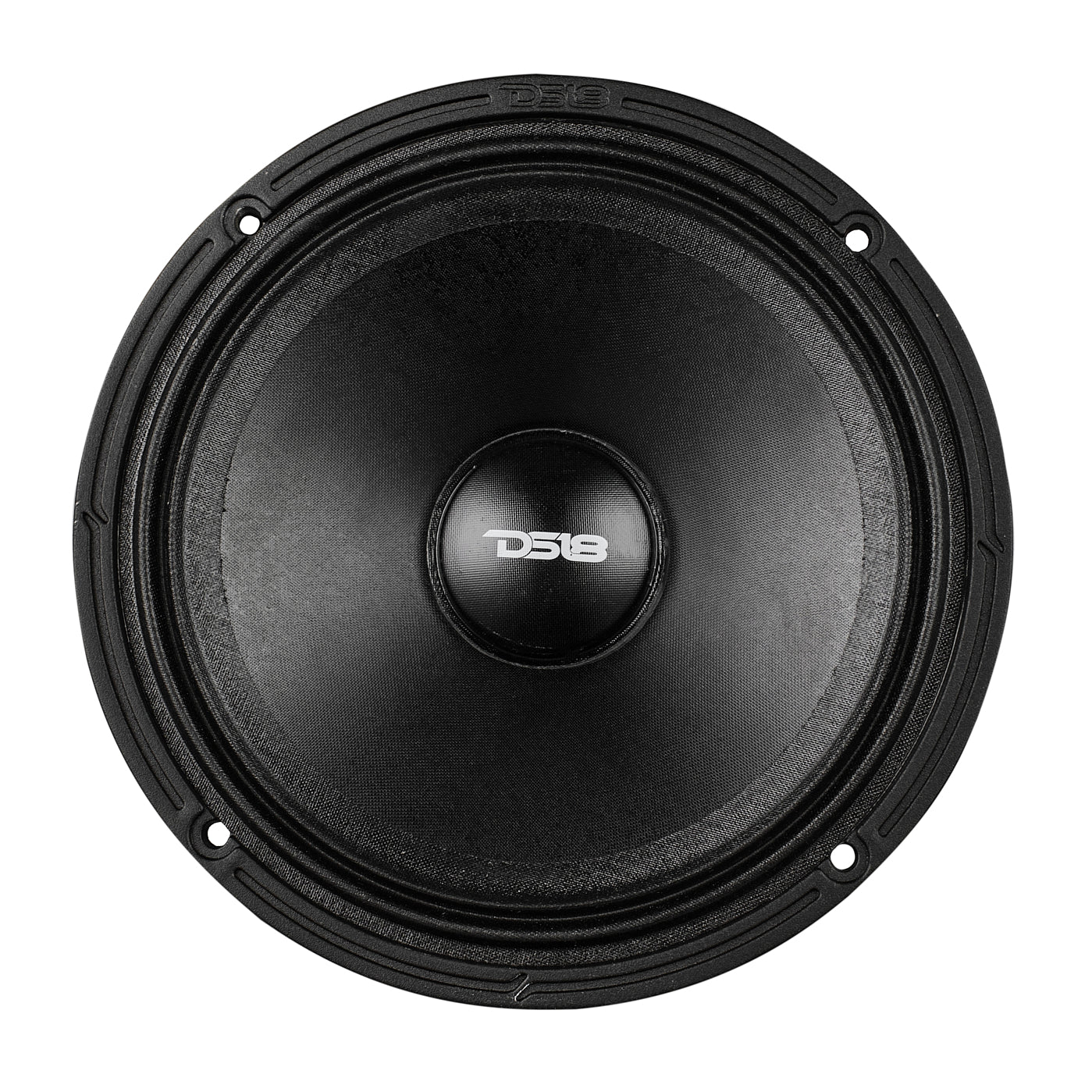

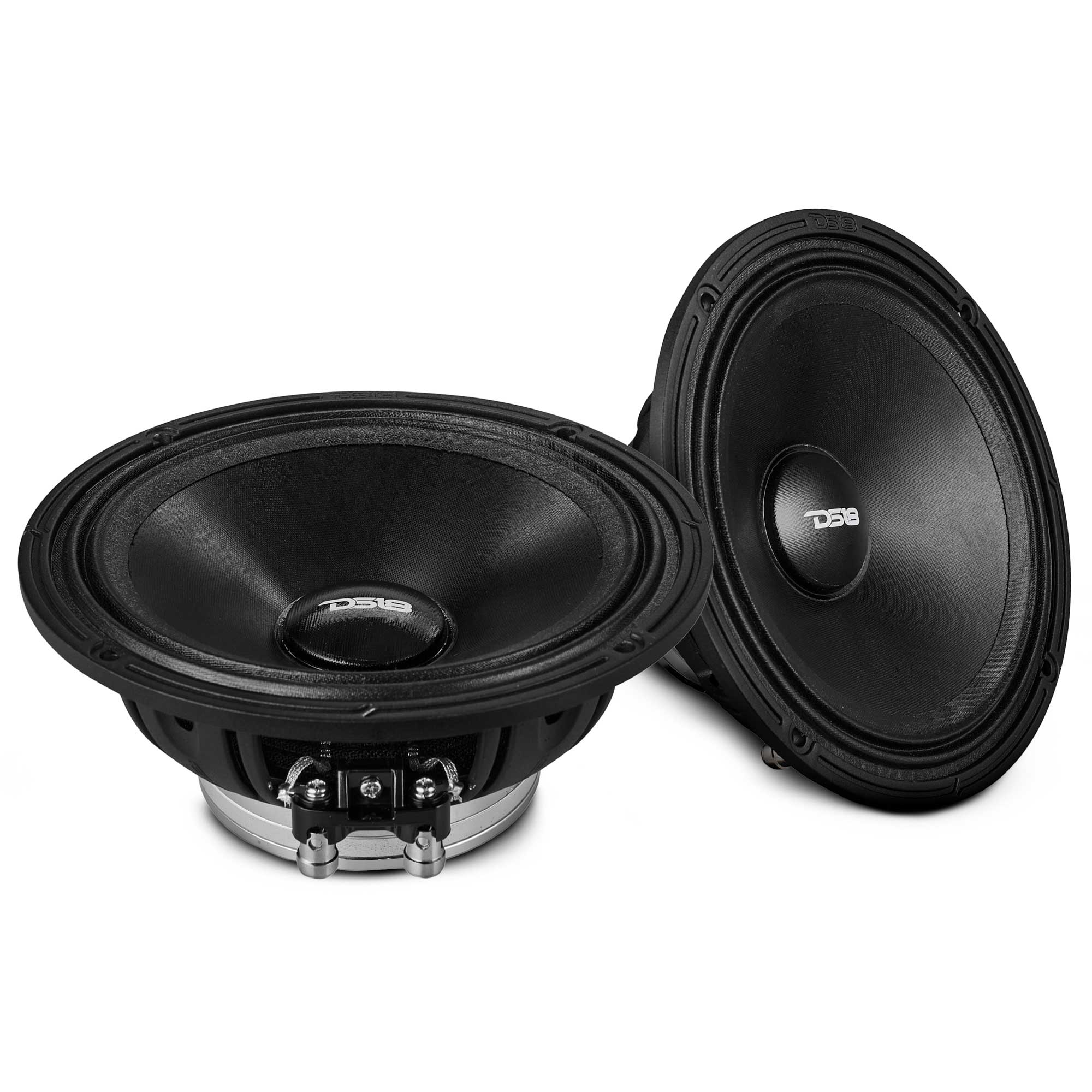

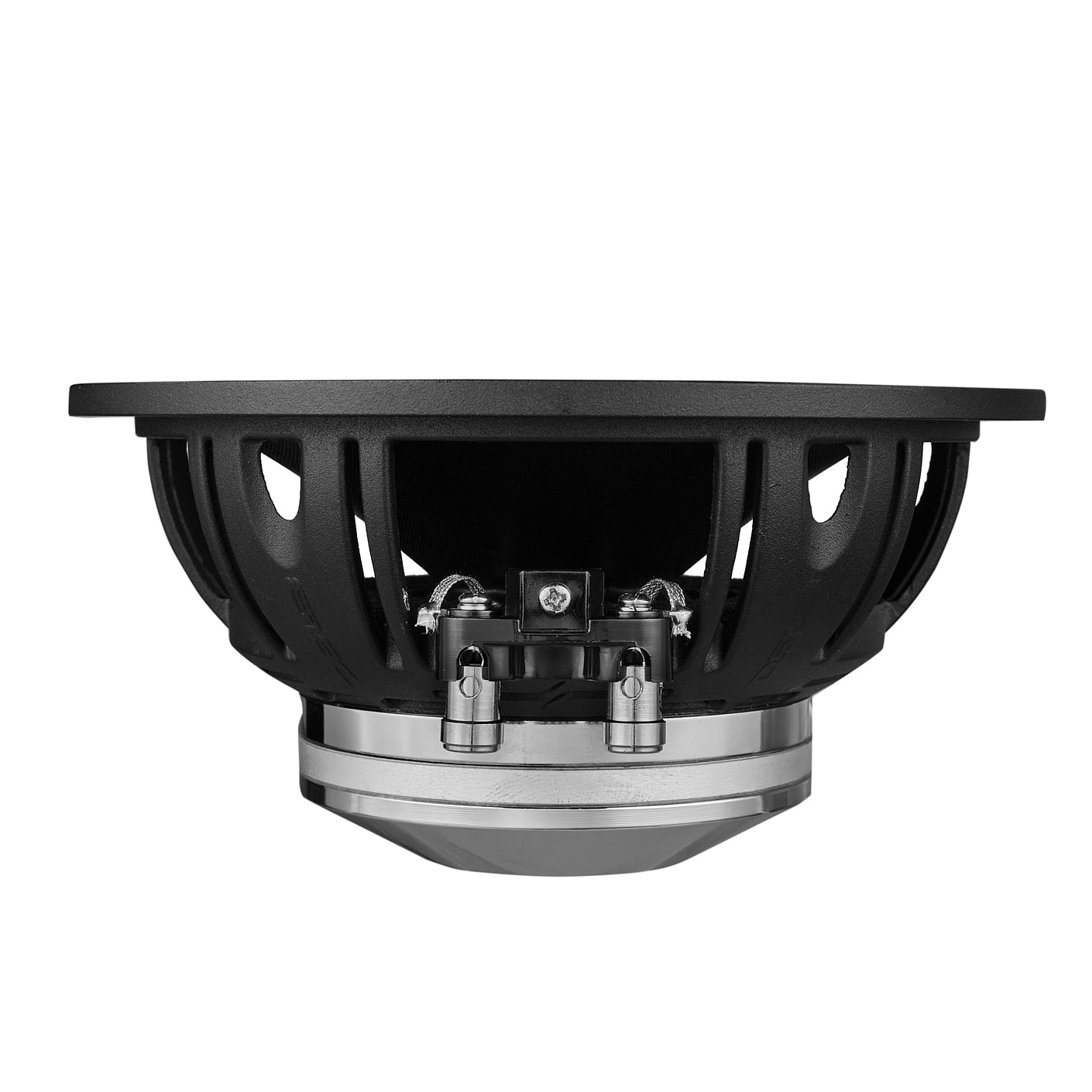

DS18 NVY-6PROEVO-N2

The NVY-6PROEVO is a 6.5″ professional EVO series midrange loudspeaker engineered for high-output pro audio, PA systems, and SPL applications. Available in both 2-ohm and 4-ohm impedance configurations, this driver delivers powerful midrange clarity, strong vocal projection, and excellent efficiency. Built with a durable motor structure and high-temperature voice coil, it ensures reliable performance in demanding environments such as concert systems, custom speaker cabinets, and high-performance car audio builds.


Specifications

Specification Value
Demodulating Rings Yes
Improved Heat Dissipation Yes
Cone Shape Curvilinear
Speaker Terminals Push 14ga
Waterproof Rating IP65

Motor Specifications
Specification Value
Voice Coil Diameter 1.5″ / 38.5 mm
Voice Coil Former Material TIL
Winding Material Copper Ribbon
Cone Material Water-Resistant Glass Fiber + Foam Composite with Resin Finish
Dust Cap Material Water-Resistant Glass Fiber + Foam Composite with Resin Finish
Surround Material Treated Cloth
Leads Connection Type Spider Crossed
Basket Material Aluminum
Basket Color / Finish Black
Magnet Material Neodymium
Magnet Weight 5.1 oz

Thiele & Small Parameters
Parameter Value
Equivalent Volume 5.95 L / 0.21 ft³
Excursion (One Way) 2 mm
Free Air Resonance 100 Hz
Mechanical Factor 9.23
Electrical Factor 0.41
Total Factor 0.4
Mechanical Mass 15.615 g
Mechanical Compliance 0.147 mm/N
BL Factor 6.44
Voice Coil Inductance 0.026 mH
Cone Area 145.27 cm²
DC Resistance 2.16 Ohms
Mechanical Mass w/o Air 13.68 g

Speaker Measurements
Specification Value
Overall Diameter 6.5″ / 167 mm
Overall Depth 3.22″ / 82 mm
Front Mount Baffle Cutout 5.7″ / 145 mm
Mounting Depth 2.97″ / 75.5 mm
Motor Diameter 3.54″ / 90 mm

Product Overview

Made To Last

With a resin-coated glass fiber cone, treated suspension, and sealed internals, the 6PROEVO-N2 is built for long hours under pressure—ready for rain, road, or terrain.


Optimized Power

At 2Ω, this speaker pulls more from your system delivering punch, presence, and dynamics that demand attention.


Seamless Fit

Push terminals, spider-crossed leads, and a compact profile streamline installation across motorcycles, powersports, and marine applications.

Reviews

There are no reviews yet.

Be the first to review “DS18 NVY-6PROEVO-N2”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What type of speaker is the NVY-6PROEVO?

A1: It is a 6.5-inch professional midrange loudspeaker designed for high-output pro audio and PA systems.

Q2: What impedance options are available?

A2: It is available in both 2-ohm and 4-ohm configurations.

Q3: Where can this speaker be used?

A3: It is ideal for PA speaker cabinets, stage systems, portable rigs, custom car audio setups, and SPL builds requiring strong midrange output.

Q4: Is this a full-range speaker?

A4: No, it is a dedicated midrange driver and should be paired with a tweeter and proper crossover for full-range systems.

Q5: Do I need an amplifier?

A5: Yes, a dedicated external amplifier is recommended for optimal performance and output.
