Name: DS18 NVY-6HDCF-N4
SKU: NVY-6HDCF-N4
Availability: InStock

Description

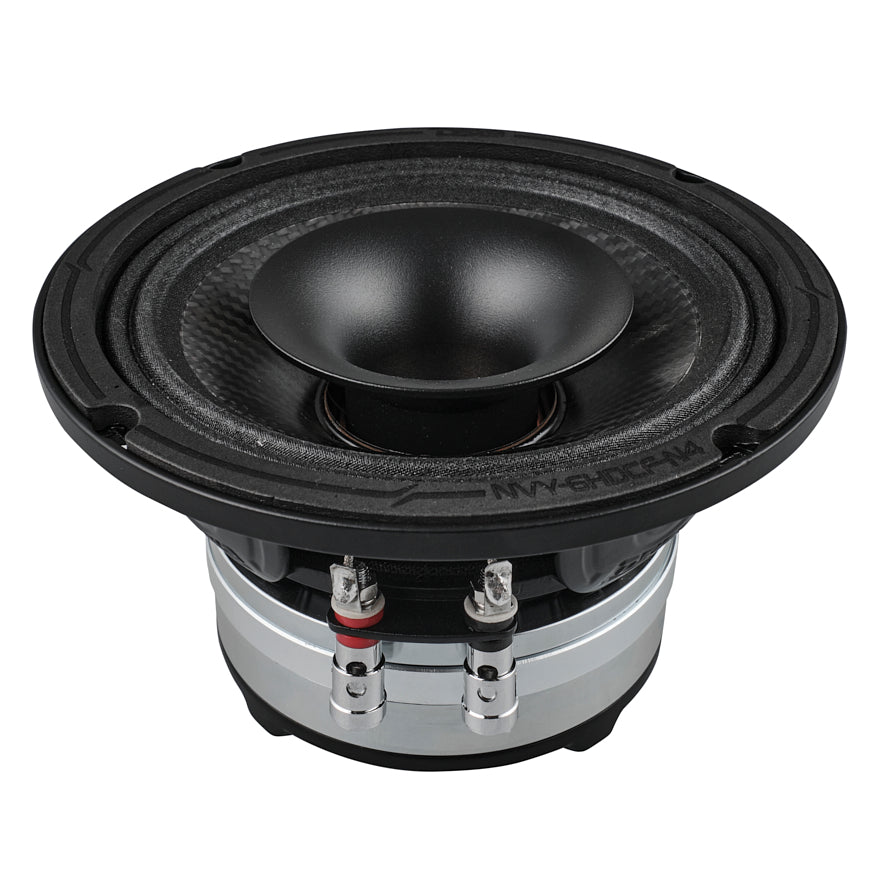

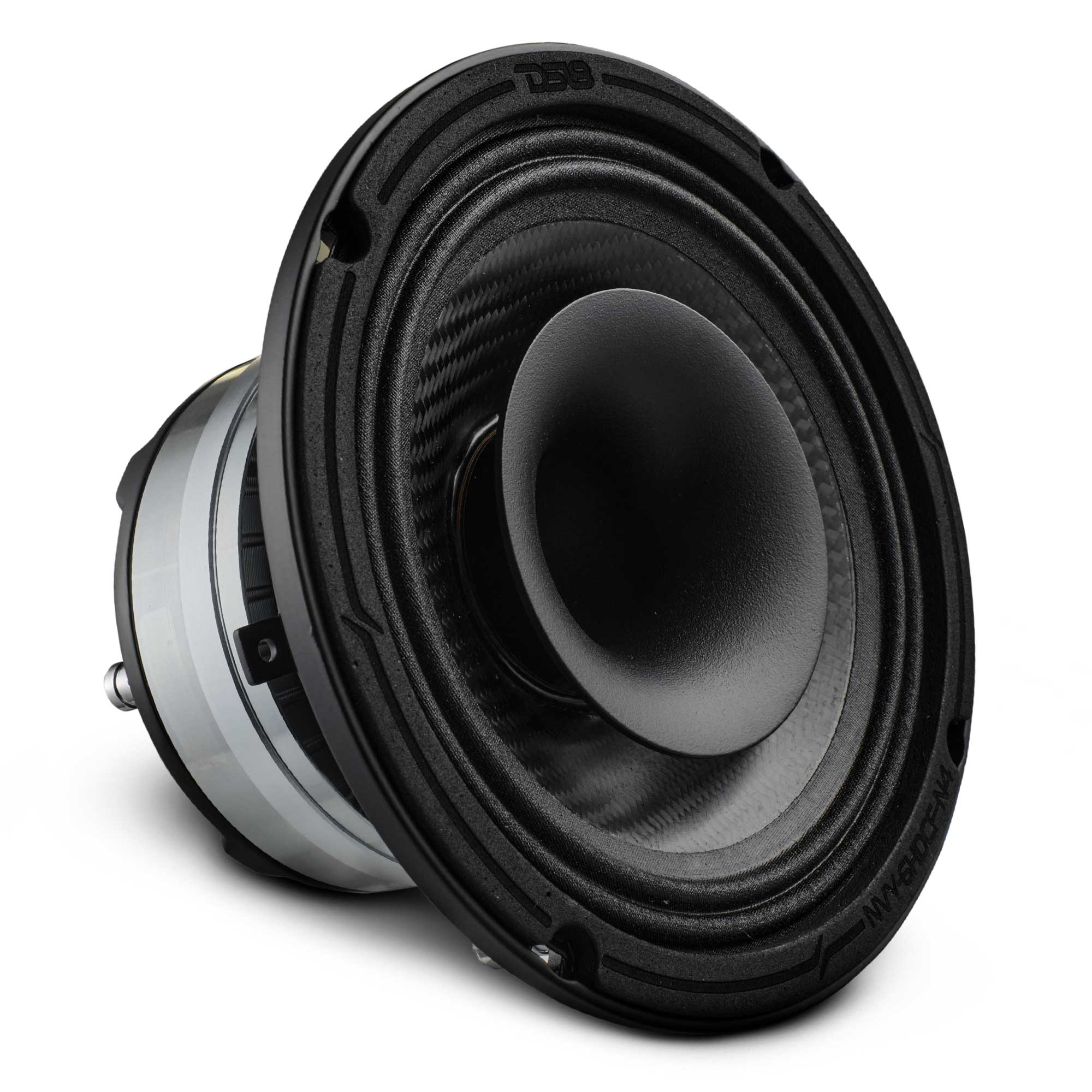

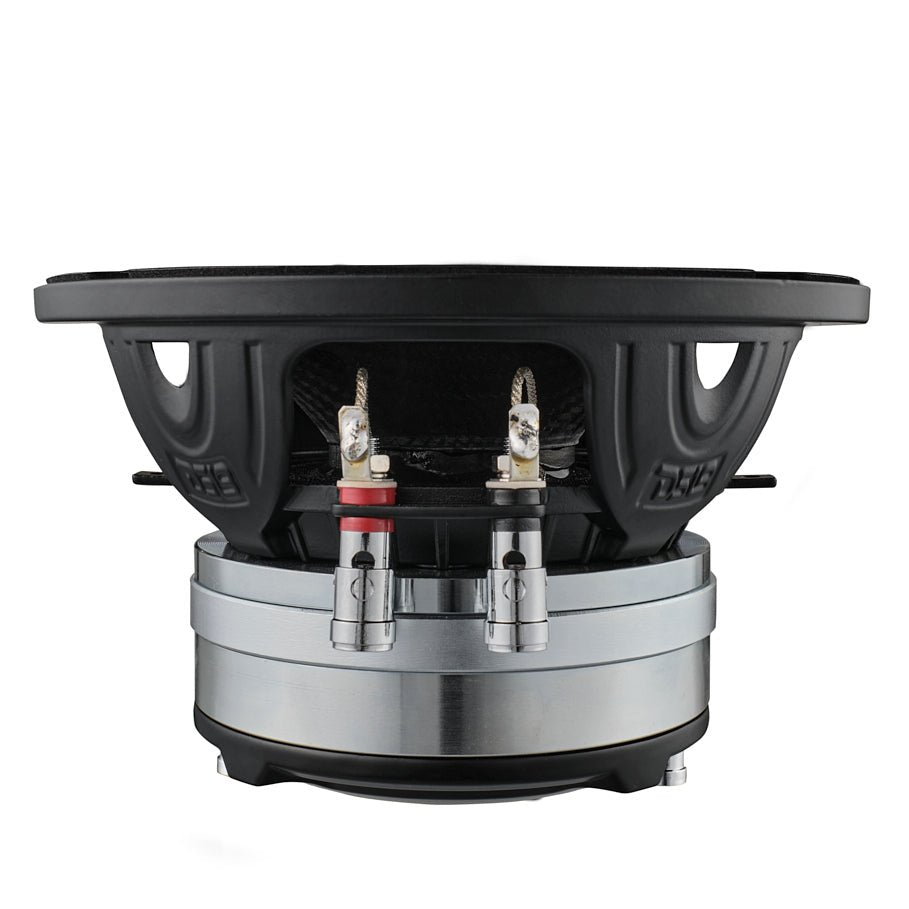

DS18 NVY-6HDCF-N4

The NVY-6HDCF-N4 is a 6.5″ high-output mid-bass/midrange loudspeaker designed for powerful sound performance and reliable durability. With a 4-ohm impedance, this driver delivers strong mid-bass punch and clear midrange detail, making it ideal for pro audio systems, PA setups, car audio upgrades, and SPL-oriented builds. Its reinforced cone and robust motor design ensure consistent performance even under demanding high-volume conditions.

Specifications

Specification	Value
RMS Power Handling	200 W
Max Power Handling	400 W
Nominal Impedance	4 Ohms
Sensitivity (1W/1m)	96 dB
Frequency Response	70 Hz – 10 kHz
Recommended Band-Pass Crossover	120 Hz – 2000 Hz
Voice Coil Diameter	2″ / 50.8 mm
Voice Coil Former Material	KAPTON
Winding Material	CCAW
Cone Material	Carbon Fiber
Surround Material	Treated Cloth
Basket Material	Die Cast Aluminum
Basket Finish	Black Sandblasted
Magnet Material	Neodymium
Magnet Size	110 × 10 mm
Magnet Weight	17.63 oz

Driver Specifications

Specification	Value
AES Power Handling	100 W
Program Power Handling	200 W
Nominal Impedance	8 Ohms
Sensitivity (1W/1m)	100 dB
Frequency Response	600 Hz – 20 kHz
Recommended High-Pass Crossover	2000 Hz
Voice Coil Diameter	2″ / 50.8 mm
Voice Coil Former Material	KAPTON
Winding Material	CCA
Diaphragm Material	Titanium (Japan)
Magnet Material	Neodymium
Horn Diameter	3.2″ / 81.9 mm
Horn Material	Die Cast Aluminum

Thiele & Small Parameters (Woofer)

Parameter	Value
Equivalent Volume (Vas)	3.97 L / 0.14 ft³
Excursion (Xmax, one way)	3 mm
Free Air Resonance (Fs)	125 Hz
Mechanical Q (Qms)	7.757
Electrical Q (Qes)	0.424
Total Q (Qts)	0.402
Mechanical Mass (Mms)	10.862 g
Mechanical Compliance (Cms)	0.154 mm/N
BL Factor	8.448
Voice Coil Inductance (Le)	0.07 mH
Cone Area (Sd)	143.7 cm²
DC Resistance (Re)	3.6 Ohms

Speaker Measurements

Measurement	Value
Overall Diameter	6.7″ / 170 mm
Overall Depth	4.15″ / 105.5 mm
Front Mount Baffle Cutout	5.7″ / 145 mm
Mounting Depth	3.8″ / 97.3 mm
Motor Diameter	4.3″ / 110 mm

Product Overview

Tuned For Power And Precision

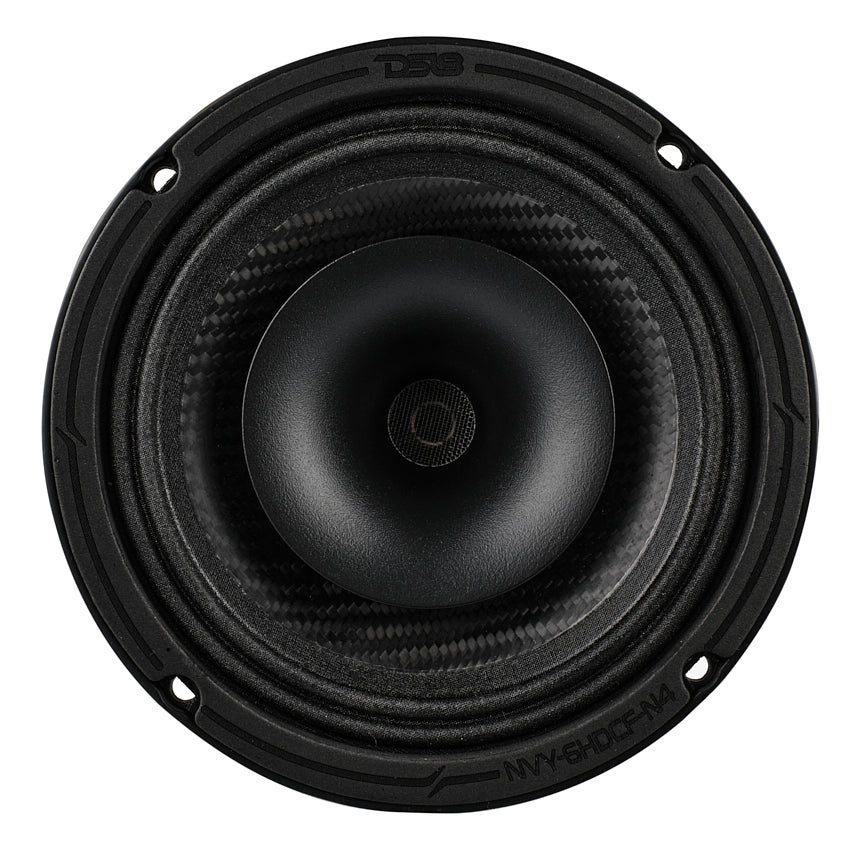

With a 6.5″ carbon fiber cone, 2″ compression driver, and handling an RMS power of 300W, it delivers high-output volume and clarity at all speeds.

Made to Move

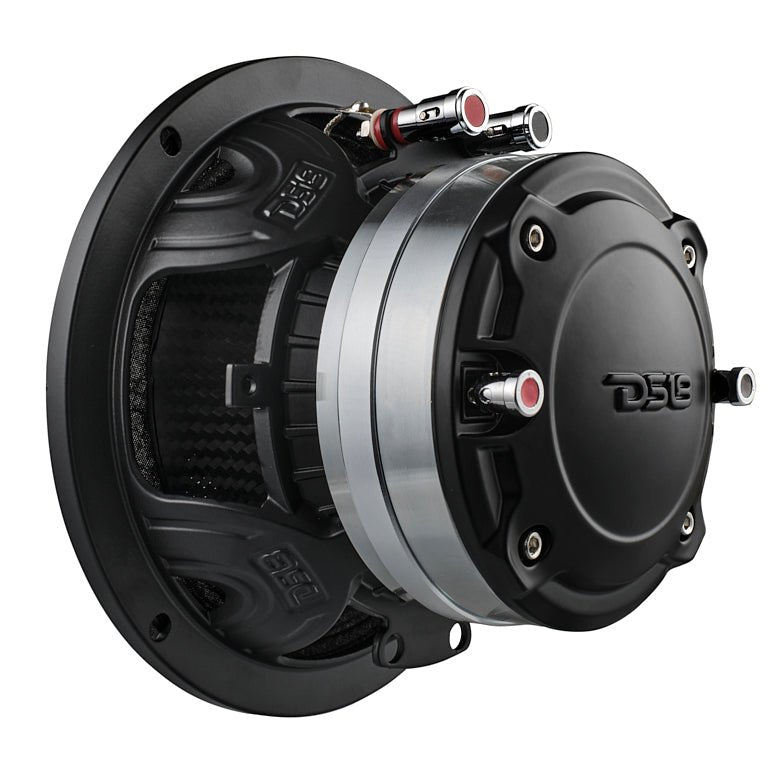

At its core is a 4-ohm woofer and an 8-ohm neodymium compression driver featuring a Japanese titanium diaphragm, and die-cast aluminum horn for high-frequency projection and clarity.

Built For Extremes

The IP65-rated carbon fiber cone shrugs off the harshest conditions, while the die-cast aluminum basket provides a powerful foundation for long-lasting performance.
