Name: DS18 NVY-6HD-N4
SKU: NVY-6HD-N4
Availability: InStock

Description

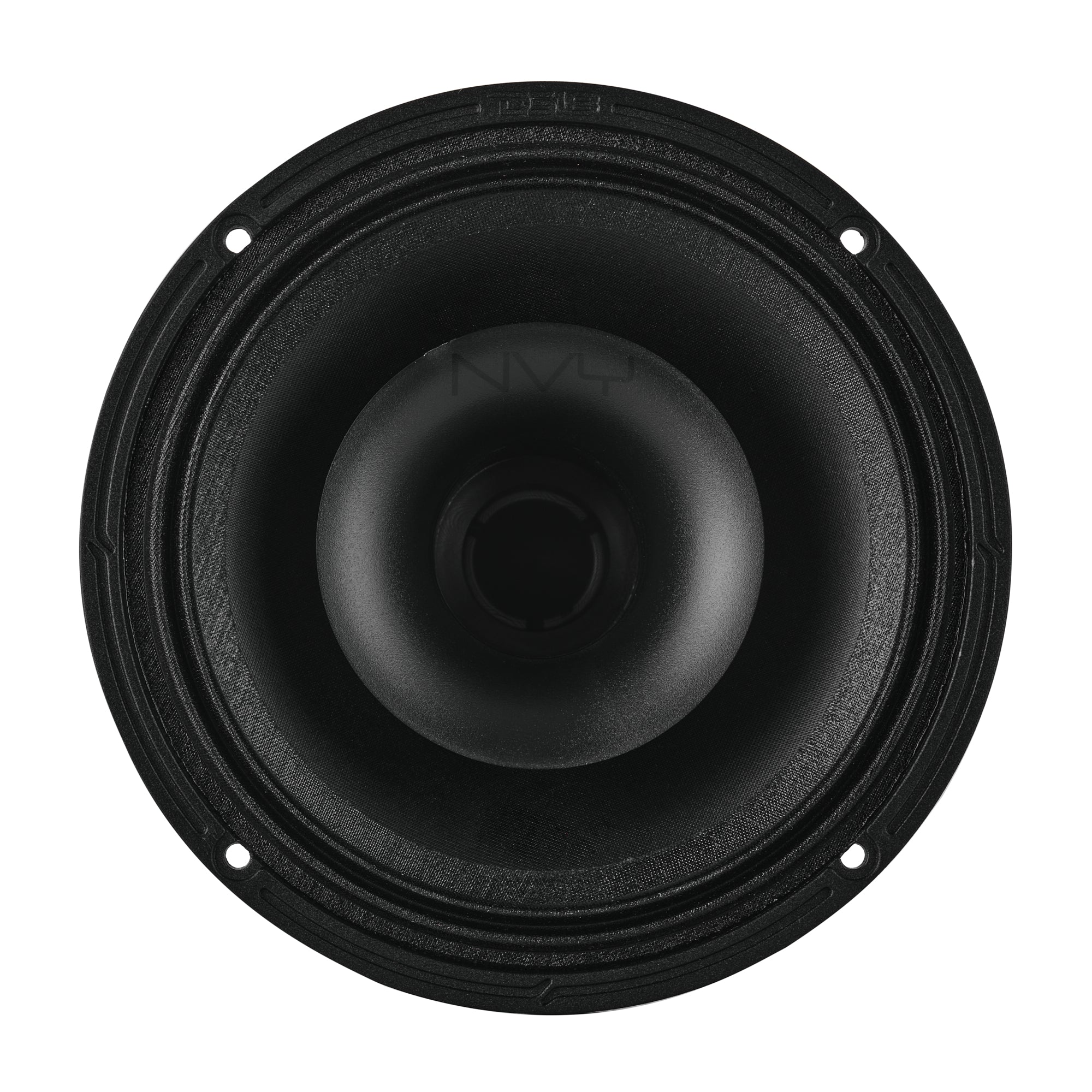

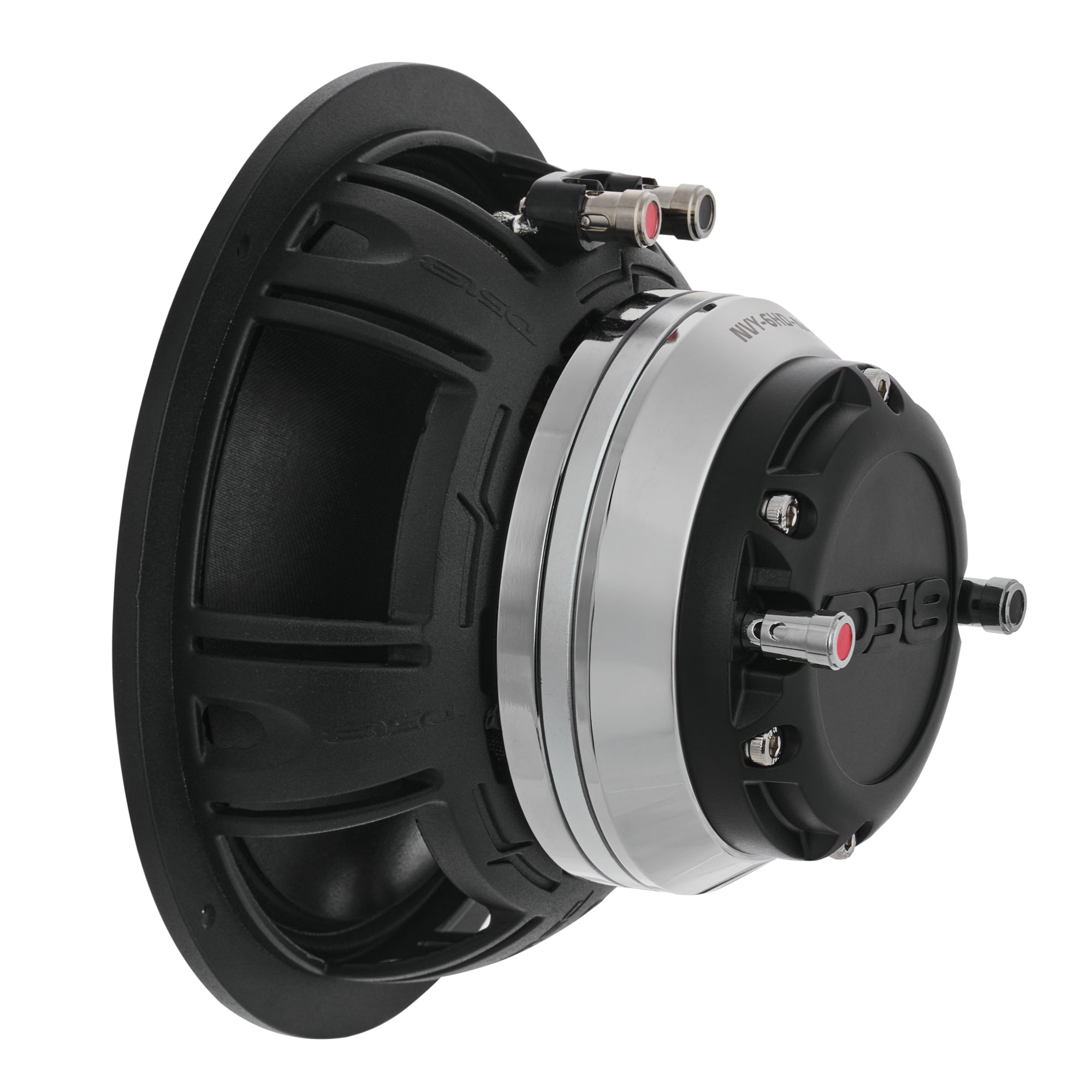

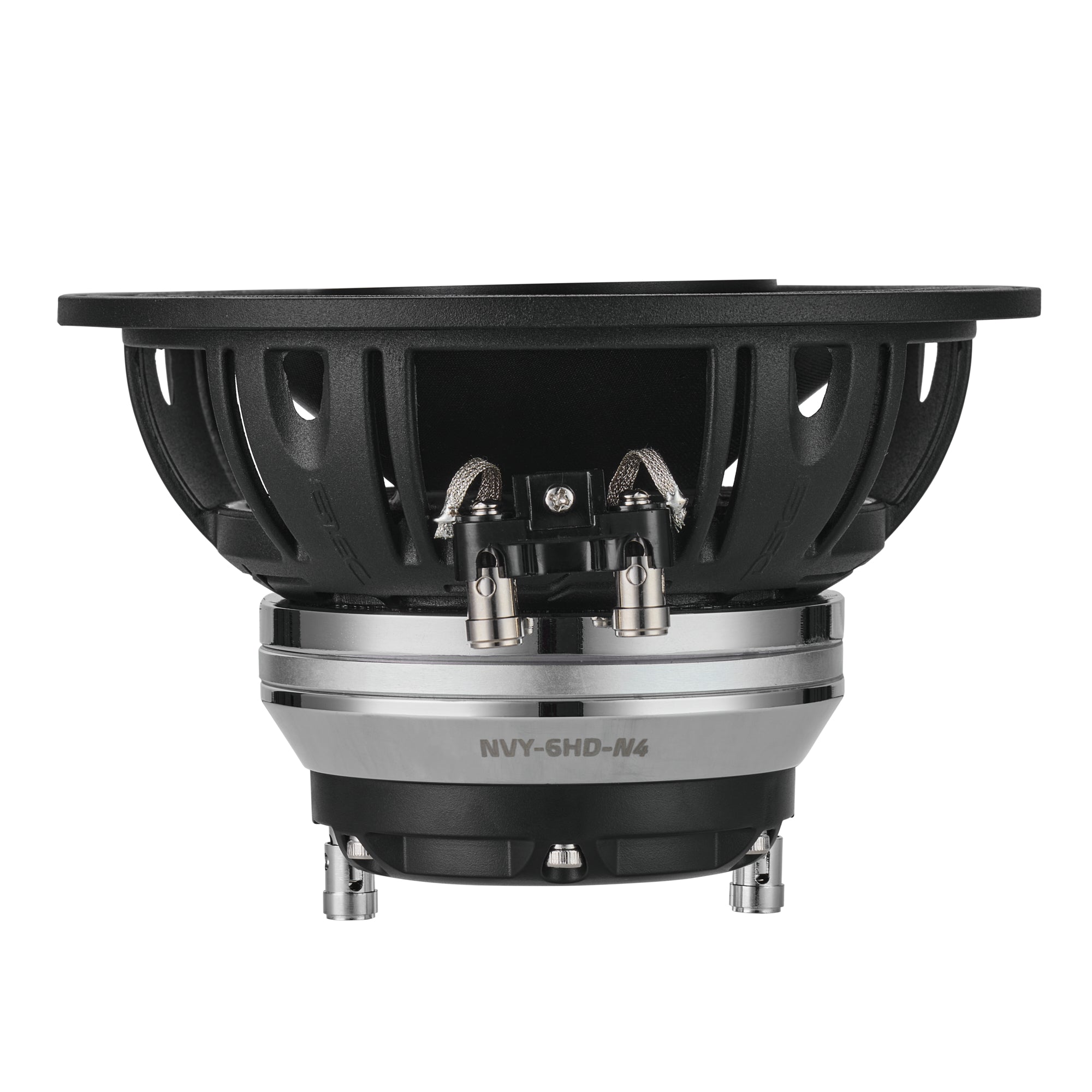

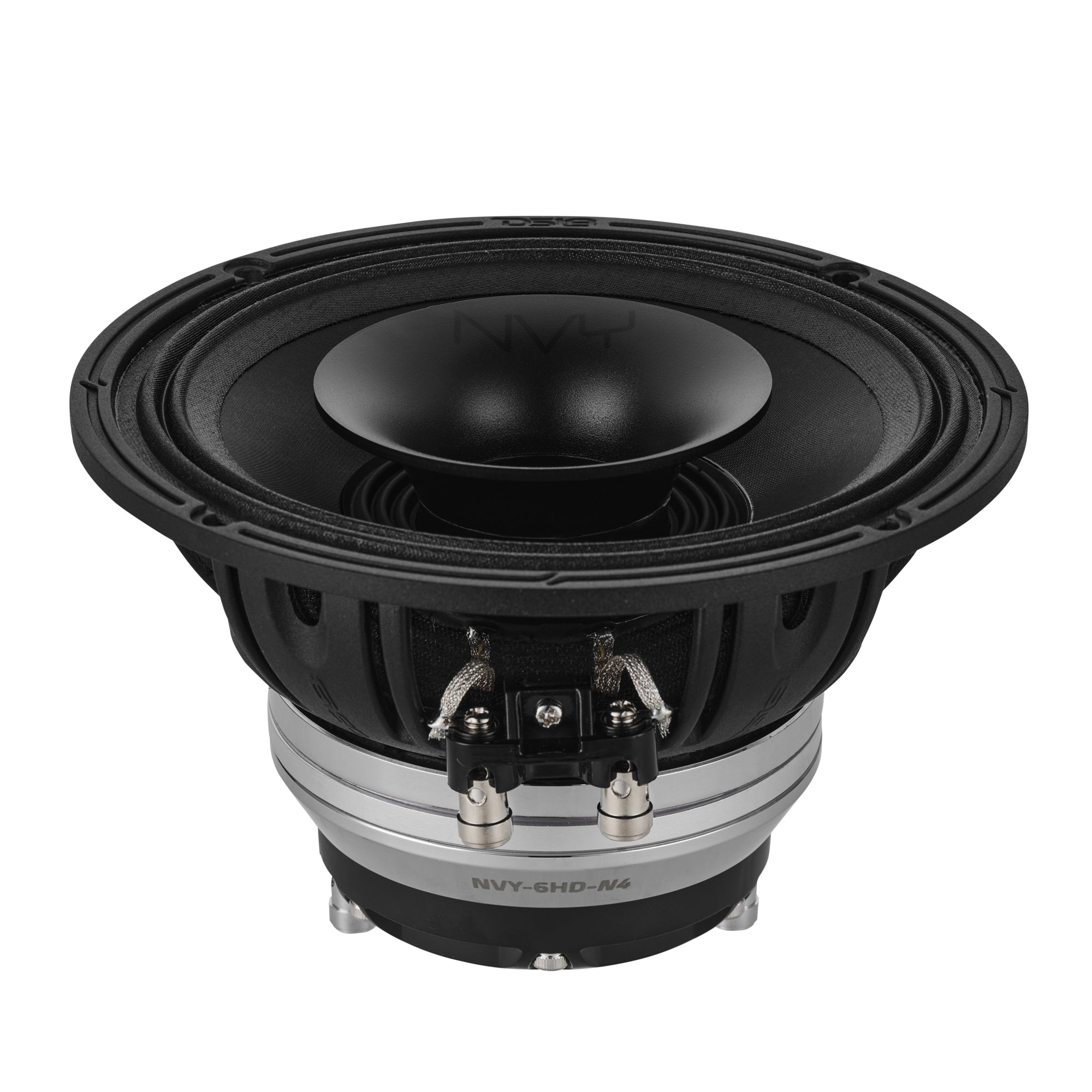

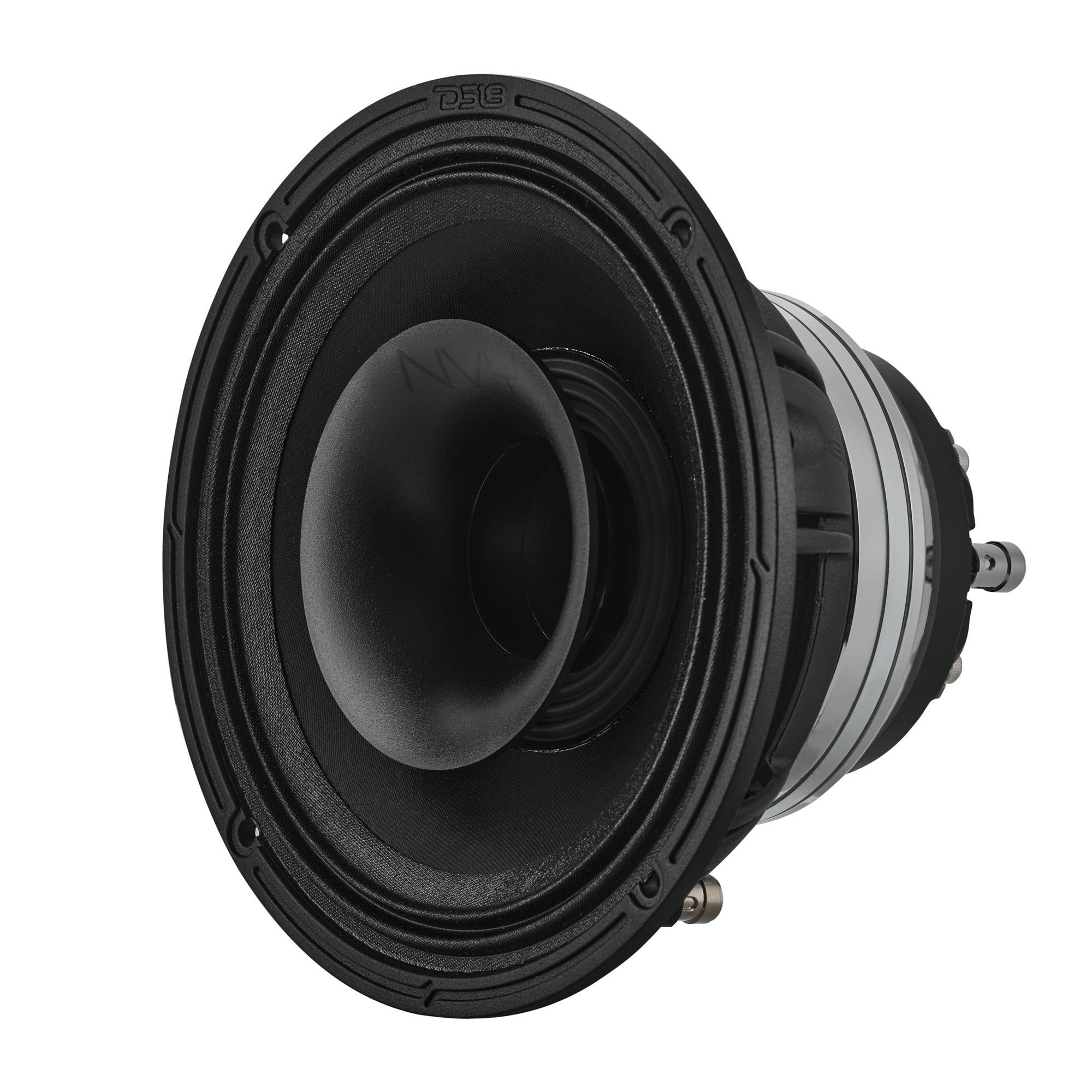

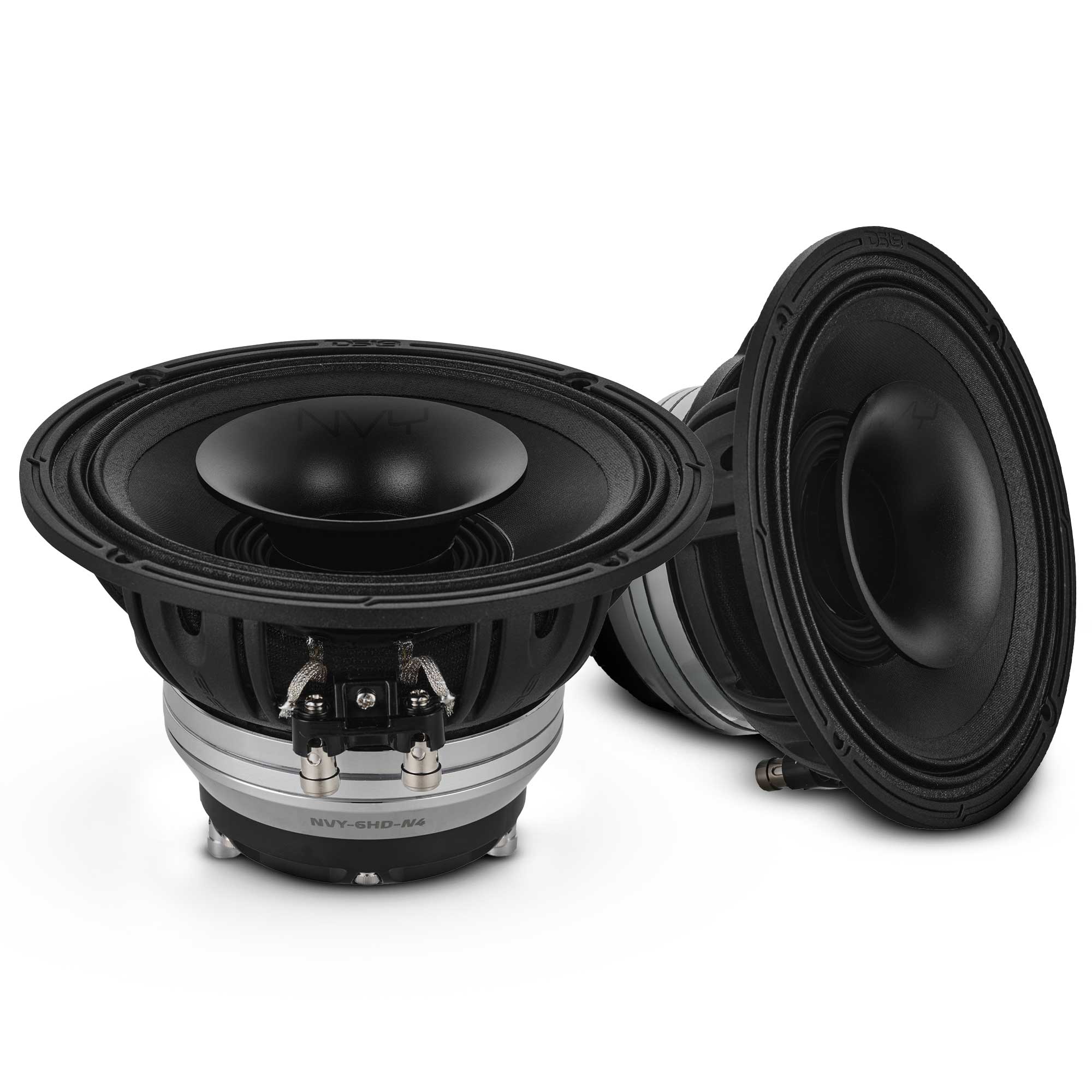

DS18 NVY-6HD-N4

The NVY-6HD-N4 is a 6.5″ high-performance full-range/mid-bass loudspeaker designed to deliver balanced audio with strong mid-bass response and clear midrange detail. With a 4-ohm impedance, it efficiently pairs with most car audio and pro audio amplifiers, making it suitable for car audio upgrades, motorcycles, PA systems, and custom audio installs where powerful full-range sound and reliability are desired. Its durable build and optimized motor design provide consistent performance even at higher volumes.

Specifications

Feature	Specification
Demodulating Rings	Yes
Improved Heat Dissipation	Yes
Cone Shape	Curvilinear
Speaker Terminals	Push 14ga
Waterproof Rating	IP65

Woofer Specifications

Specification	Value
Nominal Impedance	4 Ohms
RMS Power Handling	200W
Max Power Handling	400W
Sensitivity (1w/1m)	92 dB
Frequency Response	80Hz – 12KHz
Recommended Band-Pass Crossover	120Hz – 2KHz
Voice Coil Diameter	2″ (50.8mm)
Voice Coil Former Material	TIL
Winding Material	Copper Ribbon
Cone Material	Water Resistant Glass Fiber + Foam Composite with Resin Finish
Surround Material	Treated Cloth
Basket Material	Aluminum
Basket Color/Finish	Black
Magnet Material	Neodymium
Magnet Weight	5.33 oz

Thiele & Small Parameters

Parameter	Value
Equivalent Volume (Vas)	2.49L / 0.0879ft³
Excursion (Xmax, one way)	2mm
Free Air Resonance (Fs)	140Hz
Mechanical Q (Qms)	18.239
Electrical Q (Qes)	0.766
Total Q (Qts)	0.736
Mechanical Mass (Mms)	15.272g
Mechanical Compliance (Cms)	0.083mm/N
BL Factor	8.143
Voice Coil Inductance (Le)	0.140mH
Cone Area (Sd)	145.27cm²
DC Resistance (Re)	3.76 Ohms
Mechanical Mass w/o Air	13.293g

Driver Specifications (Tweeter)

Specification	Value
Nominal Impedance	4 Ohms
RMS Power Handling	50W
Max Power Handling	100W
Sensitivity (1w/1m)	100 dB
Frequency Response	830Hz – 20KHz
Recommended High-Pass Crossover	2KHz
Voice Coil Diameter	1″ (25.4mm)
Voice Coil Former Material	KSV
Winding Material	CCAW
Diaphragm Material	Titanium
Magnet Material	Neodymium
Horn Diameter	3.15″ (80mm)

Speaker Measurements

Measurement	Value
Overall Diameter	6.5″ (167mm)
Overall Depth	4″ (103mm)
Front Mount Baffle Cutout	5.7″ (145mm)
Mounting Depth	3.7″ (94mm)
Motor Diameter	3.94″ (100mm)

Product Overview

Behind the Build

A water-resistant composite cone, aluminum basket, and reinforced suspension system work together to deliver clean, distortion-free output—even at high volume.

Strength in Every Detail

With spider-crossed leads, demodulating rings, and a dual-magnet motor, the NVY-6HD-N4 maintains performance over long hours and loud sessions.

Easy To Install

14ga push terminals and a universal cutout make install simple, secure, and system-ready.
