Description

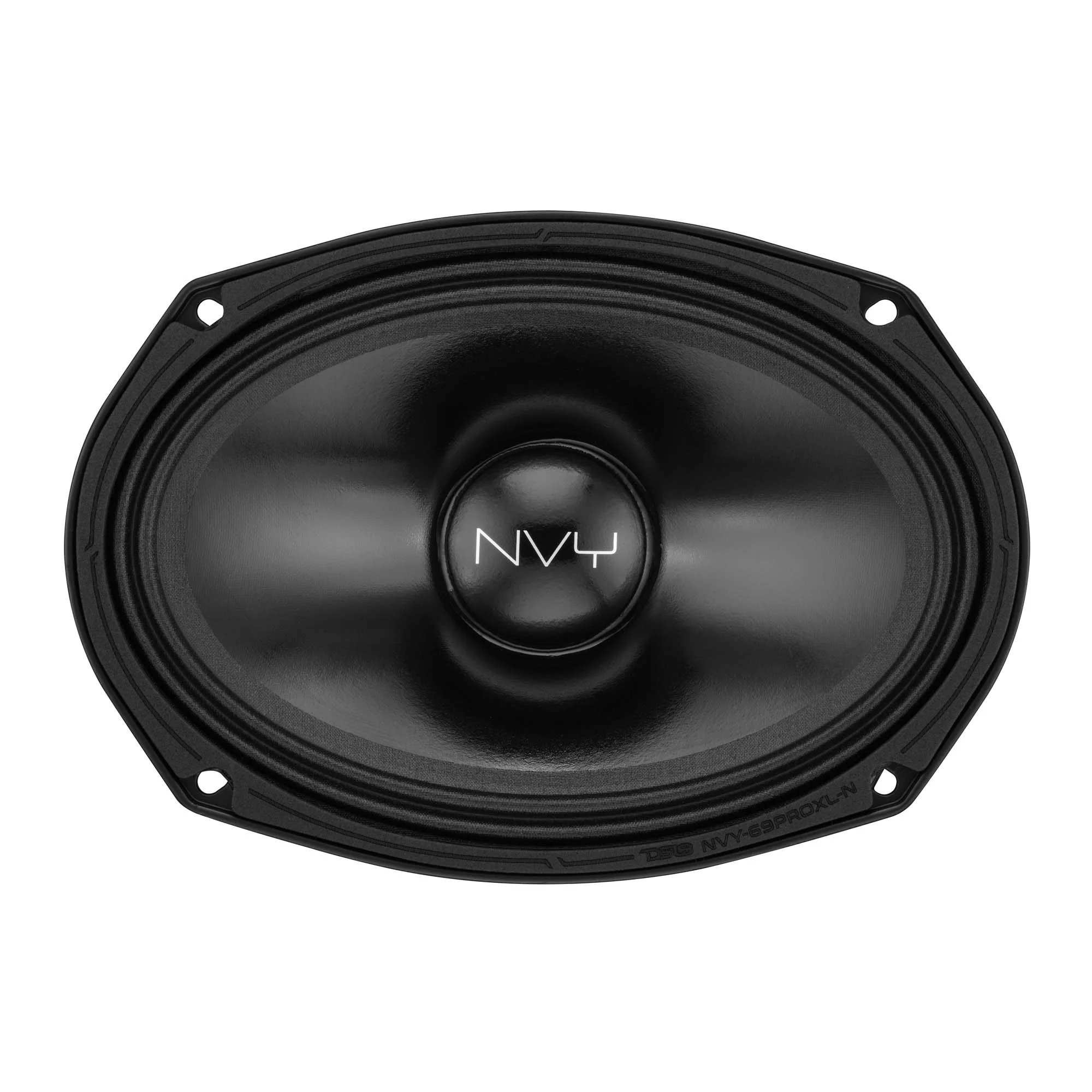

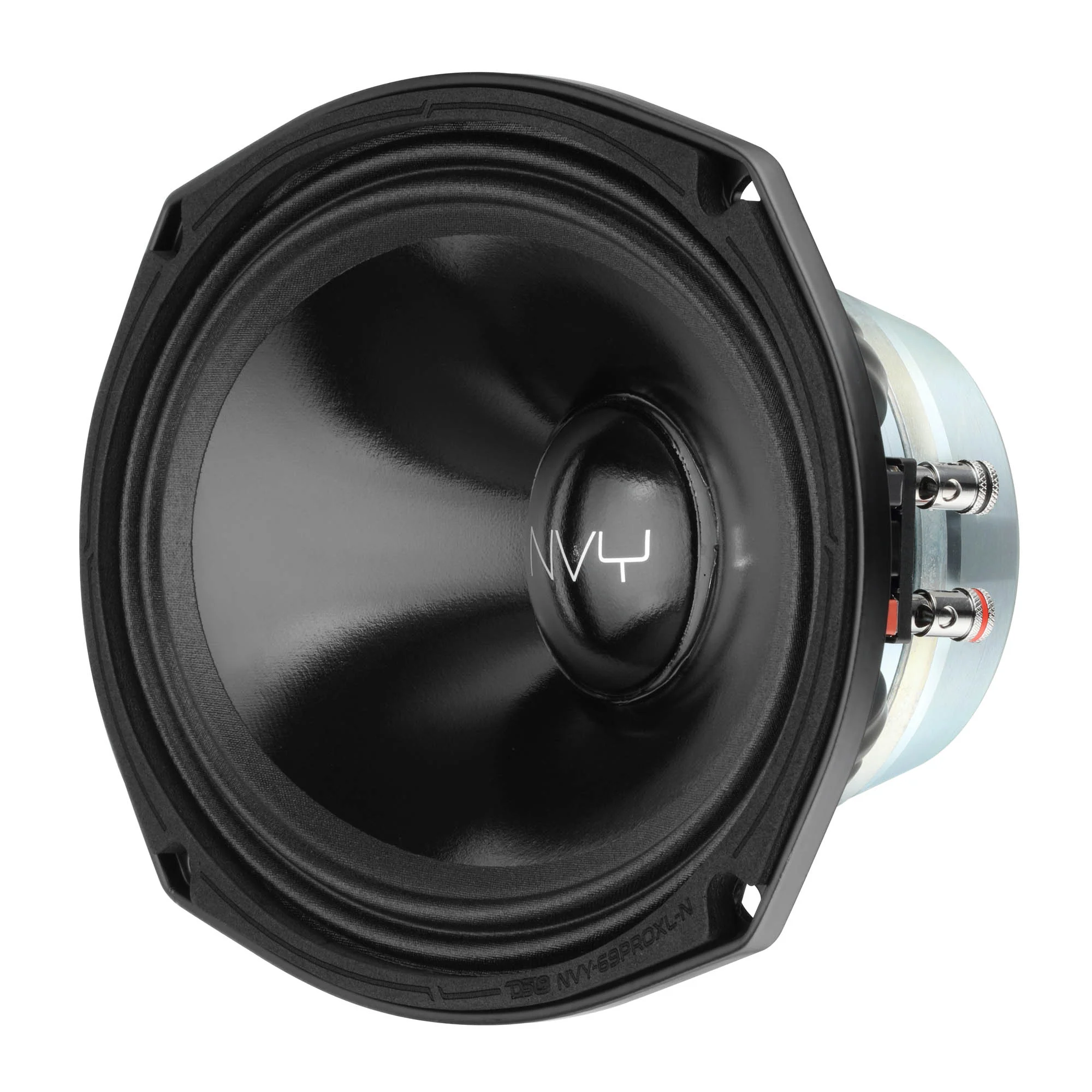

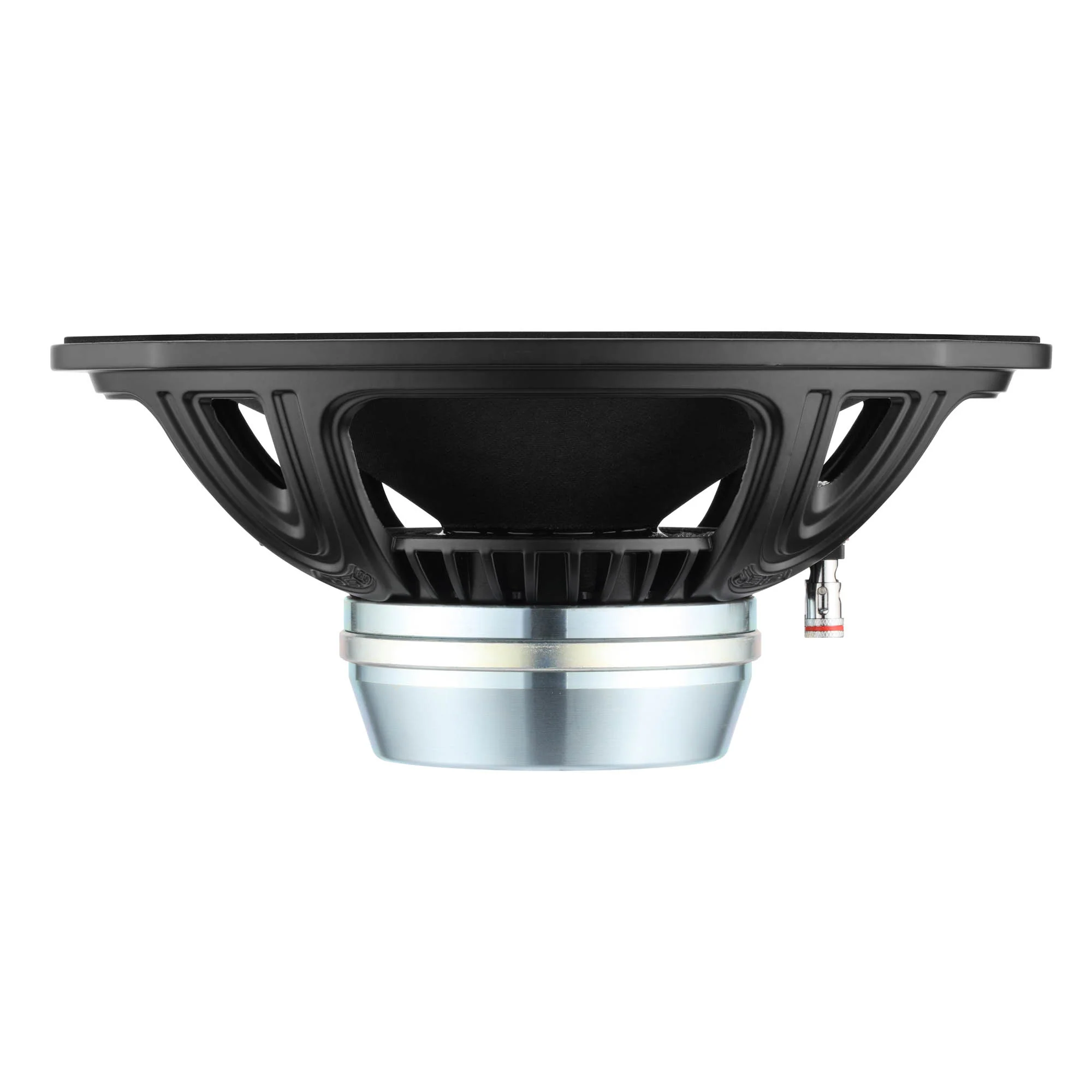

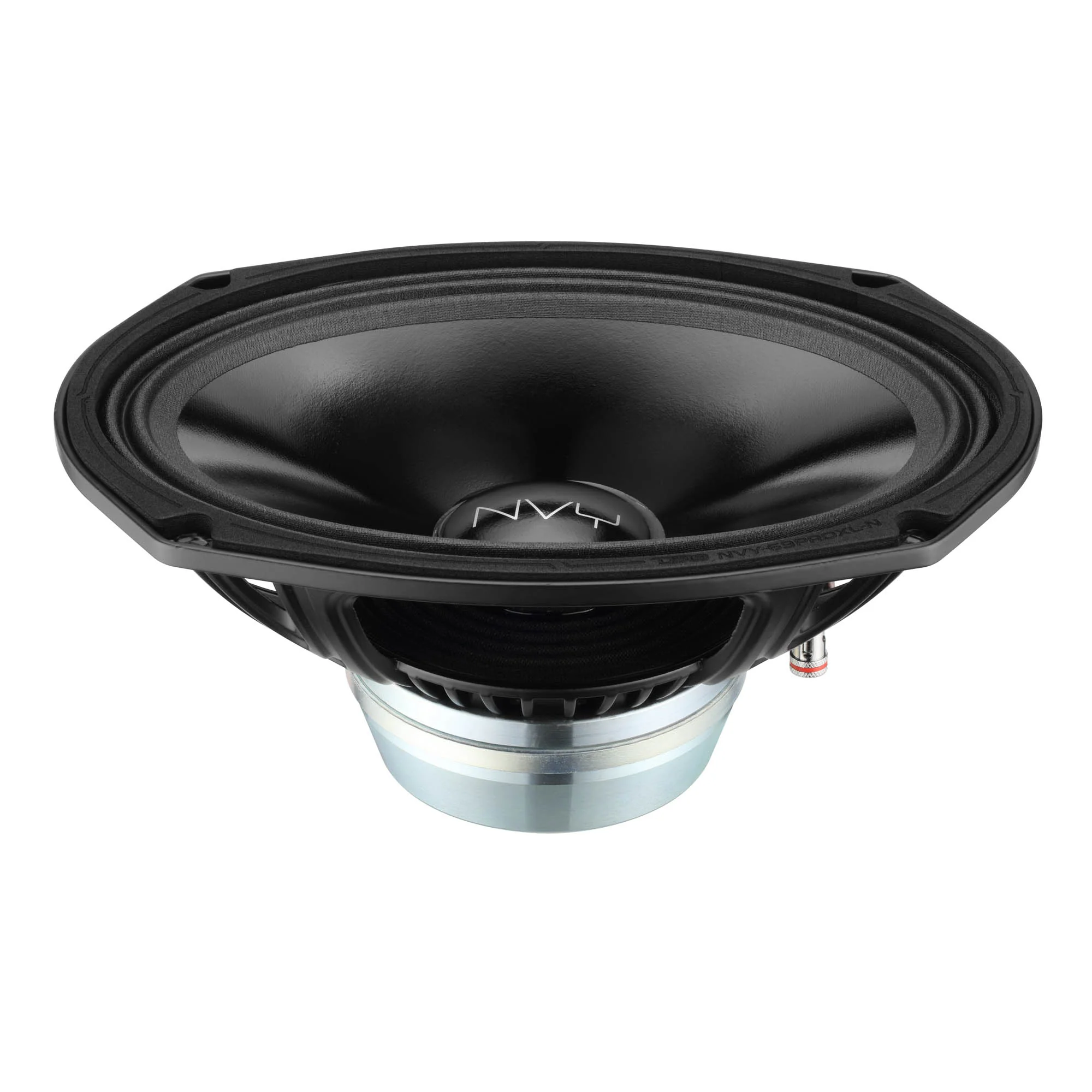

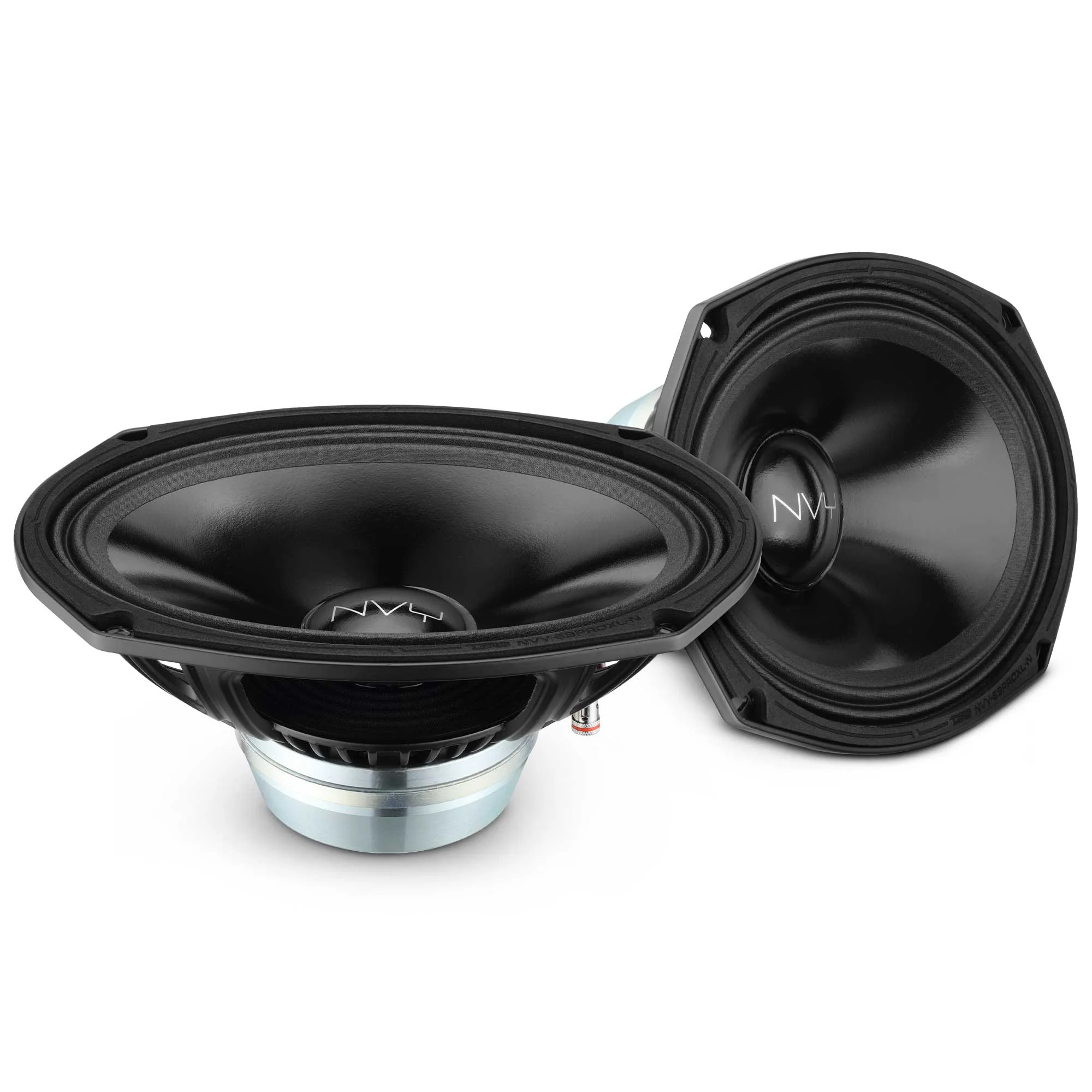

DS18 NVY-69PROXL-N4
The NVY-69PROXL is a powerful 6×9-inch pro audio midrange speaker designed to deliver extremely loud and clear vocals for high-performance car audio systems. Built for SPL and professional audio setups, this midrange driver produces strong mid frequencies with excellent clarity and minimal distortion even at high volume levels. Its durable cone construction and high-efficiency motor structure ensure reliable performance during intense audio playback. The NVY-69PROXL is available in 2-ohm and 4-ohm impedance options, providing flexibility for different amplifier configurations and custom audio builds. This speaker is ideal for enthusiasts who want powerful vocal output and detailed midrange sound in their system.
Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 2 in / 50.8 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper with water-resistant coating |
| Dust Cap Material | Paper with water-resistant coating |
| Surround Material | Treated cloth |
| Leads Connection Type | Spider crossed |
| Basket Material | Aluminum |
| Basket Color | Black |
| Magnet Material | Neodymium |
| Magnet Weight | 10 oz |
| Speaker Displacement | 0.03 L |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 17.9 L / 0.632 ft³ |
| Excursion (Xmax, one way) | 2.3 mm |
| Free Air Resonance (Fs) | 80 Hz |
| Mechanical Factor (Qms) | 7.54 |
| Electrical Factor (Qes) | 0.25 |
| Total Factor (Qts) | 0.24 |
| Moving Mass (Mms) | 15.64 g |
| Mechanical Compliance (Cms) | 0.24 mm |
| BL Factor | 7.14 |
| Voice Coil Inductance (Le) | 0.04 mH |
| Cone Area (Sd) | 226.98 cm² |
| DC Resistance (Re) | 3.6 Ohms |
| Mechanical Mass without Air (Mmd) | 14.234 g |

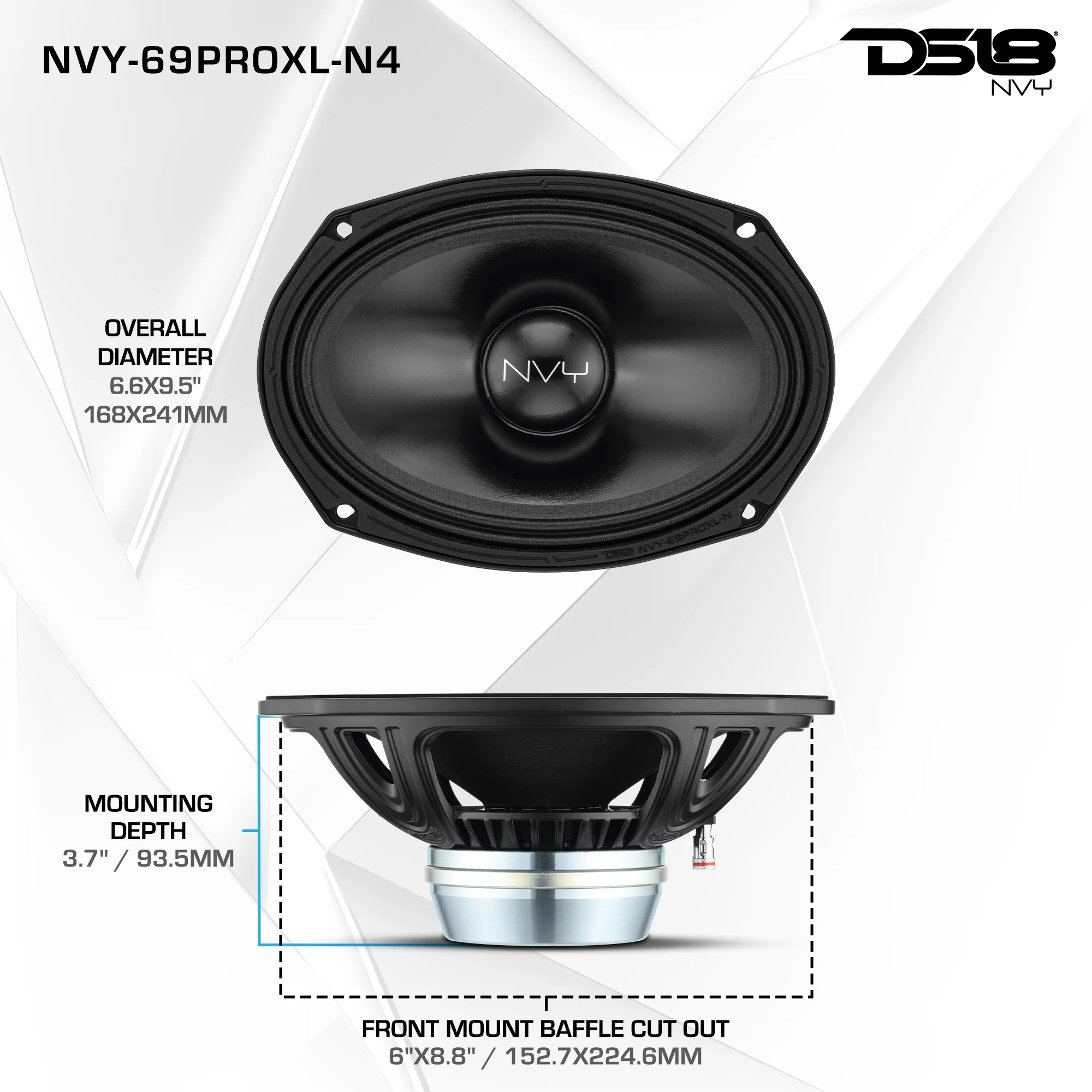

Measurements
| Measurement | Value |
|---|---|
| Overall Diameter | 6.6 × 9.5 in / 168 × 241 mm |
| Overall Depth | 4 in / 102 mm |
| Front Mount Baffle Cutout | 6 × 8.8 in / 152.7 × 224.6 mm |
| Mounting Depth | 3.7 in / 93.5 mm |
| Motor Diameter | 4 in / 102 mm |
Product Overview
Touring-Tuned Performance
With 400W RMS and 97.5dB sensitivity, this speaker is made for high-output systems that stay clean and controlled at highway speed. Its 70Hz–11kHz frequency response is voiced for midrange dominance — the perfect complement to tweeter and sub setups in baggers or fairings.
Sealed Against the Road
Its paper cone is treated with a water-resistant coating and sealed with a matching dust cap to keep your sound tight and dry. Rated IP65 and paired with a treated cloth surround, it’s engineered to handle real-world riding.

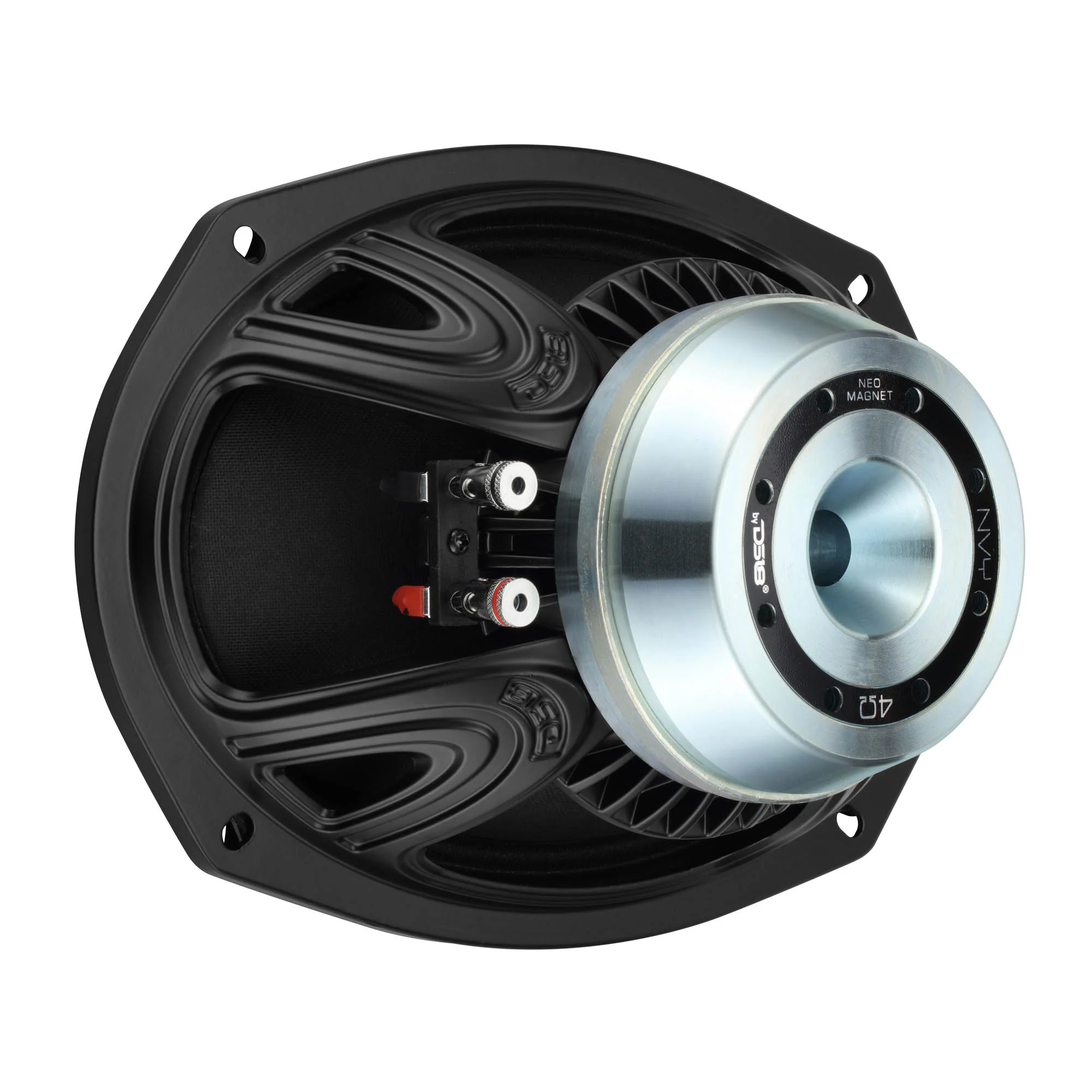

Neodymium Muscle
Backed by a compact neodymium magnet and a high-efficiency 2″ voice coil, the NVY-69PROXL-N4 delivers loud, clean midrange with reduced weight and minimal space.
