Description
DS18 NVY-69CFZT-N4

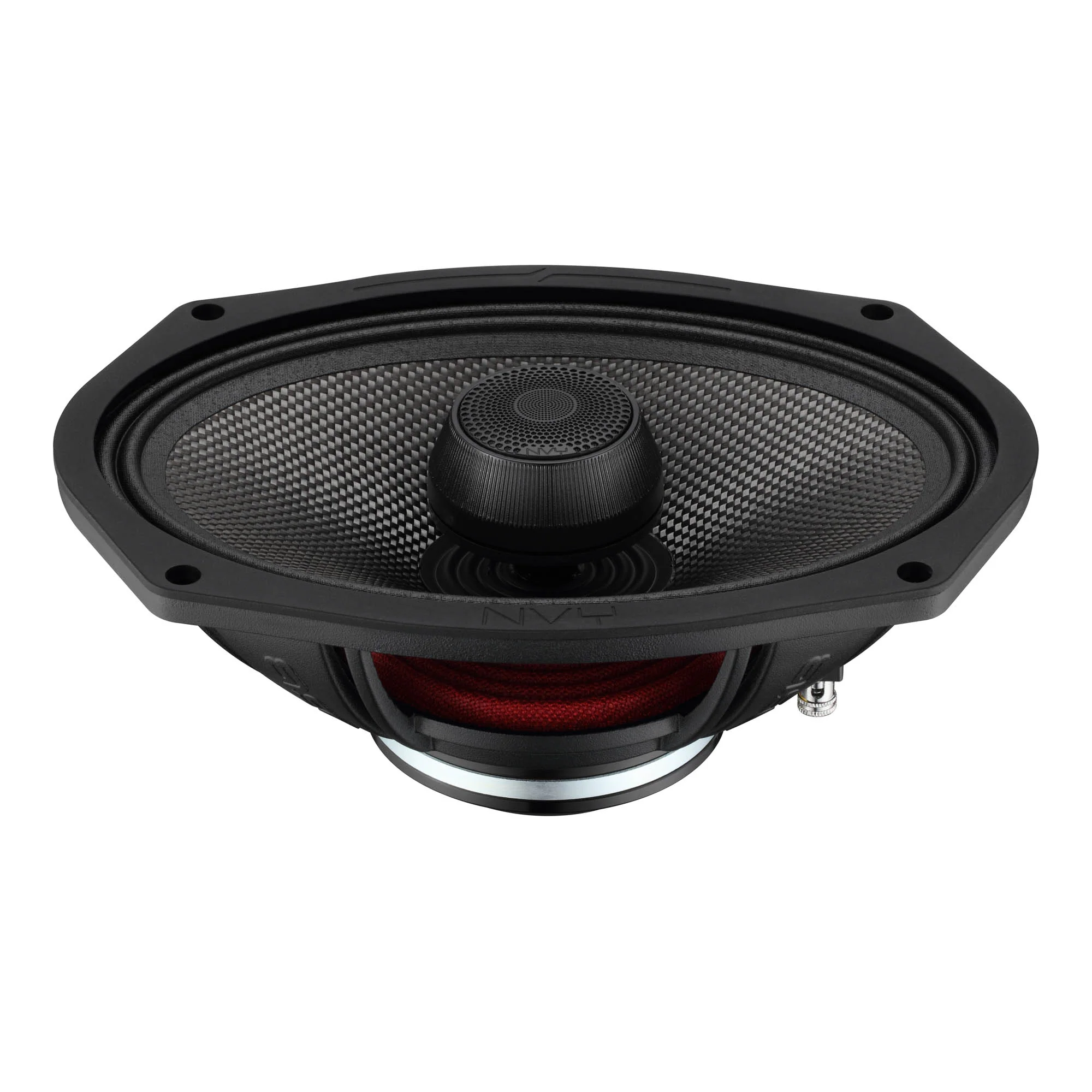

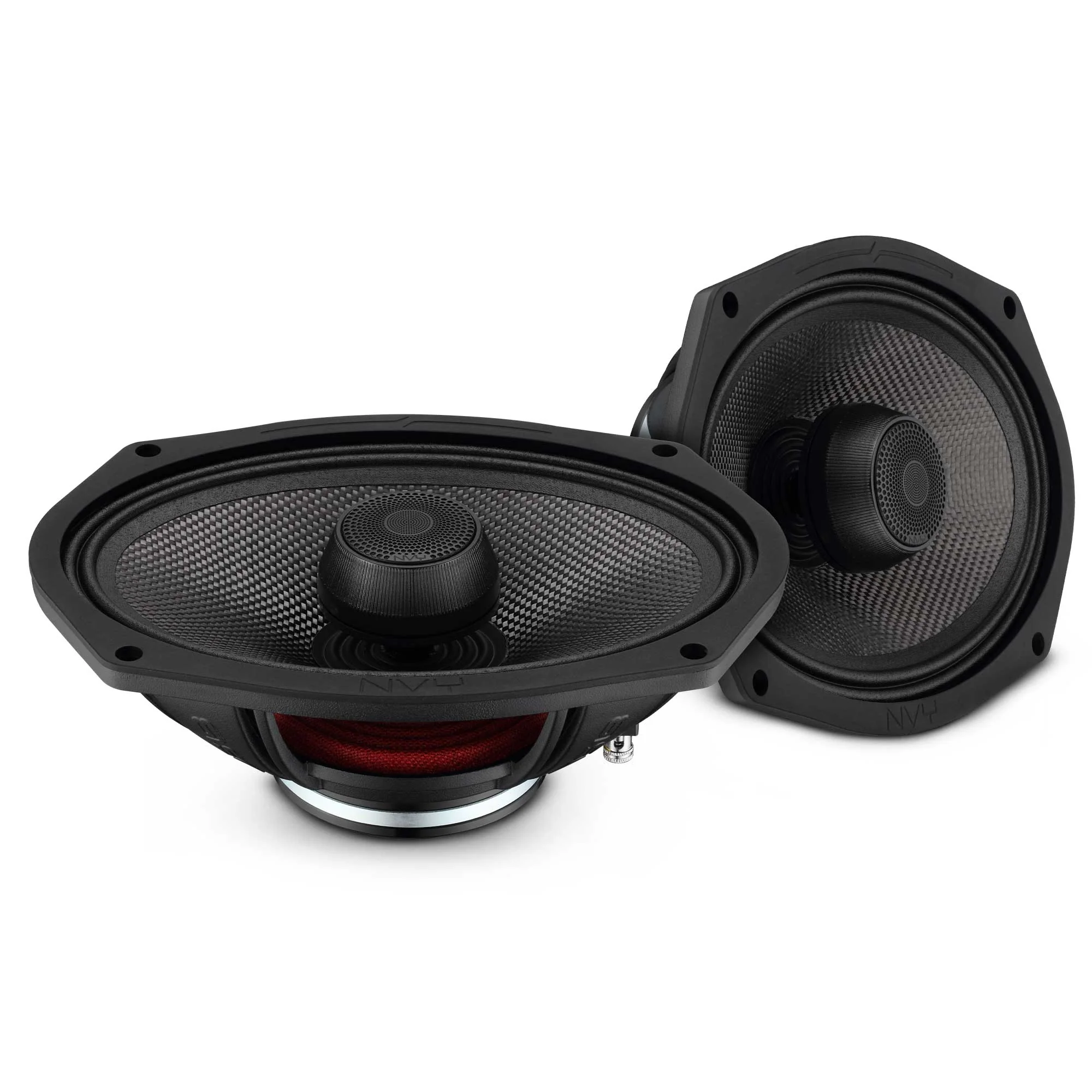

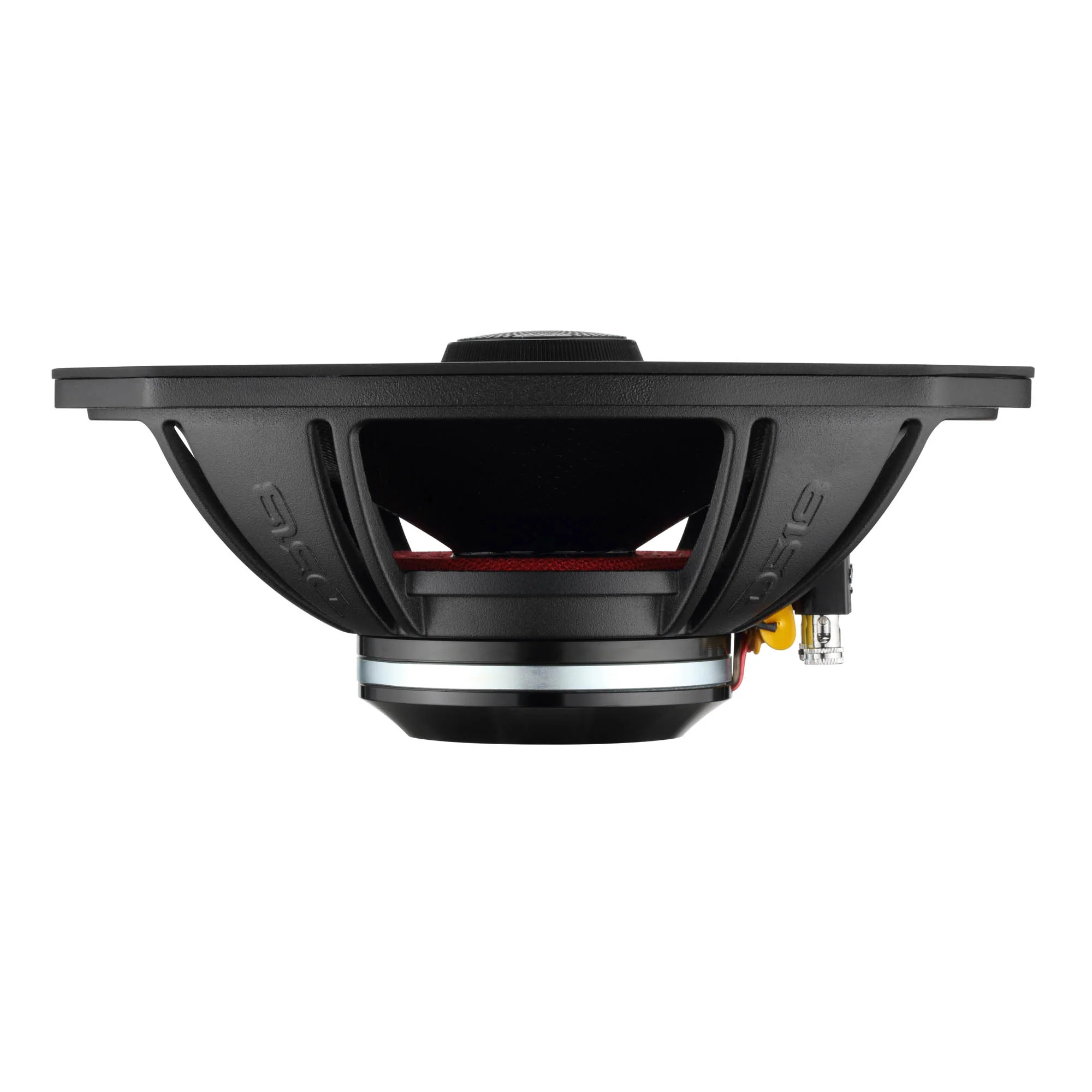

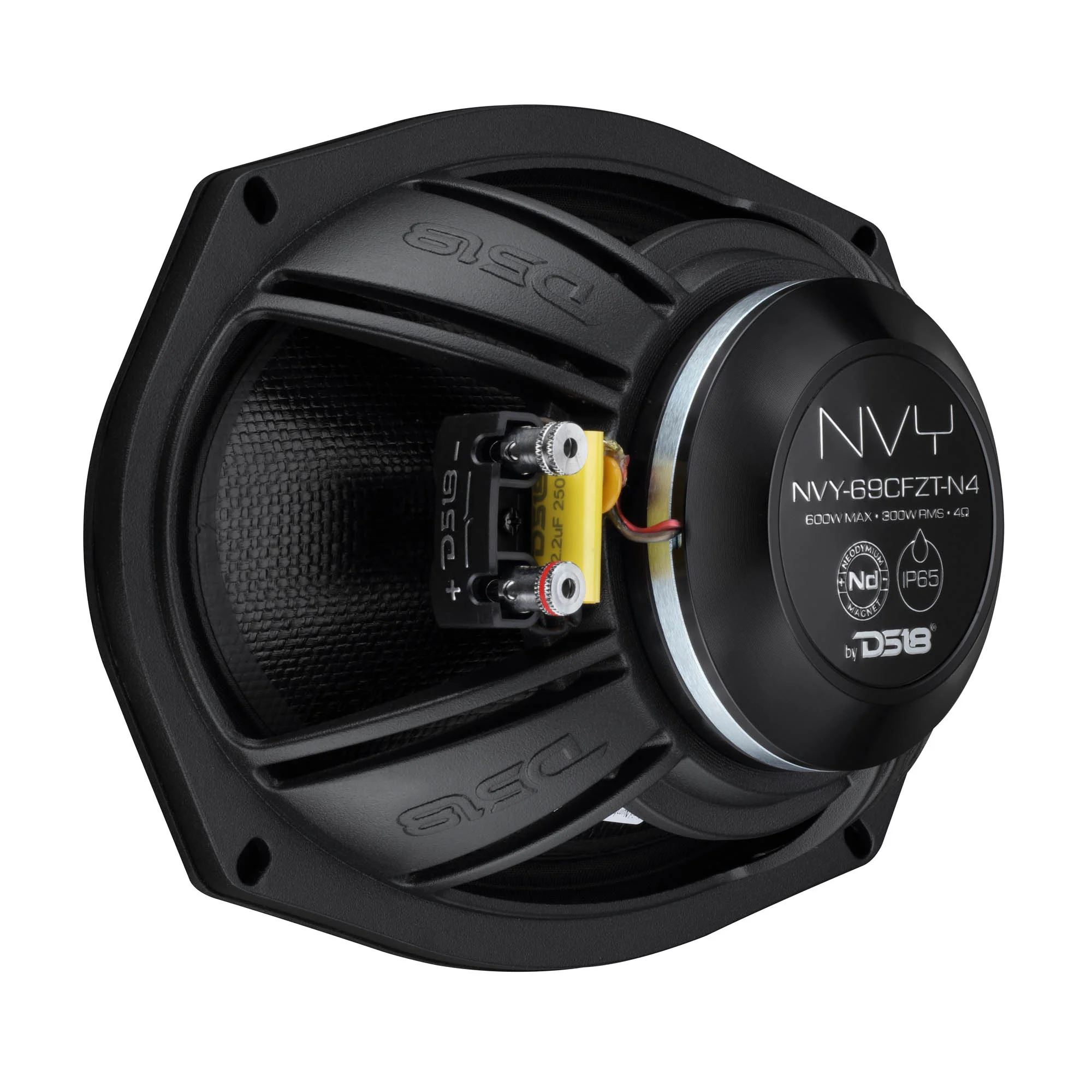

The NVY-69CFZT-N4 is a 6×9-inch high-performance 2-way coaxial speaker engineered for powerful, clear, and immersive audio in marine and powersports environments. Featuring a durable carbon fiber cone and a high-efficiency 1-inch bullet tweeter, it delivers strong mid-bass, detailed mids, and crisp highs even in noisy outdoor settings. The neodymium magnet design ensures lightweight efficiency, and its IP65 water-resistant construction makes it ideal for boats, motorcycles, ATVs, and other outdoor vehicles. With robust power handling and high sensitivity, the NVY-69CFZT-N4 provides reliable, distortion-free audio in demanding conditions.
Specifications
| Specification | Value |
|---|---|
| Voice Coil Diameter | 1.5″ / 38.6 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Carbon Fiber |
| Surround Material | Cloth |
| Leads Connection Type | Spider Crossed |
| Basket Material | Aluminum |
| Basket Color / Finish | Black Corrugated |
| Magnet Material | Neodymium |
| Magnet Weight | 8 Oz |
Tweeter Specifications
| Specification | Value |
|---|---|
| Voice Coil Diameter | 1″ / 25.5 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Aluminum |
| Magnet Material | Neodymium (N35H) |
| Magnet Weight | 0.4 Oz |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 17.4 L / 0.614 ft³ |
| Excursion (Xmax) | 1.65 mm |
| Free Air Resonance (Fs) | 89 Hz |
| Mechanical Factor (Qms) | 9.619 |
| Electrical Factor (Qes) | 0.473 |
| Total Factor (Qts) | 0.451 |
| Mechanical Mass (Mms) | 12.275 g |
| Mechanical Compliance (Cms) | 0.223 mm/N |
| BL Factor | 8.886 |
| Voice Coil Inductance (Le) | 0.127 mH |
| Cone Area (Sd) | 214.41 cm² |
| DC Resistance (Re) | 3.2 Ohms |
Speaker Measurements
| Measurement | Value |
|---|---|
| Overall Diameter | 6.4″ x 9.2″ / 164 x 234 mm |
| Overall Depth | 3.8″ / 97 mm |
| Front Mount Baffle Cutout | 5.7″ x 8.5″ / 145 x 218 mm |
| Mounting Depth | 3″ / 78 mm |
| Motor Diameter | 3.5″ / 90 mm |
Product Overview
Elevated Performance
Its carbon fiber curvilinear cone offers increased output and structural strength, delivering low-end punch and midrange clarity with reduced distortion. Designed for aggressive listening, it thrives at high speeds and high volume.
