Name: DS18 NVY-5PROEVO-N2
SKU: NVY-5PROEVO-N2
Availability: InStock

Description

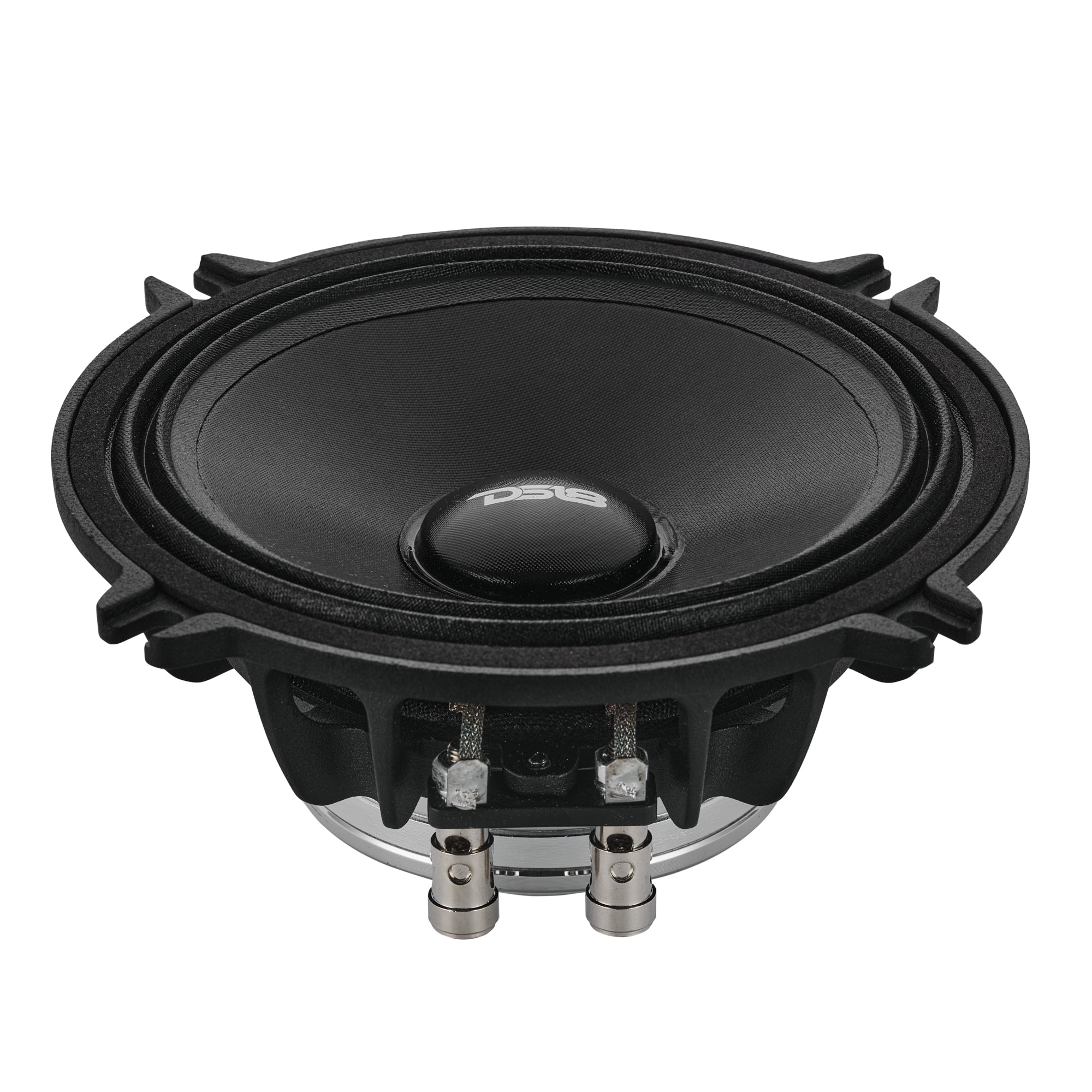

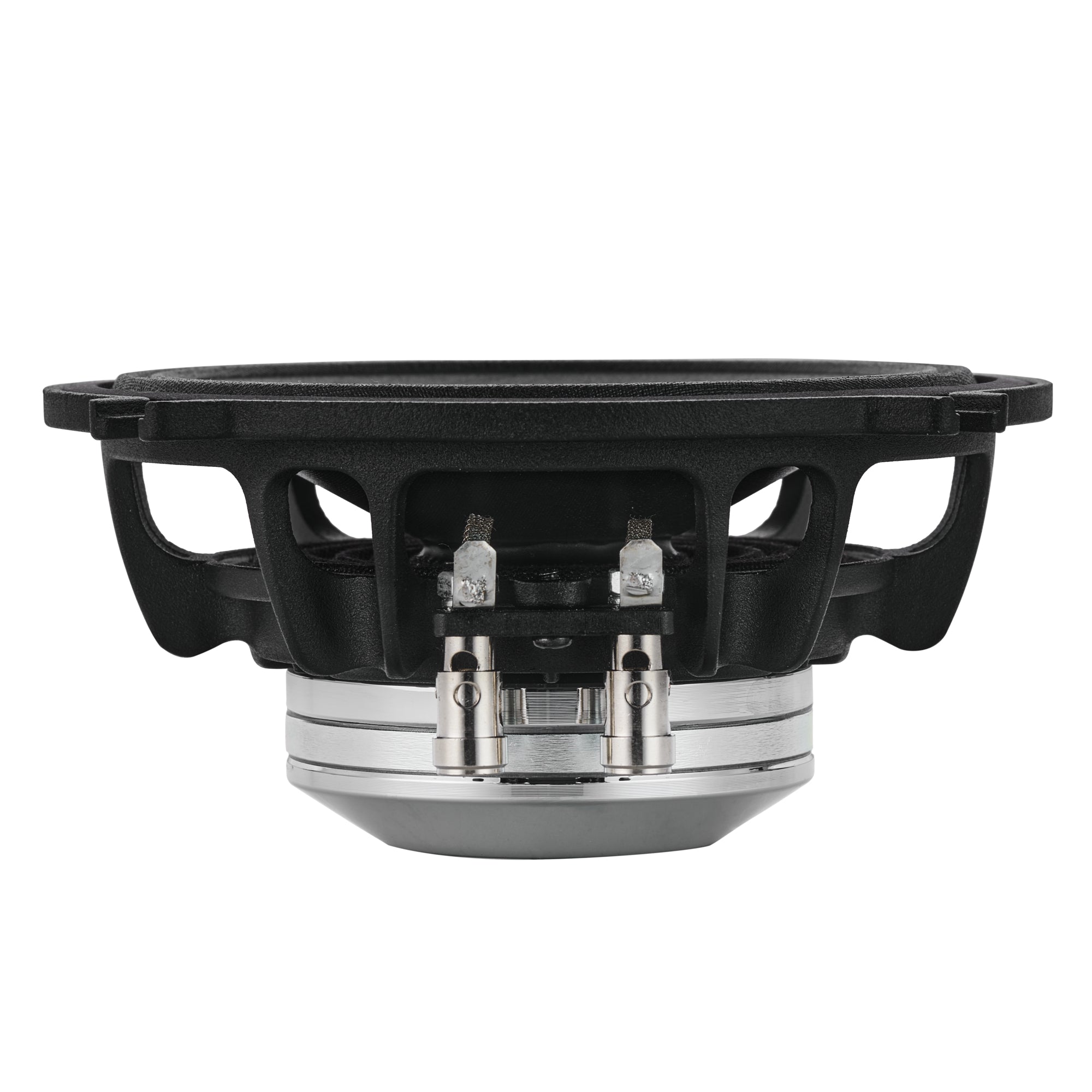

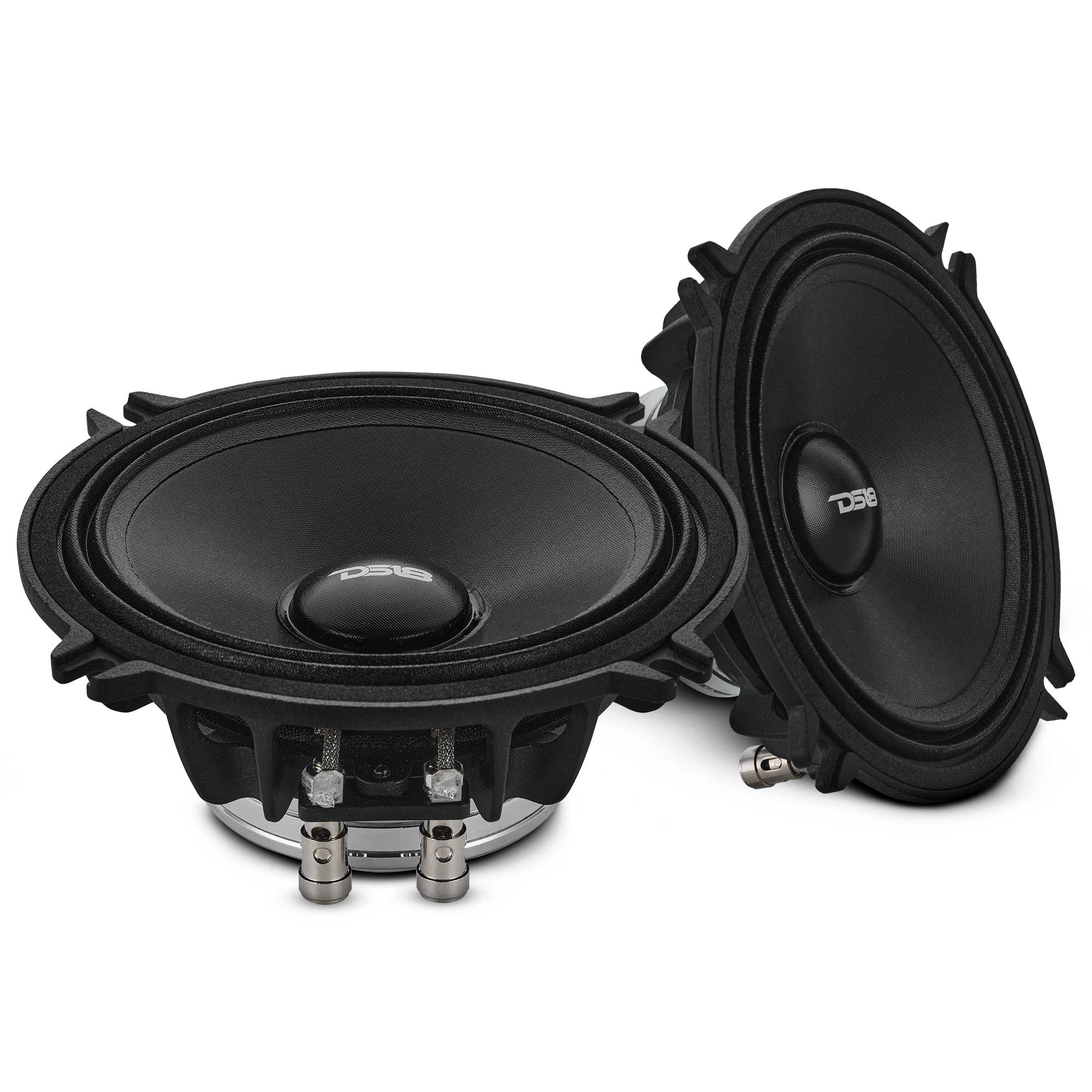

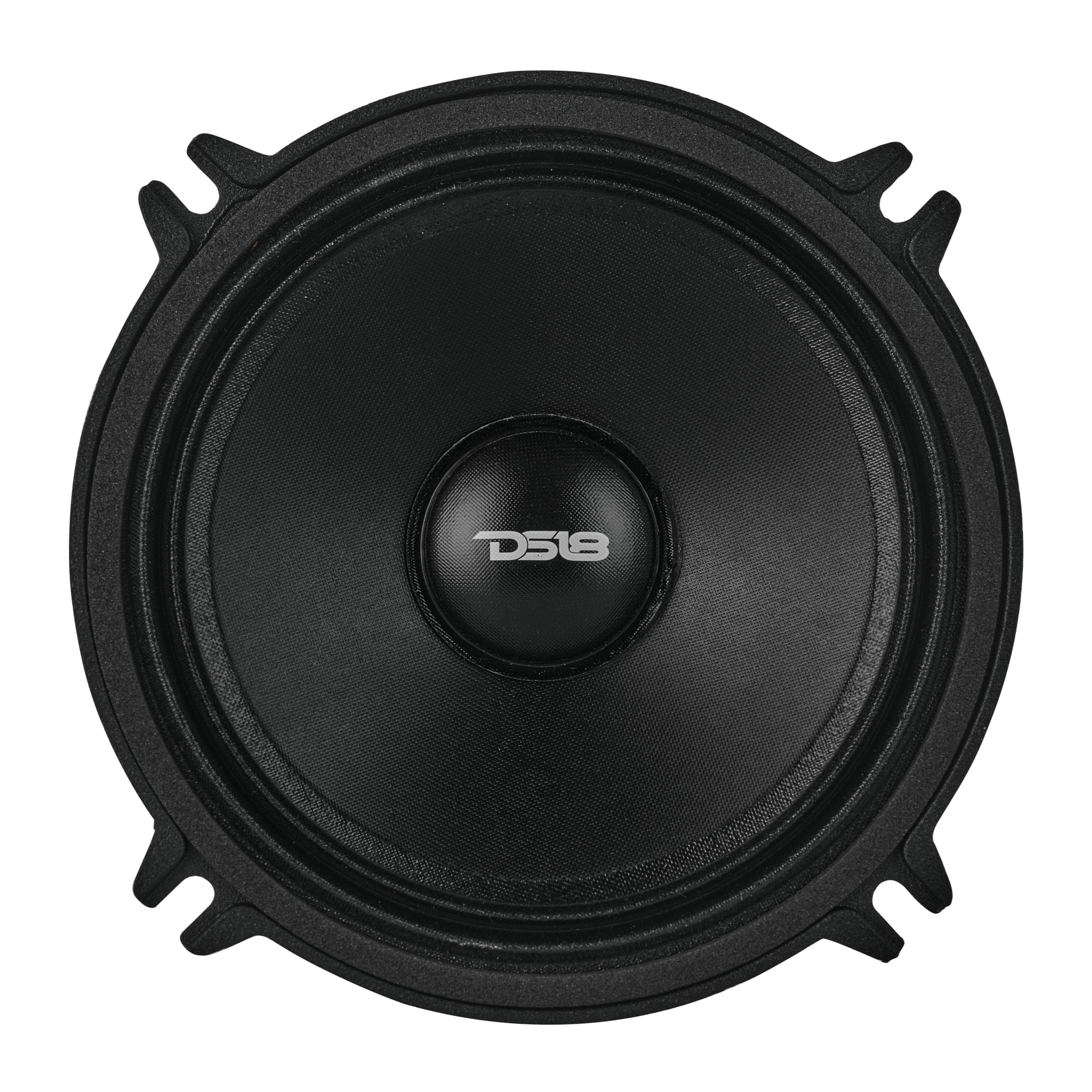

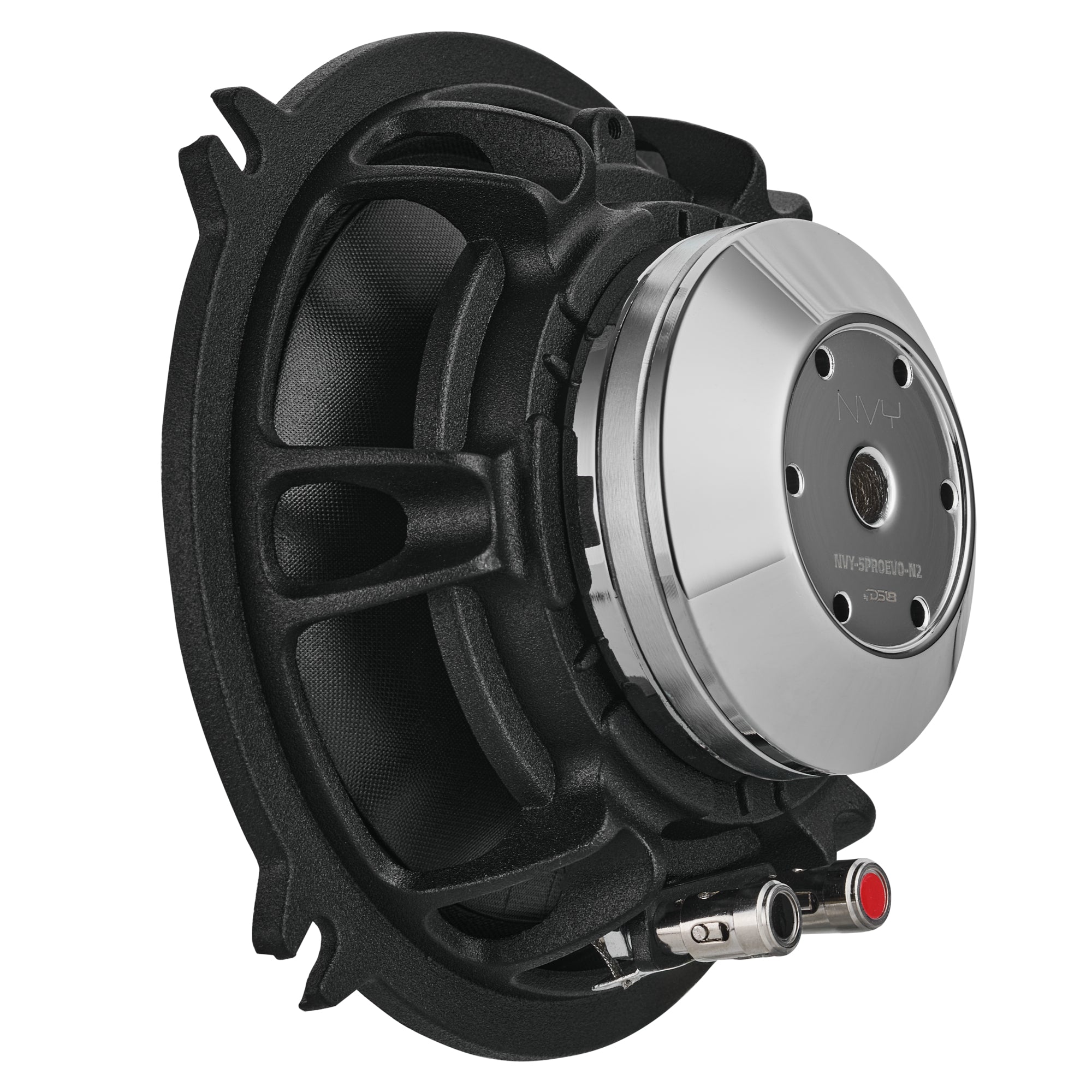

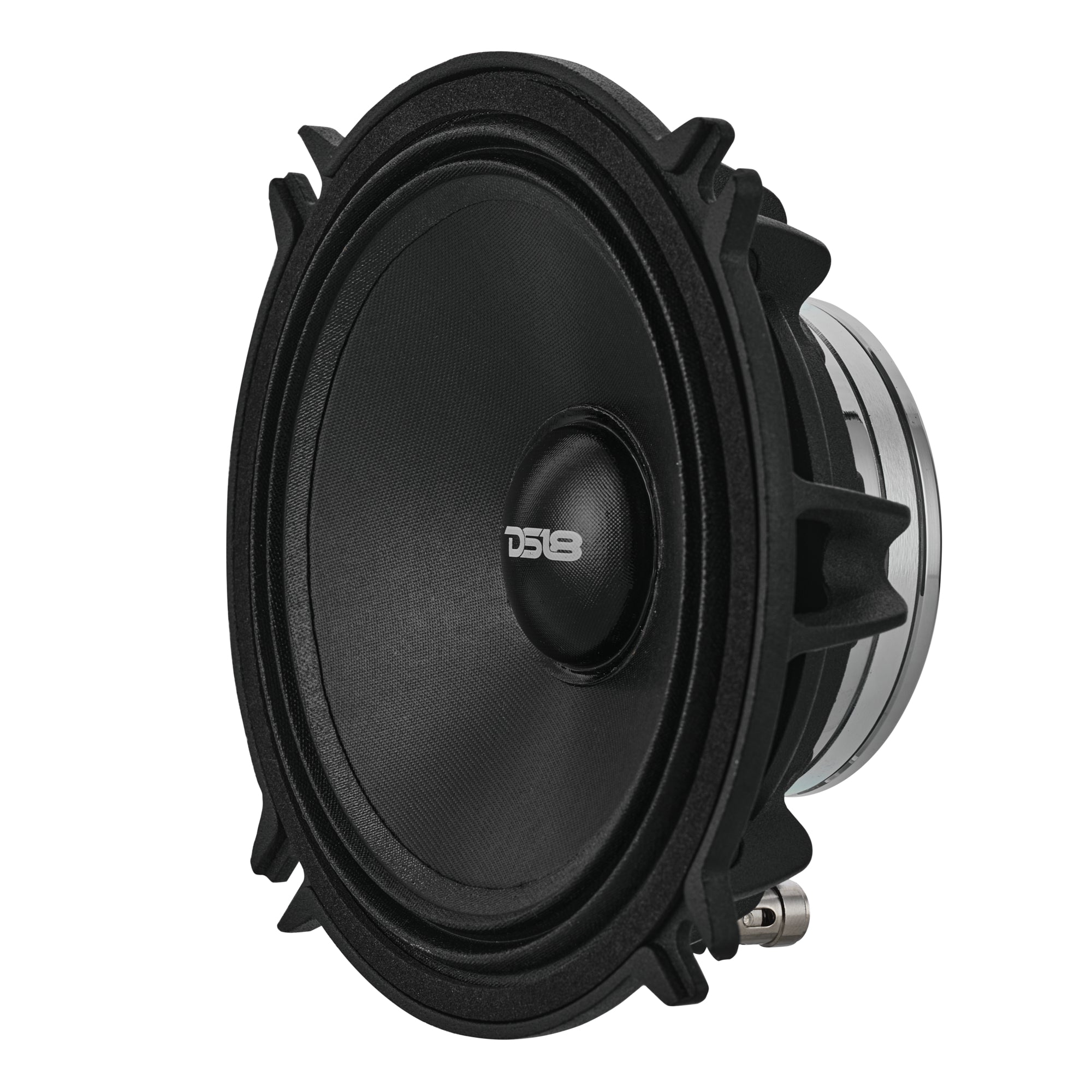

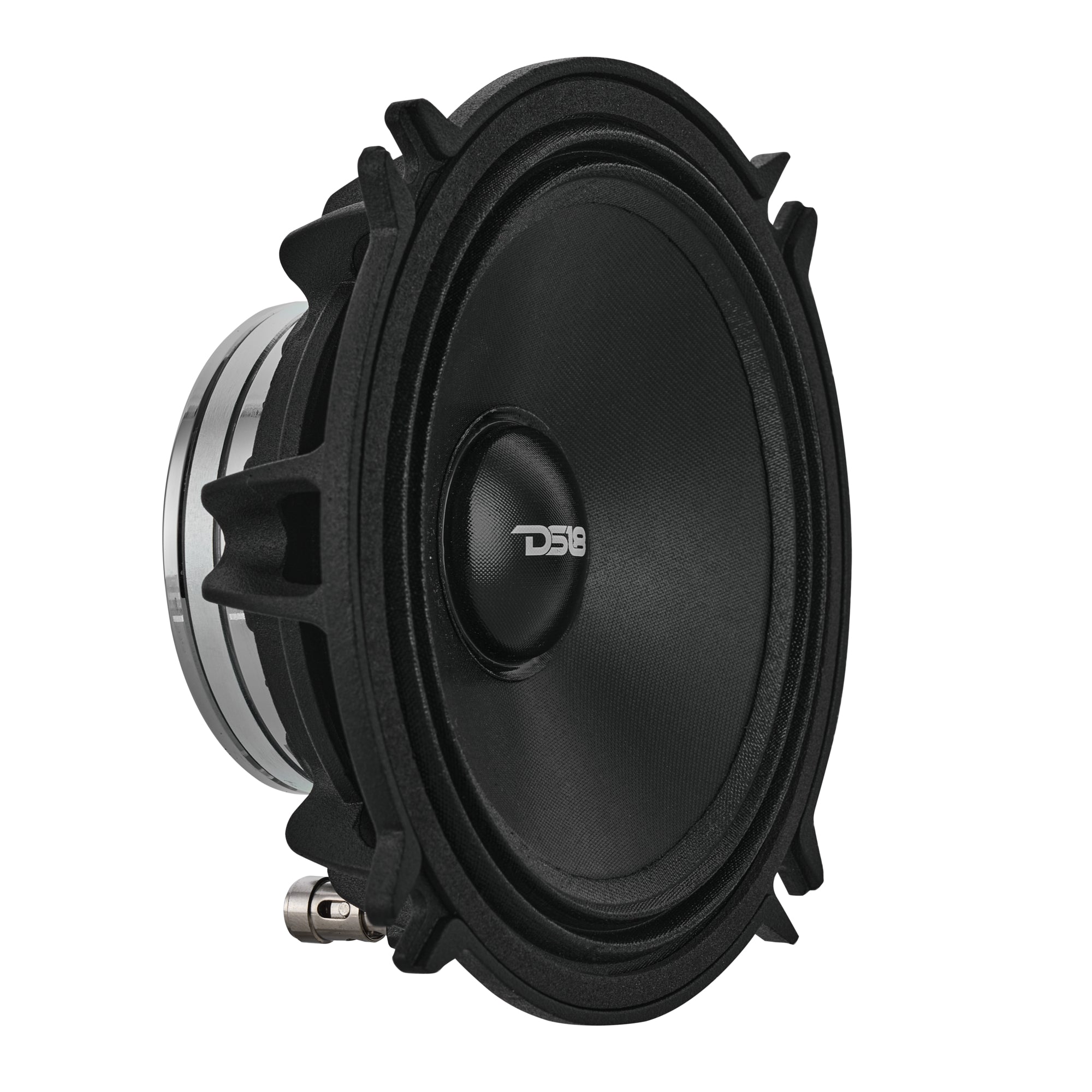

DS18 NVY-5PROEVO-N2

The NVY-5PROEVO is a 5″ professional EVO series midrange loudspeaker designed for high-output pro audio and PA applications. Available in both 2-ohm and 4-ohm impedance configurations, it delivers powerful midrange clarity, strong vocal projection, and high efficiency. Built with a durable motor structure and high-temperature voice coil, it performs reliably in demanding environments such as concert systems, portable PA setups, custom car audio builds, and SPL applications.

Specifications

Specification	Value
Demodulating Rings	Yes
Improved Heat Dissipation	Yes
Cone Shape	Curvilinear
Speaker Terminals	Push 14ga
Waterproof Rating	IP65

Motor Specifications

Specification	Value
Voice Coil Diameter	1.2″ / 30.5 mm
Voice Coil Former Material	TIL
Winding Material	Copper Ribbon
Cone Material	Water-Resistant Glass Fiber + Foam Composite with Resin Finish
Dust Cap Material	Water-Resistant Glass Fiber + Foam Composite with Resin Finish
Surround Material	Treated Cloth
Leads Connection Type	Spider Crossed
Basket Material	Aluminum
Basket Color / Finish	Black
Magnet Material	Neodymium
Magnet Weight	3.3 oz

Thiele & Small Parameters

Parameter	Value
Equivalent Volume (Vas)	2.2 L / 0.077 ft³
Excursion (Xmax, one way)	2 mm
Free Air Resonance (Fs)	132 Hz
Mechanical Factor (Qms)	8.74
Electrical Factor (Qes)	0.87
Total Factor (Qts)	0.79
Mechanical Mass (Mms)	8.896 g
Mechanical Compliance (Cms)	0.20 mm/N
BL Factor (BL)	5.24
Voice Coil Inductance (Le)	0.064 mH
Cone Area (Sd)	88.25 cm²
DC Resistance (Re)	3.9 Ohms
Mechanical Mass w/o Air (Mmd)	7.905 g

Measurements

Specification	Value
Overall Diameter	5.25″ / 133.6 mm
Overall Depth	2.48″ / 63 mm
Front Mount Baffle Cutout	4.65″ / 118.3 mm
Mounting Depth	2.2″ / 56 mm
Motor Diameter	2.75″ / 70 mm

Product Overview

All Elements Ready

A water-resistant glass fiber cone, sealed internals, and IP65 protection help this speaker make it through every mile: for reliable performance in all weather conditions.

Dynamic Power

At 93dB sensitivity and 150W RMS, this speaker balances power and stamina. Its copper ribbon coil and TIL former ensure consistent performance.

Seamless Fit

With push terminals and a compact footprint, this speaker installs easily into motorcycles, powersports, and marine setups.
