Description

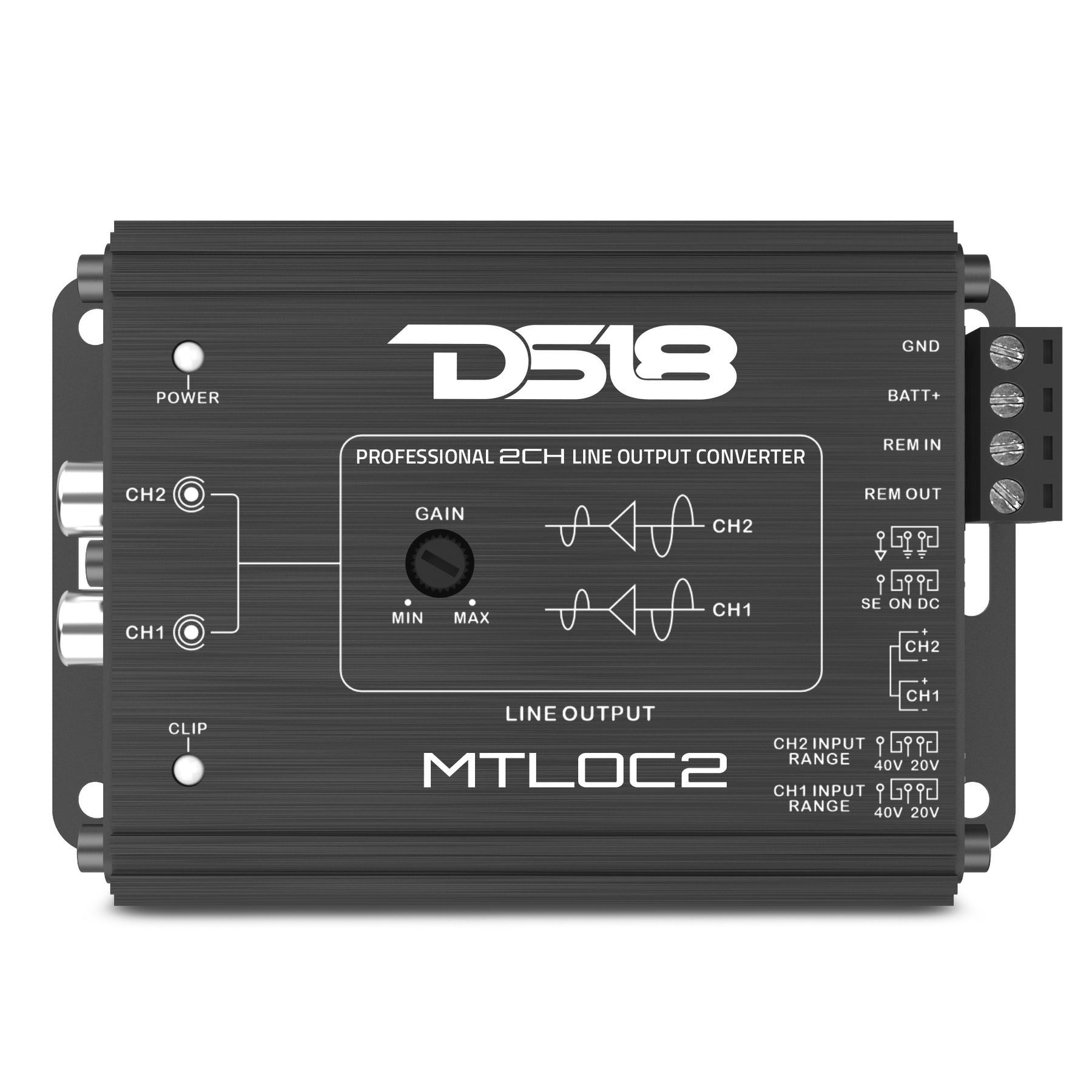

DS18 MTLOC2

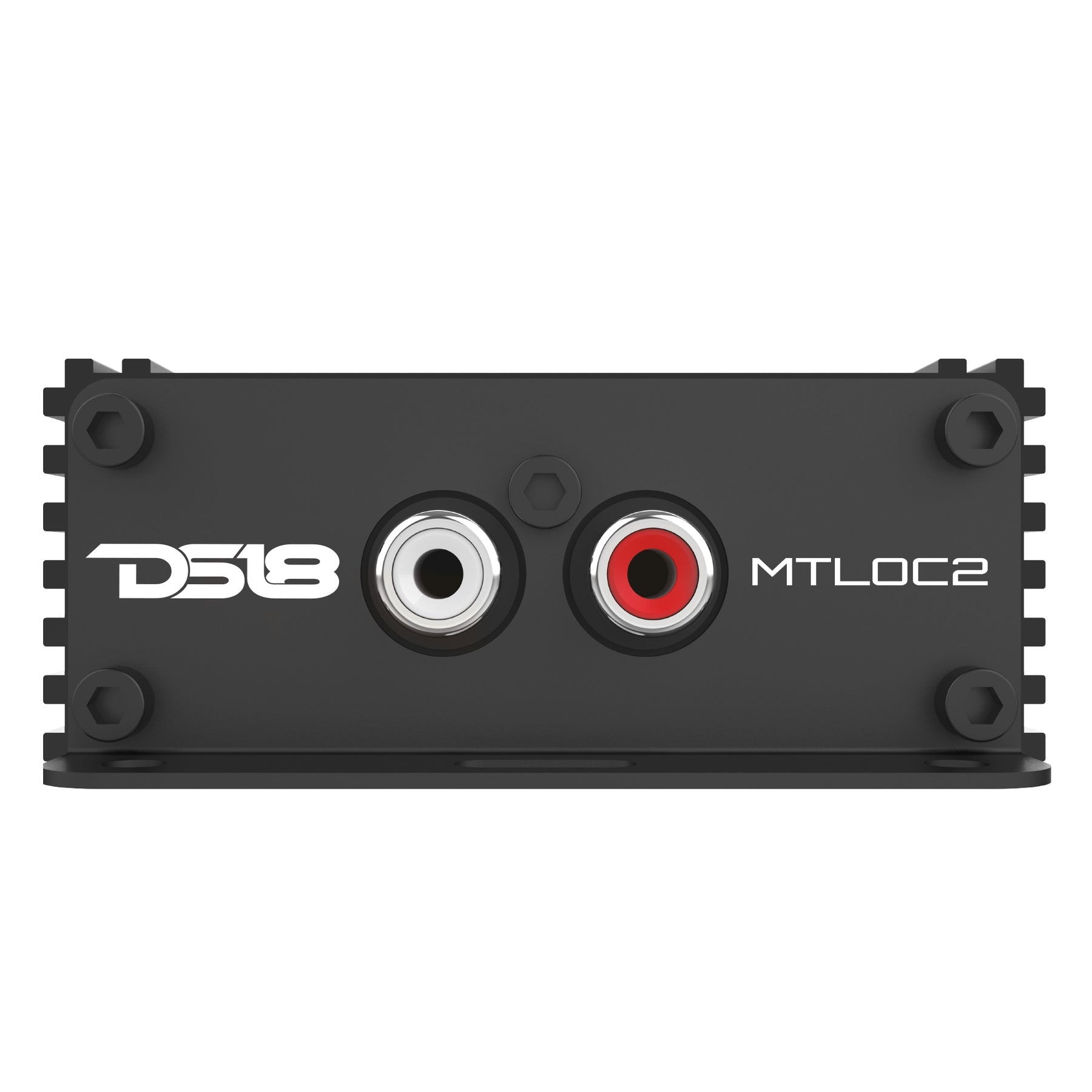

The DS18 MTLOC2 is a 2‑channel high‑to‑low level line output converter engineered to convert high‑level speaker signals from factory or aftermarket head units into clean low‑level RCA preamp outputs for use with aftermarket amplifiers. It supports selectable 20 V or 40 V high‑level inputs to match a wide range of OEM systems without triggering errors, and includes auto turn‑on options (audio sense, DC offset, or remote) for hassle‑free amplifier activation. Housed in a rugged aluminum casing with noise rejection and surface‑mount technology, the MTLOC2 processes audio across a wide frequency range (10 Hz–20 kHz) with ultra‑low distortion (<0.01 %), preserving clarity and detail in your signal chain. Its adjustable level matching controls and remote output make it ideal for upgrading factory systems to powerful aftermarket setups.
Specifications
| Parameter | Specification |
|---|---|
| Maximum Speaker Level Input | Selectable 20 / 40 V (100 / 400 W RMS) |
| Maximum Preamp Output | Up to 9 V |
| Nominal Conversion Ratio | 4:1 |
| Frequency Response | 10 Hz – 20 kHz |
| Total Harmonic Distortion | 0.01% |
| Signal-to-Noise Ratio | > 110 dB |
| Input Impedance | 100 Ω |
| Output Impedance | 100 Ω |
| Power Draw | 50 mA |
| Recommended Fuse Rating | 1 A |
Features
| Feature | Specification |
|---|---|
| Bass Boost | No |
| Auto Turn-On | Yes (Audio Sens / REM / DC) |
| Remote Output | Yes |
| Level Matching Controls | Yes |
| Dash Remote Level Control | No |
| LED Indicators | Power / Clip |
| Housing Material / Color | Aluminum / Black |

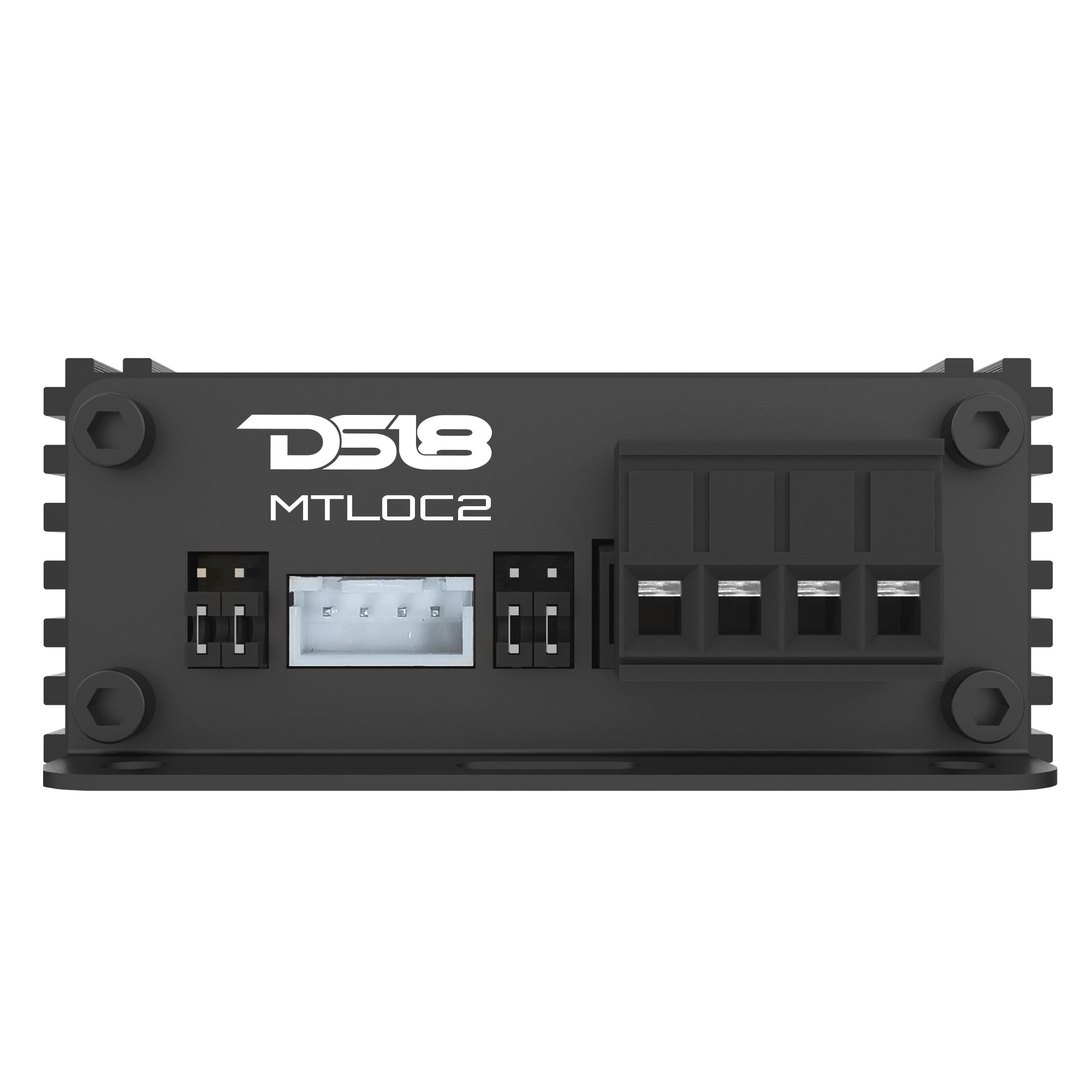

| Wiring Connector | 14 ga Quick Connector |
| Ground Isolation | No |
| Step-Down Method | Transformer |
| Input Selector | No |
Measurements
| Dimension | Size |
|---|---|
| Overall Length | 4.3 in / 110 mm |
| Overall Width | 2.75 in / 70 mm |
| Overall Height | 1.1 in / 28 mm |
Product Overview
2-Channel High-to-Low Level Line Output Converter with Remote Turn-On
DS18’s MTLOC2 converts 2-channel factory speaker-level outputs into clean RCA signals for aftermarket amplifiers. Its selectable 20V or 40V high-level input works in various OEM systems without triggering errors.
Automatic Power-Up
Equipped with auto turn-on via audio sensing, DC offset, or remote trigger, the MTLOC2 powers your amplifier instantly and hassle-free without manual wiring.
Durability and Size
Built with surface mount technology and housed in a rugged aluminum casing, the MTLOC2 offers noise rejection, thermal protection, and a compact design for easy installation.
Superior Audio Quality
Operating from 10Hz to 20kHz with less than 0.01% distortion, the MTLOC2 preserves your music’s clarity and detail.
Upgrade with the MTLOC2 and enjoy pristine audio!
