Description
DS18 LSE-112A

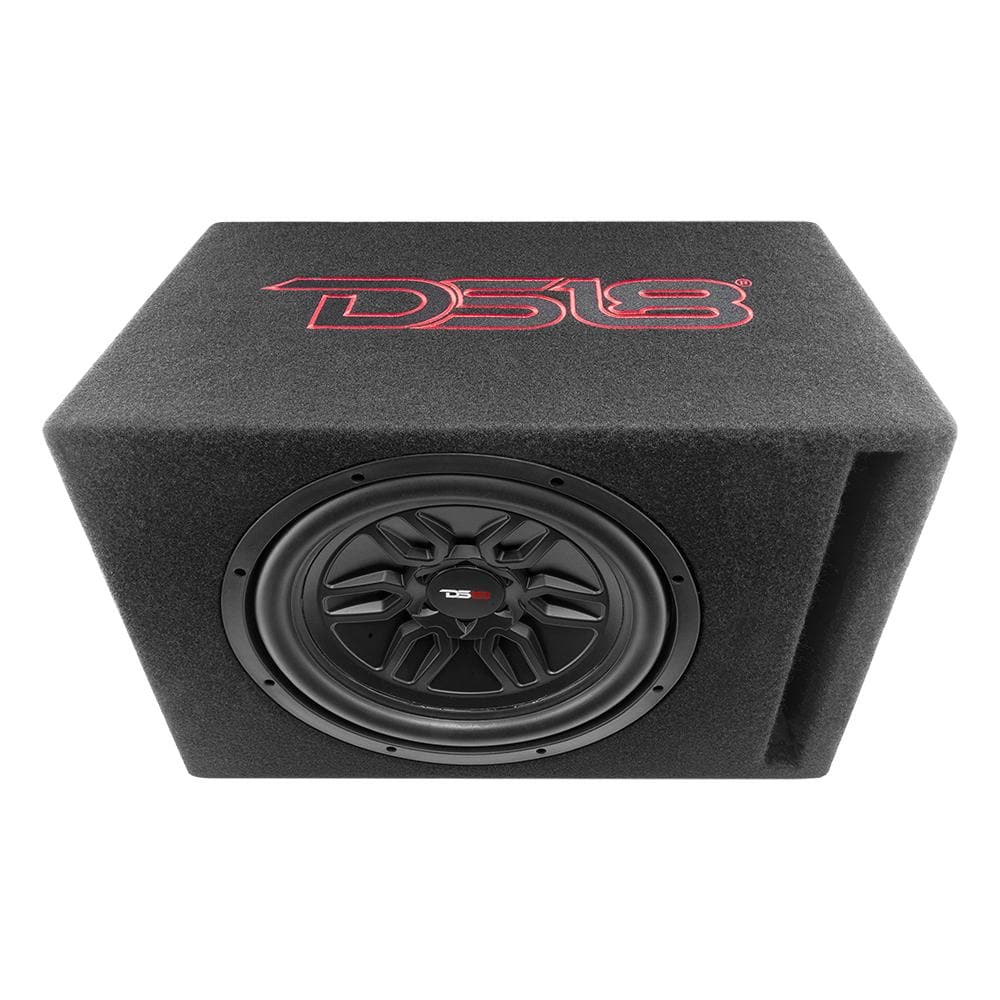

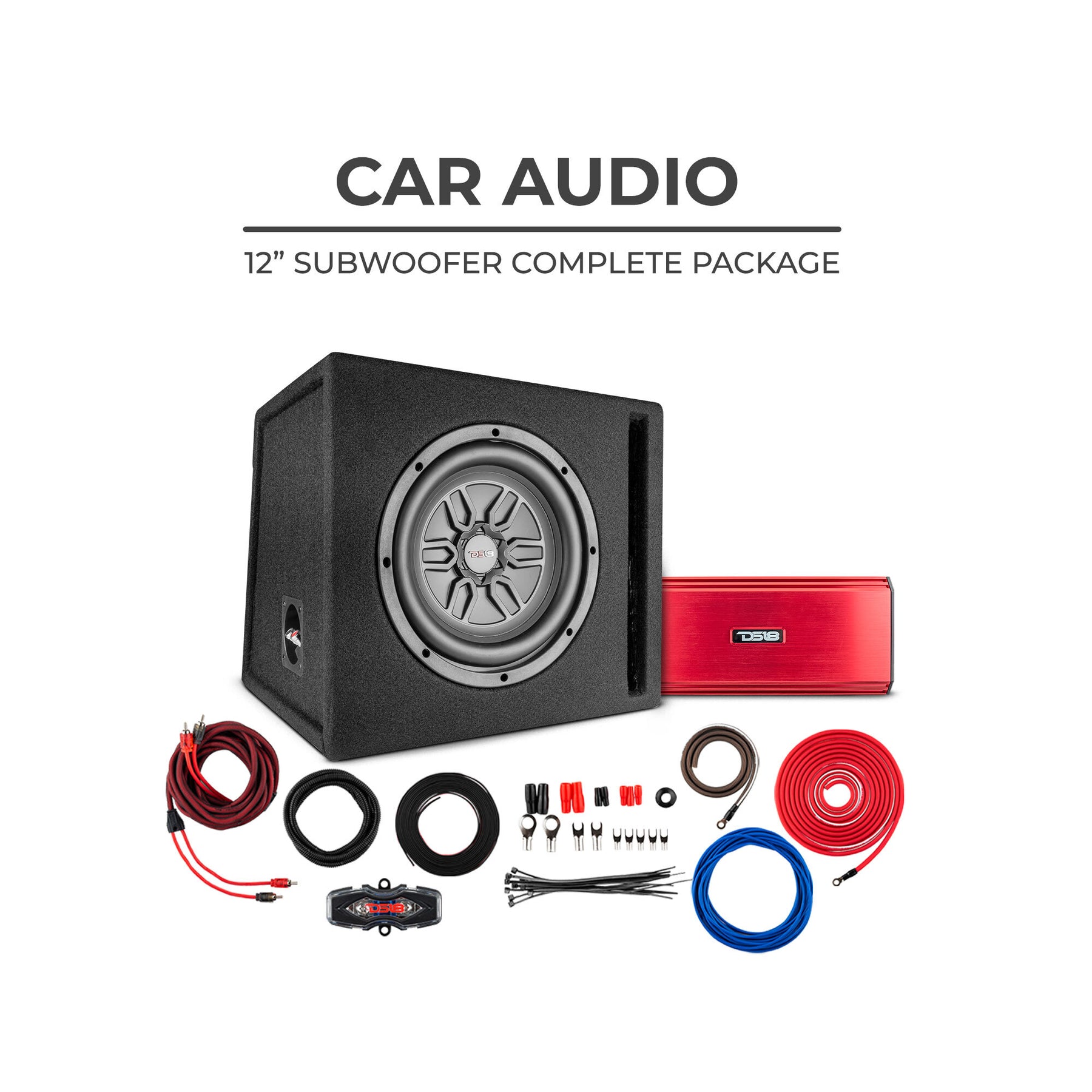

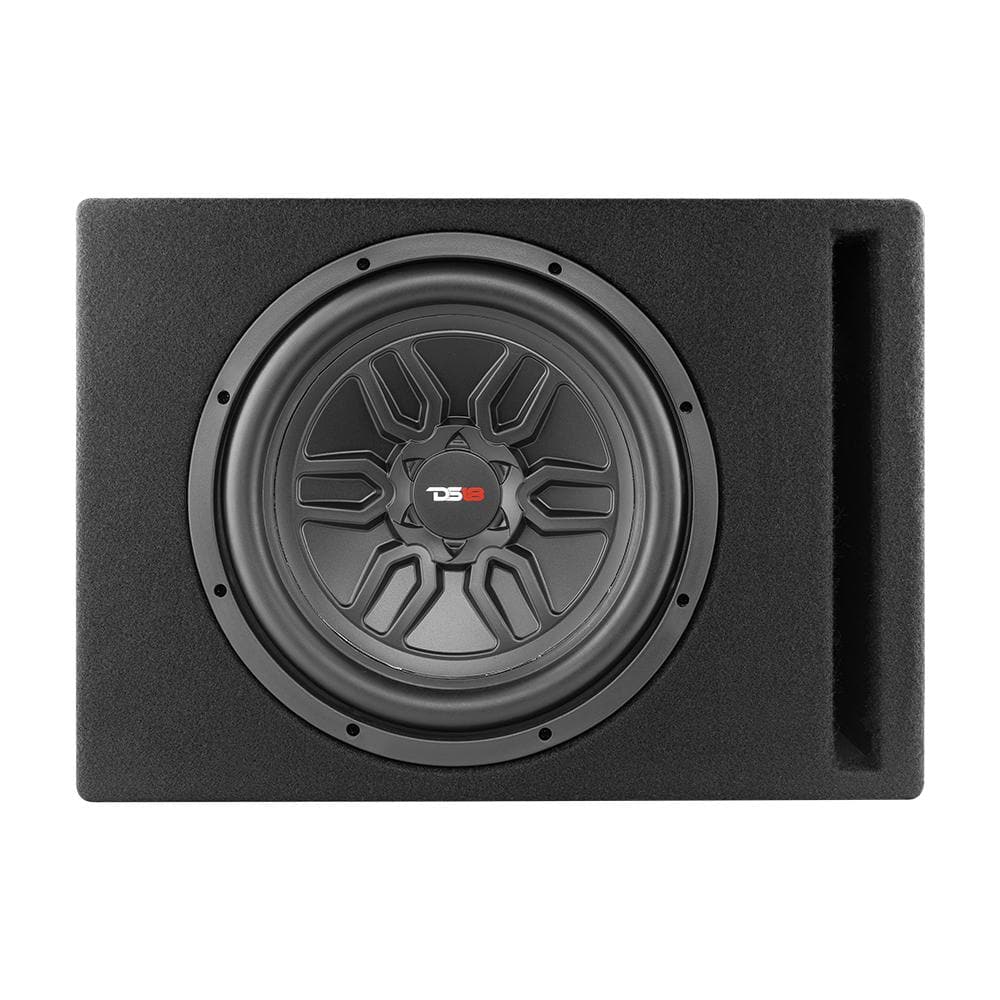

The DS18 LSE‑112A is a complete bass package designed to deliver deep, powerful low‑frequency performance in a convenient all‑in‑one solution. It includes a 12″ SLC‑MD12 subwoofer mounted in a ported (vented) enclosure tuned to 35 Hz for enhanced bass response, paired with a DS18 S‑1500.1/RD monoblock amplifier and a 4‑GA amplifier installation kit. The subwoofer features a 4 ohm impedance, 250 W RMS (500 W peak) power handling, and approximately 29 Hz‑250 Hz frequency response for rich, full bass. The amplifier is a Class AB design with adjustable gain and crossover control, delivering 350 W RMS @ 2 Ω and 220 W RMS @ 4 Ω clean power to your sub. This package is ideal for car audio enthusiasts who want ready‑to‑install bass performance without sourcing components separately.
Specifications
Bass Package Components
| Item | Model / Details |
|---|---|
| Subwoofer | 1 × 12″ SLC-MD12 |
| Box | 1 Ported Vented Box LSE-112A |
| Amplifier | 1 Monoblock Amplifier S1500.1/RD |

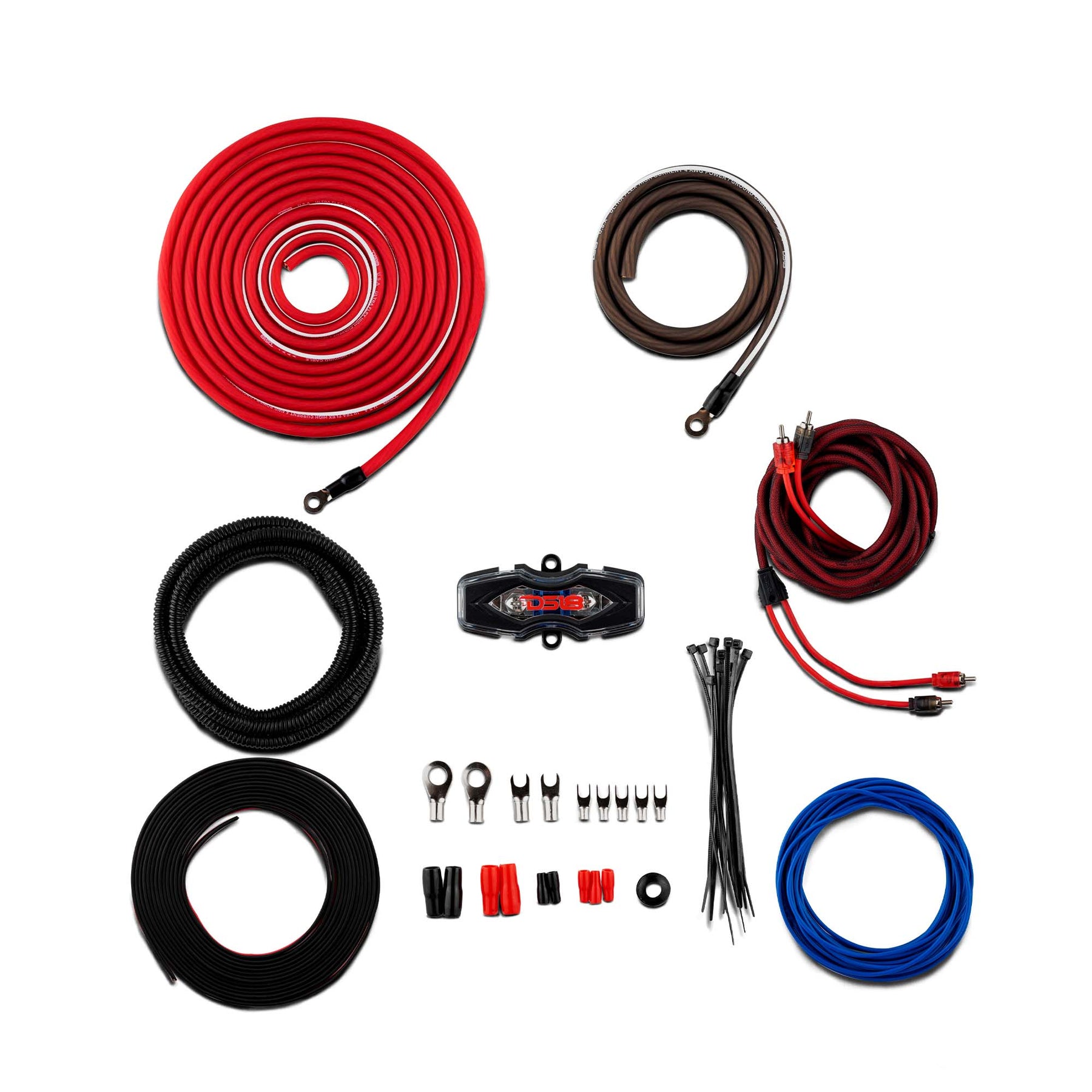

| Amplifier Installation Kit | AMPKIT4 |
12″ Subwoofer Specifications
| Item | Details |
|---|---|
| Nominal Diameter | 12″ |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 250 W |
| MAX Power Handling | 500 W |
| Sensitivity (1W / 1m) | 90 dB |
| Frequency Response | 29–250 Hz |
| Recommended HI Pass Crossover | 80 Hz |
| Magnet Weight | 42 oz |
| Magnet Material | Ferrite |
Ported Box Specifications
| Item | Details |
|---|---|
| Port Tune | 35 Hz |
| Internal Volume | 45.3 L |
| Load Configuration | Front Port |
| Box Material | 1/2″ MDF |
| Finish Material | Carpet |
| Measurement (L × W × H) – Inches | 19 × 14 × 14 |

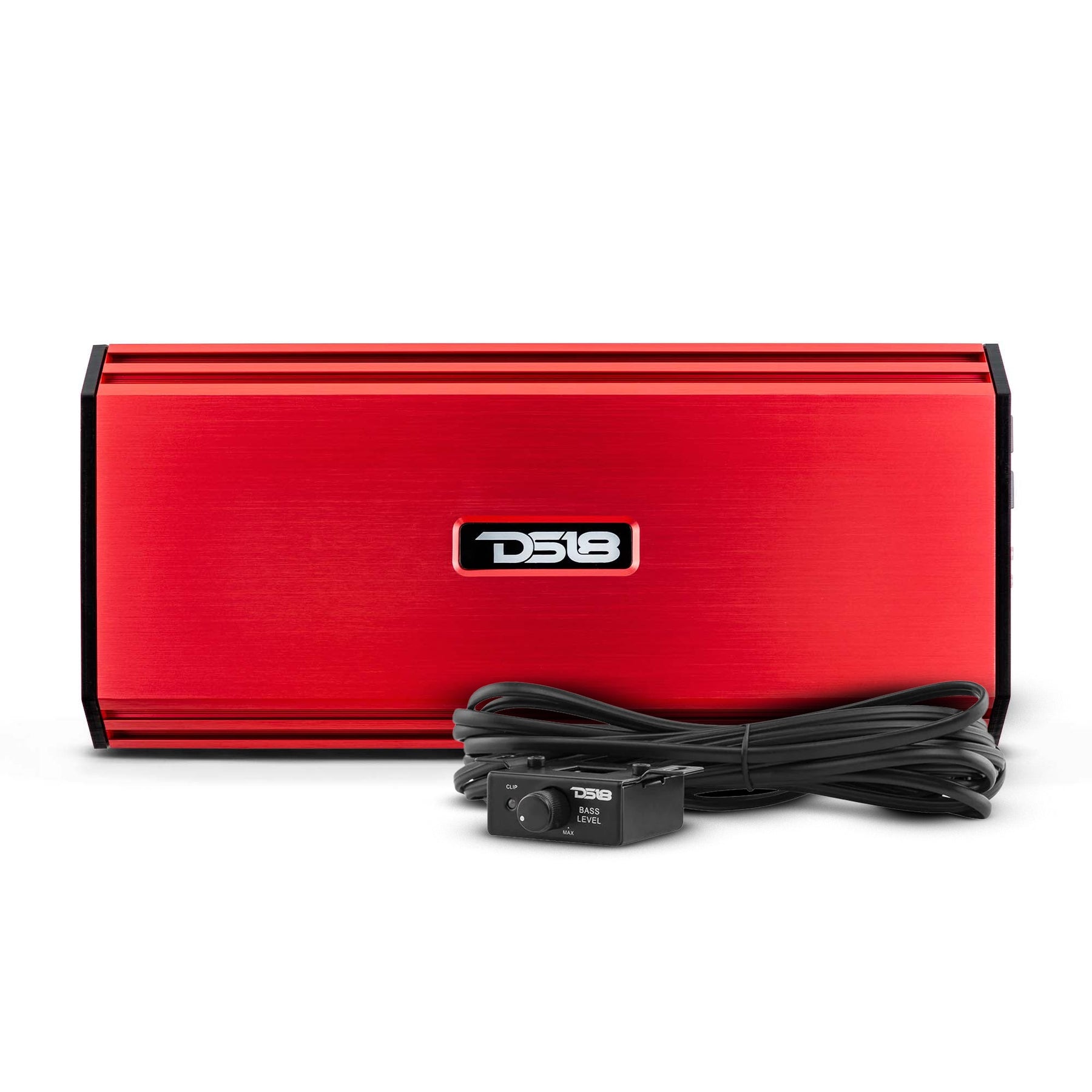

Monoblock Amplifier Specifications
| Item | Details |
|---|---|
| Circuit Topology | Class AB Monoblock |
| RMS Power Output @ 2 Ohm | 350 W |
| RMS Power Output @ 4 Ohm | 220 W |
| Total Harmonic Distortion | <0.3% |
| S/N Ratio Ref 1W @ 4 Ohm | >90 dB |
| Gain Range | 0.2–6 V |
| Crossover Range | 50–250 Hz |
| Frequency Range | 20–500 Hz |
| Measurement (L × W × H) – Inches | 13.7 × 5.8 × 1.8 |
