Description
DS18 JP6NEO.FR
The DS18 JP6NEO.FR is a premium 6.5‑inch full‑range car audio speaker designed to deliver clear, balanced sound with improved midrange, detailed vocals, and controlled mid‑bass response. This model features advanced materials (like a neo magnet and reinforced cone) that increase efficiency and accuracy, giving a bigger, cleaner sound compared to standard 6.5″ speakers.
Specifications
| Feature | Details |
|---|---|
| SKU | JP6NEO.FR |
| Nominal Diameter | 6.5″ / 165 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 225 W |
| Max Power Handling | 450 W |
| Sensitivity (1W/1M) | 97 dB |
| Frequency Response | 100 Hz – 16 kHz |
| Recommended Hi-Pass Crossover | 160 Hz |
| Sold As | Pair |
Mechanical & Motor Specifications
| Feature | Details |
|---|---|
| Voice Coil Diameter | 1.5″ / 38.6 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | Not specified |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas | 2.11 L / 0.074 ft³ |
| Xmax | 6.8 mm |
| Fs | 166 Hz |
| Qms | 3.173 |
| Qes | 0.409 |
| Qts | 0.362 |
| Re | 3.3 Ohms |
Measurements & Packaging
| Feature | Details |
|---|---|
| Overall Depth (Left) | 7.38″ / 187 mm |
| Overall Depth (Right) | 8.14″ / 206 mm |
| Product Weight | 9.5 lbs |
| Product Dimensions | 17.25 × 12.75 × 9.75 in |
| Master Carton Weight | 21.5 lbs |
| Master Carton Dimensions | 21 × 18.5 × 13.75 in |
| Master Carton Quantity | 2 |
Product Overview

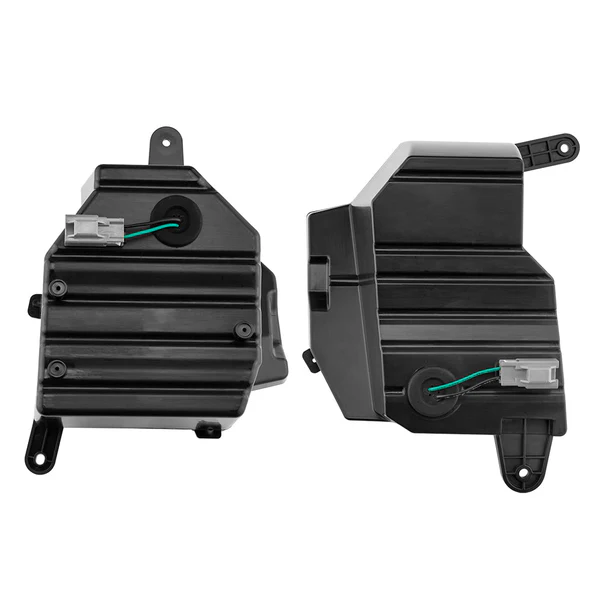

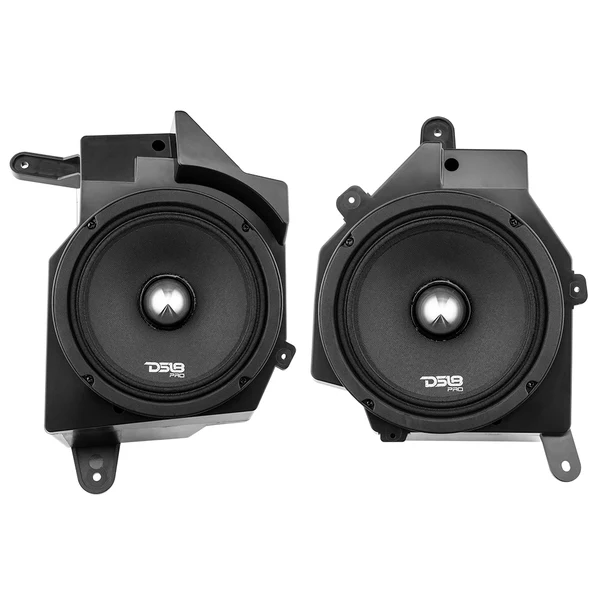

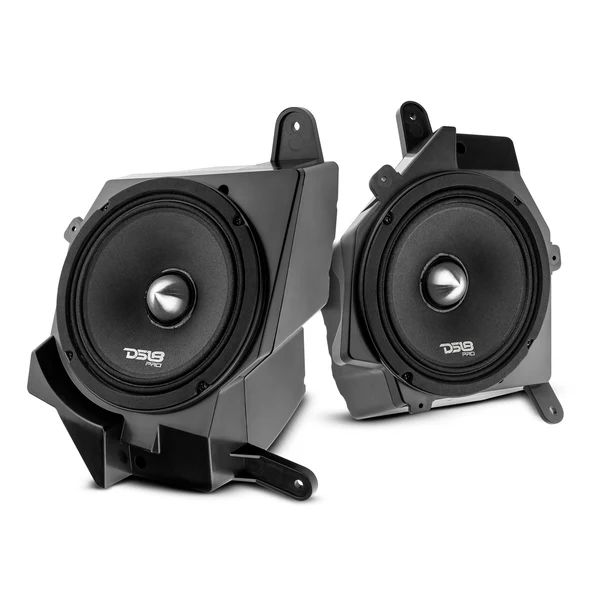

Plug and Play Dash Enclosure Upgrade with 6.5” NEO Full-Range Loudspeaker For Jeep JL/JLU/JT Left and Right
Elevate your Jeep’s soundstage with DS18’s JP6NEO.FR Plug and Play Dash Enclosure. Engineered specifically for Jeep JL, JLU, and JT models, this upgrade brings power, precision, and performance right to your fingertips.
Featuring the 6.5″ DS18 Pro-FR6NEO Pro Audio Mid-Range Loudspeaker, this dash enclosure takes your music experience to another level. With an impressive 225W RMS and 450W MAX @ 4 Ohms output, prepare yourself for an audio experience like no other.
But what truly sets this dash enclosure apart is its Silver Bullet Resonator (tweeter). By expanding the range of frequencies produced by the NEO loudspeaker, you’ll enjoy a fuller sound that captures every nuance of your favorite songs.
The plug and play capabilities ensure hassle-free installation – simply connect it to your Jeep’s factory amplifier or use an external amplifier to get even LOUDER.
Don’t settle for mediocre sound when you can have exceptional audio quality with DS18’s JP6NEO.FR.
