Description
DS18 JMID LOADED COMBO
The DS18 JMID LOADED COMBO is a complete midrange speaker combo designed for car audio enthusiasts seeking a full-range, high-performance sound upgrade. This package includes multiple JMID midrange drivers pre-installed in a custom enclosure, optimized for maximum output, clarity, and durability.
Specifications
| Feature | Details |
|---|---|
| Compatible With | Jeep TJ, JK, JL |
| Houses | 2 × 10″ Mid-Range / 2 × 3″ Pro Tweeters |
| Colors Available | Black |
| Dimensions (D × W × H) | 28.74 × 13.77 × 5.9 in |
| Control Lights via Bluetooth | Yes, LED-BTC included |

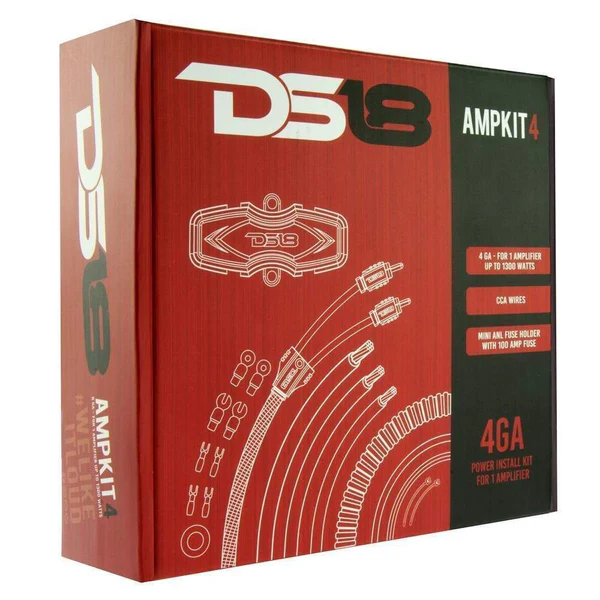

| Amplifier Installation Wiring Kit | Yes, AMPKIT included |
PRO-X10.4 Midrange Loudspeaker
| Specification | Details |
|---|---|
| Size | 10″ |
| RMS Power | 300 W |
| MAX Power | 600 W |
| Frequency Response | 76 Hz – 6.8 kHz |
| Impedance | 4 Ohm / 8 Ohm |
| Sensitivity | 100.2 dB |
| Surround | Cloth Edge |
| Frame | Red Steel Basket |
| Cone | Non-Pressed Paper Cone |
| Magnet | Ferrite |
| Voice Coil Wire | CCAW |

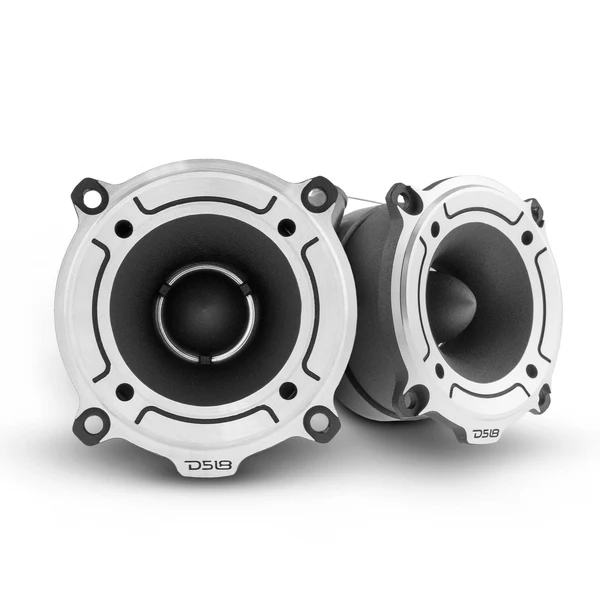

PRO-TW120 Tweeters
| Specification | Details |
|---|---|
| AES Power Handling | 60 W |
| Program Power Handling | 120 W |
| Peak Power Handling | 240 W |
| Sensitivity | 103 dB |
| Recommended Hi-Pass Crossover | 3 kHz |
| Magnet Material | Ferrite |
| Frequency Response | 2 kHz – 20 kHz |
| Impedance | 4 Ohm |
| Voice Coil Diameter | 1″ / 25.4 mm |
| Voice Coil Former Material | CCAW |
| Winding Material | Aluminum |
| Diaphragm Material | Aluminum |
G1800.4D 4-Channel Amplifier
| Specification | Details |
|---|---|
| Total Watts (Peak) | 1800 W |
| RMS Power @ 4 Ohm | 4 × 150 W |
| RMS Power @ 2 Ohm | 4 × 230 W |
| RMS Power @ 4 Ohm Bridge | 2 × 430 W |
| Frequency Response | 20 Hz – 20 kHz |
| Signal to Noise Ratio | >90 dB |
| Efficiency @ 4 Ohm | 81% |
| Damping Factor | 78 |
| Input Impedance | 22 KΩ |
| Channel Separation | 70 dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low-Level Input Range | 0.25 – 6 V |
| High-Level Input | No |
| Selectable X-Over | LPF / FLAT / HPF |
| X-Over Filter Range | 50 Hz – 250 Hz |
| Bass Boost Range | N/A |
| Bass Boost Frequency | N/A |
| Infrasonic Filter | N/A |
| Phase Selector | No |
| Amplifier Class | Digital (D) |
| Amplifier Type | 4CH Full Range |
| Number of Channels | 4CH |
| Minimum Impedance | 2 Ohm St / 4 Ohm Bridge |
| LED Indicator | Power / Protection / Clip |
| Power Input Terminal Size | 4 ga |
| Fuse Size | 2 × 40A |
| Remote Level Control | No |
| Cooling Fan | No |
| Voltmeter | No |
| Protections | Thermal / Over-Load / DC Output / Short Circuit / Voltage Input / Clipping |
| Body Color / Finish | Matte Black |
| Overall Length | 10.43″ / 265 mm |
| Overall Width | 4.72″ / 120 mm |
| Overall Height | 1.96″ / 50 mm |
| Heatsink Length | 8.58″ / 218 mm |
| Gross Single Unit Weight | 1.6 kg |
Product Overview

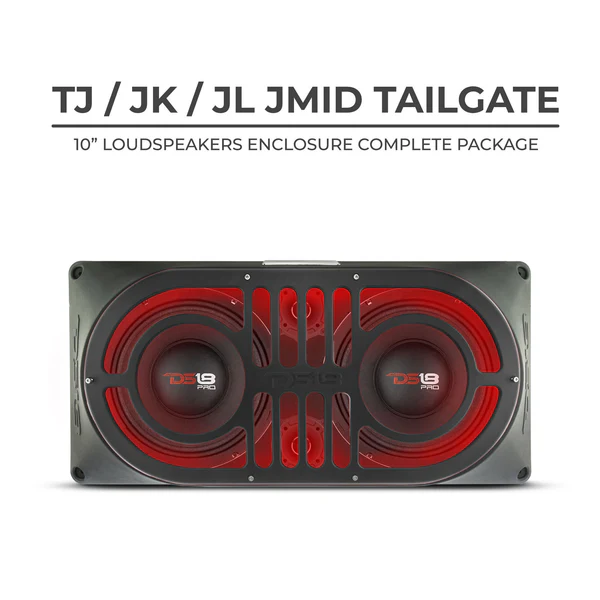

Jeep JMID Tailgate Platinum Package
Introducing DS18’s Loaded JMID Package, a one-of-a-kind package that combines unparalleled performance, space saving design, and striking aesthetics.
At the heart of this package is DS18’s JMID; a rugged, high-strength plastic mold injected midrange enclosure. Crafted to perfection, this enclosure flawlessly accommodates two DS18 midrange 10-inch speakers (Two of DS18’s 10” PRO-X Series Speakers Included) and two high-powered tweeters (Two of DS18’s PRO-TW220), effortlessly delivering extraordinary sound quality every session. Engineered to fit seamlessly on the back of your TJ, JK, or JL Jeep, this space-saving enclosure guarantees maximum loudness without compromising valuable storage space.
To power your new audio setup, the experts at DS18 carefully select a high-powered amplifier (One of DS18’s GEN-X Full Range Class AB 4-Channel Amplifier’s Included) that perfectly matches the wattage requirements of your speakers. This guarantees you get every ounce of performance from your audio system, delivering mind-blowing clarity, depth, and accuracy. The included amp kit simplifies the installation process, making it a breeze to connect this livewire and bring your audio dreams to life.
But DS18’s Loaded JMID Package doesn’t stop at extraordinary sound alone. It elevates your Jeep’s visual appeal with the inclusion of captivating RGB LED lights. Strategically placed around the protective grill of the JMID, these vibrant LED’s allow you to create a mesmerizing mood that complements your existing theme. With the LED-BTC controller at your fingertips, you can effortlessly change colors with a simple swipe on your phone, turning your Jeep into a festival on wheels.
