Description
DS18 JL-SB6
The DS18 JL‑SB6 is a 6‑inch full‑range speaker designed for Jeep Wrangler JL/JLU and Jeep Gladiator JT audio upgrades. This speaker is built to replace factory door or rear speakers, delivering clearer mids, detailed highs, and better overall sound quality compared to stock speakers. It’s engineered for durability and improved audio performance in off‑road environments or daily driving.
Specifications
| Category | Specification |
|---|---|
| SKU | JL-SB6 |
| Component Set | 2-Way |
| Nominal Speaker Diameter | 6.5″ / 165mm |
| Nominal Tweeter Diameter | 1.7″ / 43mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 150 watts |
| MAX Power Handling | 300 watts |
| Total Sensitivity (1W/1m) | 97 dB |
| Total Frequency Response | 60Hz – 20kHz |
Woofer Specifications
| Specification | Details |
|---|---|
| Nominal Impedance | 4 Ohm |
| Total Sensitivity (1W/1m) | 96 dB |
| Frequency Response | 60Hz – 10kHz |
| Voice Coil Diameter | 1.5″ / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Magnet Material | Neodymium |
| Magnet Weight | 3 Oz |
Woofer Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 4.46L / 0.157ft³ |
| Excursion (Xmax, one-way) | 1.5mm |
| Free Air Resonance Fs | 138 Hz |
| Mechanical Factor Qms | 4.249 |
| Electrical Factor Qes | 0.977 |
| Total Factor Qts | 0.794 |
| Mechanical Mass Mms | 7.166 g |
| Mechanical Compliance Cms | 148.927 µM/N |
| BL Factor Bl | 4.767 |
| Voice Coil Inductance Le | 0.08696 mH |
| Cone Area Sd | 145 cm² |
| DC Resistance Re | 3.2 Ohm |
| Mechanical Mass w/o air Mmd | 6.159 g |
Tweeter Specifications
| Specification | Details |
|---|---|
| Nominal Impedance | 4 Ohm |
| Sensitivity (1W/1m) | 92 dB |
| Frequency Response | 1kHz – 20kHz |
| High-Pass Crossover | 3.5kHz |
| Body Color / Material | Black / ABS |
| Voice Coil Diameter | 1″ / 25.4mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | SV |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 13 g |
Body / Features
| Specification | Details |
|---|---|
| Wiring / Connections | Plug & Play to factory speaker connector |
| Enclosure Material | Injection molded ASA composite |
| Grill Material | Steel |
| Sold as | Pair (Left and Right) |
| Color / Finish | Black / Satin |
Measurements
| Dimension | Size |
|---|---|
| Overall Width | 8.26″ / 210mm |
| Overall Length | 12.36″ / 314mm |
| Overall Depth | 3.27″ / 83mm |
Product Overview

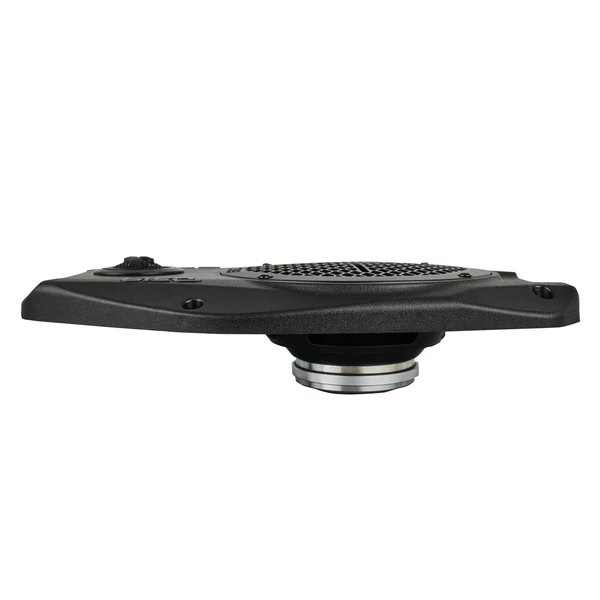

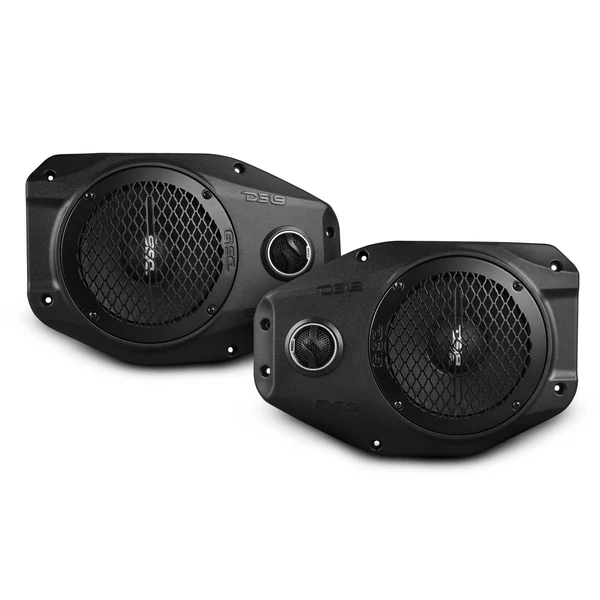

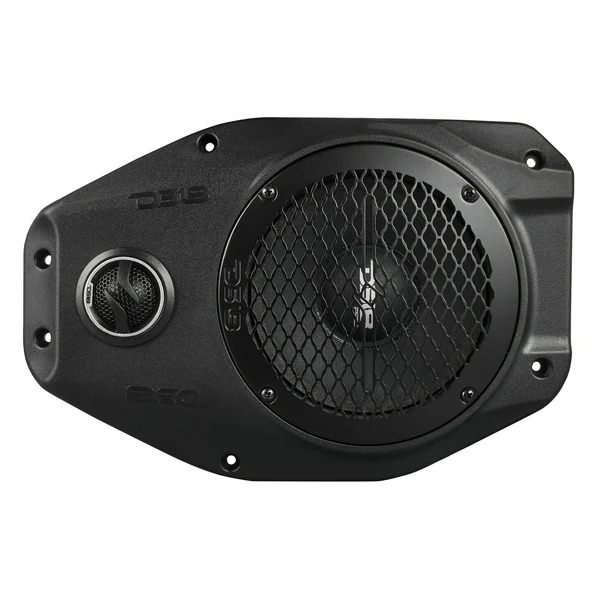

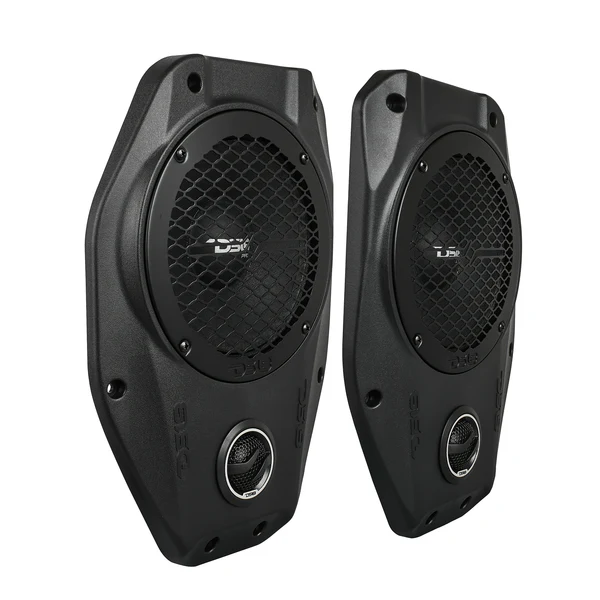

6.5” Soundbar Upgrade Kit for Jeep Wrangler JL / JLU & Gladiator JT
DS18’s JL-SB6 delivers a high-performance soundbar upgrade replacing 4” speakers with premium 6.5” neodymium midrange speakers and 1” dome tweeters. This kit gives your Jeep the presence it needs to get LOUD on the trail or freeway!
Jeep-Ready Performance
Designed for a perfect fit in Wrangler JL/JLU and Gladiator JT models, every kit includes a precision mounting template and hardware to guide your install.
Premium Build for All Conditions

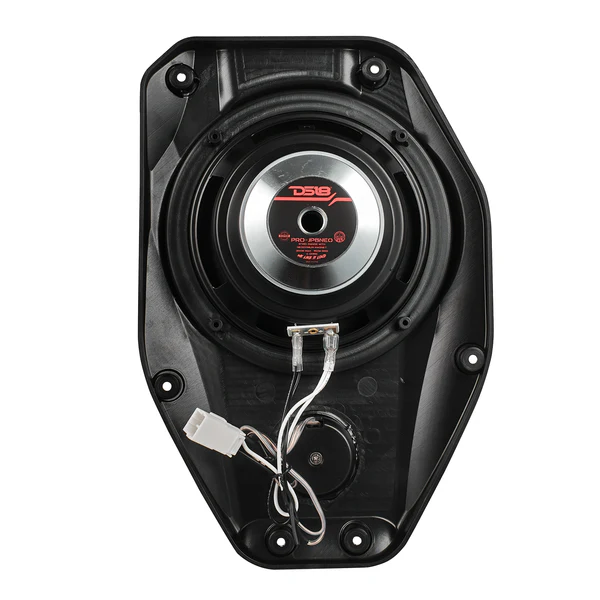

Made from injection-molded ASA composite: the JL-SB6 resists heat, impact, and UV damage, so it can handle anything your Jeep does. The NEW steel grille keeps your speakers protected and adds a clean, aggressive look. Plug-and-play connectors make wiring seamless, and with both left and right side upgrades you get a complete soundbar transformation.
Cutting Required
Cutting of the stock soundbar is required. We include everything—cutting templates, grille mounting plates, screws, and plug-and-play harnesses—to make the install as clean and easy as possible.
