Description
DS18 ION600.1D
Power Specifications
| Specification | Value |
|---|---|
| SKU | ION600.1D |
| Total Watts (Peak) | 1800W |
| RMS Power @ 4 Ohm | 200W |
| RMS Power @ 2 Ohm | 400W |
| RMS Power @ 1 Ohm | 600W |
| RMS Power @ 4 Ohm Bridge | N/A |
| Amplifier Class | Digital |
| Amplifier Type | Full-Range Monoblock |
| Number of Channels | 1 |
| Minimum Impedance | 1 Ohm |
| Power Input Terminal Size | 4 AWG |
| Fuse Size | 80A (external) |
Audio Specifications
| Specification | Value |
|---|---|
| Frequency Response | 10Hz–20kHz |
| Signal to Noise Ratio | >95dB |
| Efficiency @ 4 Ohm | 88% |
| Damping Factor | 210 |
| Input Impedance | 27KΩ |
| Channel Separation | N/A |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.2–6V |
| High Level Input | Yes |
| Selectable X-Over | Band-Pass |
| X-Over Filter Range | HP: 15Hz–1kHz / LP: 40Hz–20kHz |
| Bass Boost Range | 0–12dB |
| Bass Boost Frequency | 45Hz |
Features & Protection
| Specification | Value |
|---|---|
| LED Indicator | Power / Protect / Clipping |
| Remote Level Control | Yes |
| Cooling Fan | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Aluminum Black / Silver |
| Hi-Level Speaker Connector | Yes |
| Tiffany RCA Terminal | Yes |
| LED Clip Indicator | Yes |
| High Efficiency Micro Digital Design | Yes |
Measurements
| Measurement | Value |
|---|---|
| Overall Length | 6.14″ / 156mm |
| Overall Width | 4.72″ / 120mm |
| Overall Height | 2″ / 52mm |
| Heatsink Length | 4.84″ / 123mm |
| Gross Single Unit Weight | 0.7 kg |
Product Overview

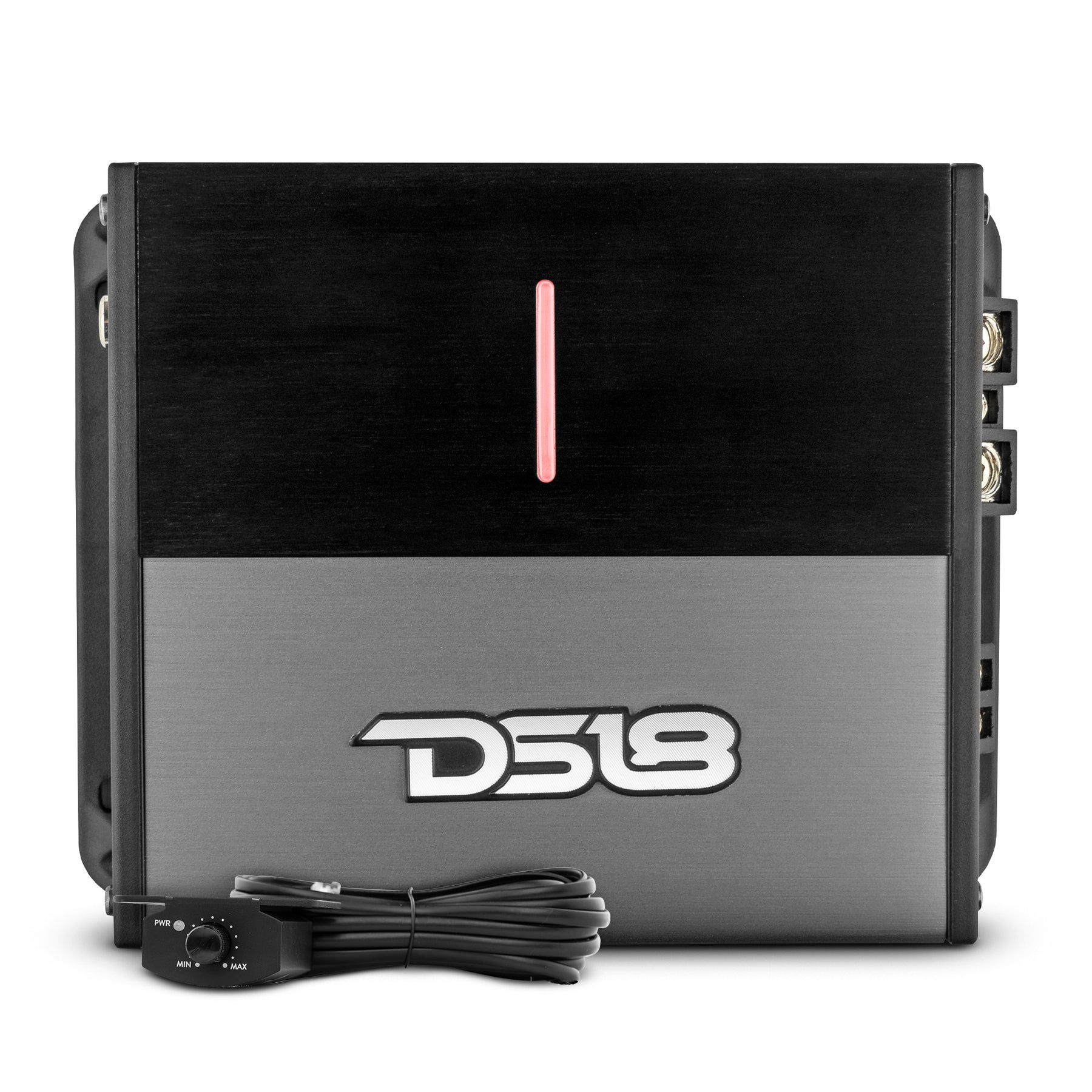

Experience an unparalleled sound journey with DS18’s ION600.1D, a full-range high efficiency micro digital 1-channel amplifier, designed for powerful and crisp audio performance that will elevate your listening experience to new heights.

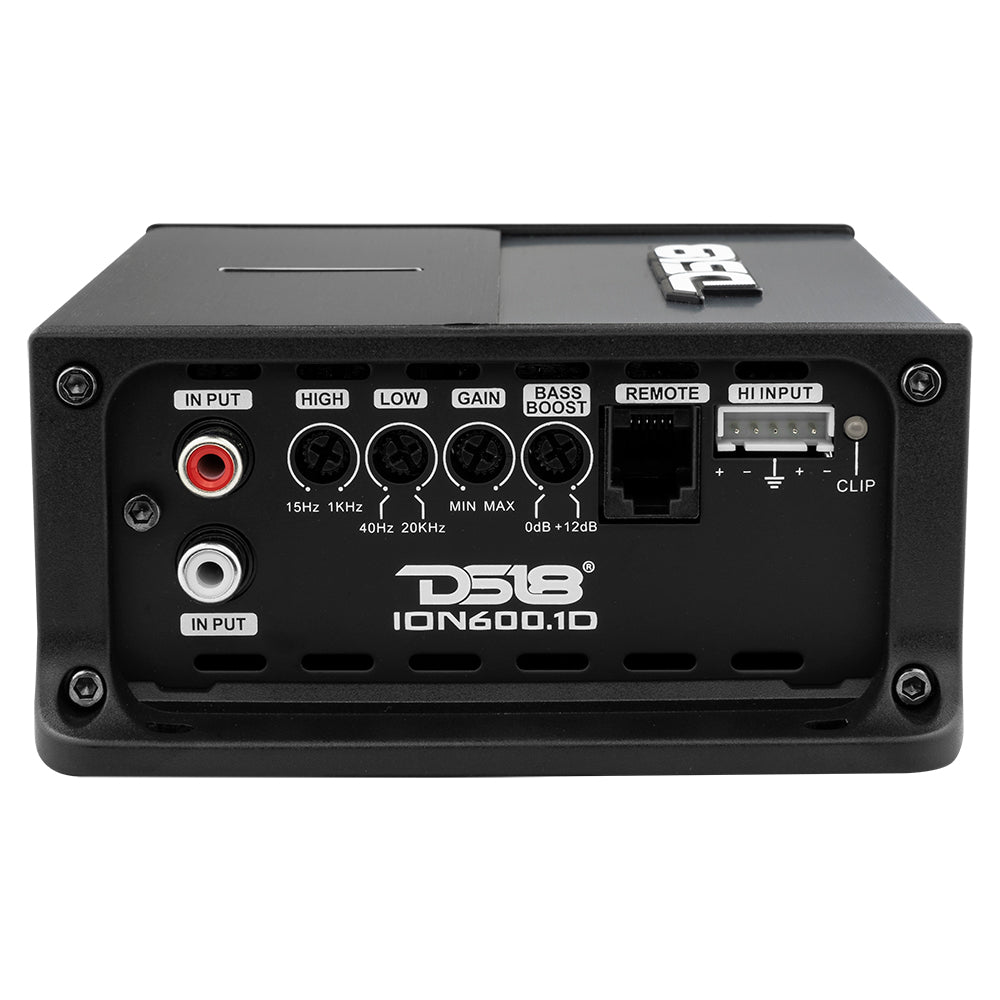

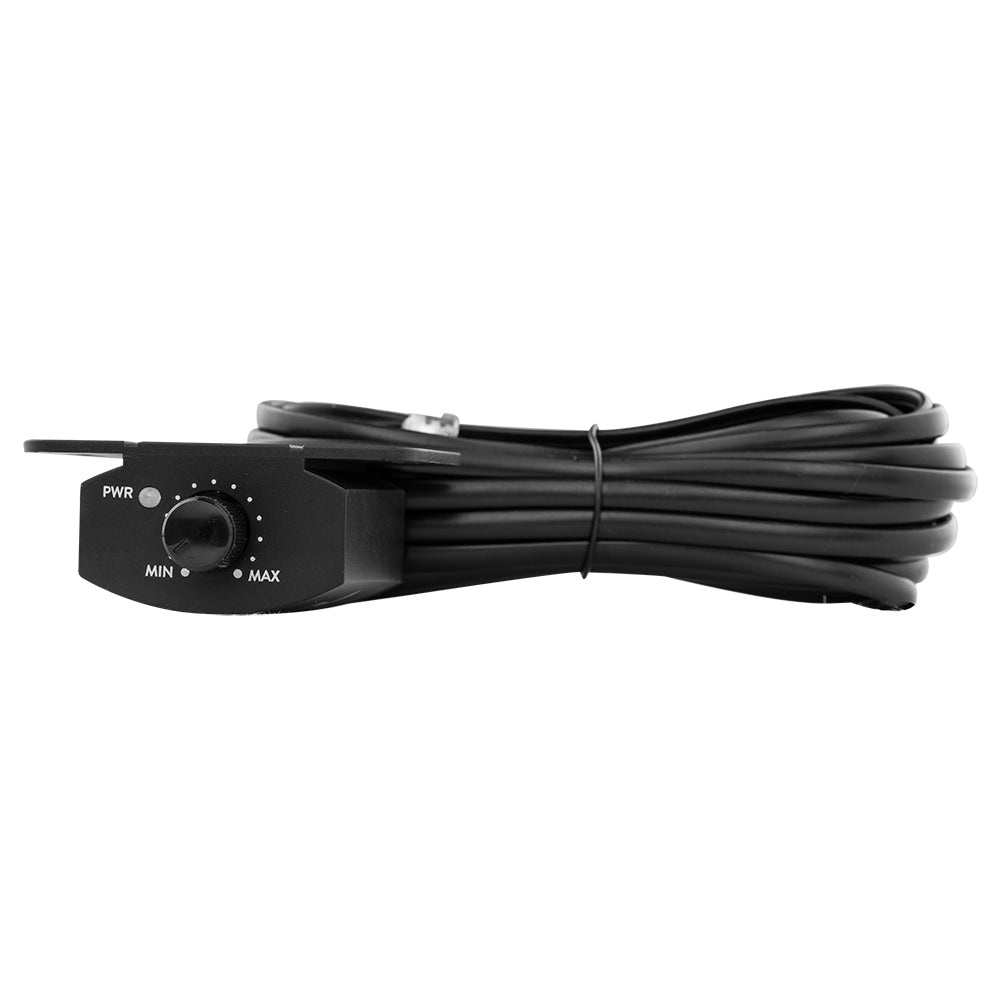

Built for seamless integration into your audio system, DS18’s ION600.1D allows for easy connectivity and optimal signal transfer using Hi-Level Inputs and Tiffany RCA’s. With a frequency response of 10Hz – 20KHz this full-range amplifier comes with variable full-range crossover filters for precise control over your sound. This gives the ION600.1D the ability to be configured for bass or mids/highs depending on how you set the full range crossover. Fine tune these levels with the convenient remote level control knob!

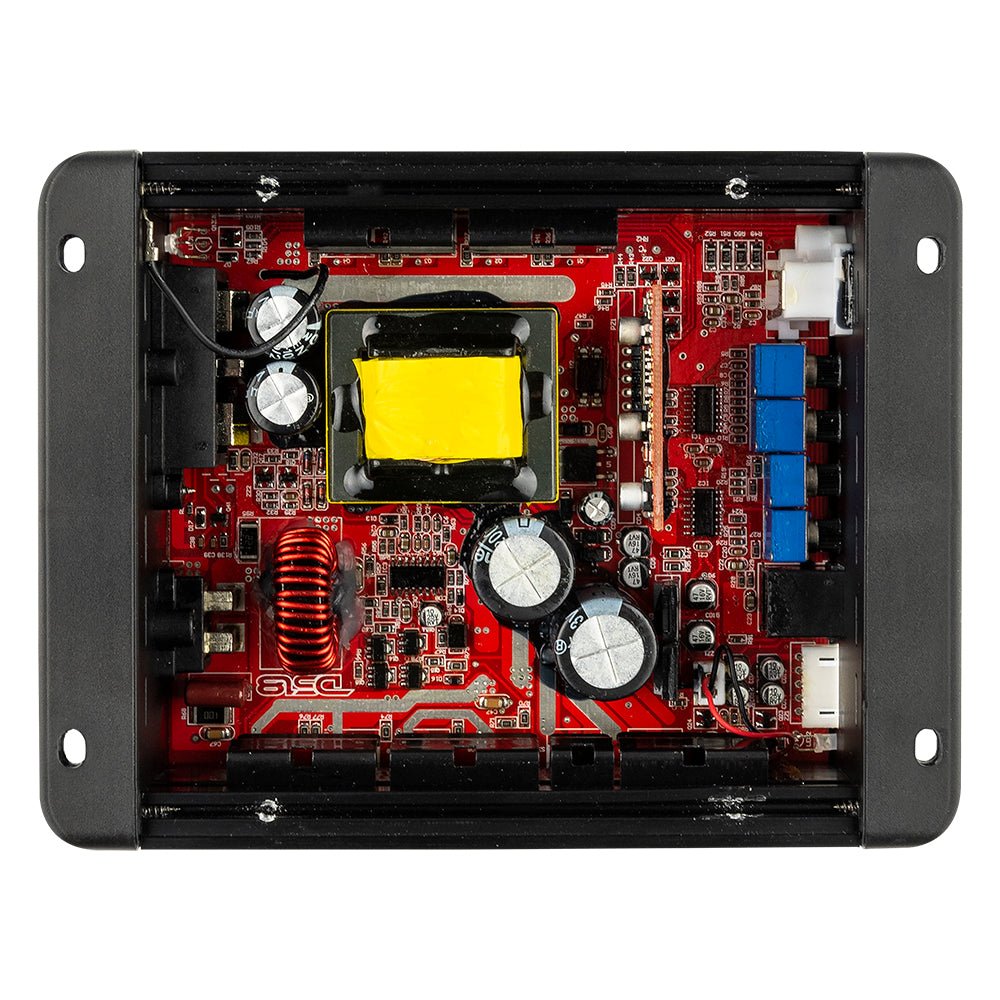

The ION600.1D is engineered to withstand the test of time. Protective coating on the PCB prevents moisture corrosion, while bonded components provide extra vibration protection.
Safety was a top priority in the construction of DS18’s ION600.1D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifier’s status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely.
The ION600.1D has power ratings of 600W at 1 ohm, 400W at 2 ohms, and 200W at 4 ohms; perfect power ratings to turbocharge every piece of equipment in your system!
Immerse yourself in a world of superior sound quality and reliability with DS18’s ION600.1D!
