DS18 HOOL-X15.2DSPL

The HOOL‑X15.2DSPL is a competition‑grade 15‑inch SPL (Sound Pressure Level) car subwoofer engineered to deliver extreme, deep bass and maximum output for high‑power car audio builds. With 4000 W RMS and up to 6000 W peak power handling, its dual 2 Ω voice coil (2+2 Ω) configuration provides flexible wiring and massive power throughput. Built with a 4″ aluminum voice coil, non‑pressed paper cone, carbon fiber dust cap, foam surround, and a 500 oz ferrite magnet motor, this subwoofer produces rich low frequencies from approximately 20 Hz to 250 Hz with serious SPL capability. Its rugged aluminum basket in a signature red finish and reinforced SPL spider make it ideal for ported, sealed, 4th/6th order, or custom enclosures, giving bass enthusiasts the ultimate in low‑end punch and competition‑level performance.


Specifications

Parameter Value
SKU HOOL-X15.2DSPL
Nominal Diameter 15″
Nominal Impedance 2 + 2 Ohms
RMS Power Handling 4000 W
MAX Power Handling 6000 W
Sensitivity (1W/1M) 88.5 dB
Frequency Response 20 – 250 Hz
Recommended Low-Pass Crossover 100 Hz

Motor Specifications
Parameter Value
Voice Coil Diameter 4″ / 101.6 mm
Voice Coil Former Material Black Aluminum
Winding Material CCAW
Cone Material Non Pressed Paper
Dust Cap Material Carbon Fiber
Surround Material Foam
Basket Material Aluminum
Basket Color / Finish Glossy Red
Magnet Material Ferrite
Magnet Weight 500 oz
Displacement Volume 9.1 L / 0.32 ft³

Thiele & Small Parameters
Parameter Value
Equivalent Volume (Vas) 41.33 L / 1.45 ft³
Free Air Resonance (Fs) 36.53 Hz
Mechanical Factor (Qms) 5.68
Electrical Factor (Qes) 0.513
Total Factor (Qts) 0.438
Moving Mass (Mms) 478.64 g
Compliance (Cms) 0.025 mm/N
BL Factor 15.83
Voice Coil Inductance (Le) 1.517 mH
Diaphragm Area (Sd) 754.77 cm²
DC Resistance (Re) 1.9 + 1.9 Ohms
Efficiency Bandwidth Product (EBP) 71.2

Measurements & Packaging
Parameter Value

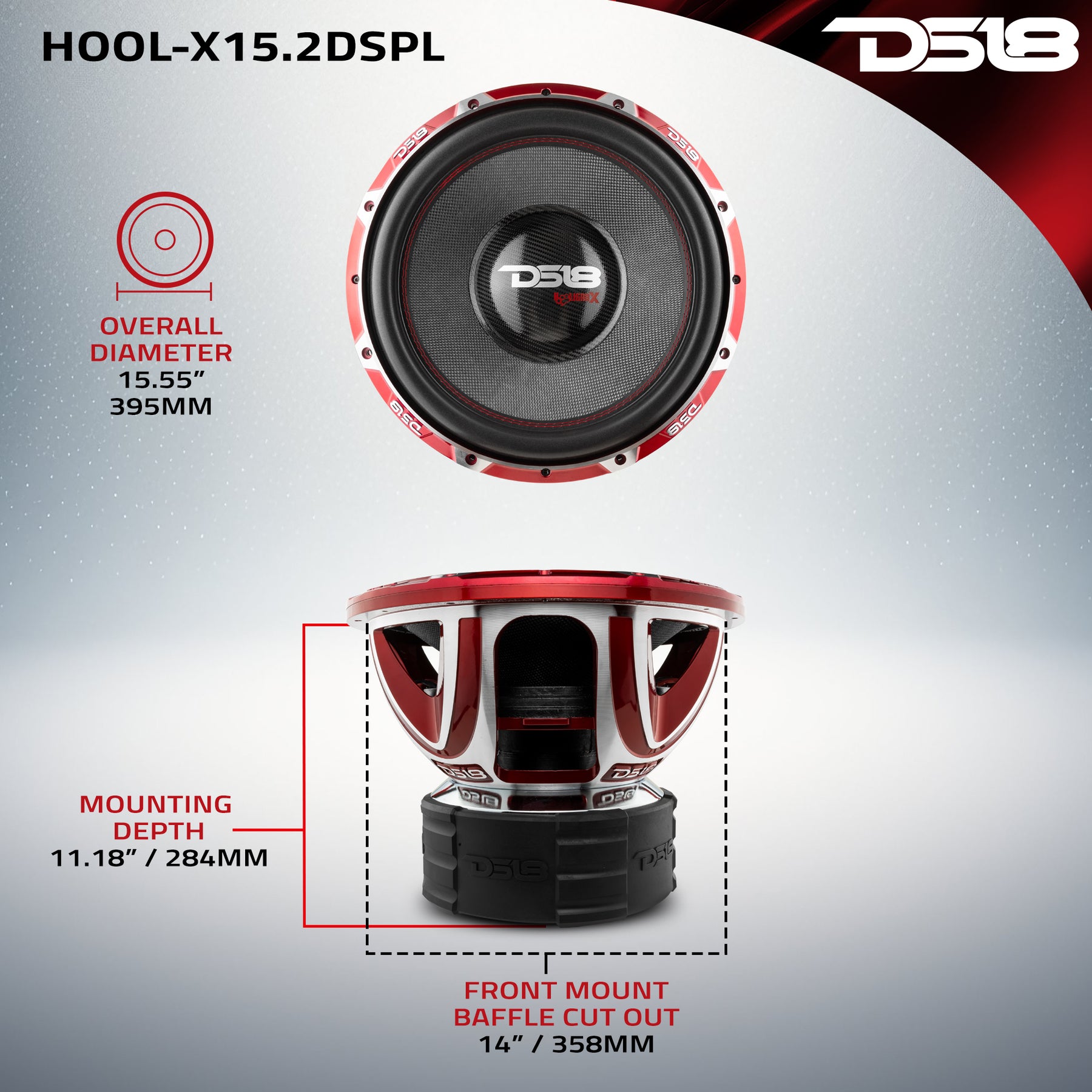

Overall Diameter 15.55″ / 395 mm
Overall Depth 13.3″ / 338 mm
Front Mount Baffle Cutout 14″ / 358 mm
Mounting Depth 11.18″ / 284 mm
Motor Diameter 9.96″ / 253 mm
Product Weight 88 lb
Product Dimensions (L × W × H) 17.75 × 17.5 × 15.25 in
Master Carton Weight 88 lb
Master Carton Dimensions (L × W × H) 17.75 × 17.5 × 15.25 in
Master Carton Quantity 1
Sold In Single

Product Overview

HOOLIGAN 15″ SPL Car Subwoofer 4000 Watts RMS 4″ 2-Ohm DVC

For over six years, the HOOLIGAN series has captivated music lovers and competitors alike, consistently pushing the boundaries of what is possible in car audio. Now, with the HOOLIGAN X15 Sound Pressure Level, we have taken this iconic line to new heights. Our engineers have meticulously crafted this subwoofer to deliver unrivaled sound pressure levels, making it the perfect choice for those seeking extreme bass and massive power.
The HOOLIGAN X15 is built to withstand the most demanding conditions, both on the streets and in the lanes. With its heavy-duty pole, SPL spider, and high-strength surround, this subwoofer is specifically designed to enhance sound pressure levels, resulting in a louder output at competition frequencies.
Versatility is the name of the game with the HOOLIGAN X15. It is compatible with a range of enclosure types, including 4th orders, 6th orders, ported boxes, and large sealed boxes. This subwoofer adapts to your setup, providing flexibility and exceptional performance in any application.
At the heart of the HOOLIGAN X15 lies its high-powered 4″ aluminum voice coil, capable of handling 4000W RMS and 6000W MAX power, ensures every beat hits with precision and authority. We’ve also reinforced this version with a larger SPL surround, enhancing its capability to handle high SPL levels and allowing it to play louder and cleaner than ever before.
The DS18 Tooled Red basket on the HOOL-X15.2DSPL, constructed from aluminum, not only provides exceptional strength but also adds a touch of elegance to your car audio setup. The HOOL-X15.2DSPL also boasts a nominal diameter of 15″ (381mm) and a nominal impedance of 2+2 OHMS to amplify the performance and capabilities of this high-powered subwoofer.
Join the ranks of music lovers and competitors who have chosen the HOOLIGAN series as their go-to subwoofer.

Reviews

There are no reviews yet.

Be the first to review “DS18 HOOL-X15.2DSPL”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What kind of product is the HOOL‑X15.2DSPL?

A1: It’s a 15″ SPL competition subwoofer designed for high‑power car audio systems with extreme bass output.

Q2: How much power can this subwoofer handle?

A2: It handles 4000 W RMS and up to 6000 W peak power.

Q3: What is the impedance and voice coil setup?
A3: It has a dual 2 Ω voice coil (2+2 Ω) configuration with a 4″ aluminum voice coil for robust power handling.
Q4: What frequency range does it cover?
A4: It produces deep bass roughly from 20 Hz to 250 Hz.
Q5: What materials and build features improve performance?
A5: Featuring a non‑pressed paper cone, carbon fiber dust cap, foam surround, 500 oz ferrite magnet, and a reinforced SPL spider, it’s built for both durability and high SPL output.
