Description
DS18 HOOL-X12.4DH

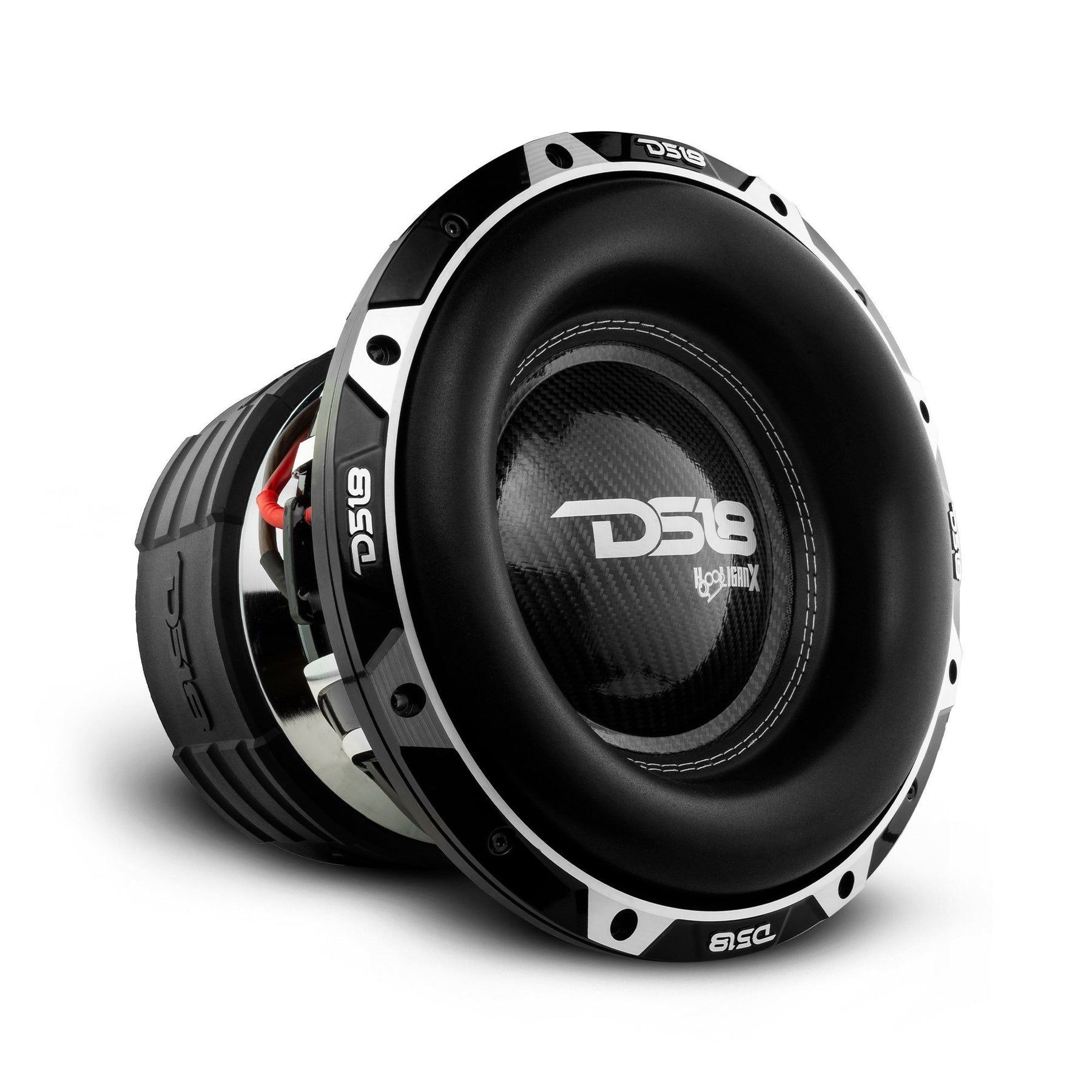

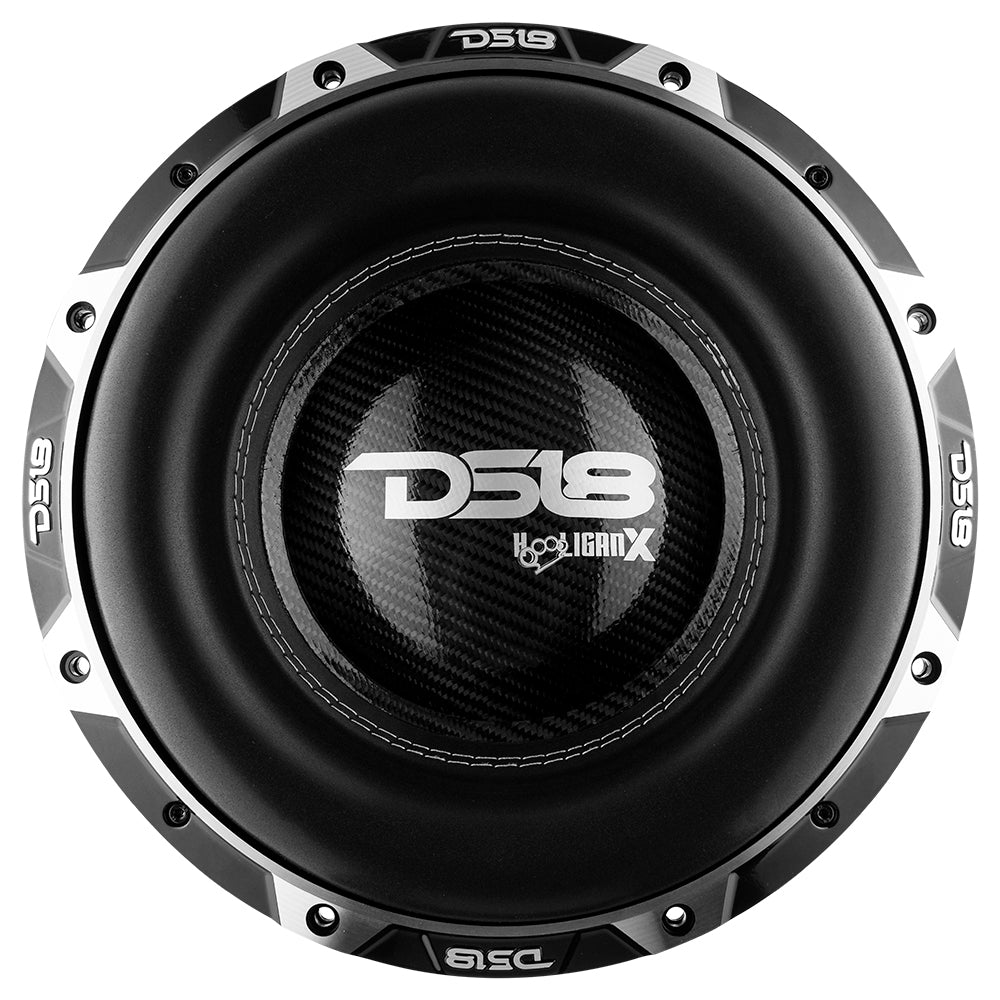

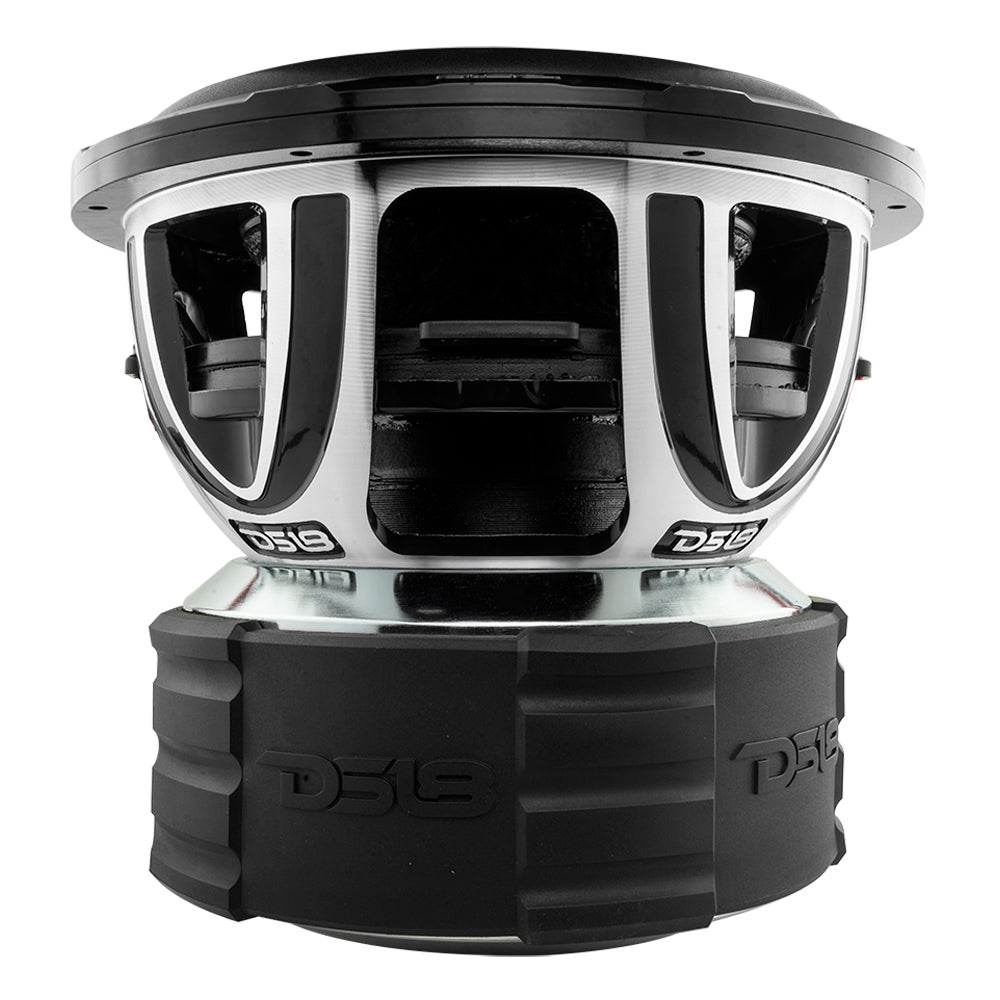

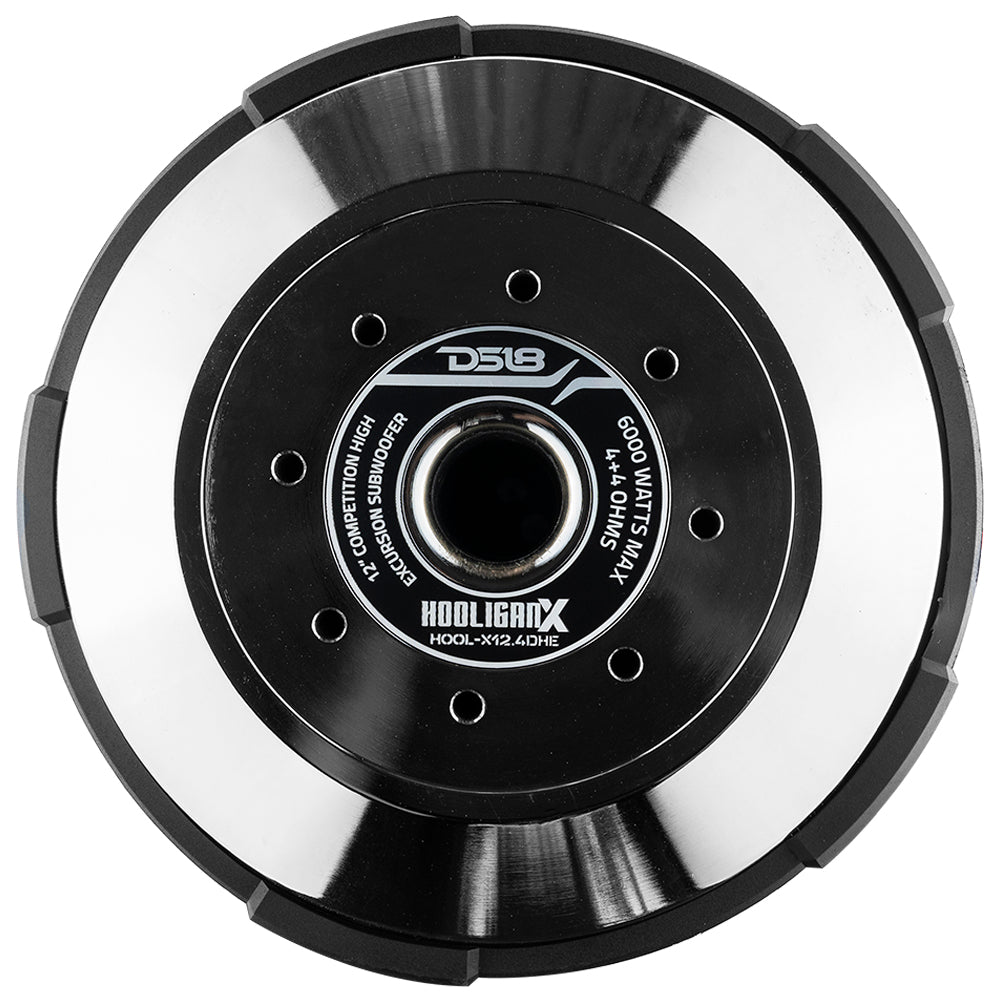

The HOOL-X12.4DHE is a high-excursion 12-inch competition-grade car subwoofer engineered for massive, deep bass and extreme low-frequency output in powerful audio systems. Featuring dual 4 Ω voice coils (4+4 Ω) with a 4″ aluminum voice coil former wound with CCAW, it delivers a 4000 W RMS power handling and up to 6000 W peak power, providing authoritative bass performance with minimal distortion. Built with a non-pressed paper cone, carbon fiber dust cap, high-roll foam surround, and 500 oz ferrite magnet, the HOOL-X12.4DHE produces impactful lows from 20 Hz to 500 Hz and is versatile enough for sealed, ported, 4th order, and 6th order enclosures. Its rugged aluminum basket and optimized motor structure ensure durability under high-stress use, making it ideal for serious car audio enthusiasts and SPL competition builds.
Specifications
| Parameter | Value |
|---|---|
| SKU | HOOL-X12.4DHE |
| Nominal Diameter | 12” / 304.8 mm |
| Nominal Impedance | 4 + 4 Ω |
| RMS Power Handling | 4000 W |
| MAX Power Handling | 6000 W |
| Sensitivity (1W/1M) | 87 dB |
| Frequency Response | 20 – 500 Hz |
| Recommended Low-Pass Crossover | 80 Hz |
Motor / Construction
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 4” / 99.8 mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Carbon Fiber |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color / Finish | Gloss Black with Machined Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 500 oz |
| Displacement Volume | 4.8 L / 0.169 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (VAS) | 21.86 L / 0.77 ft³ |
| Free Air Resonance (FS) | 26 Hz |
| Mechanical Factor (QMS) | 2.75 |
| Electrical Factor (QES) | 0.528 |
| Total Q (QTS) | 0.517 |
| Moving Mass (MMS) | 486.45 g |
| Compliance (CMS) | 0.074 mm/N |
| Bl Factor (Bl) | 23.86 |
| Voice Coil Inductance (Le) | 42.15 mH |
| Diaphragm Area (Sd) | 471.44 cm² |
| DC Resistance (Re) | 3.2 + 3.2 Ω |
| Efficiency Bandwidth Product (EBP) | 49.2 |
Recommended Enclosures
| Parameter | Value |
|---|---|
| Sealed Internal Volume | 17 L / 0.6 ft³ |
| Sealed Box Output Response | 41 Hz |
| Ported Internal Volume | 42.5 L / 1.5 ft³ |
| Port Size (W × H × L) | 1.52” × 12.28” × 31.82” / 38.5 × 312 × 808.2 mm |
| Port Tuning Frequency | 30 Hz |
| Ported Box Output Response | 25 Hz |
Measurements / Dimensions
| Parameter | Value |
|---|---|
| Overall Diameter | 12.64” / 321 mm |
| Overall Depth | 11.6” / 295 mm |
| Front Mount Baffle Cutout | 11.2” / 285 mm |
| Mounting Depth | 10” / 255 mm |
| Motor Diameter | 9.96” / 253 mm |
| Product Weight | 87.5 lb |
| Product Dimensions (L × W × H) | 15 × 15 × 14 in |
| Master Carton Weight | 87.5 lb |
| Master Carton Dimensions | 15 × 15 × 14 in |
| Master Carton Quantity | 1 |
| Sold In | Single |
Product Overview
HOOLIGAN 12″ High Excursion Car Subwoofer 4000 Watts Rms 4″ DVC 4-Ohm
Experience a new level of bass performance and power with DS18’s HOOL-X12.4DHE! The HOOLIGAN 12” High Excursion Car Subwoofer has been the top choice for enthusiasts and competitors alike, and now, it’s back with a vengeance.
The HOOLIGAN is built for power and durability. The redesigned long throw pole, larger spider, and high excursion surround, helps lower the HOOLIGAN’s FS (Resonant Frequency), making it even louder at subsonic frequencies. With an FS of 26, this subwoofer guarantees impressive low frequencies all the way down to 20Hz. Its high-powered 4″ Black Aluminum voice coil can handle 4000W RMS and 6000W MAX power, making it perfect for heavy-hitting competition bass.
Versatility is key, and the HOOL-X12.4DHE can adapt to various enclosure types. Whether you prefer 4th orders, 6th orders, ported boxes, or large sealed boxes, this subwoofer will thrive in any setup that has enough room.
This version of the HOOLIGAN boasts a nominal diameter of 12″ (304.8 mm) and a nominal impedance of 4+4 OHMS to amplify the performance and capabilities of this high-powered subwoofer. With a sensitivity of 87 dB and a frequency response ranging from 20Hz to 500Hz, this subwoofer ensures every beat is reproduced with staggering depth and precision.
DS18’s HOOLIGAN 12″ High Excursion Car Subwoofer is the ultimate choice for car audio enthusiasts seeking extreme bass and massive power. Its unmatched performance, cutting-edge design, and versatility make it a must-have for any ground shaking audio system.
