Description
DS18 GTX1XL

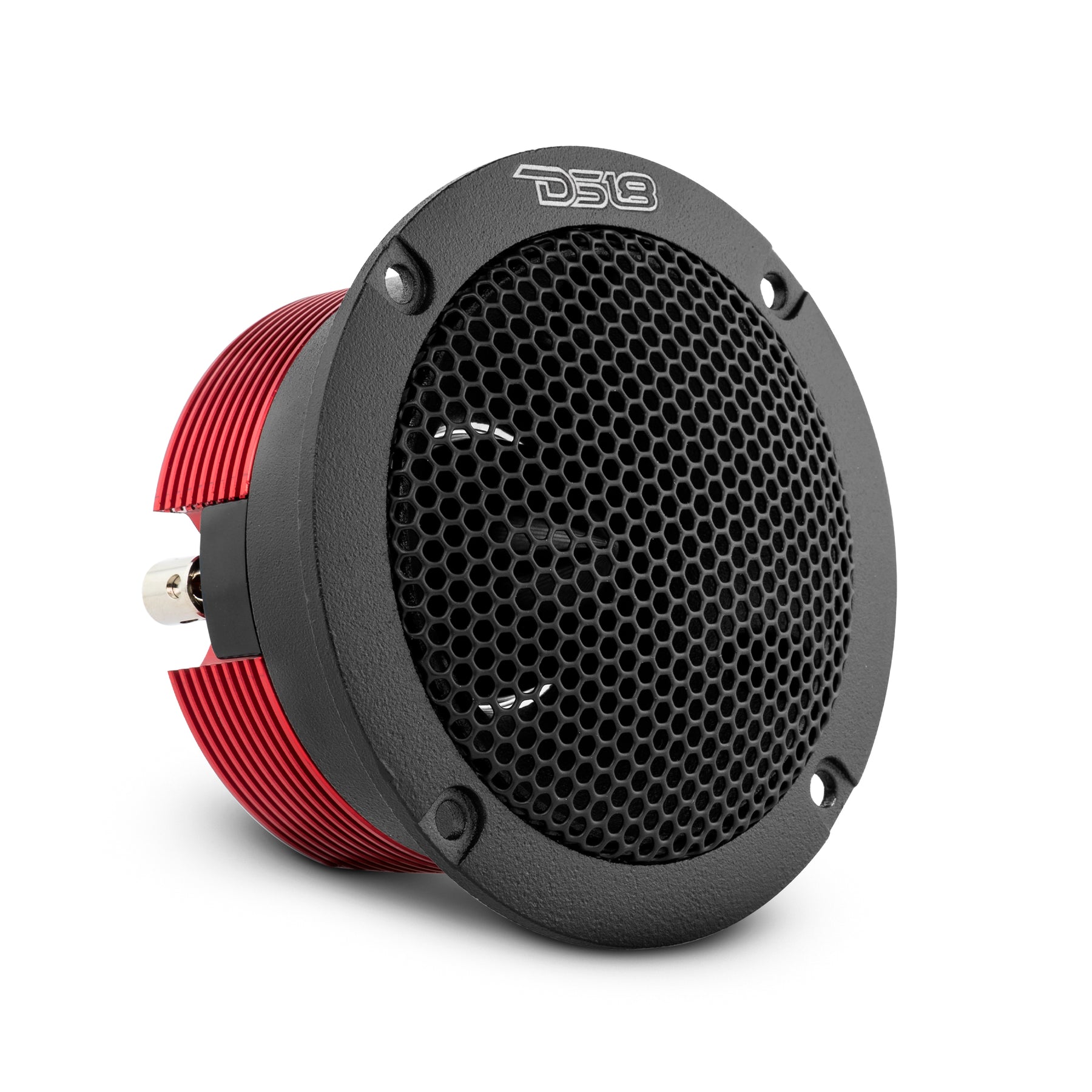

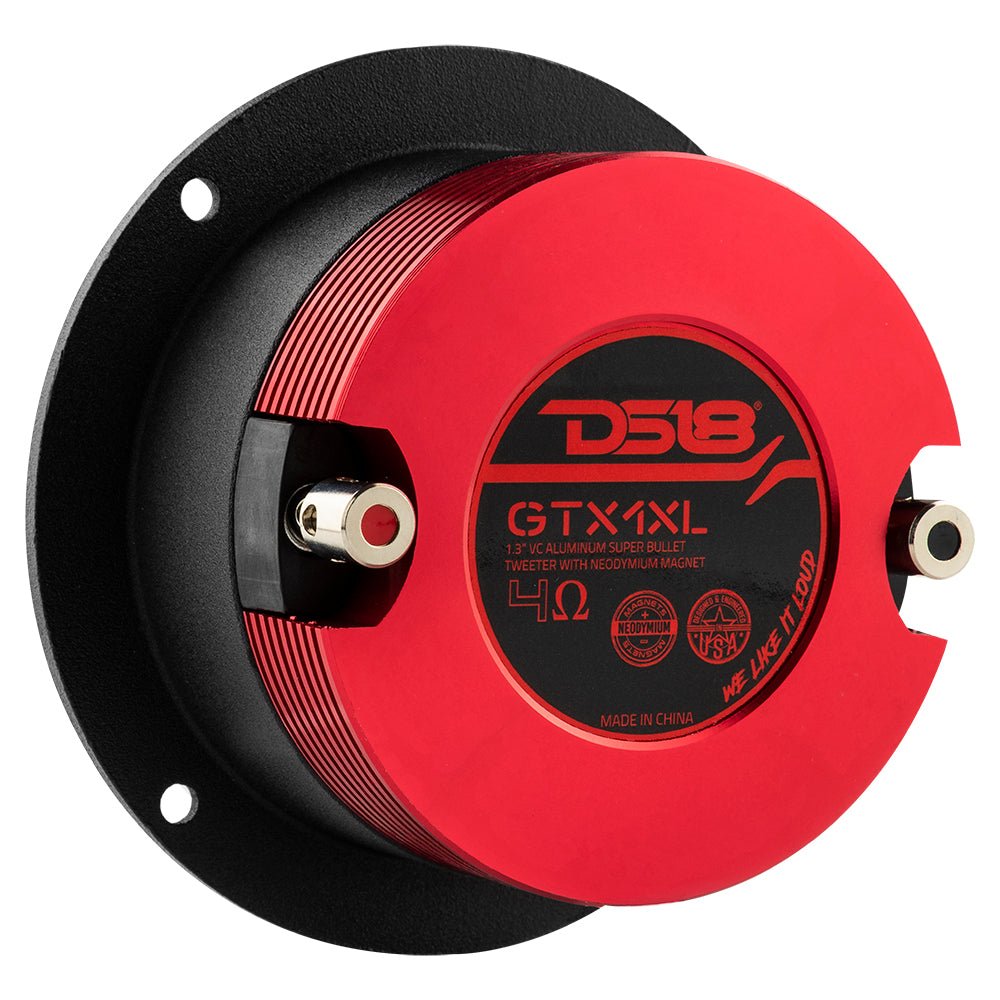

The GTX1XL is a high-performance 3.75-inch die-cast compression neodymium super bullet tweeter designed to deliver powerful and detailed high-frequency sound for car audio systems. With 160 W RMS (320 W peak) power handling and a 4-ohm impedance, it offers strong output with a sensitivity of 100 dB, ensuring clear and dynamic treble reproduction from 2.5 kHz to 20 kHz. Built with a robust aluminum body and a precision-engineered 1.3-inch aluminum voice coil, the GTX1XL produces crisp highs with minimal distortion. Its compact and durable design makes installation easy, enhancing your audio setup with rich, immersive high frequencies that bring out every detail in your music.
Specifications
| Parameter | Details |
|---|---|
| SKU | GTX1XL |
| Nominal Diameter | 3.75″ / 95 mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 80 W |
| Program Power Handling | 160 W |
| Peak Power Handling | 320 W |
| Sensitivity (1W/1M) | 100 dB |
| Frequency Response | 2.5 kHz – 20 kHz |
| Recommended Hi-Pass Crossover | 2.5 kHz |
| Pair or Single | Single |
Motor / Body
| Parameter | Details |
|---|---|
| Voice Coil Diameter | 1.3″ / 33.5 mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Diaphragm Material | Aluminum |
| Magnet Material | Neodymium |
| Magnet Weight | 1.45 Oz |
| Body Material | Aluminum |
| Body Color / Finish | Black / Red |
Measurements & Shipping
| Parameter | Details |
|---|---|
| Overall Diameter | 3.75″ / 95 mm |
| Overall Depth | 2.24″ / 57 mm |
| Front Mount Baffle Cutout | 2.95″ / 73 mm |
| Mounting Depth | 1.73″ / 44 mm |
| Gross Single Unit Weight | 1.5 lb |
| Single Unit Box Dimensions (W × L × H) | 4.75 × 4.25 × 2.87 Inches |
| Units per Master Carton | 24 |
| Gross Master Carton Weight | 26.5 lb |
| Master Carton Dimensions (W × L × H) | 22 × 10.25 × 6.25 Inches |
Product Overview
3.75″ Die Cast Compression Neodymium Super Bullet Tweeter 320 Watts 1.3″ Aluminum 4-Ohm Vc
Step into a world of audio perfection with DS18’s GTX1XL, the pinnacle of neodymium tweeters.
The GTX1XL boasts a massive 3.75-inch die-cast compression neodymium super bullet design. With an astounding MAX power handling of 320W, it’s no wonder this tweeter is highly regarded among our competitive audience. With a sensitivity of 100dB and a frequency response ranging from 2.5kHz to 20kHz, the GTX1XL ensures that no detail escapes your ears.
Crafted with precision and finesse, the housing of the GTX1XL is cast from high-strength aluminum, creating a sturdy enclosure that complements your car’s interior and protects your investment. The iconic DS18 stamp on the front is the best way to let the world know you like it LOUD!
One of the standout features of the GTX1XL is its high precision 1.3-inch aluminum voice coil. This tweeter delivers unmatched performance, ensuring every note is reproduced with stunning clarity and detail.
Versatility is at the heart of the GTX1XL’s design. These super tweeters can be mounted anywhere you have space for them, giving you the freedom to experiment and create the perfect soundstage in your vehicle. Install them in the traditional locations or explore unconventional placements, the GTX1XL delivers exceptional performance, effortlessly.
DS18 understands that pushing the limits is part of the car audio enthusiast’s DNA. That’s why we’ve engineered the GTX1XL to be easily disassembled and repaired on the spot within a mere 60 seconds. You can push these tweeters to their maximum potential without worry, knowing that you have the power to bring them back to life in an instant.
