Description
DS18 GEN-X110LD
The GEN-X110LD is a 10-inch subwoofer designed to deliver deep, controlled, and high-quality bass for car audio and professional sound systems. Engineered for efficient low-frequency performance, it produces powerful bass with minimal distortion, ensuring clarity and punch even at higher volume levels. Constructed with a reinforced cone, durable magnet, and high-quality voice coil, the GEN-X110LD provides long-lasting reliability and consistent performance. Its versatile design allows for easy integration into both custom and factory-style enclosures, making it ideal for a variety of audio setups. Perfect for enthusiasts seeking enhanced low-end impact and overall audio depth.
Specifications
Package Includes
| Item | Model | Quantity |
|---|---|---|
| Subwoofer | GEN-X104D | 1 |
| Ported Vented Box | GEN-X110LD | 1 |
10″ Subwoofer Specifications (GEN-X104D)
| Attribute | Specification |
|---|---|
| Nominal Diameter | 10″ |
| Nominal Impedance | 2 Ohm |
| RMS Power Handling | 400W |
| MAX Power Handling | 800W |
| Sensitivity (1W/1m) | 90 dB |
| Frequency Response | 29–250 Hz |
| Recommended Hi Pass Crossover | 120 Hz |
| Magnet Weight | 66 Oz |
| Magnet Material | Ferrite |
Ported Box Specifications (GEN-X110LD)
| Attribute | Specification |
|---|---|
| Port Tune | 35 Hz |
| Internal Volume | 36.3L |
| Load Configuration | Front Ported |
| Box Material | 1/2″ MDF |
| Finish Material | Black Carpet |
| Measurement (L × W × H) | 15.75″ × 14″ × 14″ |
Product Overview

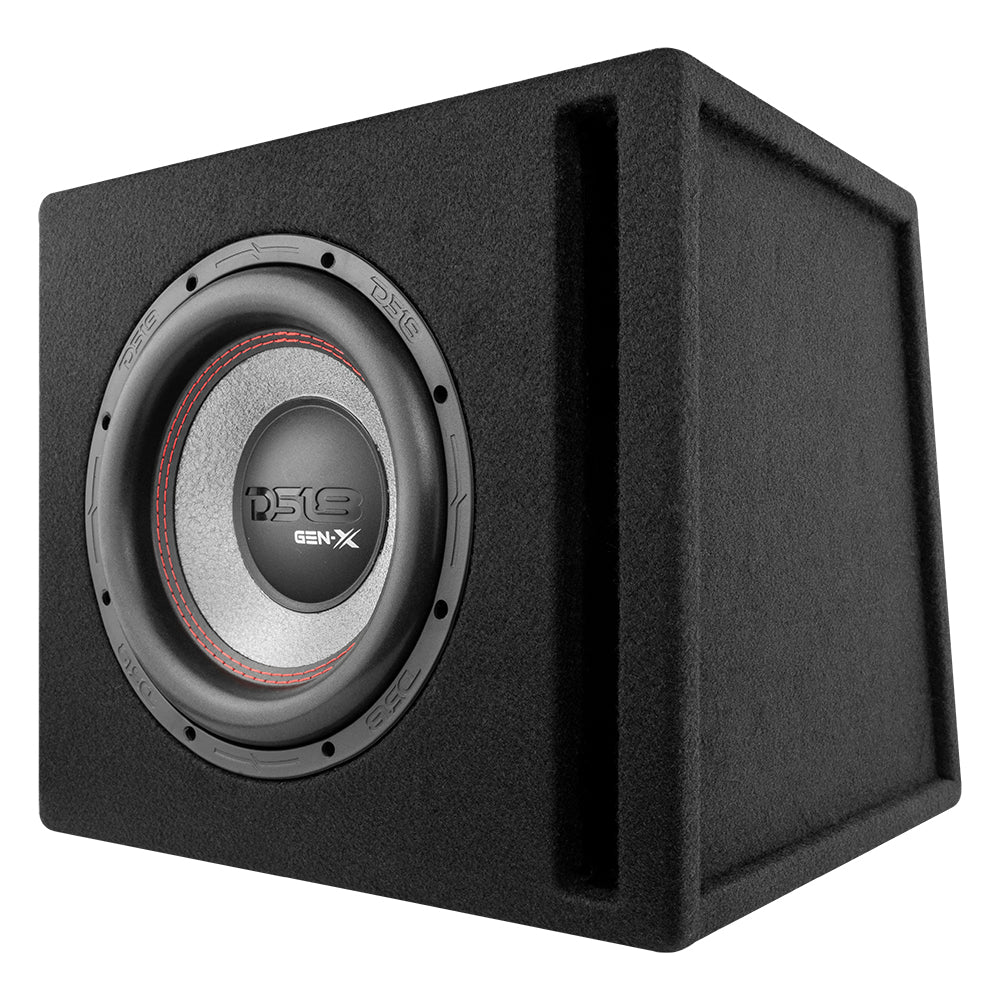

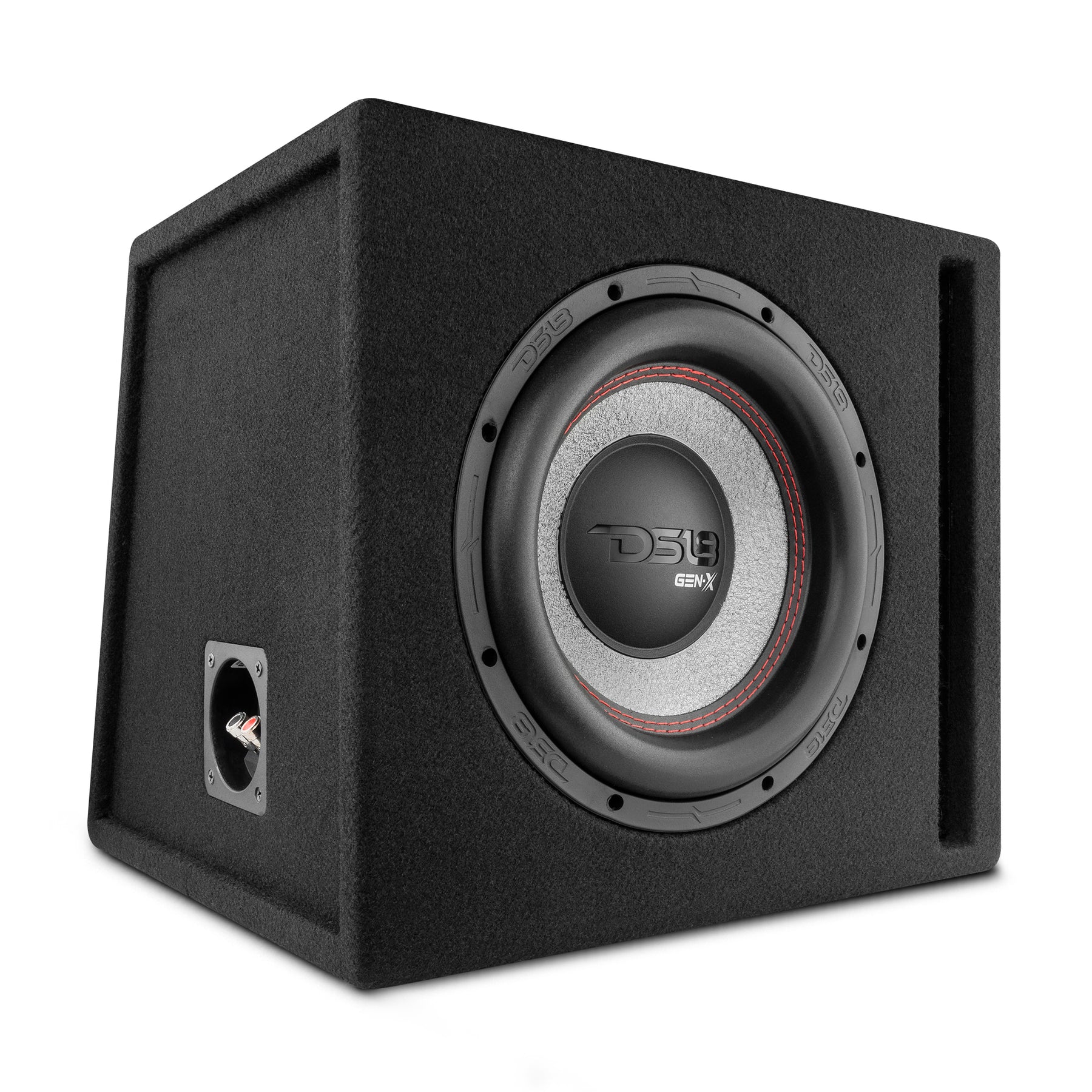

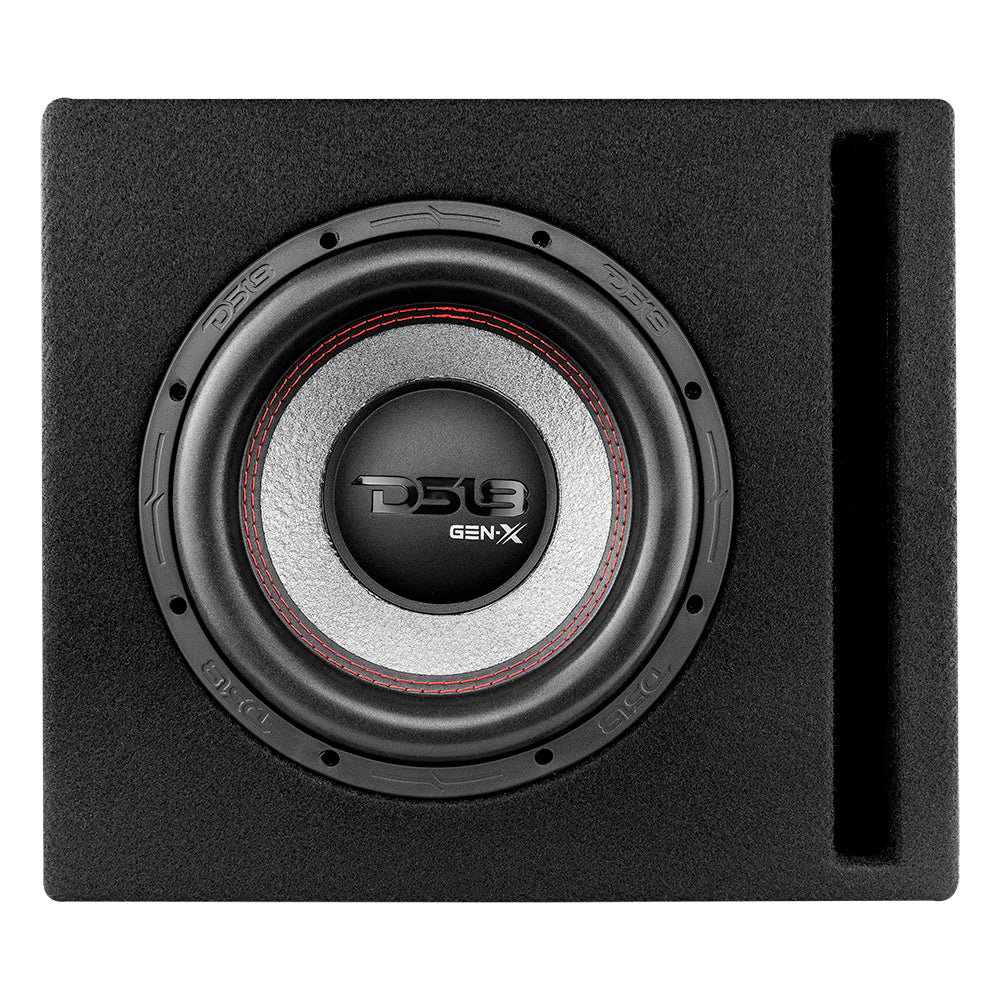

Ported Enclosure With Single GEN-X104D Subwoofer Included
Buckle up and get ready to feel the rush of crystal-clear sound and bone-shaking bass with DS18’s GEN-X110LD.
The GEN-X110LD transports you to the front row of your favorite concert, where you can feel the thumping bass in your chest. It’s an experience that words can hardly capture but one that you’ll never forget.
With an internal volume of 1.28ft3, the GEN-X110LD creates the perfect environment for your subwoofer to thrive. The port tune (Fb) of 35Hz ensures deep, resonant bass that reverberates through your body. Constructed with 1/2″ MDF and finished with black carpet, this enclosure is built to outlast any vehicle it’s installed into.
At the heart of the GEN-X110LD is DS18’s GEN-X104D Subwoofer. Crafted with meticulous attention to detail, this 10″ powerhouse delivers a thunderous performance every session. Equipped with a 2″ voice coil diameter and a black aluminum voice coil former, this subwoofer is built to handle intense power while maintaining exceptional thermal control. With a dual 4-ohm voice coil configuration, wired in parallel, resulting in a nominal impedance of 2 ohms, the GEN-X104D’s design ensures efficient power distribution and compatibility with a wide range of amplifiers, allowing you to extract every ounce of high quality performance from your car audio system. With a total RMS power handling of 400W and a MAX power handling of 800W, the GEN-X104D unleashes a surge of energy that will electrify your senses. Feel the bass resonating in your vehicle as you experience the true depth and impact of your favorite music.
Join the ranks of true audiophiles and let the GEN-X110LD become the heart and soul of your car audio system.
