Description
DS18 G6.9Xi
The DS18 G6.9Xi is a 6×9‑inch 3‑way GEN‑X coaxial car audio speaker pair engineered to deliver full‑range sound with strong lows, clear mids, and crisp highs, making it a solid upgrade over factory speakers for everyday listening and aftermarket systems. Featuring a 4 Ω nominal impedance with 60 W RMS (180 W peak) power handling per speaker, it provides efficient output and dynamic response suitable for head units and amplifiers alike. With a wide frequency response from approximately 35 Hz to 20 kHz and 86 dB sensitivity, these speakers produce detailed sound with good volume and clarity. The design incorporates treated paper woofers with rubber surrounds and dual Mylar balanced dome tweeters to cover a broad spectrum with enhanced high‑frequency detail. Built with rugged steel baskets and included protective grills, the G6.9Xi is ideal for car doors, rear decks, or custom installations where reliable, full‑range performance is desired.
Specifications
| Parameter | Value |
|---|---|
| SKU | G6.9XI |
| Nominal Diameter | 6×9″ / 152×228 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 60 W |
| Maximum Power Handling | 180 W |
| Sensitivity (1W/1m) | 86 dB |
| Frequency Response | 35 Hz – 20 kHz |
| Recommended Hi-Pass Crossover | 50 Hz |
| Number of Ways | 3 |
| Sold as | Pair |
| Grill Included | Yes |
Woofer Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 1″ / 25.5 mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISV |
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 15.7 oz / 445 g |
Woofer – Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 14.3 L / 0.5 ft³ |
| Excursion (one way) Xmax | 3.3 mm |
| Free Air Resonance Fs | 68 Hz |
| Mechanical Factor Qms | 4.8 |
| Electrical Factor Qes | 1.97 |
| Total Factor Qts | 1.4 |
| Mechanical Mass Mms | 23.8 g |
| Mechanical Compliance Cms | 248 mm/N |
| BL Factor | 4.2 |
| Voice Coil Inductance Le | 197 µH |
| Cone Area Sd | 202 cm² |
| DC Resistance Re | 3.7 Ohms |
| Mechanical Mass w/o Air Mmd | 20.5 g |
Tweeter Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | Tw1: 2.3″ / 59 mm, Tw2: 1.1″ / 29 mm |
| Voice Coil Diameter | Tw1: 0.6″ / 17 mm, Tw2: Piezo |
| Voice Coil Former Material | Tw1: PESV, Tw2: N/A |
| Winding Material | Tw1: EISVM, Tw2: N/A |
| Diaphragm Material | Tw1: Mylar, Tw2: Mylar |
| Magnet Material | Tw1: Barium Ferrite, Tw2: N/A |
| Magnet Weight | Tw1: 34 g, Tw2: N/A |

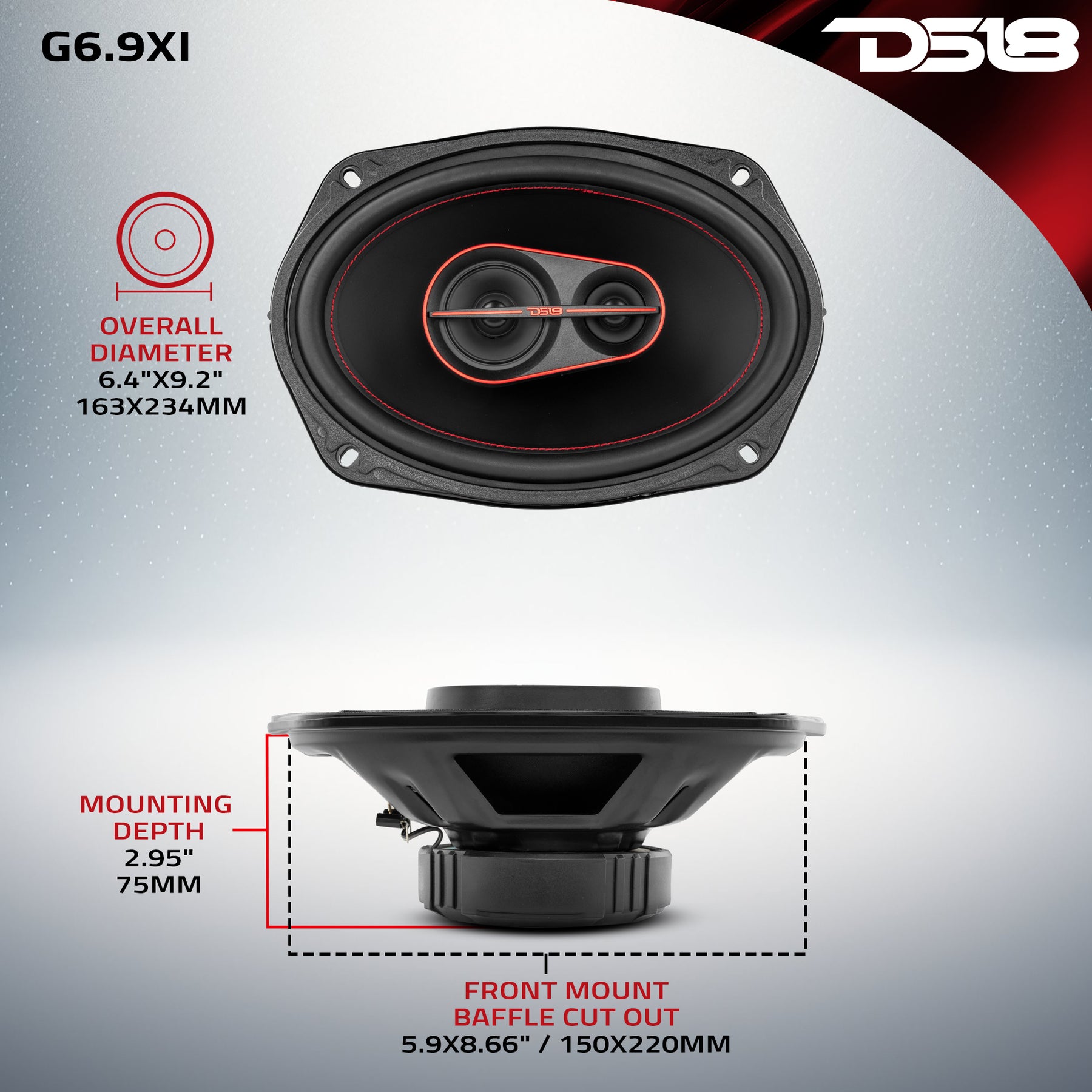

Speaker Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 6.4″ × 9.2″ / 163 × 234 mm |
| Overall Depth | 3.85″ / 97.8 mm |
| Overall Diameter (With Grill) | 7.24″ × 10.4″ / 184 × 264 mm |
| Overall Depth (With Grill) | 4.15″ / 105.5 mm |
| Front Mount Baffle Cutout | 5.9″ × 8.66″ / 150 × 220 mm |
| Mounting Depth | 2.95″ / 75 mm |
| Motor Diameter | 4.17″ / 106 mm |
| Tweeter Protrusion | 0.9″ / 22.8 mm |
| Gross Single Unit Weight | 1.25 kg |
| Single Unit Box Dimensions (W × L × H) | 305 × 125 × 375 mm |
| Quantity of Units in Master Carton | 5 PRS/CTN |
| Gross Master Carton Weight | 15.5 kg |
| Master Carton Dimensions (W × L × H) | 650 × 320 × 390 mm |
Product Overview
3-Way Coaxial Speakers 180 Watts 4-Ohm
The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.
The G6.9Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
The G6.9Xi is notable for its 3-way design consisting of a woofer, a mid-range driver, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G6.9Xi’s 3-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 35Hz.
These speakers get loud extremely easily with a MAX Power Handling of 180W and RMS Power Handling of 60W.
Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G6.9Xi will deliver. Order yours today and take the first step towards audio perfection on the road.
