Description
DS18 G6.5Xi

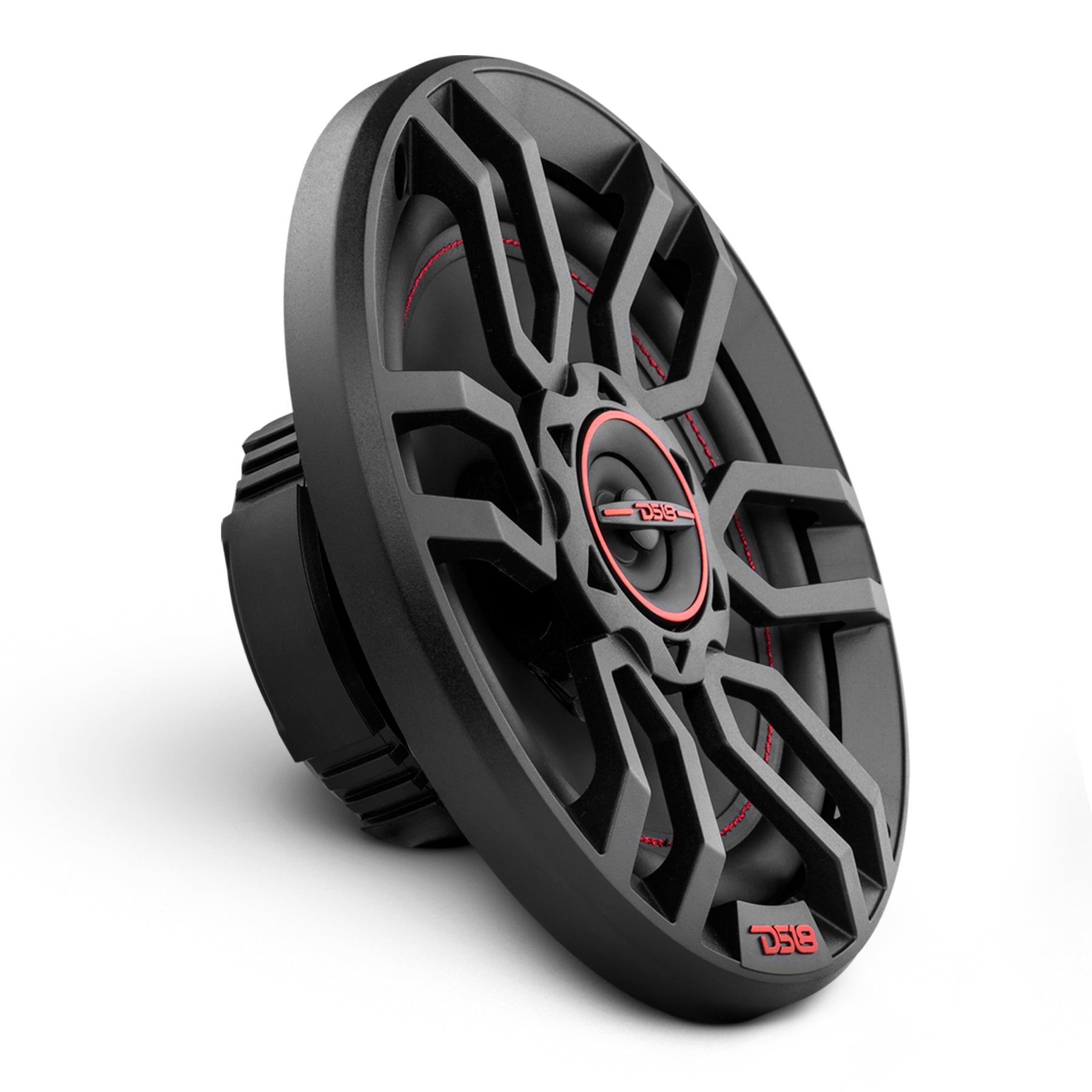

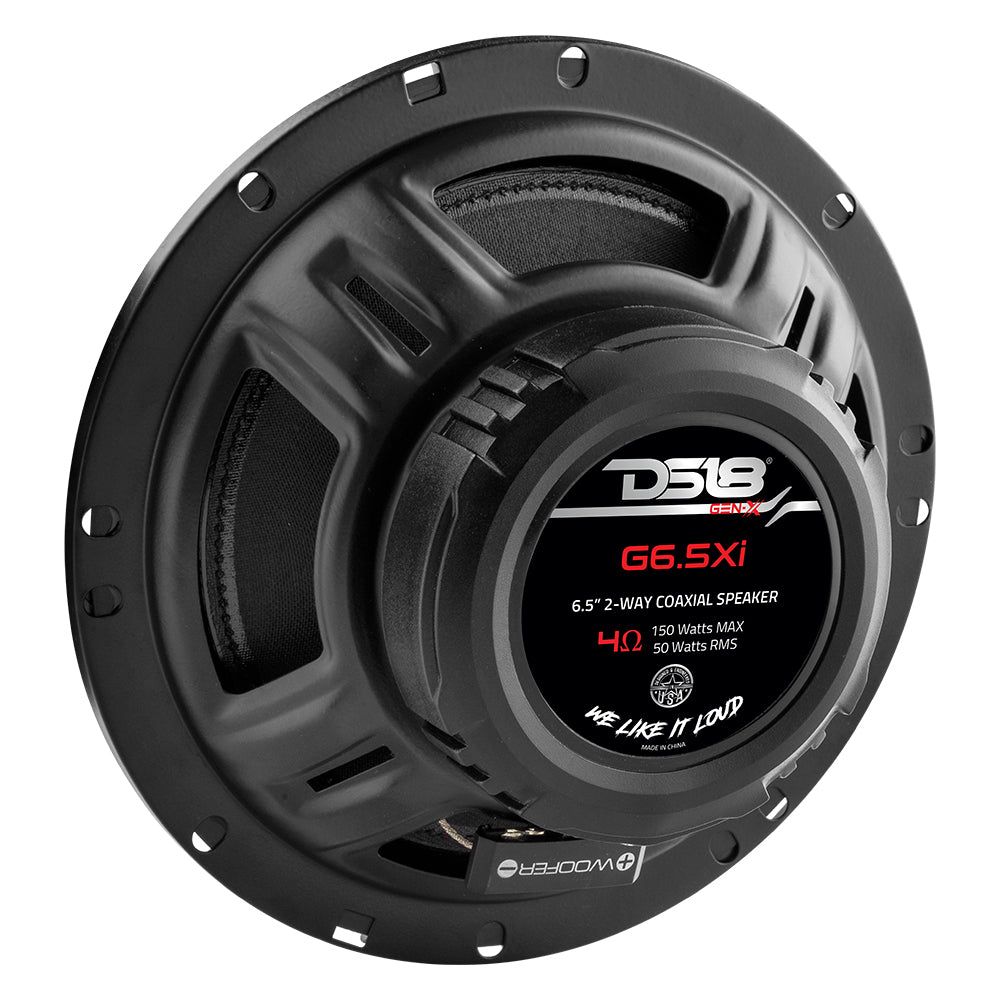

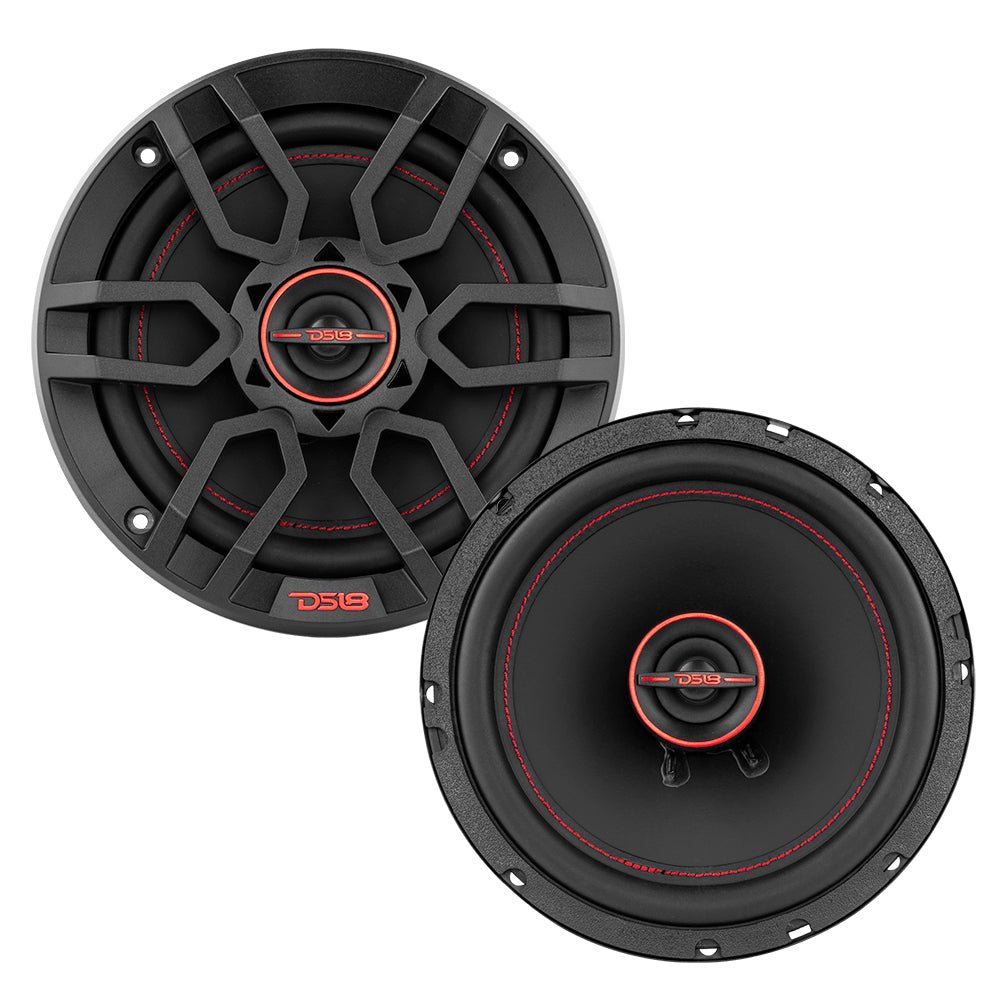

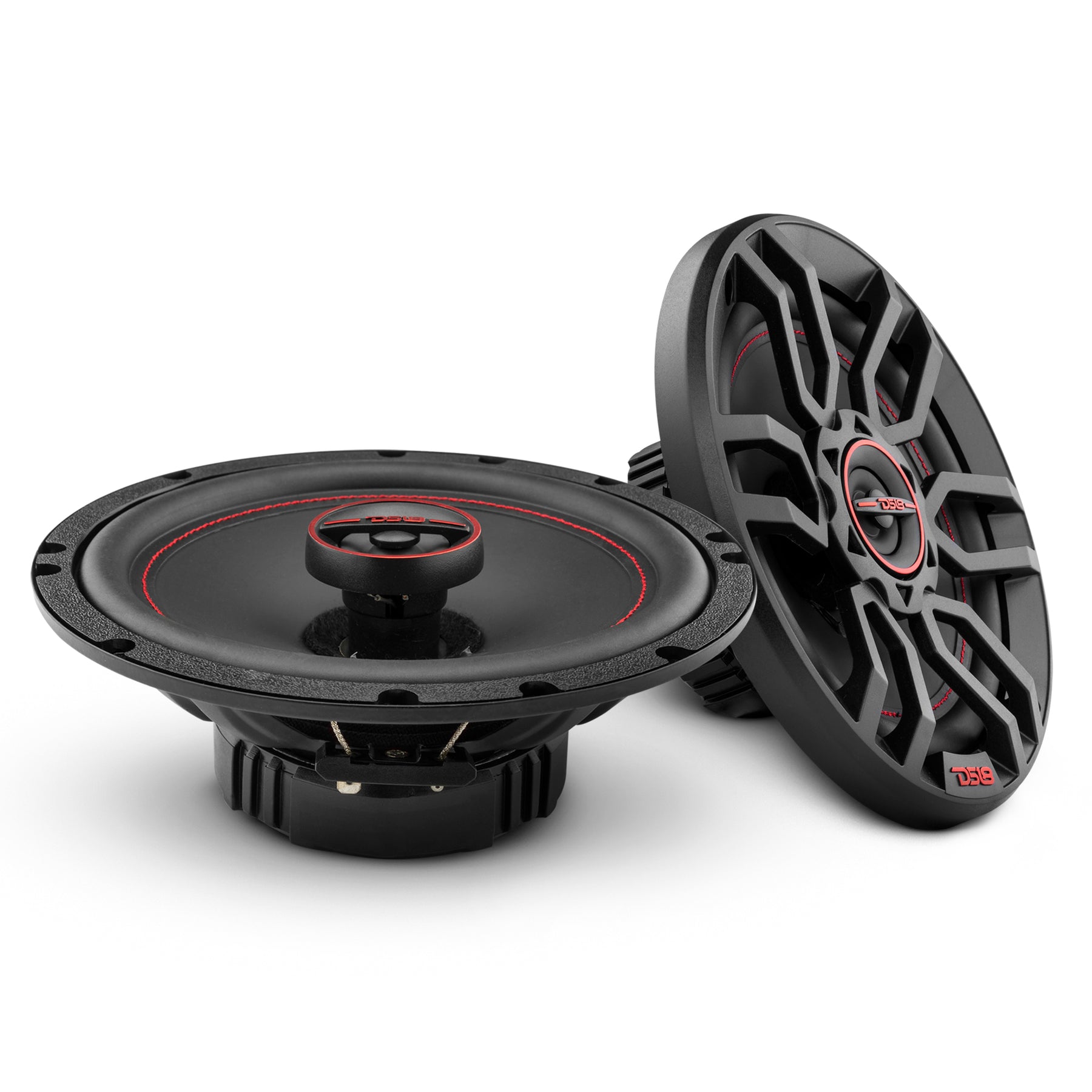

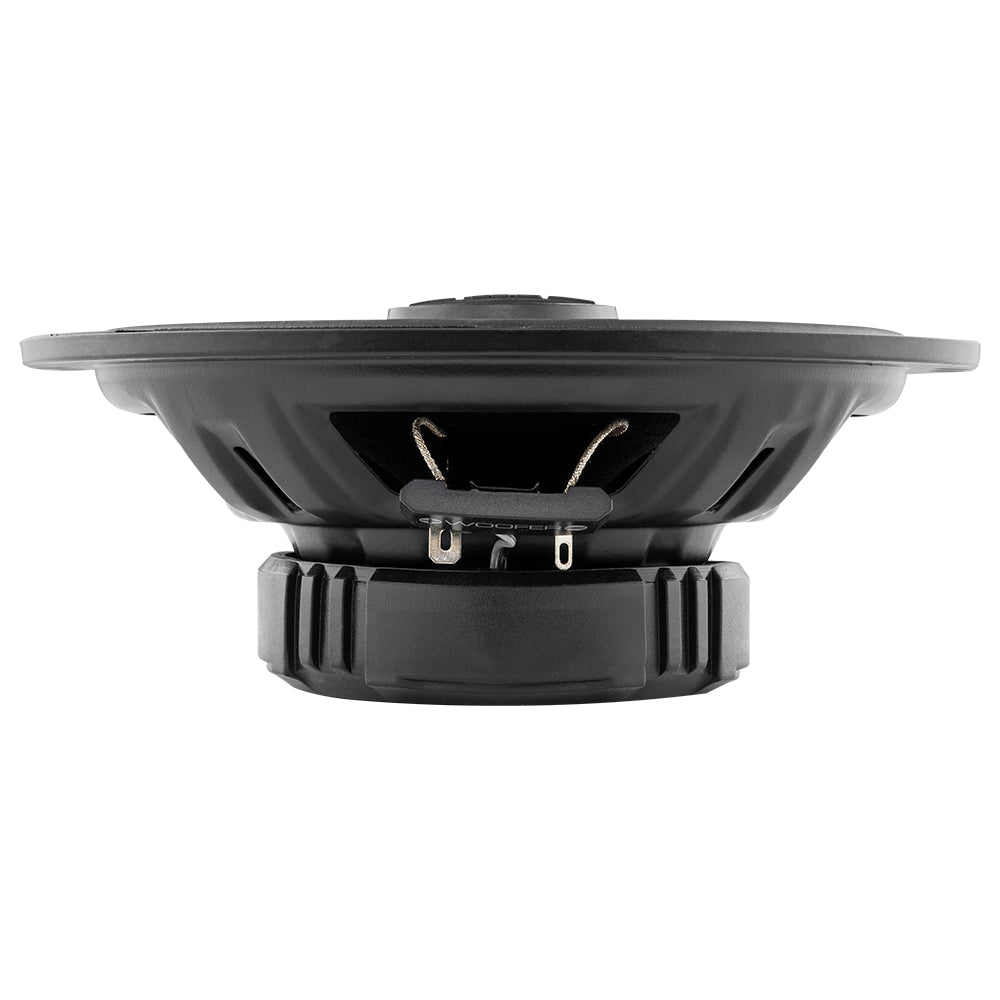

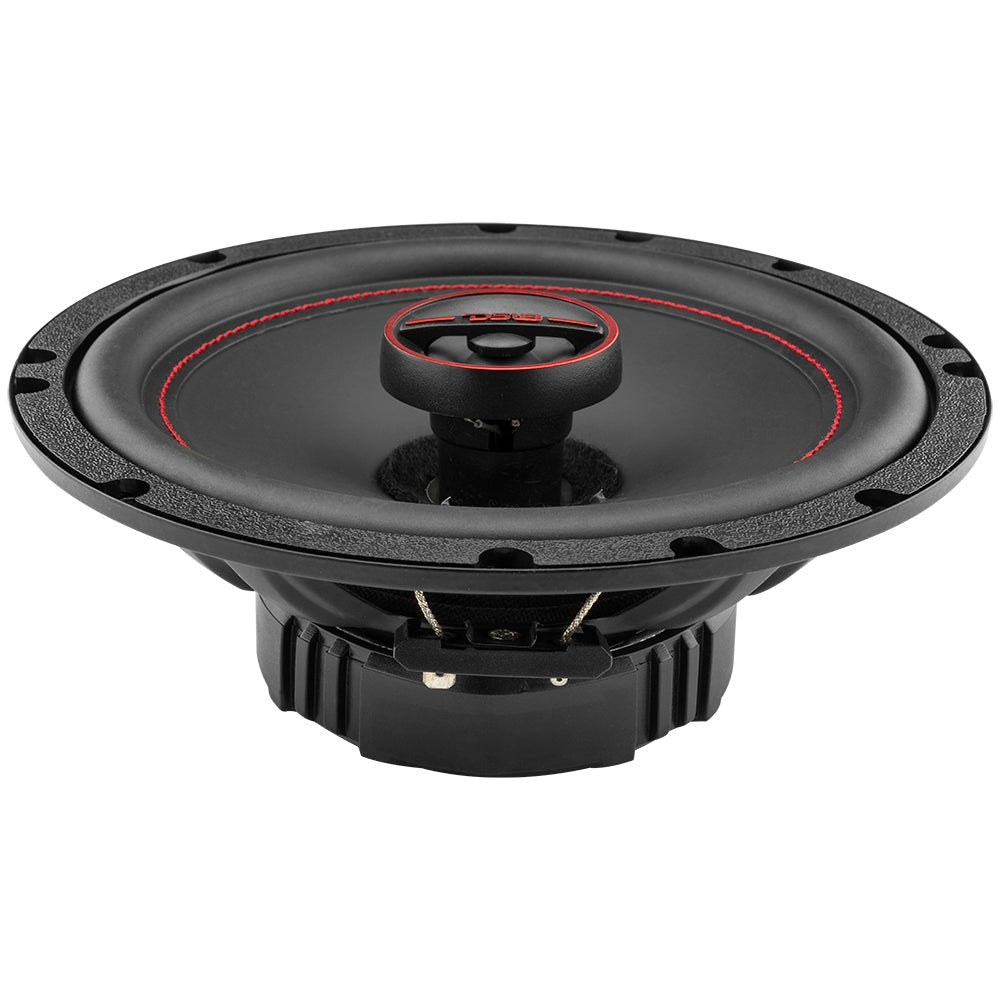

The DS18 G6.5Xi is a 6.5-inch 2-way GEN-X coaxial car audio speaker pair engineered to deliver balanced, full-range sound with strong mids and clear highs, making it an excellent upgrade from factory audio systems and a reliable choice for aftermarket setups. Featuring a 4 Ω nominal impedance with 50 W RMS (150 W peak) power handling per speaker, the G6.5Xi offers solid output and efficiency without demanding excessive amplifier power. Its frequency response extends from approximately 35 Hz to 20 kHz, providing deep low end and crisp highs for a complete listening experience. Built with a treated paper cone woofer, rubber surround, and a 1″ Mylar balanced dome tweeter with neodymium magnet, this pair includes protective grills and a rugged steel basket for durability in automotive environments. Whether used with a head unit or amplified system, the G6.5Xi delivers clear, dynamic sound with dependable performance.
Specifications
| Category | Specification |
|---|---|
| SKU | G6.5XI |
| Nominal Diameter | 6.5″ / 165 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 50 W |
| Maximum Power Handling | 150 W |
| Sensitivity (1W/1m) | 86 dB |
| Frequency Response | 35 Hz – 20 kHz |
| Recommended Hi Pass Crossover | 60 Hz |
| Number of Ways | 2 |
| Pair or Single | Pair |
| Grill Included | Yes |
Woofer Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 1″ / 25.5 mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISV |
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color / Finish | Black Matte |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 9.87 oz / 280 g |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 9.47 L / 0.33 ft³ |
| Excursion (one way) Xmax | 2.7 mm |
| Free Air Resonance Fs | 76 Hz |
| Mechanical Factor Qms | 4.6 |
| Electrical Factor Qes | 2.0 |
| Total Factor Qts | 1.4 |
| Mechanical Mass Mms | 11.4 g |
| Mechanical Compliance Cms | 350 mm/N |
| BL Factor Bl | 3.2 |
| Voice Coil Inductance Le | 172 µH |
| Cone Area Sd | 136.8 cm² |
| DC Resistance Re | 3.7 Ohms |
| Mechanical Mass w/o air Mmd | 10.5 g |
Tweeter Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 1″ / 25.5 mm |
| Voice Coil Diameter | 0.5″ / 13.25 mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISVM |
| Diaphragm Material | Mylar |
| Magnet Material | Neodymium |
| Magnet Weight | 1.8 g |

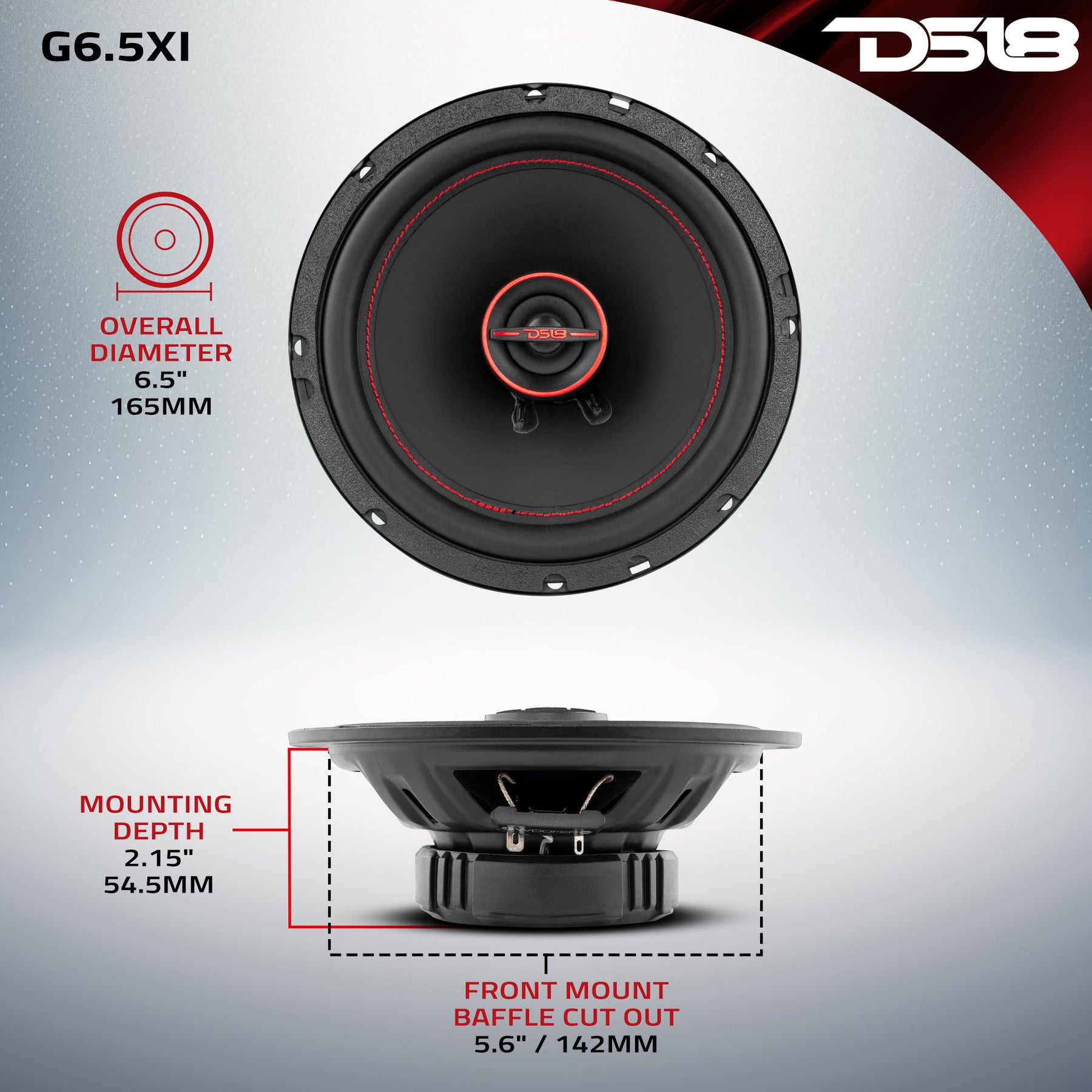

Speaker Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 6.5″ / 165 mm |
| Overall Depth | 2.65″ / 67.3 mm |
| Overall Diameter (With Grill) | 7″ / 179 mm |
| Overall Depth (With Grill) | 3″ / 76.4 mm |
| Front Mount Baffle Cutout | 5.6″ / 142 mm |
| Mounting Depth | 2.15″ / 54.5 mm |
| Motor Diameter | 3.4″ / 86 mm |
| Tweeter Protrusion | 0.5″ / 12.8 mm |
| Gross Single Unit Weight | 0.8 kg |
| Single Unit Box Dimensions (W x L x H) | 210 x 106 x 360 mm |
| Quantity of Units in Master Carton | 10 PRS/CTN |
| Gross Master Carton Weight | 18.5 kg |
| Master Carton Dimensions (W x L x H) | 555 x 375 x 440 mm |
Product Overview
2-Way Coaxial Speakers 150 Watts 4-Ohm
The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.
The G6.5Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factxory OEM speakers.
The G6.5Xi is notable for its 2-way design consisting of a woofer and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G6.5Xi’s 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 35Hz.
These speakers get loud extremely easily with a MAX Power Handling of 150W and RMS Power Handling of 50W.
Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G6.5Xi will deliver.
