Description
DS18 G6.5XC

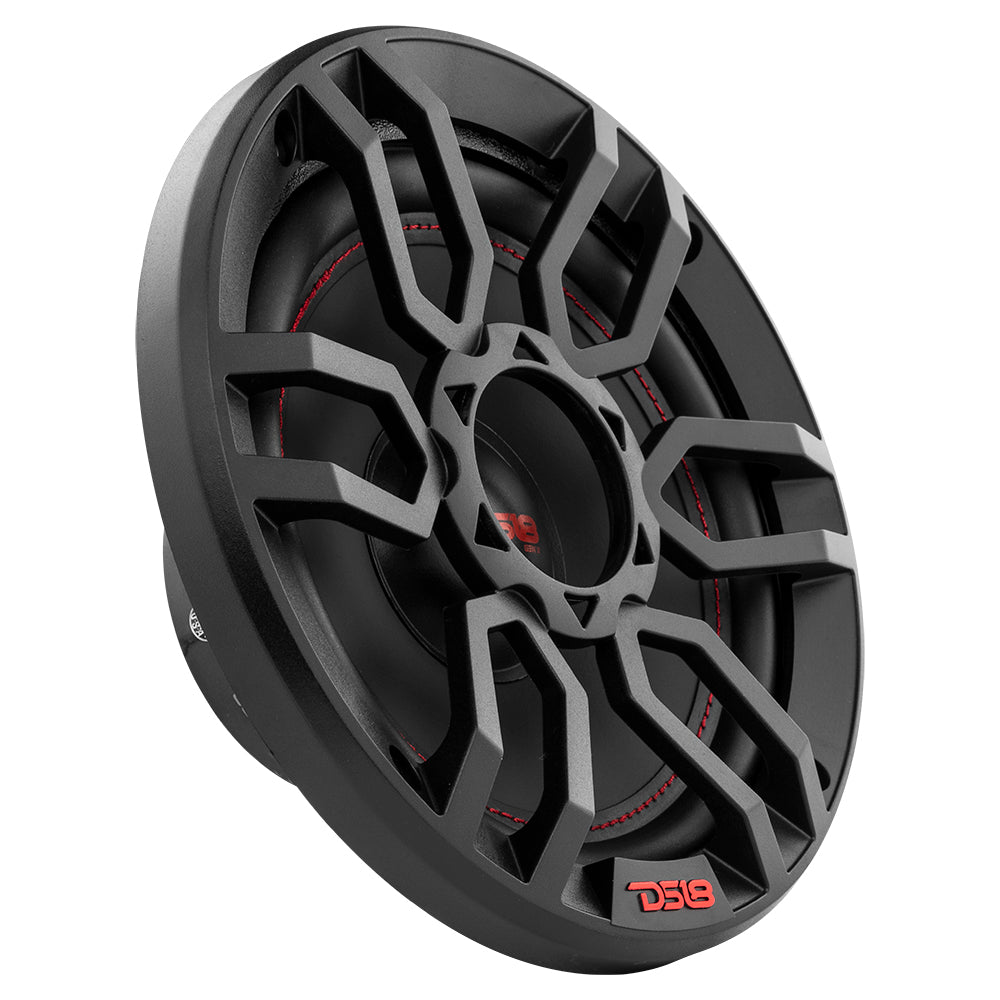

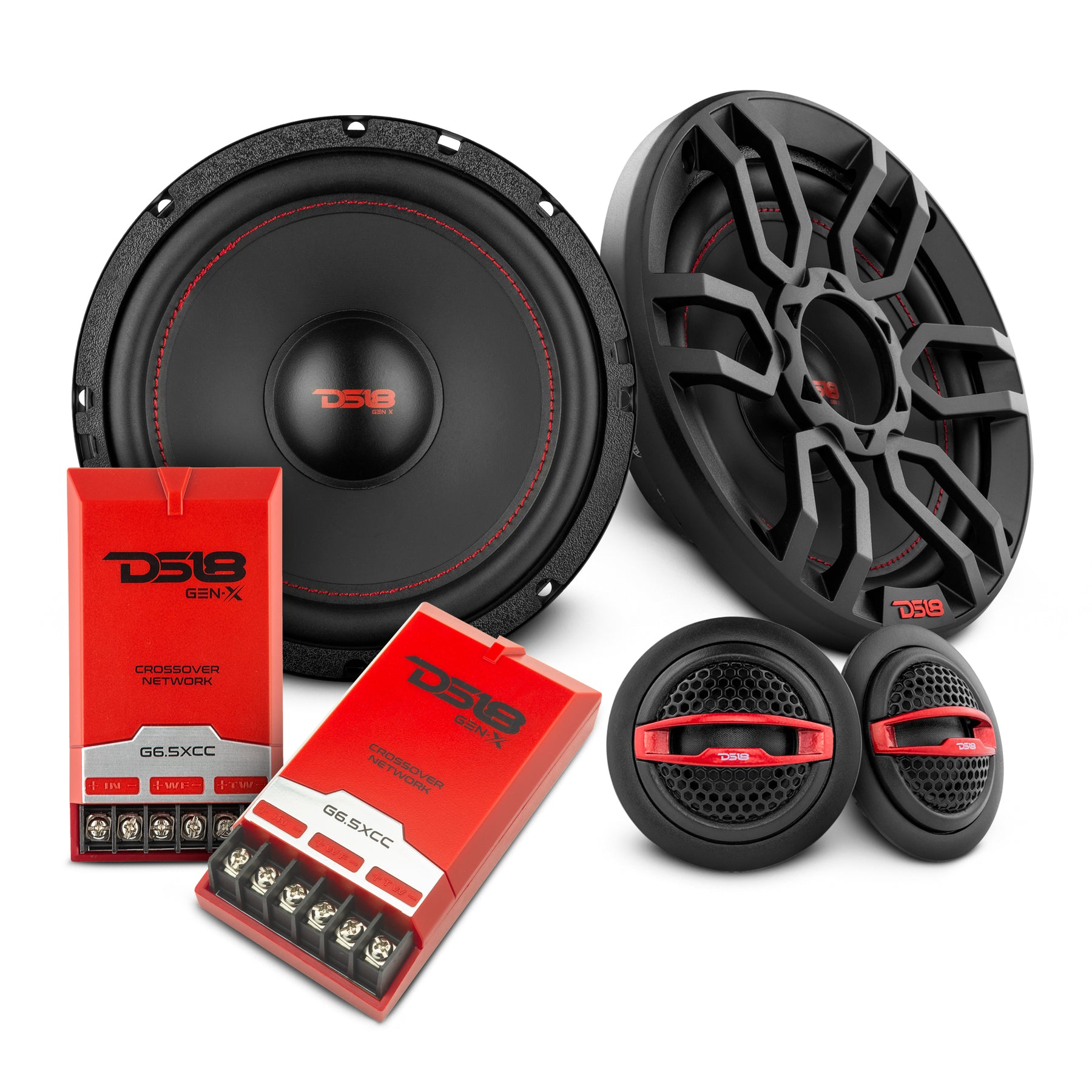

The DS18 G6.5XC is a 6.5-inch 2-way GEN-X component speaker set designed to deliver high-clarity, full-range audio performance for car audio systems. This premium component set features a dedicated woofer and silk dome tweeter with a 2-way passive crossover to ensure smooth frequency integration and precise sound staging. With a 4 Ω nominal impedance and 50 W RMS (150 W peak) power handling, it produces balanced sound with deep lows, clear mids, and crisp highs across a wide frequency range of approximately 35 Hz to 20 kHz. The woofer uses a treated paper cone with a rubber surround for controlled bass response, while the tweeter’s neodymium magnet and silk diaphragm provide detailed high-frequency output. Built with a rugged steel basket and including protective grills and crossovers, the G6.5XC component set is ideal for enthusiasts looking to upgrade factory audio quality or build a high-performance sound system.
Specifications
| Category | Specification |
|---|---|
| SKU | G6.5XC |
| Nominal Diameter | 6.5″ / 165 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 50 W |
| MAX Power Handling | 150 W |
| Sensitivity (1W/1m) | 86 dB |
| Frequency Response | 35 Hz – 20 kHz |
| Recommended Hi Pass Crossover | 60 Hz |
| Number of Ways | 2 |
| Pair or Single | Pair |
| Grill Included | Yes |

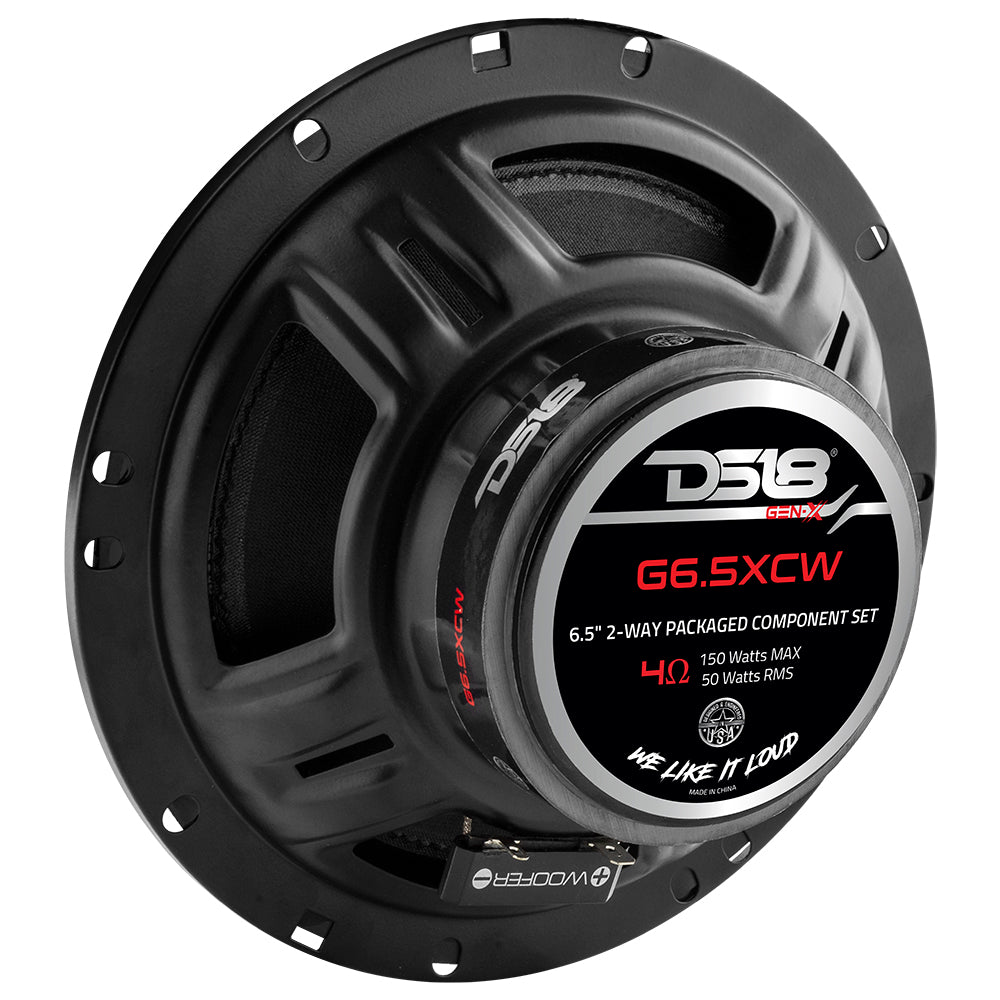

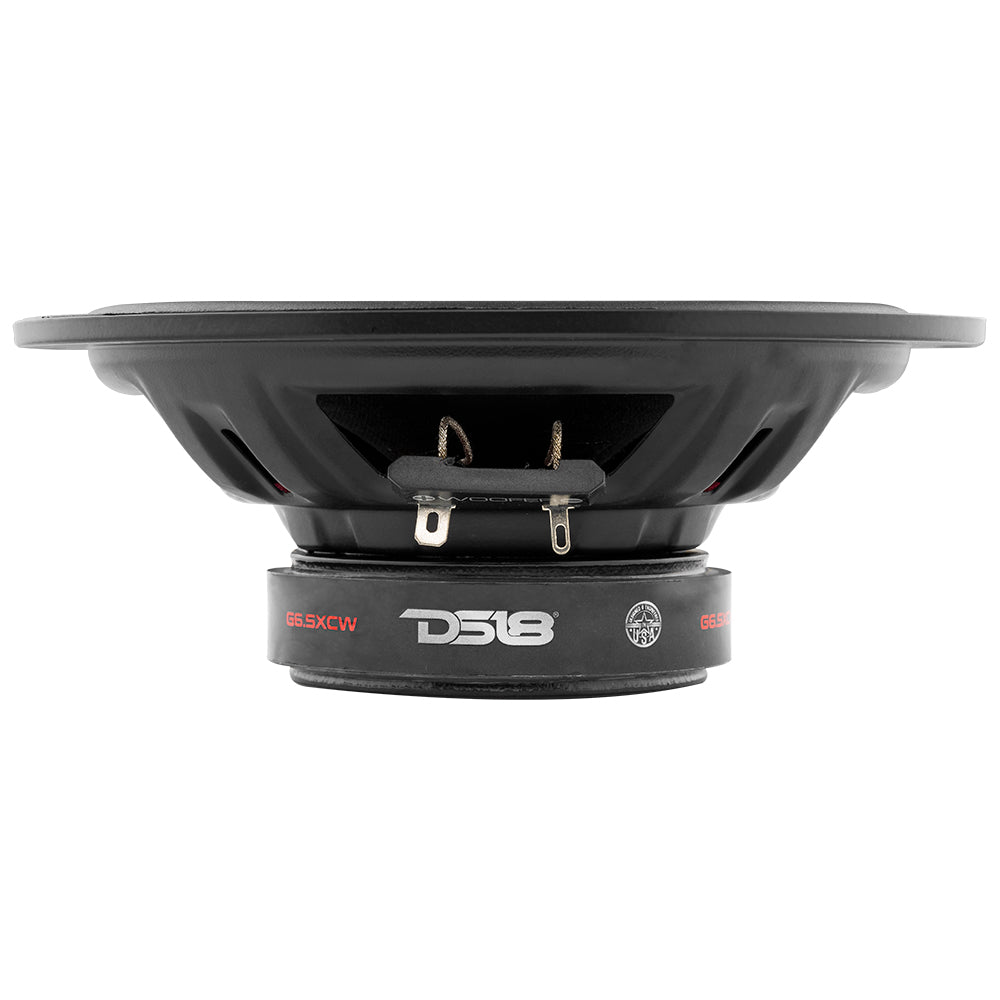

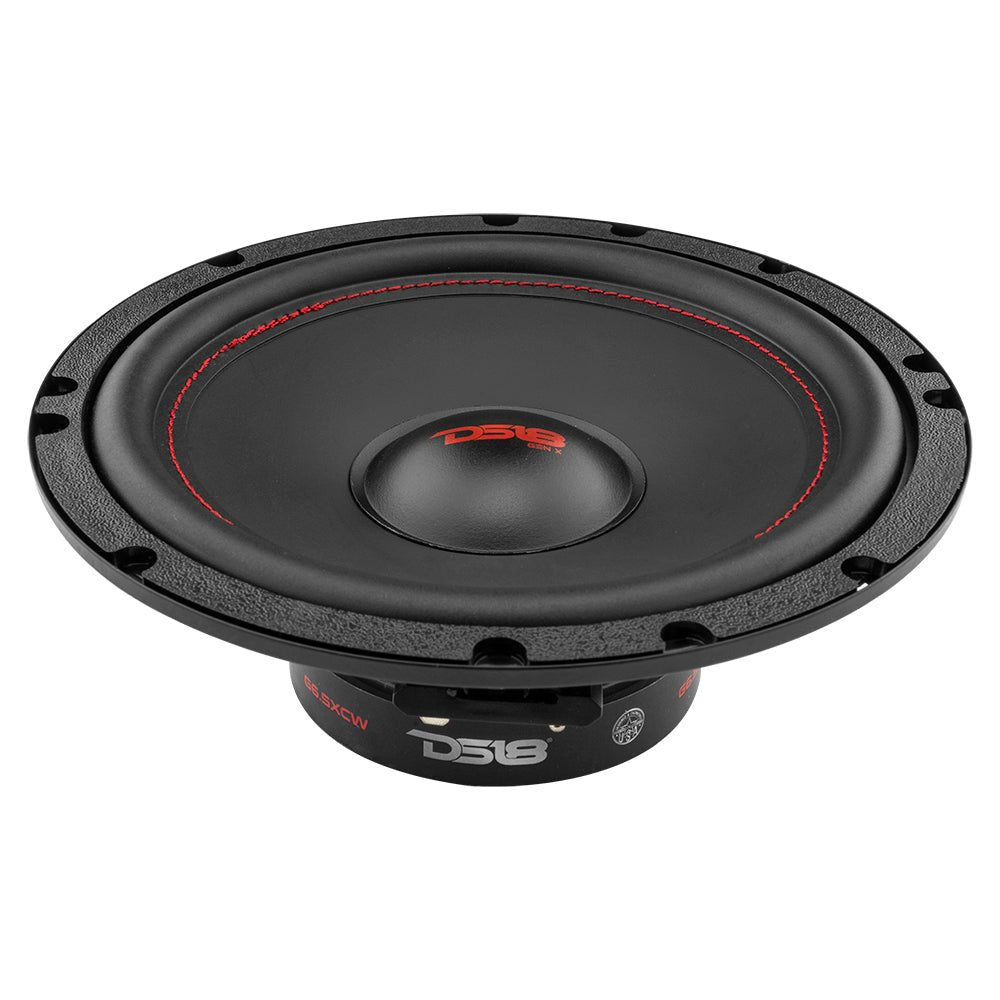

Motor / Woofer Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 1″ / 25.5 mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISV |
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color | Black Matte |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 9.87 oz / 280 g |

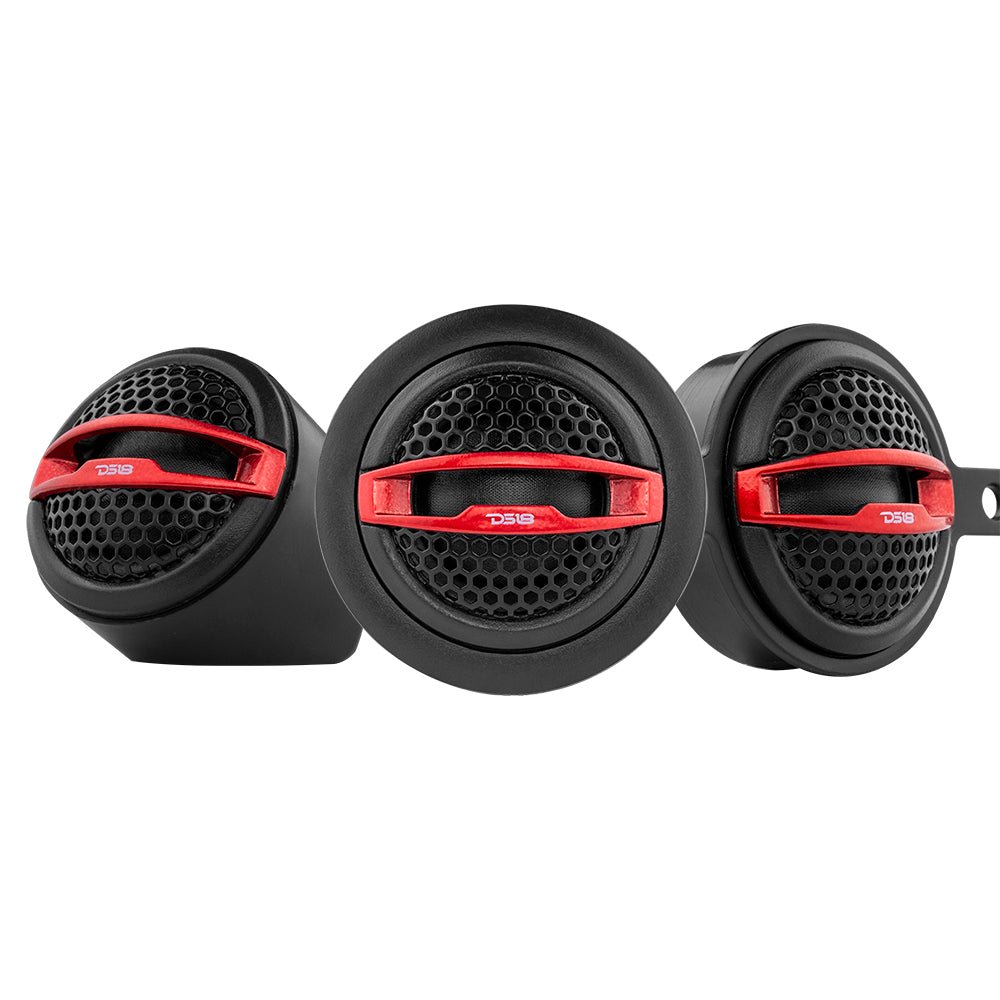

Tweeter Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 1″ / 25.5 mm |
| VC Former Material | ASV |
| Winding Material | EISVM |
| Diaphragm Material | Silk |
| Magnet Material | Neodymium |
| Magnet Weight | 8.7 g |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas | 9.47 L / 0.33 ft³ |
| Xmax | 2.7 mm |
| Fs | 72 Hz |
| Qms | 4.5 |
| Qes | 1.47 |
| Qts | 1.1 |
| Mms | 13.8 g |
| Cms | 345 mm/N |
| BL | 4 |
| Le | 172 µH |
| Sd | 136.8 cm² |
| Re | 3.7 Ohms |
| Mmd | 12 g |

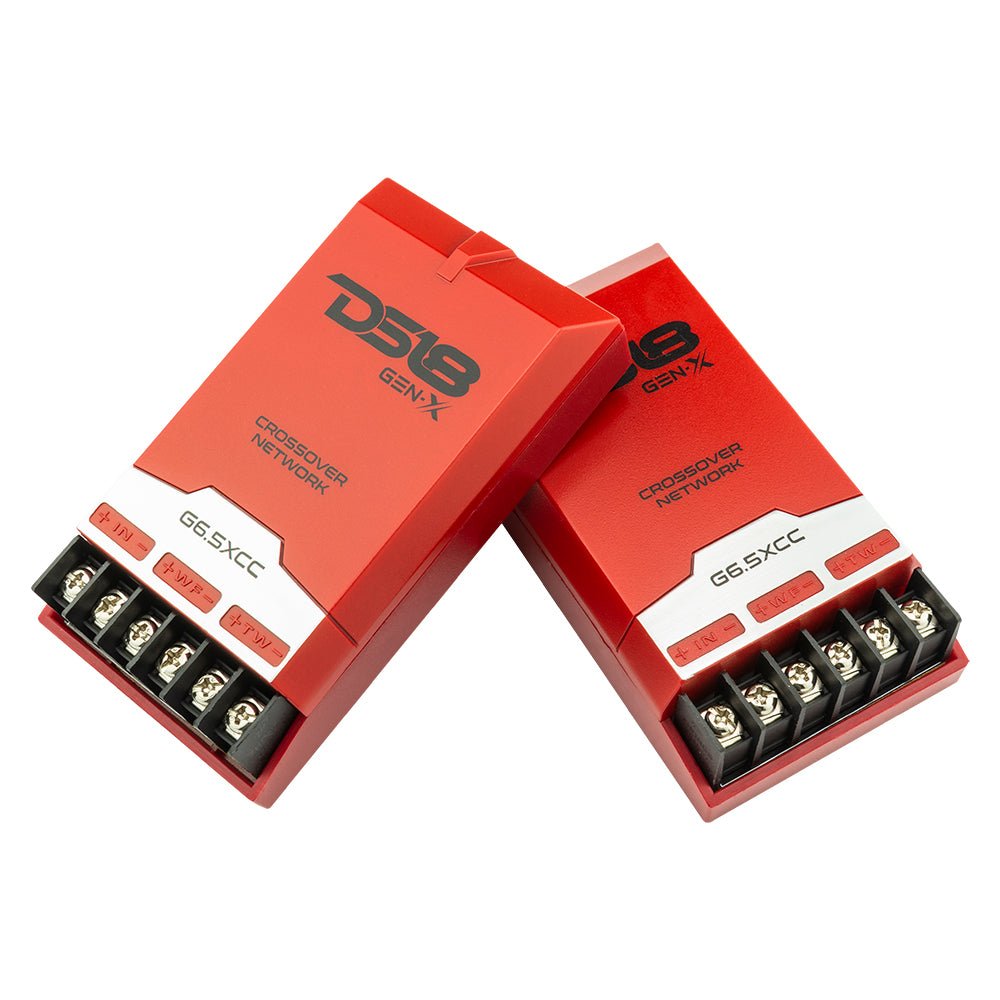

Crossover Specifications
| Parameter | Value |
|---|---|
| Passive Crossover Ways | 2 (Woofer / Tweeter) |
| Frequency Crossover Point | 3.5 kHz |
| Power Handling | 400 W |
| Cut-Off Slope | 12 dB/Oct |
| Capacitor Type | Metal Film |
| Coil Type | Inductor |
| Terminal Type | Screw |
| Housing Material | ABS |
Product Overview
2-Way Component Set Speaker System 150 Watts 4-Ohm
Get ready to experience power, clarity, and range like never before!
The legendary GEN-X Coaxial Series is back and stronger than ever with the G6.5XC 2-Way Component Set, delivering an upgraded level of performance that will blow your mind.
This set includes a powerful 6.5-inch woofer and a high-quality silk dome tweeter, as well as a 2-way passive crossover to ensure clear and crisp sound.
The 6.5-inch woofer delivers power, precision, and punch to your music. The paper cone provides a natural, warm sound, while the rubber surround allows for tight, controlled bass response. This woofer is an essential component for any audiophile who demands uncompromising sound quality.
The silk dome tweeter has a 1-inch voice coil diameter and neodymium magnet material, which help it produce clear and detailed high frequencies. The 2-way passive crossover has a frequency crossover point of 3.5KHz and a 12dB/Oct cut-off slope, ensuring that the woofer and tweeter work together seamlessly.
The GEN-X series was made for amplifiers, but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
This powerful and durable set will bring your music to life with a wide range of frequencies and clear sound. Don’t settle – get the G6.5XC Component Set and experience music like never before.
