Description
DS18 G3600.6D

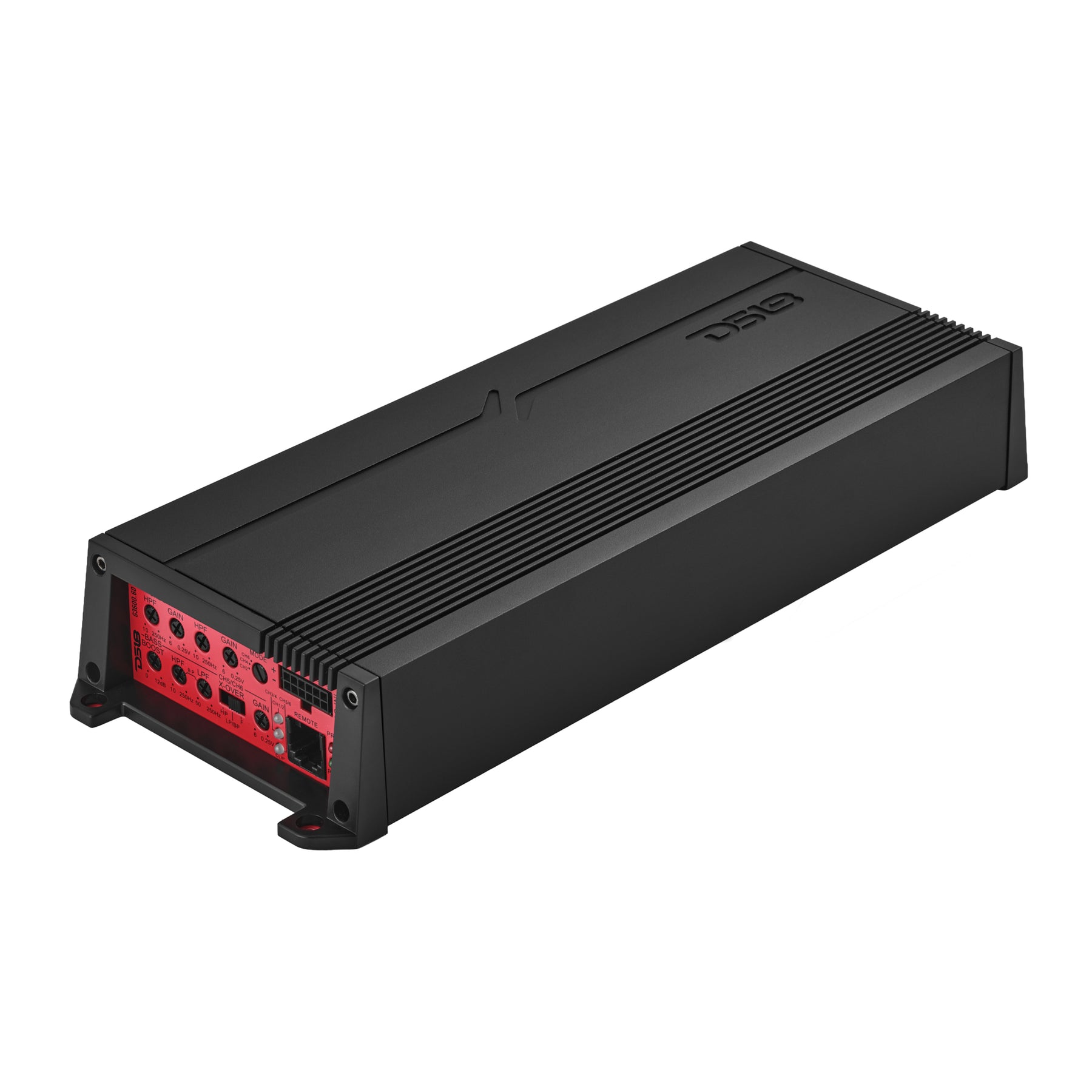

The G3600.6D is a 6‑channel Class D full‑range car audio amplifier designed to power multiple speakers with clean, distortion‑free sound while maintaining high efficiency and reliability. With a total 3600 W peak output, this amplifier delivers consistent power across six channels — making it ideal for running front, rear, and even bridged outputs for subs or paired speakers. It features variable crossover filters (HPF, BPF, Full‑Range), adjustable bass boost, and selectable input modes, plus built‑in protections and a remote level control for flexible tuning of your system.
Specifications
| Specification | Value |
|---|---|
| Total Watts (Peak) | 3600W |
| RMS Power @ 4 ohm | 6 × 200W |
| RMS Power @ 2 ohm | 6 × 250W |
| RMS Power @ 1 ohm | – |
| RMS Power @ 4 ohm Bridge | 3 × 500W |
Audio Specifications
| Specification | Value |
|---|---|
| Frequency Response | 20Hz – 20kHz |
| Signal to Noise Ratio | >90dB |
| Efficiency @ 4 ohm | 75% |
| Damping Factor | 75 |
| Input Impedance | 22kΩ |
| Channel Separation | 57dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.25 – 6V |
| High Level Input | No |
| Selectable X-Over | Variable HPF / HPF-BPF-FULL (5/6CH) |
| X-Over Filter Range | HPF: 10–250Hz / LPF: 50–250Hz |
| Bass Boost Range | 0–12dB |
| Bass Boost Frequency | Fixed @ 45Hz |
| Infrasonic Filter | N/A |
| Phase Selector | No |
Features
| Specification | Value |
|---|---|
| Amplifier Class | Digital (D) |
| Amplifier Type | Full Range |
| Number of Channels | 6CH |
| Minimum Impedance | 2 ohm Stereo / 4 ohm Bridge |
| LED Indicator | Power / Protection / Clip |

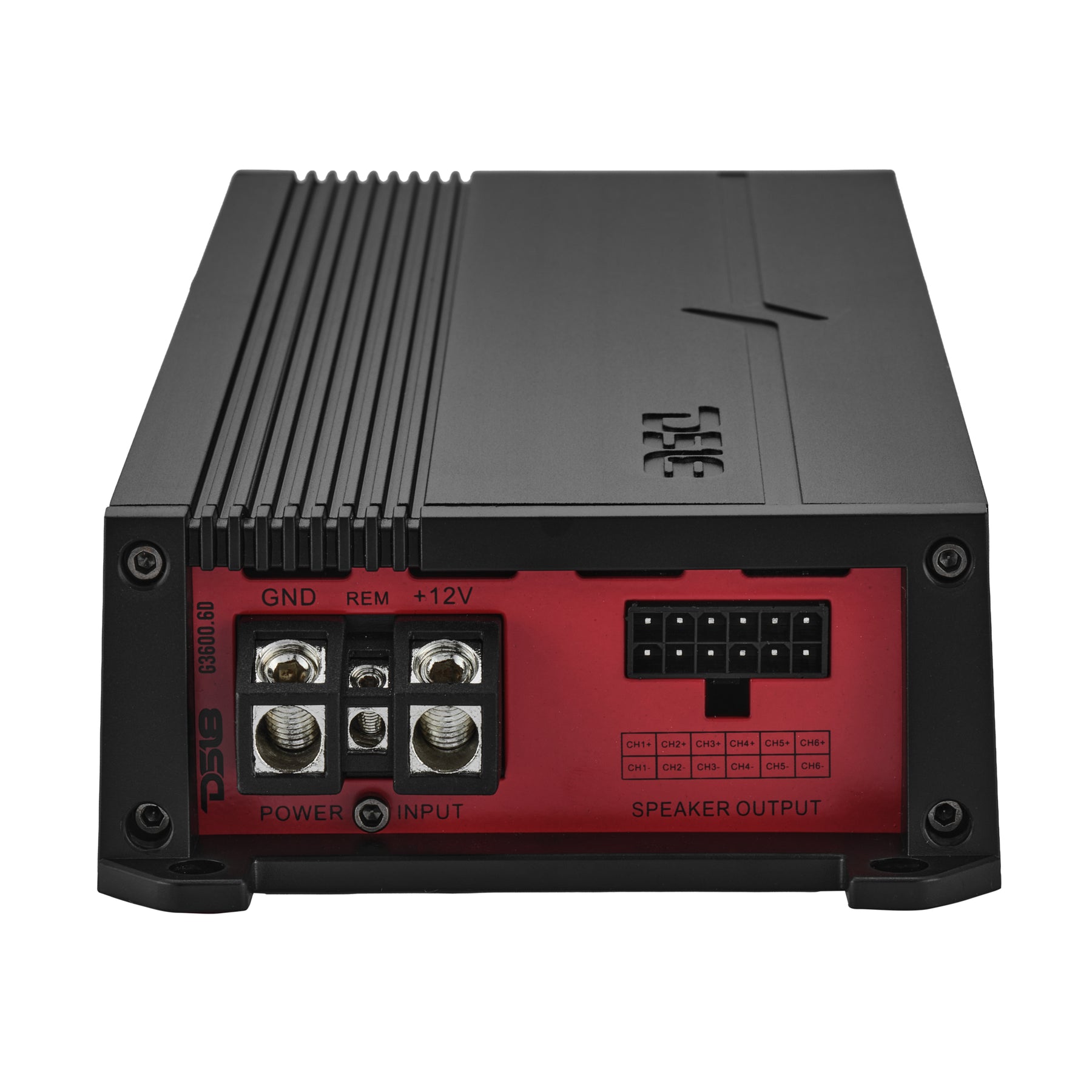

| Power Input Terminal Size | 4GA |

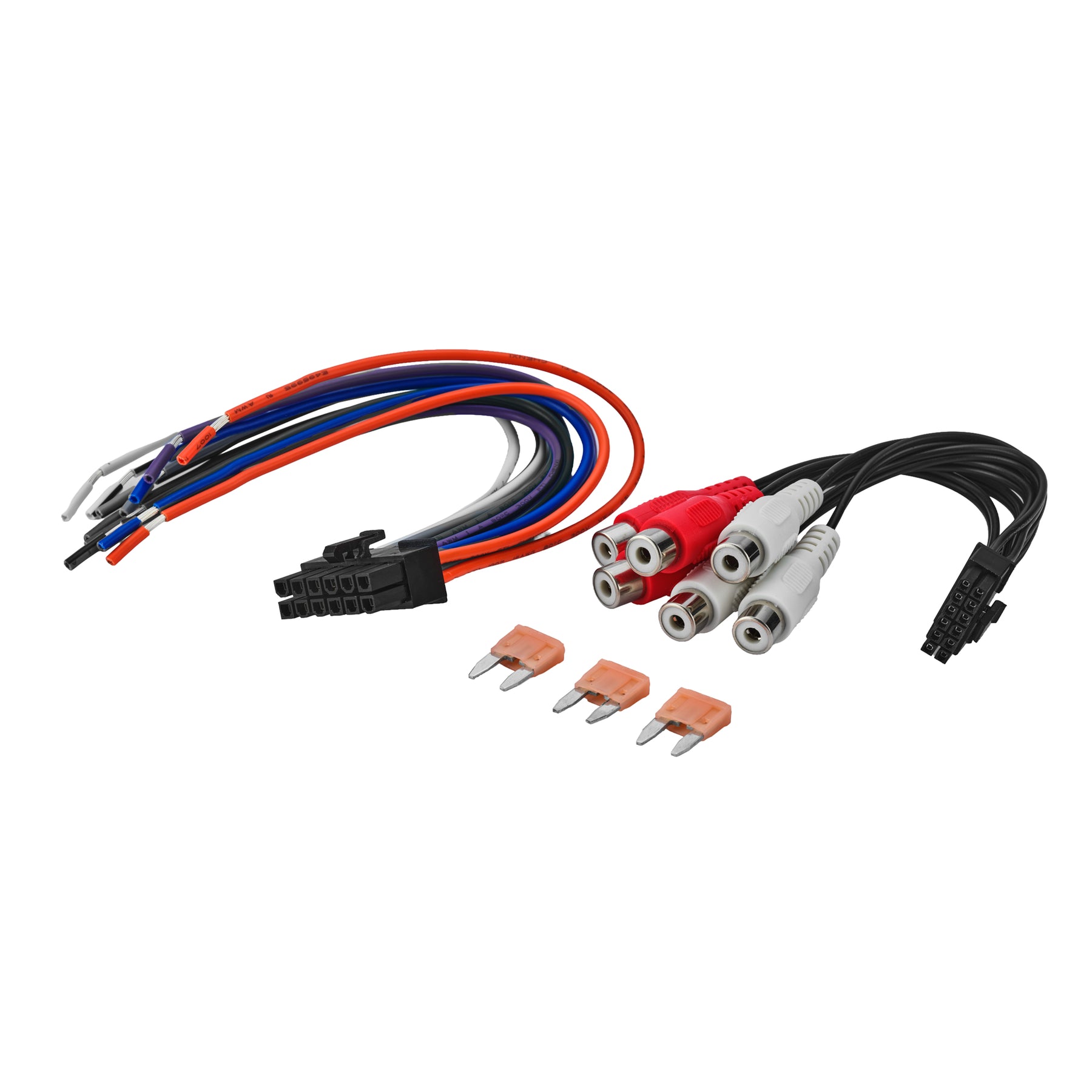

| Fuse Size | 3 × 40A |
| Remote Level Control | Yes |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Matte Black |
Measurements
| Measurement | Value |
|---|---|
| Overall Length | 12.8″ / 325mm |
| Overall Width | 4.72″ / 120mm |
| Overall Height | 1.96″ / 50mm |
| Heatsink Length | 10.9″ / 278mm |
| Gross Single Unit Weight | 2.2kg |
Extra Features
| Feature | Availability |
|---|---|
| Input Selector | Yes (2ch / 4ch / 6ch) |
| Compact Size for Easy Installation | Yes |
| Stable / Reliable Two or Four Layers PCB Design | Yes |

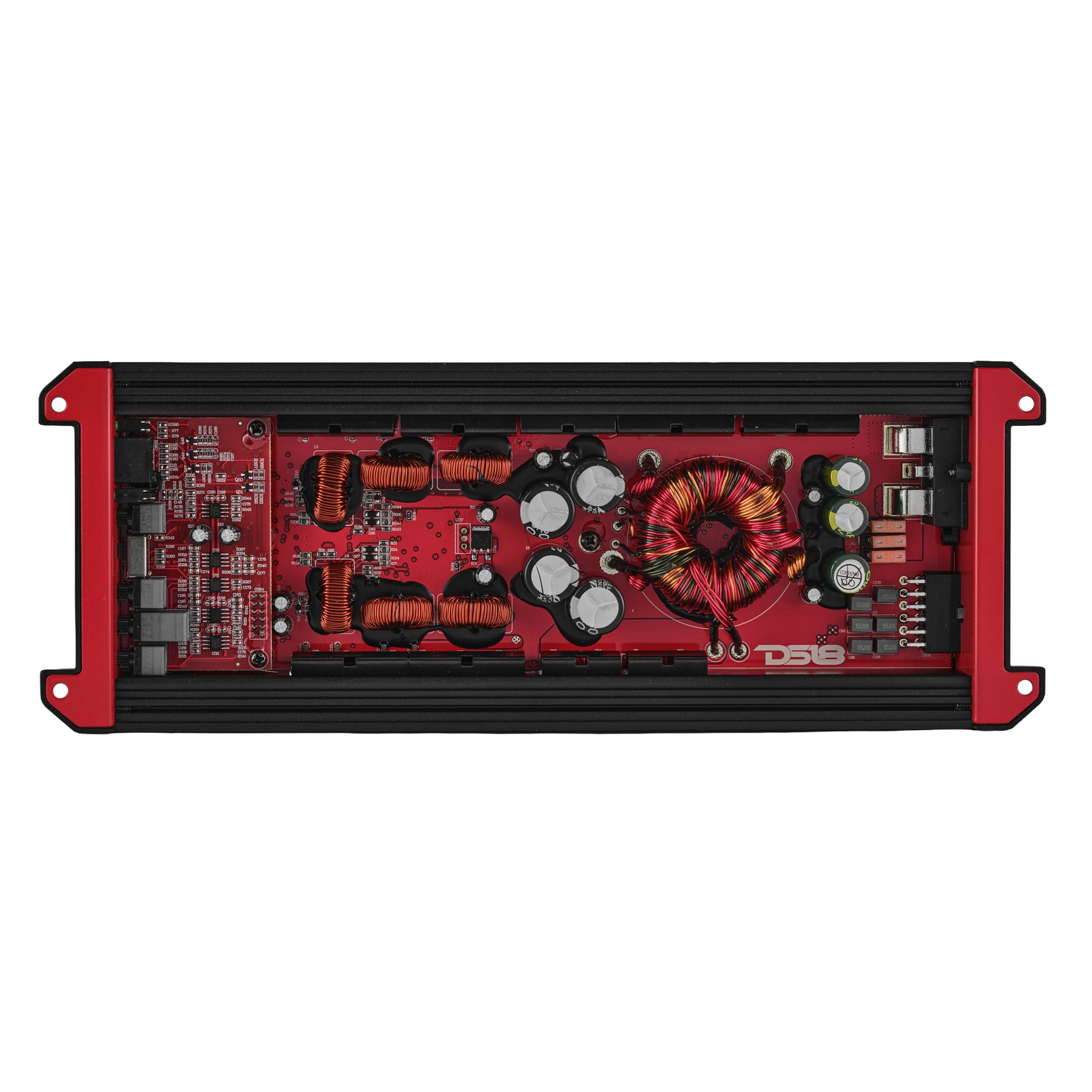

| Surface Mount Component Technology | Yes |
| Quality Control Verification using Audio Precision Instruments | Yes |
Product Overview
DS18’s G3600.6D delivers 200W RMS per channel at 4 ohms and 250W RMS per channel at 2 ohms, offering powerful sound across six channels. Bridged mode powers 3 channels at 500W RMS at 4 ohms for those heavy subwoofer demands.
Complete Control

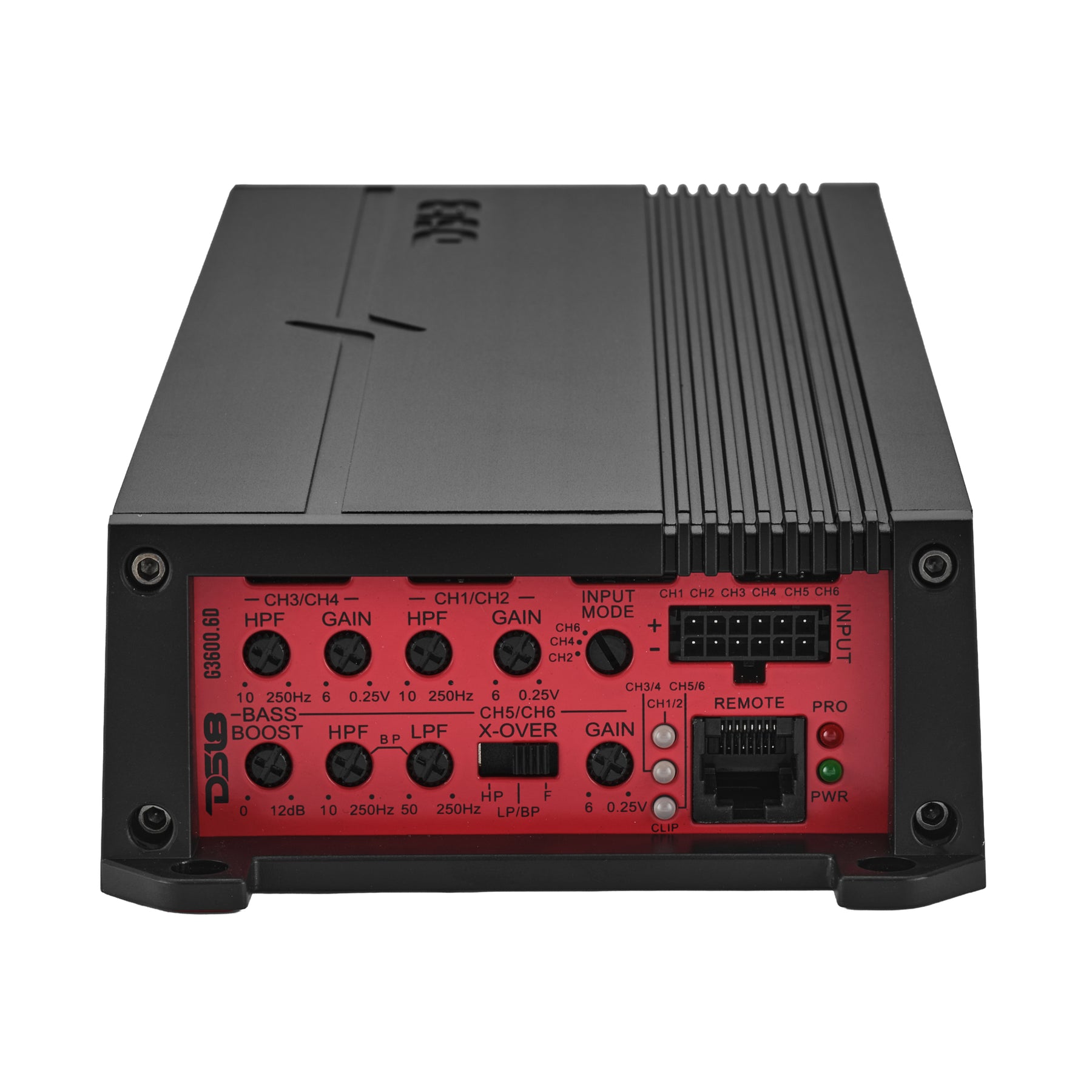

Adjust your system precisely with variable crossover options including high-pass, band-pass, and full-range settings. The bass boost is adjustable up to 12dB at 45Hz, letting you tailor the low-end exactly how you want. Input sensitivity ranges from 0.25V to 6V, enabling perfect matching with your source unit.
Built to Last
Protected by comprehensive safety features, the G3600.6D includes thermal, overload, DC output, short circuit, voltage input, and clipping protections.
Convenience and Compatibility

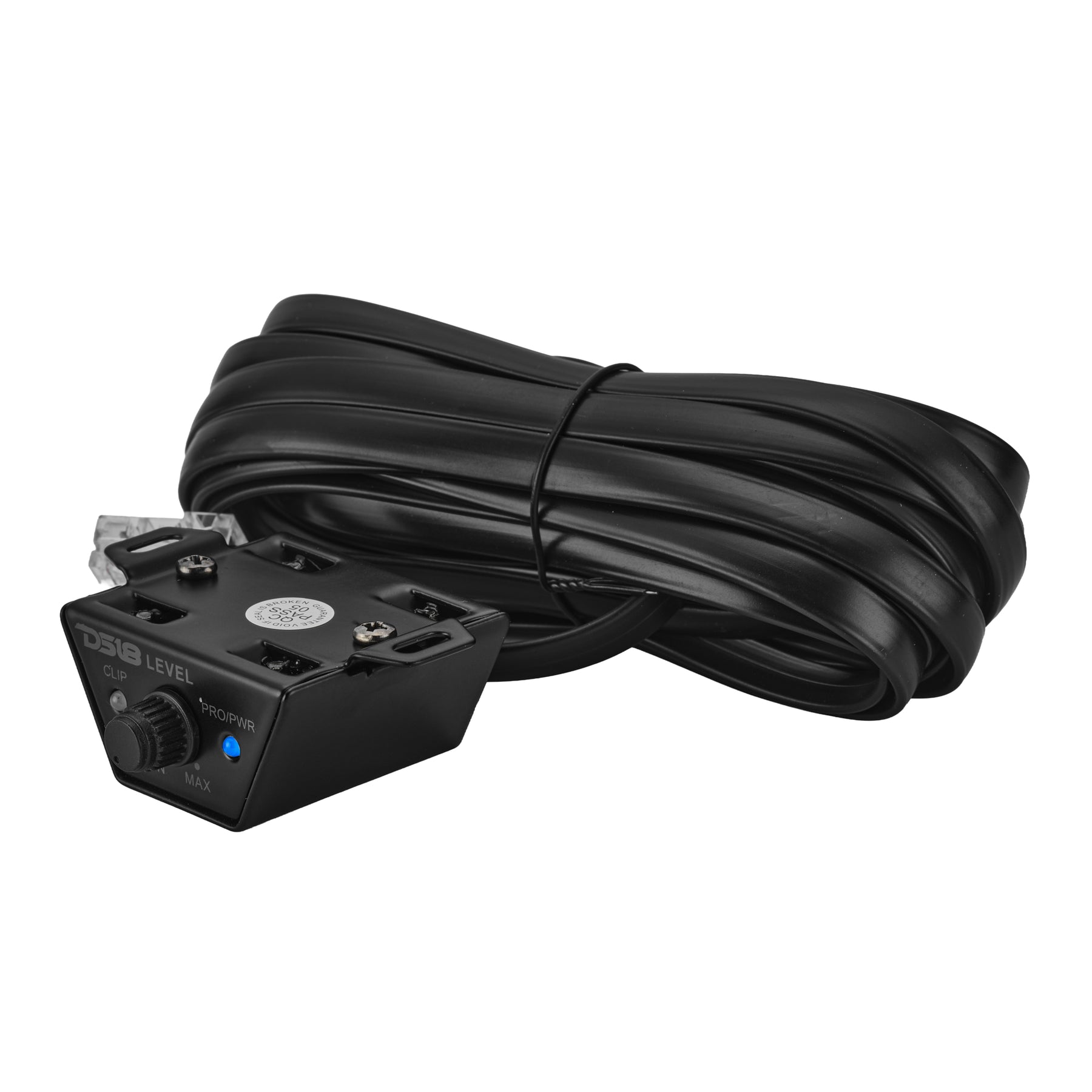

This amplifier features a remote level control for easy subwoofer level adjustment from your driving seat. Its high-level and low-level inputs accommodate a wide range of source units. Switchable input modes allow flexible channel routing between 2, 4, or 6 channel operation.
Ready to transform your vehicle’s sound? The G3600.6D’s power, precision, and protection make it the ultimate amplifier for any true audio enthusiast.
