Description
DS18 EXL-XX12.2DHE
The DS18 EXL-XX12.2DHE is a 12-inch high-excursion dual-voice-coil (DVC) car subwoofer built to deliver deep, aggressive bass with excellent control for high-powered car audio systems. Equipped with dual 2 Ω voice coils (2 + 2 Ω) and oversized 3″ black aluminum CCAW voice coils, it can handle a massive 2000 W RMS and up to 4000 W peak power, making it ideal for demanding bass applications. With a frequency response reaching down to approximately 25 Hz and extending up to 1.5 kHz and an 88 dB sensitivity, this subwoofer delivers tight, impactful low-frequency performance. Its robust construction includes a reinforced paper cone, glass fiber dust cap, high-roll foam surround, and a rugged black aluminum basket combined with a large ferrite magnet to support extreme excursion and durability. Designed for use in sealed or ported enclosures with a recommended low-pass crossover around 80 Hz, the EXL-XX12.2DHE offers flexible wiring options and powerful bass output for serious car audio enthusiasts.
Specifications
| Parameter | Value |
|---|---|
| SKU | EXL-XX12.2DHE |
| Nominal Diameter | 12″ |
| Nominal Impedance | 2 + 2 ohms |
| RMS Power Handling | 2000 W |
| Maximum Power Handling | 4000 W |
| Sensitivity (1W/1m) | 87 dB |
| Frequency Response | 20 – 1,300 Hz |
| Recommended Low-Pass Crossover | 80 Hz |
Motor & Construction
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 3″ (75.6 mm) |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Glass Fiber |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 306 oz |
| Displacement Volume | 3.26 L |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas (Equivalent Volume) | 21.986 L |
| Fs (Free Air Resonance) | 39.8 Hz |
| Qms (Mechanical Factor) | 5.128 |
| Qes (Electrical Factor) | 0.529 |
| Qts (Total Factor) | 0.468 |
| Mms (Moving Mass) | 302.158 g |
| Cms (Compliance) | 0.025 mm/N |
| Bl Factor | 16.523 |
| Le (Voice Coil Inductance) | 6.9 mH |
| Sd (Diaphragm Area) | 433.74 cm² |
| Re (DC Resistance) | 2 + 2 ohms |
| EBP | 75.2 |

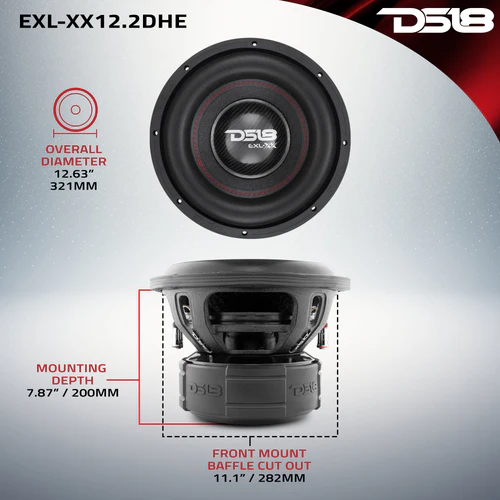

Physical Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 12.63″ (321 mm) |
| Overall Depth | 9.25″ (235 mm) |
| Front Mount Baffle Cutout | 11.1″ (282 mm) |
| Mounting Depth | 7.87″ (200 mm) |
| Motor Diameter | 8.89″ (226 mm) |
| Gross Single Unit Weight | 53.5 lb |
Packaging Information
| Parameter | Value |
|---|---|
| Box Dimensions (W × L × H) | 15 × 15 × 12.5 in |
| Units per Master Carton | 1 |
| Gross Master Carton Weight | 53.5 lb |
| Master Carton Dimensions (W × L × H) | 15 × 15 × 12.5 in |
Physical Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 12.63″ (321 mm) |
| Overall Depth | 9.25″ (235 mm) |
| Front Mount Baffle Cutout | 11.1″ (282 mm) |
| Mounting Depth | 7.87″ (200 mm) |
| Motor Diameter | 8.89″ (226 mm) |
Product Overview
12” High Excursion Car Subwoofer 4000W MAX 2-Ohm DVC
Engineered for car audio enthusiasts, the EXL-XX12.2DHE pushes the boundaries of low-frequency bass reproduction, delivering an unparalleled audio experience that will leave you breathless.
As a high-tier addition to our acclaimed lineup, the EXL-XX12.2DHE offers an astonishing price-to-performance ratio, rivaling even the most expensive high excursion subs on the market. Crafted to meet the demands of the most discerning audiophiles, the EXL-XX12.2DHE boasts a three-inch black aluminum voice coil—a testament to its exceptional power handling capabilities and efficiency. With a remarkable power rating of 2000W RMS and a staggering MAX power of 4000W, this subwoofer packs a punch that reverberates through your entire vehicle.
The EXL-XX12.2DHE utilizes the strength of a ferrite magnet weighing in at an incredible 306 ounces. Its immense power effortlessly controls the cone movement, allowing for precise audio reproduction even at extreme volumes. The cone, crafted from high-quality paper, guarantees accurate sound reproduction, while the foam surround ensures optimal flexibility and longevity. Encased in a sleek black aluminum basket, this subwoofer exudes style and sophistication.
What sets the EXL-XX12.2DHE apart is its exceptional high excursion surround. Paired with a high resonant frequency (FS) of 39 Hz, the EXL-XX12.2DHE seamlessly delves into the subsonic range without missing a beat, provided your box is tuned accordingly. This version of the EXL-XX boasts a nominal diameter of 12″ (304.8 mm) and a nominal impedance of 2+2 OHMS to amplify the performance and capabilities of this high-powered subwoofer.
The EXL-XX12.2DHE captures the essence of power, precision, and affordability, revolutionizing the way you experience bass in your vehicle.
