Description

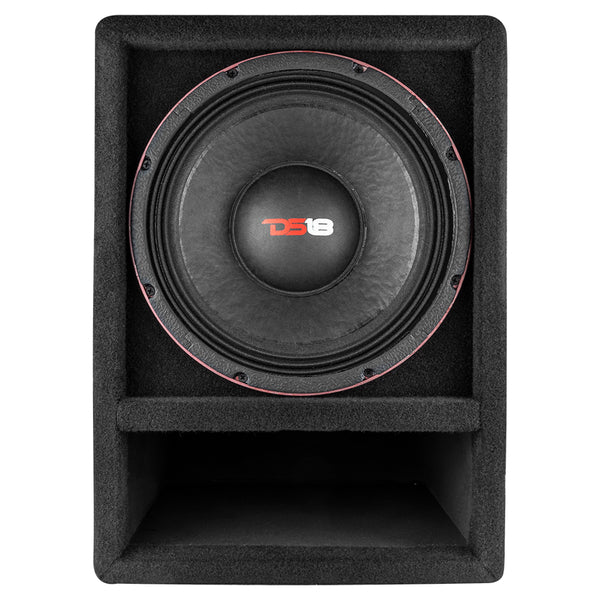

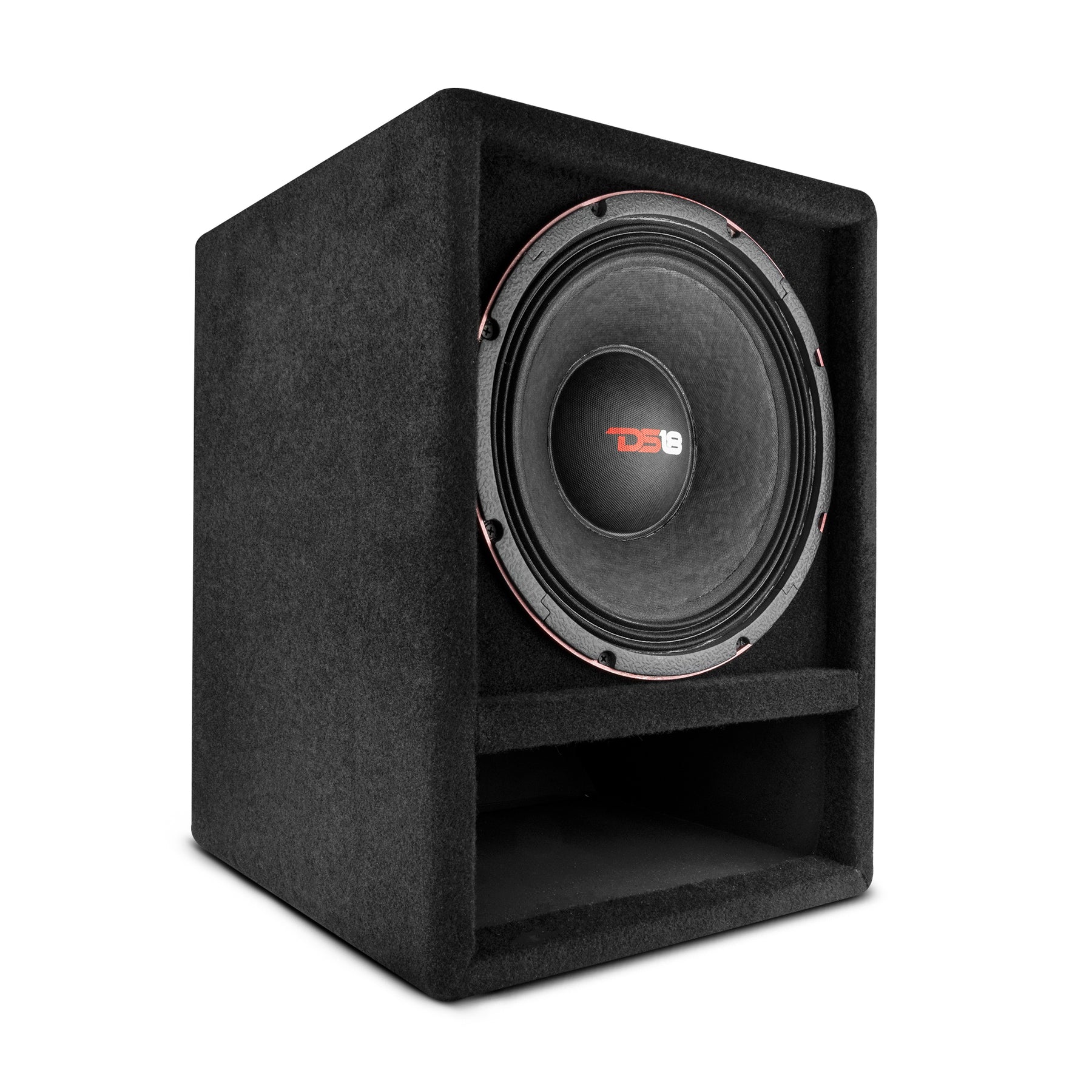

DS18 ENS-PRO1.5KP112LD
The DS18 ENS-PRO1.5KP112LD is a 12″ Pancadao ported loudspeaker enclosure from DS18 that comes loaded with a PRO-1.5KP12.2 mid-bass speaker, engineered to deliver deep, powerful mid-bass performance for car audio and professional sound systems. Built with a front-ported design and constructed from premium ¾″ MDF with a black carpet finish, this enclosure helps maximize low-frequency response and overall output. The integrated PRO-1.5KP12.2 speaker features a 4″ voice coil, high-stability fiberglass former, and durable aluminum basket for reliable performance. The system handles up to 1500 W RMS (3000 W peak) with 2 ohm impedance and 95.5 dB sensitivity, providing impactful, articulate mid-bass across a wide audio range. With an internal volume of approximately 1.76 ft³, a tuned port at about 75 Hz, and usable response from roughly 50 Hz to 2 kHz, the ENS-PRO1.5KP112LD is ideal for enthusiasts seeking loud, clear, and punchy bass in a ready-to-install package.
Specifications
GENERAL SPECIFICATIONS
| Specification |
Value |
| SKU |
ENS-PRO1.5KP112LD |
| Speaker Type / Size |
Single 12″ / 304 mm |
| Total Impedance |
2 Ohm |
| Total RMS Power Handling |
1500 W |
| Total MAX Power Handling |
3000 W |
| Sensitivity (1W / 1M) |
95.5 dB |
| Frequency Response |
50 Hz – 2 kHz |
| Recommended Hi-Pass Crossover |
60 Hz |
SPEAKER SPECIFICATIONS
| Specification |
Value |
| Model |
PRO-1.5KP12.2 |
| Voice Coil Diameter |
4″ / 101.6 mm |
| Voice Coil Former Material |
Fiber Glass |
| Winding Material |
CCAW |
| Cone Material |
Non-Pressed Paper |
| Dust Cap Material |
Paper |
| Surround Material |
Cloth |
| Basket Material |
Aluminum |
| Magnet Material |
Ferrite |
| Magnet Weight |
150 oz |
BOX SPECIFICATIONS
| Specification |
Value |
| Internal Volume |
50 L / 1.76 ft³ |
| Port Tune |
75 Hz |
| Box Type |
Front Ported |
| Box Material |
3/4″ / 19 mm MDF |
| Finish Material |
Black Carpet |
| -3 dB Dropping Point |
65 Hz |
MEASUREMENTS
| Specification |
Value |
| Overall Height |
19.6″ / 500 mm |
| Overall Width |
14.17″ / 360 mm |
| Overall Depth |
15.75″ / 400 mm |
| Port Dimensions (W × H × L, Each) |
4.72″ × 12.8″ × 9.4″ / 120 × 325 × 238 mm |
Product Overview
12″ Pancadao Ported Box with PRO-1.5KP12.2 Included
Designed for the enthusiast who wants to shake the room, DS18’s ENS-PRO1.5KP112LD delivers an unparalleled listening experience that transports you to another dimension. DS18’s ENS-PRO1.5KP112LD combines one of DS18’s mid-bass loudspeakers with a perfectly tuned ported box for a listening experience like no other.
At the heart of this enclosure is DS18’s PRO-1.5KP12.2, one of DS18’s booming mid-bass loudspeakers engineered to redefine your sound system’s boundaries. Equipped with a massive 4” voice coil, and constructed from fiber glass for unparalleled stability, the PRO-1.5KP12.2 was built for those who like it LOUD!
Chosen for it’s rigid construction and unreal responsiveness, DS18’s pursuit of perfection in audio led them to the creation of a custom-designed ported box specifically tailored to complement the PRO-1.5KP12.2. Every inch of this front-ported box constructed from premium ¾” MDF, is engineered to maximize this mid-bass loudspeaker’s potential.
DS18’s ENS-PRO1.5KP112LD flawlessly reproduces midbass frequencies that highlight the depth and richness of your favorite tracks. The ENS-PRO1.5KP112LD’s technical prowess is further enhanced by its sensitivity of 95.5dB and an impressive frequency response ranging from 50Hz to 2KHz. The 1.76ft3 internal volume of the ENS-PRO1.5KP112LD gives this speaker enough room to perform at it’s best. With a total RMS power handling of 1500W and a maximum power handling of 3000W, prepare to be blown away by the sheer intensity and clarity of your music.
Indulge your senses, elevate your audio experience, and let DS18’s ENS-PRO1.5KP112LD transport you to a world where sound knows no boundaries.
