Description
DS18 ENS-PRO1.5KP110LD

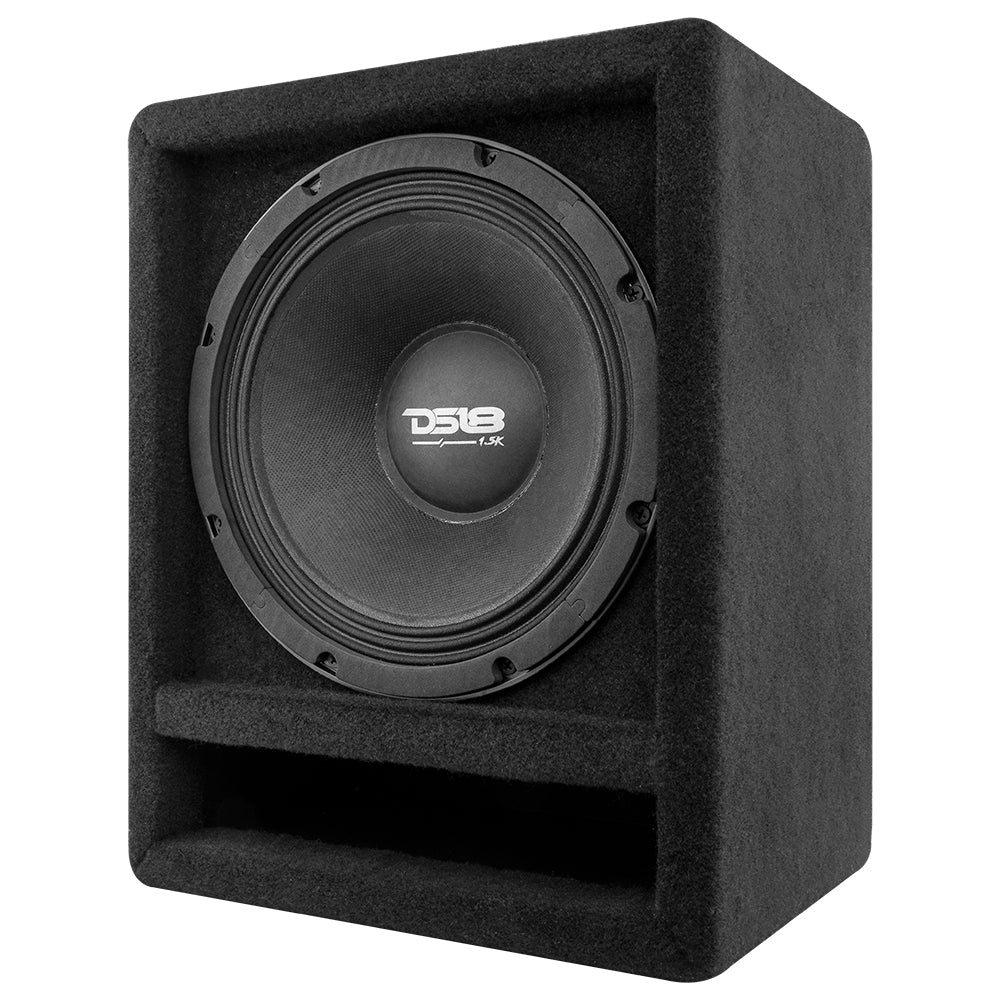

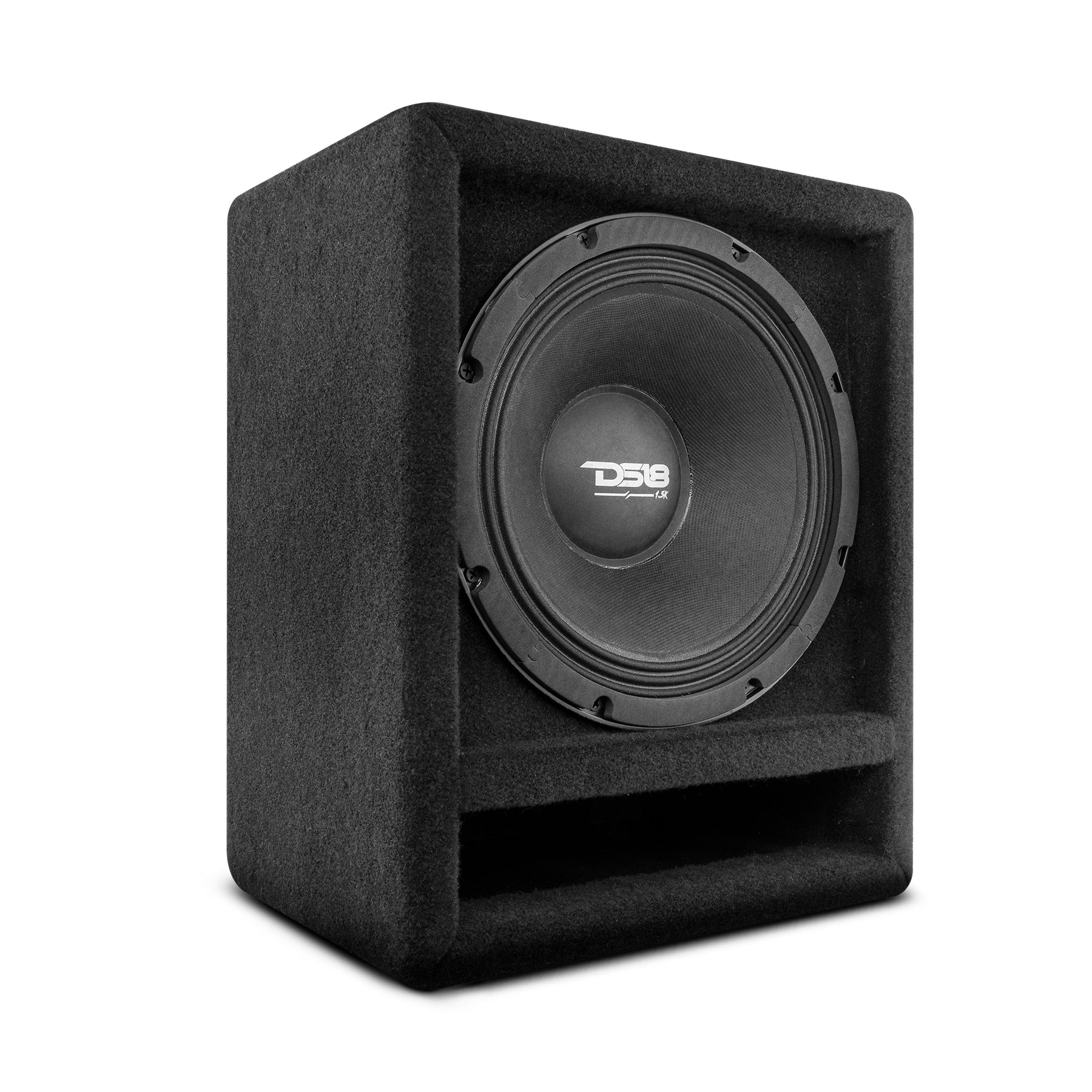

The DS18 ENS-PRO1.5KP110LD is a 10″ Pancadao ported loudspeaker enclosure from DS18 that comes pre-loaded with one PRO-1.5KP10.4 mid-bass speaker, engineered to deliver deep, punchy mid-bass performance for car audio and professional sound systems. This front-ported box is constructed from ¾″ MDF with a black carpet finish for durability and optimal acoustics, and features a tuned port that enhances low-frequency response. The included PRO-1.5KP10.4 driver boasts a 3″ voice coil and robust components to handle high power demands. The loaded enclosure supports approximately 1500 W RMS and 3000 W peak power, with a 4 ohm impedance and 94.5 dB sensitivity, providing impactful sound from about 60 Hz up to 2 kHz. Designed for enthusiasts who want loud, full-range performance right out of the box, the ENS-PRO1.5KP110LD is a plug-and-play solution that boosts bass depth and clarity.
Specifications
GENERAL SPECIFICATIONS
| Specification | Value |
|---|---|
| SKU | ENS-PRO1.5KP110LD |
| Speaker Type / Size | Single 10″ / 254 mm |
| Total Impedance | 4 Ohm |
| Total RMS Power Handling | 1500 W |
| Total MAX Power Handling | 3000 W |
| Sensitivity (1W / 1M) | 94.5 dB |
| Frequency Response | 60 Hz – 2 kHz |
| Recommended Hi-Pass Crossover | 70 Hz |
SPEAKER SPECIFICATIONS
| Specification | Value |
|---|---|
| Model | PRO-1.5KP10.4 |
| Voice Coil Diameter | 3″ / 76.2 mm |
| Voice Coil Former Material | Fiber Glass |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 91 oz |
BOX SPECIFICATIONS
| Specification | Value |
|---|---|
| Internal Volume | 15 L / 0.54 ft³ |
| Port Tune | 115 Hz |
| Box Type | Front Ported |
| Box Material | 3/4″ / 19 mm MDF |
| Finish Material | Black Carpet |
| -3 dB Dropping Point | 90 Hz |
MEASUREMENTS
| Specification | Value |
|---|---|
| Overall Height | 15.3″ / 390 mm |
| Overall Width | 12.2″ / 310 mm |
| Overall Depth | 9″ / 230 mm |
| Port Dimensions (W × H × L, Each) | 10.8″ × 2.36″ × 4.72″ / 275 × 60 × 120 mm |
Product Overview
10″ Pancadao Ported Box with PRO-1.5KP10.4 Included
Designed for the enthusiast who wants to shake the room, DS18’s ENS-PRO1.5KP110LD delivers an unparalleled listening experience that transports you to another dimension. DS18’s ENS-PRO1.5KP110LD combines one of DS18’s mid-bass loudspeakers with a perfectly tuned ported box for a listening experience like no other.
At the heart of this enclosure is DS18’s PRO-1.5KP10.4, one of DS18’s booming mid-bass loudspeakers engineered to redefine your sound system’s boundaries. Equipped with a massive 3” voice coil, and constructed from fiber glass for unparalleled stability, the PRO-1.5KP10.4 was built for those who like it LOUD!
Chosen for it’s rigid construction and unreal responsiveness, DS18’s pursuit of perfection in audio led them to the creation of a custom-designed ported box specifically tailored to complement the PRO-1.5KP10.4. Every inch of this front-ported box constructed from premium ¾” MDF, is engineered to maximize this mid-bass loudspeaker’s potential.
DS18’s ENS-PRO1.5KP110LD flawlessly reproduces low-frequency notes that highlight the depth and richness of your favorite tracks. The ENS-PRO1.5KP110LD’s technical prowess is further enhanced by its sensitivity of 94.5dB and an impressive frequency response ranging from 60Hz to 2KHz. The 0.54ft3 internal volume of the ENS-PRO1.5KP110LD gives this speaker enough room to perform at it’s best. With a total RMS power handling of 1500W and a maximum power handling of 3000W, prepare to be blown away by the sheer intensity and clarity of your music.
Indulge your senses, elevate your audio experience, and let DS18’s ENS-PRO1.5KP110LD transport you to a world where sound knows no boundaries.
