Description
DS18 DXQTS
The DXQTS is a high‑quality 2‑inch silk dome car tweeter engineered to deliver smooth, natural high frequencies and enhanced detail in your vehicle’s audio system. Featuring a silk dome diaphragm and a neodymium magnet, these tweeters provide efficient performance with minimal distortion, producing clear treble from approximately 800 Hz to 20 kHz. Rated at 30 W RMS (60 W peak) with 90 dB sensitivity, the DXQTS enhances vocals, cymbals, and other high‑range sounds while the included 2.2 µF bass blocker capacitor protects the tweeter and optimizes clarity. Its compact ABS housing and shallow 0.6‑inch mounting depth make installation straightforward in most car and custom audio setups, providing a reliable audio upgrade that brings music to life with crisp, balanced highs.
Specifications
| Specification | Details |
|---|---|
| Nominal Diameter | 2″ / 51mm |
| Nominal Impedance | 4 ohms |
| MAX Power Handling | 60W |
| RMS Power Handling | 30W |
| Sensitivity (1W/1m) | 90 dB |
| Frequency Response | 800Hz–20kHz |
| Recommended Hi-Pass Crossover | 3.8 kHz |
| Sold In | Pair |
Body / Features
| Feature | Details |
|---|---|
| Filter (Bass Blocker) | 2.2µF / 50V |
| Body Material | ABS |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black |
Motor Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 1″ / 25mm |
| Voice Coil Former Material | ASV |
| Winding Material | CCAW |
| Diaphragm Material | Silk |
| Magnet Material | Neodymium |
| Magnet Size / Weight | 0.5 oz / 14 g |
Product Overview

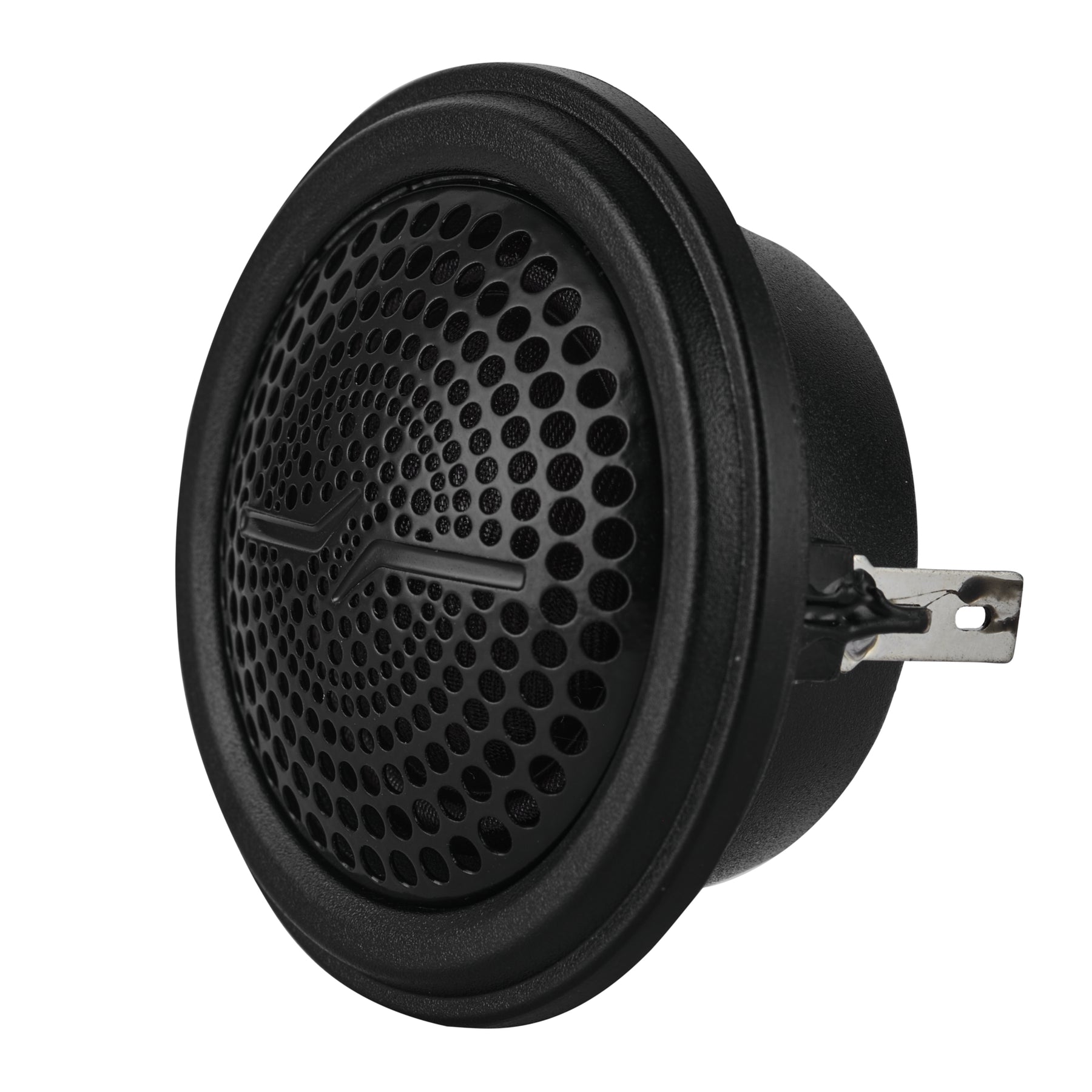

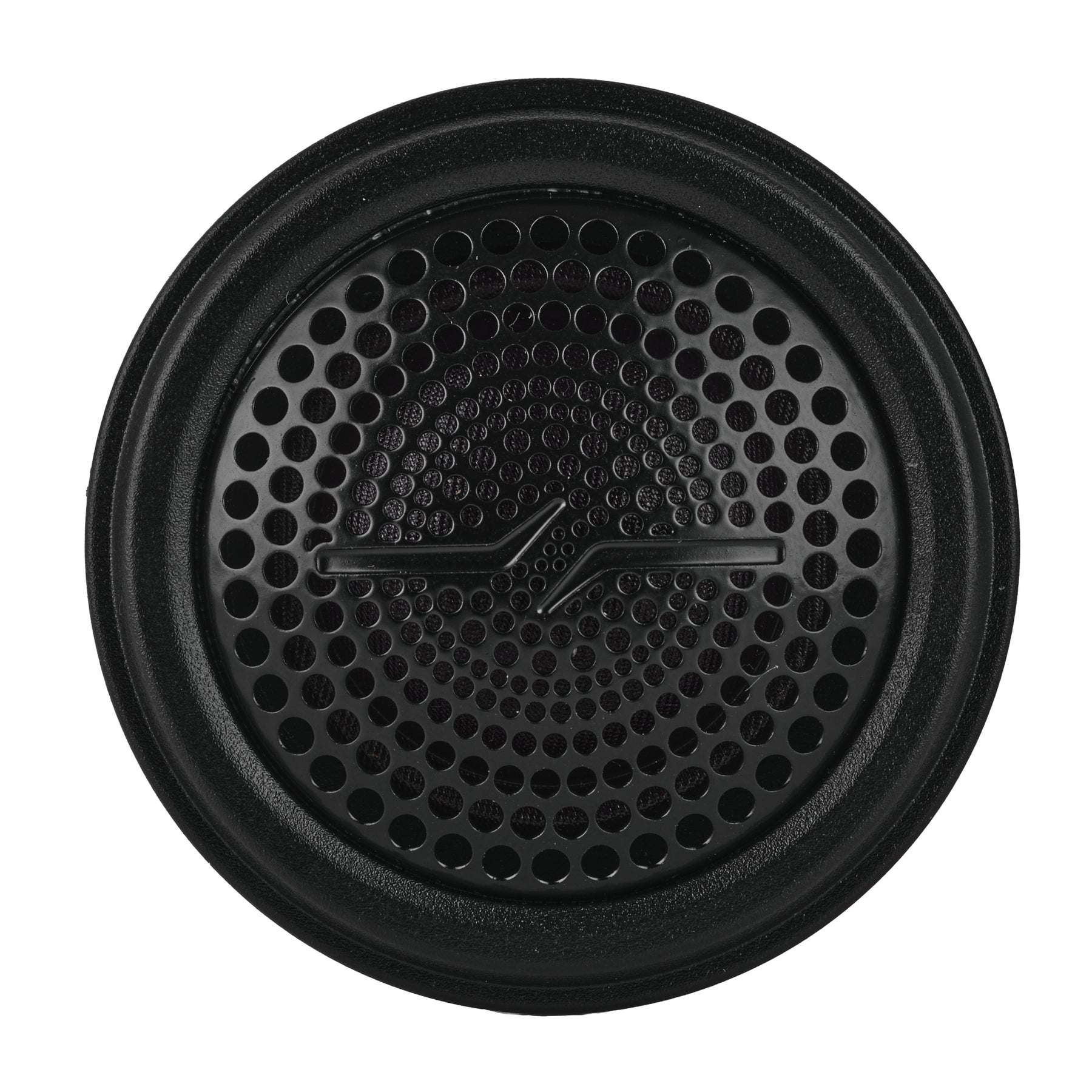

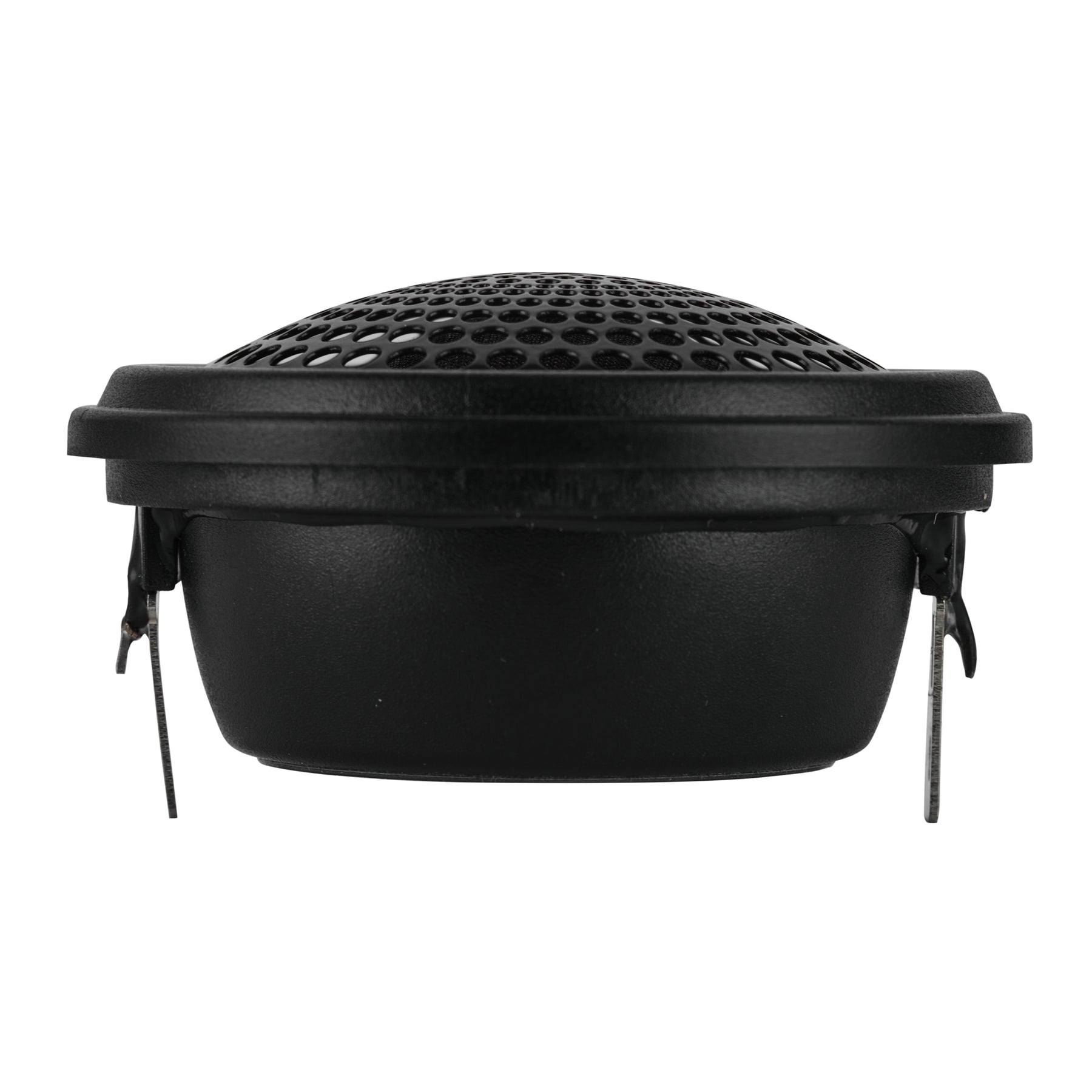

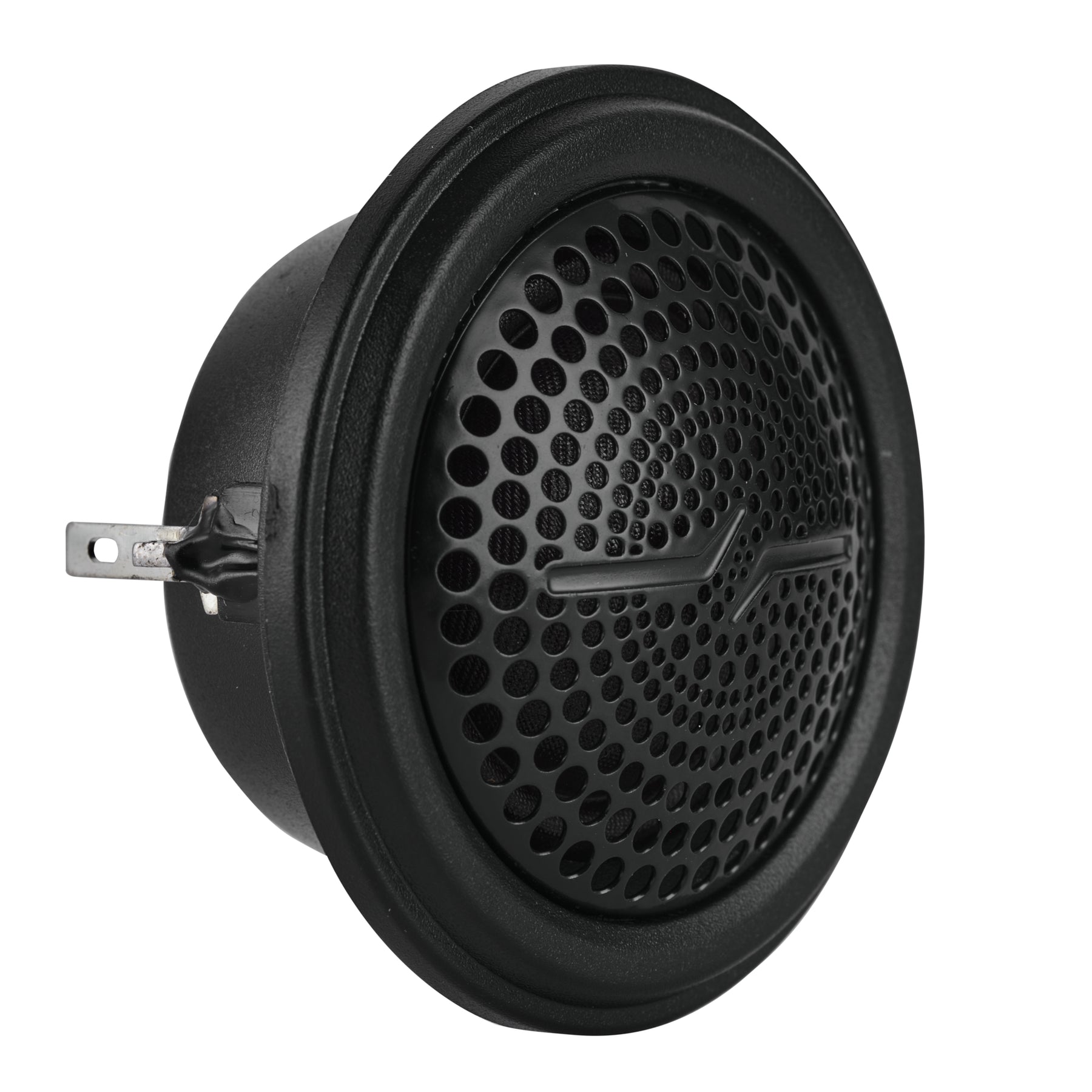

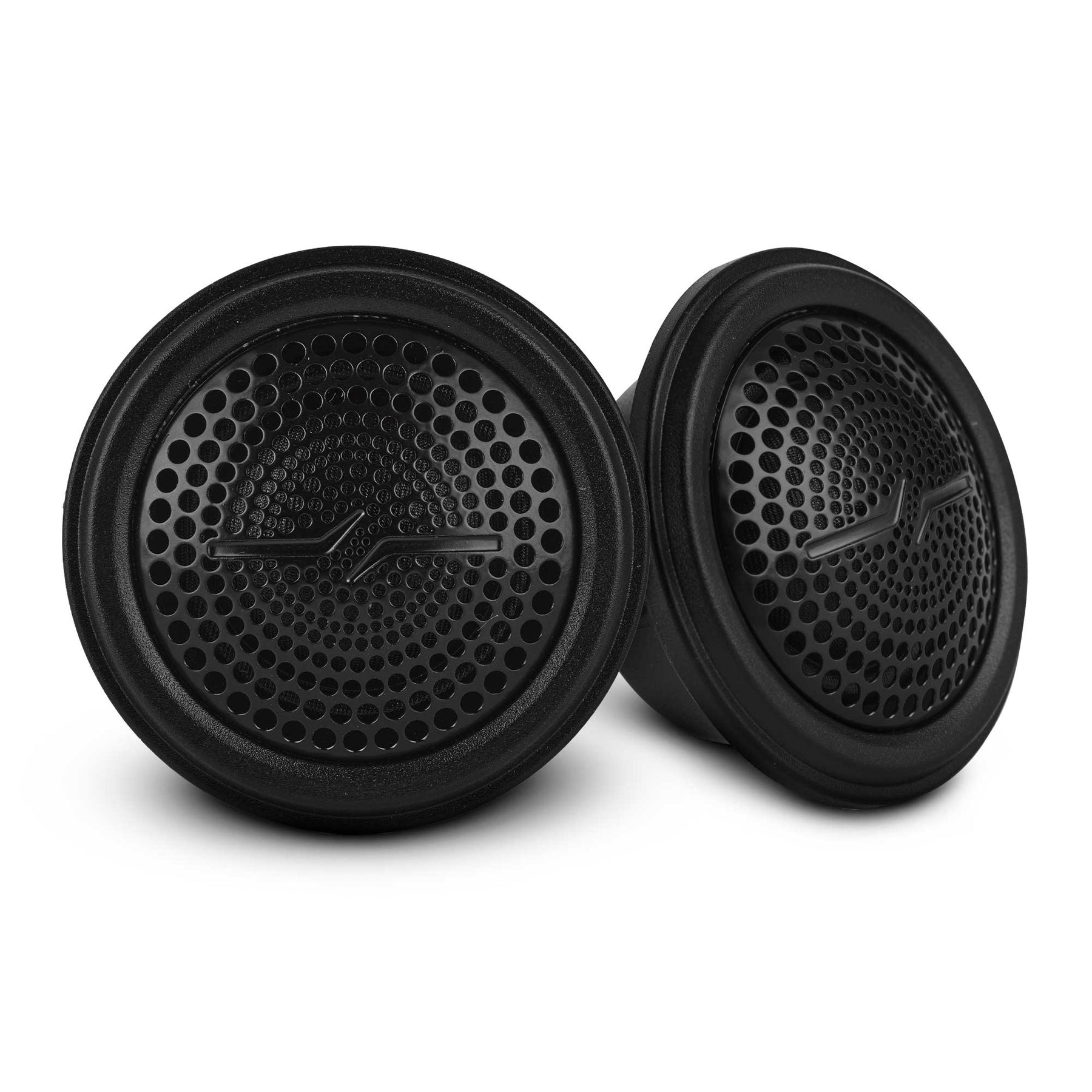

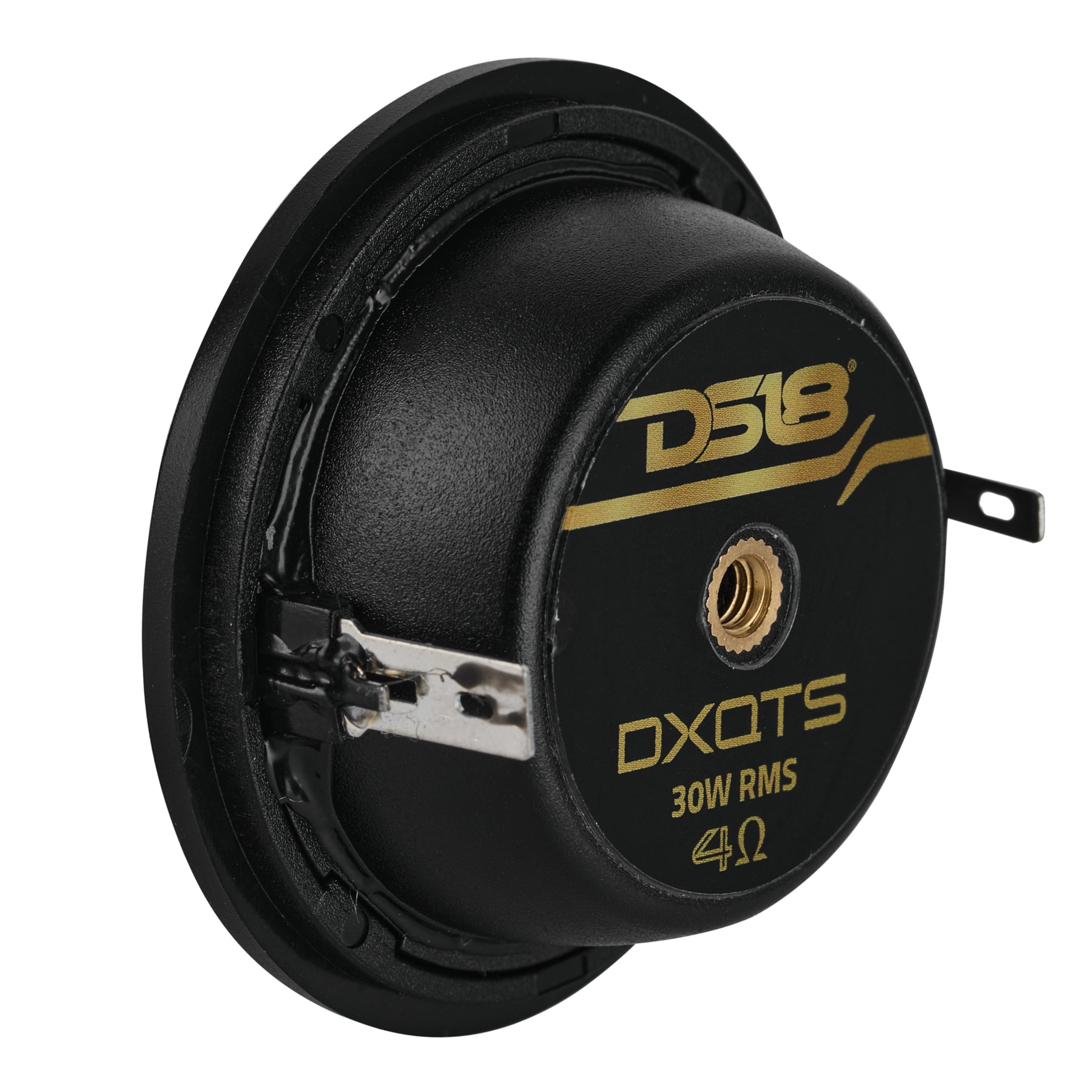

2″ Silk Dome Tweeter with Neodymium Magnet (Pair)
The DXQTS delivers clear, natural highs from 800Hz up to 20kHz, perfect for enhancing your system’s high-frequency response. The 2-inch silk dome diaphragm makes sure audio is smooth during extended listening sessions.
Powerful and Efficient
Rated at 30W RMS and 60W MAX, with 90dB sensitivity, this tweeter packs a punch while remaining efficient. The neodymium magnet provides strong magnetic force in a compact design, helping deliver precise high-frequency output.
Built to Last

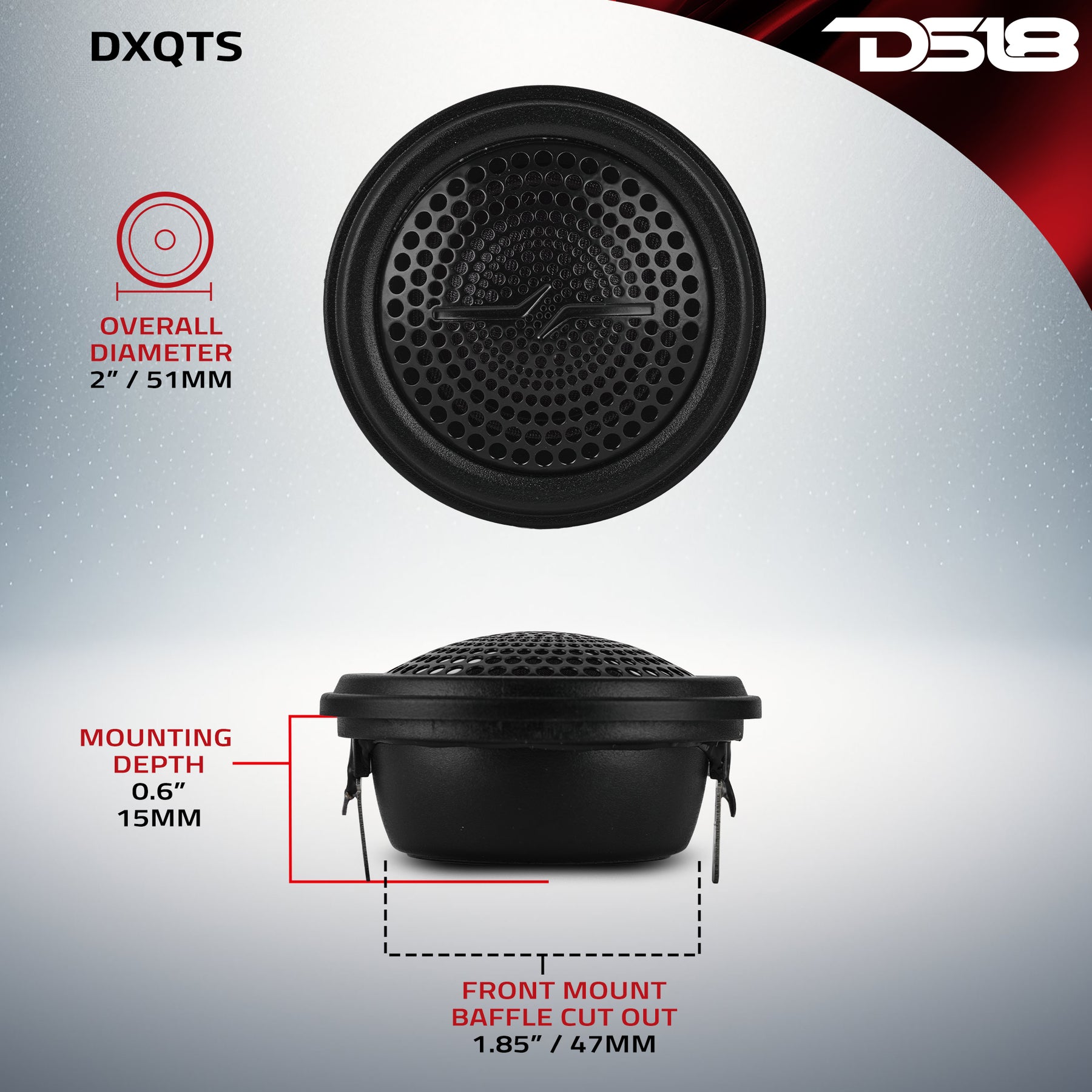

With a durable ABS housing and compact size (only 0.6” mounting depth), the DXQTS fits easily into most factory or custom locations. The included 2.2µF bass blocker capacitor protects the tweeter and optimizes sound clarity.
Upgrade to DS18’s DXQTS tweeters and experience crisp highs that turn every session into a concert!
