Description
DS18 DXQ6C3N

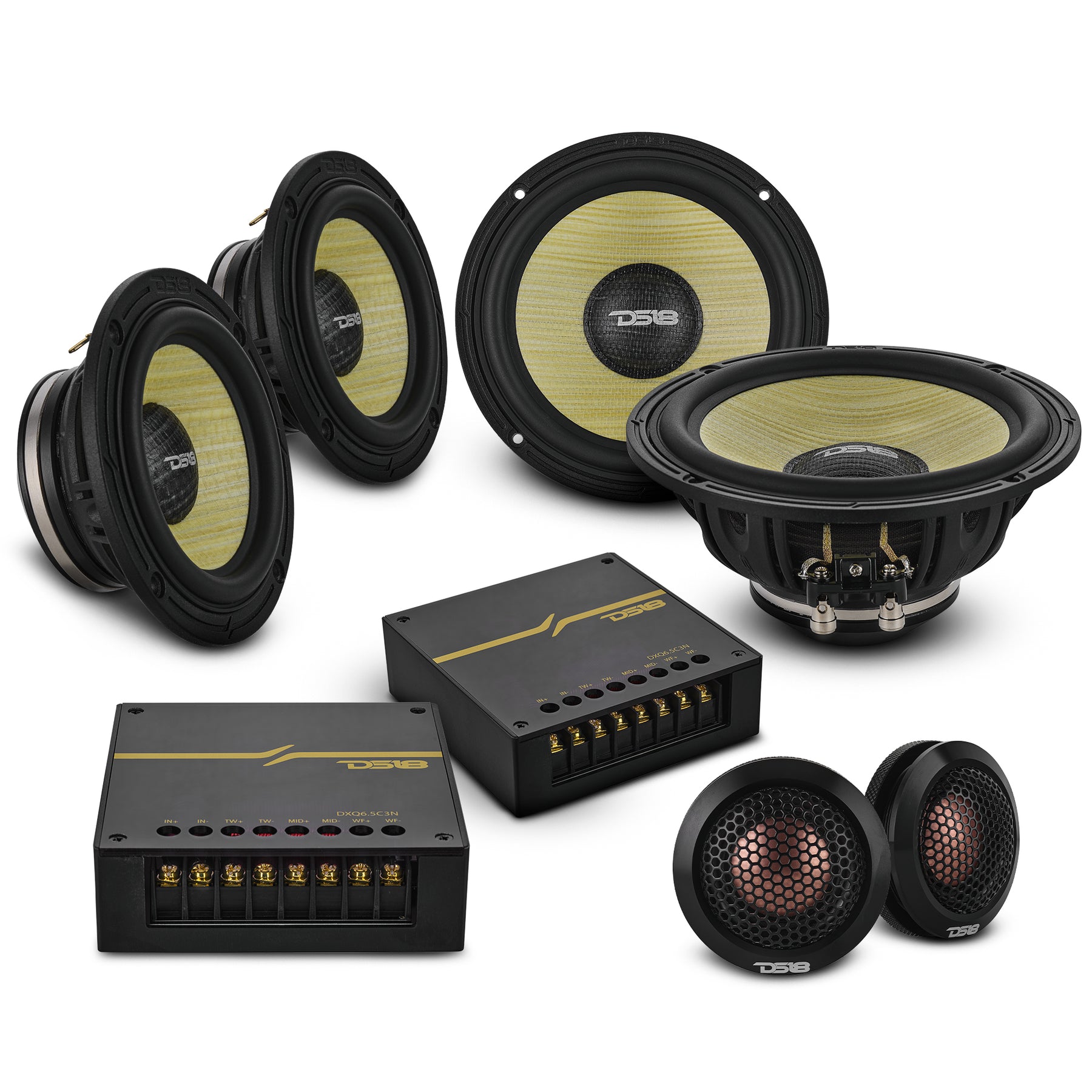

The DS18 DXQ6C3N is a premium 6.5‑inch 3‑way component speaker set engineered for high‑fidelity car audio systems, featuring neodymium magnets for stronger magnetic flux and better sensitivity. This set includes two 6.5″ woofers, two 3.5″ midrange drivers, two 2.2″ tweeters, and two passive 3‑way crossovers to deliver detailed, full‑range sound with strong bass, clear mids, and crisp highs across a wide frequency range from approximately 35 Hz to 20 kHz. With a 4 Ω nominal impedance and 180 W RMS (360 W peak) power handling, the DXQ6C3N provides efficient, distortion‑free output and a high sensitivity rating of about 91 dB, making it suitable for both head unit–driven systems and amplifier‑powered setups. Built with premium yellow straw + composite foam cones, rubber surrounds, and neodymium magnets, this component set offers professional‑grade clarity and performance for serious car audio enthusiasts.
Specifications
| Parameter | Value |
|---|---|
| SKU | DXQ6C3N |
| System Configuration | 6.5″ Woofer + 3.5″ Midrange + 2.2″ Tweeter |
| Nominal Diameter | 6.5″ + 3.5″ / 165 + 91 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 180 W |
| MAX Power Handling | 360 W |
| Sensitivity (1W/1m) | 91 dB |
| Frequency Response | 35 Hz – 20 kHz |
| Recommended Hi-Pass Crossover | 60 Hz |
| Number of Ways | 3 |
| Sold as | Pair |
| Grill Included | No |

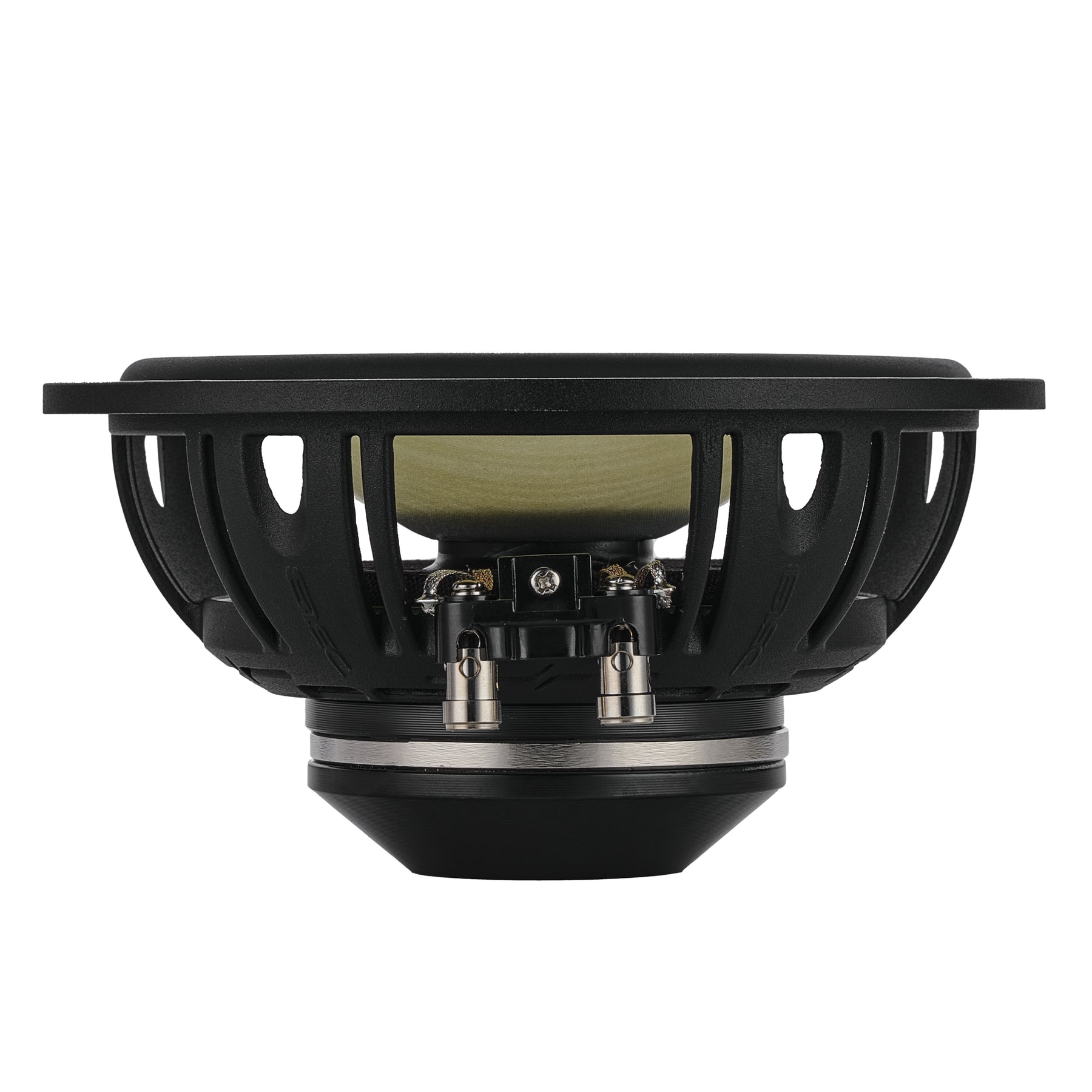

Woofer Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 6.5″ / 165 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 180 W |
| MAX Power Handling | 360 W |
| Sensitivity (1W/1m) | 91 dB |
| Frequency Response | 35 Hz – 12 kHz |
| Voice Coil Diameter | 1.4″ / 35.5 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | SV |
| Cone Material | Yellow Straw + Composite Foam |
| Dust Cap Material | Black Straw |
| Surround Material | Rubber Edge |
| Basket Material | Aluminum |
| Basket Color / Finish | Black |
| Magnet Material | Neodymium |
| Magnet Weight | 3.1 oz |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push / 14 Ga |
Woofer – Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 10.8 L |
| Excursion (one way) Xmax | 5 mm |
| Free Air Resonance Fs | 55 Hz |
| Mechanical Factor Qms | 13.087 |
| Electrical Factor Qes | 0.428 |
| Total Factor Qts | 0.414 |
| Mechanical Mass Mms | 21.504 g |
| Mechanical Compliance Cms | 0.396 mm/N |
| BL Factor | 7.764 |
| Voice Coil Inductance Le | 0.085 mH |
| Cone Area Sd | 138.93 cm² |
| DC Resistance Re | 3.5 Ohms |
| Mechanical Mass w/o Air Mmd | 19.654 g |

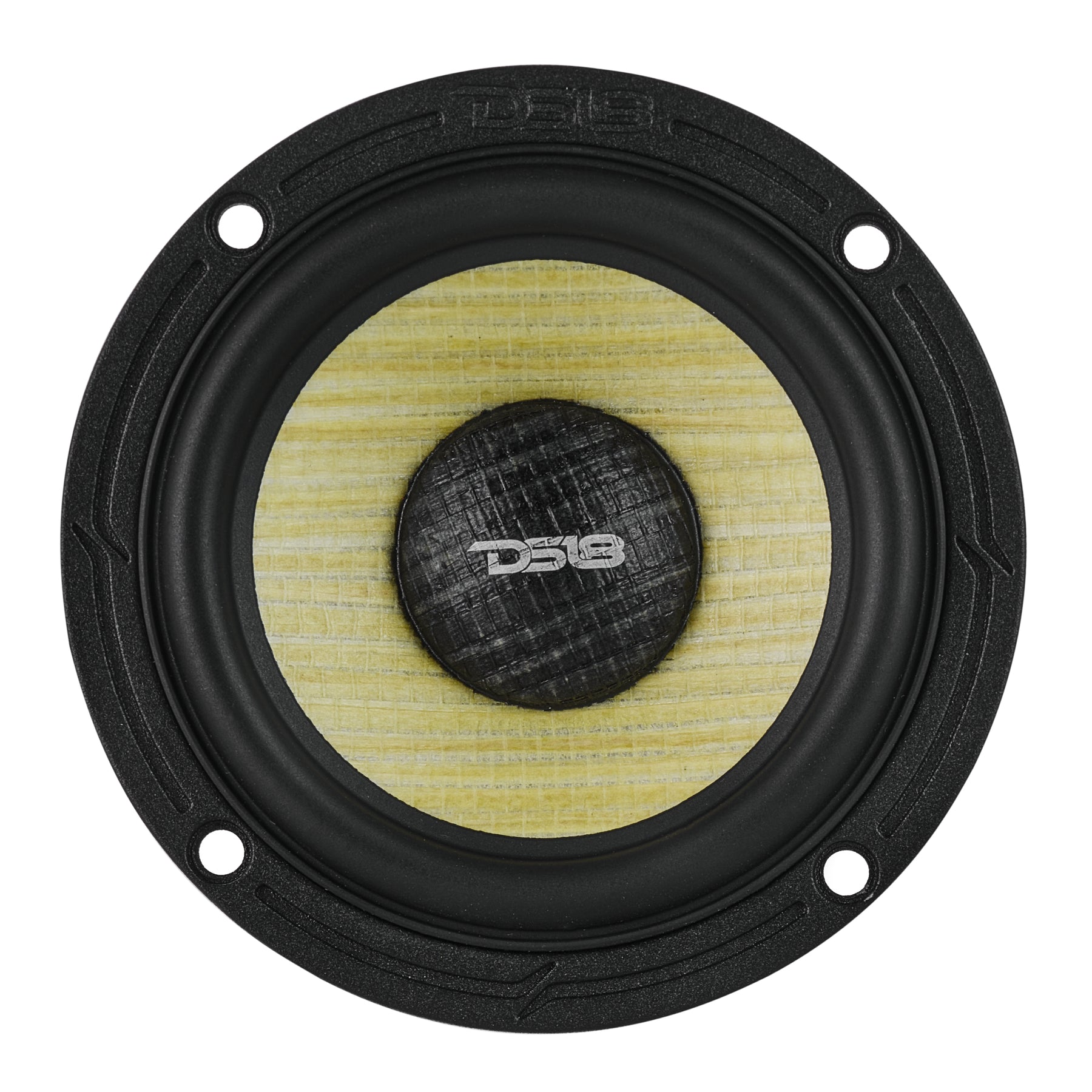

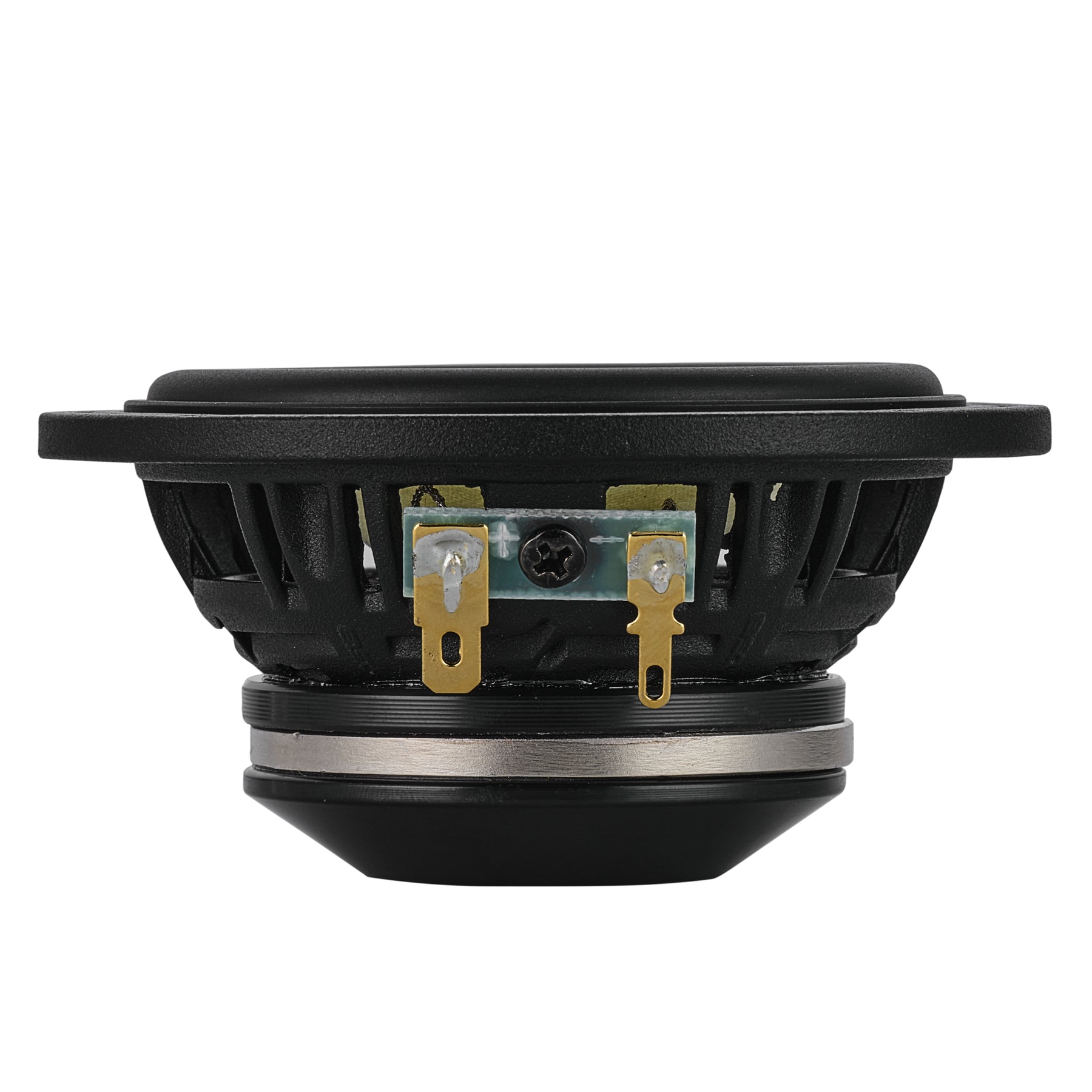

Midrange Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 3.5″ / 91 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 80 W |
| MAX Power Handling | 160 W |
| Sensitivity (1W/1m) | 88 dB |
| Frequency Response | 120 Hz – 20 kHz |
| Voice Coil Diameter | 1″ / 25 mm |
| Voice Coil Former Material | TIL |
| Winding Material | CCAW |
| Cone Material | Yellow Straw + Composite Foam |
| Dust Cap Material | Black Straw |
| Surround Material | Rubber Edge |
| Basket Material | Aluminum |
| Basket Color / Finish | Black |
| Magnet Material | Neodymium |
| Magnet Weight | 1.1 oz |
Midrange – Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 1.413 L |
| Excursion (one way) Xmax | 2 mm |
| Free Air Resonance Fs | 86 Hz |
| Mechanical Factor Qms | 8.112 |
| Electrical Factor Qes | 0.407 |
| Total Factor Qts | 0.387 |
| Mechanical Mass Mms | 3.765 g |
| Mechanical Compliance Cms | 0.907 mm/N |
| BL Factor | 4.062 |
| Voice Coil Inductance Le | 0.066 mH |
| Cone Area Sd | 33.18 cm² |
| DC Resistance Re | 3.3 Ohms |
| Mechanical Mass w/o Air Mmd | 3.549 g |

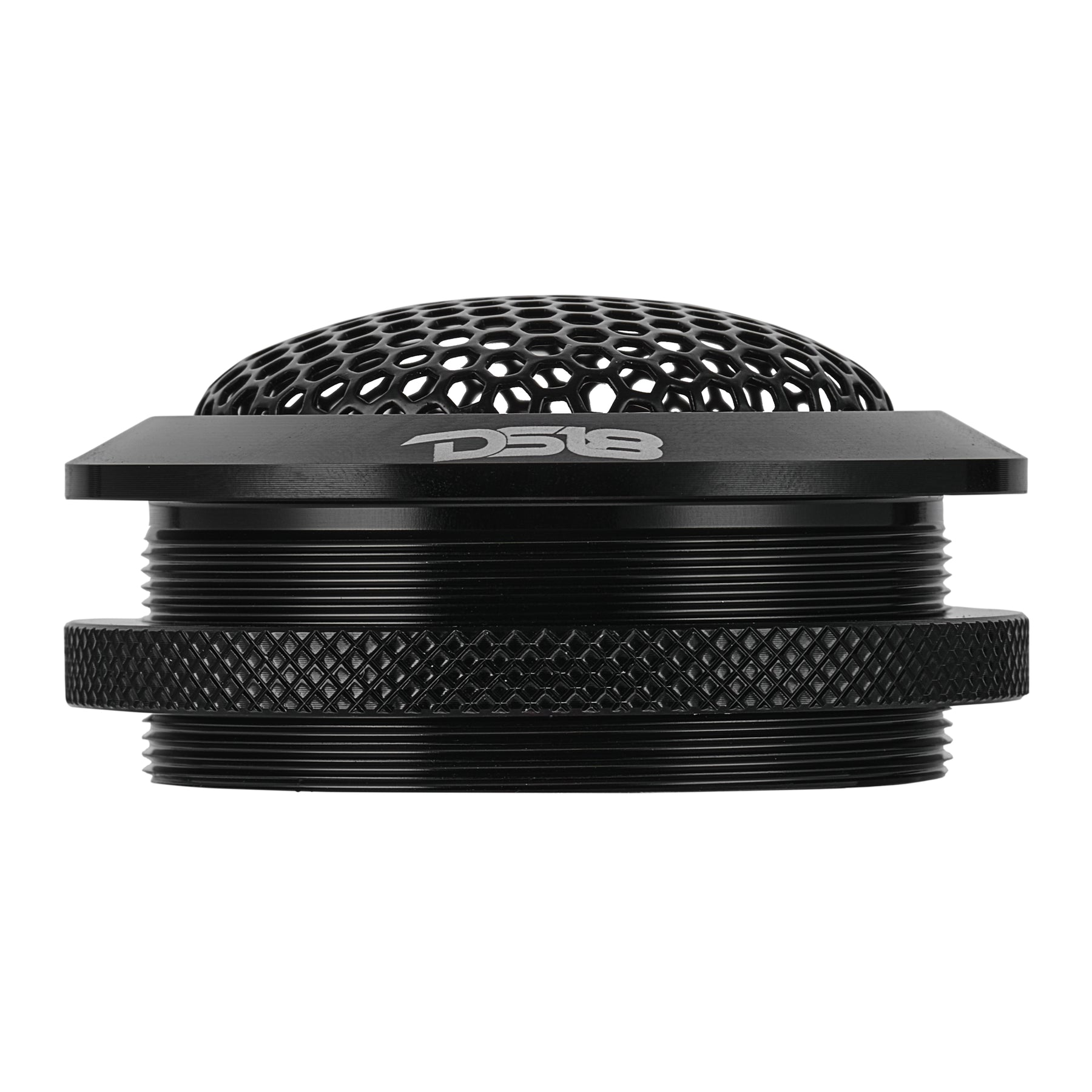

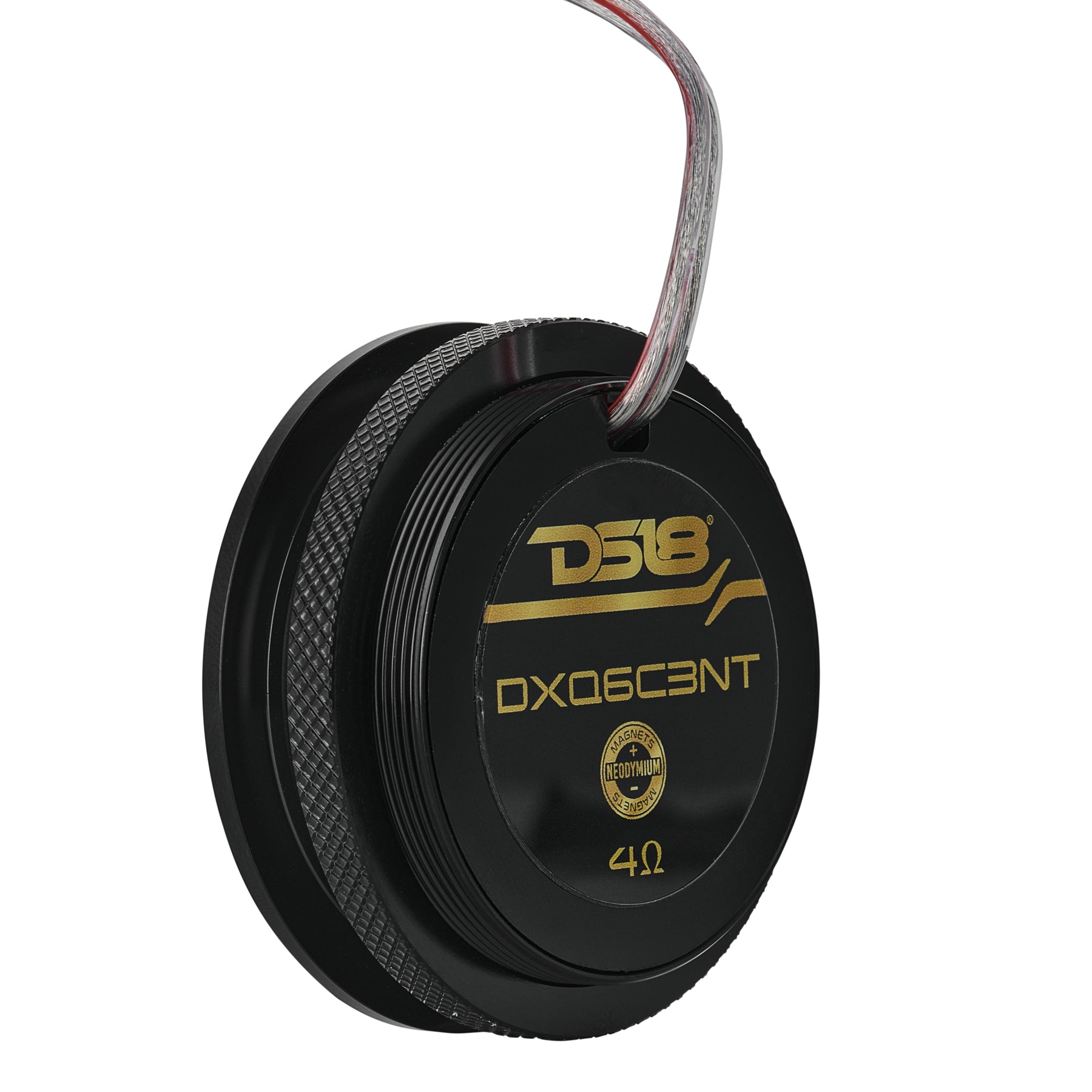

Tweeter Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 2.2″ / 58 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 40 W |
| MAX Power Handling | 80 W |
| Sensitivity (1W/1m) | 95.2 dB |
| Frequency Response | 920 Hz – 20 kHz |
| Voice Coil Diameter | 1.1″ / 28 mm |
| Voice Coil Former Material | KVC |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet Weight | 0.4 oz / 11.3 g |
| Body Material / Color | Aluminum / Black |

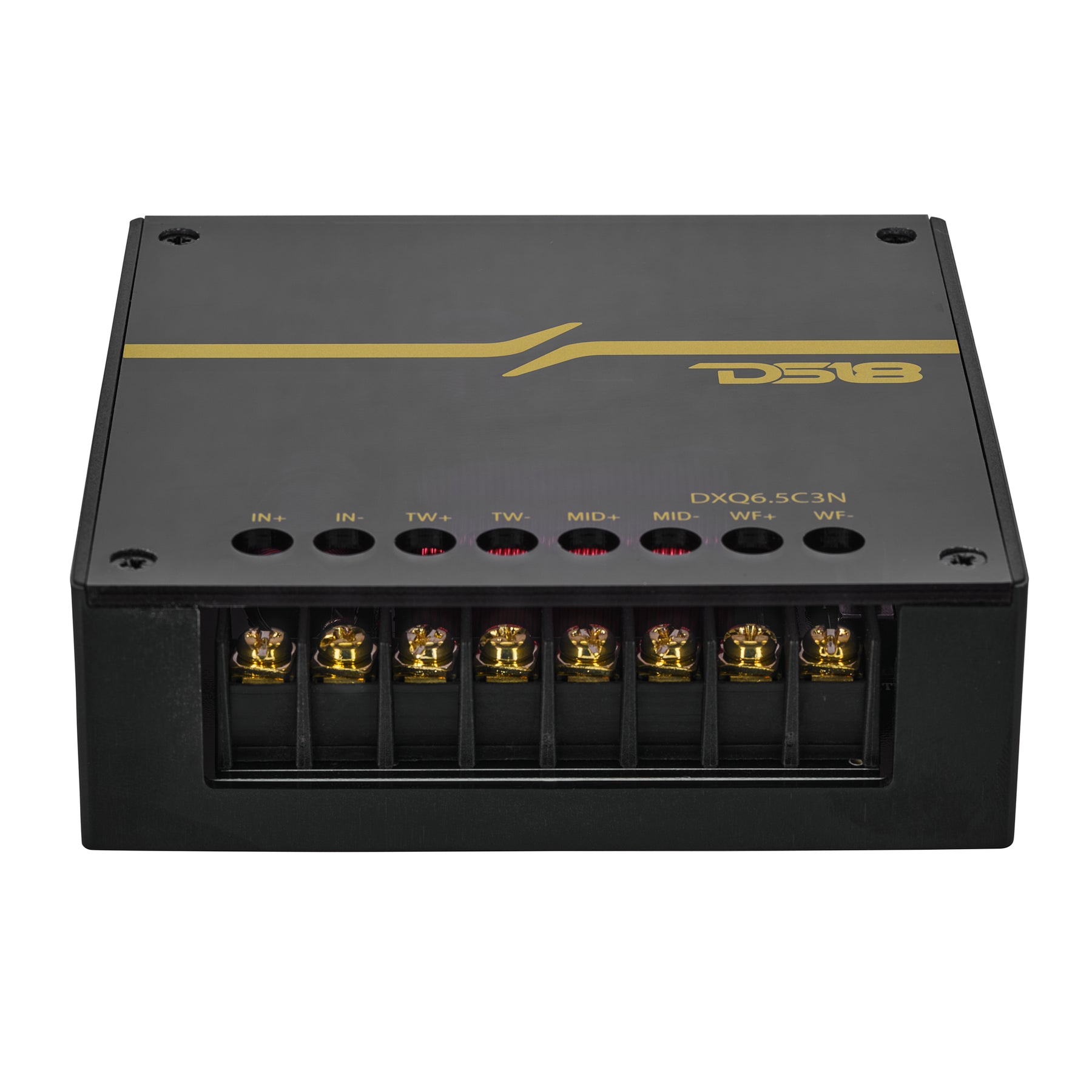

Crossover Specifications
| Parameter | Value |
|---|---|
| Passive Crossover Ways | 3-Way |
| Crossover Frequencies | 800 Hz (Woofer → Mid) / 3.8 kHz (Mid → Tweeter) |
| Power Handling | 300 W |
| Cut-Off Slope | 6 dB/Oct (Mid) / 12 dB/Oct (Tweeter) |
| Tweeter Attenuation | ±3 dB |
| Capacitor Type | METAC Film |
| Coil Type | Inductor |
| Terminal Type | Screw Terminals |
| Housing Material | ABS + Acrylic |
| Adjustments | Tweeter Attenuation |
| Extra Features | Speaker Phase Selector |
Product Overview
6.5″ 3-Way Component Speaker Set with Neodymium Magnet and Yellow Straw + Composite Foam Cone
The DXQ6C3N is a complete audio solution for professional-grade sound. This 3-way system covers a wide frequency range from 35Hz to 20kHz for an immersive, detailed listening experience.

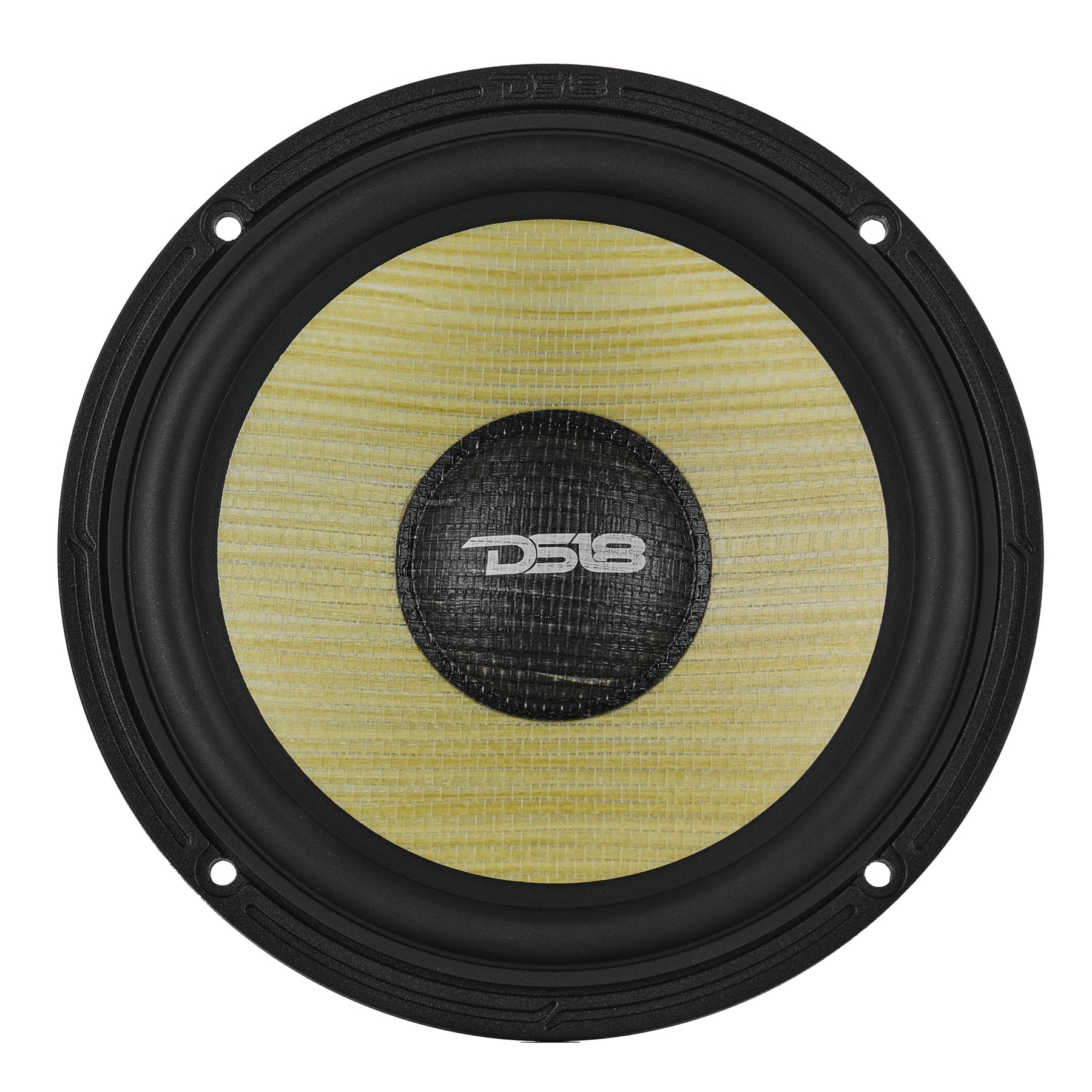

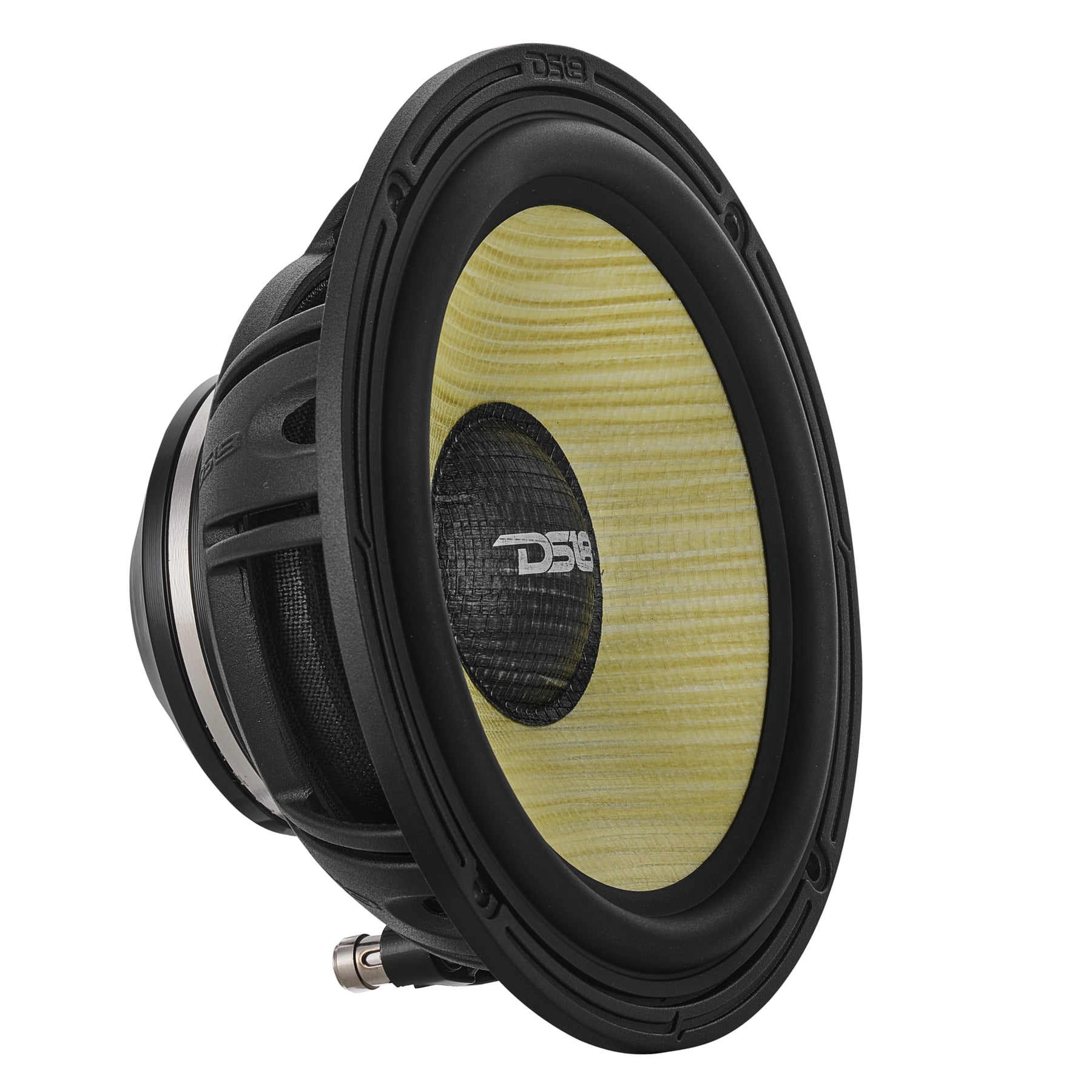

Powerful 6.5” Woofer
The foundation of this system is the 6.5-inch woofer, crafted with a yellow straw and composite foam cone designed for a lightweight yet rigid diaphragm. This combination provides tight, accurate bass and mid-bass response while minimizing distortion and maximizing durability.

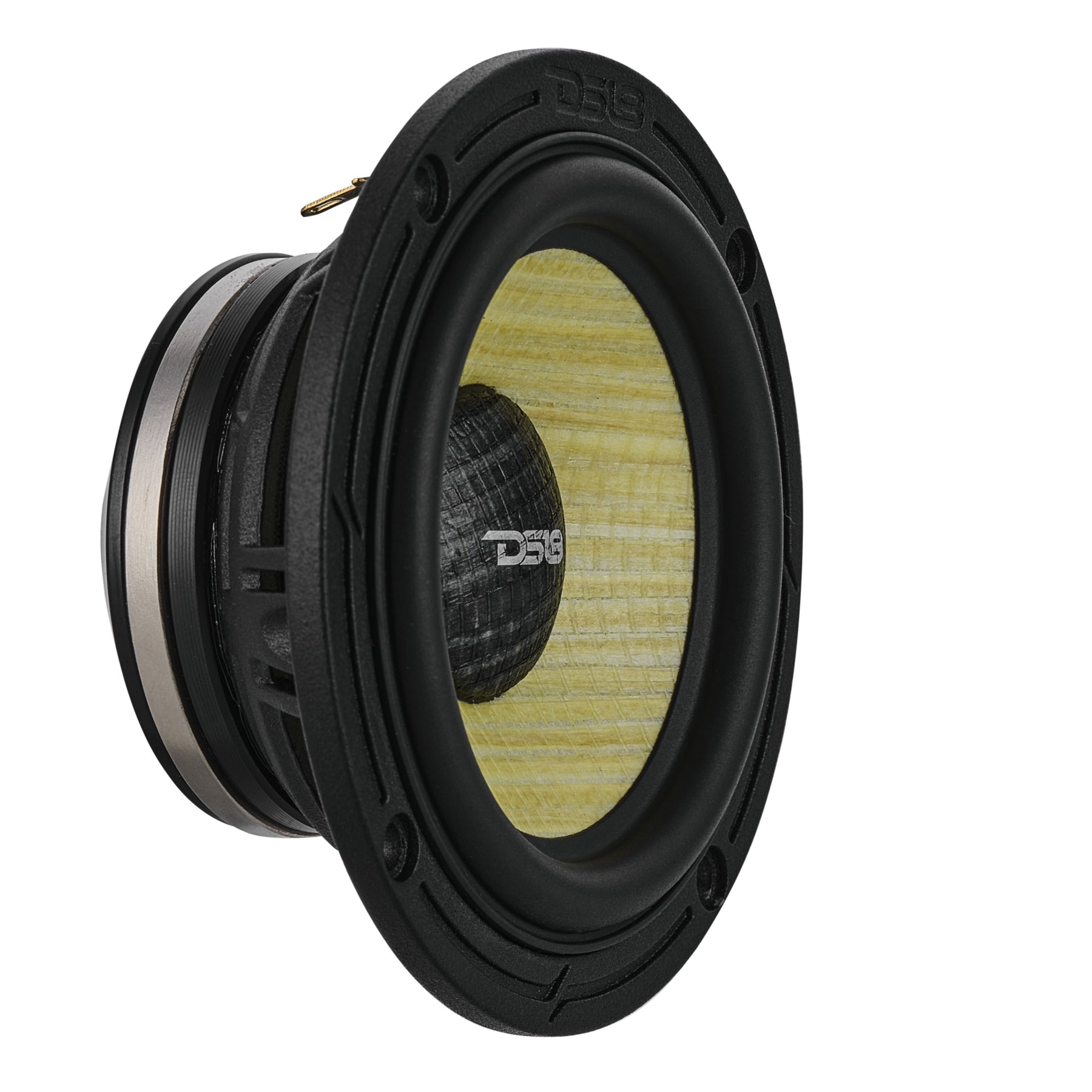

Clear and Natural Midrange
The 3.5-inch neodymium midrange driver bridges the gap perfectly. Its composite cone delivers smooth, natural sound that reproduces vocals and instruments with incredible clarity.

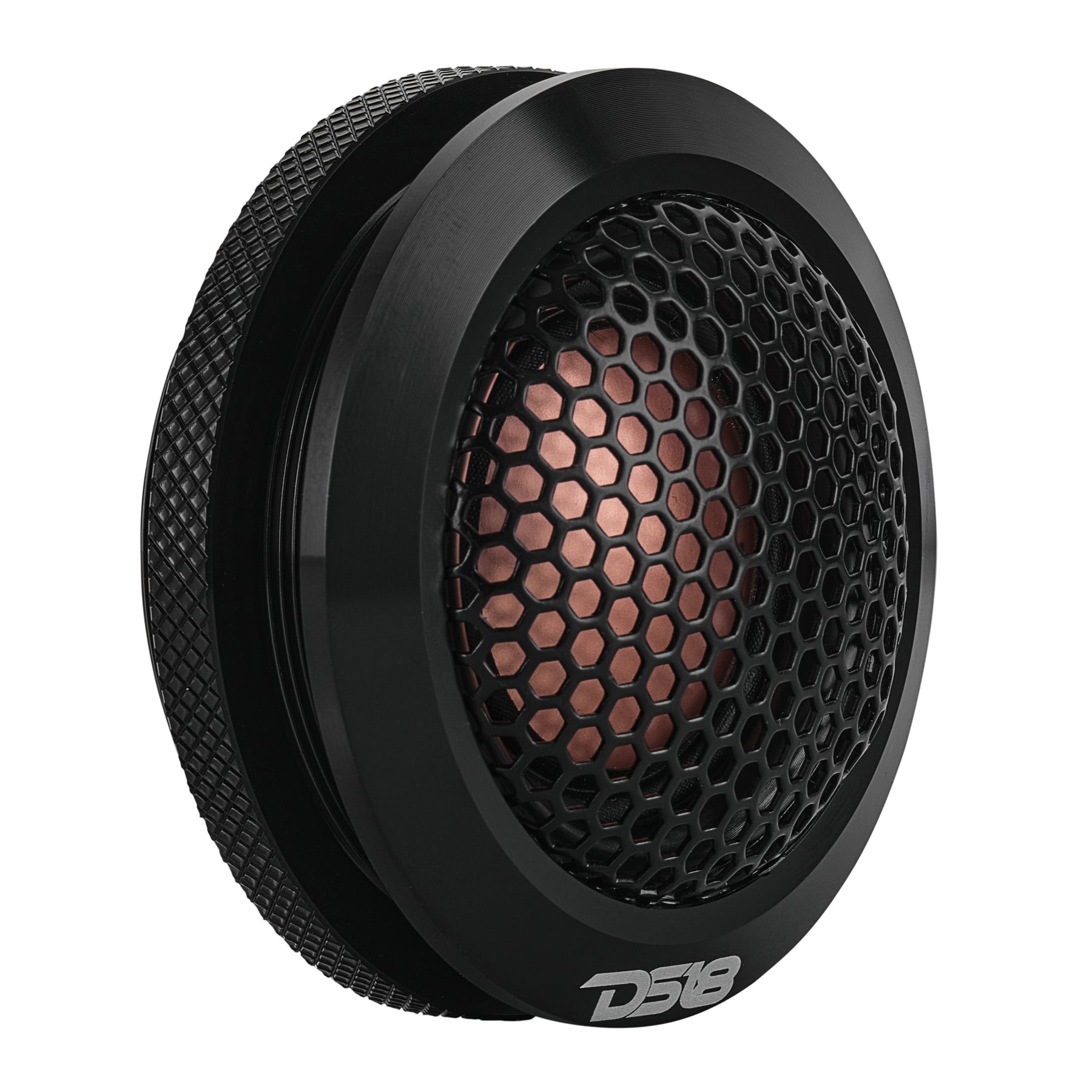

Bright and Detailed Tweeter
Completing the set is the 2.2-inch silk dome tweeter with a powerful neodymium magnet. Its lightweight design allows for fast transient response and crisp detail that cuts through road noise. The tweeter’s silk diaphragm produces smooth highs without harshness.

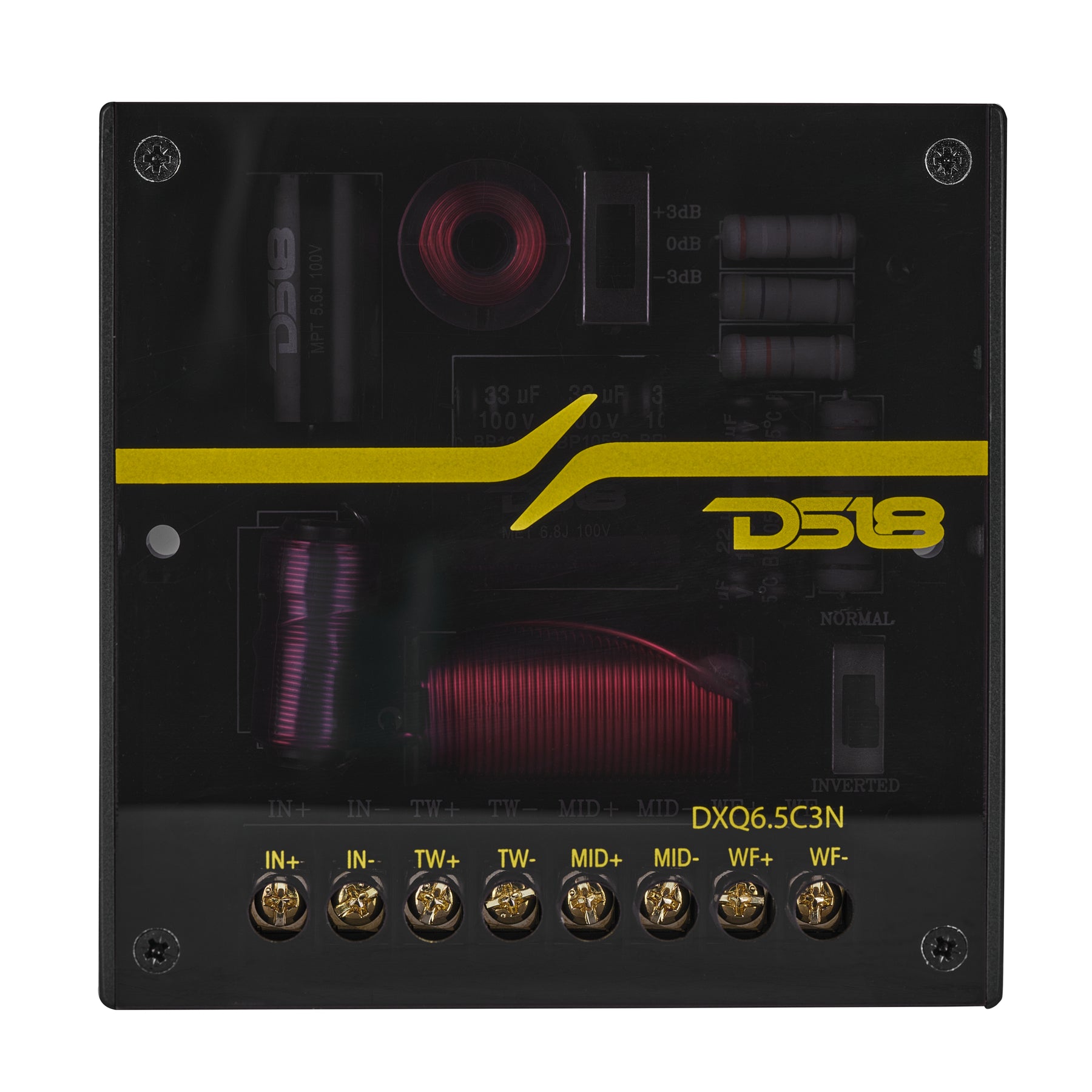

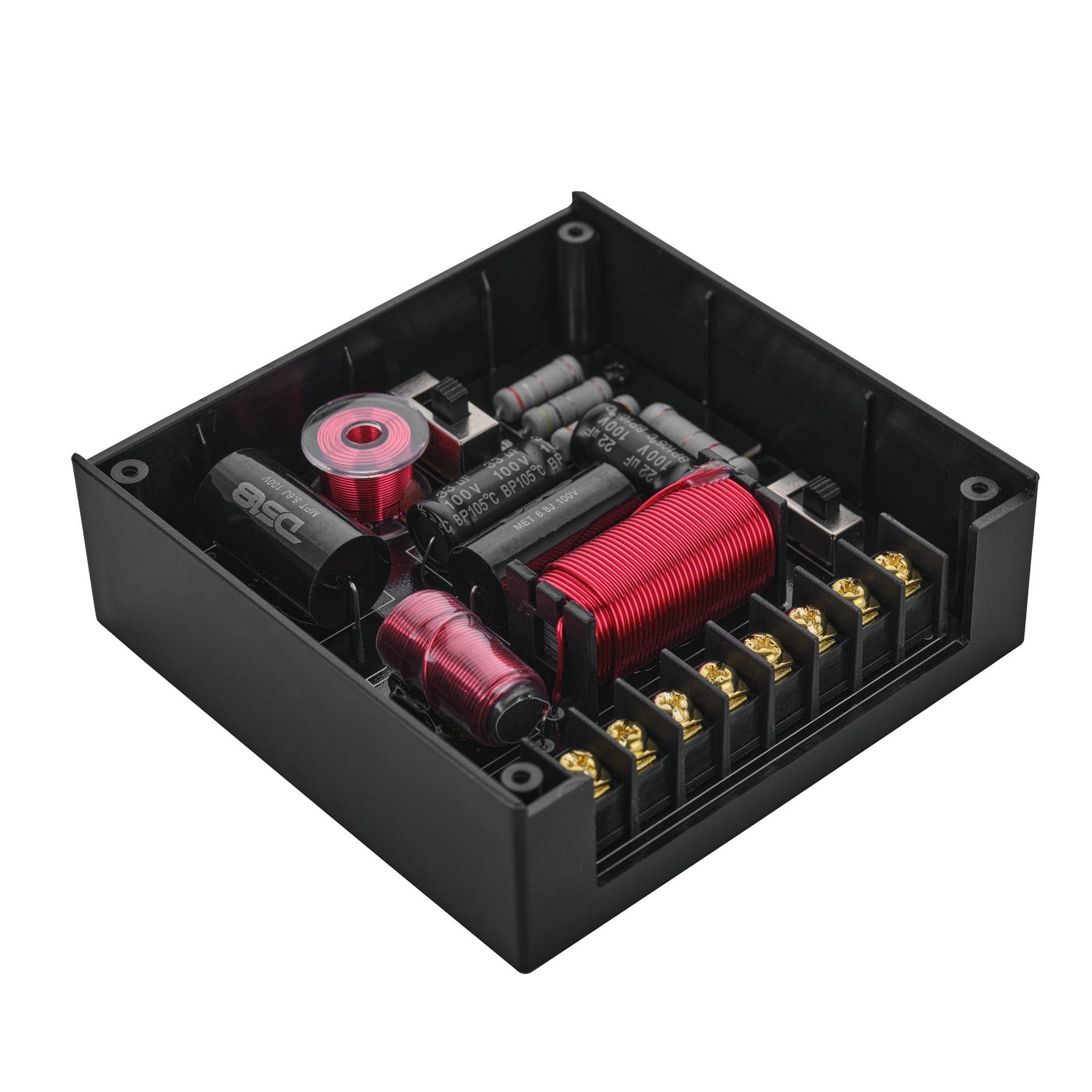

Precision Crossover Network
A carefully designed 3-way passive crossover separates the frequencies between the woofer, midrange, and tweeter. With points at 800Hz and 3.8kHz, the crossover ensures each driver performs optimally across the entire spectrum.
Easy Installation
With a mounting depth of just 3.4″ for the woofer, and compact sizes for the midrange and tweeter, the DXQ6C3N fits most factory locations and custom setups effortlessly.
DS18’s DXQ6C3N offers professional-grade sound quality that will instantly boost your soundstage’s
