Description
DS18 DXQ6C3
The DS18 DXQ6C3 is a premium 6.5-inch 3-way component speaker set engineered to produce detailed, full-range audio with strong bass, rich midrange, and crisp high frequencies for car audio enthusiasts looking to upgrade factory systems or build custom sound setups. This set includes two 6.5″ woofers, two 3.5″ midrange drivers, two 2″ dome tweeters, and two 3-way passive crossovers to precisely divide frequency bands for optimal clarity and staging. With a 4 Ω nominal impedance, 150 W RMS (300 W peak) power handling, and 90 dB sensitivity, the DXQ6C3 delivers efficient, distortion-free sound across a wide frequency response of approximately 35 Hz–20 kHz. The yellow straw + composite foam cones on the woofers and midranges provide durability and accurate sound reproduction, while the silk dome tweeters offer smooth, detailed highs. Designed with quality materials and precision engineering, this component set brings professional-level clarity and depth to your vehicle’s audio system.
Specifications
| Parameter | Value |
|---|---|
| System Configuration | 6.5″ Woofer + 3.5″ Midrange + Tweeter |
| Nominal Diameter | 6.5″ + 3.5″ / 165 + 91 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 150 W |
| MAX Power Handling | 300 W |
| Sensitivity (1W/1m) | 90 dB |
| Frequency Response | 35 Hz – 20 kHz |
| Recommended Hi-Pass Crossover | 60 Hz |
| Number of Ways | 3 |
| Sold As | Pair |
| Grill Included | No |

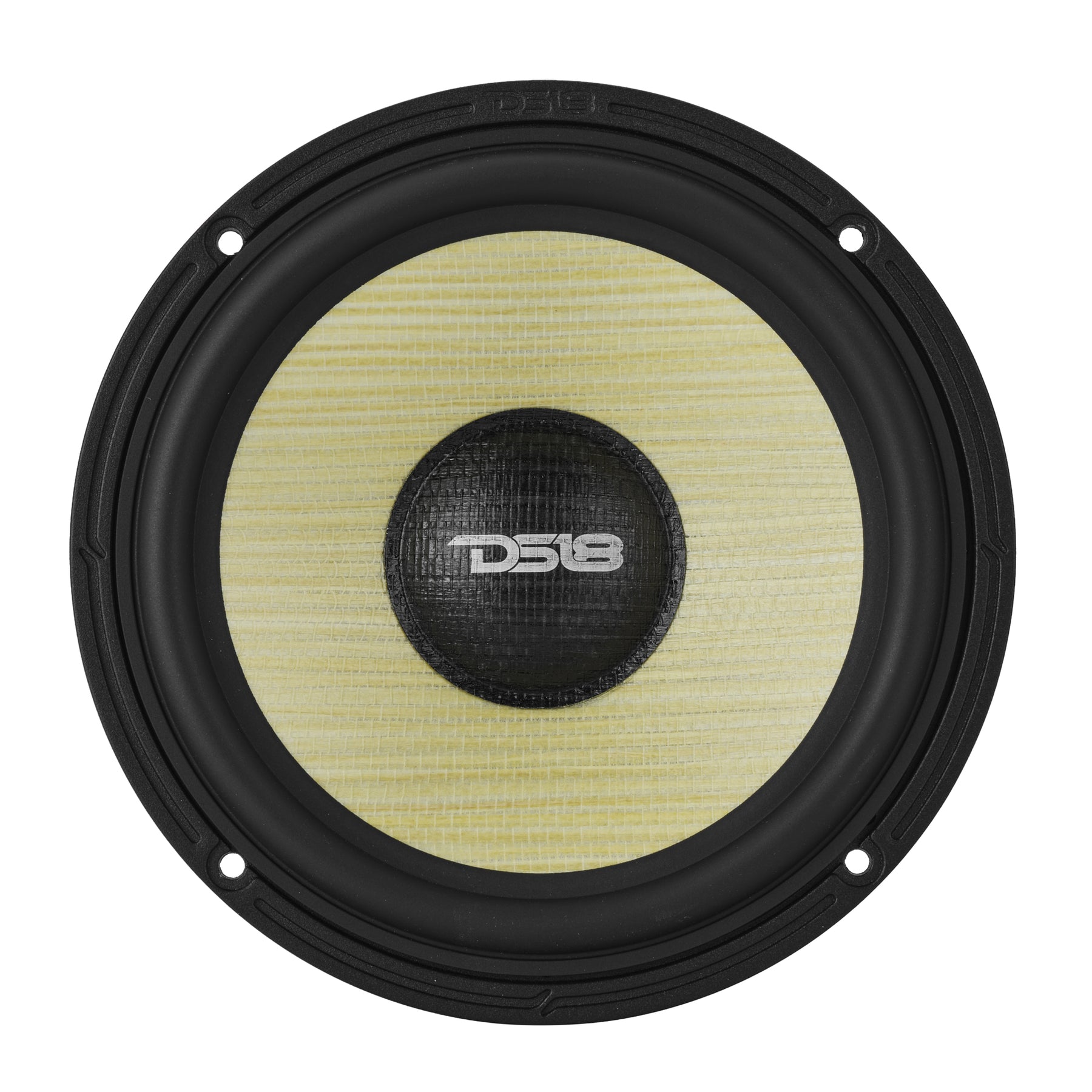

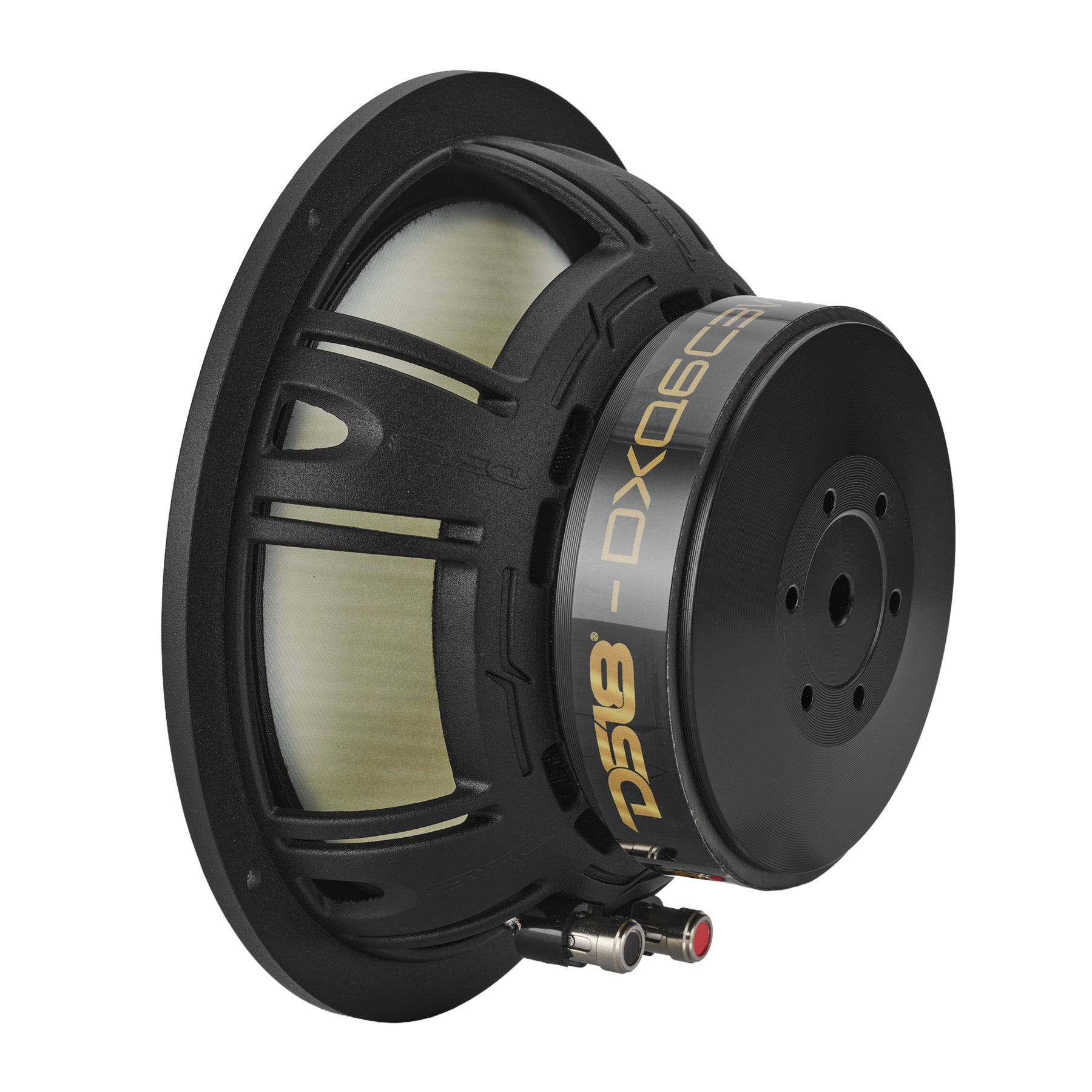

Woofer Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 6.5″ / 165 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 150 W |
| MAX Power Handling | 300 W |
| Sensitivity (1W/1m) | 90 dB |
| Frequency Response | 35 Hz – 12 kHz |
| Voice Coil Diameter | 1.2″ / 30.5 mm |
| Voice Coil Former Material | TL |
| Winding Material | SV |
| Cone Material | Yellow Straw + Composite Foam |
| Dust Cap Material | Black Straw |
| Surround Material | Rubber Edge |
| Basket Material | Aluminum |
| Basket Color / Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 20.2 oz |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push / 14 Ga |
Woofer – Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 18.29 L |
| Excursion (one way) Xmax | 5 mm |
| Free Air Resonance Fs | 46 Hz |
| Mechanical Factor Qms | 9.998 |
| Electrical Factor Qes | 0.583 |
| Total Factor Qts | 0.551 |
| Mechanical Mass Mms | 19.008 g |
| Mechanical Compliance Cms | 0.631 mm/N |
| BL Factor | 5.853 |
| Voice Coil Inductance Le | 0.299 mH |
| Cone Area Sd | 143.14 cm² |
| DC Resistance Re | 3.64 Ohms |
| Mechanical Mass w/o Air Mmd | 17.073 g |
Woofer Measurements
| Parameter | Value |
|---|---|
| Overall Diameter (No Grill) | 6.57″ / 167 mm |
| Overall Depth (No Grill) | 3.4″ / 85.4 mm |
| Front Mount Baffle Cutout | 5.7″ / 145 mm |
| Mounting Depth | 3″ / 76.5 mm |
| Motor Diameter | 3.9″ / 100 mm |

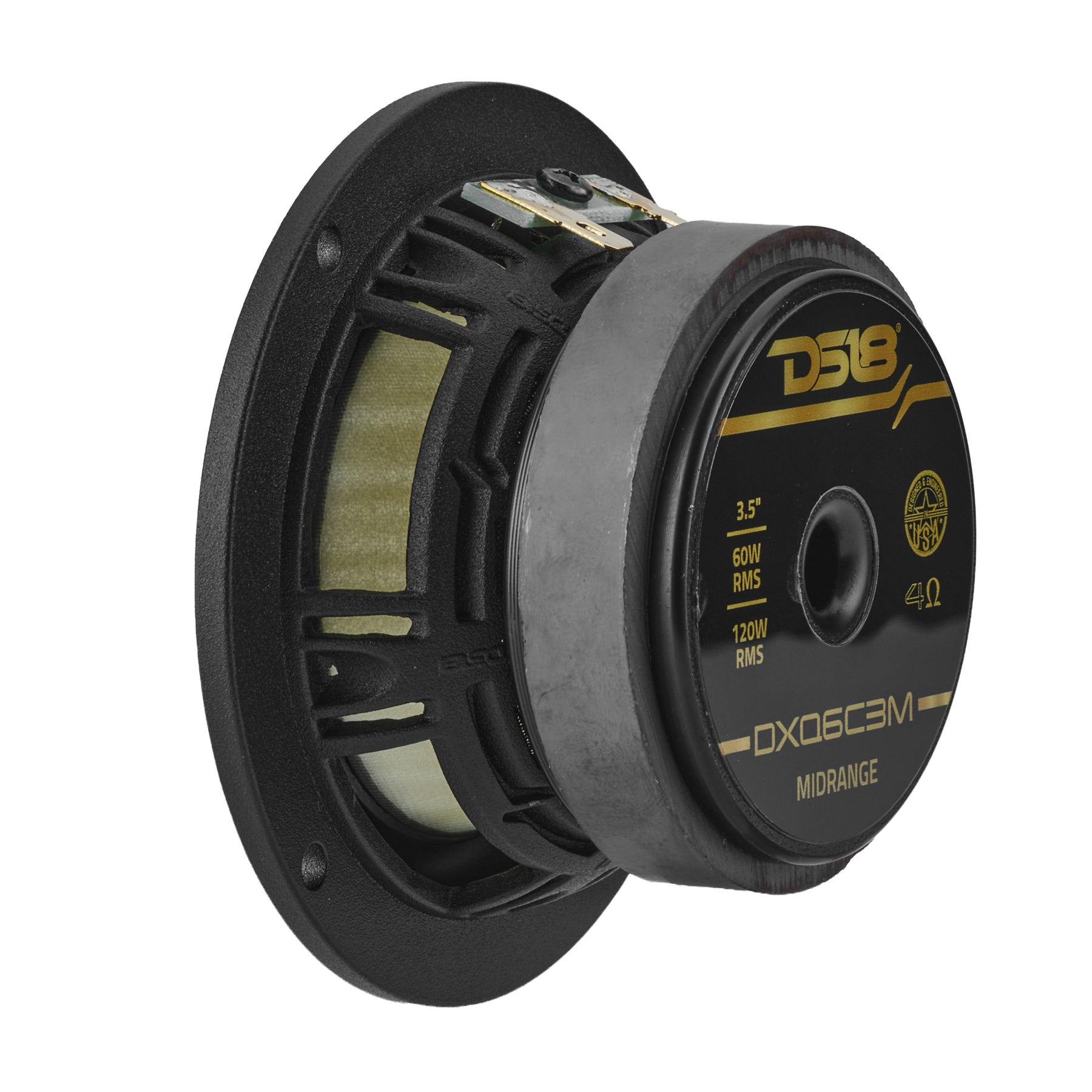

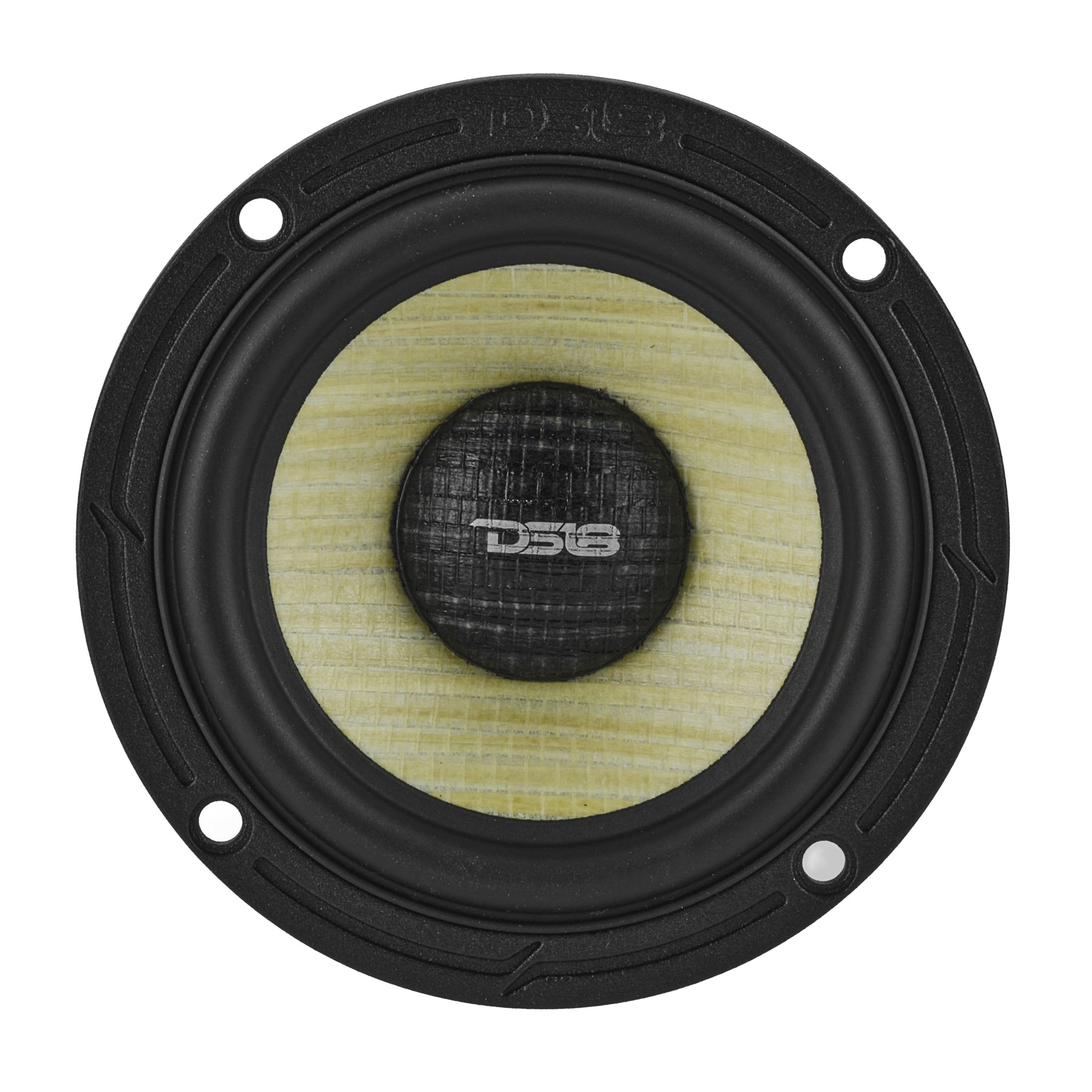

Midrange Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 3.5″ / 91 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 60 W |
| MAX Power Handling | 120 W |
| Sensitivity (1W/1m) | 87 dB |
| Frequency Response | 120 Hz – 20 kHz |
| Voice Coil Diameter | 1″ / 25 mm |
| Voice Coil Former Material | TIL |
| Winding Material | CCAW |
| Cone Material | Yellow Straw + Composite Foam |
| Dust Cap Material | Black Straw |
| Surround Material | Rubber Edge |
| Basket Material | Aluminum |
| Basket Color / Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 5.5 oz |
Midrange – Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 1.338 L |
| Excursion (one way) Xmax | 2 mm |
| Free Air Resonance Fs | 88.7 Hz |
| Mechanical Factor Qms | 9.688 |
| Electrical Factor Qes | 0.856 |
| Total Factor Qts | 0.794 |
| Mechanical Mass Mms | 3.746 g |
| Mechanical Compliance Cms | 0.859 mm/N |
| BL Factor | 2.833 |
| Voice Coil Inductance Le | 0.133 mH |
| Cone Area Sd | 33.18 cm² |
| DC Resistance Re | 3.3 Ohms |
| Mechanical Mass w/o Air Mmd | 3.53 g |
Midrange Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 3.6″ / 91.5 mm |
| Overall Depth | 1.8″ / 47.8 mm |
| Front Mount Baffle Cutout | 2.9″ / 74.3 mm |
| Mounting Depth | 1.6″ / 40 mm |
| Motor Diameter | 2.5″ / 65 mm |

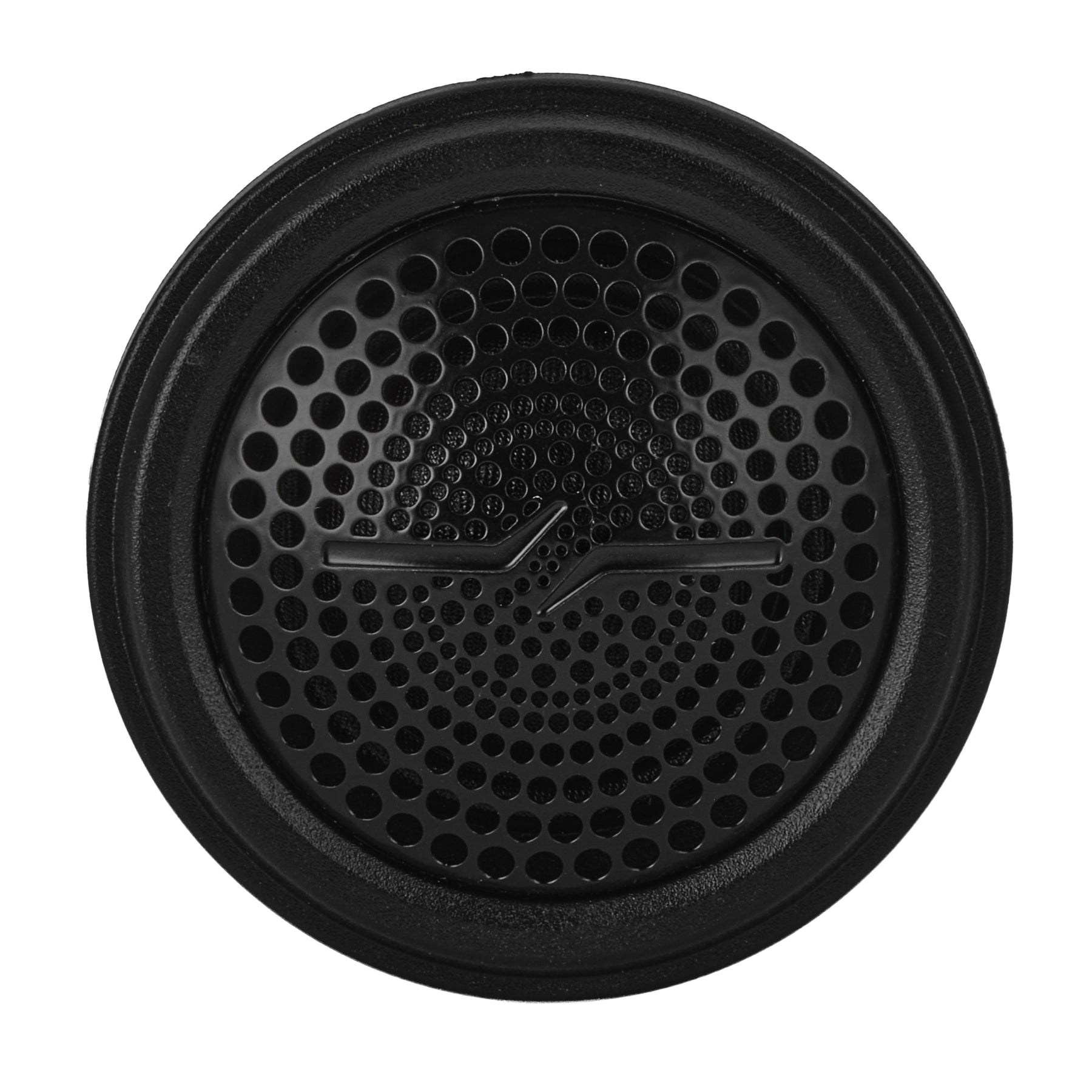

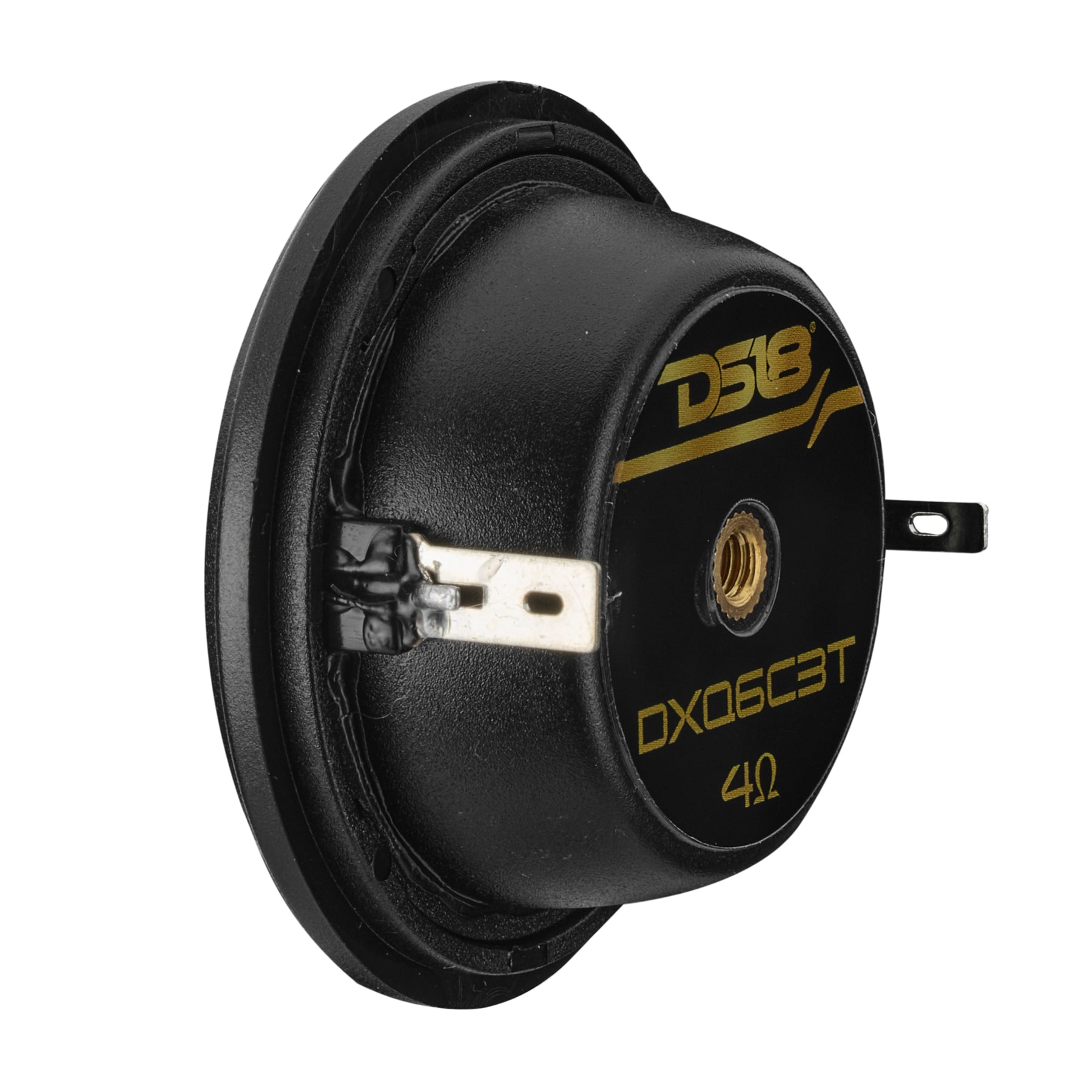

Tweeter Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 2″ / 51 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 30 W |
| MAX Power Handling | 60 W |
| Sensitivity (1W/1m) | 90 dB |
| Frequency Response | 800 Hz – 20 kHz |
| Voice Coil Diameter | 1″ / 25 mm |
| Voice Coil Former Material | ASV |
| Winding Material | CCAW |
| Diaphragm Material | Silk |
| Magnet Material | Neodymium |
| Magnet Weight | 0.5 oz / 14 g |
| Body Material / Color | ABS / Black |
Tweeter Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 2″ / 51 mm |
| Overall Depth | 1″ / 25.5 mm |
| Front Mount Baffle Cutout | 1.85″ / 47 mm |
| Mounting Depth | 0.6″ / 15 mm |

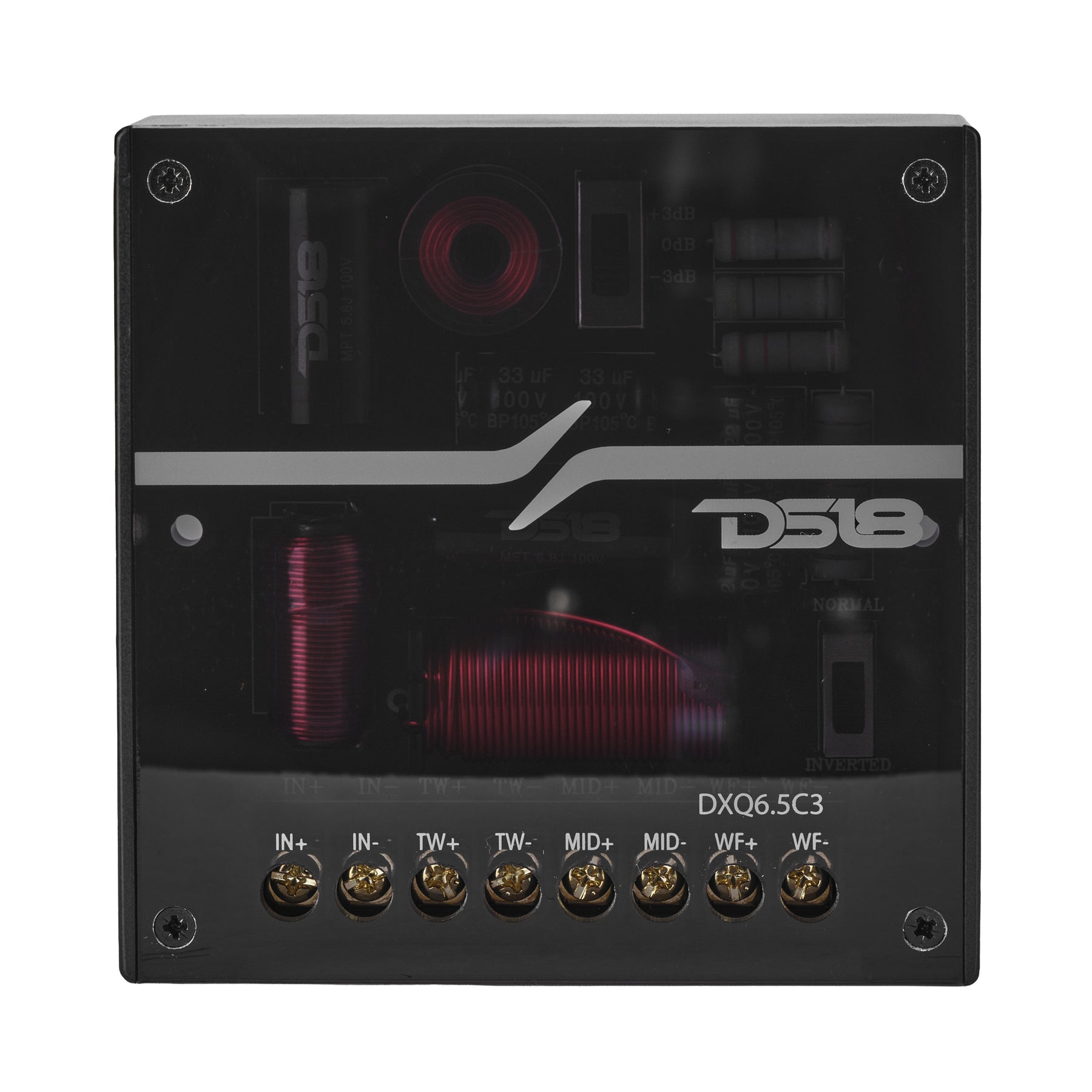

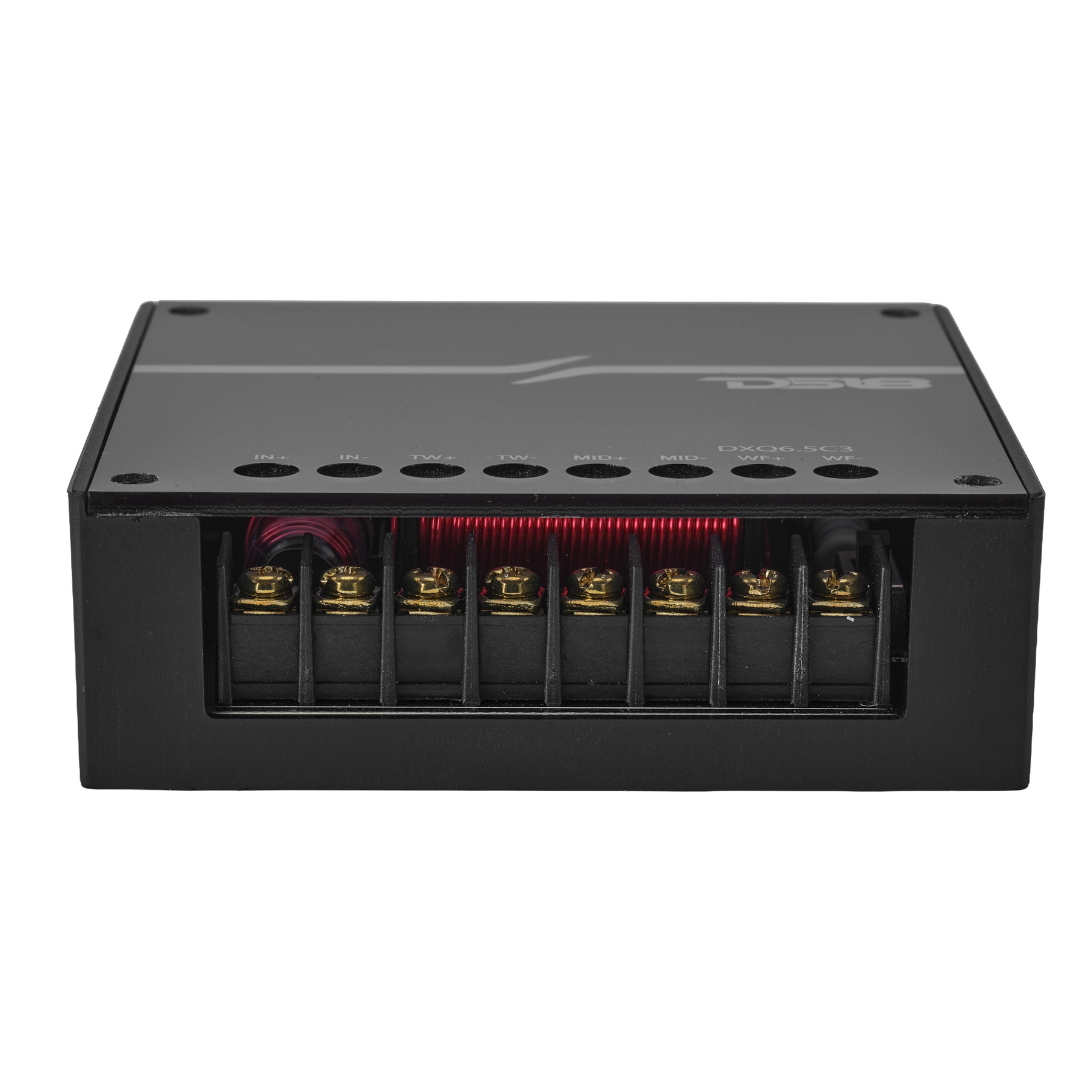

Crossover Specifications
| Parameter | Value |
|---|---|
| Passive Crossover Ways | 3-Way |
| Crossover Frequencies | 800 Hz (Woofer → Mid) / 3.8 kHz (Mid → Tweeter) |
| Power Handling | 300 W |
| Cut-Off Slope | 6 dB/Oct (Mid) / 12 dB/Oct (Tweeter) |
| Tweeter Attenuation | ±3 dB |
| Capacitor Type | METAC Film |
| Coil Type | Inductor |
| Terminal Type | Screw Terminals |
| Housing Material | ABS + Acrylic |
| Adjustments | Tweeter Attenuation |
| Extra Features | Speaker Phase Selector |
Crossover Dimensions
| Parameter | Value |
|---|---|
| Overall Length | 4.3″ / 110 mm |
| Overall Width | 4.3″ / 110 mm |
| Overall Height | 1.37″ / 35 mm |
Product Overview
6.5″ 3-Way Component Speaker Set with Yellow Straw + Composite Foam Cone
DS18’s DXQ6C3 is engineered for crystal-clear sound across all frequencies. This 3-way system includes two 6.5″ woofers, two 3.5″ midrange drivers, and two 2″ tweeters for a detailed full-range audio experience.
Powerful & Efficient
With a combined RMS of 150W and MAX of 300W, this component set outputs clean, distortion-free audio at manageable power levels. The 90dB sensitivity guarantees loud and clear playback, while the 4-ohm impedance guarantees compatibility in most car audio setups.
Advanced Materials for Lasting Performance
The woofers and midranges feature yellow straw and composite foam cones for added durability and accuracy. The included tweeters feature silk diaphragms and neodymium magnets for smooth highs with brilliant detail.
Precision Engineered Crossovers
Included 3-way crossovers with screw terminals allow for easy system integration and speaker phase selection. The capacitors and inductors protect your speakers and keeps transitions clean across bass, mid, and treble ranges.
If you want a premium component system that blends power, precision, and durability: choose DS18’s DXQ6C3!
