Description
DS18 DXQ6C2

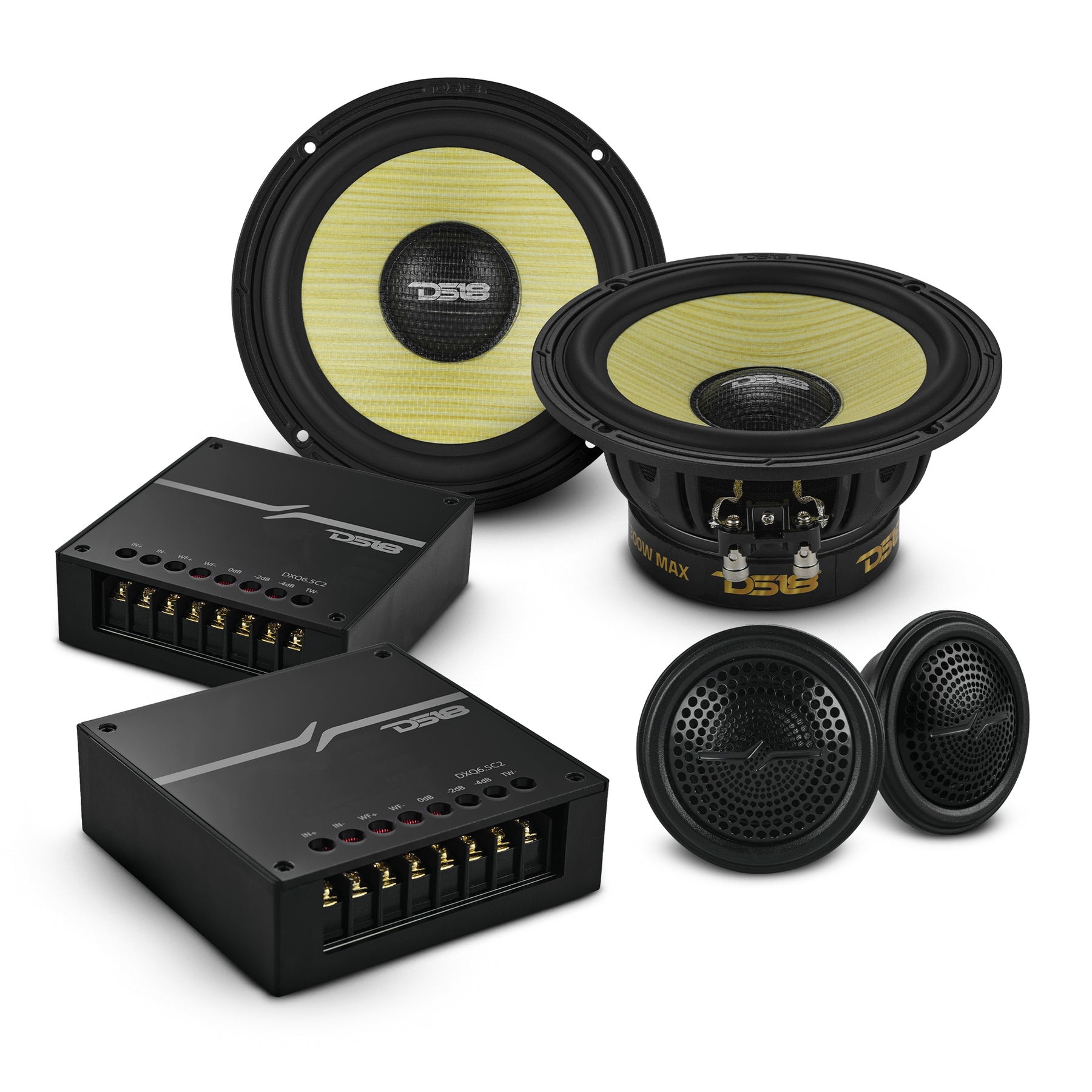

The DS18 DXQ6C2 is a premium 6.5-inch 2-way component speaker set engineered to deliver crystal-clear, full-range audio with strong bass, rich mids, and smooth highs for car audio enthusiasts seeking an upgrade over factory systems. This component set includes two 6.5″ woofers, two 2″ silk dome tweeters, and two passive crossovers that accurately split frequencies for precise sound staging. With a 4 Ω nominal impedance, 150 W RMS per speaker (300 W peak) and 90 dB sensitivity, the DXQ6C2 offers efficient, distortion-free performance across a wide frequency response of approximately 35 Hz–20 kHz. The woofers feature yellow straw and composite foam cones with rubber surrounds for controlled bass and improved durability, while the silk dome tweeters provide natural high-frequency clarity. The included passive crossovers operate at a 2 kHz point with a 12 dB/octave slope and offer tweeter attenuation settings for custom tonal balance, making the DXQ6C2 ideal for high-quality sound reproduction in custom or upgraded car audio systems.
Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 6.5″ / 165 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 150 W |
| MAX Power Handling | 300 W |
| Sensitivity (1W/1m) | 90 dB |
| Frequency Response | 35 Hz – 20 kHz |
| Recommended Hi-Pass Crossover | 60 Hz |
| Number of Ways | 2 |
| Sold as | Pair |
| Grill Included | No |
Woofer Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 6.5″ / 165 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 150 W |
| MAX Power Handling | 300 W |
| Sensitivity (1W/1m) | 90 dB |
| Frequency Response | 35 Hz – 12 kHz |
| Voice Coil Diameter | 1.2″ / 30.5 mm |
| Voice Coil Former Material | TL |
| Winding Material | SV |
| Cone Material | Yellow Straw + Composite Foam |
| Dust Cap Material | Black Straw |
| Surround Material | Rubber Edge |
| Basket Material | Aluminum |
| Basket Color / Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 20.2 oz |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push / 14 Ga |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 18.29 L |
| Excursion (one way) Xmax | 5 mm |
| Free Air Resonance Fs | 46 Hz |
| Mechanical Factor Qms | 9.998 |
| Electrical Factor Qes | 0.583 |
| Total Factor Qts | 0.551 |
| Mechanical Mass Mms | 19.008 g |
| Mechanical Compliance Cms | 0.631 mm/N |
| BL Factor | 5.853 |
| Voice Coil Inductance Le | 0.299 mH |
| Cone Area Sd | 143.14 cm² |
| DC Resistance Re | 3.64 Ohms |
| Mechanical Mass w/o Air Mmd | 17.073 g |
Woofer Measurements
| Parameter | Value |
|---|---|
| Overall Diameter (No Grill) | 6.57″ / 167 mm |
| Overall Depth (No Grill) | 3.4″ / 85.4 mm |
| Front Mount Baffle Cutout | 5.7″ / 145 mm |
| Mounting Depth | 3″ / 76.5 mm |
| Motor Diameter | 3.9″ / 100 mm |
Tweeter Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 2″ / 51 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 30 W |
| MAX Power Handling | 60 W |
| Sensitivity (1W/1m) | 90 dB |
| Frequency Response | 800 Hz – 20 kHz |
| Voice Coil Diameter | 1″ / 25 mm |
| Voice Coil Former Material | ASV |
| Winding Material | CCAW |
| Diaphragm Material | Silk |
| Magnet Material | Neodymium |
| Magnet Weight | 0.5 oz / 14 g |
| Body Material / Color | ABS / Black |
Tweeter Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 2″ / 51 mm |
| Overall Depth | 1″ / 25.5 mm |
| Front Mount Cutout | 1.85″ / 47 mm |
| Mounting Depth | 0.6″ / 15 mm |
Crossover Specifications
| Parameter | Value |
|---|---|
| Passive Crossover Ways | 2-Way |
| Crossover Frequency | 2 kHz |
| Power Handling | 300 W |
| Cut-Off Slope | 12 dB / Oct |
| Tweeter Attenuation | 4 dB |
| Capacitor Type | METAC Film |
| Coil Type | Inductor |
| Terminal Type | Screw Terminals |
| Housing Material | ABS + Acrylic |
| Adjustments | Tweeter Attenuation (via terminal) |
| Extra Features | None |
Crossover Dimensions
| Parameter | Value |
|---|---|
| Overall Length | 4.3″ / 110 mm |
| Overall Width | 4.3″ / 110 mm |
| Overall Height | 1.37″ / 35 mm |
Product Overview
6.5″ 2-Way Component Speaker Set with Yellow Straw + Composite Foam Cone
DS18’s DXQ6C2 brings crystal-clear, full spectrum sound to car audio enthusiasts looking for a quality boost! This component set offers a natural, distortion-free frequency response from 35Hz up to 20kHz. The DXQ6C2 handles 150W RMS and 300W MAX, rendering every sound with exceptional clarity and impact.

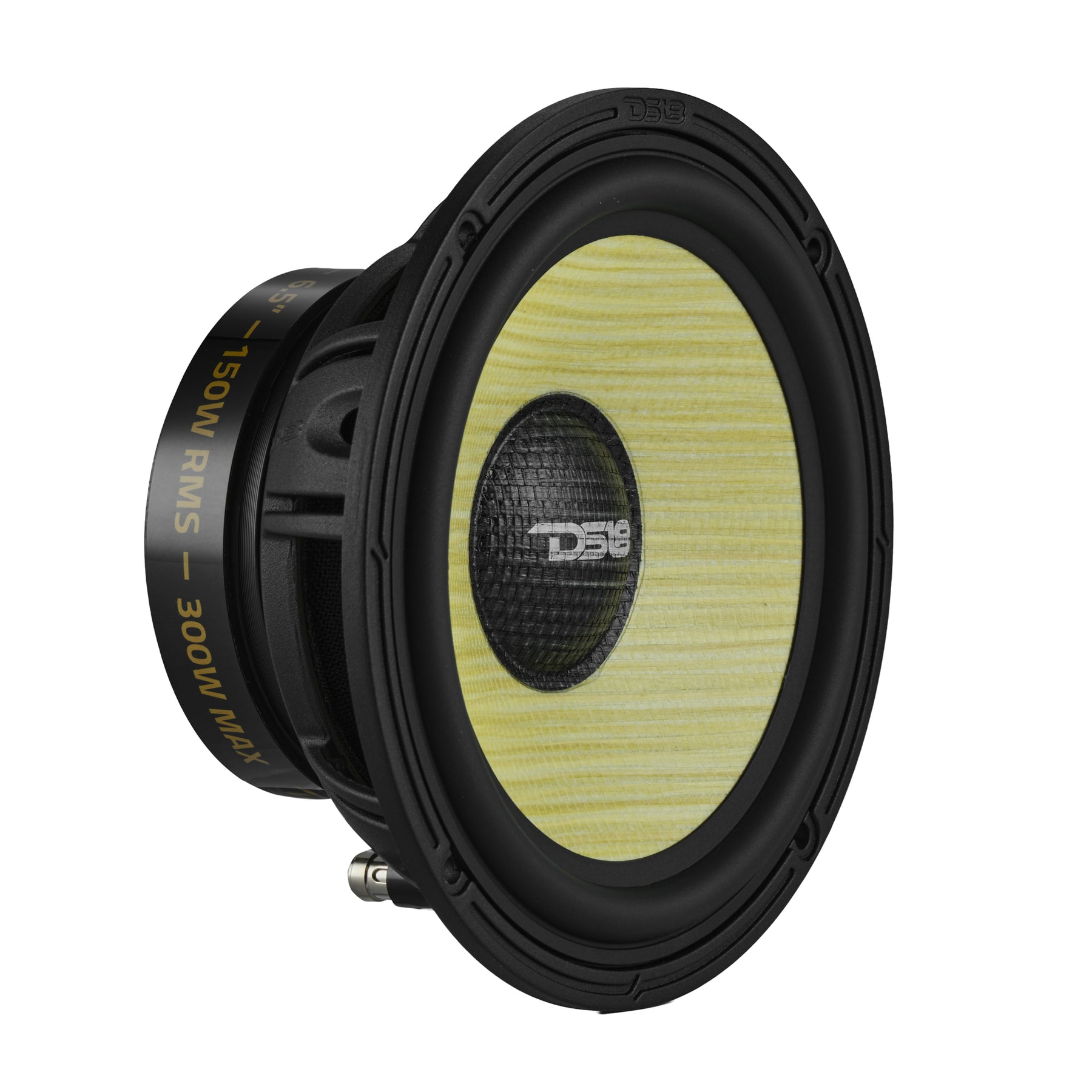

Engineered for Performance and Durability

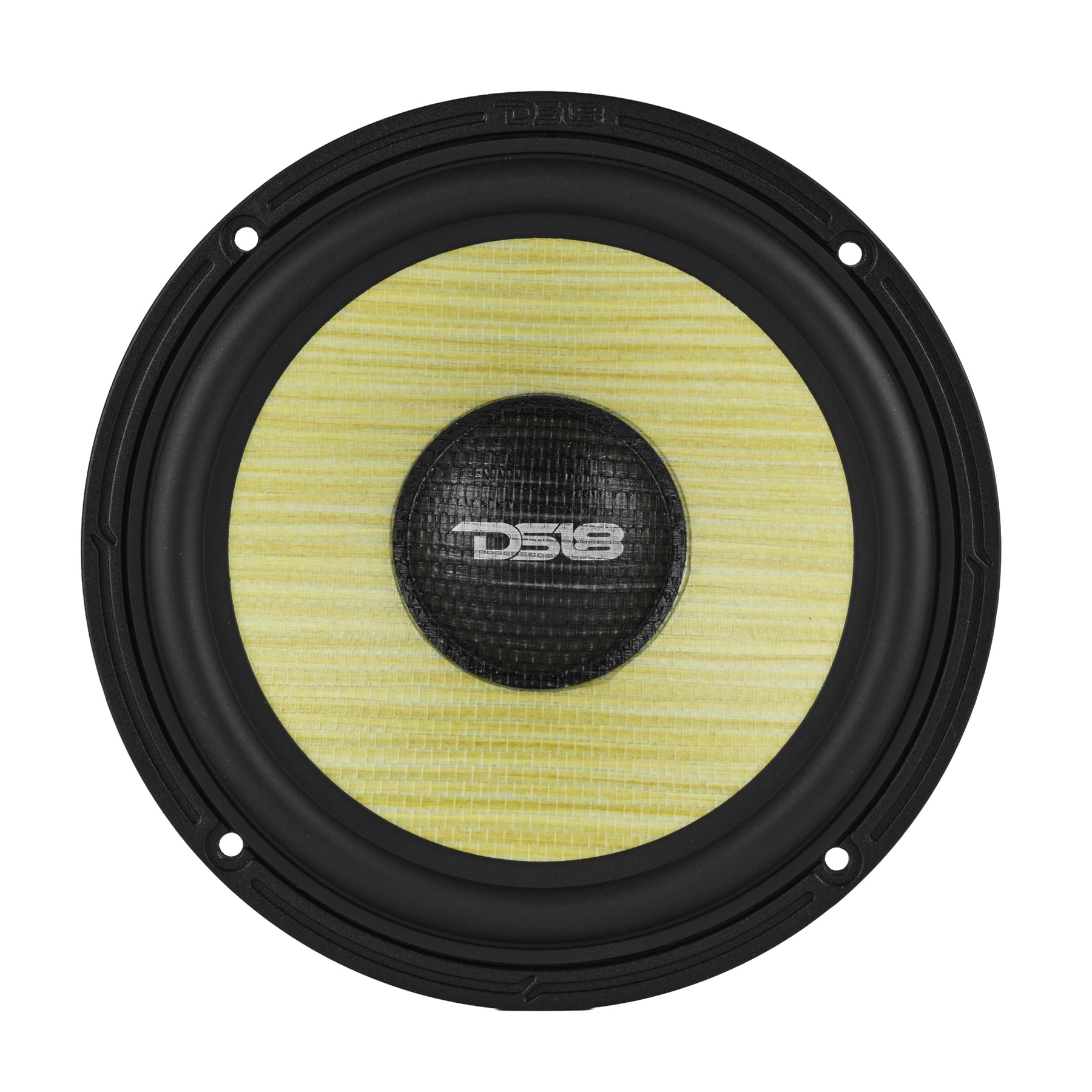

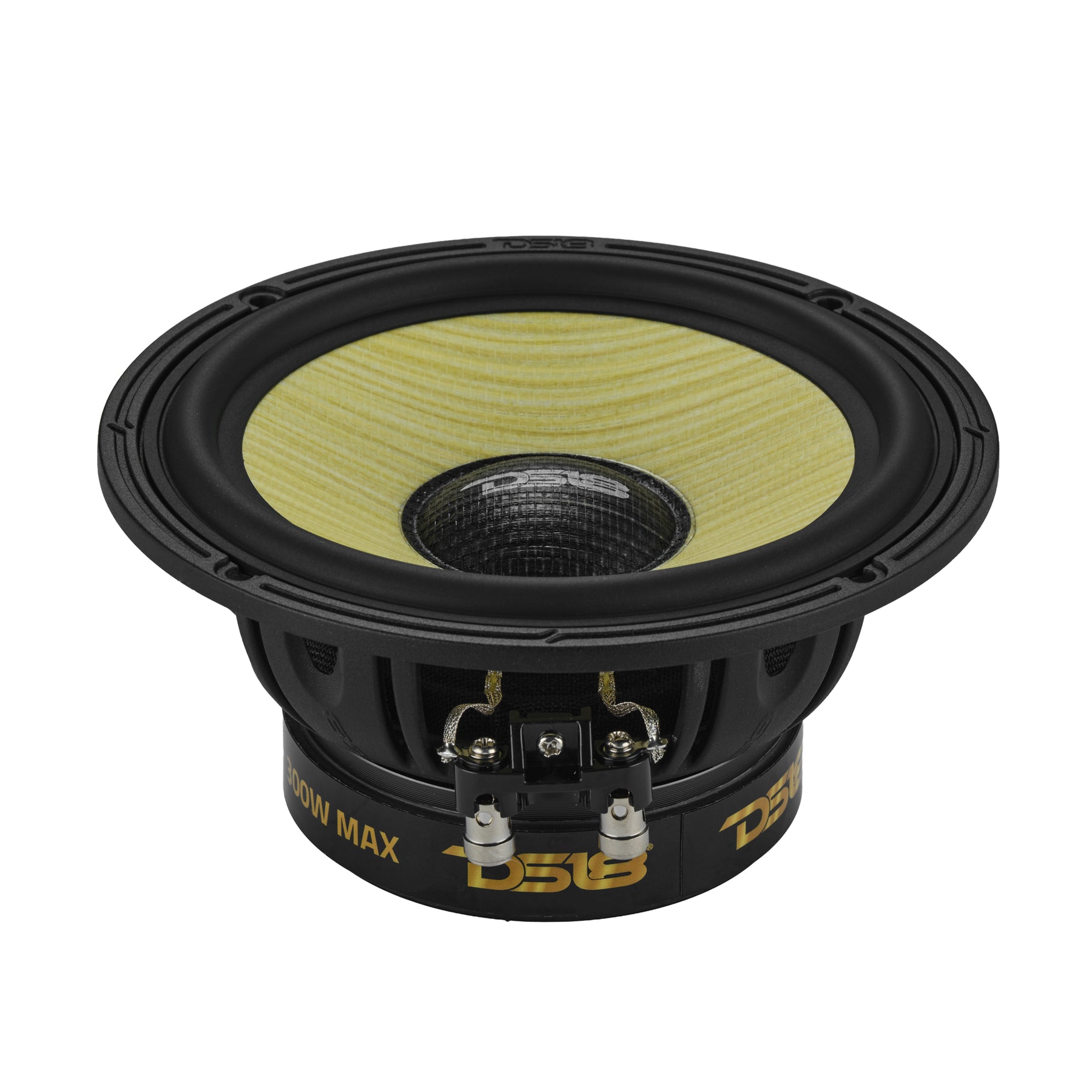

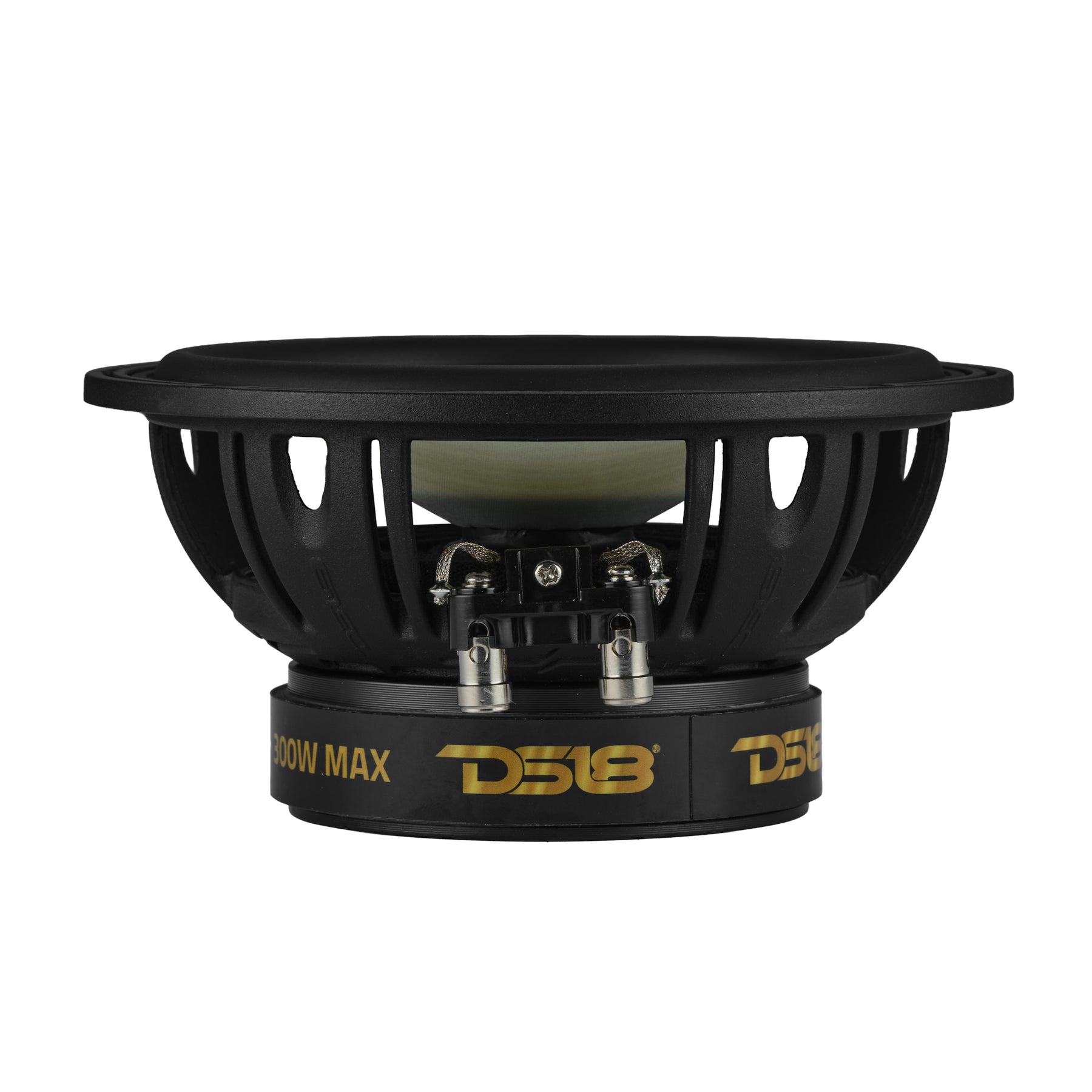

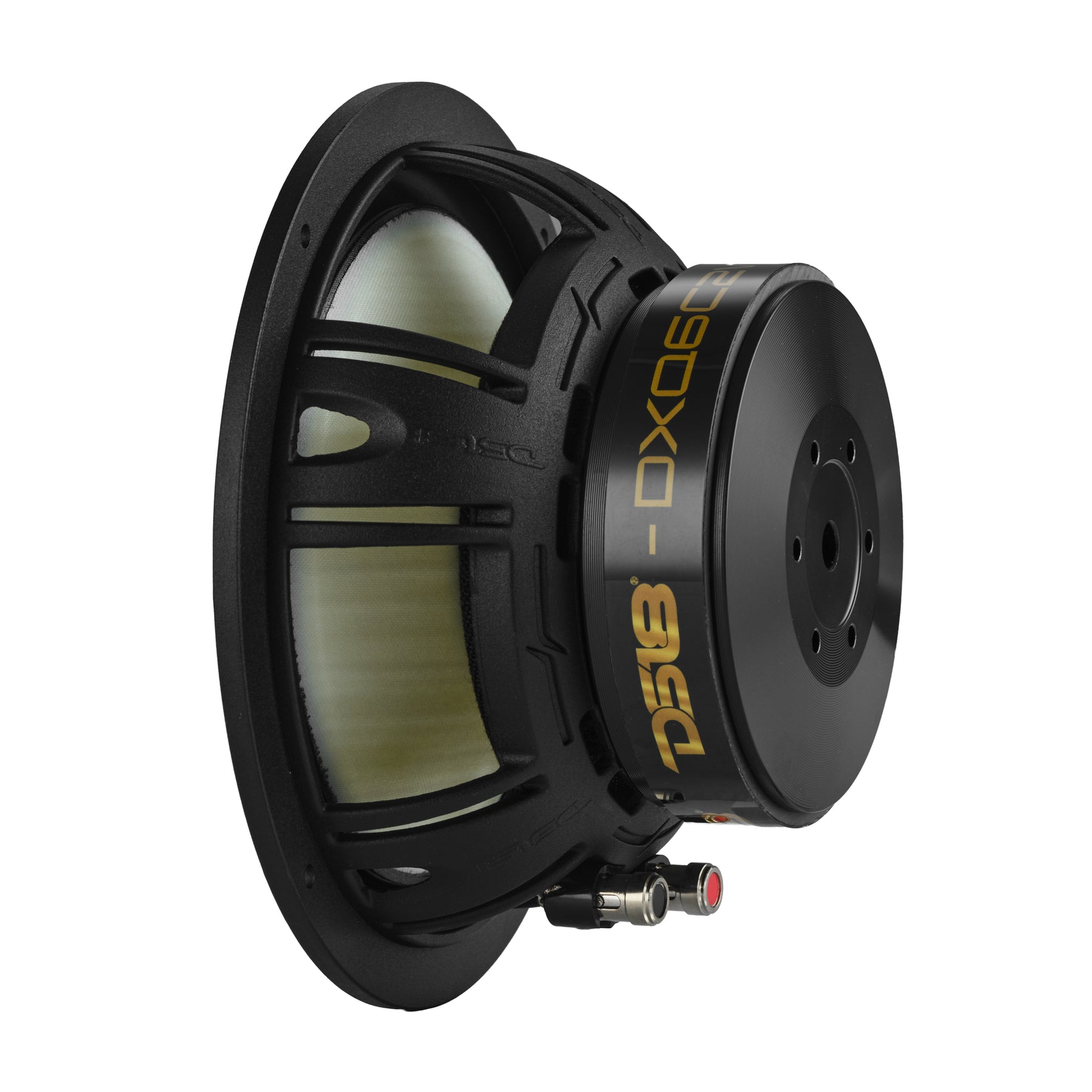

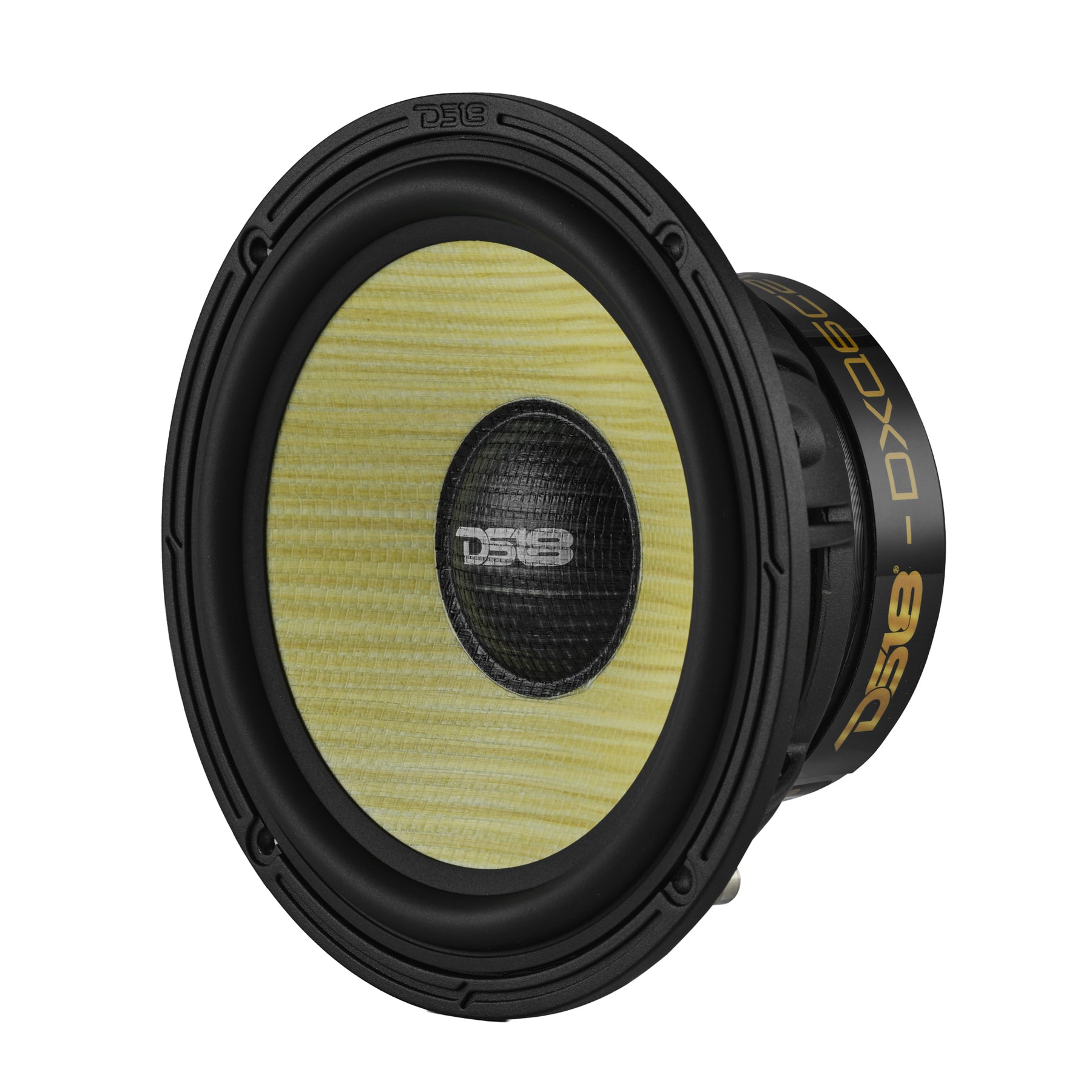

Built on a lightweight aluminum basket coated with a black finish, the woofer incorporates a 1.2″ voice coil wound with superior SV wire, paired with a rubber surround to enhance durability and reduce resonance.

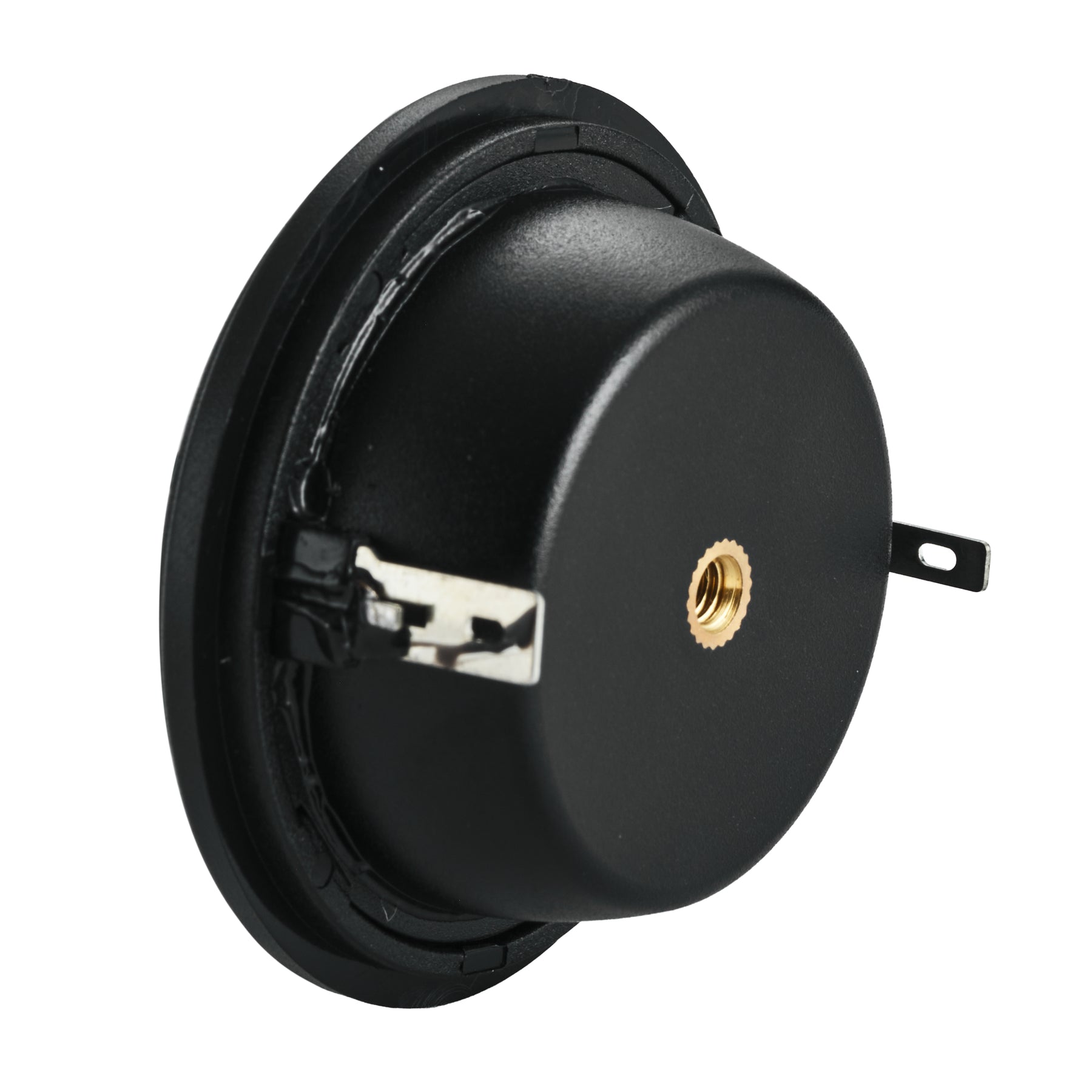

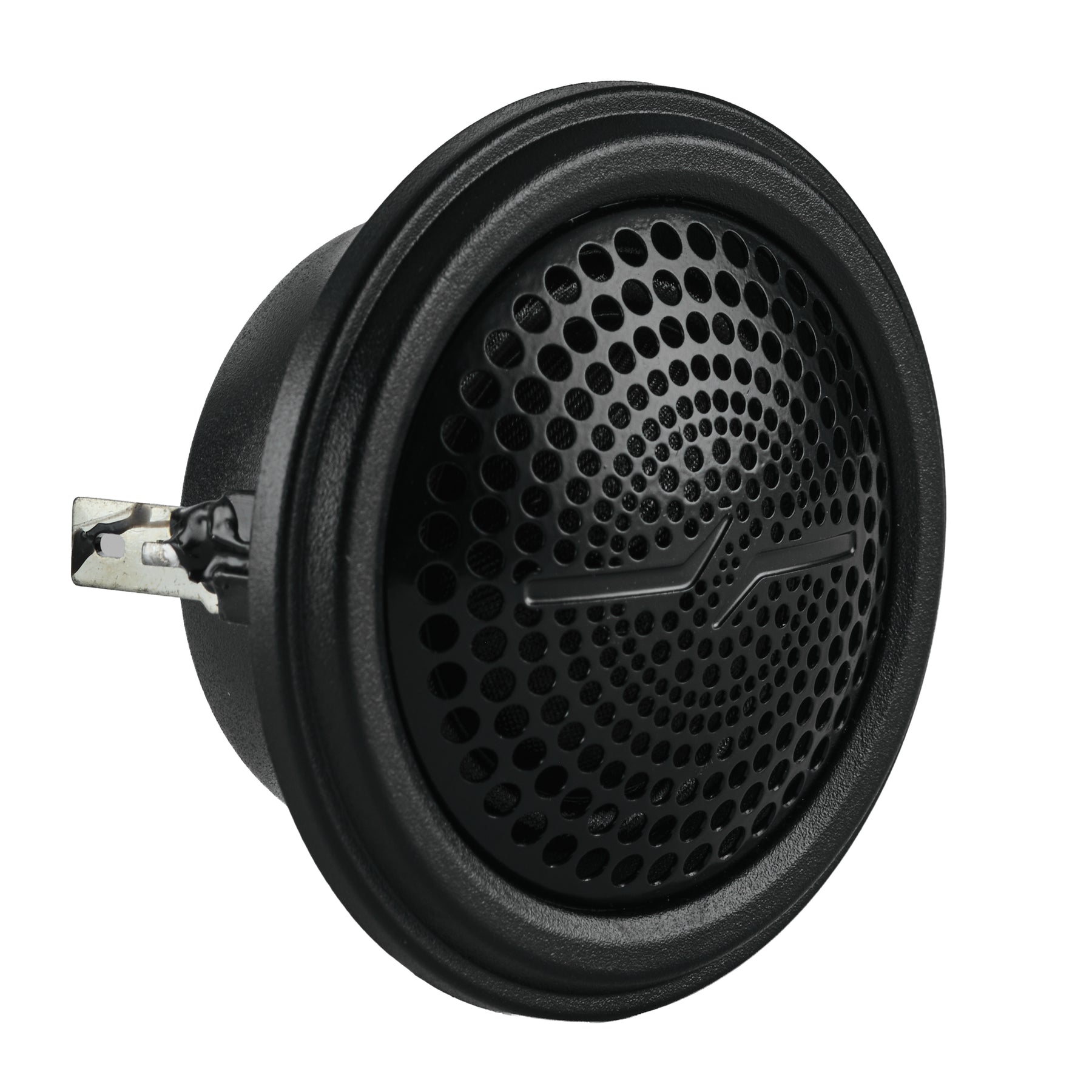

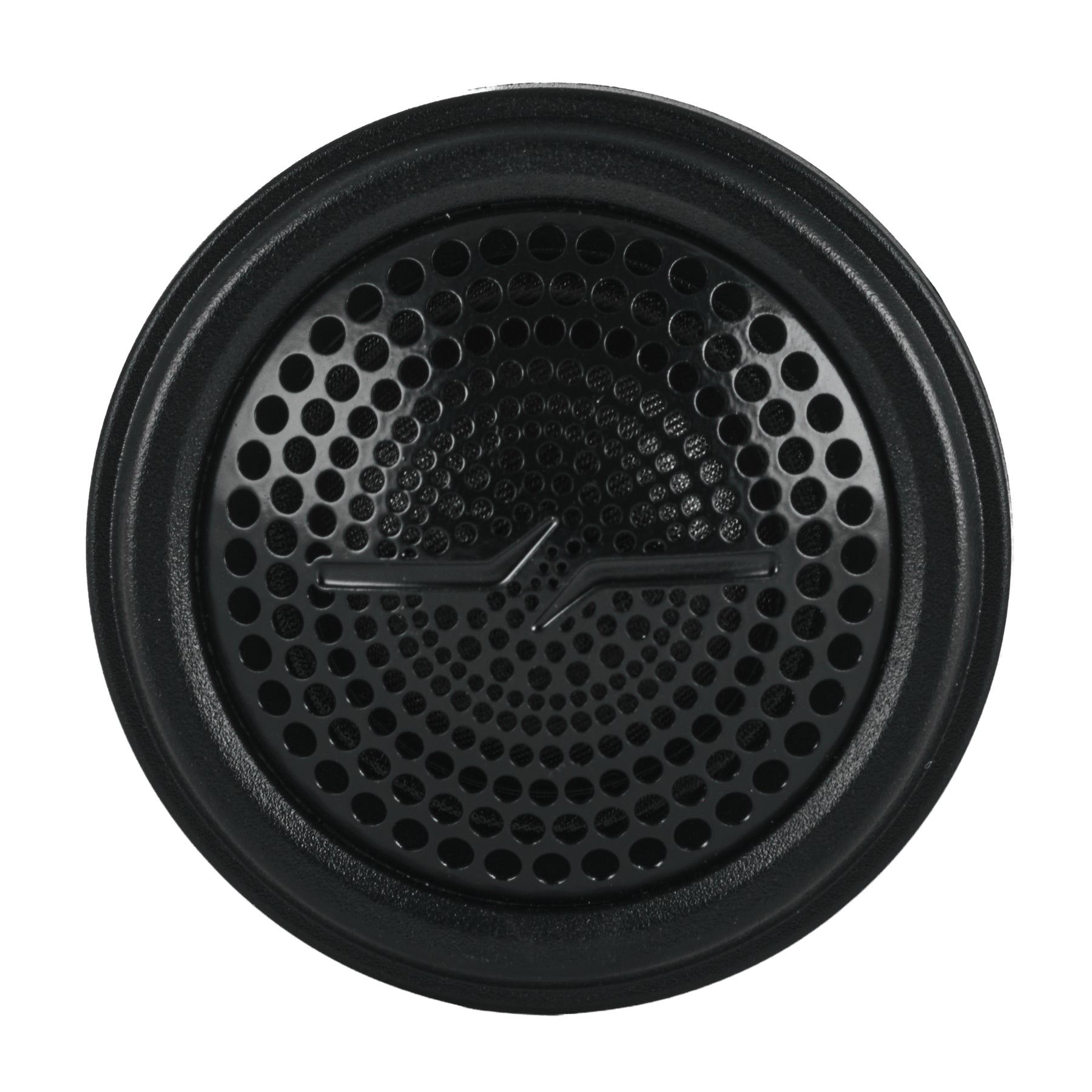

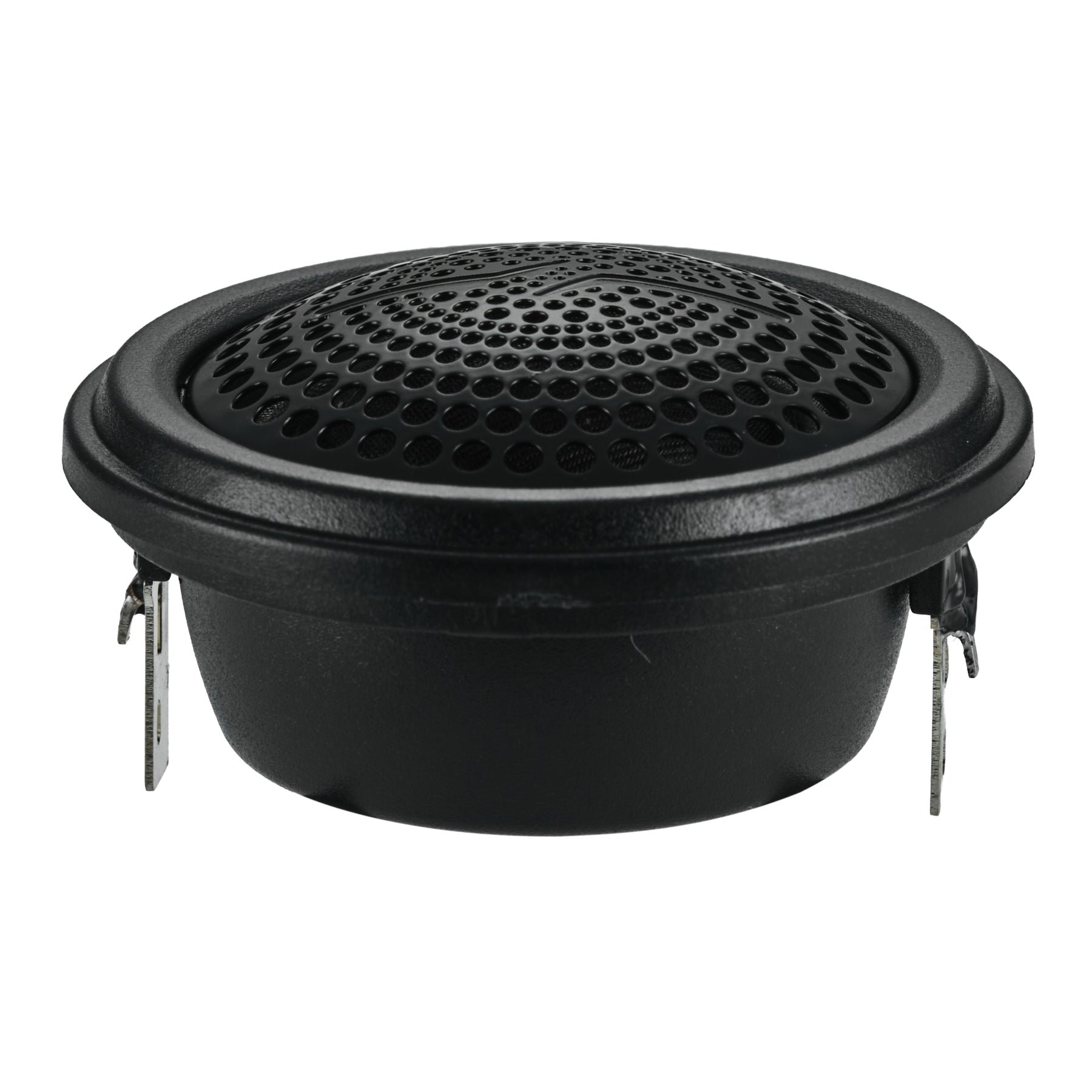

Smooth Highs, Rich Detail

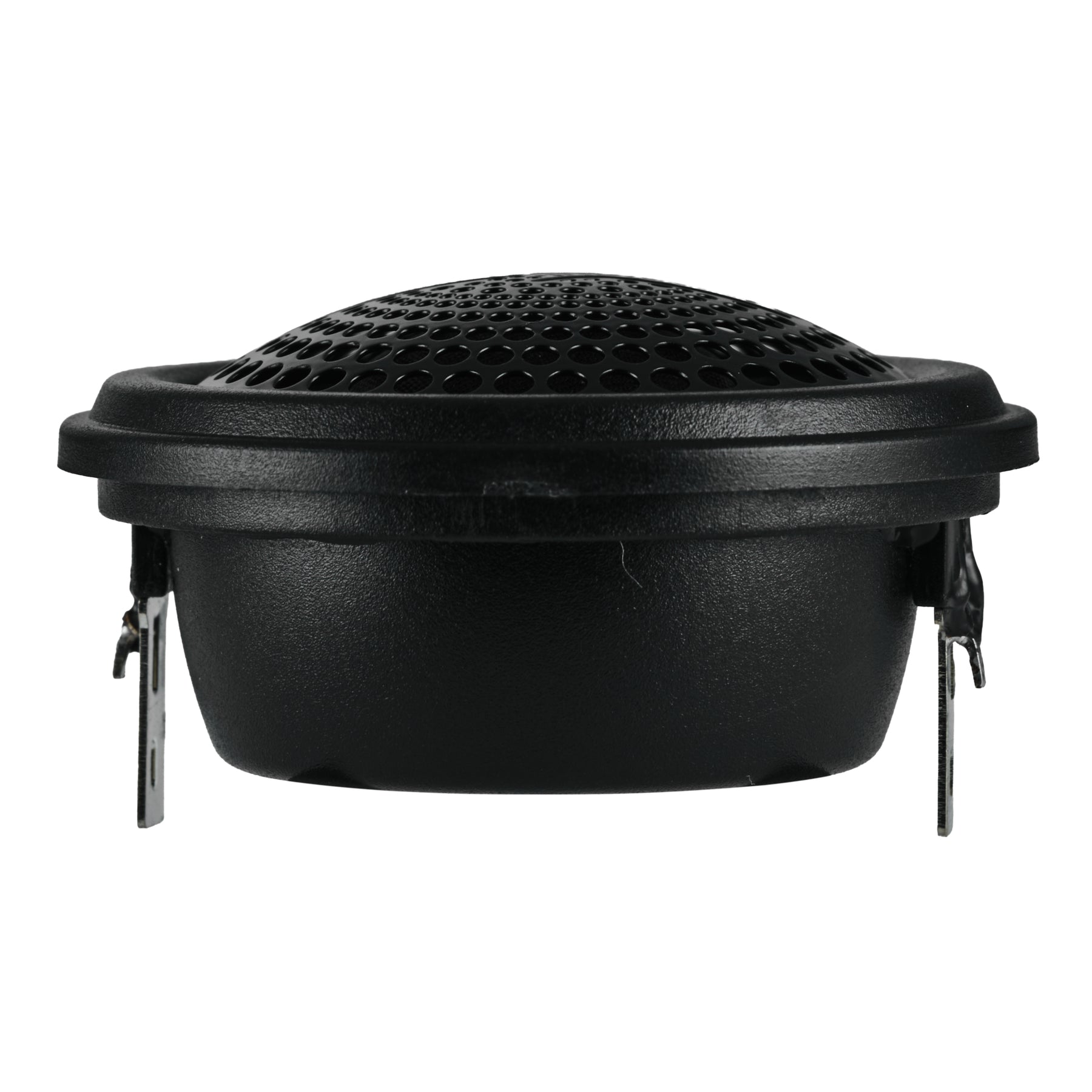

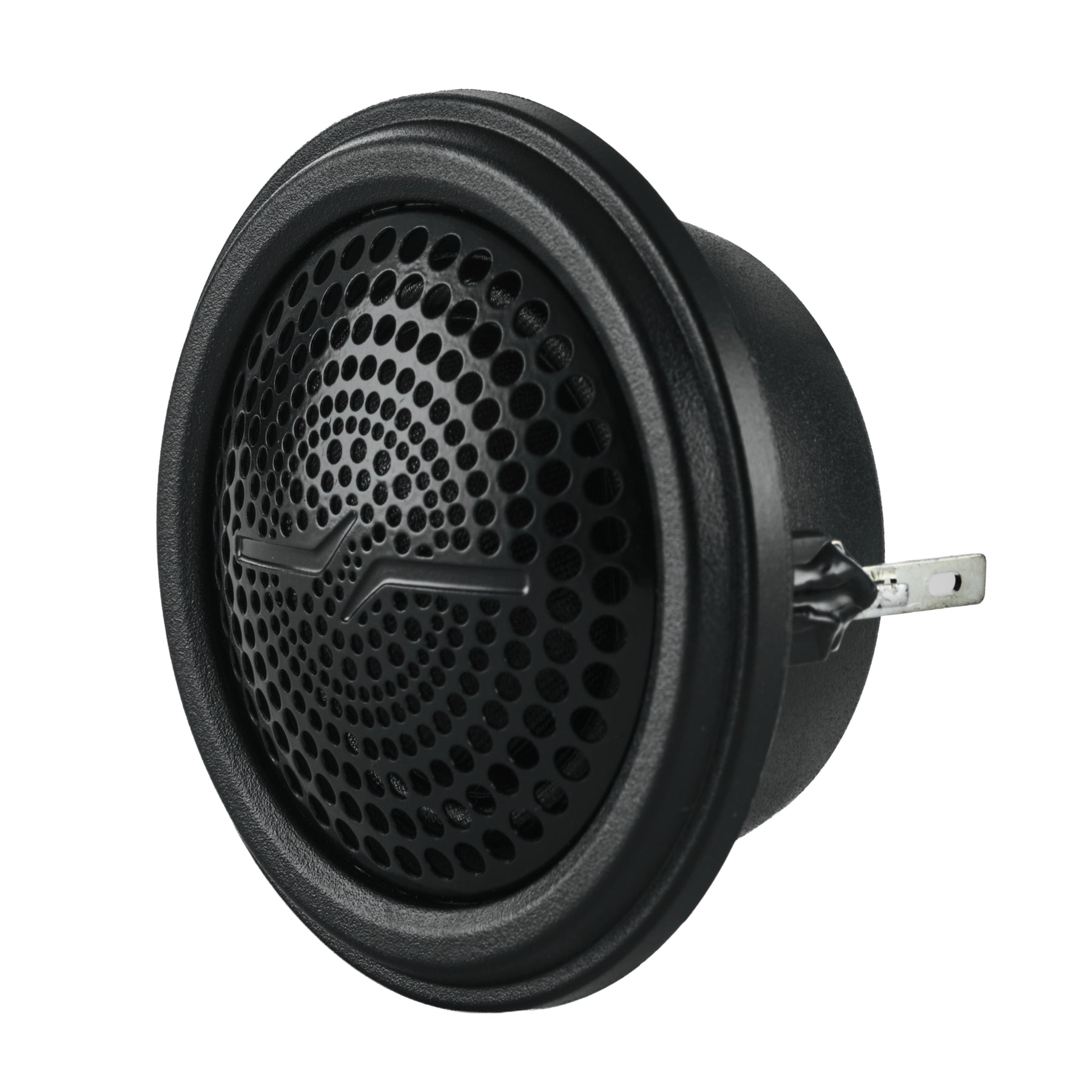

Complementing the woofer is a 2″ silk dome tweeter, included for its sensitivity of 90 dB and clean frequency response from 800Hz to 20kHz. The silk diaphragm enhances smooth, natural tones and eliminates distortion.

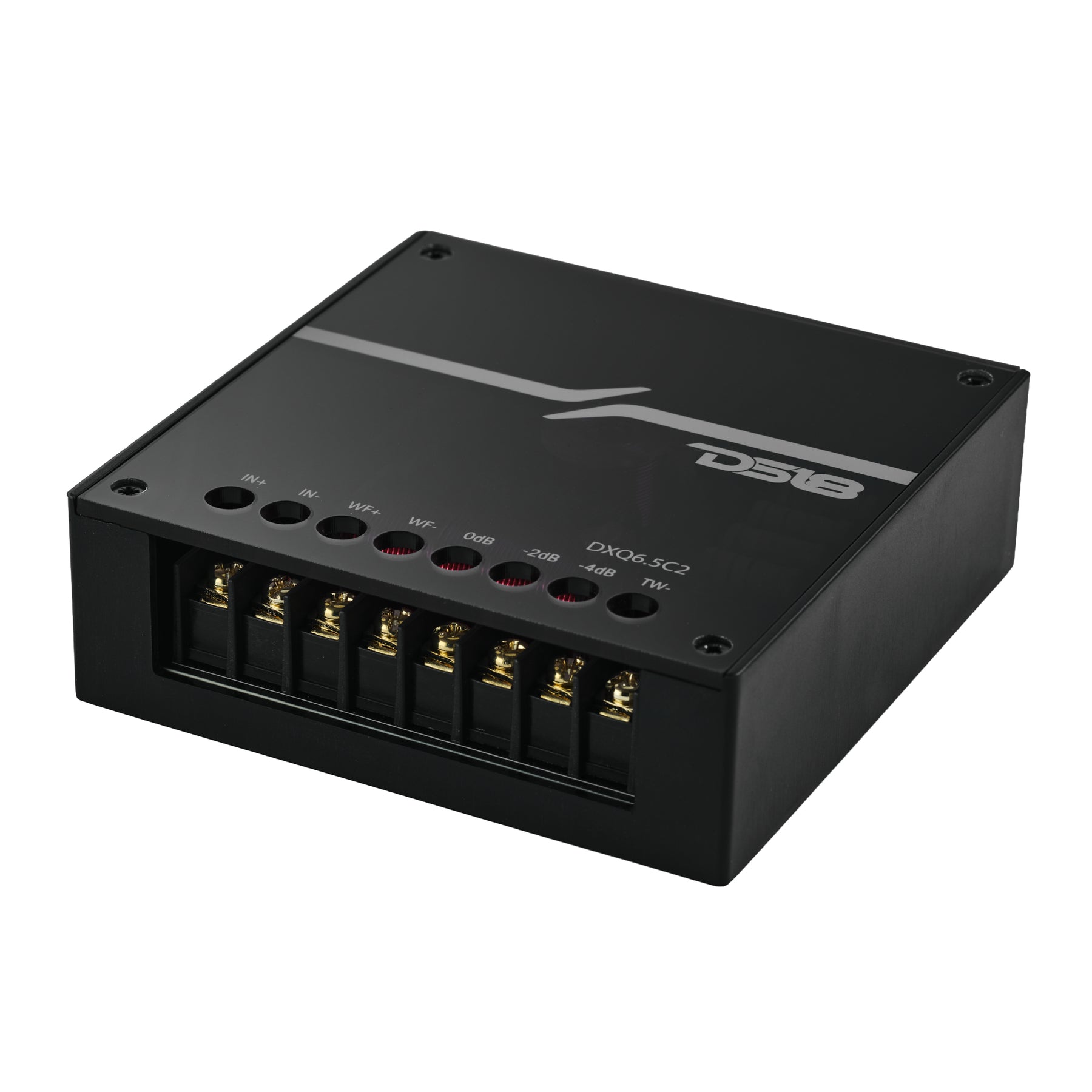

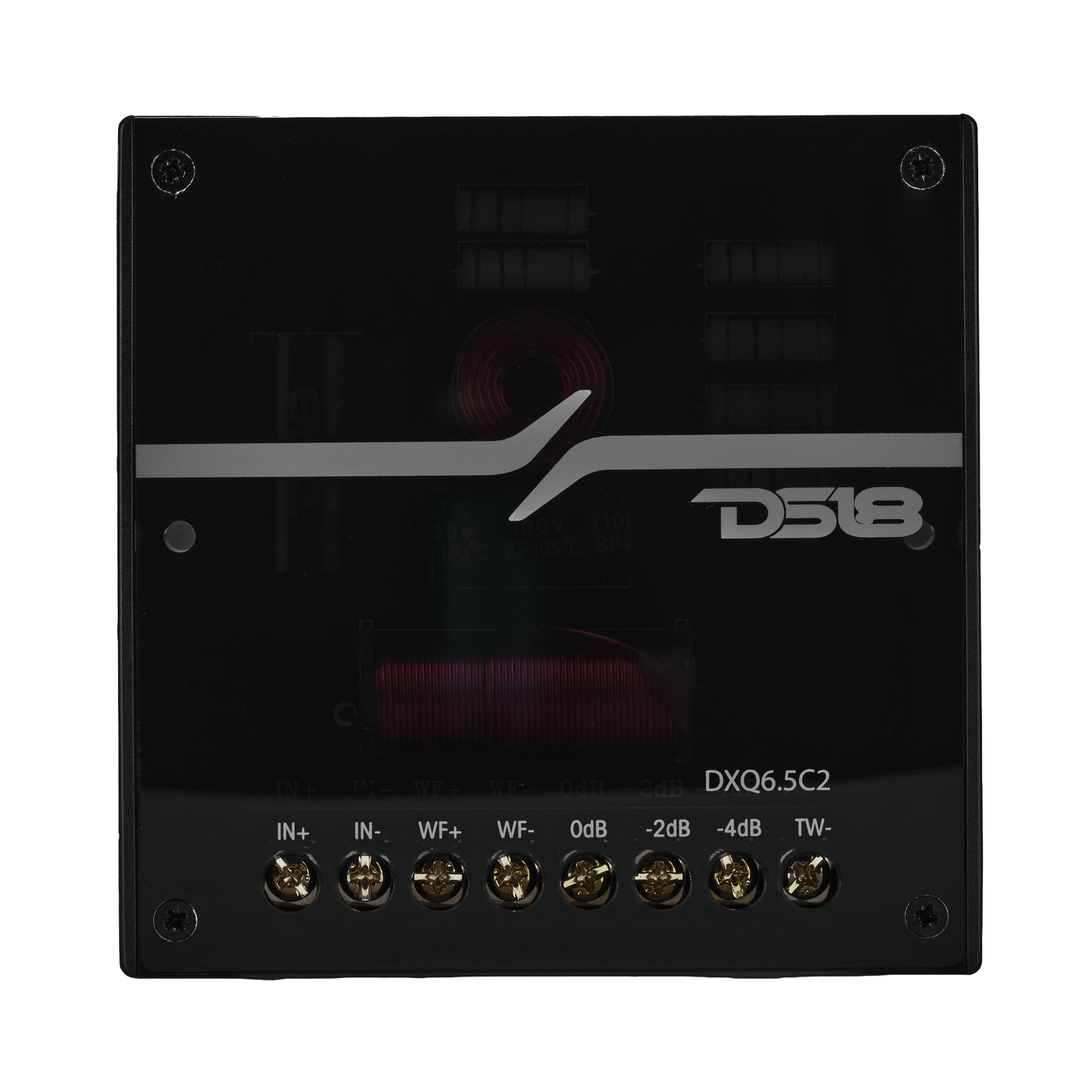

Precision Passive Crossover Included

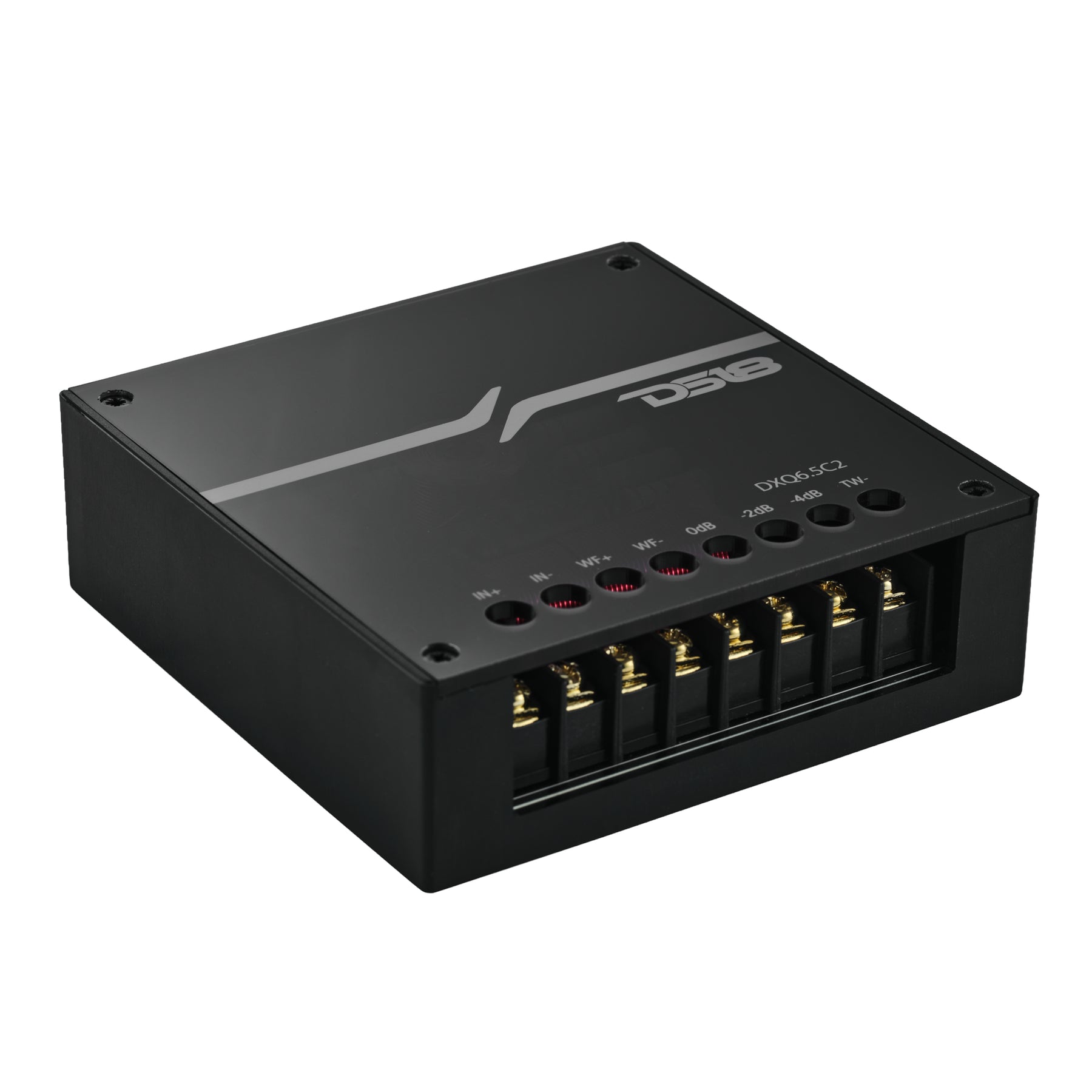

A 2-way passive crossover set at 2kHz with a 12dB/octave slope is included, designed to protect the tweeter and balance frequencies perfectly for rich mids and highs. Tweeter attenuation is available at -4dB, -2dB, and 0dB to customize the tonal balance to your system.
Installation Made Simple
The speaker set comes with push-type 14 gauge speaker terminals and fits in a standard 5.7” baffle cutout with a shallow mounting depth of 3 inches. The included crossover features screw terminals housed in a compact ABS and acrylic casing, allowing for a clean, easy installation.
