Description
DS18 DDX10.5CP

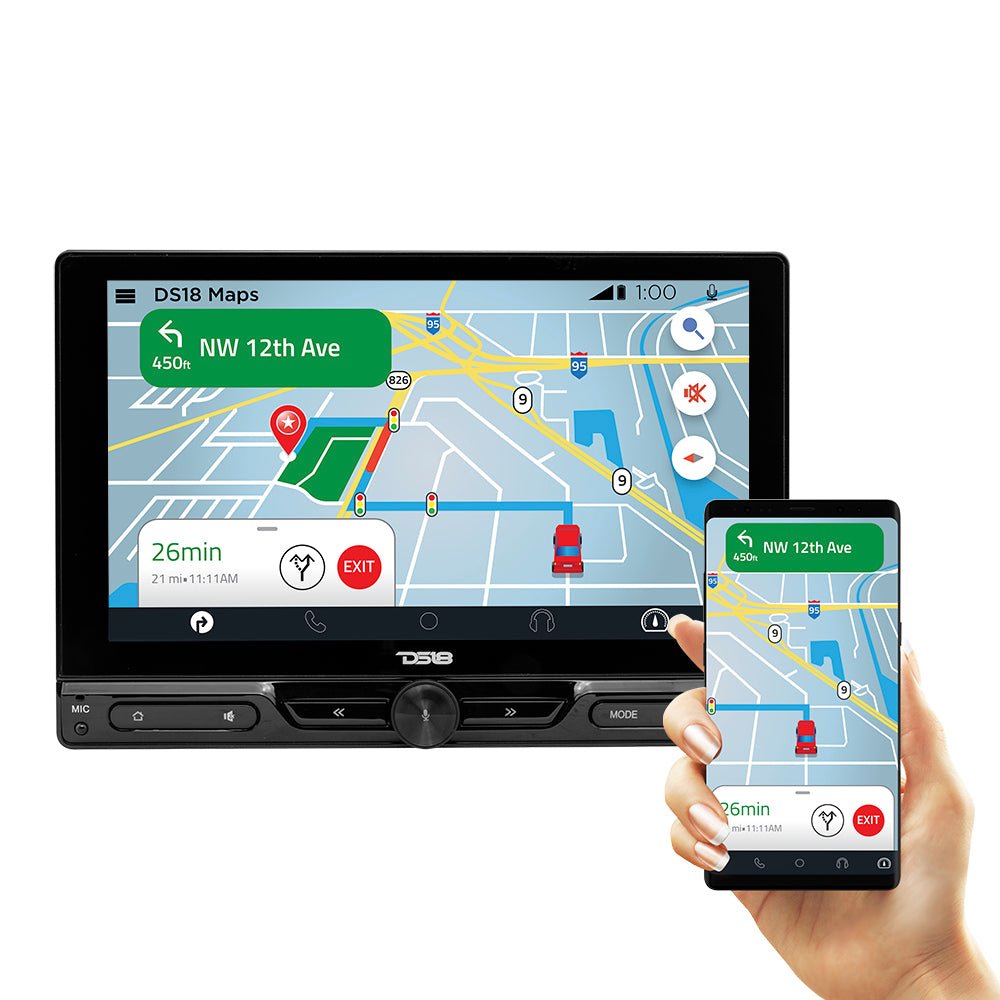

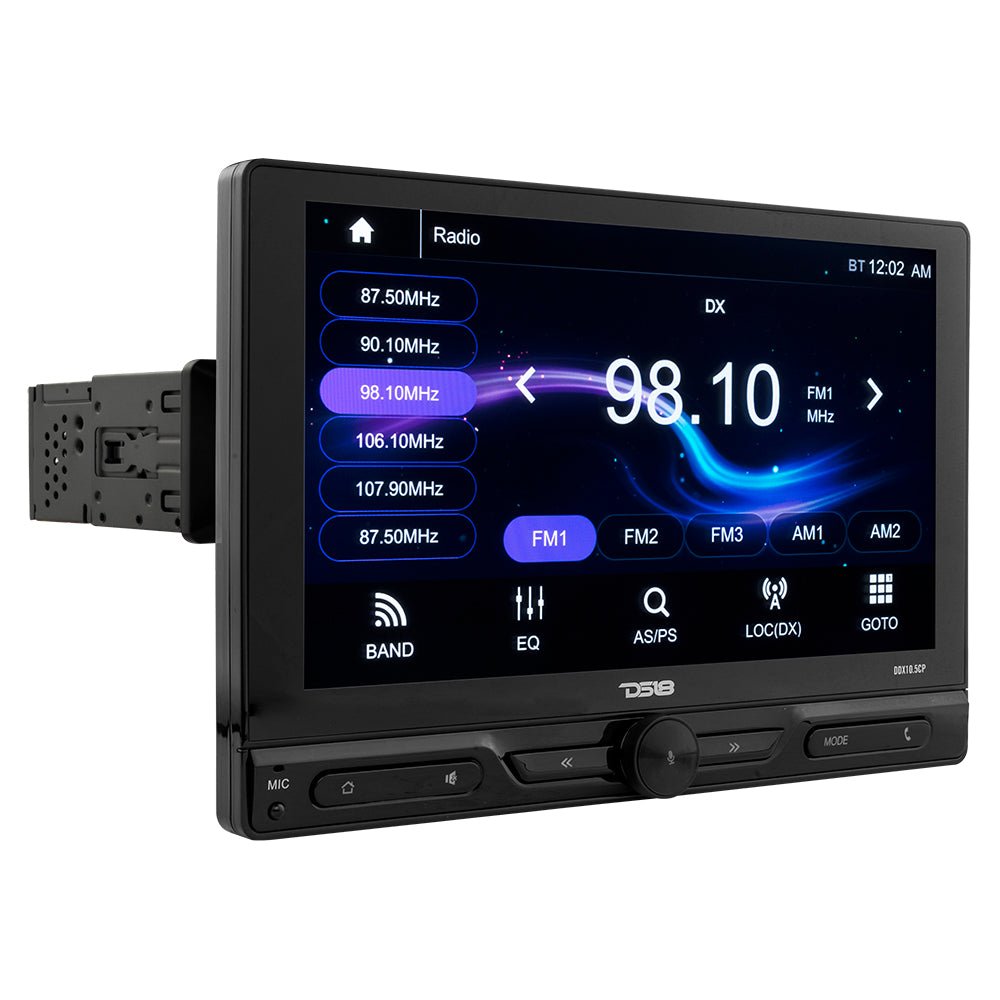

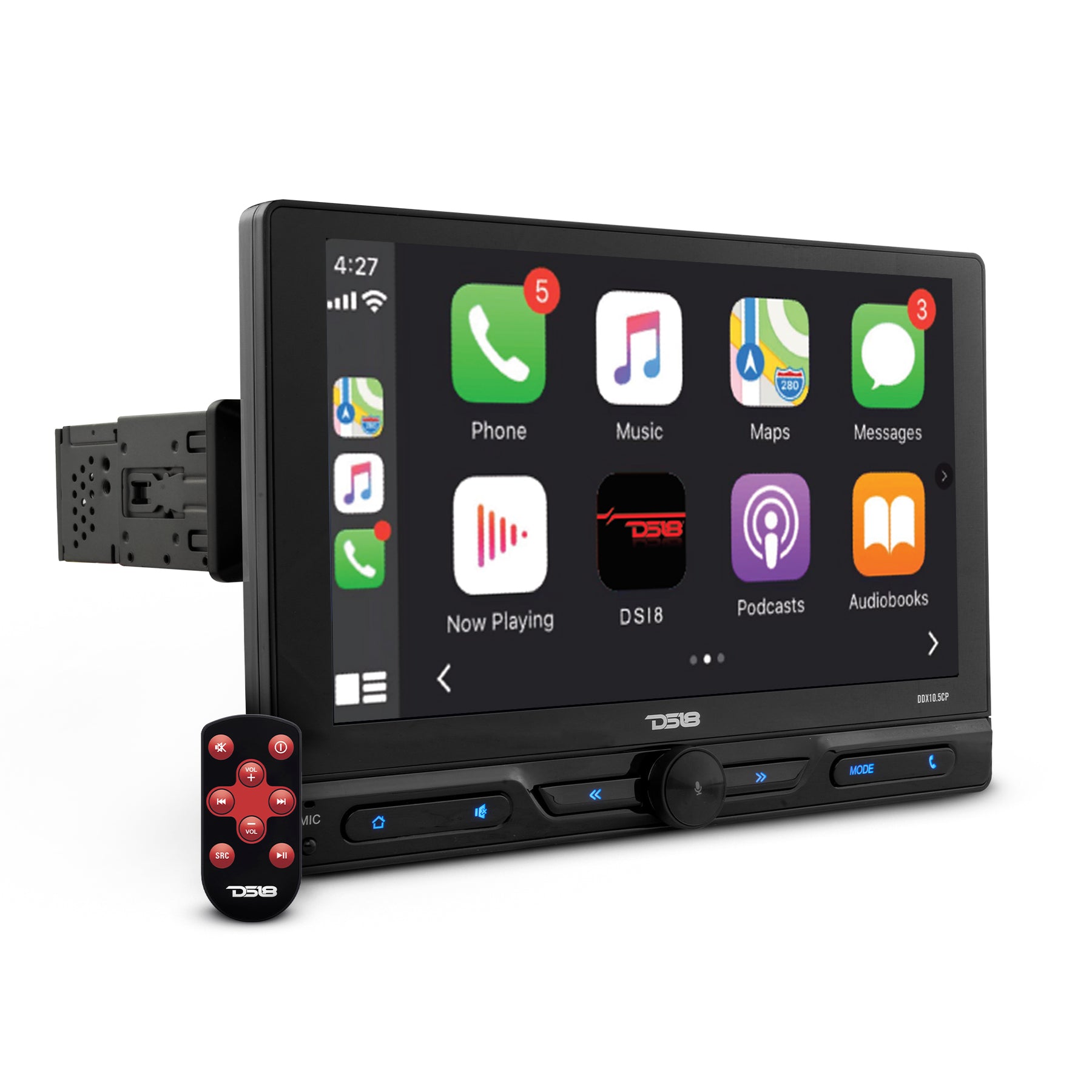

The DS18 DDX10.5CP is a 10.5-inch floating, mech-less single-DIN touchscreen multimedia car receiver that combines modern smartphone integration with versatile media playback and radio features. It includes Apple CarPlay and MirrorLink for seamless connection with iOS and Android devices, Bluetooth 5.1 for hands-free calling and audio streaming, and supports playback from USB/SD up to 64 GB along with AUX and AM/FM radio. The large 1280×720 IPS capacitive touchscreen offers clear visuals and responsive control, while the built-in 10-band graphic equalizer, volume/fader/balance controls, and 4 V preamp outputs allow you to fine-tune your audio system or connect to external amplifiers. The receiver delivers 15 W RMS × 4 channels (40 W max × 4) of internal power and includes camera inputs, remote control support, and full compatibility with steering wheel controls — ideal for upgrading the head unit in your vehicle with modern multimedia functionality.
Specifications
| Parameter | Specification |
|---|---|
| SKU | DDX10.5CP |
| Rated Power Source | 14.4V DC (10.8V to 15V operation) |
| Maximum Current Consumption | 15 Amp |
| Dimensions (W × H × D) | Chassis: 178 × 50 × 115 mm Bezel Frame: 170 × 46 × 5 mm Screen Frame: 266 × 180 mm |
| Weight | 4.5 Lb |
Display
| Parameter | Specification |
|---|---|
| Screen Size / Aspect Ratio | 10.5 inch / Wide 16:9 |
| Resolution (Pixels) | 1280 × 720 |
| Display Type | IPS / Full HD / Capacitive Touch Screen |
| Operating Temperature | -20°C to +60°C (14°F to 140°F) |
Audio
| Parameter | Specification |
|---|---|
| Maximum Power Output | 45W × 4 Ch / 4 Ohm |
| Continuous Power Output | 15W × 4 Ch / 4 Ohm |
| Pre-Output Level | 4 Volts (Front, Rear, Subwoofer) |
| Equalizer | 10 Bands (32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz) |
| Gain | ±6 dB |
| Audio Control | Volume / Balance / Fader / Loudness |
Tuner
| Parameter | Specification |
|---|---|
| Frequency Range | FM: 87.5–107.9 MHz AM: 530–1710 KHz |
| Presets Memory | 30 Stations (18 FM / 12 AM) |
| Region | USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East |
| Sensitivity Adjustment | LOC (On/Off) / ST (On/Off) |
| RDS | Yes (Radio Data System) |
USB / SD Player / Connectivity
| Parameter | Specification |
|---|---|
| Type / Class | V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS |
| Supported File Formats | RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX |
| Video Resolution Supported | 1080P |
| Memory Size Reader | Up to 64 Gb |
| Max Current Supply (USB) | 1.5 Amp |
| Number of USB Ports | 2 (1 Front, 1 Rear) |
| Bluetooth Version / Services | V5.1 / Audio Streaming / Hands-Free Calls |
| Camera Input | RCA Analog Video up to HD 720p (Front / Rear) |
| Video Output | Dual RCA (1 Volt / 75 Ohm) |
| A/V Aux Input | Rear RCA Audio & Video / Front 3.5mm Stereo Audio |
| Microphone | 3.5mm Jack External MIC Input |
| Remote Control | Frontal IR Receptor / Wired (3.5mm Jack) Input |
About The Product
10.5” Mechless Single-Din Digital Media Receiver With Mirror Link / Apple Car Play / BT / AUX / USB / SD / AM / FM
DS18’s Single Din Receivers are back and better than ever!
Everything you love about DS18’s Multimedia Receivers is now bigger than ever measuring in at 10.5” and introduces a highly anticipated new feature: the DDX10.5CP brings the Car Play feature to DS18’s long line of Multimedia Receivers.
This receiver now includes all features needed to bring all your favorite tunes with you no matter what devices you have at your disposal. The DDX10.5CP allows you to utilize Apple Car Play, Mirror Link, Bluetooth, AUX, USB, SD, Phone Controls, and all your AM/FM Stations. The SD Reader and USB Adapter can use memory cards up to 64GB.

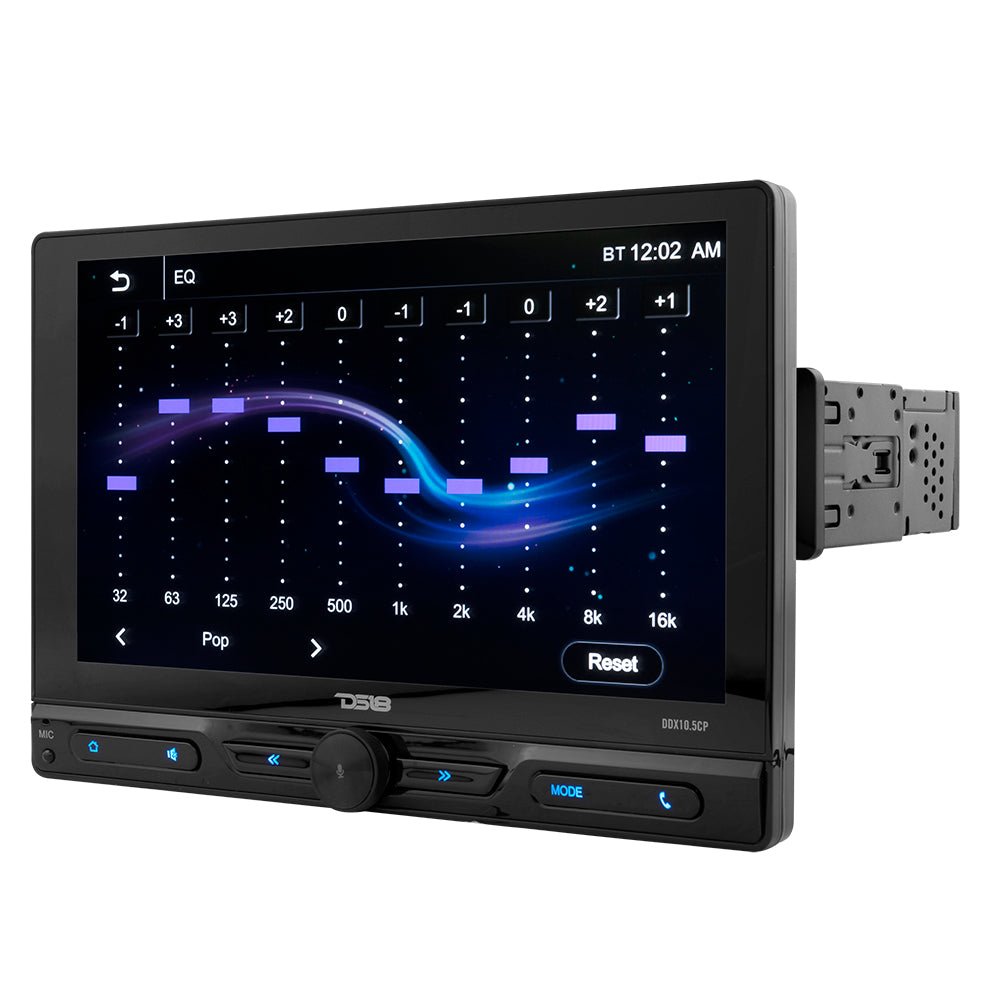

Tune your music to your preferences with the built-in 10 Bands Graphic Equalizer that makes sure your sound is tweaked to perfection with easy access and easy to use settings.
There is plenty of power behind this versatile receiver. At 4 ohms this unit offers 15 x 4 watts RMS and 40 x 4 Max power which is generally enough to power all entry level speakers, but to get the maximum output from this amp, you will need amplifiers and higher quality speakers to handle the power. The PRE-AMP outputs will deliver a maximum of 4 volts so you can be reassured that you will have enough output voltage for your amplifiers to get the clearest and distortion free sound available. Also 3 sets of preamp outputs (SUB, Front, and Rear) will be there for you to configure to your specific setup.
