Description
DS18 DDX10.5ADX

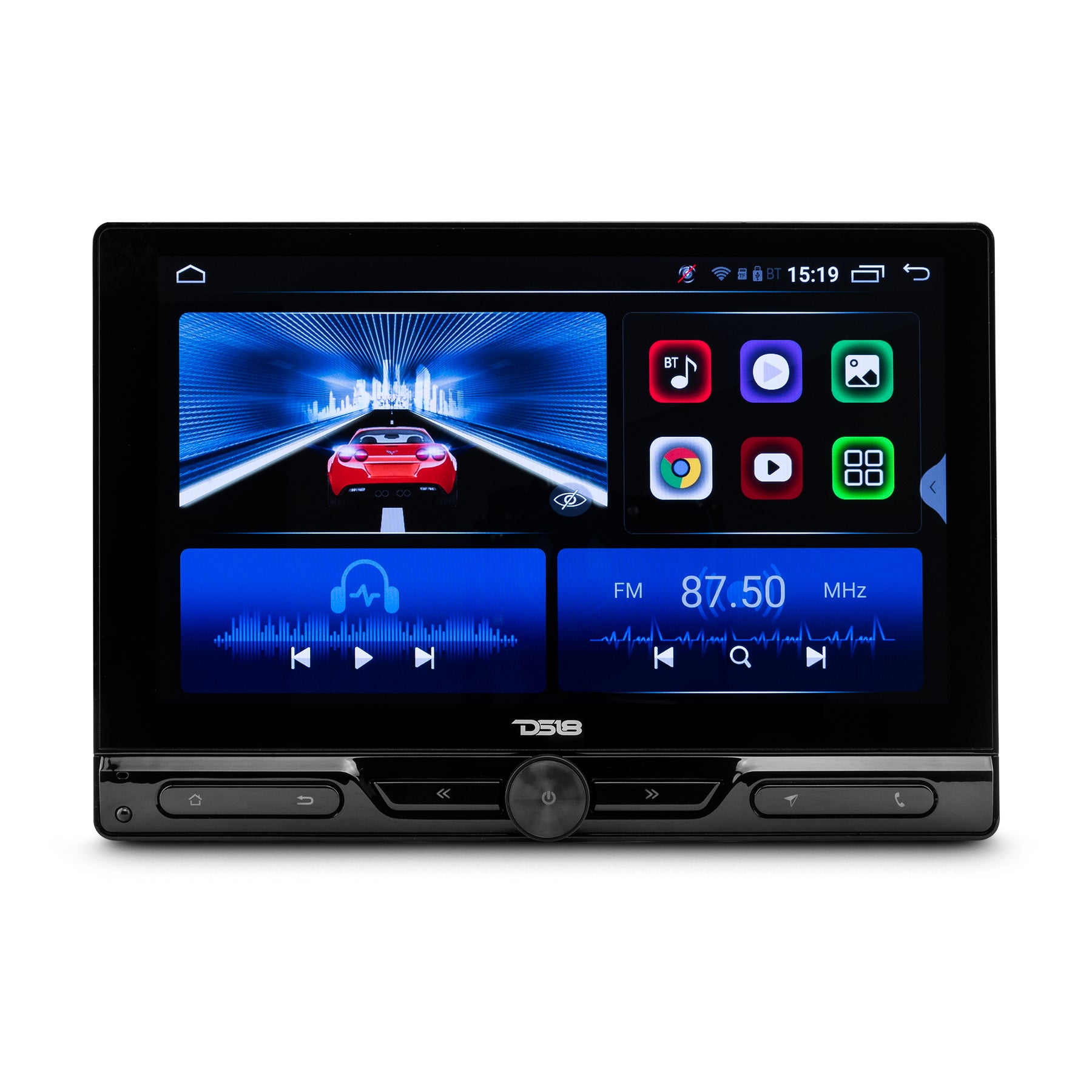

The DS18 DDX10.5ADX is a feature‑rich 10.5‑inch floating, swivel‑adjustable single‑DIN touchscreen multimedia receiver equipped with Android 10 OS, Bluetooth hands‑free and audio streaming, USB/SD playback, AM/FM radio, and GPS navigation support. It has a high‑resolution 1280×720 IPS capacitive touch display with adjustable swivel mount for flexible viewing angles. Powered by a quad‑core processor with 4 GB RAM and 64 GB internal storage, it offers responsive performance for apps, navigation, media playback, and phone mirroring. The built‑in 14‑band DSP and adjustable crossover settings let you fine‑tune audio output, while support for rear/front camera input, Wi‑Fi, HDMI output, and multiple USB ports enhances connectivity and expandability. The receiver also delivers up to 18 W RMS × 4 channels (54 W peak × 4) of amplified output for direct speaker driving.
Specifications
| Parameter | Specification |
|---|---|
| Rated Power Source | 14.4V DC (10.8V to 15V operation) |
| Maximum Current Consumption | 10 Amp |
| Dimensions (W × H × D) | Chassis: 178 × 50 × 115 mm Bezel Frame: 170 × 46 × 5 mm Screen Frame: 266 × 180 mm |
| Weight | 4.5 Lb |
| Processor | Quad Core A53 1.5GHz |
| Memory (RAM) | 2Gb (DDX10.5AD) / 4Gb (DDX10.5ADX) |
| Internal Memory (ROM) | 32Gb (DDX10.5AD) / 64Gb (DDX10.5ADX) |
| Operating System | Android Version 10 |
Display
| Parameter | Specification |
|---|---|
| Screen Size / Aspect Ratio | 10.5 inch / Wide 16:9 |
| Resolution (Pixels) | 1280 × 720 |
| Display Type | IPS / Full HD / Capacitive Touch Screen |
| Operating Temperature | -20°C to +60°C (14°F to 140°F) |
Audio
| Parameter | Specification |
|---|---|
| Maximum Power Output | 54W × 4 Ch / 4 Ohm |
| Continuous Power Output | 18W × 4 Ch / 4 Ohm @ 14.4V |
| Pre-Output Level | 6 Volts @ 14.4V |
| Equalizer | 14-Band (20Hz–20KHz) Q Factor: 0.4–12 Gain: ±15dB Presets: Standard, Popular, Rock, Classical, Jazz Custom: 3 User Memories |
| Crossover | HPF: 20Hz–20KHz LPF: 20Hz–20KHz Slope: 6 / 12 / 24 / 36 / 48 dB/Oct |
| Audio Control | Volume / Balance / Fader / Gain / Delay |

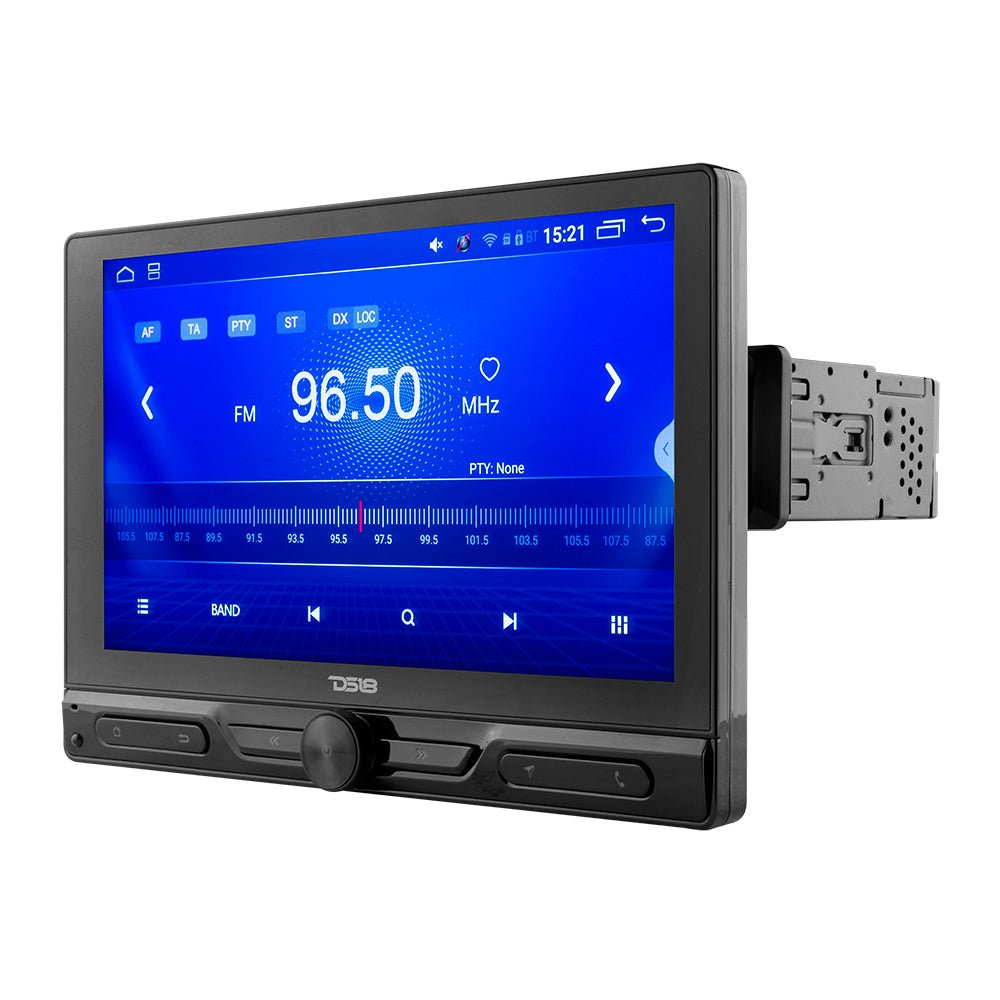

| Frequency Range | FM: 87.5–107.9 MHz AM: 530–1710 KHz |
| Presets Memory | 30 Favorite Stations + 12 Presets (6 FM / 6 AM) |
| Region | Europe, USA, China, Japan, Eastern Europe, Latin America, Taiwan, Australia, South America, Iran, Middle East |
| Sensitivity Adjustment | LOC (On/Off) / ST (On/Off) |
USB / SD Player / Connectivity
| Parameter | Specification |
|---|---|
| Type / Class | V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS |
| Supported File Formats | AVI, MP4, MP3, WMA, BMP, JPEG |
| Video Resolution Supported | 1080P |
| Memory Size Reader | Up to 64 Gb |
| Max Current Supply (USB) | 1.5 Amp |

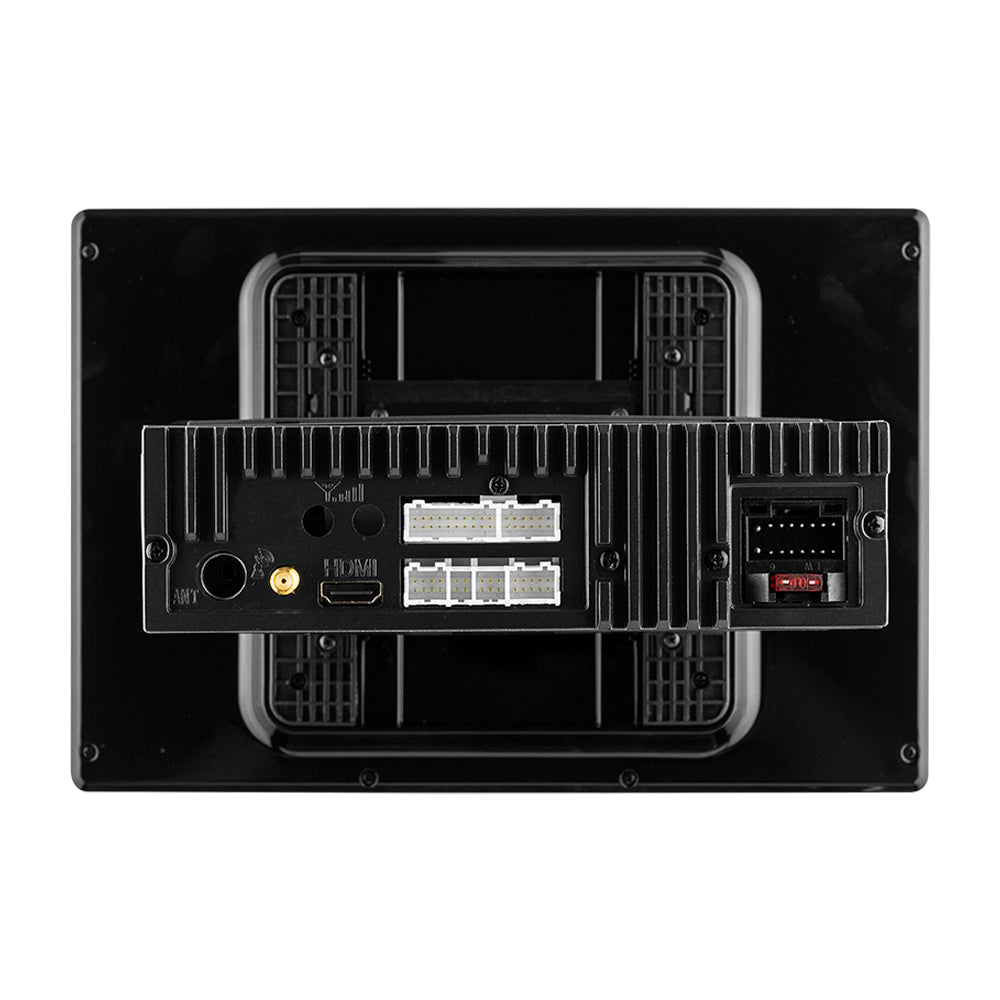

| Number of USB Ports | 3 (1 Front, 2 Rear) |
| Bluetooth Version / Services | V5.0 / Audio Streaming / Hands-Free Calls |
| Camera Input | RCA Analog Video up to HD 1080p (Front / Rear) |
| Video Output | RCA (1 Volt / 75 Ohm) |
| A/V Aux Input | Rear RCA Audio & Video / Front 3.5mm Stereo Audio |
| Microphone | 3.5mm Jack External MIC Input |
| Remote Control | Wired (3.5mm Jack) Input |
| Internet | Wi-Fi Wireless Connection |
| HDMI | Yes (Output) – Selectable Source |
About The Product
10.5” Single-Din Floating Display Mech-Less Digital Media Receiver With Android 10 Operating System/ Mirror Link For iOS & Android / DSP / BT / AUX / USB / SD / AM / FM & All Your Favorite Apps

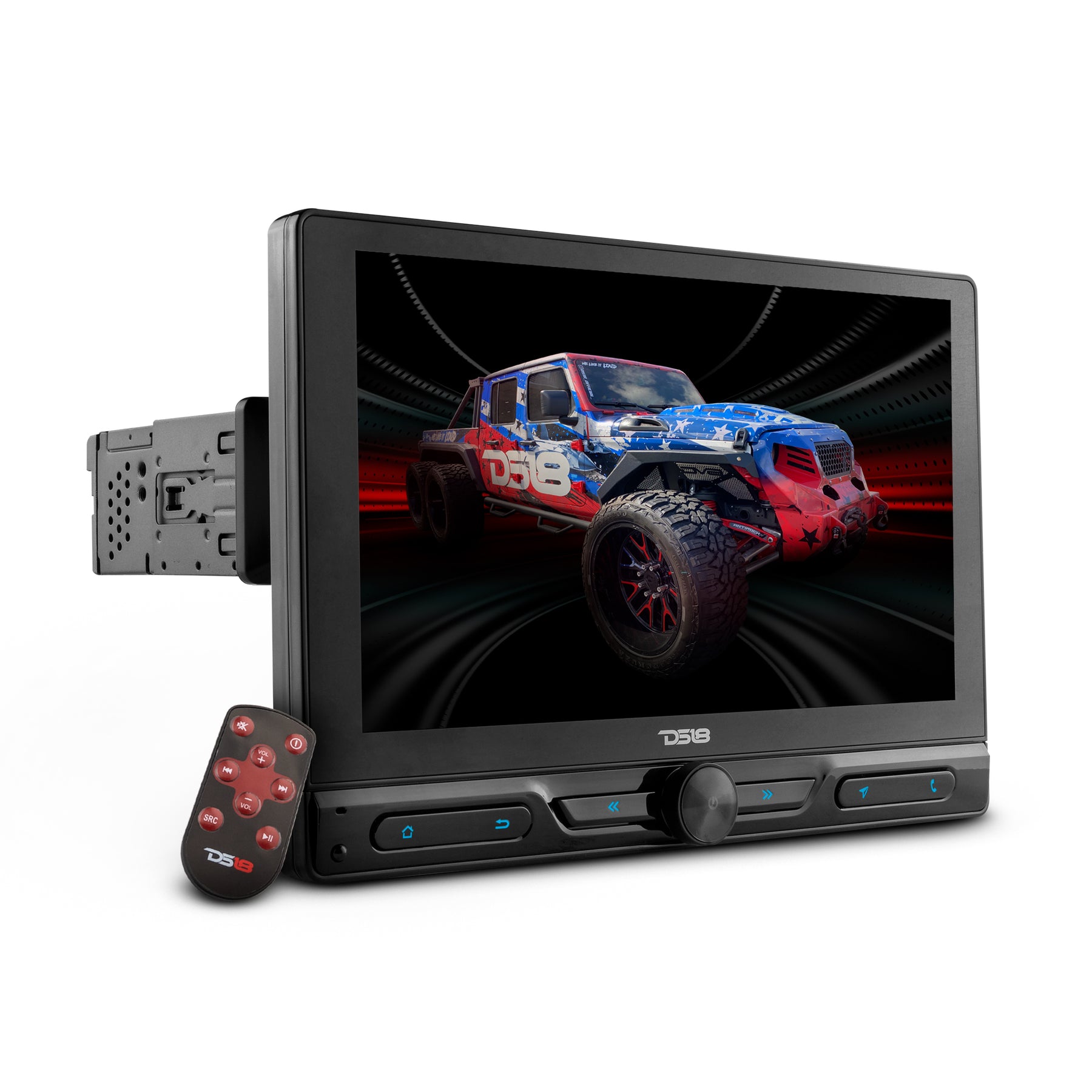

DS18’s DDX10.5ADX Mech-Less Receiver takes everything our customers loved about the DDX6.9ML Double Din Multimedia Receiver but upgraded the detachable screen from 6.9” to an incredible full rotatable 10.5” IPS screen and made it Single-DIN for Perfect Fit Modular Mounting!
The Flawless Touch Screen Control supported by all DS18’s Receivers returns for seamless maneuvering through the numerous features available in this upgraded model.

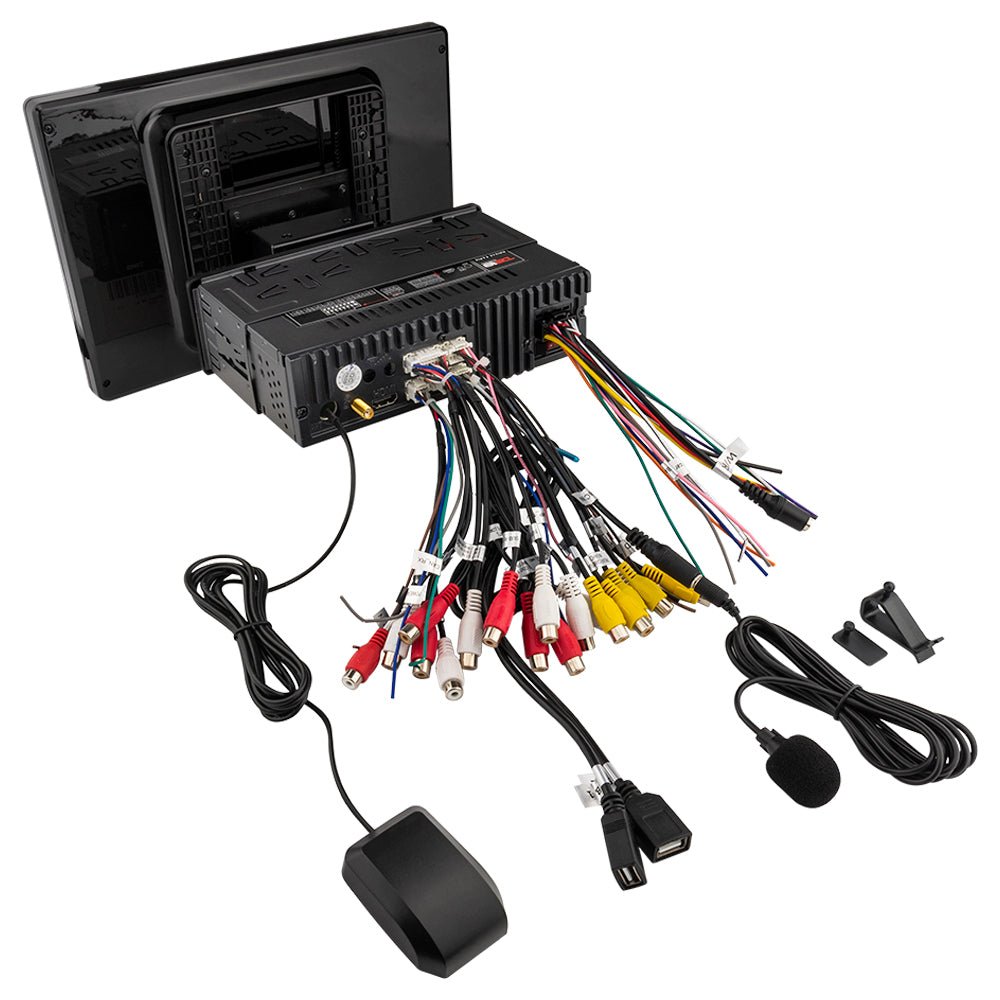

This receiver will include everything you need to bring your multimedia dreams including Mirror Link, Wi-Fi, Bluetooth, AUX, x3 USB, SD, phone controls, and all your AM / FM stations along with 4K streaming.

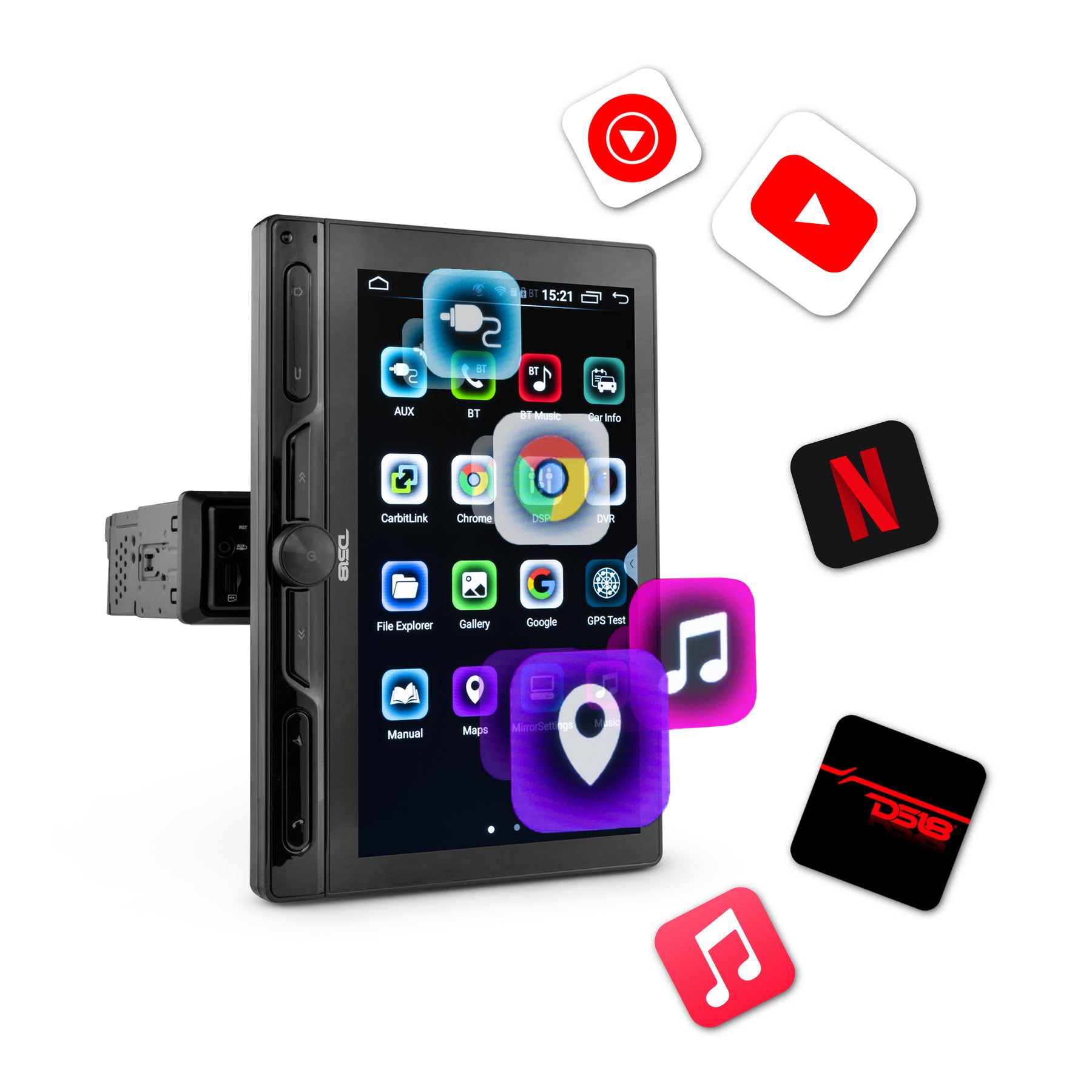

Connecting your head unit to your mobile hotspot makes accessing the downloadable apps available to this receiver much easier and the built in SD Reader allows you to access 64GB of memory with DVR recording.
These receivers are mech-Less; this means that they don’t support the play of compact discs and only play music back from digital media players. That’s why we’ve included so many options for playing music back from your digital devices.
This receiver has a built in Fully Adjustable DSP (Digital Signal Processor) and 8 Channel 6 Volt output allows you to tune signals from various inputs various inputs in conjunction with your Equalizer and get your speakers to play the way they were designed to: without distortion and extremely LOUD!
The built in Digital Video Recorder built for the cameras installed in this receiver guarantees your safety and authority on the road.

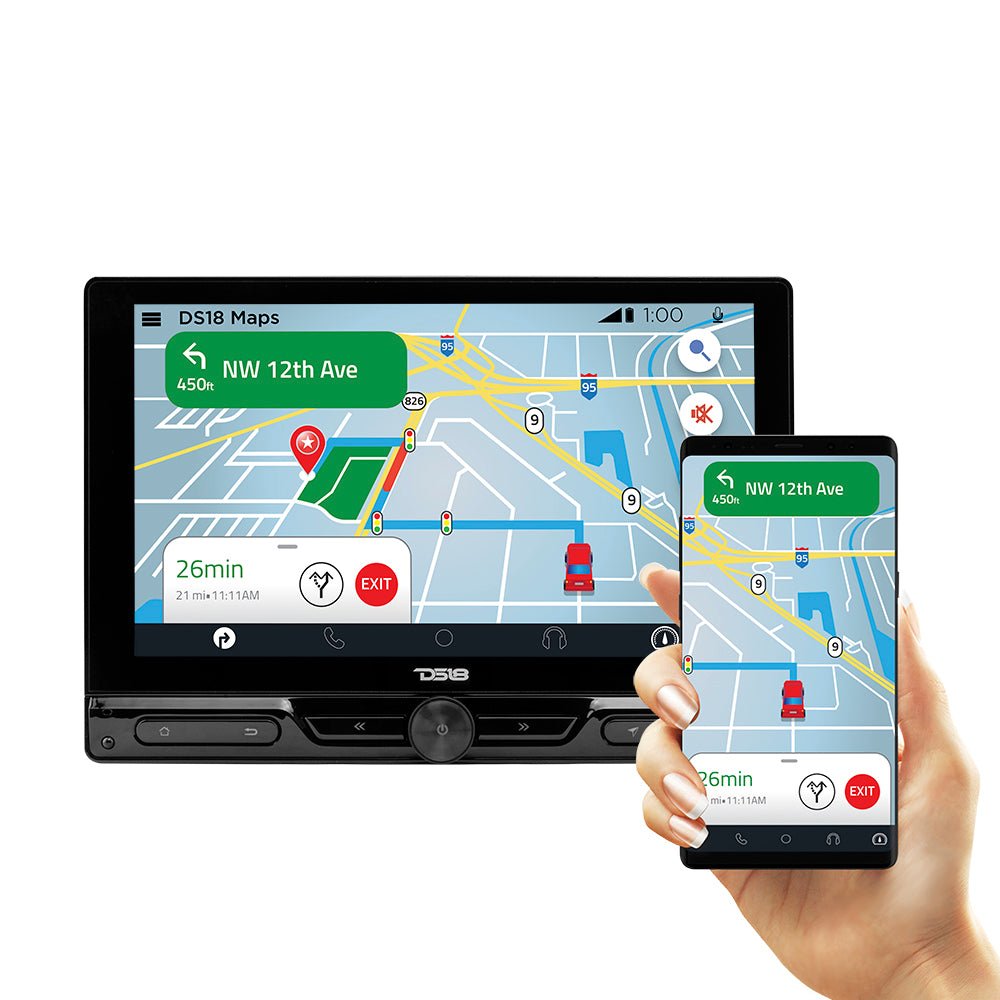

Set up Mirror link to display all media from your phone on the device, but a mobile hotspot is required for GPS functions if you are not using mirror link.
This receiver does it all and has the power to support it: with 4CH x 18W RMS and 4CH x 54W MAX at 4 ohms this receiver has just enough power to charge most entry level speakers.
