Description
DS18 DBPX200

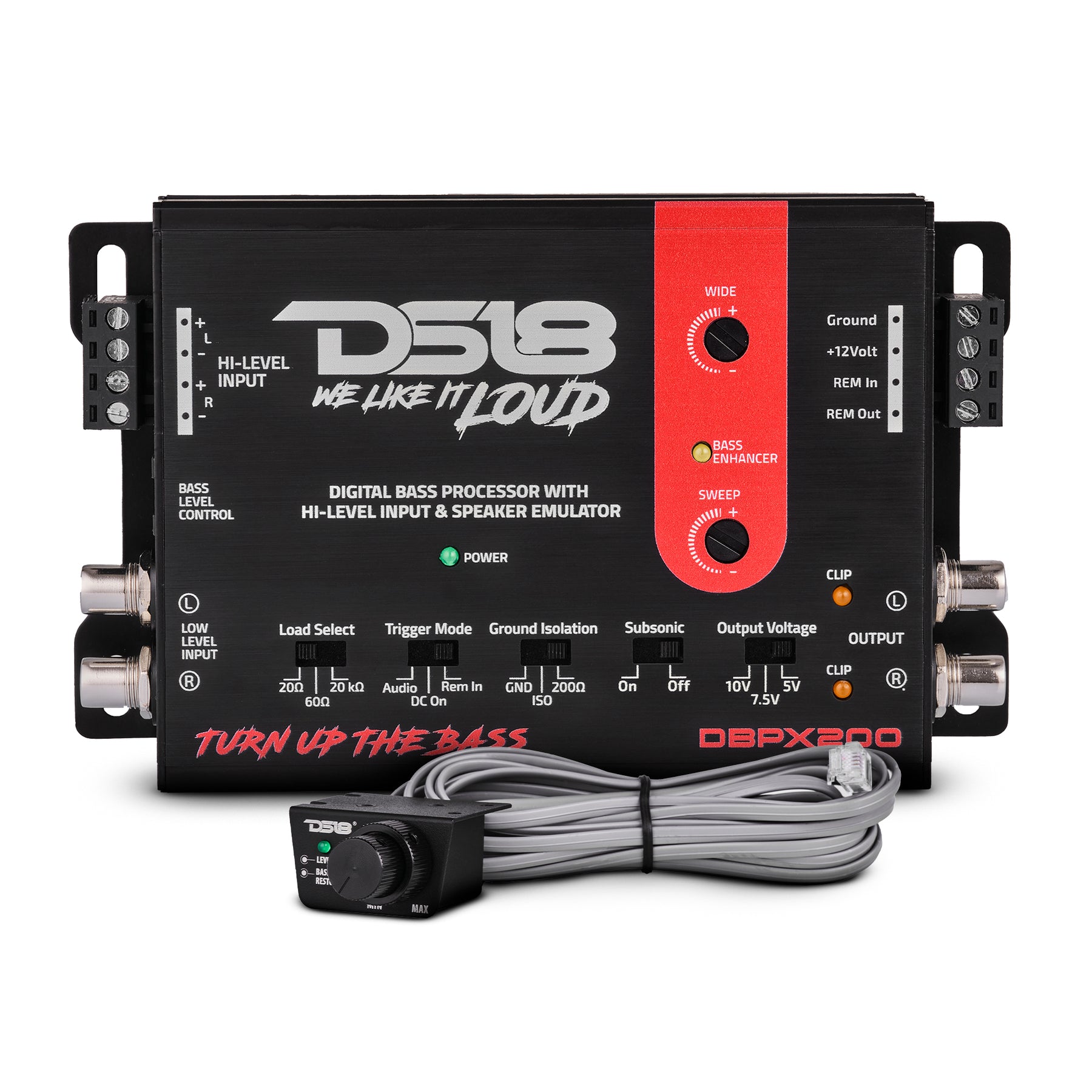

The DS18 DBPX200 is a 2‑channel digital bass processor and hi‑to‑low signal converter designed to boost and refine the low‑frequency performance of car audio systems. It features balanced preamp inputs/outputs with selectable output voltages (5 V/7.5 V/10 V) and high‑level speaker inputs for seamless integration with both aftermarket and OEM head units. The unit includes a fully adjustable bass processor with sweep and Q (width) control, a selectable subsonic filter, remote dual‑knob control for bass and level, and LED indicators for power and clipping. Built in a compact aluminum chassis with ground isolation and auto turn‑on functions, the DBPX200 delivers cleaner, deeper bass and improved sound balance with noise rejection for enhanced low end in vehicle audio systems.
Specifications
| Feature | Specification |
|---|---|
| SKU | DBPX200 |
| Operating Voltage | 9 – 16 V |
| Power Consumption | 0.18 A |
| Recommended Fuse Rating | 1 A |
| Power Input Terminal Size | 16 Ga |
| LED Indicator | Power / Bass Enhancer |
| Ground Isolation Switch | Yes (GND / ISO / 200 Ω) |
| Hi-Level Speaker Input | Yes (2 Channels) |
| Auto Turn-On Function | Yes (Audio / DC) |
| Remote Turn-On (Input / Output) | Yes |
| Remote Level Control | Yes (Bass Enhancer / Level) |
| RCA Connector Type | Tiffany (Silver) |
| Housing Material | Aluminum |
| Body Color / Finish | Black |
Audio Specifications
| Specification | Value |
|---|---|
| Frequency Response | 10 Hz – 20 kHz |
| Signal-to-Noise Ratio (S/N) | 95 dB |
| Total Harmonic Distortion (THD) | 0.05% |
| Input Sensitivity (Low-Level) | <8.8 V |
| Input Sensitivity (Hi-Level) | >15 V |
| Input Impedance | 20 kΩ |
| Output Voltage | Selectable (5 V / 7.5 V / 10 V) |
| Output Impedance | 110 Ω |
| Balanced Input Noise Rejection | >45 dB |
| Stereo Separation | >50 dB |
Crossover Section
| Specification | Value |
|---|---|
| Subwoofer LPF Frequency Cut-off | No (Full Range Signal) |
| Subwoofer Infrasonic Frequency Cut-off | Selectable (Off / 50 Hz) |
Bass Processor Section
| Parameter | Value |
|---|---|
| Gain | 0 – 8.8 V |
| Center Frequency (Sweep) | 75 – 120 Hz |
| Q Factor (Wide) | 1 – 4 |
Extra Features
| Feature | Description |
|---|---|
| Compact Size | Easy installation for any application |
| Surface Mount Component Technology | Yes |
| Quality Control Verification | Using Audio Precision Instruments |
| Remote Level Control | Yes, with clip indicator |
Measurements
| Measurement | Value |
|---|---|
| Overall Length | 6 in (153 mm) |
| Overall Width | 3.7 in (95 mm) |
| Overall Height | 1.1 in (28 mm) |
Product Overview
Digital Bass Processor With Hi to Low Signal Converter & Speaker Emulator
The included balanced line level input and fully adjustable bass processor enhances low frequencies and volume from the original source. This means you can fine-tune your bass and volume with authority, ensuring you get the audio experience you’ve been dreaming of.

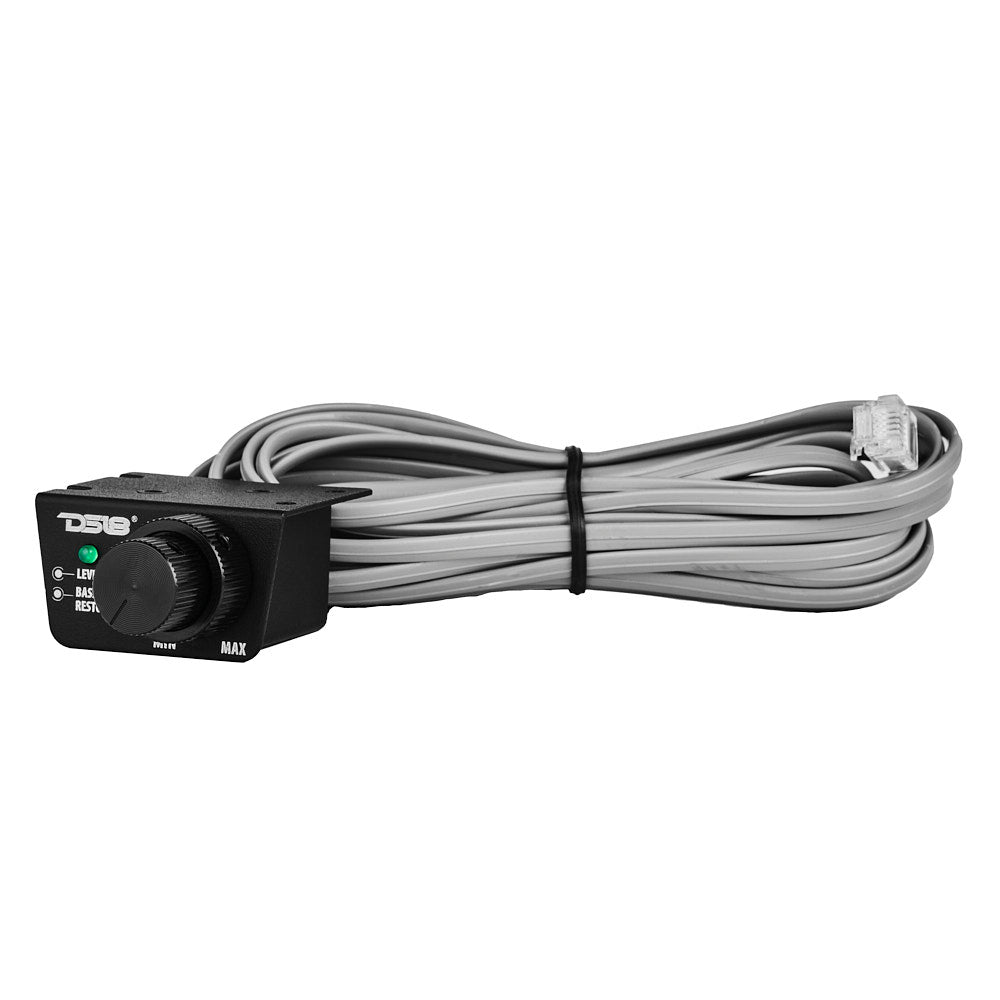

With hi-level speaker inputs for OEM integration, the DBPX200 seamlessly integrates with any existing car audio system. The dual knob dash mount remote control allows for convenient and easy bass and volume adjustments on the go, giving you full control over your system.
The DBPX200 operates at a voltage range of 9-16V and consumes only 0.18A of power. It is recommended to use a 1A fuse rating for optimal performance. The LED indicators on the knob and processor lights up to indicate power, bass enhancement, and clipping.
This DBPX200 also features an input load selector, subsonic filter, and selectable auto turn-on feature. The PCB with anti-corrosion coating ensures durability and longevity, while the compact design allows for easy installation in any application.
With its high-quality components and meticulous construction, the DBPX200 delivers exceptional audio performance. Making it a must-have upgrade for any car audio enthusiast. Order yours today and experience the DS18 difference.
