Description
DS18 CF-X8PRO
The NXL‑X8PRO is a pair of 8″ compact wakeboard tower speakers featuring a hybrid mid‑range driver with compression horn and integrated RGB LED lighting. Designed for marine, UTV, ATV, and powersports audio applications, these speakers deliver crisp highs and tight mids with robust 250 W RMS (500 W max) power handling. Built with water‑resistant construction and adjustable clamps, they are ideal for custom installs on wakeboard towers, roll cages, and outdoor audio setups.
Specifications
| Parameter | Details |
|---|---|
| SKU | NXL-X8PRO |
| Nominal Diameter | 8″ / 203 mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 250 W |
| MAX Power Handling | 500 W |
| Sensitivity (1W / 1m) | 97 dB |
| Frequency Response | 80 Hz – 20 kHz |
| Recommended Hi-Pass Crossover | 100 Hz |
Body / Features
| Feature | Specification |
|---|---|
| Enclosure Material | Injection PC + ABS |
| Marine Grade Type | IP65 + UV Stable |
| RGB LED | Integrated LED-RGB acrylic ring lighting, 6 core wires for lighting and speaker |
| Grill Type | ASA (Injection Grill) |
| Clamps | Die-cast adjustable (1″–2″), 360° rotation mounting, buried or open wire optional, includes NBR pad & stainless hardware (screws, stop washers, hex wrench, safety rope, screw fastening glue) |
| Front Logo | Yes, can be rotated for correct angle display |
| Rear Logo | Yes, can be rotated for correct angle display |
| Finish | Matte Black, Glossy White, Glossy Carbon Fiber Texture |
| Sold in Pair | Yes |
| Silicone Cover Included | Yes |
Woofer Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 1.5″ / 38.6 mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Water-resistant paper |
| Surround Material | Coated cloth |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 27 oz |
Driver Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 1″ / 25.4 mm |
| Type | Compression driver with injection-molded ABS horn |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Crossover | 6 dB / Oct |
| Horn Diameter | 3.26″ / 83 mm |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume | 10 L / 0.35 ft³ |
| Excursion (one-way) | 9.2 mm |
| Free Air Resonance | 135 Hz |
| Mechanical Factor (Qms) | 5.96 |
| Electrical Factor (Qes) | 1.321 |
| Total Factor (Qts) | 1.011 |
| Mechanical Mass | 9.69 g |
| Mechanical Compliance | 137.345 mm/N |
| BL Factor | 4.580 |
| Voice Coil Inductance | 4.22 mH |
| Cone Area | 226.98 cm² |
| DC Resistance | 3.4 Ohms |
| Mechanical Mass w/o Air | 7.724 g |
Speaker Measurements
| Parameter | Specification |
|---|---|
| Overall Diameter | 8.6″ / 218 mm |
| Overall Depth | 9.4″ / 238 mm |
| Overall Height | 12.3″ / 313 mm |
Product Overview

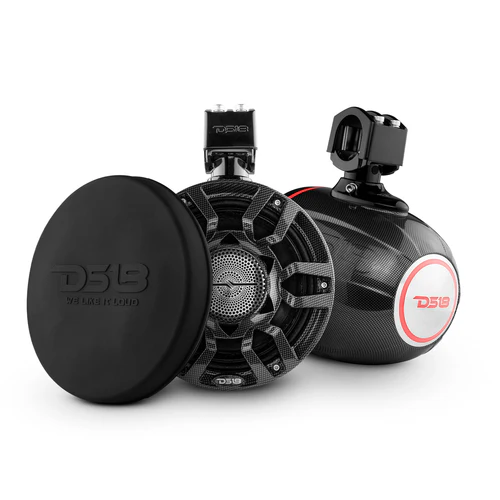

8″ Compact Wakeboard Tower Speakers with Hybrid Coaxial, RGB LED Lights, and Speaker Cover
The NXL-X8PRO is DS18’s pro-grade solution for UTVs, ATVs, marine builds, and wakeboard towers that demand it all—high-output sound, and rugged durability.
Built to Perform
Designed around our PRO-HY8.4B coaxial, this 8″ tower speaker delivers crisp highs, tight mids, and deep vocal projection even at high speeds. With a 4-ohm impedance, 1.5″ voice coil, and 1″ titanium compression driver powered by a neodymium magnet, the NXL-X8PRO reaches a frequency response of 80Hz–20kHz with 97dB sensitivity and pushes 250W RMS/500W MAX.
Die-Cast Clamps with 360° Rotation
Every speaker comes with an integrated adjustable clamp system for 1″–2″ bars with 360-degree swivel and optional buried or open wire routing. Need more? Use the CLPX2T3 adaptor for tubes up to 3 inches.
No tubular mount points? No problem. For flat surface installations, pair it with DS18’s FLMBPX flat mount bracket for a rock-solid install with vertical positioning and secure fitment—ideal for jet skis, decks, or roof panels.
RGB LED Lighting
RGB acrylic rings built into the cone and logo bring full illumination to your setup. But to unlock full control, you’ll need DS18’s LED-BTC Bluetooth RGB controller: when paired with DS18’s LED-BTC App on iOS and Android you get custom colors, light patterns, brightness, and music sync modes.
Marine-Ready Durability
Constructed from injection-molded PC+ABS, with a water-resistant paper cone, coated cloth surround, aluminum basket, and IP65 + UV protection, this speaker is made for saltwater, mud, dust, and sun. The NXL-X8PRO’s also come with premium CS-8 speaker covers to keep your gear protected when not in use.
