Description
DS18 CF-X6TPNEO

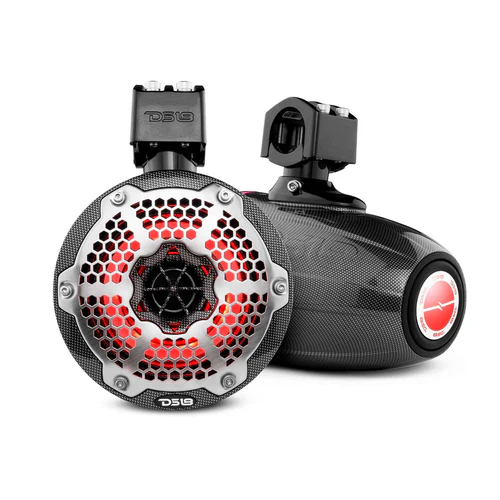

The NXL‑X6TPNEO is a pair of 6.5″ marine‑grade wakeboard tower speakers with built‑in passive radiators and integrated RGB LED lighting. Designed for marine, UTV, ATV, and powersports audio systems, this speaker pair delivers deep bass, clear highs, and vibrant lighting effects. With rugged IP65 water‑resistant and UV‑stable construction, adjustable 360° clamp mounts, and premium neodymium drivers, they are ideal for custom outdoor and on‑the‑water audio installations.
Specifications
| Parameter | Details |
|---|---|
| SKU | NXL-X6TPNEO |
| Nominal Diameter | 6.5″ |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 150 W |
| MAX Power Handling | 450 W |
| Sensitivity (1W / 1m) | 93 dB |
| Frequency Response | 70 Hz – 21 kHz |
| Recommended Hi-Pass Crossover | 90 Hz |
Body / Features
| Feature | Specification |
|---|---|
| Enclosure Material | Injection PC + ABS |
| Marine Grade Type | IP65 + UV Stable |
| RGB LED | Integrated LED-RGB speaker lighting, acrylic ring lighting, and back logo with 6 core wires for lighting and speaker |
| Grill Type | ABS + 316 Stainless Metal Mesh |
| Pair | Yes |
| Clamps | Die-cast adjustable (1″–2″), 360° rotation mounting, buried or open wire optional, includes NBR pad & stainless hardware (screws, stop washers, hex wrench, safety rope, screw fastening glue) |
| Front Logo | Yes, can be rotated for correct angle display |
| Rear Logo | Yes, radiator fixed position |
| Colors Available | Black, White, Red, Carbon Fiber |
Woofer Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 1.5″ |
| Cone Material | Waterproof compress paper + carbon fiber |
| Surround Material | Soft PC damping glued |
| Basket Material | PC injection-molded composite |
| Magnet Material | Neodymium |
| Magnet Grade | N40H |
| Passive Radiator | Yes, 3.5″ with LED RGB light |
Tweeter Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 1″ |
| Type | Compression driver with CNC solid aluminum horn |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium |
| Crossover | 12 dB with over-power protection |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 8.5 L |
| Excursion (one-way Xmax) | 3 mm |
| Free Air Resonance (Fs) | 75 Hz |
| Total Factor (Qts) | 0.783 |
Speaker Measurements
| Parameter | Specification |
|---|---|
| Overall Diameter | 6.93″ / 176.1 mm |
| Overall Depth | 11.33″ / 287.8 mm |
| Overall Height | 10.7″ / 271.7 mm |
Product Overview
6.5″ Marine Wakeboard Tower Speaker with Passive Radiator
DS18’s NXL-X6TPNEO takes everything you love about tower speakers and supercharges it with enhanced bass response, premium neodymium drivers, and RGB LED lighting in a sleek, water-resistant build.
Power Packed (450W Peak / 150W RMS)
Equipped with a 6.5″ HYDRO midrange driver and 1″ built-in tweeter, this speaker pumps out deep lows and crisp highs powered by neodymium magnets for efficient, high-output sound. The integrated passive woofer radiator enhances bass depth without extra power draw—so your beats hit harder without distortion.
Fully Integrated RGB LED Lighting
From the cone to the logo—and even the passive radiator—RGB LEDs are built in. But to unlock their full power, you’ll need the DS18 LED-BTC controller (sold separately). This compact, waterproof module allows you to wire up your lights and bring them to life. Once installed, control your lights straight from your phone using DS18’s LED-BTC App—available on iOS and Android.
360° Adjustable Clamp System
Each NXL-X6TPNEO includes DS18’s marine-grade clamps with 360° swivel adjustment and multiple wiring options (buried or open). These clamps mount to bars 1″ to 2″ in diameter. Need more range? Pair it with the CLPX2T3 adaptor to fit 2.25” to 3” tubes—ideal for custom builds, boats, and off-road vehicles.
No tubular mount points? No problem. For flat surface installations, pair it with DS18’s FLMBPX flat mount bracket for a rock-solid install with vertical positioning and secure fitment—ideal for jet skis, decks, or roof panels.
Built for Real-World Riding
Rated IP65 waterproof + UV stable, and finished with an ABS + 316 stainless steel mesh grille, this speaker is made to resist saltwater, mud, rain, and sun without fading or failing.
Available in 4 Rugged Finishes
Match your build’s style with four bold color options: Black, White, Red, and Carbon Fiber.
