Description
DS18 CF-6MD

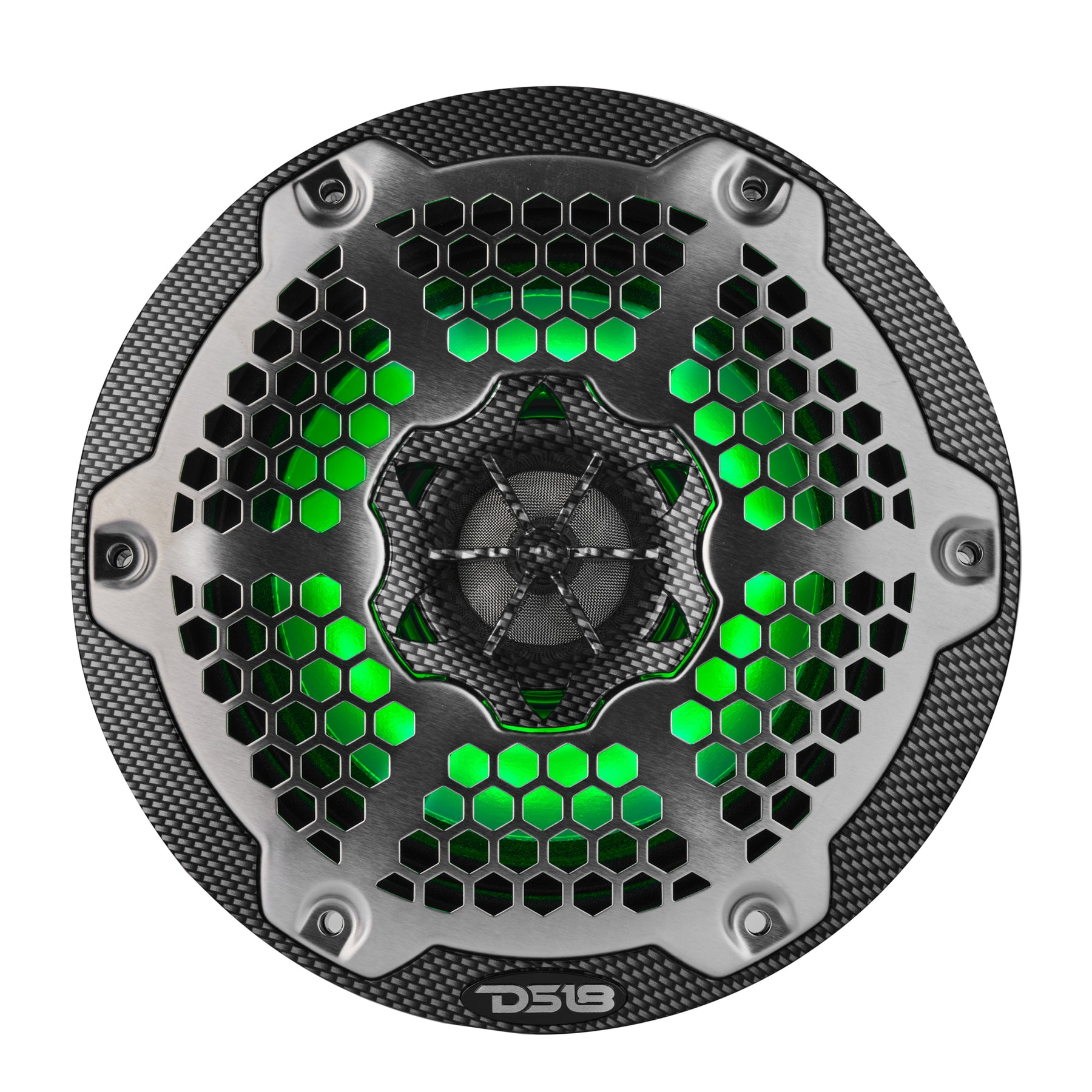

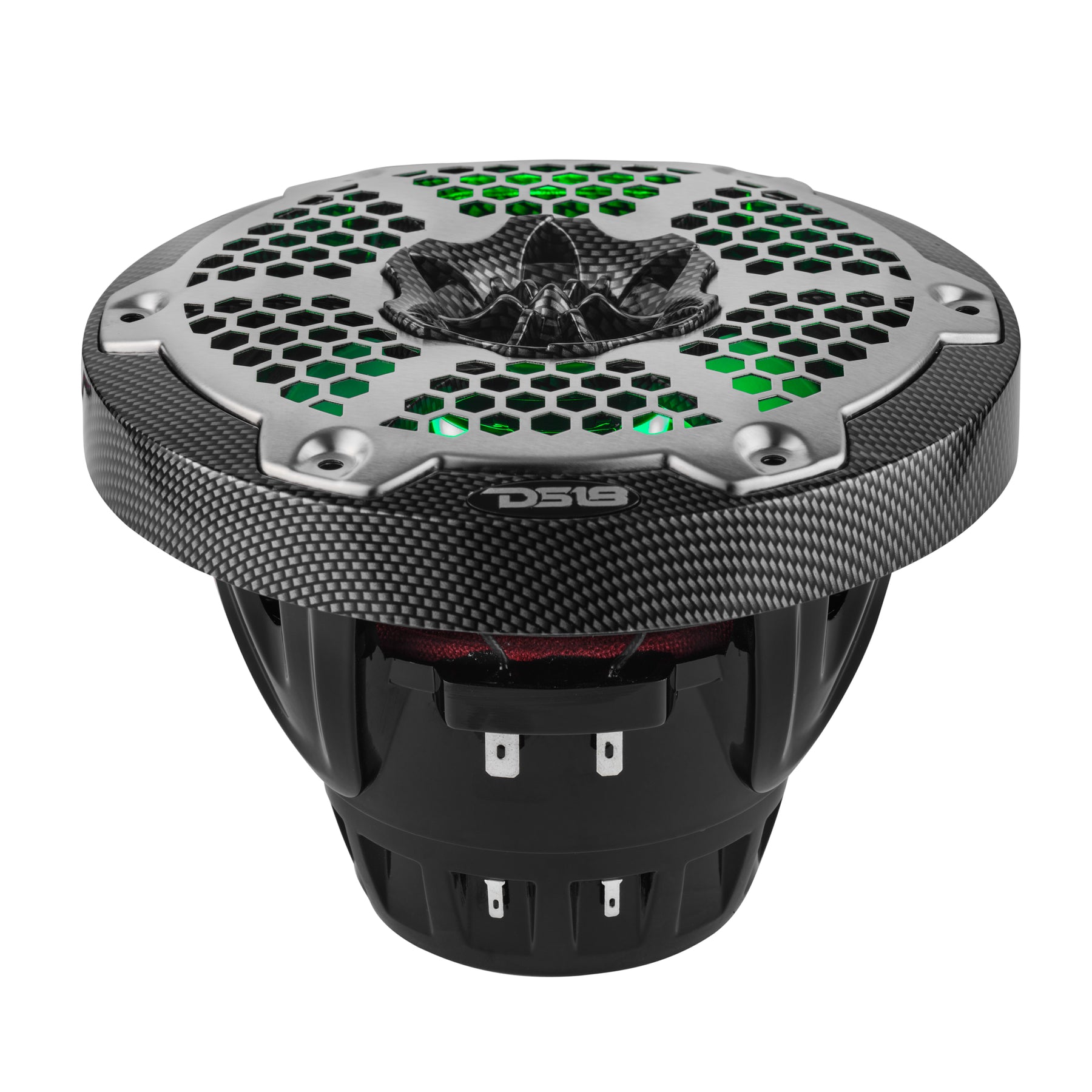

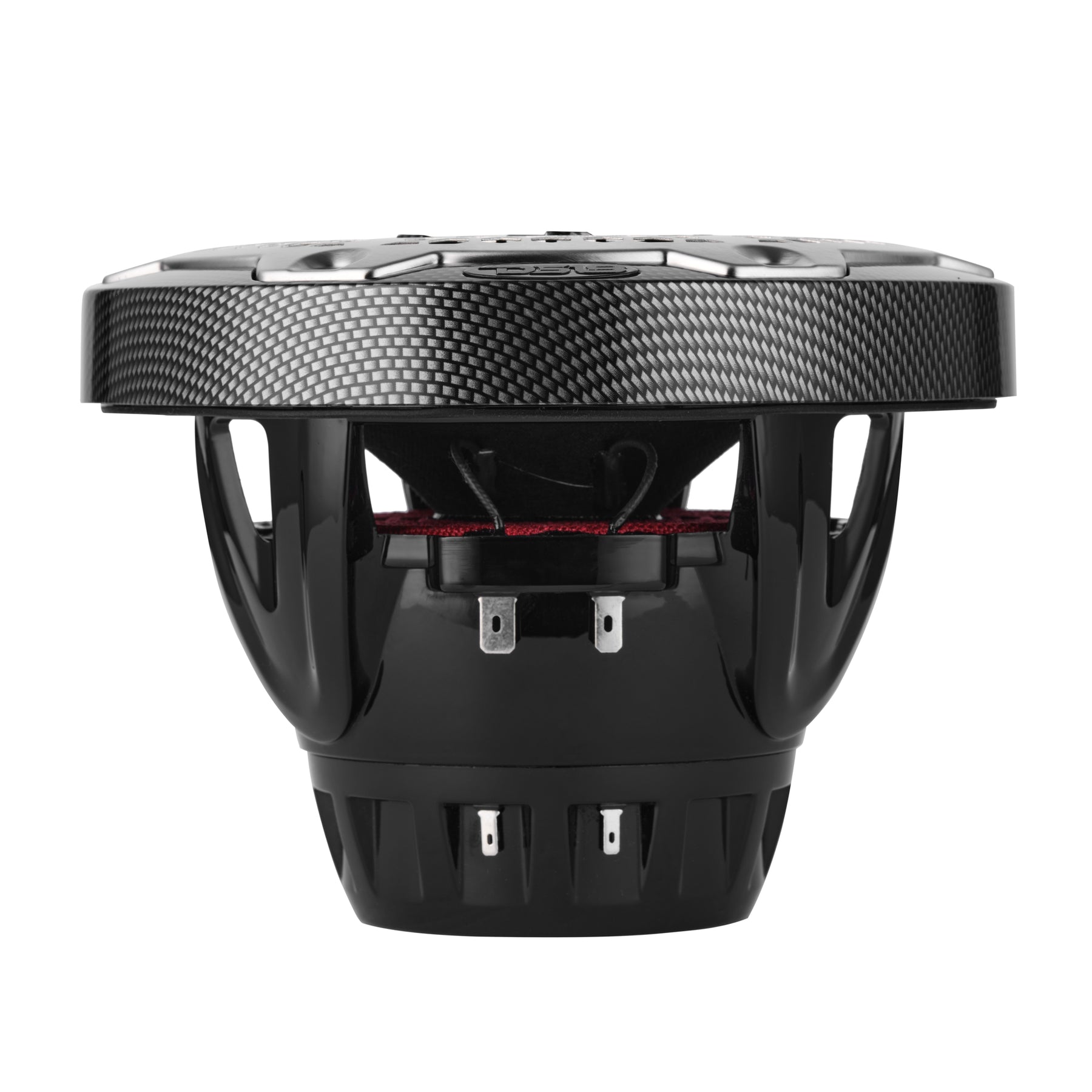

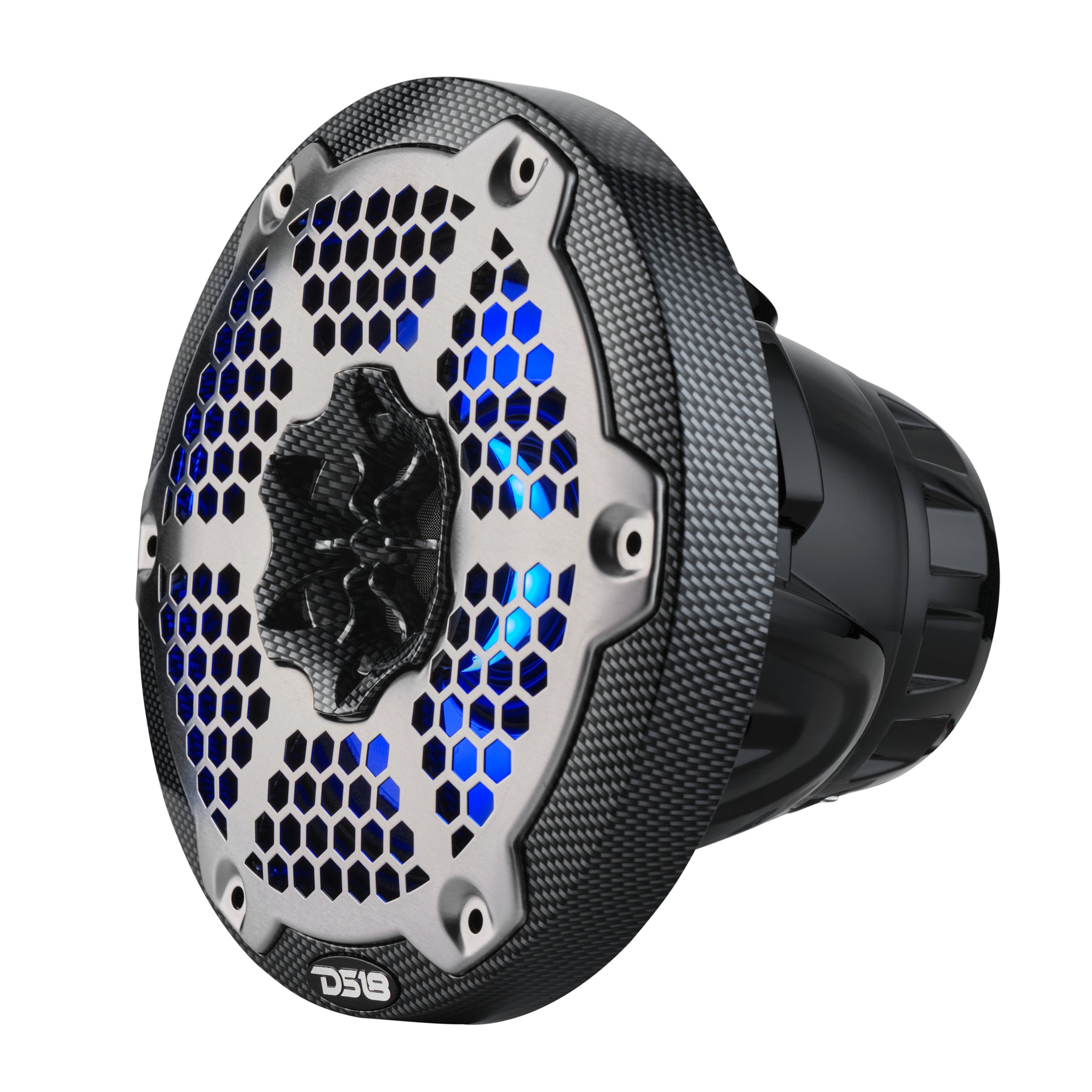

The CF-6MD is a 6.5″ marine‑grade hybrid 2‑way speaker pair featuring a neodymium compression driver with CNC machined aluminum horn and a water‑resistant woofer cone. Designed for marine, powersports, UTV, ATV, and outdoor audio systems, it delivers balanced full‑range sound with crisp highs, solid mids, and vibrant RGB LED lighting. With its rugged IP65 waterproof and UV‑stable construction and removable stainless steel grills, it’s ideal for harsh environments and immersive audio setups.
Specifications
| Parameter | Specification |
|---|---|
| Nominal Diameter | 6.5″ / 165mm |
| RMS Power Handling (Combined) | 250W |
| MAX Power Handling (Combined) | 500W |
| Sensitivity (1W/1m) (Combined) | 108dB |
| Frequency Response (Combined) | 80Hz-20kHz |
| Number of Ways | 2-Ways |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, 12VDC LED integrated |
| Grill Type | Injection Molded Composite ASA with UV Protection coating + Removable 316 Stainless Steel metal mesh |
| Sold in Pair | Yes |
| Color / Finish | Matte Black |
Woofer Specifications
| Parameter | Specification |
|---|---|
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 200W |
| MAX Power Handling | 400W |
| Sensitivity (1W/1m) | 93dB |
| Frequency Response | 80Hz-9kHz |
| Recommended Band-Pass Crossover | 100Hz-2.5kHz |
| Voice Coil Diameter | 1.5″ / 38.6mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Injection Molded PC with UV Protection coating |
| Magnet Material | Neodymium (N40H) |
| Magnet Weight | 4.9 oz |
Driver Specifications
| Parameter | Specification |
|---|---|
| Type | Compression driver with CNC solid aluminum horn |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 50W |
| MAX Power Handling | 100W |
| Sensitivity (1W/1m) | 108dB |
| Frequency Response | 1kHz-20kHz |
| Crossover | Built-In 12dB/Oct with overload protection |
| Recommended High-Pass Crossover | 2.5kHz |
| Voice Coil Diameter | 1″ / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 0.61 oz |
Thiele & Small Parameters
| Parameter | Specification |
|---|---|
| Equivalent Volume | 3.36L / 0.118ft³ |
| Excursion (one way) | 2.5mm |
| Free Air Resonance | 134Hz |
| Mechanical Factor | 5.659 |
| Electrical Factor | 1.036 |
| Total Factor | 0.876 |
| Moving Mass | 8.1g |
| Compliance | 187.33uM/N |
| BL Factor | 3.729 |
| Voice Coil Inductance | 0.15mH |
| Cone Area | 113.1cm² |
| DC Resistance | 2.9 Ohms |
| Efficiency Bandwidth Product | 129 |

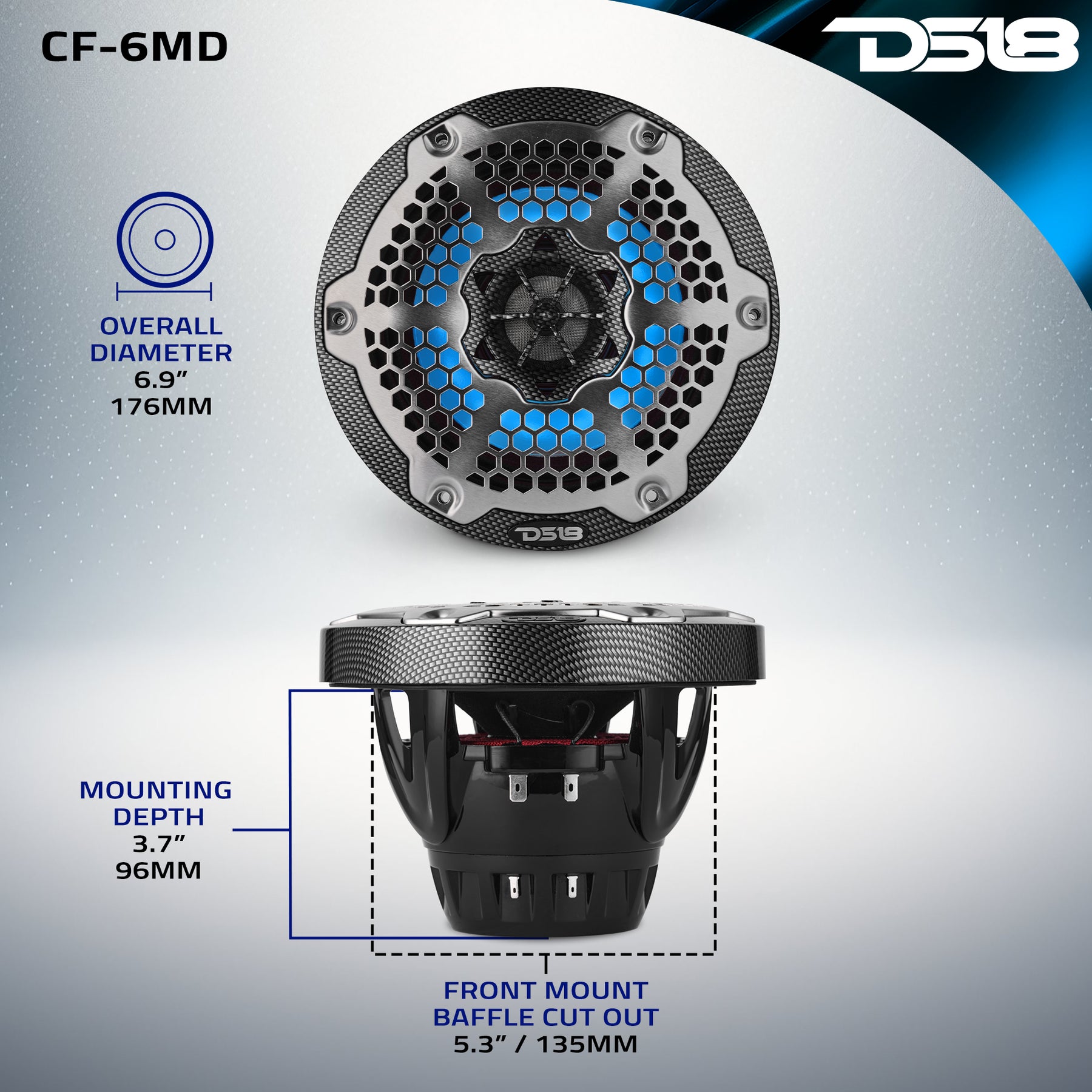

Speaker Measurements
| Parameter | Specification |
|---|---|
| Overall Diameter | 6.9″ / 176mm |
| Overall Depth | 5″ / 128mm |
| Front Mount Baffle Cutout | 5.3″ / 135mm |
| Mounting Depth | 3.7″ / 96mm |
| Motor Diameter | 3.15″ / 80mm |
Product Overview
6.5” Marine Grade Hybrid Speaker with RGB LED’s, Compression Driver, and Neodymium Magnet
The CF-6MD handles 250W RMS and 500W MAX in a compact 6.5-inch frame. Engineered with an IP65 marine-grade certification, this speaker stays crystal clear no matter the conditions.
Hybrid Design for Full-Range Sound

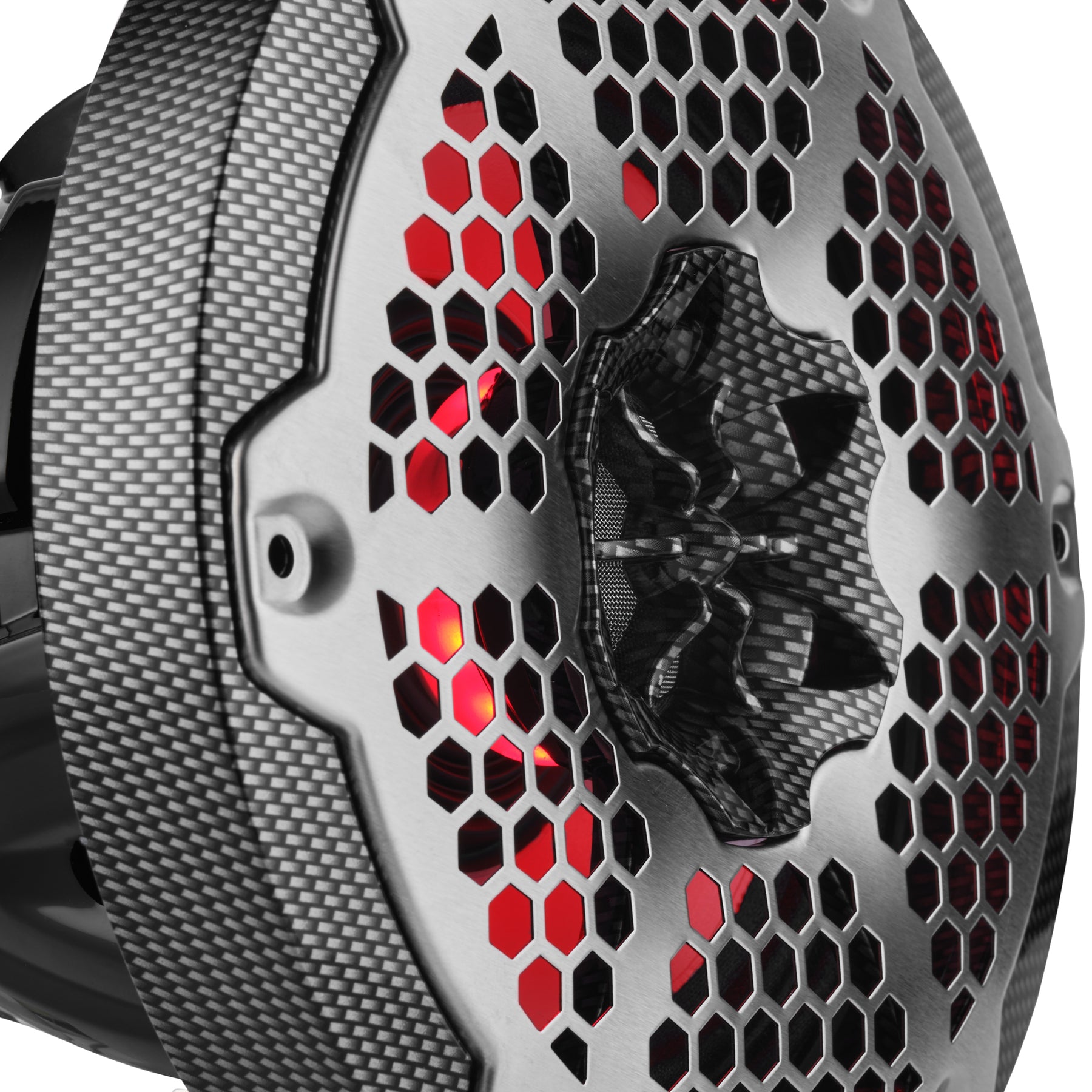

This 2-way hybrid speaker features a neodymium-powered compression driver with a CNC machined aluminum horn for punchy highs, while the water-resistant paper cone woofer delivers warm, precise mids and bass. The combination provides a balanced and immersive audio experience across a wide frequency range of 80Hz to 20kHz.
Durability Meets Style

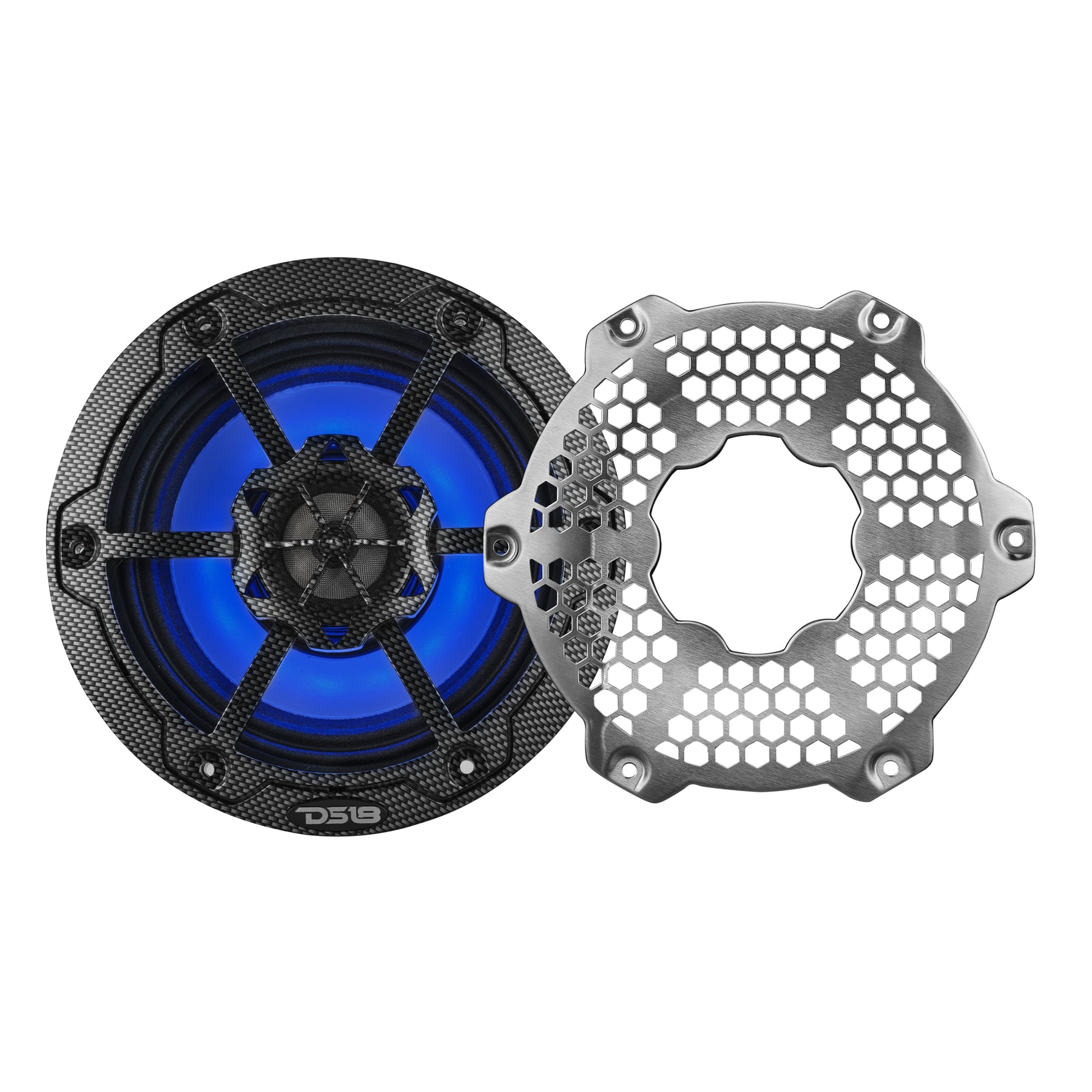

Built with an injection-molded ASA basket with UV protection and removable 316 stainless steel grill, the NXL-6MD is rugged yet visually striking. Integrated 12V RGB LED’s light up your marine or powersports setup.
Ready for Installation

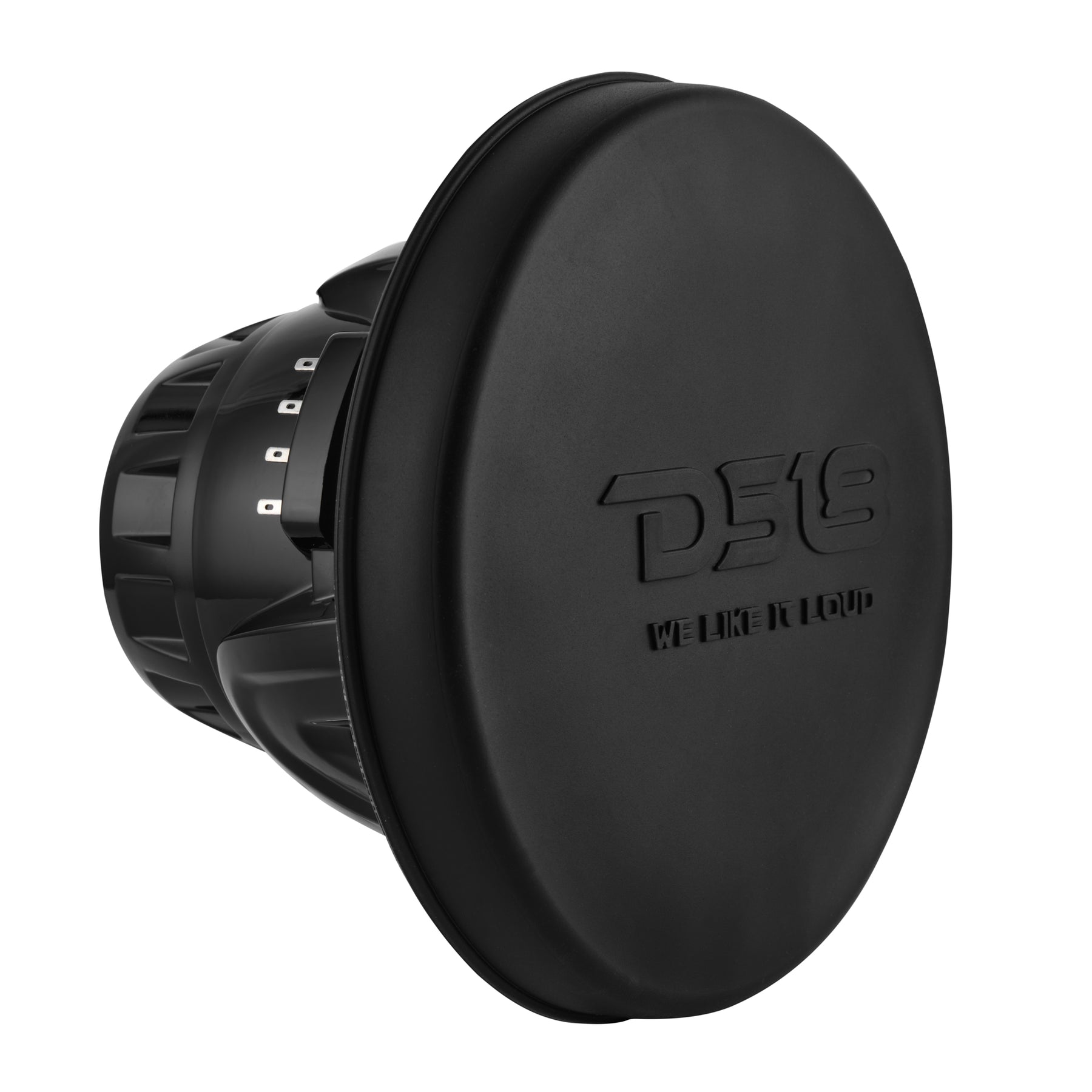

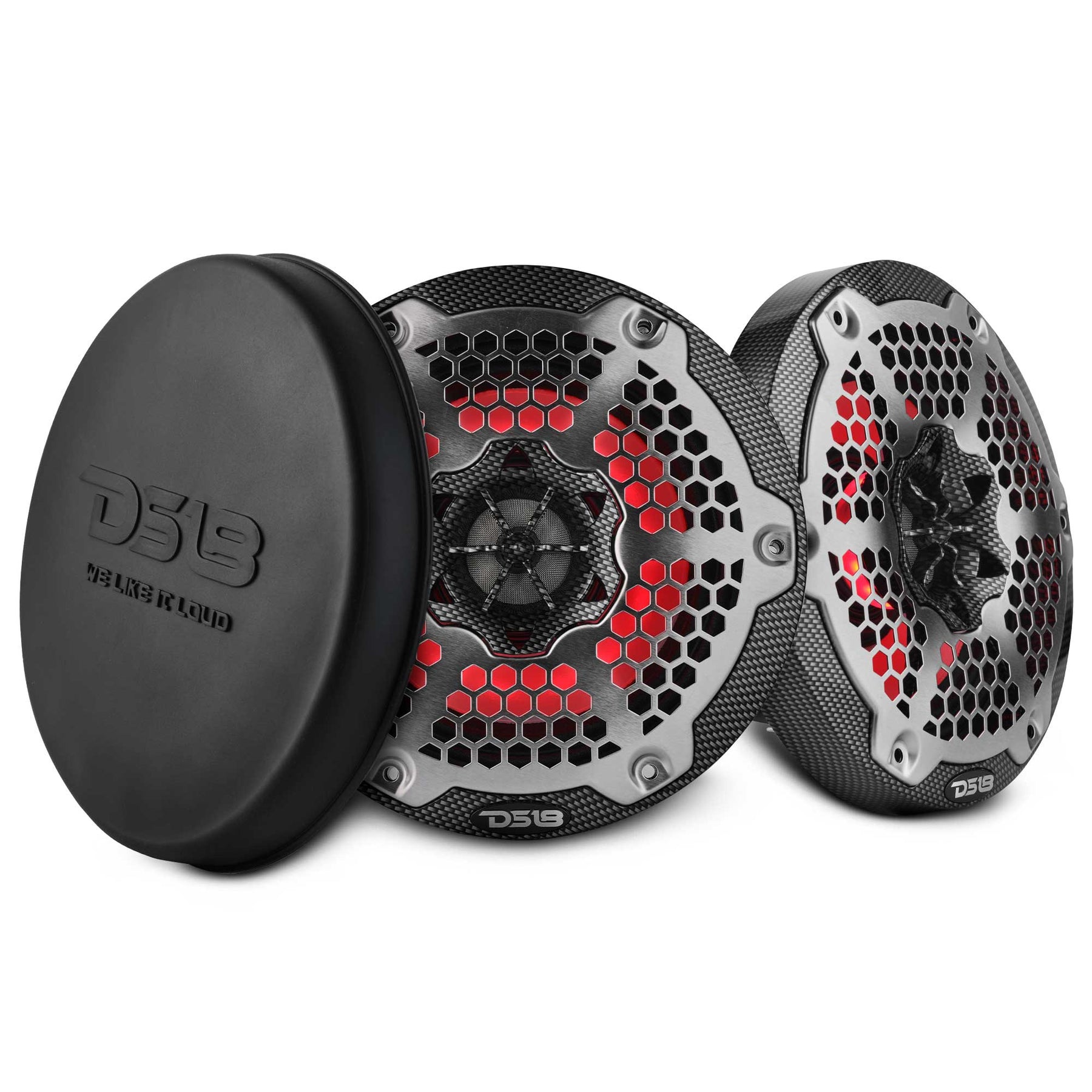

Installation is straightforward. Sold in pairs, the CF-6MD fits perfectly in your boat, ATV, or outdoor vehicle audio system. Speaker covers are included.
