Description
DS18 CF-10M
The CF‑10M is a 10″ marine‑grade 2‑way coaxial speaker pair with integrated RGB LED lighting, designed for boats, UTVs, ATVs, powersports, and outdoor audio systems. It combines a durable weather‑resistant build with clear full‑range audio and vibrant RGB LED effects, making it ideal for rugged environments and custom installations.
Specifications
| Specification | Value |
|---|---|
| SKU | CF-10M |
| Nominal Diameter | 10″ / 254 mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 200 W |
| MAX Power Handling | 600 W |
| Sensitivity (1W/1M) | 94.3 dB |
| Frequency Response | 35 Hz – 20 kHz |
| Recommended Hi-Pass Crossover | 50 Hz |
- Body / Features
| Feature | Description |
|---|---|
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, RGB Integrated |
| Grill Type | Injection Molded Composite (ASA) with 316 Stainless Steel Mesh |
| Pair | Yes |
| Color / Finish | Carbon Fiber Texture / Gloss |
Woofer Specifications
| Specification | Value |
|---|---|
| Voice Coil Diameter | 1.5″ / 38.6 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite with UV Protection Coating |
| Magnet Material | Ferrite (Y35) + Neodymium (N35) |
| Magnet Weight | 50 oz + 0.56 oz |
Tweeter Specifications
| Specification | Value |
|---|---|
| Voice Coil Diameter | 1″ / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 0.51 oz |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas (Equivalent Volume) | 197.13 L / 6.96 ft³ |
| Xmax (One Way) | 6 mm |
| Fs (Free Air Resonance) | 42 Hz |
| Qms (Mechanical Factor) | 6.874 |
| Qes (Electrical Factor) | 0.838 |
| Qts (Total Factor) | 0.747 |
| Mms (Moving Mass) | 11.37 g |
| Cms (Compliance) | 1.264 mm/N |
| Bl Factor | 3.4 |
| Le (Voice Coil Inductance) | 0.60712 mH |
| Sd (Cone Area) | 333.29 cm² |
| Re (DC Resistance) | 3.2 Ohms |
| EBP | 50.12 |

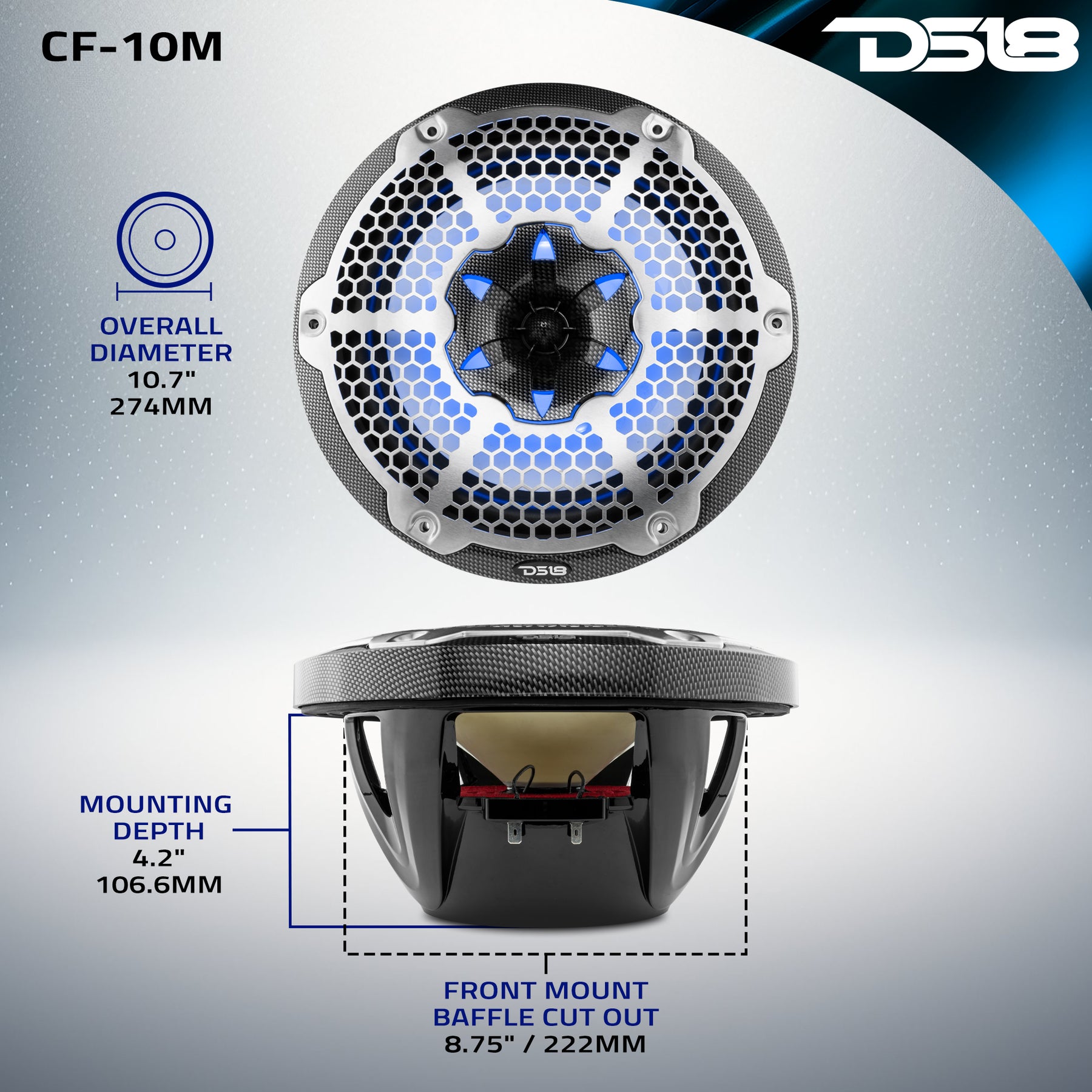

Speaker Measurements & Packaging
| Measurement | Value |
|---|---|
| Overall Diameter | 10.7″ / 274 mm |
| Overall Depth | 5.7″ / 144.7 mm |
| Front Mount Baffle Cutout | 8.75″ / 222 mm |
| Mounting Depth | 4.2″ / 106.6 mm |
| Motor Diameter | 5.3″ / 135 mm |
| Gross Single Unit Weight | 20.5 lb |
| Single Unit Box Dimensions (W × L × H) | 23 × 12.75 × 7.5 in |
| Units per Master Carton | 2 |
| Gross Master Carton Weight | 42 lb |
| Master Carton Dimensions (W × L × H) | 23.5 × 14 × 16 in |
Product Overview
NXL 10″ 2-Way Coaxial Marine Speaker With LED RGB Lights 200 Watts Rms 4-Ohm – Carbon Fiber
Prepare to be amazed by the innovative design and exceptional performance of DS18’s CF-10M!
Engineered to withstand the harshest elements, the CF-10M speakers feature an impressive IP65 waterproof rating, ensuring durability and longevity. The carbon fiber laminate construction, fortified with protective layers, guarantees a sturdy and reliable speaker that can handle any marine environment.

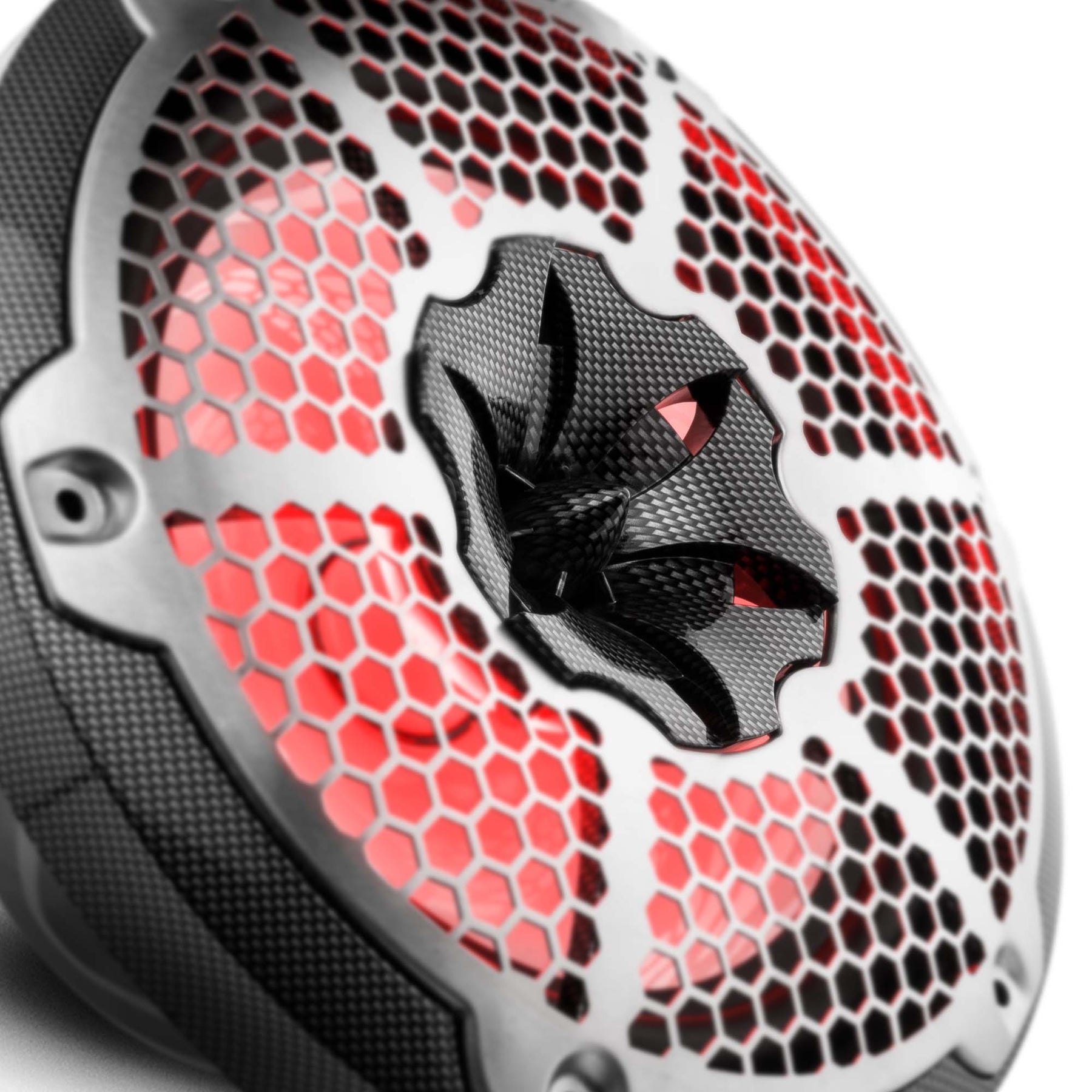

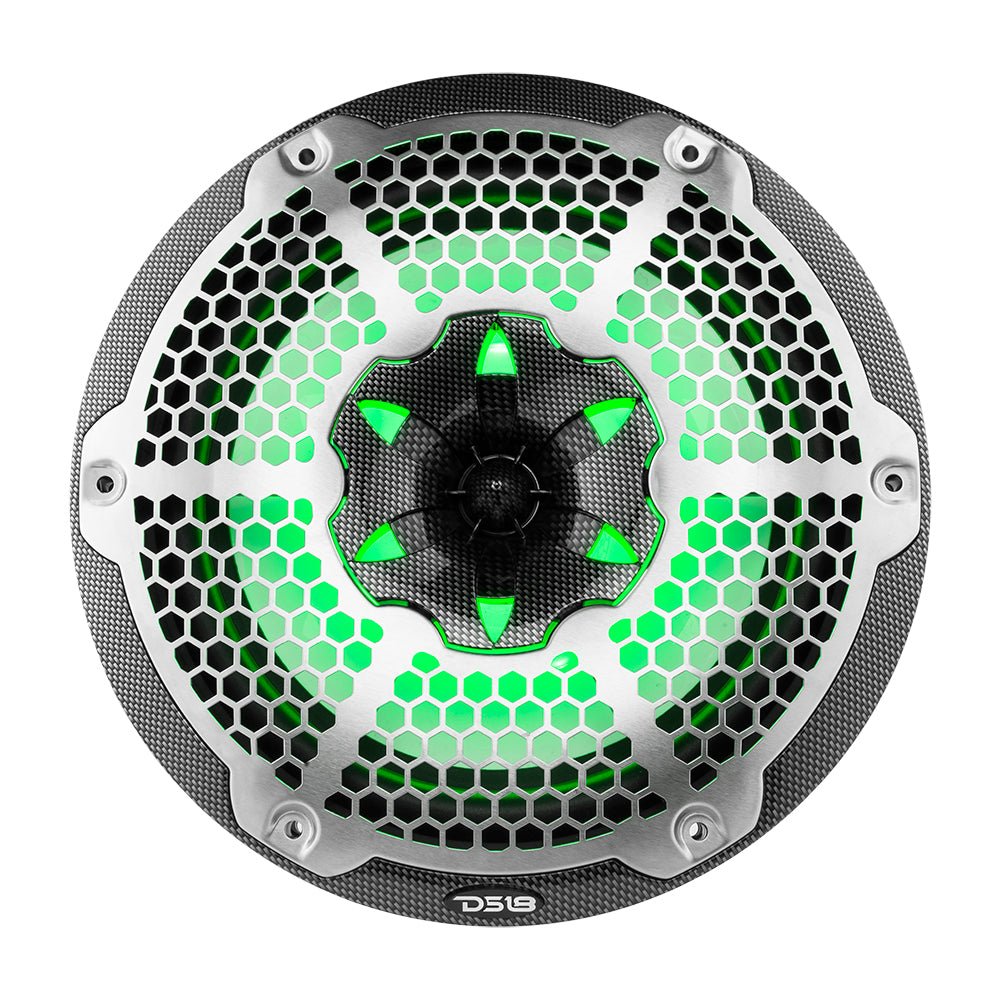

These speakers also come equipped with integrated RGB lighting on the metal mesh grill, allowing you to customize your sound system with vibrant colors. The waterproof cones combined with the mesmerizing LED lights create an eye-catching visual experience that complements your boat’s aesthetic perfectly.
When it comes to sound quality, the CF-10M delivers unparalleled performance. The 10-inch speakers produce a rich, full-bodied sound that is unmatched in open-air environments like being out on the water. With RMS Power Handling at 200W and MAX Power Handling of 600W, you will experience every nuance and detail of your favorite music with these powerful speakers.
With an integrated tweeter and mid-range woofer, DS18’s CF-10M offer the full range of frequencies and exceptional sound clarity. The exclusive metal mesh grill design not only adds a touch of style but also provides ultimate protection for your investment.
Upgrade your marine audio system with DS18’s CF-10M and elevate your boating experience to new heights.
