Description
DS18 CARAUDIO/STG2
Specifications
| Component | Quantity | SKU | Key Specs |
|---|---|---|---|
| 6.5″ 2-Way Coaxial Speakers | 2 | ZXI-654 | 240W MAX / 80W RMS / 4-Ohm / Ferrite Magnet / Glass Fiber Cone |
| 6×9″ 2-Way Coaxial Speakers | 2 | ZXI-694 | 360W MAX / 120W RMS / 4-Ohm / Ferrite Magnet / Glass Fiber Cone |
| 10″ Amplified Subwoofer | 1 | SB10A | 350W RMS / 700W Peak / 2-Ohm / 83dB / Shallow Mount / 1/2″ MDF with Black Carpet / Control Knob |
| 4-Channel Amplifier | 1 | G1000.4D | 4 x 90W @ 4-Ohm / Class D / 2–4 Ohm Stable |
| OFC / CCA Amplifier Installation Kits | 2 | AMPKIT4 / AMPKIT8 | 4GA & 8GA / Mini ANL Fuses 120A & 60A / Power & Remote Wires / Speaker & RCA Cables / Ultra Flex / Installation Accessories |

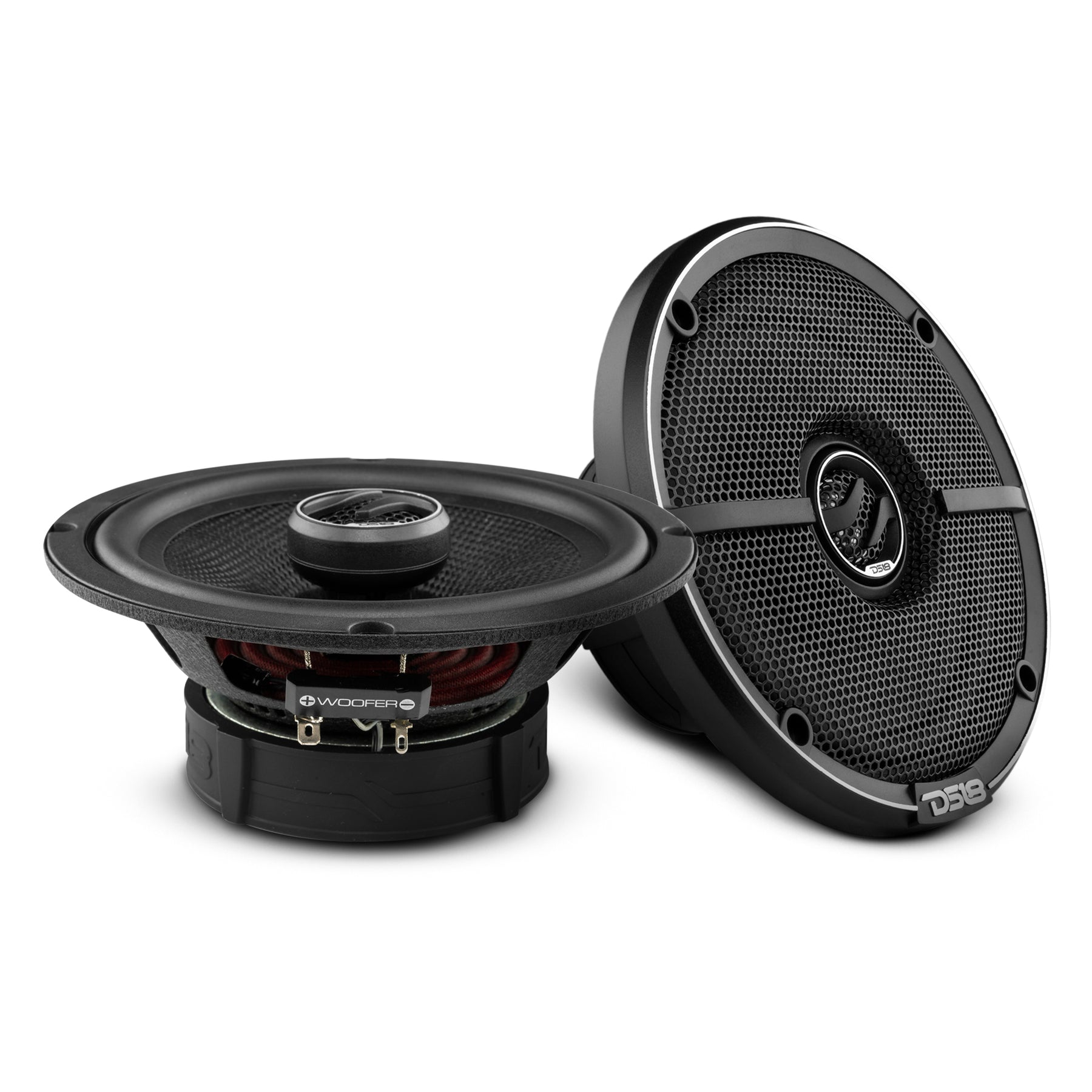

6.5″ 2-Way Coaxial Speakers (ZXI-654)
| Specification | Details |
|---|---|
| Size | 6.5″ |
| Type | 2-Way Coaxial |
| Max Power | 240 Watts |
| RMS Power | 80 Watts |
| Impedance | 4-Ohm |
| Magnet Type | Ferrite |
| Cone Material | Glass Fiber |

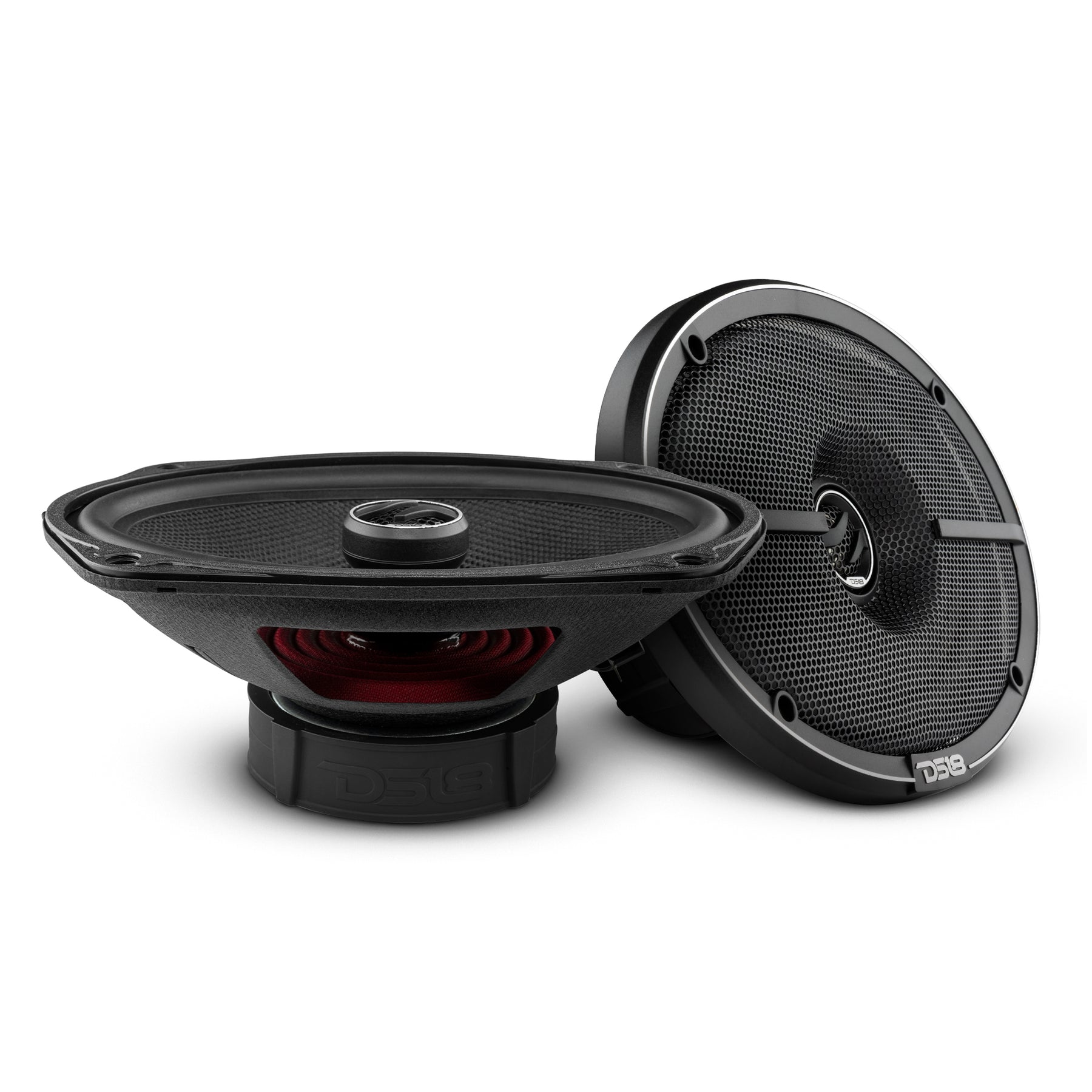

6×9″ 2-Way Coaxial Speakers (ZXI-694)
| Specification | Details |
|---|---|
| Size | 6×9″ |
| Type | 2-Way Coaxial |
| Max Power | 360 Watts |
| RMS Power | 120 Watts |
| Impedance | 4-Ohm |
| Magnet Type | Ferrite |
| Cone Material | Glass Fiber |

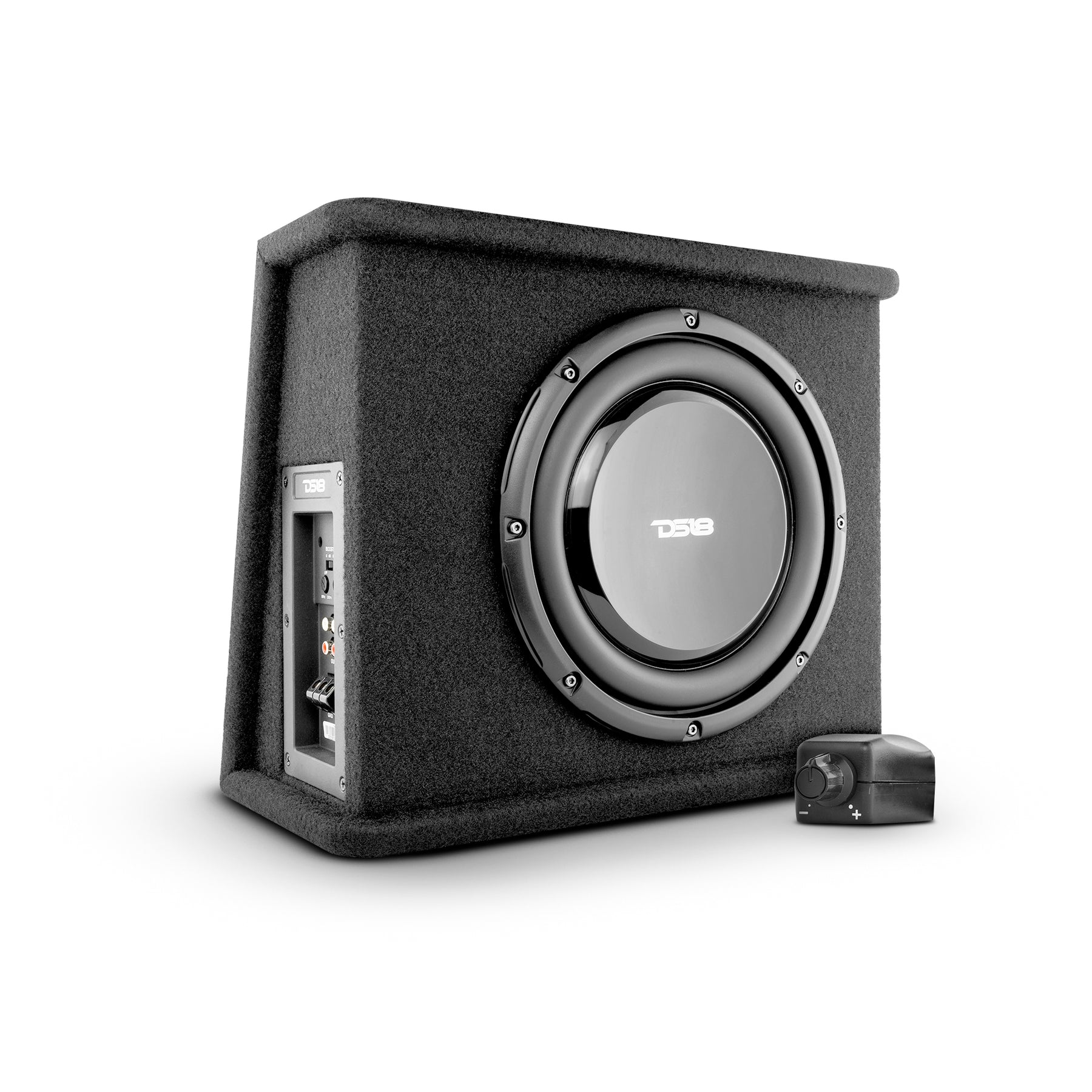

10″ Amplified Subwoofer (SB10A)
| Specification | Details |
|---|---|
| Size | 10″ |
| Type | Shallow Amplified Subwoofer |
| RMS Power | 350 Watts |
| Peak Power | 700 Watts |
| Impedance | 2-Ohm |
| Sensitivity | 83 dB |
| Material | 1/2″ MDF with Black Carpet |
| Extras | Subwoofer Control Knob |

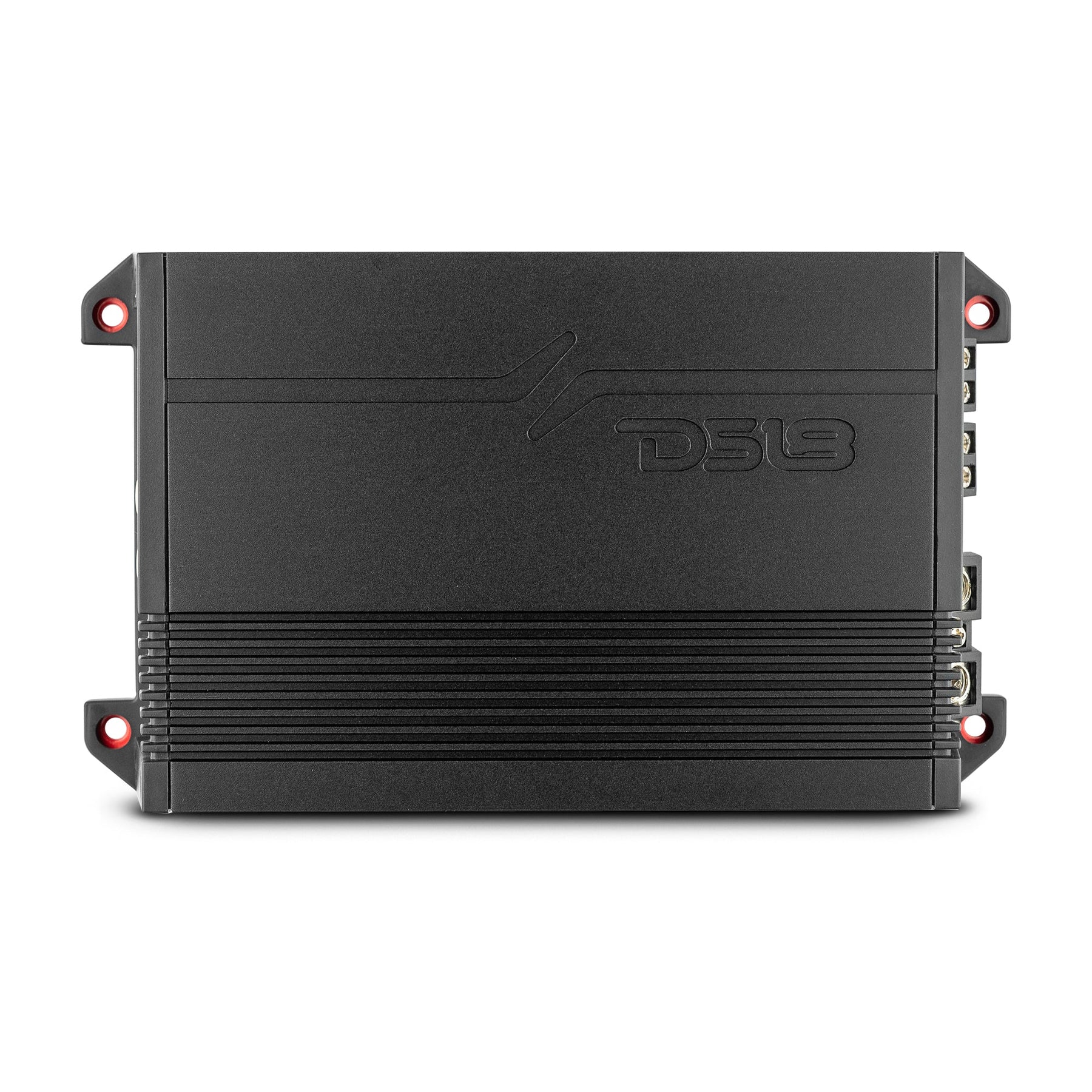

4-Channel Amplifier (G1000.4D)
| Specification | Details |
|---|---|
| Channels | 4 |
| Type | Full Range |
| Class | D |
| Stable Impedance | 2–4 Ohm |
| Power Output | 4 x 90 Watts @ 4-Ohm |
| Indicators | Power / Protection / Clip |
| Crossover | Built-In |
Amplifier Installation Kits (AMPKIT4 / AMPKIT8)
| Specification | Details |
|---|---|
| Wire Gauge | 4 GA & 8 GA CCA Ultra Flex |
| Fuse Holder | Mini ANL 120A & 60A |
| Includes | Power Wire, Remote Wire, Speaker Wire, RCA Cables |
| Accessories | Installation Hardware |
| Color | Red |
Product Overview

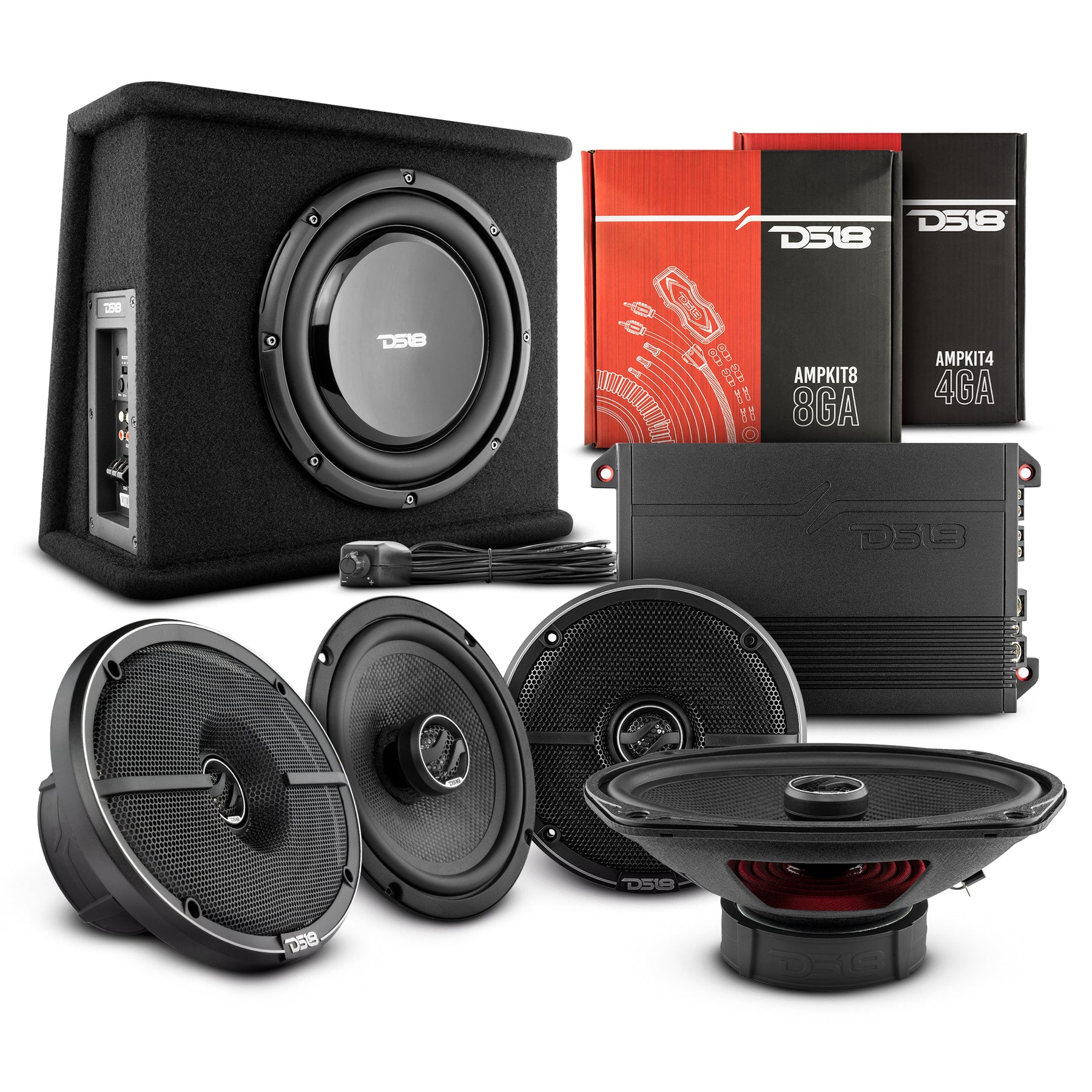

Stage 2 Car Audio Package
Getting LOUD is easy with DS18’s Stage 2 Car Audio Package: this high-performance car audio system combines cutting-edge components for competition level sound quality.
The Stage 2 Car Audio Package brings you the ultimate sound experience with both the ZXI-654 (Pairs) and ZXI-694 (Pairs). Kevlar Cone Woofers and Rubber Surrounds deliver punchy bass, while Neodymium Tweeters ensure crystal-clear highs. The full range of frequencies helps this package hit hard with deep bass and crisp highs, all without distortion.
Don’t let it’s size fool you, the SB10A has a manageable 350W RMS Power Handling for earth-shattering bass every session. Its slim design includes thermal and overload protection to keep your system safe during intense sessions. The remote level control lets you adjust the bass to your preference effortlessly.
DS18’s G1000.4D is a 1000W Class D amplifier with advanced HP/LP/Full filters for custom sound. It features high-level input compatibility and offers RMS ratings of 4 x 90W @ 4Ω, 4 x 150W @ 2Ω, and 2 x 300W @ 4Ω bridged. Built-in short circuit, thermal, and voltage protection with LED indicators ensure reliable performance.
Ensure quick, clean, and powerful installations with DS18’s AMPKIT8 (8-GA CCA) and AMPKIT4 (4-GA CCA). Featuring true gauge wire and heavy-duty components, they guarantee the best performance and durability. Each kit includes all necessary fusing, cables, and hardware for a hassle-free installation process.
Together, these components create an audio system that’s not only powerful but accurate. Embrace the power of customization and superior sound quality with DS18’s Stage 2 Car Audio Package—your system will never sound the same.
