Description

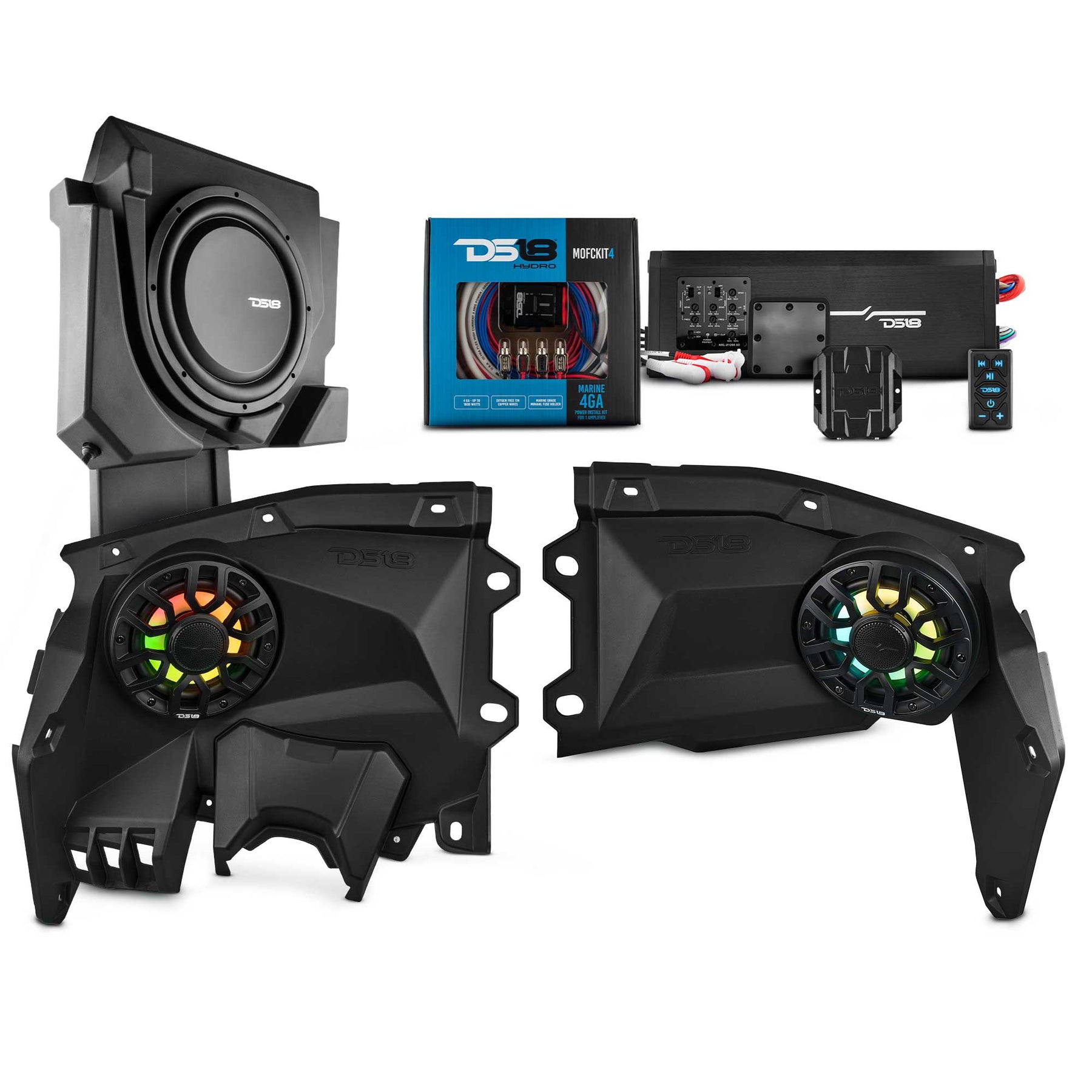

DS18 CAN-AM X3 Stage 2
The CAN-AM X3 Stage 2 audio upgrade kit is a more advanced sound system designed specifically for the Can-Am Maverick X3. It builds on the Stage 1 setup by adding larger/more powerful speakers, an upgraded amplifier, and usually a dedicated subwoofer enclosure to deliver deeper bass, higher output, and fuller frequency range. This kit is developed for riders who want a noticeable jump in audio performance for trail riding, dunes, and outdoor adventures. Components are engineered for off-road use with weather-resistant materials and fit into factory locations with minimal modification.
Specifications
Package Includes
| Item | Model | Description |
|---|---|---|
| Dash Board Loaded with 6.5″ Waterproof Speakers | CA-X3DS6LDV2 | Front baffle speaker pods (Driver & Passenger side) |
| Under Seat Loaded Enclosure with 12″ Subwoofer | CA-X3BASS/D | Driver side under seat subwoofer enclosure |
| 5-Channel Full-Range Marine Amplifier | NXL-X1200.5D | Full-range powersports amplifier |
| Rocker Switch Bluetooth Audio Receiver with Controls | RKS-BT | Waterproof Bluetooth receiver with control buttons |
| LED Lights Bluetooth Control | LC-DRM | Digital LED light controller |
| Marine Tinned OFC Amplifier Installation Kit 4-GA | MOFCKIT4 | 4 GA marine amplifier wiring kit |

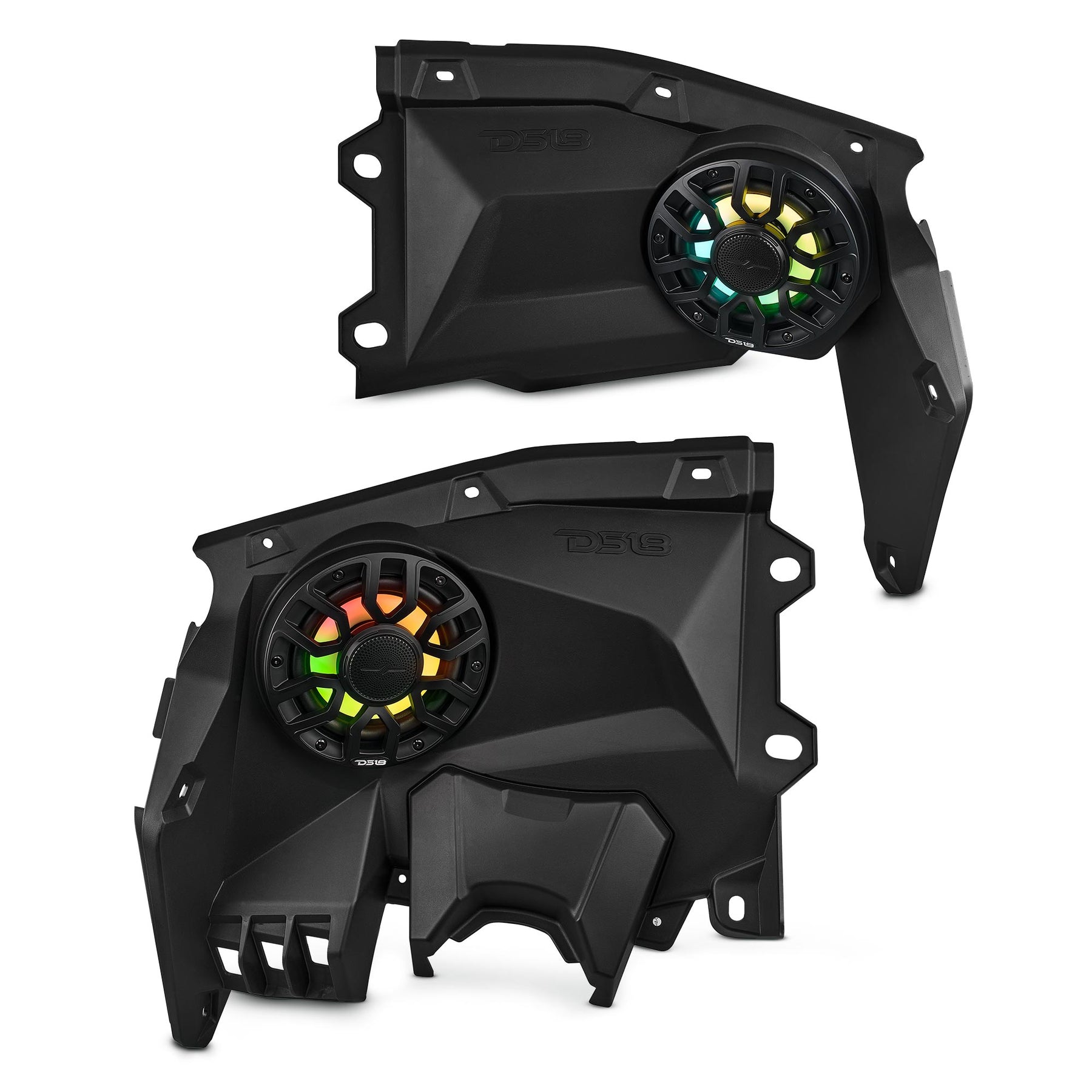

Dash Board Loaded with Speakers (CA-X3DS6LDV2)
| Specification | Details |
|---|---|
| Compatible With | CAN-AM X3 (2017–2023) |
| Box Type | Front Baffle |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| UV Protection | Yes |
| Waterproof Rating | IP65 |
| Comes In | Pair (Driver & Passenger Side) |
| Speaker Type Included | 6.5″ Waterproof Coaxial with Digital LED Lights |
| RMS Power Handling | 150W |
| Max Power Handling | 300W |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 45Hz – 20KHz |

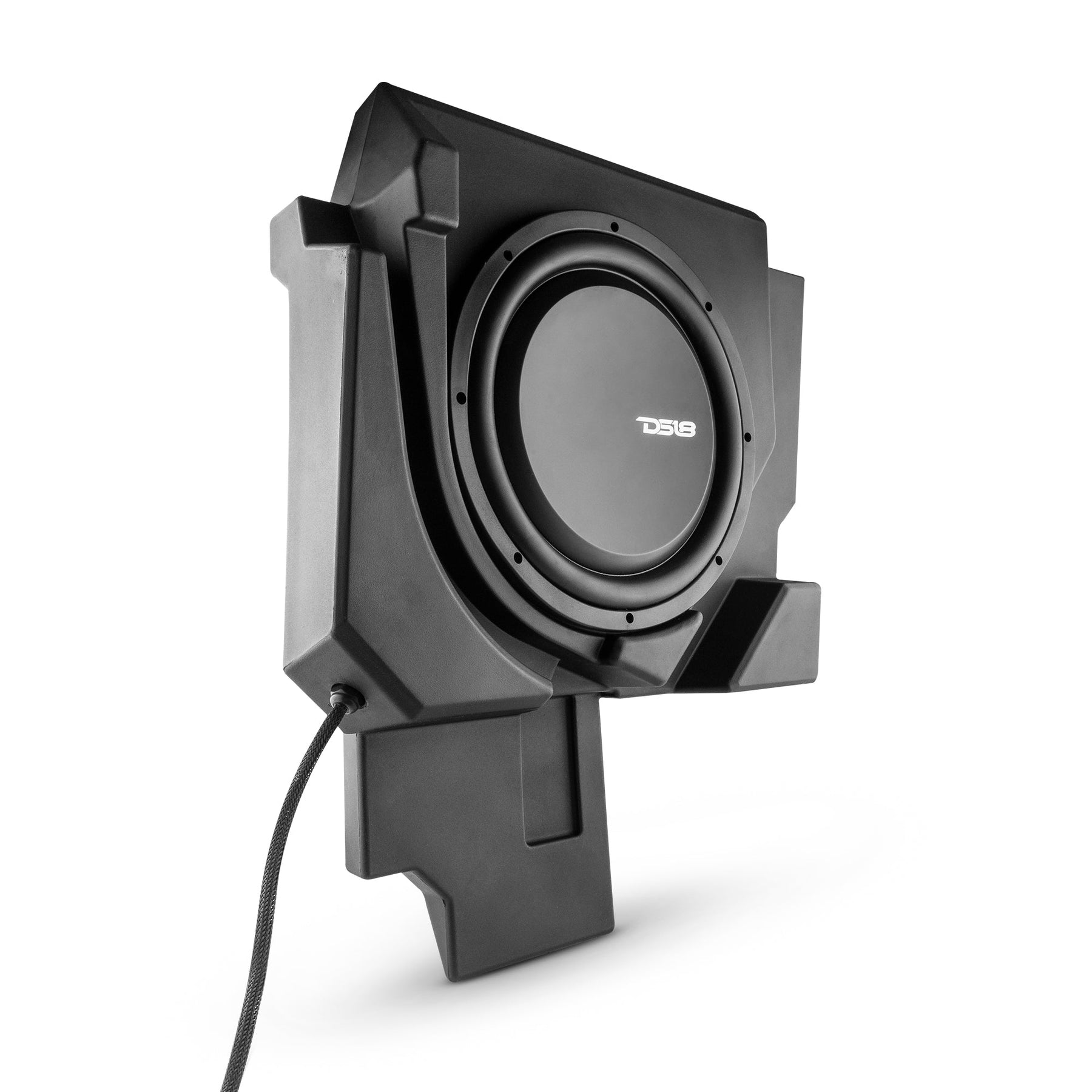

12″ Under Seat Subwoofer Enclosure (CA-X3BASS/D)
| Specification | Details |
|---|---|
| Compatible With | CAN-AM X3 (2017–2023) |
| Fits | Driver side under seat enclosure |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| UV Protection | Yes |
| Waterproof Rating | IP65 |
| Speaker Type Included | 12″ Shallow Water Resistant Subwoofer |
| RMS Power Handling | 600W |
| Max Power Handling | 1200W |
| Sensitivity (1w/1m) | 88dB |
| Frequency Response | 20 – 600 Hz |
Bluetooth Audio Receiver (RKS-BT)
| Specification | Details |
|---|---|
| SKU | RKS-BT |
| Frequency Response | 20Hz – 20KHz |
| Bluetooth Version | 5.0 |
| Wireless Range | >130 ft (conditions may vary) |
| Waterproof Rating | IPX6 |
| RCA Line Out (Pre-Amp) | 1 Pair (Left & Right) 2.5V |
| Aux Line Input | 3.5mm Plug |
| Buttons / Controls | Power / Source / Play / Pause / Next / Prev / Vol+ / Vol- |
| Illumination | Blue Backlit |
| Body Material | PP Black Housing / Silicone Buttons |

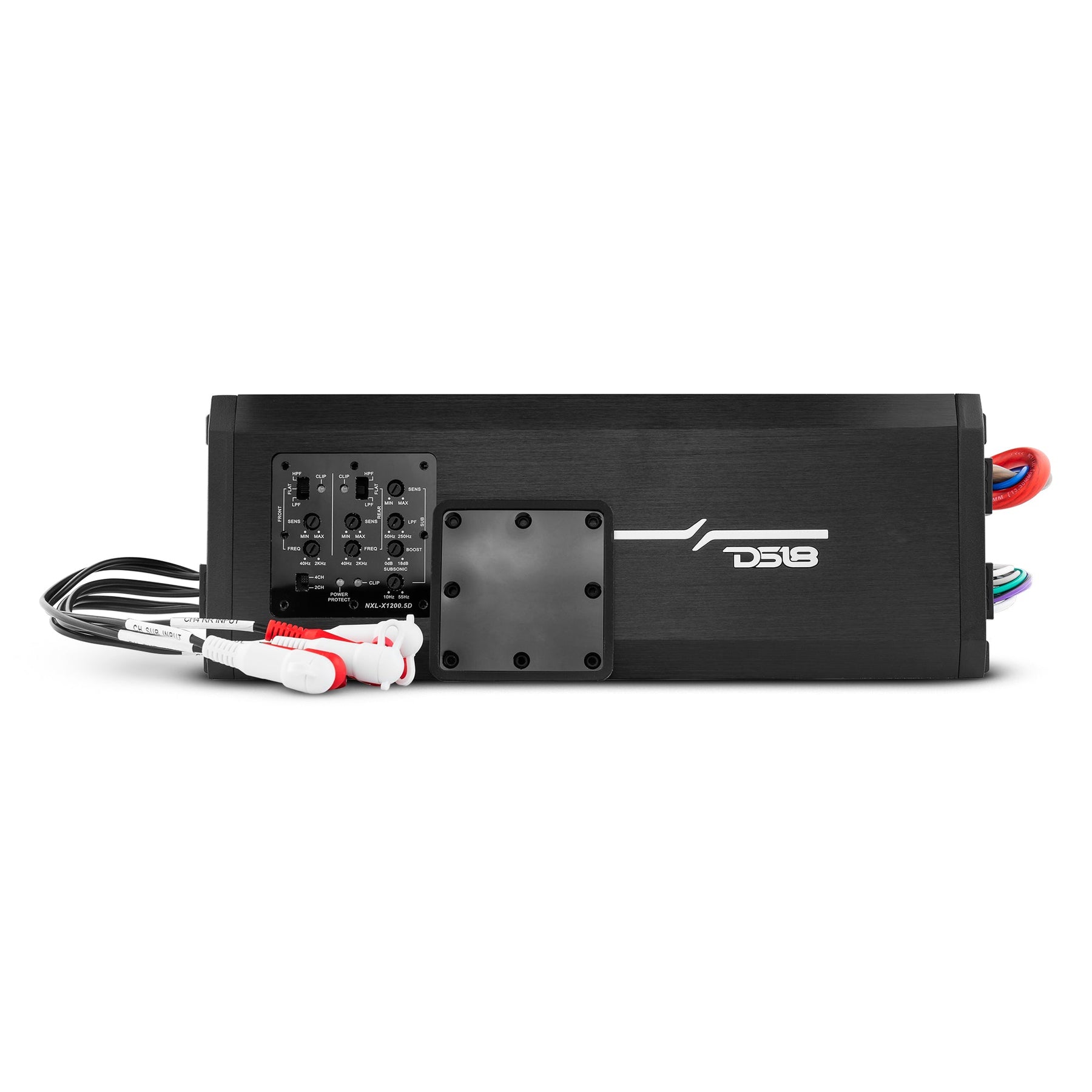

5-Channel Full-Range Powersports Amplifier (NXL-X1200.5D)
| Specification | Details |
|---|---|
| SKU | NXL-X1200.5D |
| Total Peak Power | 2800W |
| RMS Power @ 4Ω | 4 x 150W + 350W (Sub) |
| RMS Power @ 2Ω | 4 x 200W + 600W (Sub) |
| RMS Power @ 4Ω Bridge | 2 x 400W |
| Waterproof Rating | IP67 |
| UV / Salt Fog Protection | Yes |
| Direct Power Harness Design | Yes |
| Quick Connect Plug | Yes |
| Surface Mount Technology | Yes |
| Marine Grade Fuse Holder | Yes |
Accessories / Wires

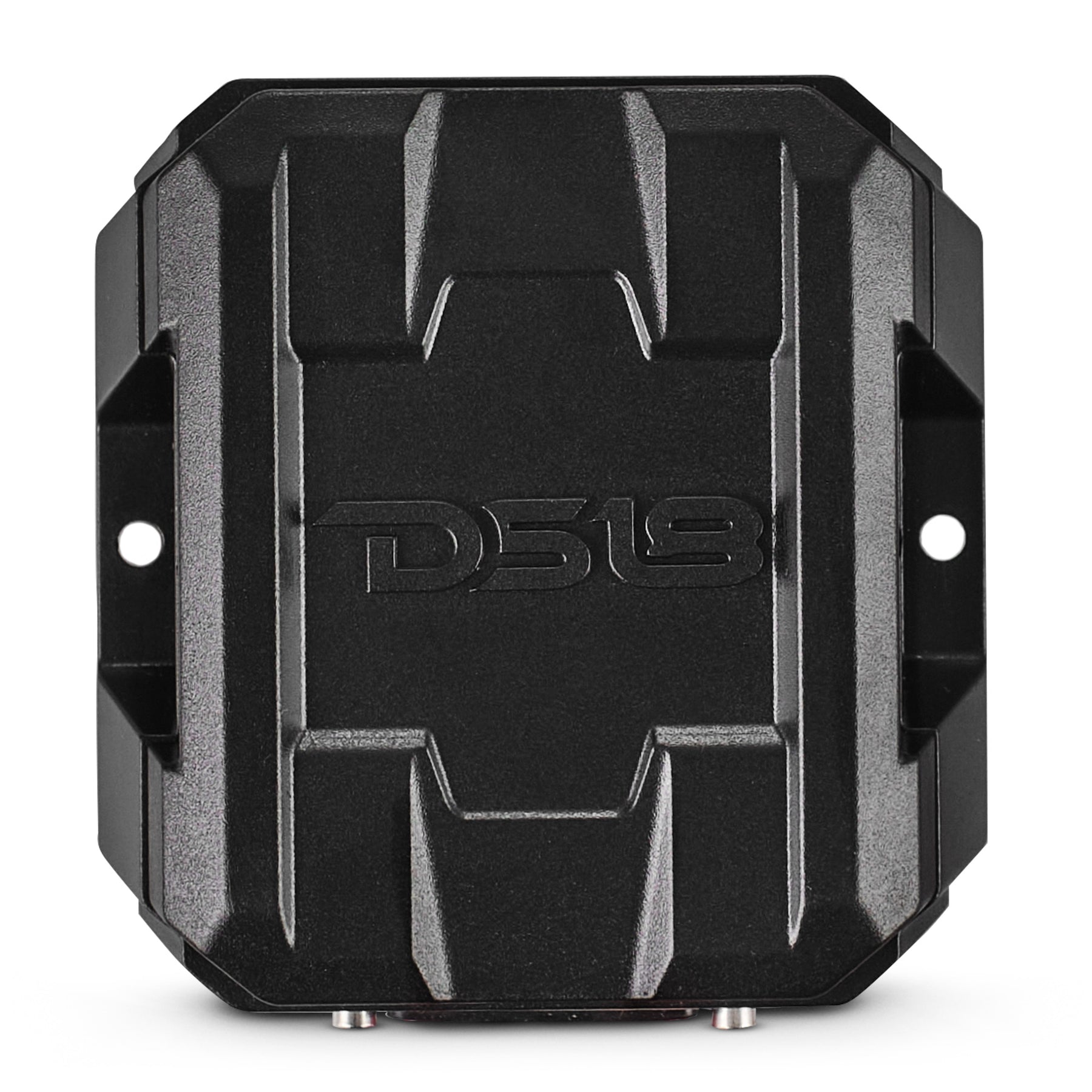

Digital LED Lights Bluetooth Control (LC-DRM)
| Specification | Details |
|---|---|
| Type | Digital LED Light Controller – Dream Chasing Effect |
| Bluetooth Version | v5.4 |
| Compatibility | iOS & Android (App Controlled) |
| Range | 100 Feet |
| Water Resistance | IP66 |
| Voltage | 12 Volt Applications |
Marine Tinned OFC Amplifier Installation Kit 4-GA (MOFCKIT4)
| Specification | Details |
|---|---|
| Wire Gauge | 4 GA |
| RMS Support | Up to 1800 Watts RMS |
| Fuse Holder Type | ATC |
| Wire Type | OFC (Oxygen-Free Copper) |
| Application | Motorcycle / Powersports / Marine |
| Water Resistant | Yes |
Product Overview
Stage 2 High-Performance Audio & Lighting Kit for CAN-AM X3 (2017–2023)
DS18’s Stage 2 CAN-AM Package is your CAN-AM’s next-level audio upgrade — delivering full-range, detailed audio and Bluetooth® control in one kit built for real off-road riding.
Plug-and-Play Dash Panel Kit
The CA-X3DS6 dash panels (driver + passenger) are weatherproof and install in CAN-AMs in minutes thanks to pre-wired OFC copper harnesses and an OEM-perfect fit.
All-Terrain 6.5” RGB Coaxial Speakers
Built for extreme conditions, the NXL-IQ6 coaxials feature a fully digital LED system, IP65-rated marine durability, and a floating bullet tweeter offering 2-way design that cuts through all noise.
Under-Seat 12” Bass System
Add real bass with the CA-X3BASS-D — a sealed, driver-side sub enclosure loaded with a 12” down-firing PSW12.4D (600W RMS). Waterproof, low-profile, and plug-and-play using factory mounts. Big punch, zero space wasted.
5-Channel Marine-Grade Amplifier
The NXL-X1200.5D pumps out serious power: 150W RMS x4 @ 4Ω for mids and highs, and up to 600W RMS x 1 @ 2Ω to drive your sub — all from one compact, marine-grade amp.
RKS-BT Bluetooth® Rocker Switch Receiver
The RKS-BT is your all-in-one Bluetooth® 5.0 source unit with 130ft range, 2.5V RCA out, and AUX input. This rocker switch is waterproof and made to fit CAN-AM dashes neatly.
Digital RGB Control with LC-DRM
For full control and functionality of your digital LED’s, pair them with DS18’s LC-DRM Bluetooth controller (sold separately). With DS18’s LC App on iOS or Android, you can customize lighting right from your phone.
4-Gauge OFC Marine Amp Wiring Kit
Built with 100% tinned OFC copper, the MOFCKIT4 includes everything you need for clean installs and reliable power — rated up to 1800W.
