Description
DS18 CAN-AM X3 Package Stage 3
The CAN-AM X3 Package Stage 3 is a high-performance, top-tier audio upgrade solution engineered specifically for the Can‑Am Maverick X3. This premium package delivers maximum sound quality, power, and bass performance for riders who want a complete audio overhaul on their UTV. Stage 3 typically includes high-output marine/off-road speakers, a powerful multi-channel amplifier, a dedicated subwoofer enclosure, and custom-fit mounting hardware. All components are built to withstand harsh off-road conditions such as mud, vibration, heat, and moisture — providing a durable, weather-resistant audio system that dramatically outperforms factory sound.
Specifications
| Item | Model | Description |
|---|---|---|
| Dash Board Loaded Enclosure with 6.5″ Waterproof Speakers | CA-X3DS6LDV2 | Front baffle speaker pods (Driver & Passenger side) |
| Under Seat Loaded Enclosure with 12″ Subwoofer (Driver Side) | CA-X3BASS/D | Driver side under seat subwoofer enclosure |
| Under Seat Loaded Enclosure with 12″ Subwoofer (Passenger Side) | CA-X3BASS/P | Passenger side under seat subwoofer enclosure |
| 2-Channel Full-Range Marine Amplifier | NXL-X360.2D | Powersports marine amplifier |
| 1-Channel Full-Range Marine Amplifier | NXL-X1000.1D | Single-channel powersports amplifier |
| Rocker Switch Bluetooth Audio Receiver with Controls | RKS-BT | Waterproof Bluetooth receiver with control buttons |
| LED Lights Bluetooth Control | LC-DRM | Digital LED light controller |
| Marine Tinned OFC Amplifier Installation Kits | MOFCKIT4, MOFCKIT8 | 4 GA and 8 GA marine amplifier wiring kits |
Dash Panel Enclosure with Speakers (CA-X3DS6LDV2)
| Specification | Details |
|---|---|
| Compatible With | CAN-AM X3 (2017–2023) |
| Box Type | Front Baffle |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| UV Protection | Yes |
| Waterproof Rating | IP65 |
| Comes In | Pair (Driver & Passenger Side) |
| Speaker Type Included | 6.5″ Waterproof Coaxial with Digital LED Lights |
| RMS Power Handling | 150W |
| Max Power Handling | 300W |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 45Hz – 20KHz |
12″ Under Seat Subwoofer Enclosures (CA-X3BASS/D & CA-X3BASS/P)
| Specification | Details |
|---|---|
| Compatible With | CAN-AM X3 (2017–2023) |
| Fits | Driver and Passenger side under seat enclosure |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| UV Protection | Yes |
| Waterproof Rating | IP65 |
| Speaker Type Included | 12″ Shallow Water Resistant Subwoofer |
| RMS Power Handling | 600W |
| Max Power Handling | 1200W |
| Sensitivity (1w/1m) | 88dB |
| Frequency Response | 20 – 600 Hz |
Rocker Switch Bluetooth Receiver (RKS-BT)
| Specification | Details |
|---|---|
| SKU | RKS-BT |
| Frequency Response | 20Hz – 20KHz |
| Bluetooth Version | 5.0 |
| Wireless Range | >130 ft (conditions may vary) |
| Waterproof Rating | IPX6 |
| RCA Line Out (Pre-Amp) | 1 Pair (Left & Right) 2.5V |
| Aux Line Input | 3.5mm Plug |
| Buttons / Controls | Power / Source / Play / Pause / Next / Prev / Vol+ / Vol- |
| Illumination | Blue Backlit |
| Body Material / Color / Finish | PP Black Housing / Silicone Buttons |
Marine Amplifiers
2-Channel Full-Range Class D Amplifier (NXL-X360.2D)
| Specification | Details |
|---|---|
| Total Peak Power | 1000W |
| RMS Power @ 4Ω | 2 x 180W |
| RMS Power @ 2Ω | 2 x 250W |
1-Channel Full-Range Class D Amplifier (NXL-X1000.1D)
| Specification | Details |
|---|---|
| Total Peak Power | 2000W |
| RMS Power @ 4Ω | 350W |
| RMS Power @ 2Ω | 600W |
| Waterproof Rating | IP67 |
| UV / Salt Fog Protection | Yes |
| Direct Power Harness Design | Yes |
| Quick Connect Plug | Yes |
| Surface Mount Component Technology | Yes |
| Marine Grade Fuse Holder | Yes |
Accessories / Wires
Digital LED Lights Bluetooth Control (LC-DRM)
| Specification | Details |
|---|---|
| Type | Digital LED Light Controller – Dream Chasing Effect |
| Bluetooth Version | v5.4 |
| Compatibility | iOS & Android (App Controlled) |
| Range | 100 Feet |
| Water Resistance | IP66 |
| Voltage | 12 Volt Applications |
Marine Tinned OFC Amplifier Installation Kit 4-GA (MOFCKIT4)
| Specification | Details |
|---|---|
| Wire Gauge | 4 GA |
| RMS Support | Up to 1800 Watts RMS |
| Fuse Holder Type | ATC |
| Wire Type | OFC (Oxygen-Free Copper) |
| Application | Motorcycle / Powersports / Marine |
| Water Resistant | Yes |
Marine Tinned OFC Amplifier Installation Kit 8-GA (MOFCKIT8)
| Specification | Details |
|---|---|
| Wire Gauge | 8 GA |
| RMS Support | Up to 960 Watts RMS |
| Fuse Holder Type | ATC |
| Wire Type | OFC (Oxygen-Free Copper) |
| Application | Motorcycle / Powersports / Marine |
| Water Resistant | Yes |
Product Overview

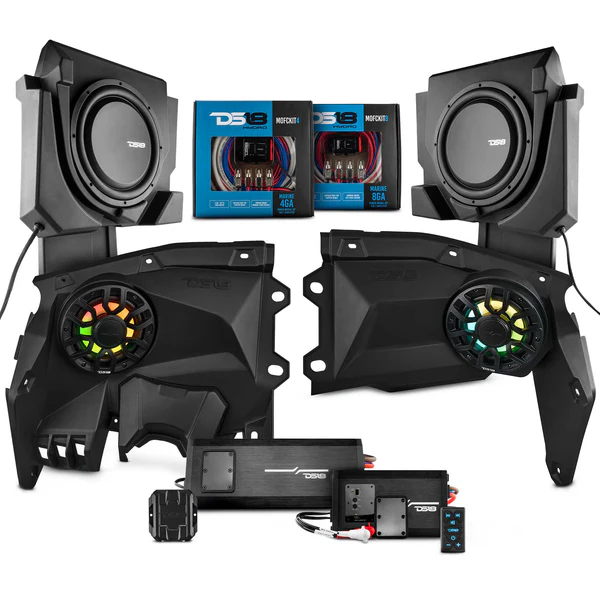

Stage 3 High-Performance Audio for CAN-AM X3 (2017–2023)
DS18’s Stage 3 CAN-AM Package is the ultimate all-in-one audio upgrade — offering pro-level audio quality, Bluetooth® control, and RGB lighting in a system that dominates any terrain.

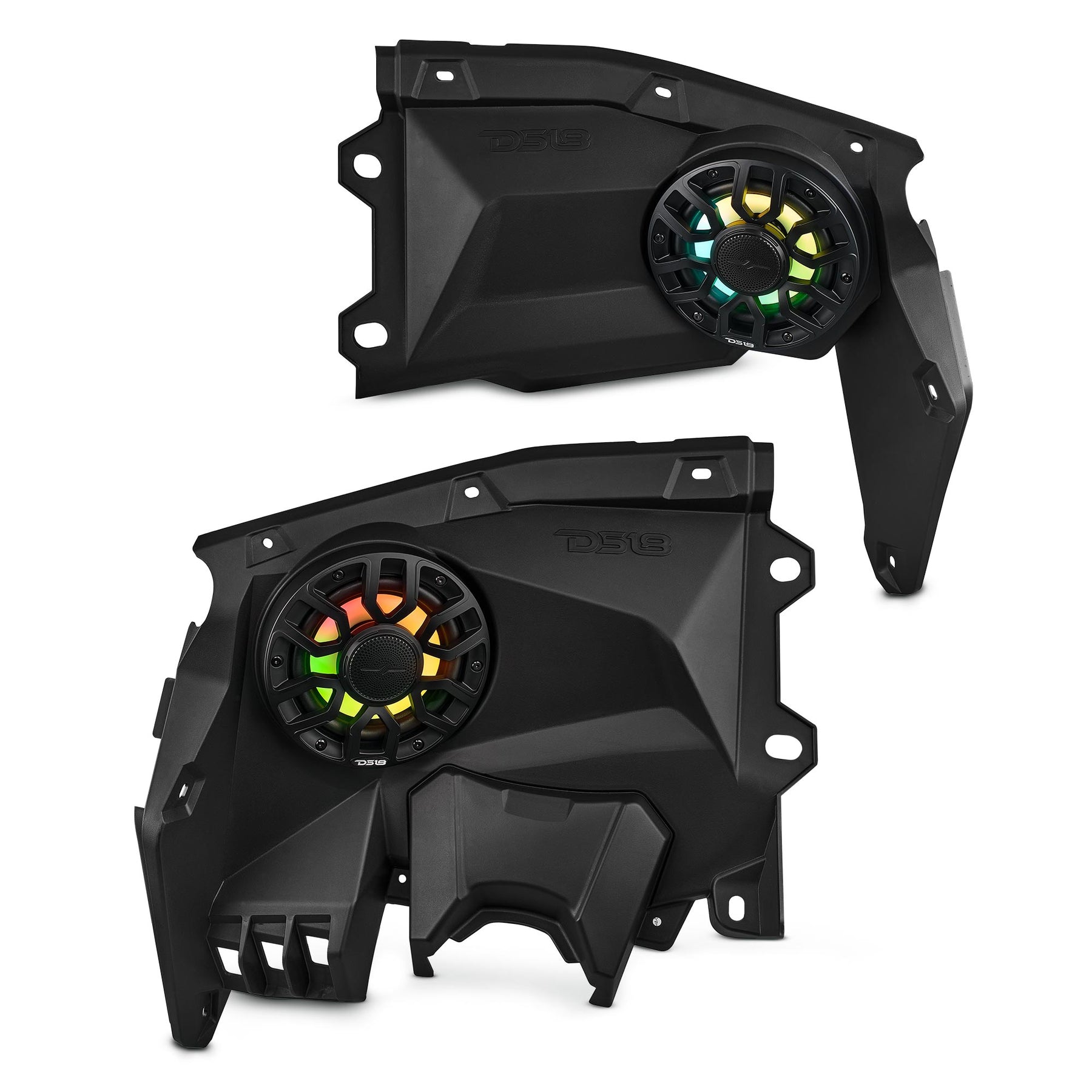

Plug-and-Play Dash Speaker System
The CA-X3DS6LDV2 kit includes weatherproof driver and passenger panels with NXL-IQ6 6.5” Digital LED speakers — giving you crystal-clear audio and fully programmable LED lighting. With IP65-rated durability, OFC wiring, and a factory bolt-in fit, these panels install in minutes and light up every ride.

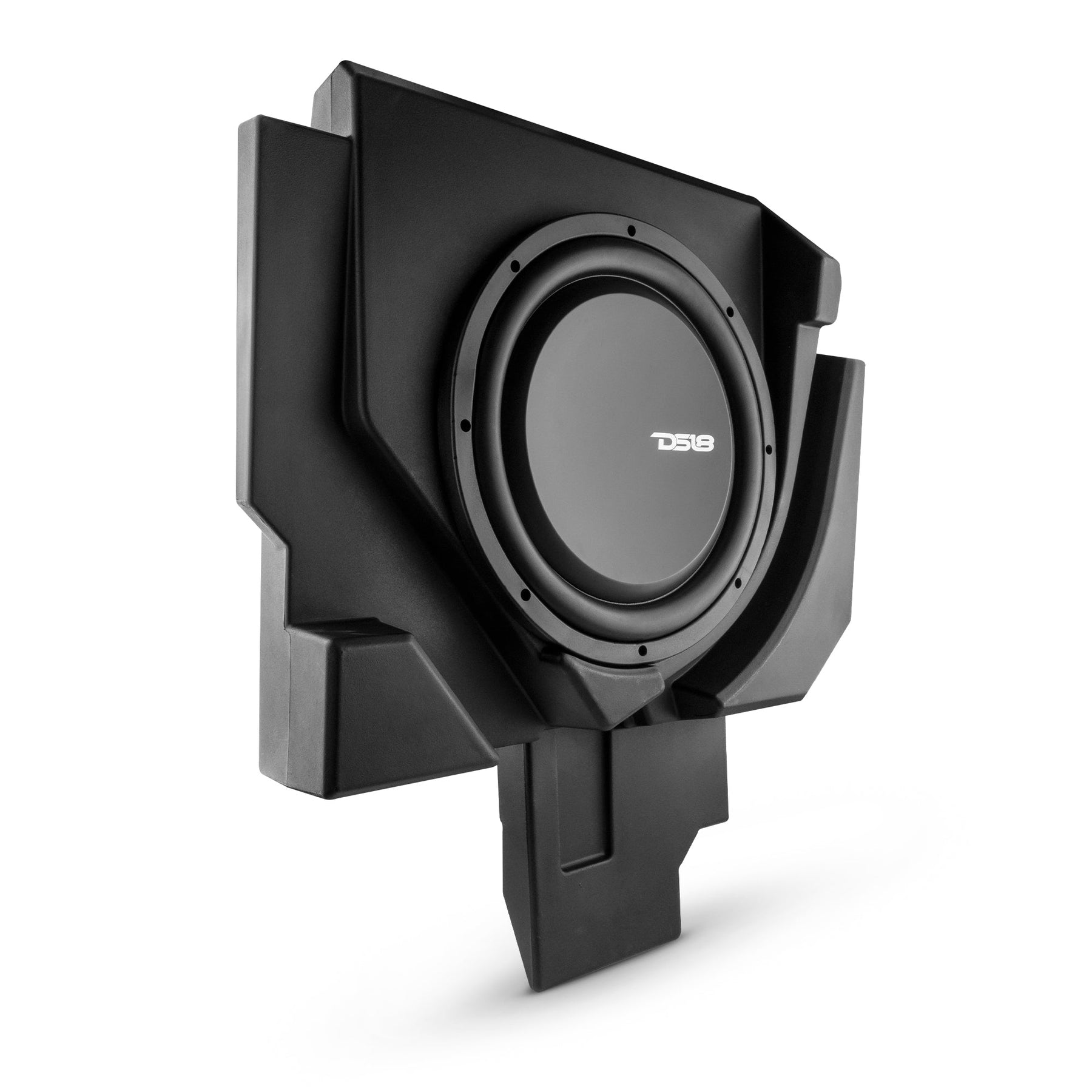

Dual Under-Seat 12” Bass System
Maximize your low end with twin CA-X3BASS enclosures — driver and passenger side — each loaded with a down-firing PSW12.4D (600W RMS / 1200W MAX). Sealed, waterproof, and plug-and-play using factory mounts, this stealth bass setup hits hard without stealing cargo space.
Dual Amplifier Power System
Stage 3 includes two marine-grade amps for full system control: the NXL-X1000.1D pushes up to 1000W RMS @ 1Ω to power your subs, while the NXL-X360.2D delivers up to 250W x2 @ 2Ω for your mids and highs. Both are IP67-rated, Class D, and built for real off-road abuse.
RKS-BT Bluetooth® Rocker Switch Receiver
The RKS-BT is your all-in-one Bluetooth® 5.0 source unit with 130ft range, 2.5V RCA out, and AUX input. This rocker switch is waterproof and made to fit CAN-AM dashes neatly.

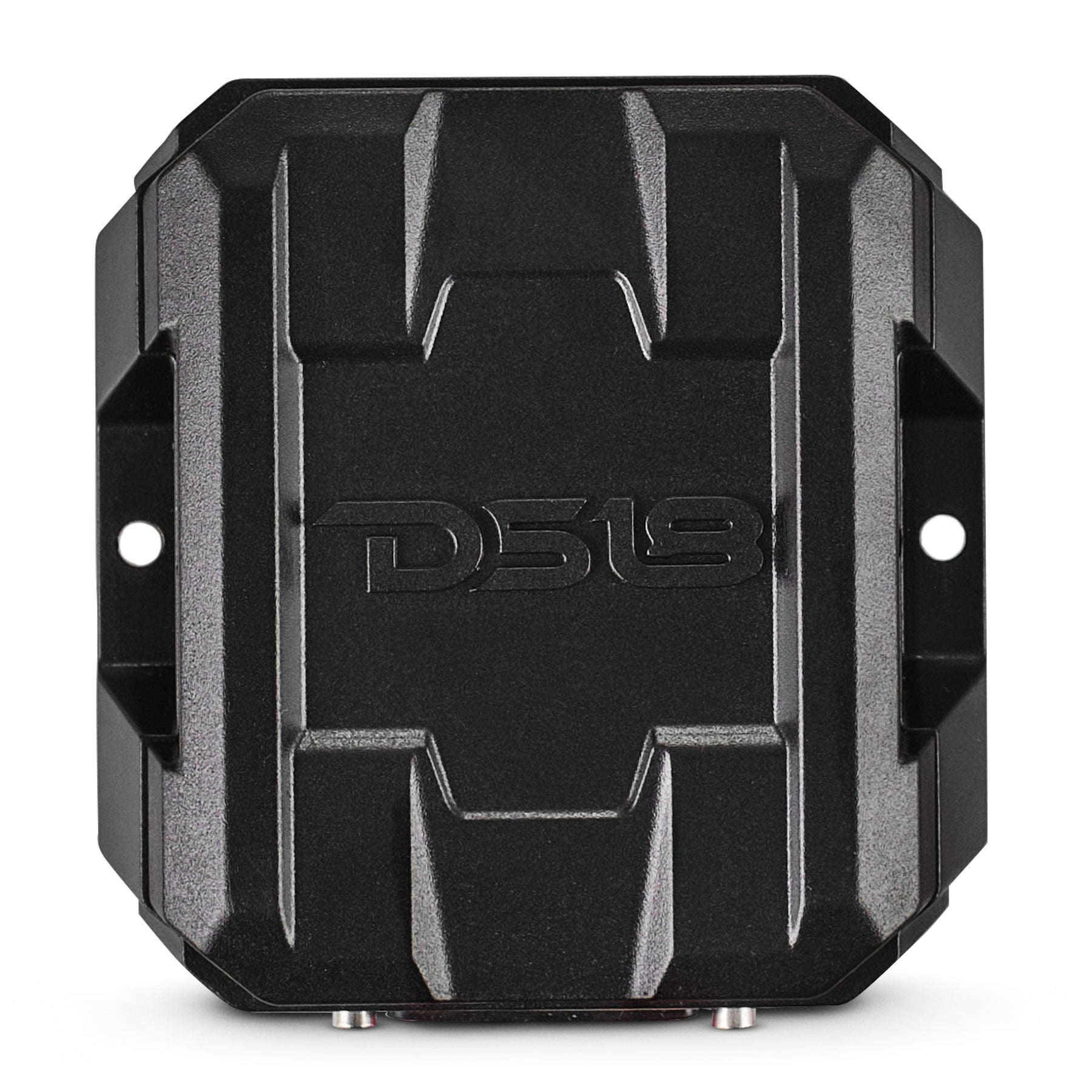

Digital RGB Control with LC-DRM
For full control and functionality of your digital LED’s, pair them with;DS18’s LC-DRM Bluetooth controller. With DS18’s LC App on iOS or Android, you can customize lighting right from your phone.
Dual Marine-Grade Wiring Kits
Stage 3 comes with both the MOFCKIT4 (4GA) and MOFCKIT8 (8GA) — built with 100% tinned OFC copper for max power and marine-grade durability. The MOFCKIT4 handles up to 1800W, while the MOFCKIT8 supports up to 960W. Each kit includes everything for a clean, high-output install — power, ground, remote wires, RCAs, and waterproof fuse holders.
