Description
DS18 CA-X3DS6LDV2

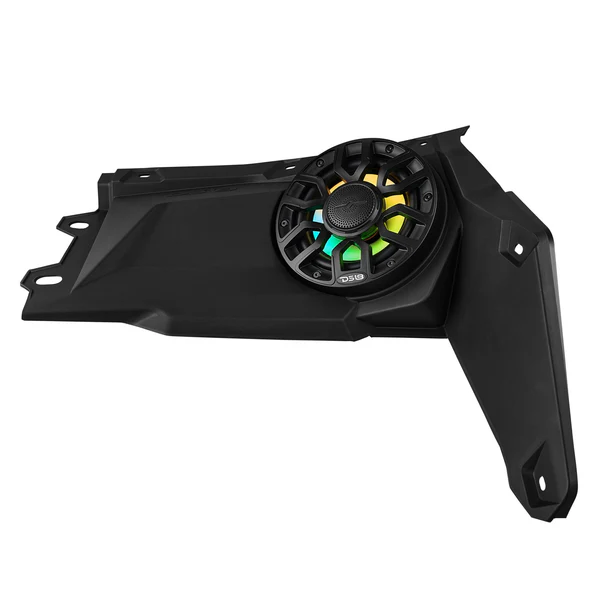

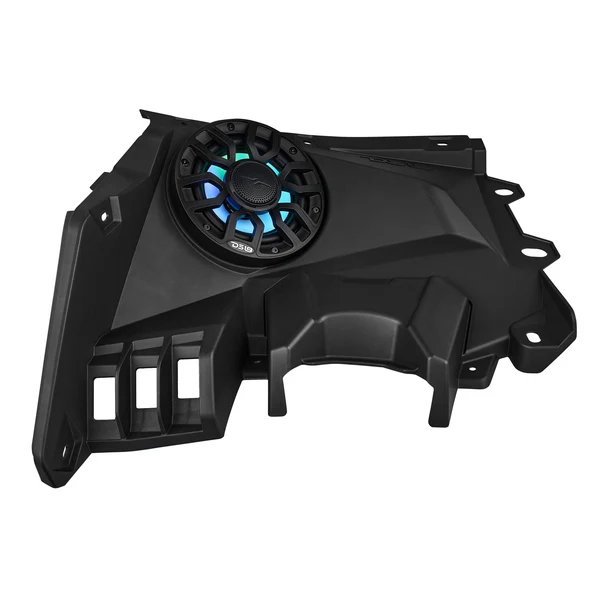

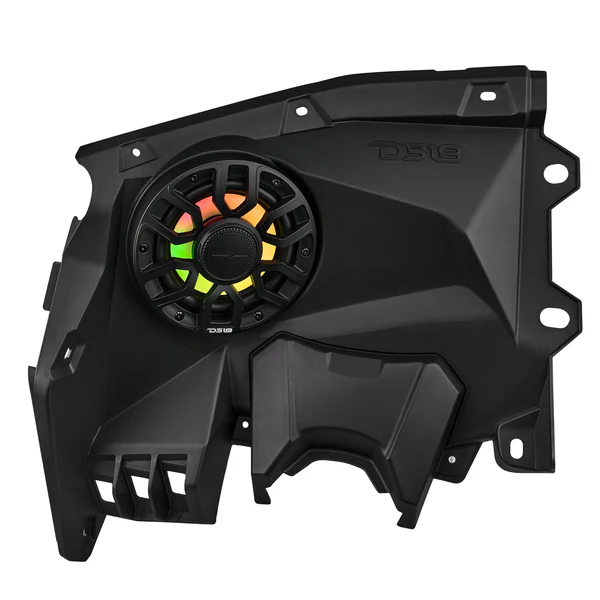

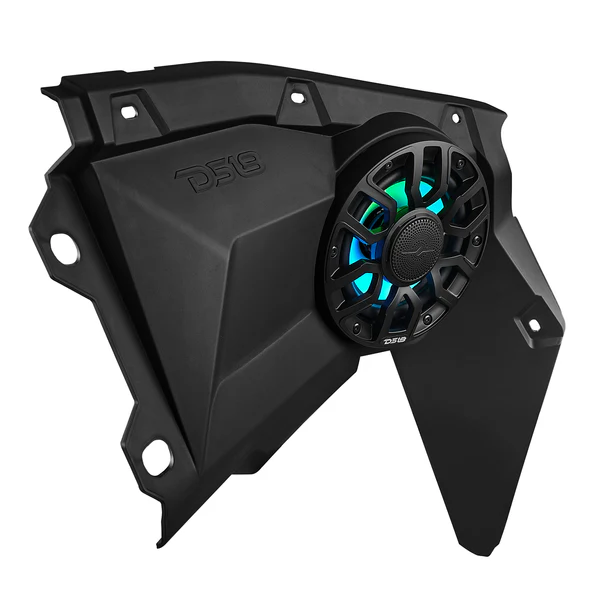

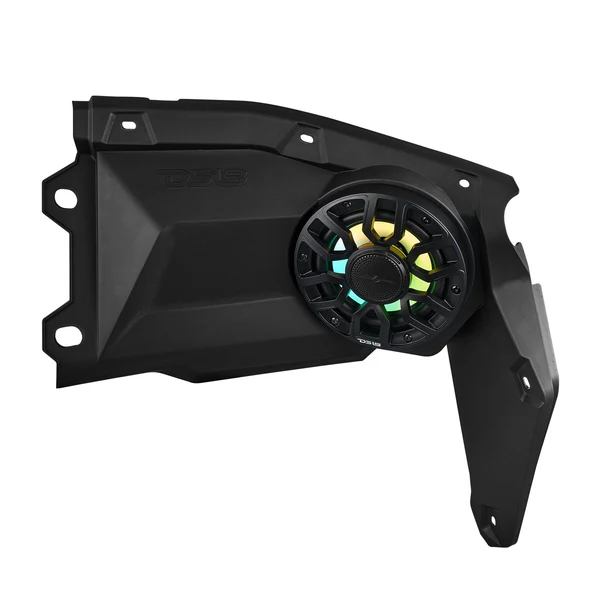

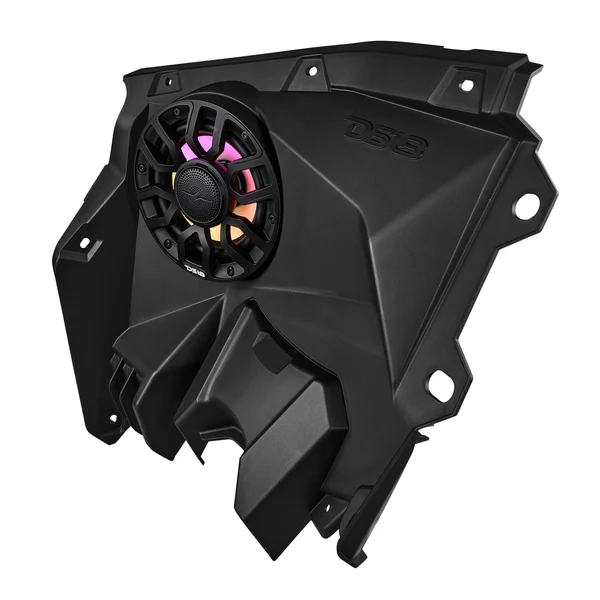

The CA‑X3DS6LDV2 is a premium loaded dashboard speaker panel upgrade tailored for the **DS18 CA‑X3DS6LDV2 — a custom plug‑and‑play audio solution for Can‑Am Maverick X3 (2017 – 2026). This pair of rugged dash panels comes pre‑loaded with two waterproof 6.5″ NXL‑IQ6/BK coaxial speakers, each featuring built‑in RGB digital LED lighting for a sleek illuminated look. Built from IP65‑rated water‑resistant polyethylene (PE) with UV protection and a black OEM‑style finish, the enclosure not only provides clear midrange and crisp highs but also integrates seamlessly into your factory dash with minimal modification. The kit includes OFC tinned input wiring and mounting hardware for a clean, professional installation. Amplifier required but sold separately.
Specifications
| Specification | Details |
|---|---|
| SKU | CA-X3DS6LDV2 |
| Box Type | Front Baffle |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| UV Protection | Yes |
| Waterproof Rating | IP65 |
| Total Impedance | 4 + 4 Ohms (Left & Right) |

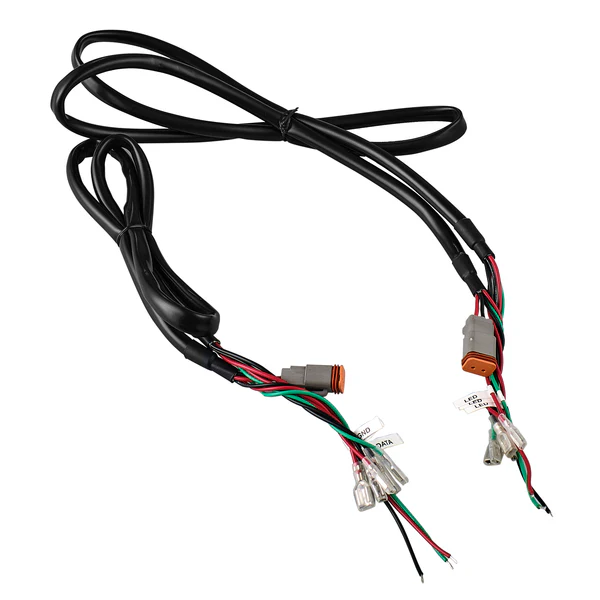

| Input Wire (Harness) | 2 × 6 Core OFC Tinned (2 ft / 0.6 m) |

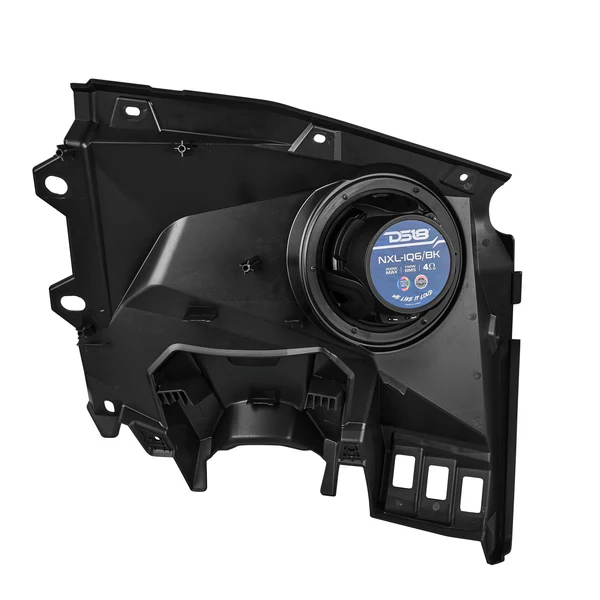

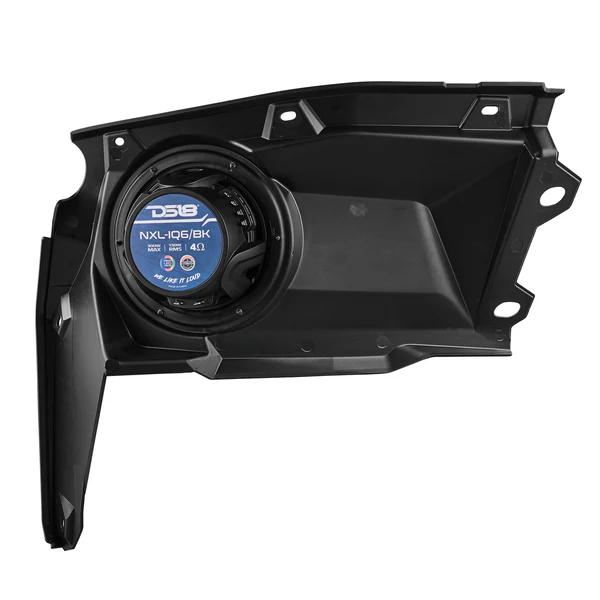

Speaker Specifications (NXL-IQ6/BK)
| Specification | Details |
|---|---|
| Speaker Type / Size | 6.5″ Waterproof Coaxial with Digital LED |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1W/1m) | 95 dB |
| Frequency Response | 45 Hz – 20 kHz |
| Recommended Hi-Pass Crossover | 60 Hz |
| Voice Coil Diameter | 1.5″ / 38.6 mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | Injection Molded Composite PC with UV Protection Coating |
| Magnet Material | Ferrite + Neodymium |
| Magnet Weight | 13 oz + 1.1 oz |
Tweeter Specifications (NXL-IQ6/BK)
| Specification | Details |
|---|---|
| Type | Floating Bullet Tweeter |
| Voice Coil Diameter | 1″ / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Aluminium |
| Bullet Material | Injection Molded Composite PC with UV Protection Coating |
| Magnet Material | Neodymium (N35H) |
| Magnet Weight | 0.4 oz |
Measurements
| Side | Height | Width | Depth |
|---|---|---|---|
| Driver | 5.86″ / 149 mm | 20″ / 506 mm | 20.4″ / 520 mm |
| Passenger | 6.1″ / 155 mm | 20″ / 518 mm | 19.3″ / 490 mm |
| Speaker Mounting Hole | 5.7″ / 145 mm | — | — |
Product Overview

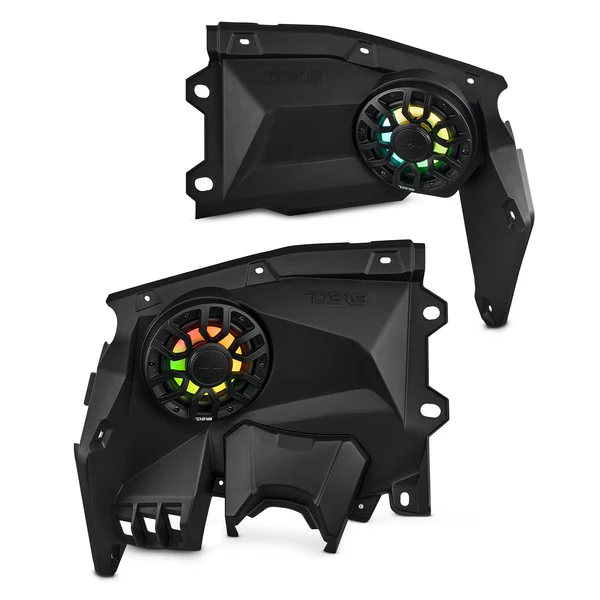

CAN-AM X3 6.5” Dashboard Panels Loaded With NXL-IQ6/BK Speakers
Crank up the volume on the trails with DS18’s CA-X3DS6LDV2—the ultimate off-road audio upgrade for CAN-AM X3’s (2017-2026). This setup takes your adventure to the next level by fitting 6.5-inch waterproof speakers and Digital LED lighting right into your dashboard.
Sound For Every Terrain
Built to handle the elements, these speaker pods house two IP65-rated DS18 NXL-IQ6/BK coaxial speakers: designed to resist water, dust, and dirt while delivering crisp highs and punchy bass. Each speaker has an RMS power rating of 150W and peak power rating of 300W at a nominal impedance of 4 ohms. The open baffle design improves airflow and sound projection.
Custom Fit, Easy Install

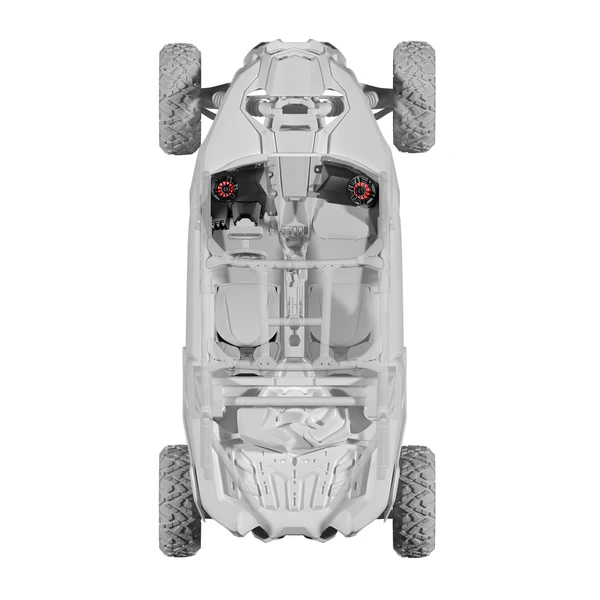

Designed for plug-and-play compatibility, these panels bolt directly into your CAN-AM X3’s factory dash locations—no cutting or modifications required. The rugged polyethylene panels feature a UV-resistant black textured finish, seamlessly blending with your vehicle’s OEM styling.
Light Up the Night
Equipped with exclusive digital LED lighting, the CA-X3DS6LDV2 adds a personalized light show to your setup. To unlock full functionality, pair it with DS18’s LC-DRM controller (sold separately) and control your lights via the DS18 LC App on iOS or Android.
Smart-Lok ready
If your Can-Am X3 is equipped with Smart-Lok, DS18 provides relocation instructions to ensure everything fits properly while keeping all your vehicle’s key features functional.
