Description
DS18 CA-X3DS6LD

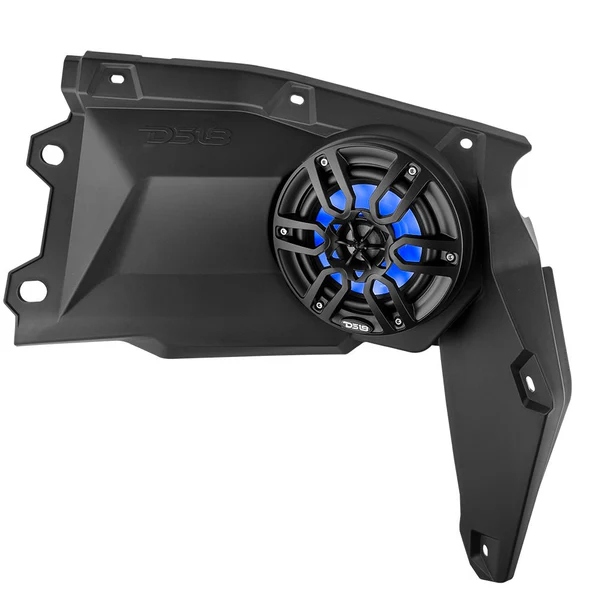

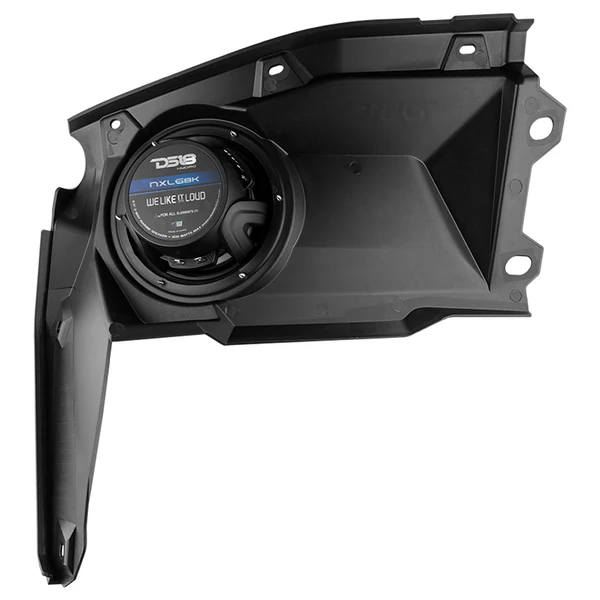

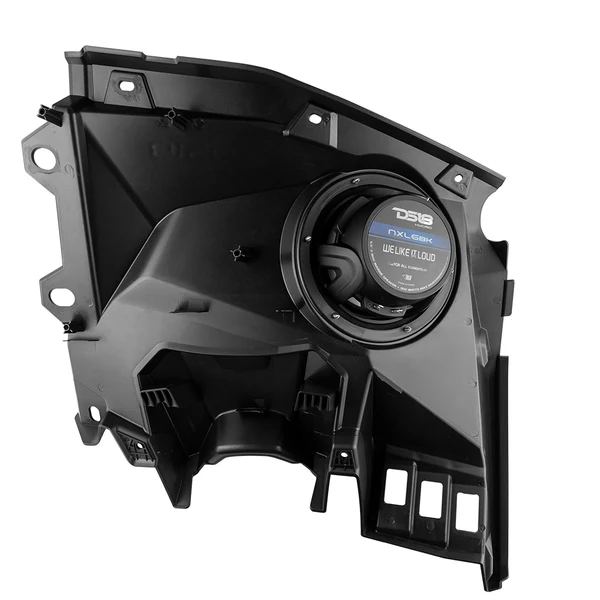

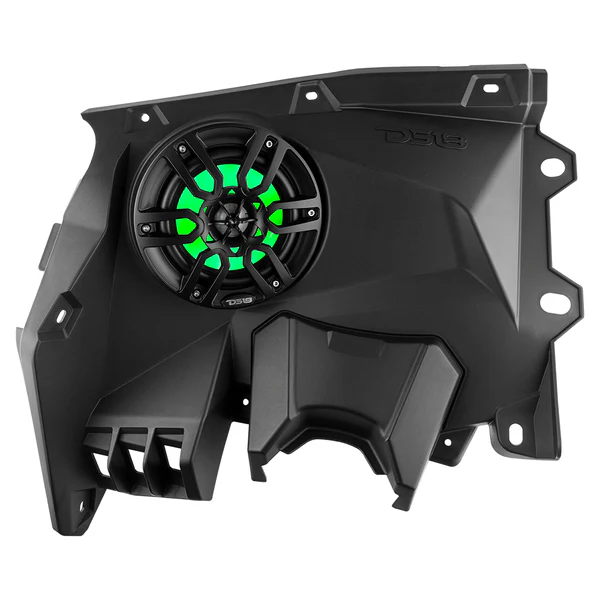

The CA‑X3DS6LD is a premium loaded dashboard speaker panel upgrade designed specifically for the Can‑Am Maverick X3 (2017 – 2023) side‑by‑side vehicle. This pair of custom‑fit dash panels comes pre‑loaded with two high‑output 6.5″ waterproof coaxial speakers equipped with RGB LED lighting, providing clear, balanced audio and eye‑catching illumination straight from your Maverick’s instrument area. Built from rugged IP65‑rated waterproof polyethylene (PE) with UV protection and an OEM‑style black finish, these panels bolt into the dash using factory mounting points for a clean, professional installation. Perfect for riders who want a direct‑fit, visually striking, and high‑quality front‑stage audio upgrade.
Specifications
| Specification | Details |
|---|---|
| SKU | CA-X3DS6LD |
| Box Type | Front Baffle |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| UV Protection | Yes |
| Waterproof Rating | IP65 |
| Total Impedance | 4 + 4 Ohms (Left & Right) |
| Input Wire (Harness) | 6 Core OFC Tinned (2 ft / 0.6 m) |
Speaker Specifications (6.5″ Coaxial)
| Specification | Details |
|---|---|
| Speaker Type / Size | 6.5″ Waterproof Coaxial with RGB LED |
| RMS Power Handling | 100W |
| MAX Power Handling | 300W |
| Sensitivity (1W/1m) | 91 dB |
| Frequency Response | 45 Hz – 20 kHz |
| Recommended Hi-Pass Crossover | 65 Hz |
| Voice Coil Diameter | 1.2″ / 30.5 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Magnet Material | Ferrite + Neodymium |
| Magnet Weight | 14 oz + 0.32 oz |
| Speaker Mounting Hole | 5.7″ / 145 mm |
Measurements
| Side | Height | Width | Depth |
|---|---|---|---|
| Driver | 5.86″ / 149 mm | 20″ / 506 mm | 20.47″ / 520 mm |
| Passenger | 6.1″ / 155 mm | 20.4″ / 518 mm | 19.3″ / 490 mm |
Product Overview
Unleash the true power of your CAN-AM X3’s stereo system with a revolutionary upgrade that will redefine your Side-By-Side experience. DS18’s CA-X3DS6 was designed to immerse you in the world of audio excellence.

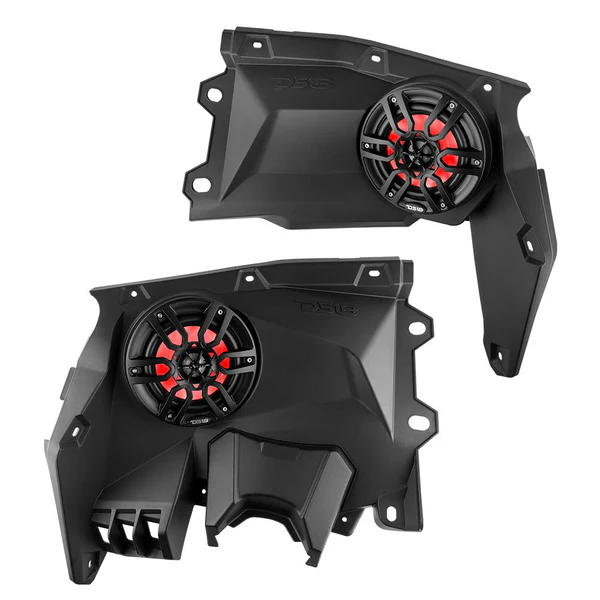

Crafted specifically for 6.5″ speakers, these panels boast a smart, open-baffle design that transforms your vehicle into a concert hall on wheels. The panels come in pairs—Driver and Passenger—ensuring that everyone enjoys the session.
DS18 understands the importance of seamless upgrades. These dashboard panels are engineered to slide right into place using your Can-Am’s factory bolts. No need for complex modifications or time-consuming installations. With the DS18 CA-X3DS6, elevating your audio is a breeze.

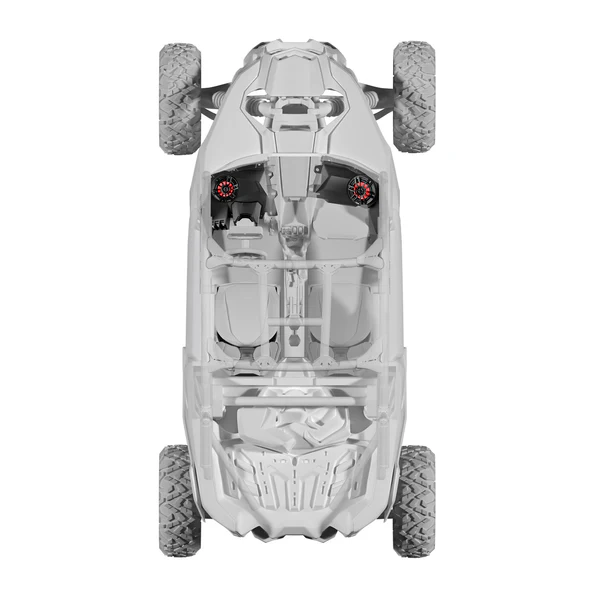

Every element of DS18’s CA-X3DS6 is designed to enhance your audio experience. The speaker mounting hole, measuring 5.7″, and a mounting depth of up to 3″, ensure that the panels seamlessly accommodate a range of 6.5” DS18 speakers. This commitment to precision extends to the overall measurements, which have been optimized to fit Can-Am X3 vehicles produced between 2017 and 2023

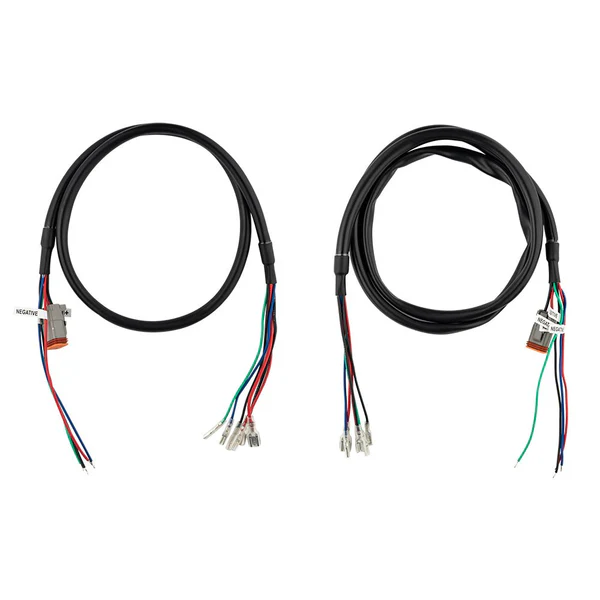

Underneath its sleek black OEM finish lies everything you need for a perfect long-lasting installation. The OFC tinned wiring guarantees superior power handling, so you can pump up the volume without missing a beat. The 6-core 0.6M input wires for speakers and RGB lighting ensure your setup is future-proof, accommodating any audio enhancements you might dream of. Plus, these panels are built to weather the elements, with a waterproof (IP65) and UV-protected construction that can withstand the harshest conditions.
