Description
DS18 8XL800N-8
The DS18 8XL800N-8 is an 8-inch mid-range car audio loudspeaker featuring an 8-ohm impedance and a high-performance neodymium magnet for precise and dynamic audio reproduction. Rated at 400 W RMS (800 W peak), it delivers clear, detailed mid-range frequencies, making vocals and instruments stand out with exceptional clarity. Its durable and compact construction ensures reliable performance for daily driving, custom multi-way systems, or portable car audio setups. Ideal for integration with tweeters and subwoofers, the 8XL800N-8 offers a balanced and powerful mid-range response for a refined in-car listening experience.
Specifications
| Parameter | Value |
|---|---|
| SKU | 8XL800N-8 |
| Nominal Diameter | 8″ / 203 mm |
| Nominal Impedance | 8 Ohms |
| RMS Power Handling | 400 W |
| MAX Power Handling | 800 W |
| Sensitivity (1w/1m) | 100.7 dB |
| Frequency Response | 100 Hz – 10 kHz |
| Recommended High-Pass Crossover | 160 Hz |
| Sold In | Single |
| Grill Included | No |
| Interleaved Sandwich Voice Coil (ISV) | No |
| Demodulating Rings | Yes |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push 12ga |
Motor & Construction
| Component | Specification |
|---|---|
| Voice Coil Diameter | 2″ / 50.8 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Non-pressed Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Spider Diameter | 5″ / 127 mm |
| Leads Type | Direct to Cone |
| Basket Material | Aluminum |
| Basket Color/Finish | Satin Black |
| Magnet Material | Neodymium |
| Magnet Weight | 7.5 Oz |
| Displacement Volume | 0.03 L / 0.00105 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 17.09 L / 0.603 ft³ |
| Excursion (Xmax, one way) | 2.3 mm |
| Free Air Resonance (Fs) | 87 Hz |
| Mechanical Q (Qms) | 5.68 |
| Electrical Q (Qes) | 0.27 |
| Total Q (Qts) | 0.26 |
| Mechanical Mass (Mms) | 12.66 g |
| Mechanical Mass w/o Air (Mmd) | 11 g |
| Mechanical Compliance (Cms) | 0.26 mm/N |
| BL Factor | 12 |
| Voice Coil Inductance (Le) | 0.06 mH |
| Cone Area (Sd) | 213.82 cm² |
| DC Resistance (Re) | 5.6 Ohms |

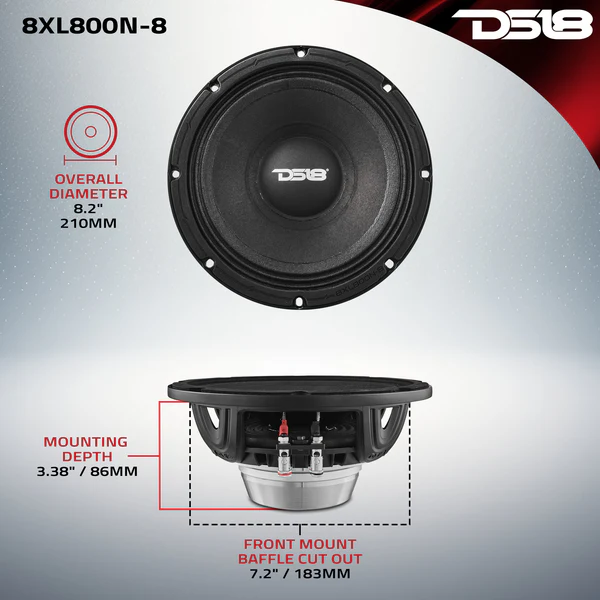

Measurements
| Measurement | Value |
|---|---|
| Overall Diameter | 8.2″ / 210 mm |
| Overall Depth | 3.85″ / 98 mm |
| Front Mount Baffle Cutout | 7.2″ / 183 mm |
| Mounting Depth | 3.38″ / 86 mm |
| Motor Diameter | 4″ / 102 mm |
Product Overview
8” Mid-Range Loudspeaker With Neodymium Magnet | 8-ohm
The 8XL800N-8 is designed to deliver mind-blowing clarity, making it the go-to choice for high-performance car audio systems. With an impressive power handling of 400W RMS and 800W MAX, you can reach extreme volumes while maintaining your audio’s integrity.
Precision-Tuned Frequency Response
With a wide frequency response range of 100Hz – 10kHz, the 8XL800N-8 captures every detail of your favorite tracks. Delivering perfectly balanced sound across the midrange spectrum.
Extreme Sensitivity for Maximum Output
With an insane 100.7dB sensitivity rating, this speaker produces incredibly high SPL (Sound Pressure Levels) with less power. It maximizes output without distortion, ensuring louder, clearer sound even in large vehicles and open spaces.
Advanced Engineering for Superior Durability
The 2” Kapton voice coil provides exceptional heat resistance, allowing the speaker to handle extended play at high power levels without overheating. The non-pressed paper cone enhances audio accuracy and responsiveness, while the cloth surround ensures durability and smooth performance—even under extreme conditions.
Lightweight Yet Powerful Neodymium Magnet
The 8XL800N-8 utilizes a lightweight yet incredibly powerful 7.5oz neodymium magnet. This high-strength magnetic system enhances speaker efficiency, ensuring tighter, punchier midrange frequencies with minimal distortion.
Optimized for Versatile System Integration
Designed with a 8-ohm impedance, the 8XL800N-8 is highly versatile and integrates seamlessly into multi-speaker configurations. Its push-terminal connectors ensure secure and hassle-free installation, making it the perfect choice for custom audio builds.
If you’re looking to crank up the volume without sacrificing clarity, DS18’s 8XL800N-8 is the perfect addition to your sound system.
