Description
DS18 8XL800-4
The DS18 8XL800 is a high-output 8″ XL-series mid-range/mid-bass loudspeaker engineered for powerful, clear audio performance in car audio systems and custom installations. Available in both 4 ohm (8XL800-4) and 8 ohm (8XL800-8) impedance versions, this driver delivers balanced sound and strong sensitivity, making it ideal for door mounts, pods, or midrange positions where impactful sound and efficiency are desired.
Specifications
| Parameter | Value |
|---|---|
| SKU | 8XL800-4 |
| Nominal Diameter | 8 inch |
| Nominal Impedance | 4 ohm |
| RMS Power Handling | 400 watts |
| Max Power Handling | 800 watts |
| Sensitivity | 99 dB |
| Frequency Response | 60 Hz to 8 kHz |
| Recommended Hi Pass Crossover | 90 Hz |
| Sold As | Single |
| Grill Included | No |
Motor Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 2 inch |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Non pressed paper |
| Dust Cap Material | Paper |
| Bullet Material | Not applicable |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 56 oz |
| Displacement Volume | 0.85 L |
Thiele Small Parameters
| Parameter | Value |
|---|---|
| Vas | 14.8 L |
| Xmax | 2.3 mm |
| Fs | 90 Hz |
| Qms | 4.251 |
| Qes | 0.356 |
| Qts | 0.328 |
| Mms | 15.784 g |
| Cms | 0.23 mm per N |
| BL | 8.93 |
| Le | 0.05 mH |
| Sd | 211.24 cm2 |
| Re | 3.2 ohm |
| Mmd | 18 g |

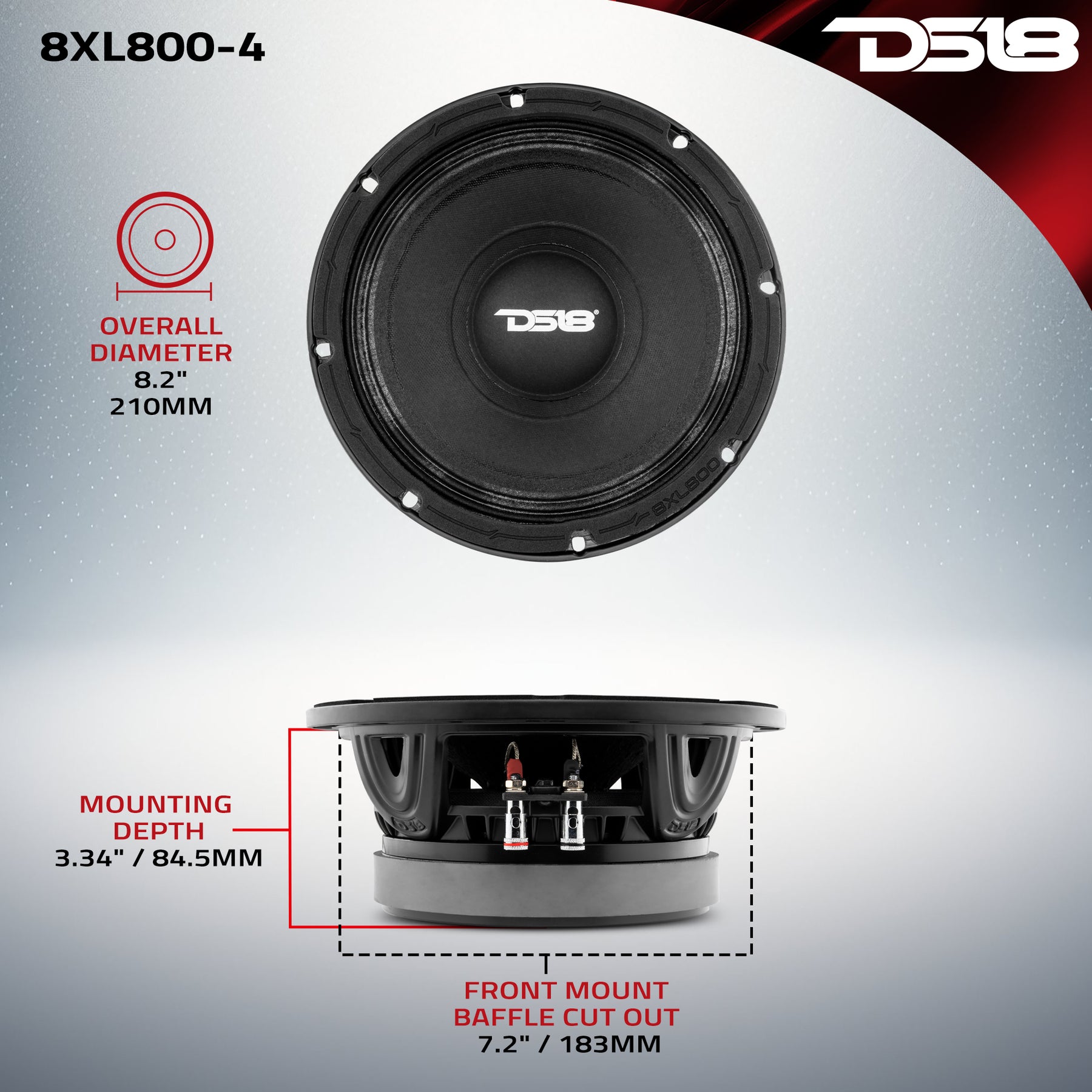

Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 8.2 inch |
| Overall Depth | 3.8 inch |
| Front Mount Baffle Cutout | 7.2 inch |
| Mounting Depth | 3.34 inch |
| Motor Diameter | 6.14 inch |
Product Overview
PRO XL 8″ Mid-Range Loudspeaker 400 Watts Rms
DS18’s 8XL800-4 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music.
DS18’s 8XL800-4 stands head and shoulders above the mid-range competition. This 8-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.
With power handling of 400W RMS and 800W MAX these speakers are guaranteed to blow you away. The frequency response of 60Hz-8KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 99 dB guarantees crystal-clear sound reproduction, even in large venues.
Crafted with precision, DS18’s 8XL800-4 features a 2″ Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker’s aesthetics but also provides structural integrity. The ferrite magnet weighing in at 56 ounces ensures powerful and accurate bass responses that will leave you amazed.
Elevate your audio game with the DS18 8XL800-4!
