Description
DS18 6XL600-8
The DS18 6XL600 is a 6.5″ XL series mid-range/mid-bass loudspeaker engineered for high-output car audio performance with solid sensitivity and power handling. Available in two versions — 6XL600-4 (4 Ω) and 6XL600-8 (8 Ω) — both deliver 300 W RMS continuous and 600 W peak power handling, making them ideal for door or custom pods in loud systems where punchy mid-range and mid-bass are desired.
Specifications
| Parameter | Value |
|---|---|
| SKU | 6XL600-8 |
| Nominal Diameter | 6.5 inch |
| Nominal Impedance | 8 ohm |
| RMS Power Handling | 300 watts |
| Max Power Handling | 600 watts |
| Sensitivity | 97 dB |
| Frequency Response | 60 Hz to 12.5 kHz |
| Recommended Hi Pass Crossover | 100 Hz |
| Sold As | Single |
Motor Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 2 inch |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Non pressed paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 34 oz |
| Displacement Volume | 0.45 L |
Thiele Small Parameters
| Parameter | Value |
|---|---|
| Vas | 5.71 L |
| Xmax | 3.7 mm |
| Fs | 100 Hz |
| Qms | 4.93 |
| Qes | 0.5 |
| Qts | 0.454 |
| Mms | 11.917 g |
| Cms | 0.214 mm per N |
| BL | 6.906 |
| Le | 0.1647 mH |
| Sd | 136.85 cm2 |
| Re | 3.2 ohm |
| Mmd | 10.996 g |
Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 6.7 inch |
| Overall Depth | 3.5 inch |
| Front Mount Baffle Cutout | 5.9 inch |
| Mounting Depth | 3.14 inch |
| Motor Diameter | 4.96 inch |
Product Overview
6.5” Mid-Range Loudspeaker
Brace yourself for the LOUD revolution with DS18’s 6XL600-8, a 6.5” Mid-Range Loudspeaker that will take your car’s audio to places it’s never been before.
DS18’s 6XL600-8 handles an awe-inspiring RMS of 300W, and an incredible MAX of 600W ensuring that your audio experience is a symphony of pure power. It’s extraordinary sensitivity, fixed at 97dB, transforms even the slightest whisper into an ear-piercing roar.
DS18’s 6XL600-8 has a frequency response ranging from 60Hz to 12.5KHz, guaranteeing you never miss a beat. DS18 understands that every audio enthusiast has unique preferences, which is why we recommend a HI Pass Crossover of 100Hz to complement your audio setup, ensuring a harmonious balance between the lows, mids, and highs.
But the true magic lies within the construction of the 6XL600-8. The aluminum basket, dressed in a satin black finish, provides a sturdy foundation for the 6XL600-8. Engineered with precision, this custom-tooled basket provides unparalleled stability, effectively reducing unwanted vibrations, and ensuring distortion-free sound reproduction. The strategic design incorporates ample ventilation, allowing for efficient heat dissipation, even during prolonged listening sessions at high volumes.

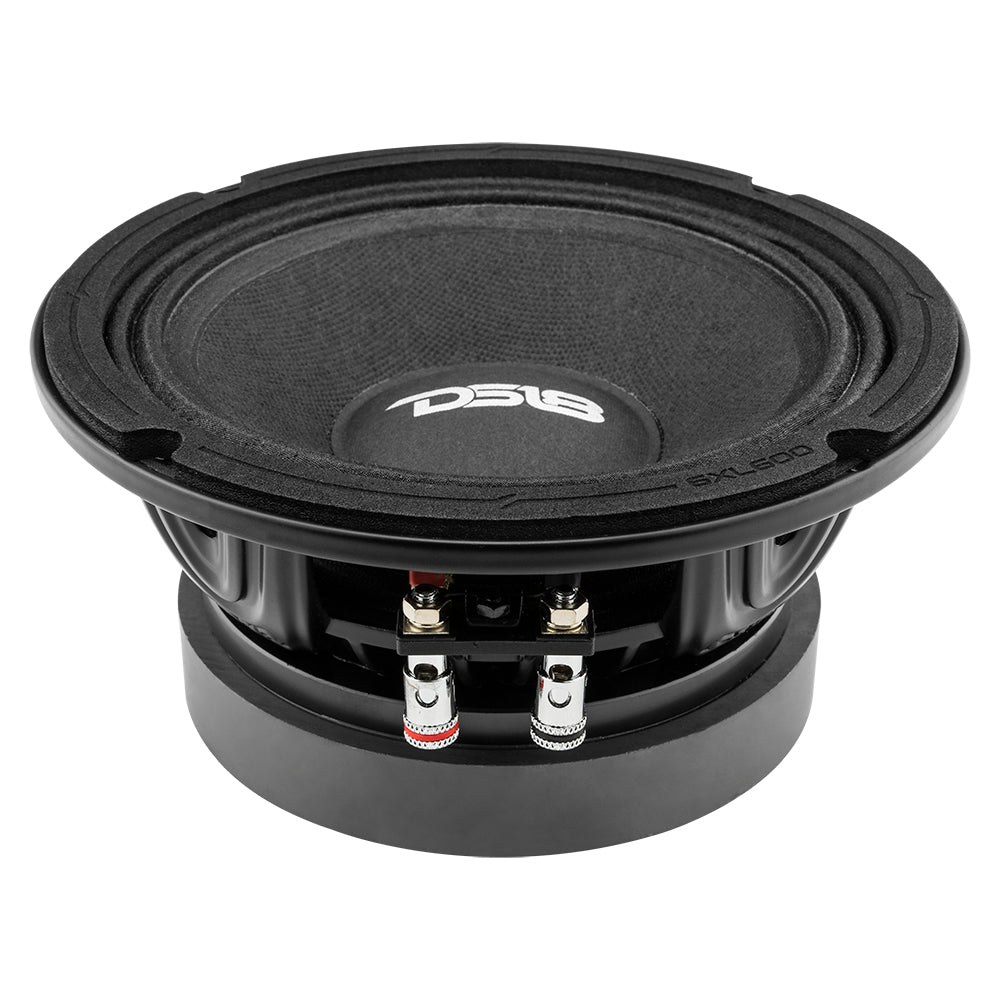

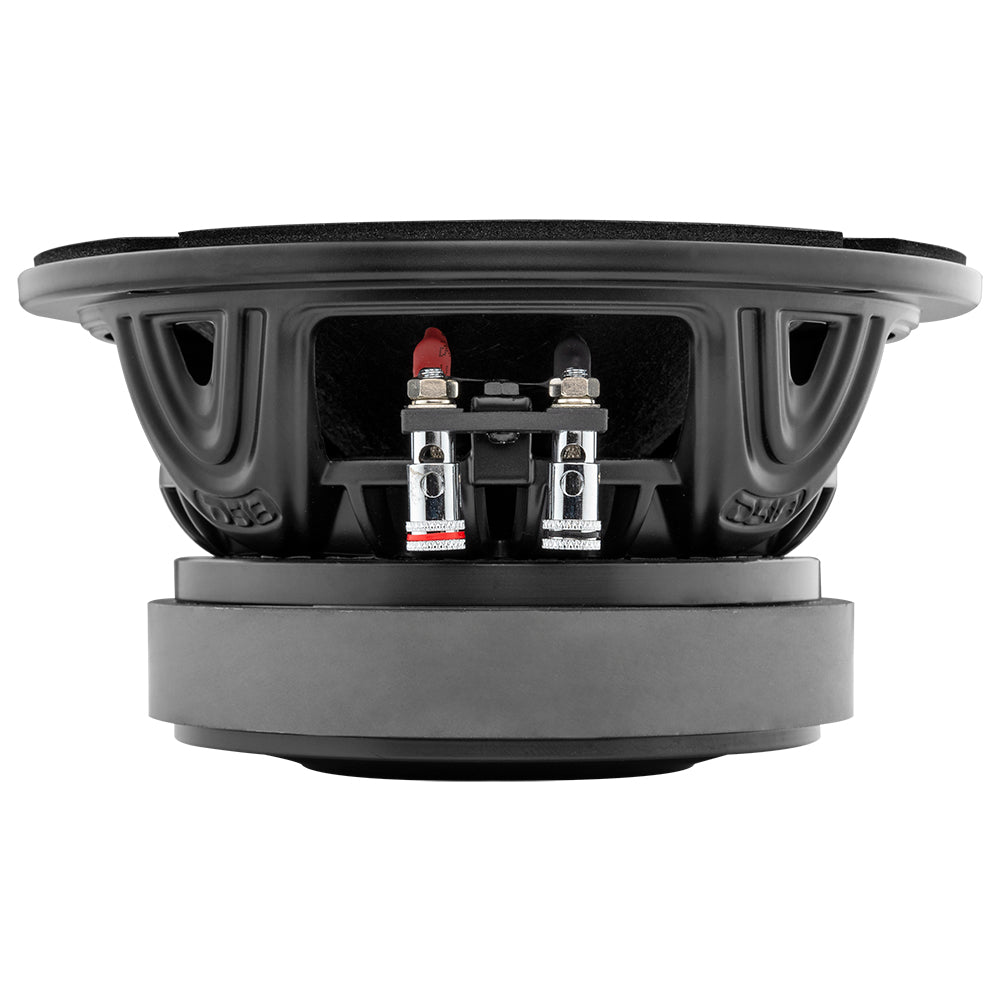

The expertise of our engineers shows in the design of the polished high-quality spring-loaded push terminals that ensure a seamless connection between your audio system and the speakers. The spring-loaded mechanism further simplifies the installation process, making it effortless to achieve a tight and secure connection every time.

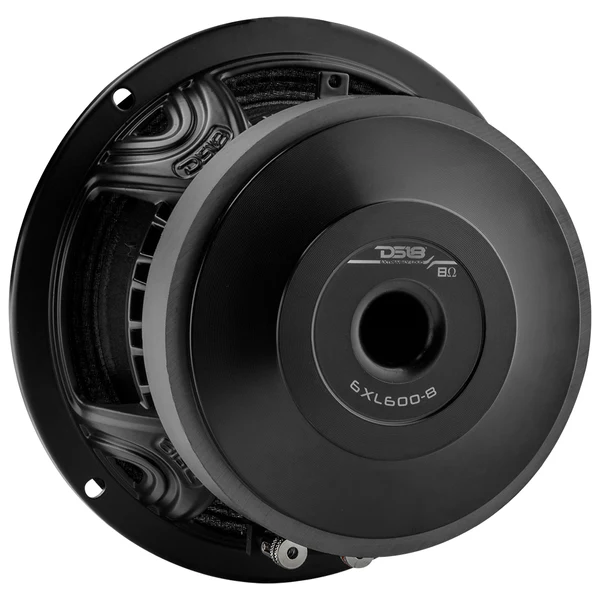

And let’s not forget the magnetic force behind it all—a robust ferrite magnet weighing in at an impressive 34 Oz, generating immense power and driving your speakers performance.
DS18’s 6XL600-8— is your gateway to professional audio in your vehicle. Are you ready for the audio revolution?
