Description
DS18 6PRO360NSL-8

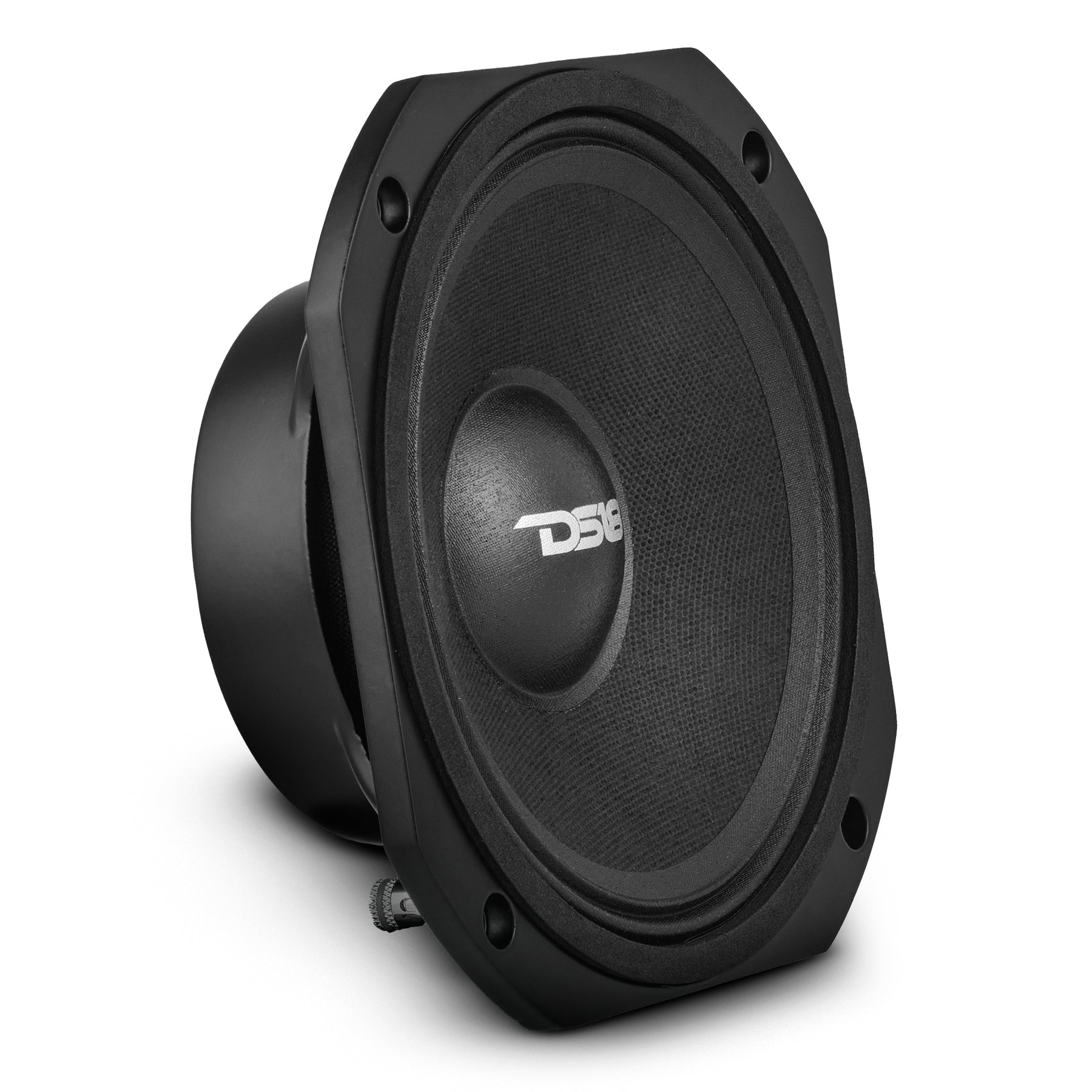

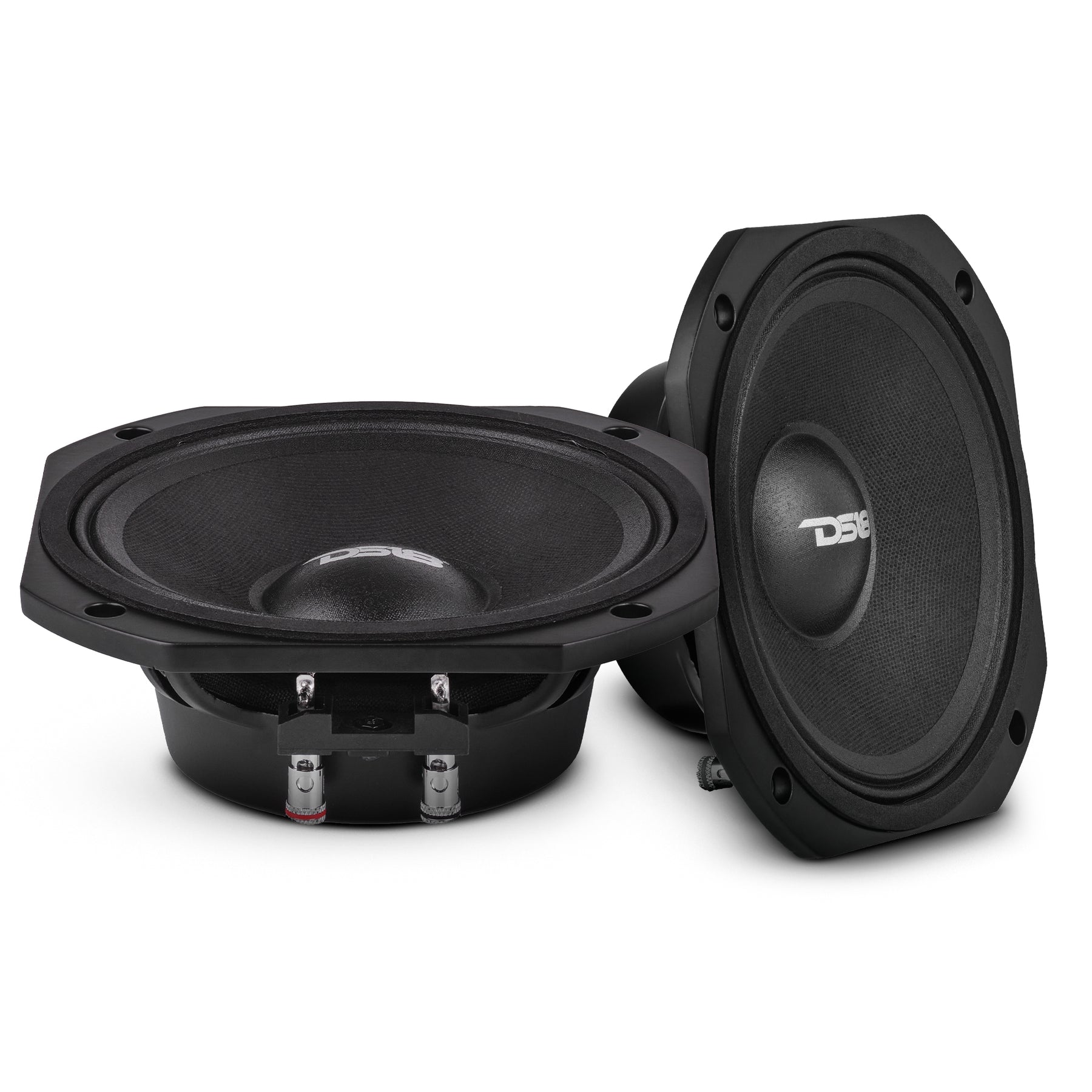

The DS18 6PRO360NSL‑8 is a 6.5″ slim professional mid‑range loudspeaker built for high‑output performance in custom audio systems, especially in line‑array (LA) and horn‑loaded installations. Featuring a powerful neodymium magnet motor and high sensitivity, it delivers clear, punchy mid‑range output designed to pair with dome or diffuser horns for enhanced projection and clarity.
Specifications
| Parameter | Value |
|---|---|
| SKU | 6PRO360NSL-8 |
| Nominal Diameter | 6.5″ / 165 mm |
| Nominal Impedance | 8 Ω |
| RMS Power Handling | 180 W |
| Max Power Handling | 360 W |
| Sensitivity (1w/1m) | 103 dB |
| Frequency Response | 100 Hz – 10 kHz |
| Recommended High-Pass Crossover | 120 Hz |
| Sold As | Single |
| Grill Included | No |
Features
| Feature | Details |
|---|---|
| Interleaved Sandwich Voice Coil (ISV) | Yes |
| Demodulating Rings | No |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push (12ga) |
Motor Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 1.78″ / 45 mm |
| Voice Coil Former Material | Fiberglass |
| Winding Material | Aluminum |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Cloth |
| Bullet Material | N/A |
| Bullet Color/Finish | N/A |
| Surround Material | Cloth |
| Basket Material | Die-Cast Aluminum |
| Basket Finish | Black |
| Magnet Material | Neodymium |
| Magnet Weight | 11.7 Oz |
| Displacement Volume | – |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 11.54 L / 0.4 ft³ |
| Excursion (Xmax) | 2.5 mm |
| Free Air Resonance (Fs) | 125 Hz |
| Mechanical Factor (Qms) | 8.76 |
| Electrical Factor (Qes) | 0.53 |
| Total Factor (Qts) | 0.5 |
| Mechanical Mass (Mms) | 4.68 g |
| Mechanical Compliance (Cms) | 0.34 mm/N |
| BL Factor | 6.53 |
| Voice Coil Inductance (Le) | 0.68 mH |
| Cone Area (Sd) | 153.94 cm² |
| DC Resistance (Re) | 5.9 Ω |
| Mechanical Mass w/o Air (Mmd) | – |

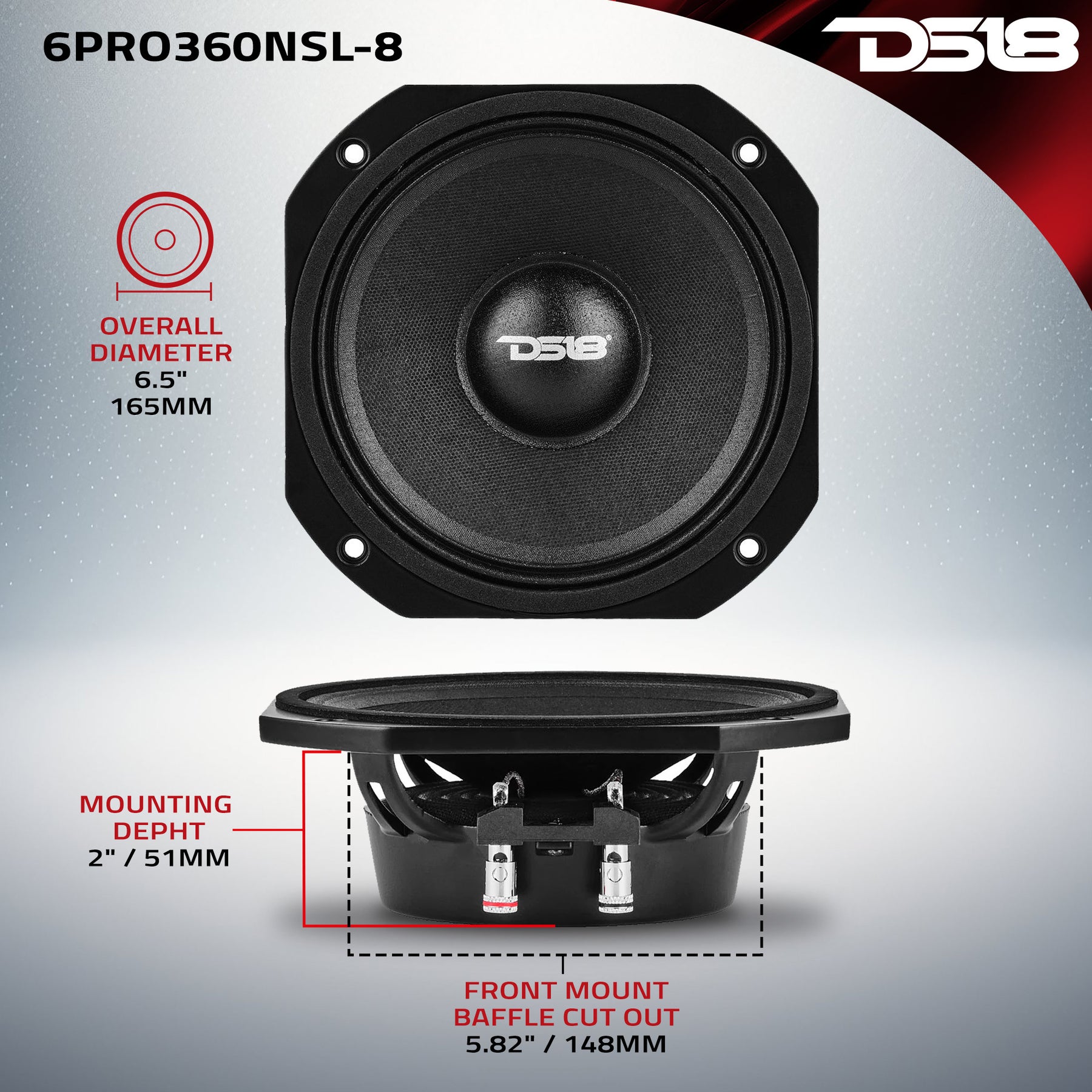

Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 6.38″ / 162 mm |
| Overall Depth | 2.44″ / 62 mm |
| Front Mount Baffle Cutout | 5.82″ / 148 mm |
| Mounting Depth | 2″ / 51 mm |
| Motor Diameter | 3.74″ / 95 mm |
Product Overview
DS18’s 6PRO360NSL-8 is a powerhouse of sound designed to make building your system easier than ever before.

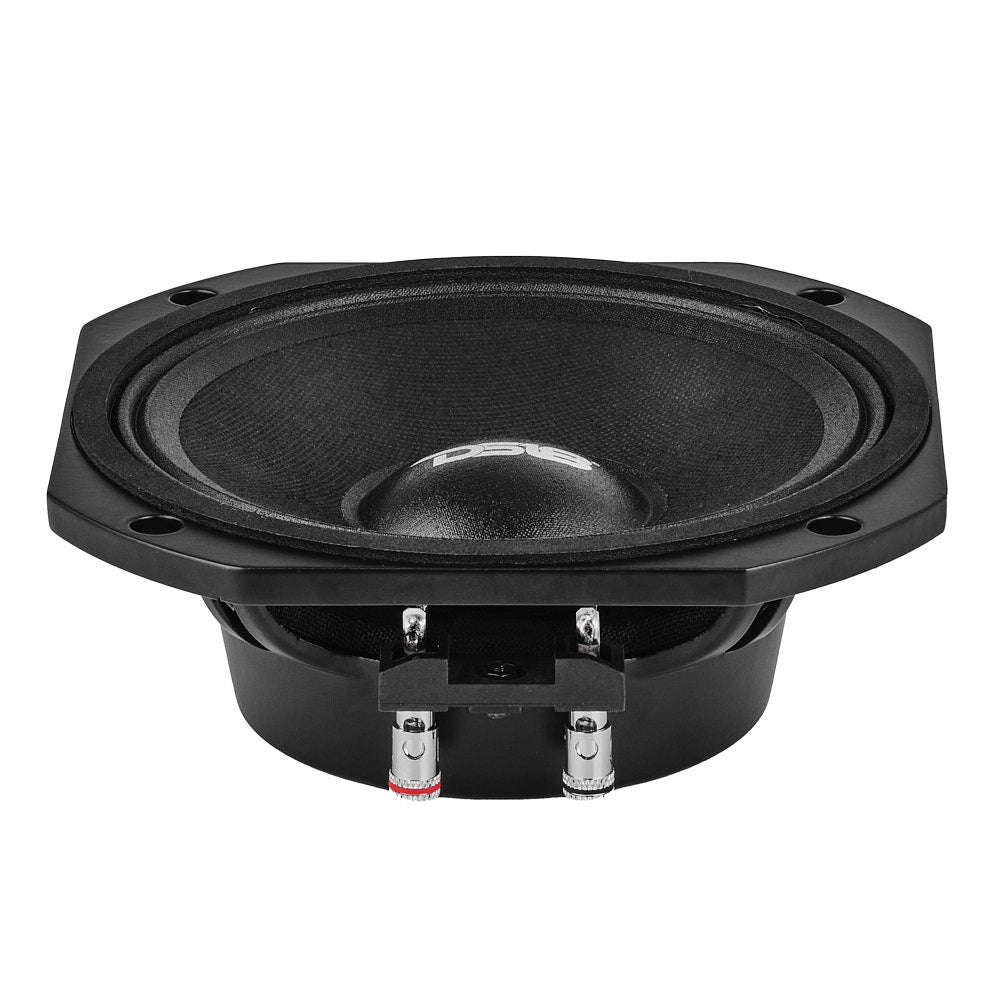

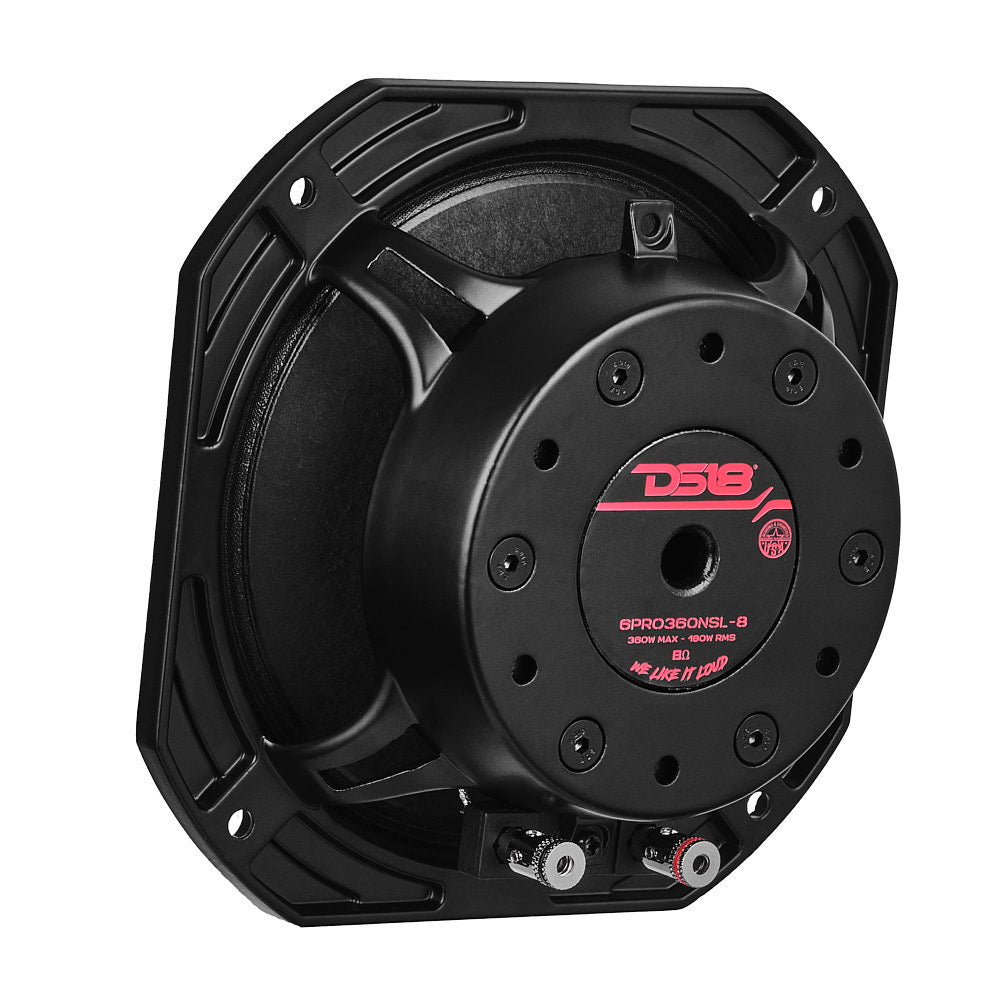

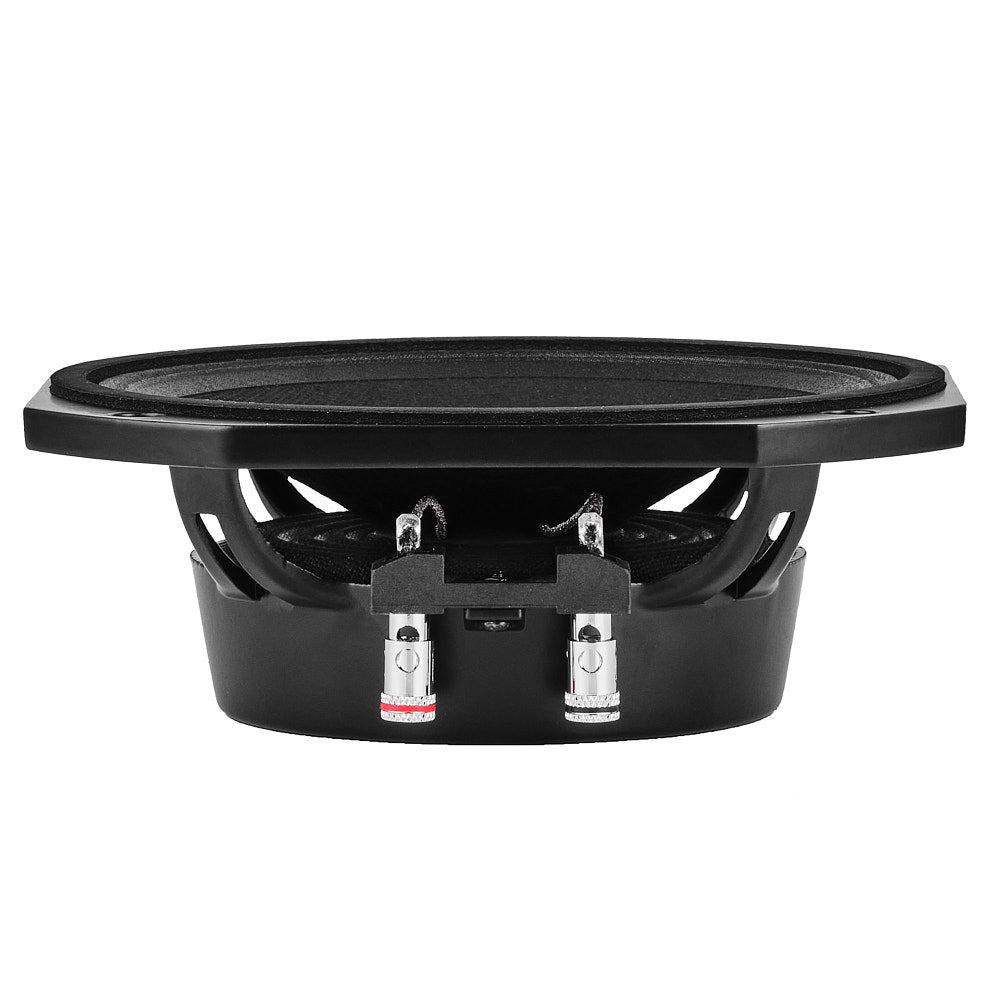

With a sleek black die-cast aluminum basket with outer support rings for organization, this midrange speaker was designed for show quality performance. The push speaker terminals (12ga) make installation a breeze, ensuring a secure and seamless connection.
Featuring a nominal impedance of 8 OHM and a robust RMS power handling of 180W, DS18’s 6PRO360NSL-8 guarantees every note, beat, and vocal is reproduced accurately. The103 dB sensitivity guarantees crystal-clear sound at high volumes so you never have to stop getting LOUD!
Equipped with an Interleaved Sandwich Voice Coil (ISV) and improved heat dissipation, this speaker can handle the most demanding audio setups. The curvilinear cone shape plays a big factor in this speaker’s exceptional sound reproduction capabilities. Designed for Line Array (LA) Systems, this loudspeaker fits horn diffusers like DS18’s PRO-SDF6 perfectly!
Crafted with premium materials, the DS18 6PRO360NSL-8 is built to last. Its fiberglass voice coil with a diameter of 1.78″, winding material made of aluminum, and neodymium magnet, weighing in at 11.7 Oz, all work together seamlessly to produce the most vibrant audio experience possible.
