Description
DS18 6PRO300MR-4
The DS18 6PRO300MR‑4 is a 6.5″ high‑sensitivity professional mid‑range loudspeaker designed for powerful, clear vocal and instrument reproduction in car audio systems and custom sound builds. Boasting 150 W RMS (300 W peak) power handling and a 102 dB sensitivity, this speaker delivers loud, detailed mid‑range sound with minimal distortion.
Specifications
| Parameter | Value |
|---|---|
| SKU | 6PRO300MR-4 |
| Nominal Diameter | 6.5″ / 165 mm |
| Nominal Impedance | 4 Ω |
| RMS Power Handling | 150 W |
| Max Power Handling | 300 W |
| Sensitivity (1w/1m) | 102 dB |
| Frequency Response | 100 Hz – 12.5 kHz |
| Recommended High-Pass Crossover | 160 Hz |
| Sold As | Single |
| Grill Included | No |
Features
| Feature | Details |
|---|---|
| Interleaved Sandwich Voice Coil (ISV) | No |
| Demodulating Rings | Copper Ring |
| Improved Heat Dissipation | No |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push 8ga |
Motor Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 1.25″ / 31.7 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Bullet Material | N/A |
| Bullet Color/Finish | N/A |
| Surround Material | Cloth |
| Spider Diameter | 4″ / 102 mm |
| Leads Connection Type | Spider Crossed |
| Basket Material | Steel |
| Basket Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 25 Oz |
| Displacement Volume | 0.28 L / 0.01 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 8.85 L / 0.312 ft³ |
| Excursion (Xmax) | 0.95 mm |
| Free Air Resonance (Fs) | 118 Hz |
| Mechanical Factor (Qms) | 4.73 |
| Electrical Factor (Qes) | 0.64 |
| Total Factor (Qts) | 0.57 |
| Mechanical Mass (Mms) | 7.36 g |
| Mechanical Compliance (Cms) | 0.25 mm/N |
| BL Factor | 5.31 |
| Voice Coil Inductance (Le) | 0.03 mH |
| Cone Area (Sd) | 158.37 cm² |
| DC Resistance (Re) | 3.3 Ω |
| Mechanical Mass w/o Air (Mmd) | 7.1 g |

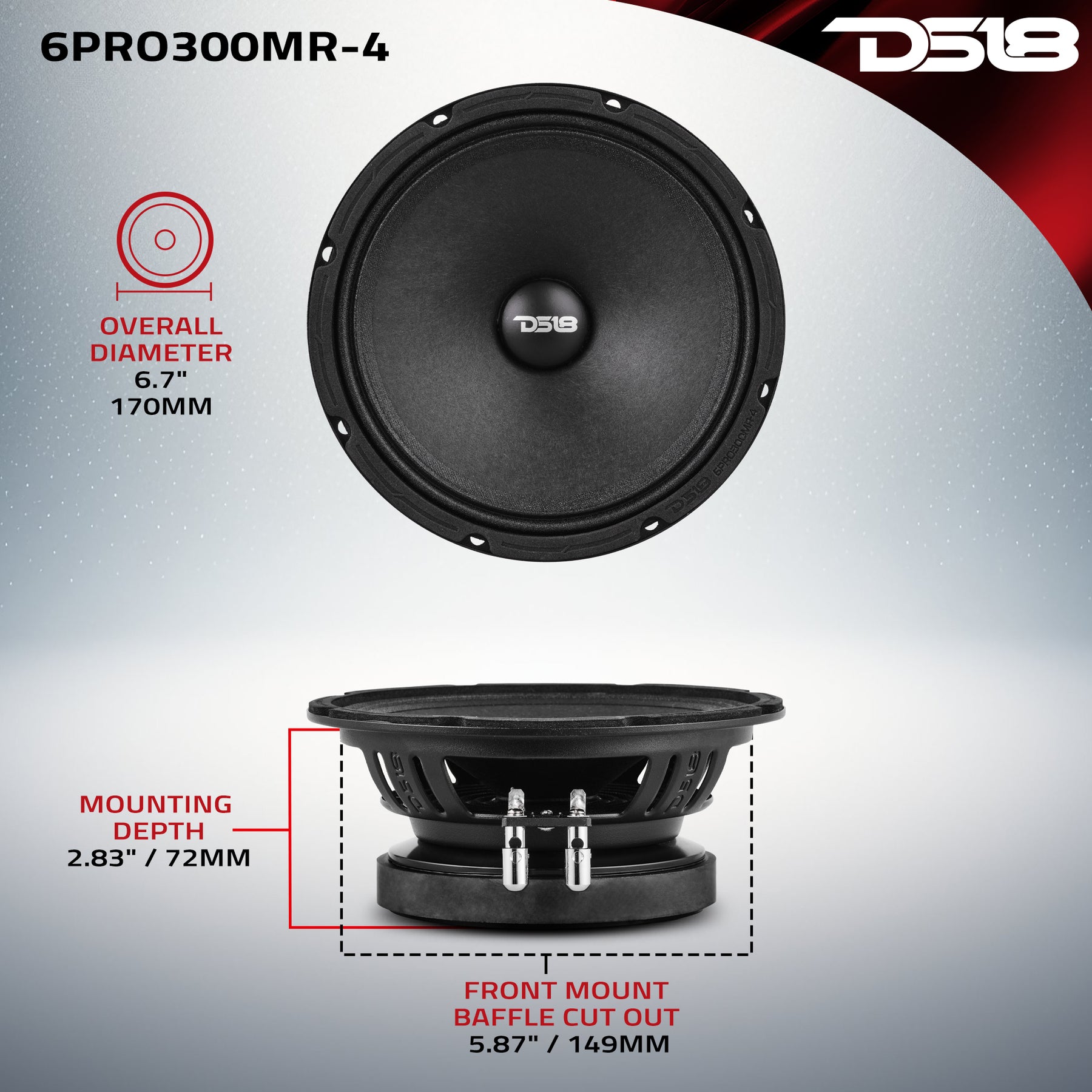

Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 6.7″ / 170 mm |
| Overall Depth | 3″ / 78 mm |
| Front Mount Baffle Cutout | 5.87″ / 149 mm |
| Mounting Depth | 2.83″ / 72 mm |
| Motor Diameter | 4.72″ / 120 mm |
Product Overview
DS18 6PRO300MR-4
Get superior sound with DS18’s 6PRO300MR-4!
With its 6.5″ nominal diameter and 4 OHMS nominal impedance, the 6PRO300MR-4 delivers exceptional performance and clarity. The RMS power handling of 150W and MAX power handling of 300W, guarantee powerful sound reproduction.
One standout feature of DS18’s 6PRO300MR-4 is its high sensitivity rating of 102 dB, allowing it to effortlessly fill any space with rich, immersive sound. The frequency response range of 100Hz-12.5KHz ensures that every beat is reproduced accurately.
What sets the 6PRO300MR-4 apart is its demodulating rings made of copper. These rings play a crucial role in substantially reducing harmonic and intermodulation distortion associated with voice coil displacement. They also minimize the modulation of magnetic flux during the movement of the voice coil, ensuring a more linear variation of system inductances as input current varies. This results in a cleaner sound output, providing an enhanced audio experience.
The curvilinear cone shape enhances overall dispersion while maintaining optimal performance. The push speaker terminals make installation hassle-free, allowing for secure connections without compromising on sound quality.
DS18’s 6PRO300MR-4 has one of the most impressive motor configurations in our catalog. Its 1.25″ voice coil diameter, made of Kapton material, ensures excellent heat dissipation for extended playtime without any compromise in performance.
Experience audio excellence with DS18’s 6PRO300MR-4!
