Description
DS18 6PRO300MB-8
Specifications
| Parameter | Value |
|---|---|
| SKU | 6PRO300MB-8 |
| Nominal Diameter | 6.5 inch / 165 mm |
| Nominal Impedance | 8 Ohm |
| RMS Power Handling | 150 W |
| Maximum Power Handling | 300 W |
| Sensitivity (1W/1M) | 96 dB |
| Frequency Response | 80 Hz – 6 kHz |
| Recommended High Pass Crossover | 100 Hz |
| Sold As | Single |
| Grill Included | No |
Motor Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 1.5 inch / 38.1 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 20 oz |
| Displacement Volume | 0.32 L / 0.011 ft³ |
Thiele and Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume Vas | 3.97 L / 0.14 ft³ |
| Xmax (One Way) | 9.4 mm |
| Free Air Resonance Fs | 120 Hz |
| Mechanical Factor Qms | 1.76 |
| Electrical Factor Qes | 0.49 |
| Total Factor Qts | 0.38 |
| Moving Mass Mms | 10.85 g |
| Compliance Cms | 0.16 mm/N |
| BL Factor | 9.77 |
| Voice Coil Inductance Le | 0.2 mH |
| Diaphragm Area Sd | 130.7 cm² |
| DC Resistance Re | 5.7 Ohms |
Measurements and Shipping
| Parameter | Value |
|---|---|

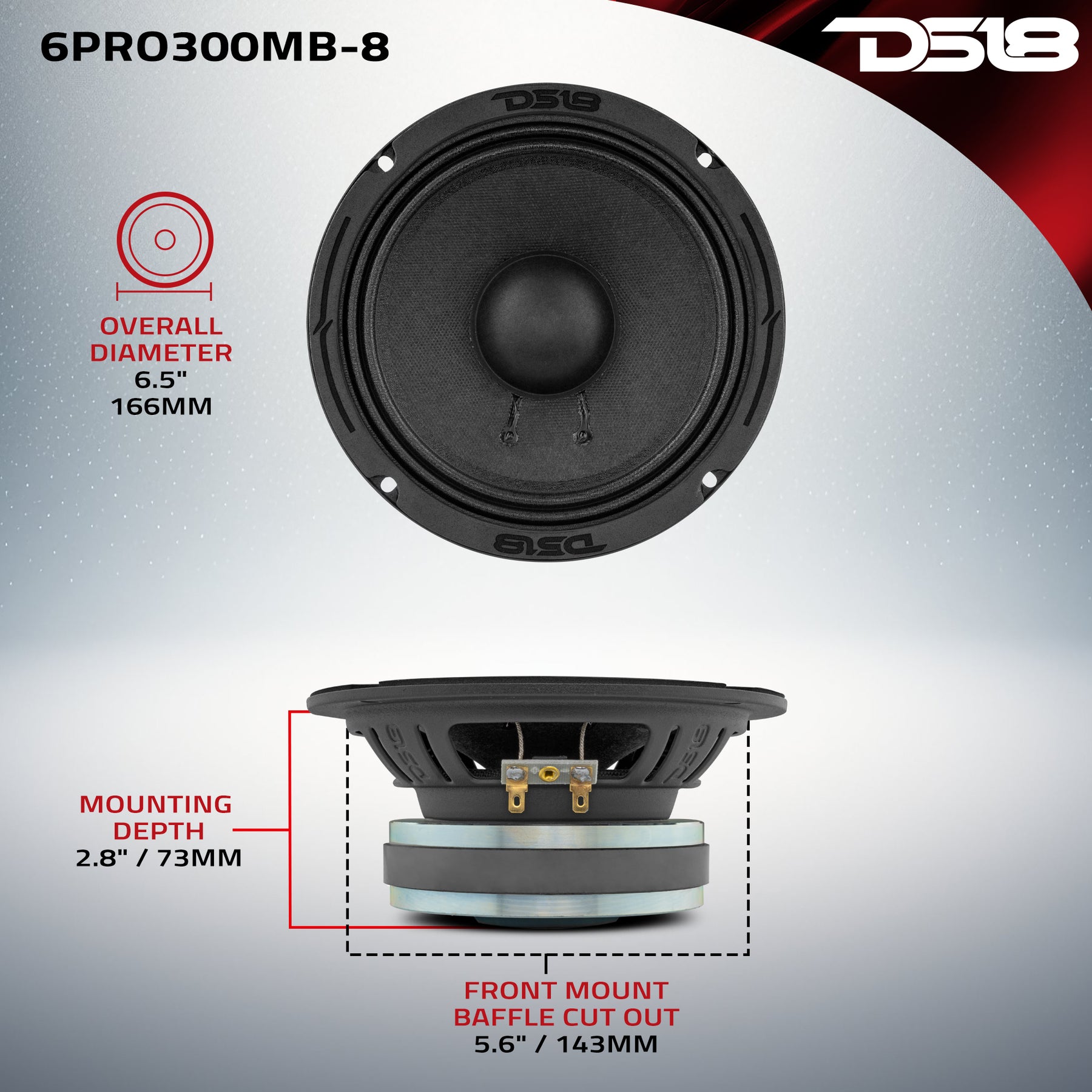

| Overall Diameter | 6.5 inch / 166 mm |
| Overall Depth | 3.1 inch / 79 mm |
| Front Mount Baffle Cutout | 5.6 inch / 143 mm |
| Mounting Depth | 2.8 inch / 73 mm |
| Motor Diameter | 4.5 inch / 115 mm |
| Gross Single Unit Weight | 5 lb |
| Single Unit Box Dimensions (W x L x H) | 7.25 x 7.25 x 3.5 in |
| Units per Master Carton | 8 |
| Gross Master Carton Weight | 40 lb |
| Master Carton Dimensions (W x L x H) | 15 x 15 x 7.75 in |
Product Overview

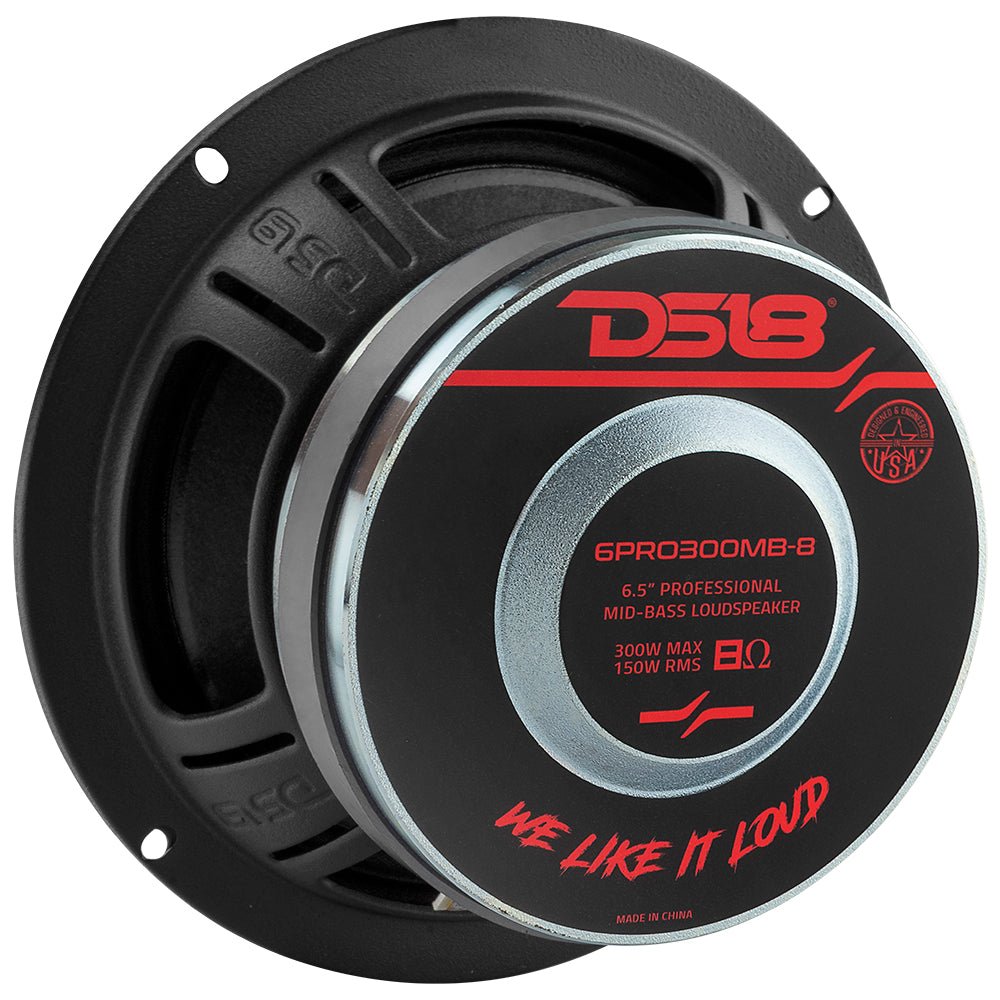

PRO 6.5″ Mid-Bass Loudspeaker 300 Watts 8-Ohm
Immerse yourself in a world of crisp, powerful sound with the DS18 6PRO300MB-8 speakers! Professional Audio speakers should be engineered to slay their respective frequency ranges, and when it comes to the mid-bass range, the 6PRO300MB-8 reigns supreme!
Featuring a design that prioritizes powerful and punchy bass responses, the 6PRO300MB-8 is capable of delivering crystal-clear sound without any distortion, making it an ideal choice for anyone who likes their music loud and proud!
One of the standout features of these speakers is their impressive frequency response range, which spans from 80Hz to 6KHz. This means that you can expect a solid mid-bass response from the 6PRO300MB-8, essential for reproducing the lower frequencies of your music with crystal-clear clarity and impactful bass notes that truly resonate.
Boasting a 8 ohm impedance, the 6PRO300MB-8 reduces overall power consumption and heat generated by your system. In addition to the 8-ohm configuration, the 6PRO300MB 6.5″ Mid-Bass Loudspeaker is also available in a 4-ohm configuration.
With a 1.5” voice coil that can handle 150W RMS and 300W Max power levels, these speakers provide an impressively manageable power setting for a speaker with an incredibly high 96 dB sensitivity!
If you’re on the hunt for a professional audio speaker that can play mid-bass notes with authority, then look no further than the DS18 6PRO300MB-8!
