Name: DS18 6PRO300MB-4
SKU: 6PRO300MB-4
Availability: InStock

Description

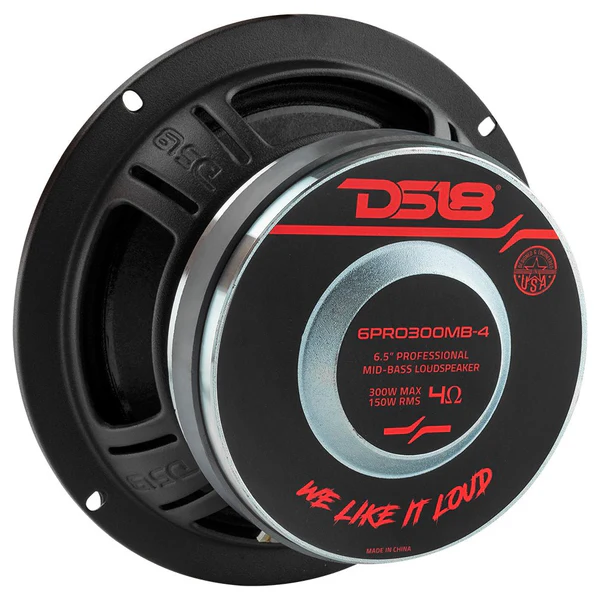

DS18 6PRO300MB-4

The 6PRO300MB-4 is a 6.5″ professional mid-bass loudspeaker designed for high-efficiency output with an 4-ohm impedance. It delivers tight and punchy mid-bass performance along with clear midrange clarity, making it ideal for pro audio setups, door speaker upgrades, and compact SPL systems. Built with a durable cone and high-temperature voice coil, it ensures consistent performance even under demanding conditions.

Specifications

Parameter	Value
SKU	6PRO300MB-4
Nominal Diameter	6.5″ / 165 mm
Nominal Impedance	4 Ohm
RMS Power Handling	150 W
Maximum Power Handling	300 W
Sensitivity (1W/1M)	96 dB
Frequency Response	80 Hz – 6 kHz
Recommended High Pass Crossover	100 Hz
Sold As	Single
Grill Included	No

Motor Specifications

Parameter	Value
Voice Coil Diameter	1.5″ / 38.1 mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Paper
Dust Cap Material	Paper
Surround Material	Cloth
Basket Material	Steel
Basket Finish	Satin Black
Magnet Material	Ferrite
Magnet Weight	20 oz
Displacement Volume	0.32 L / 0.011 ft³

Thiele & Small Parameters

Parameter	Value
Equivalent Volume Vas	2.79 L / 0.098 ft³
Xmax (One Way)	9.4 mm
Free Air Resonance Fs	142 Hz
Mechanical Factor Qms	2.09
Electrical Factor Qes	0.47
Total Factor Qts	0.39
Moving Mass Mms	10.85 g
Compliance Cms	0.12 mm/N
BL Factor	8.47
Voice Coil Inductance Le	0.16 mH
Diaphragm Area Sd	130.7 cm²
DC Resistance Re	3.5 Ohms

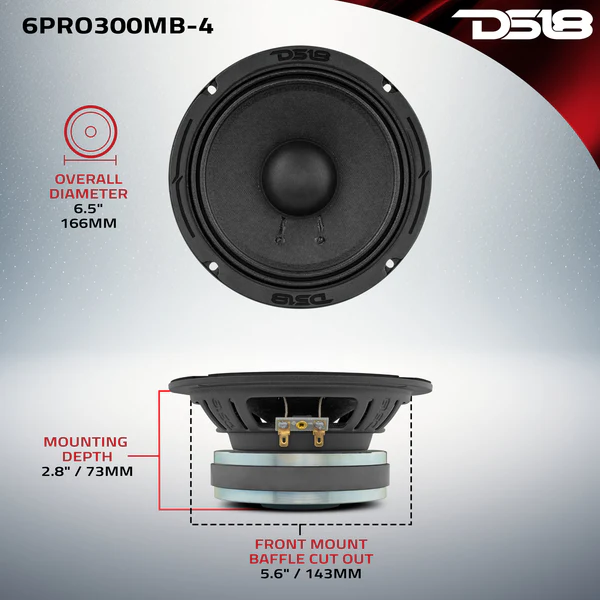

Measurements & Shipping

Parameter	Value
Overall Diameter	6.5″ / 166 mm
Overall Depth	3.1″ / 79 mm
Front Mount Baffle Cutout	5.6″ / 143 mm
Mounting Depth	2.8″ / 73 mm
Motor Diameter	4.5″ / 115 mm
Gross Single Unit Weight	5 lb
Single Unit Box Dimensions (W x L x H)	7.25 x 7.25 x 3.5 in
Units per Master Carton	8
Gross Master Carton Weight	40 lb
Master Carton Dimensions (W x L x H)	15 x 15 x 7.75 in

Product Overview

PRO 6.5″ Mid-Bass Loudspeaker 300 Watts 4-Ohm

Immerse yourself in a world of crisp, powerful sound with the DS18 6PRO300MB-4 speakers! Professional Audio speakers should be engineered to slay their respective frequency ranges, and when it comes to the mid-bass range, the 6PRO300MB-4 reigns supreme!
Featuring a design that prioritizes powerful and punchy bass responses, the 6PRO300MB-4 is capable of delivering crystal-clear sound without any distortion, making it an ideal choice for anyone who likes their music loud and proud!
One of the standout features of these speakers is their impressive frequency response range, which spans from 80Hz to 6KHz. This means that you can expect a solid mid-bass response from the 6PRO300MB-4, essential for reproducing the lower frequencies of your music with crystal-clear clarity and impactful bass notes that truly resonate.
Boasting a 4 ohm impedance, the 6PRO300MB-4 can be easily integrated into any professional audio system without any hassle. With a 1.5” voice coil that can handle 150W RMS and 300W Max power levels, these speakers provide an impressively manageable power setting for a speaker with an incredibly high 96 dB sensitivity!
If you’re on the hunt for a professional audio speaker that can play mid-bass notes with authority, then look no further than the DS18 6PRO300MB-4!
