Description

DS18 6OCT300-8

The 6OCT300-8 is a 6.5″ professional mid-bass loudspeaker designed for high-efficiency output and precise midrange performance. With an 8-ohm impedance, it delivers tight mid-bass punch and clear vocals, making it ideal for pro audio systems, car audio upgrades, door speakers, and compact SPL setups. Its durable cone, reinforced frame, and high-temperature voice coil ensure consistent performance even in demanding high-volume conditions.


Specifications

Category Specification
SKU 6OCT300-8
Nominal Diameter 6.5″ / 165 mm
Nominal Impedance 8 Ω
RMS Power Handling 300 W
Maximum Power Handling 600 W
Sensitivity (1W/1m) 95 dB
Frequency Response 80Hz–10KHz
Recommended High-Pass Crossover 120 Hz

Motor / Voice Coil Specifications
Feature Specification
Voice Coil Diameter 2″ / 50.8 mm
Voice Coil Former Material TIL
Winding Material CCAW
Basket Material Aluminum
Magnet Weight 30 oz

Thiele & Small Parameters
Parameter Value
Equivalent Volume (Vas) 9.55 L / 0.337 ft³
Excursion (Xmax) 4 mm
Free Air Resonance (Fs) 120 Hz
Mechanical Factor (Qms) 5.975
Electrical Factor (Qes) 0.999
Total Factor (Qts) 0.855
DC Resistance (Re) 5.87 Ω

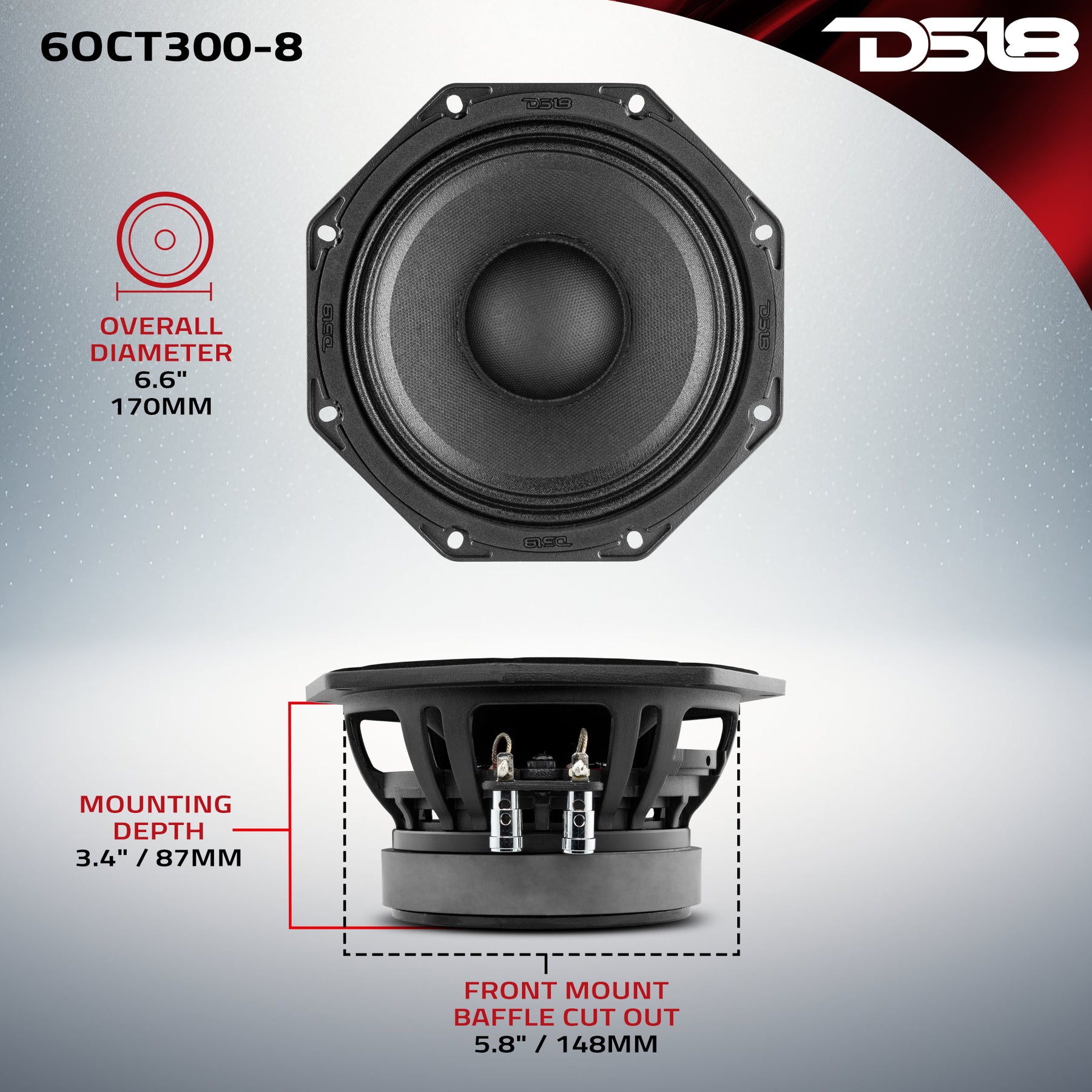

Measurements
Dimension / Feature Value
Overall Diameter 6.6″ / 170 mm
Front Mount Baffle Cutout 5.8″ / 148 mm
Mounting Depth 3.4″ / 87 mm
Overall Depth 3.7″ / 95 mm
Product Weight 6.5 lbs
Product Dimensions (W x L x H) 7.75 x 7.75 x 4.75 in
Master Carton Weight 26.5 lbs
Master Carton Dimensions 16 x 8.25 x 10.25 in
Quantity per Master Carton 4
Sold In Piece

Product Overview

PRO 6.5” Octagon Mid-Range Loudspeaker 600W MAX 8-Ohm

Get your system in shape with DS18’s 6OCT300-8! This speaker’s unique octagonal shape offers a wider range of frequency response compared to traditional round speakers, reproducing sounds as low as 80Hz and as high as 10KHz, giving you an incredibly tangible soundstage that increases the quality and feel of the music produced by them.
The high sensitivity rating of 95dB on the DS18 6OCT300-8 PRO Octagon Mid-Range Loudspeaker helps it efficiently convert power into sound. This results in a loud and clear output that can easily fill any room. The speaker’s sensitivity also allows it to deliver exceptional sound quality even at lower volumes, making it ideal for both casual listening and high-intensity sound experiences.
In addition, the DS18 6OCT300-8’s high power handling ratings of up to 300W RMS and 600W MAX ensure that the speaker can handle large amounts of power without distortion. This means that you can turn up the volume as loud as you want without worrying about damaging the speaker or compromising sound quality. With these power handling ratings, the DS18 6OCT300-8 is capable of delivering high-energy sound that is perfect for parties, concerts, and other events where volume is crucial.
But the benefits of the DS18 6OCT300-8’s octagonal shape go beyond just looks and sound quality. Its unique shape also makes it easier to organize and install in your system. The octagonal shape of the speaker allows it to be aligned more easily and accurately, ensuring that the sound is distributed evenly. This makes it an ideal choice for sound engineers and audiophiles who demand precision and accuracy in their sound systems.

Reviews

There are no reviews yet.

Be the first to review “DS18 6OCT300-8”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What type of speaker is the 6OCT300-8?

A1: It is a 6.5-inch professional mid-bass loudspeaker built for strong midrange and mid-bass output.

Q2: What is the impedance of this speaker?

A2: The 6OCT300-8 has an 8-ohm impedance, suitable for standard pro audio and PA amplifier setups.

Q3: Can this speaker be used in car audio systems?

A3: Yes, it is ideal for custom car audio builds, door speaker upgrades, and SPL systems.

Q4: Does it produce deep bass?

A4: It is optimized for mid-bass and midrange frequencies. Pair with a subwoofer for deeper low-end.

Q5: Is an external amplifier required?

A5: Yes, a dedicated external amplifier is recommended for optimal performance and clarity.
