Description

DS18 6JP300N-4

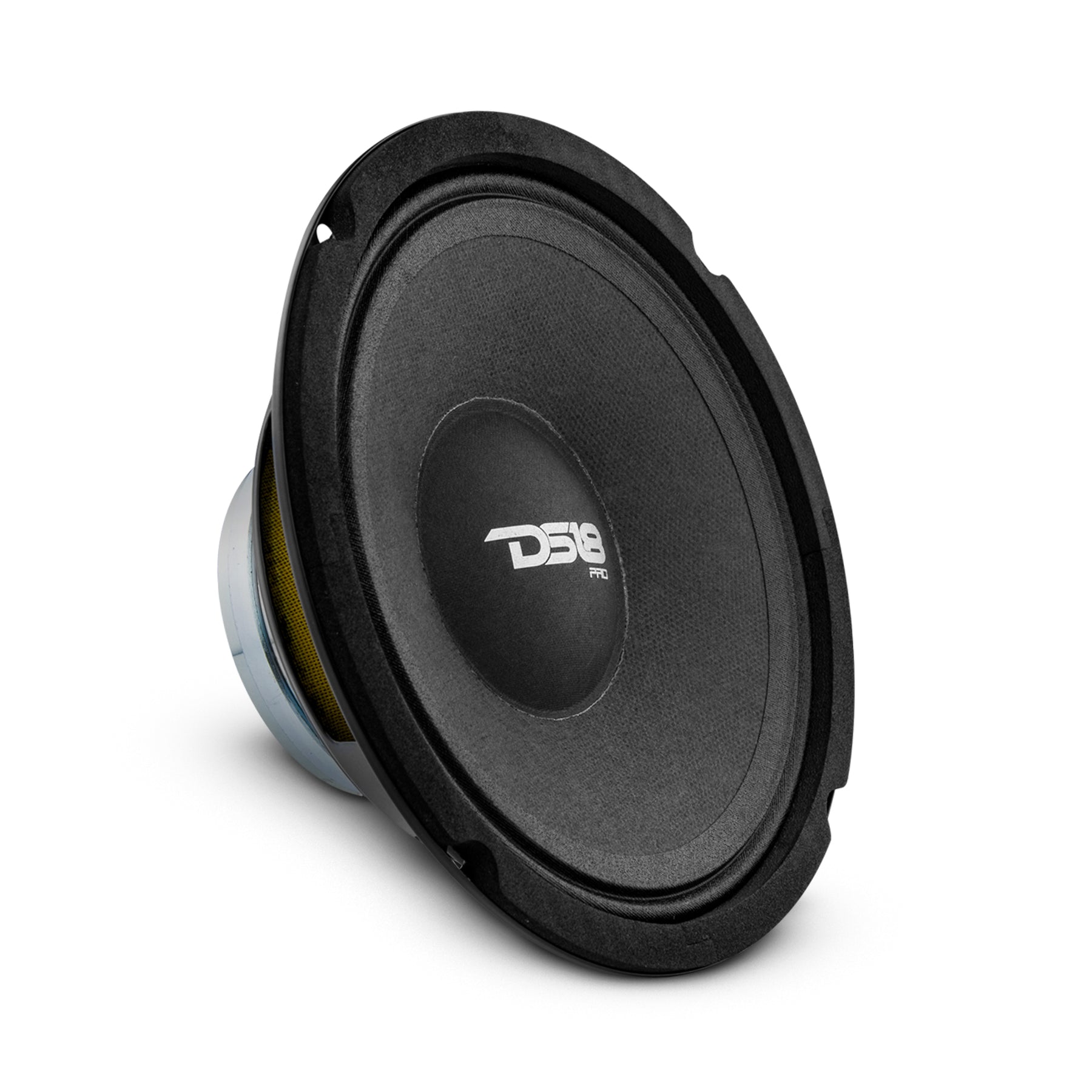

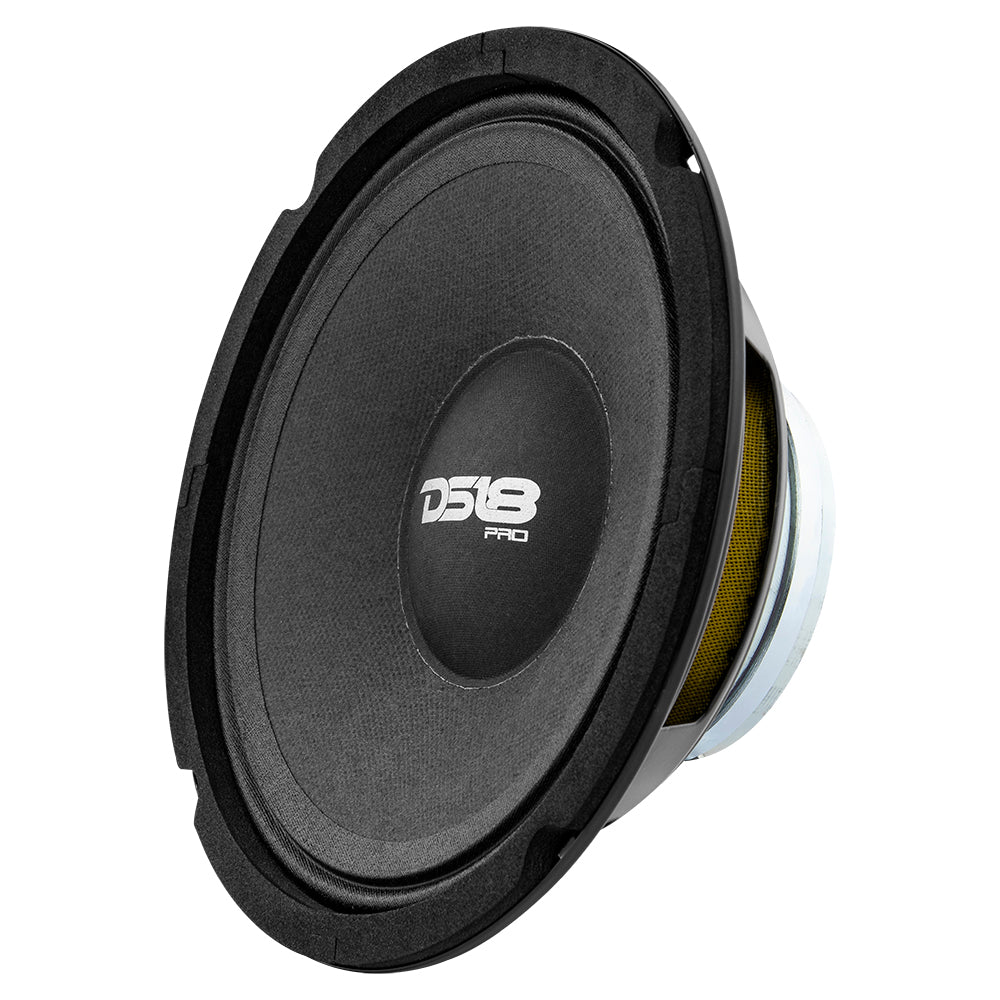

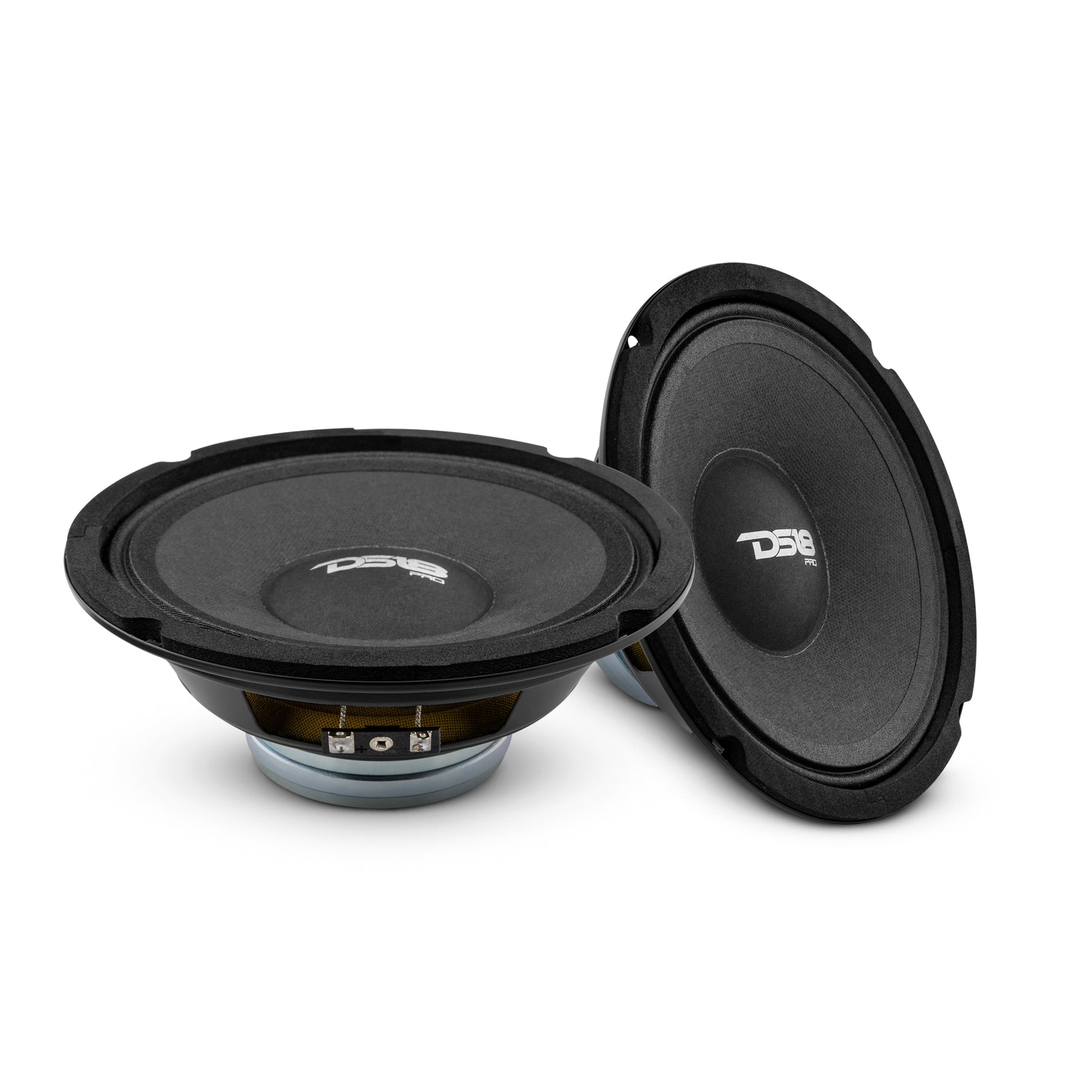

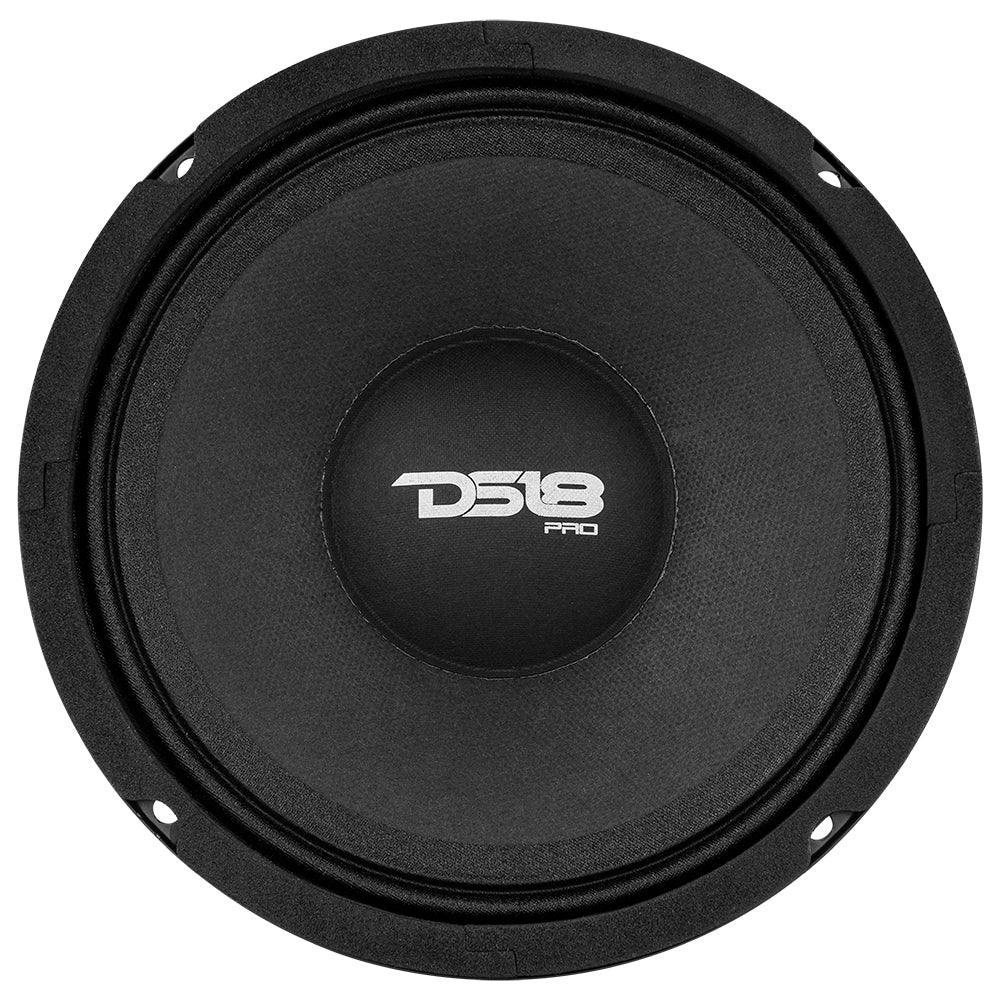

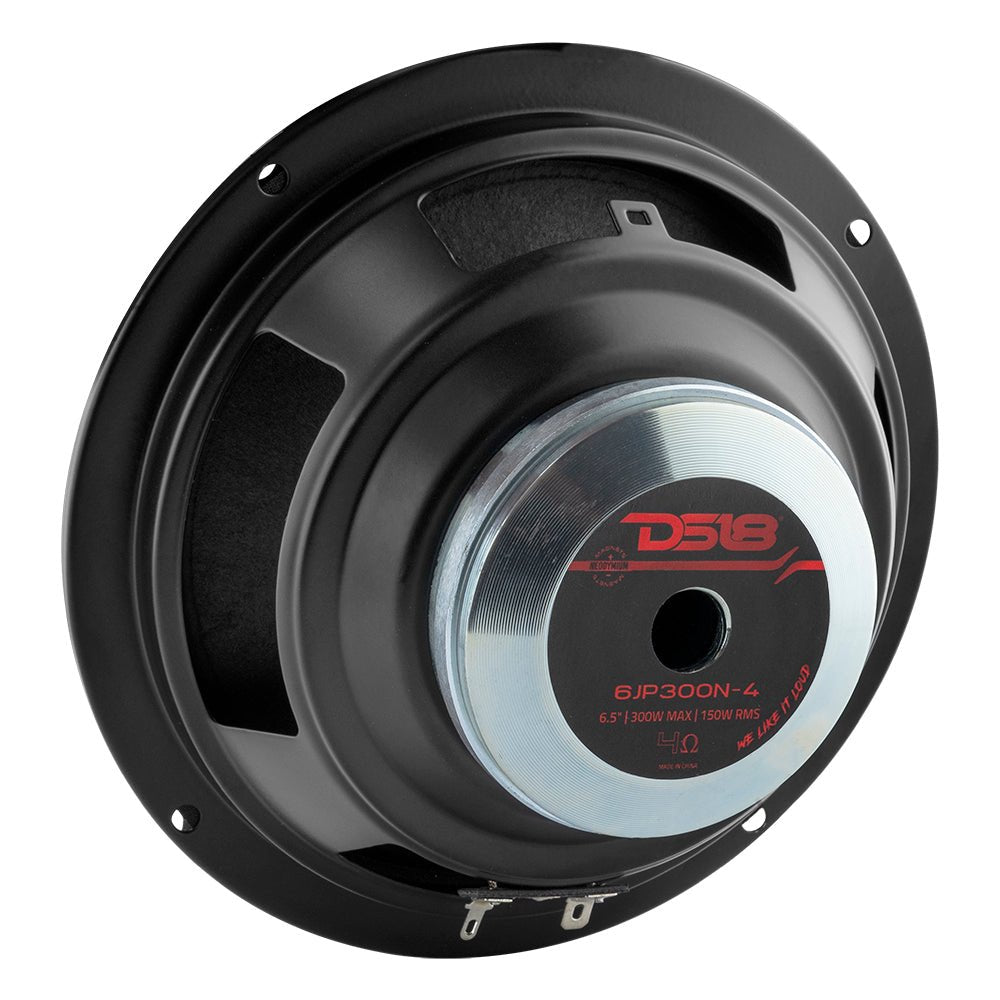

The DS18 6JP300N-4 is a premium 6.5-inch neodymium full-range mid-range loudspeaker designed to deliver loud, detailed mid-range performance in car audio systems, powersports audio installs, and custom sound builds. It’s lightweight thanks to the neodymium magnet, highly efficient, and built to produce clear vocals and instrument tones without requiring excessive amplifier power.


Specifications

Parameter Value
SKU 6JP300N-4
Nominal Diameter 6.5 inch / 165 mm
Nominal Impedance 4 Ohms
RMS Power Handling 150 W
Max Power Handling 300 W
Sensitivity (1W/1M) 97 dB
Frequency Response 80 Hz – 10 kHz
Recommended High Pass Crossover 120 Hz
Sold As Single

Motor Specifications
Parameter Value
Voice Coil Diameter 1.5 inch / 38 mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Paper
Dust Cap Material Paper
Surround Material Cloth
Basket Material Steel
Basket Finish Satin Black
Magnet Material Neodymium
Magnet Size 75 x 45 x 6 mm

Thiele and Small Parameters
Parameter Value
Vas 5 L / 0.176 ft³
Xmax 3.6 mm
Fs 140 Hz
Qms 4.244
Qes 0.863
Qts 0.717
Mms 7.515 g
Cms 0.1678 mm/N
BL 4.981
Le 0.1091 mH
Sd 141.03 cm²
Re 3.2 Ohms
Mmd 6.508 g

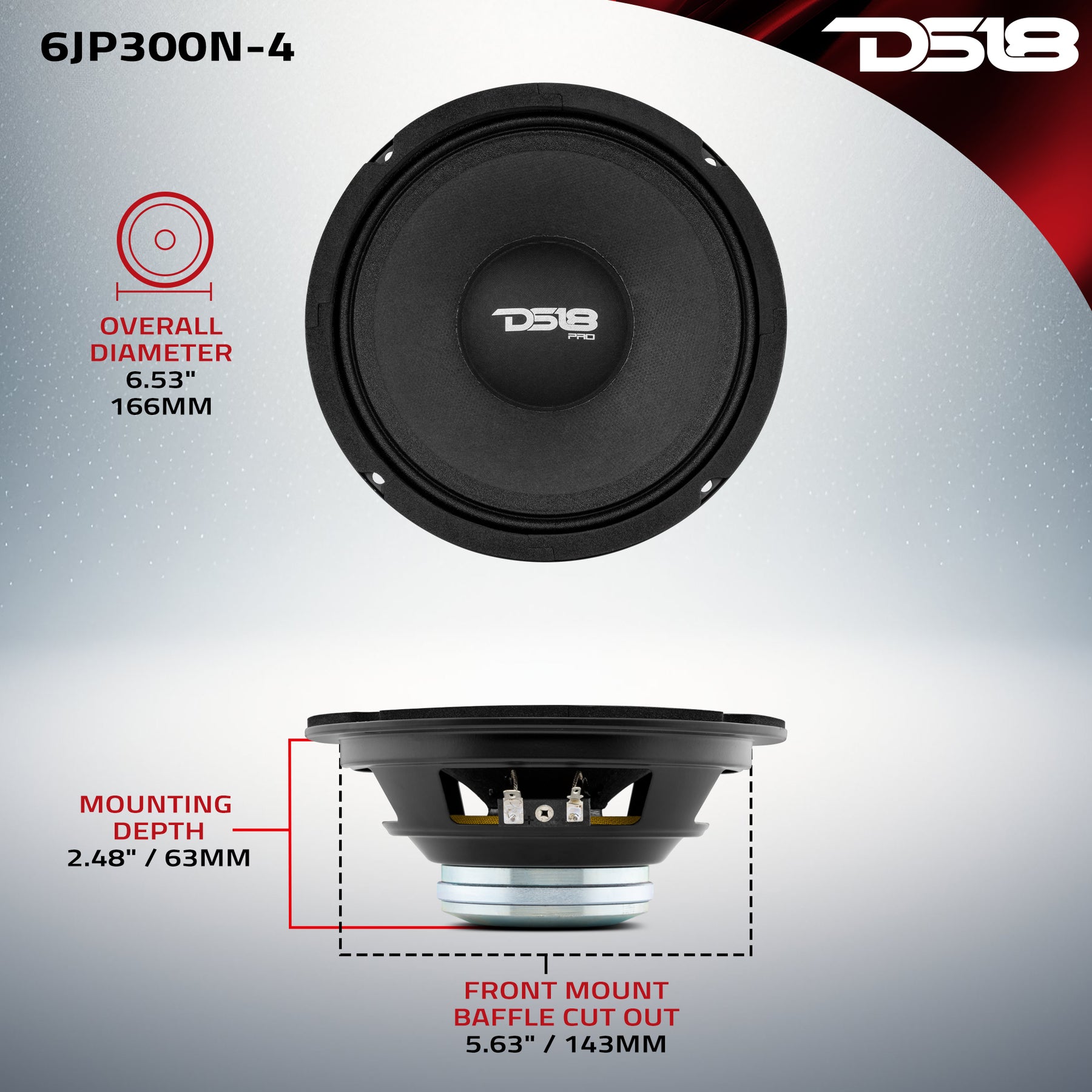

Measurements
Parameter Value
Overall Diameter 6.53 inch / 166 mm
Overall Depth 2.67 inch / 68 mm
Front Mount Baffle Cutout 5.63 inch / 143 mm
Mounting Depth 2.48 inch / 63 mm
Motor Diameter 2.95 inch / 75 mm

Product Overview

6.5” Mid-Range Loudspeaker With Neodymium Magnet

Born from passion for perfecting the in-car audio experience, DS18’s 6JP300N-4 is more than just a component – it’s the missing piece to your perfect sound system.
Every element of the 6JP300N-4 is thoughtfully engineered, from the ground-breaking neodymium magnet that intensifies sound quality, to the precision-wound voice coil that ensures unwavering accuracy. This seamless fusion of artistry and engineering is a testament to DS18’s dedication to delivering products that transcend the ordinary.
Every DS18 6JP300N-4 undergoes rigorous testing to conquer every obstacle. The cone material, crafted from premium paper, renders vocals with warmth and precision. Meanwhile, the resilient cloth surround allows for fluid motion, culminating in lifelike audio reproduction that stirs your soul.
The aluminum basket, dressed in a satin black finish, provides a sturdy foundation for the 6JP300N-4. Engineered with precision, this custom-tooled basket provides unparalleled stability, effectively reducing unwanted vibrations, and ensuring distortion-free sound reproduction. The strategic design incorporates ample ventilation, allowing for efficient heat dissipation, even during prolonged listening sessions at high volumes.
Superior audio performance demands pristine signal transmission, and DS18’s polished high quality spring loaded push terminals deliver just that. The polished surface minimizes resistance and contact irregularities, effectively reducing signal loss and preserving the integrity of your audio signals. The spring-loaded mechanism further simplifies the installation process, making it easy to achieve a tight and secure connection every time.
With 150W RMS power handling (300W MAX), DS18’s 6JP300N-4 boldly challenges convention with unwavering authority. The DS18 6JP300N-4 features a neodymium magnet for unparalleled magnetic strength—revolutionizing your soundstage by allowing these speakers to get extremely LOUD very easily. Don’t be fooled by its compact size; this speaker has a deafening 97dB sensitivity (1w/1m), unleashing the true potential of your car audio system. Getting as LOUD as you need for soaring vocals, pulsating basslines, and exhilarating highs.

Reviews

There are no reviews yet.

Be the first to review “DS18 6JP300N-4”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What is the DS18 6JP300N-4?
A1: It’s a 6.5″ neodymium full-range mid-range loudspeaker designed to deliver clear, loud mid-range sound in car audio and custom audio systems.
Q2: How much power can it handle?
A2: It has a 150 W RMS continuous and 300 W peak power handling capability.
Q3: What is the sensitivity rating and why does it matter?

A3: With around 97 dB sensitivity, this speaker achieves high loudness with less power from your amplifier, making it efficient for many systems.

Q4: What frequency range does it support?
A4: It covers approximately 80 Hz to 10 kHz, well suited for mid-range vocals and instruments.
Q5: Where is this ideal to install?
A5: It’s great for door installations, custom pods, motorcycles, and powersports audio builds, where clear mid-range sound is desired.
