Name: DS18 69PRO300MB-8
SKU: 69PRO300MB-8
Availability: InStock

Description

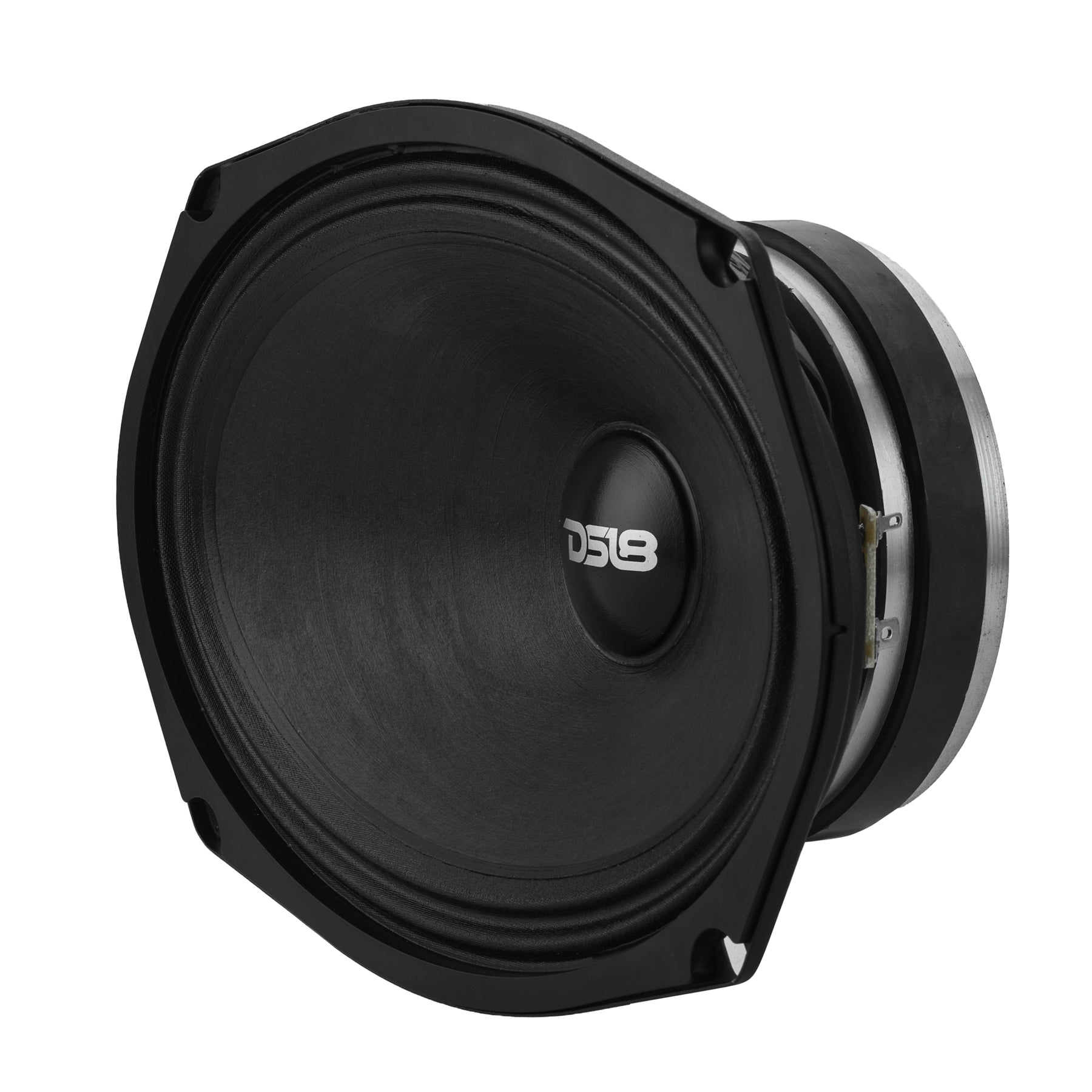

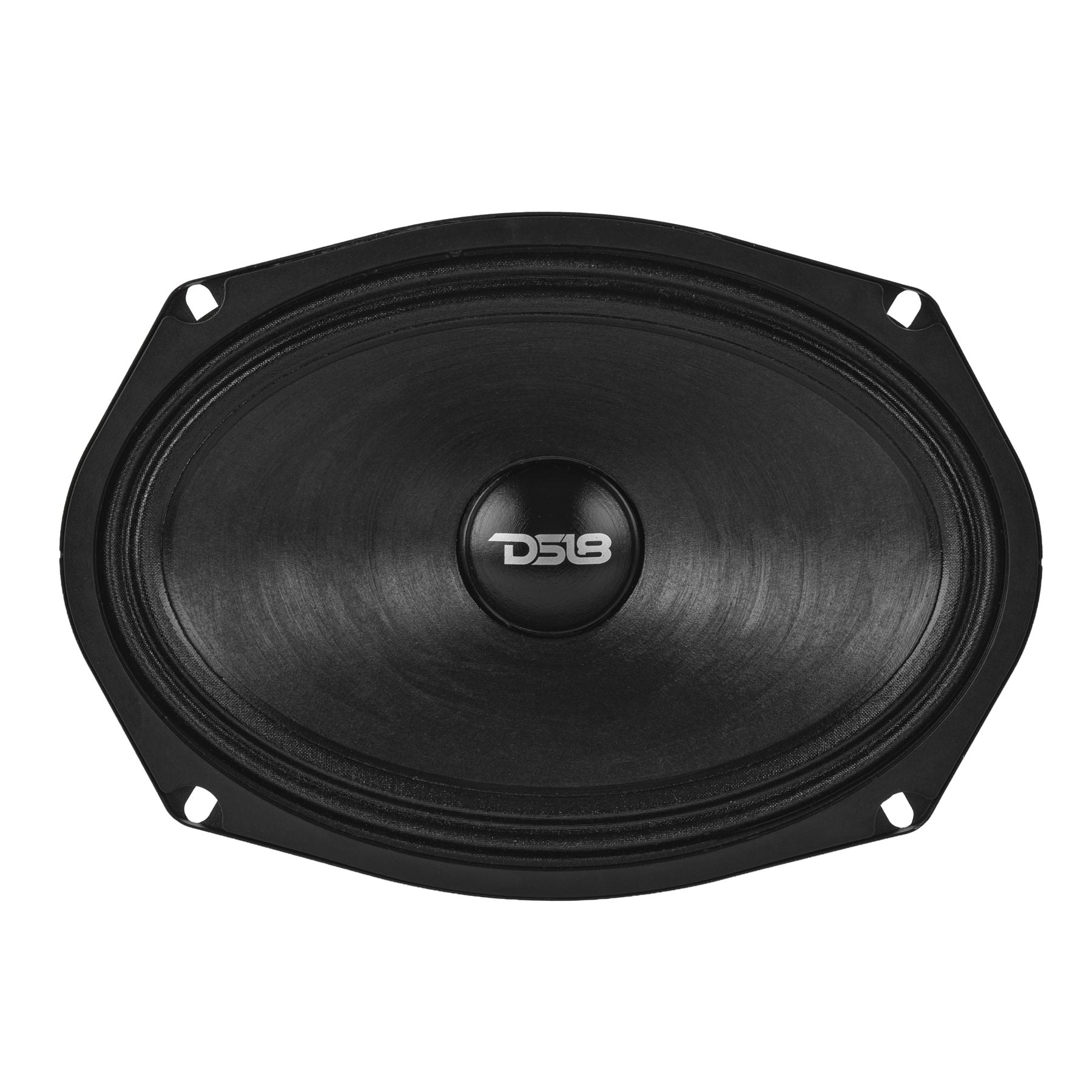

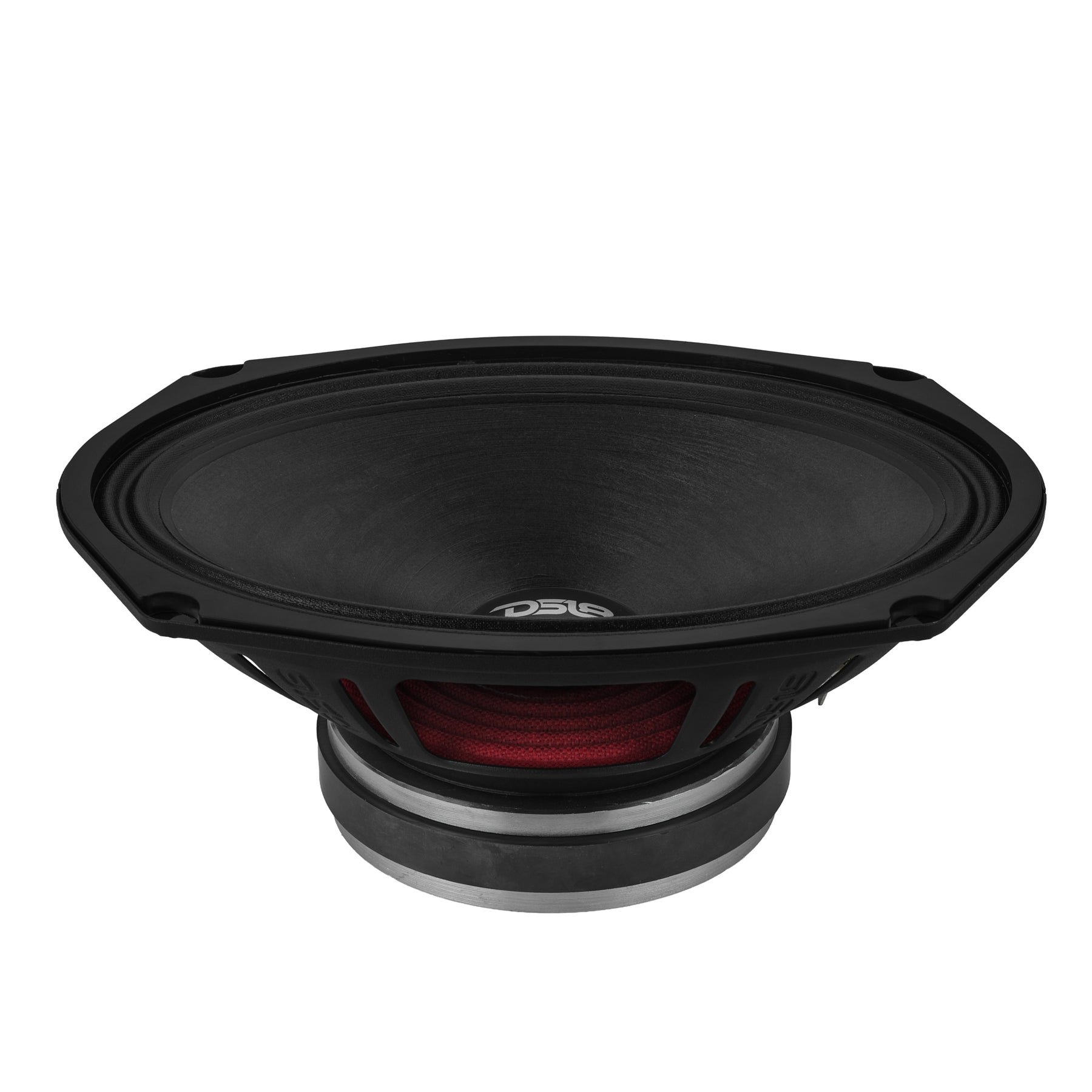

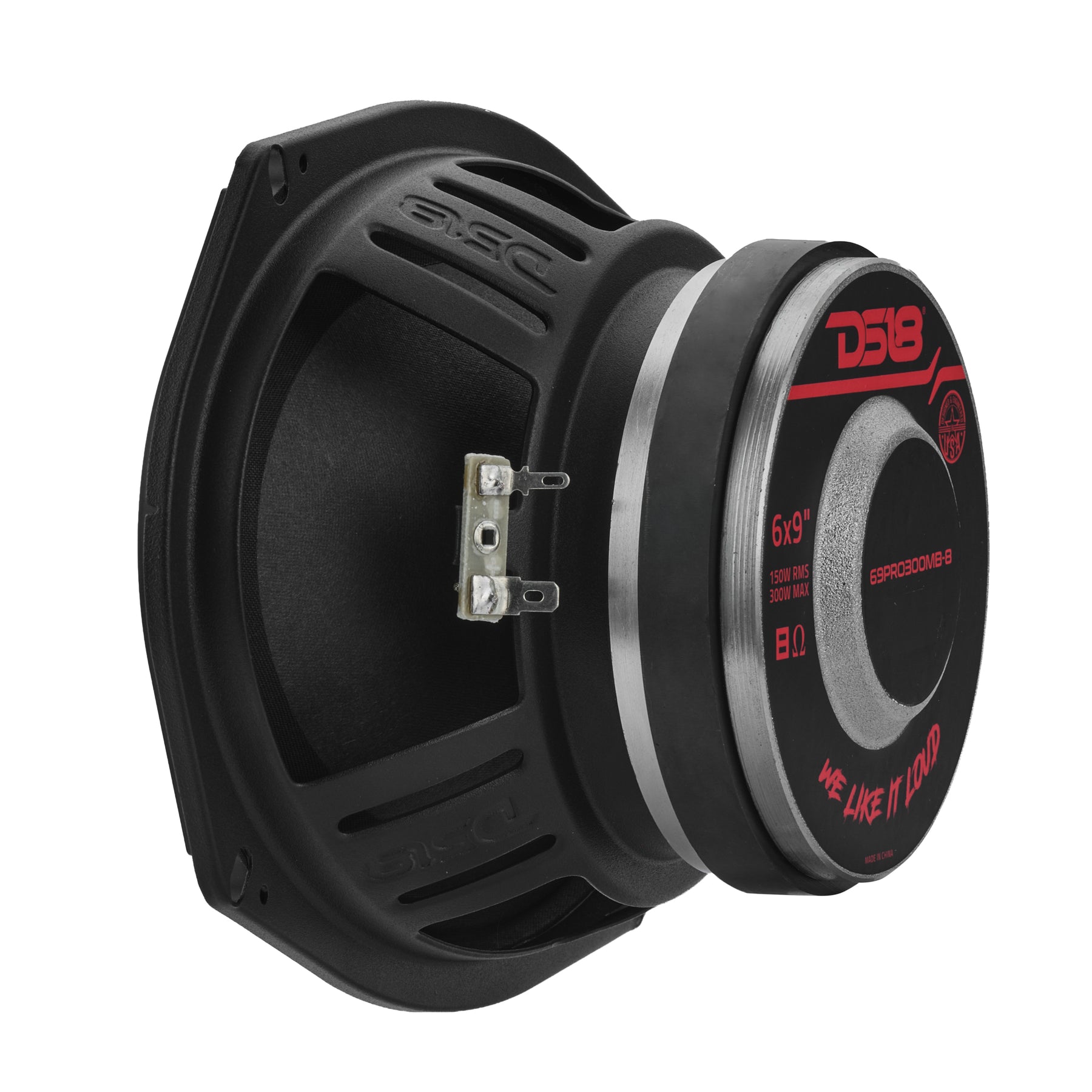

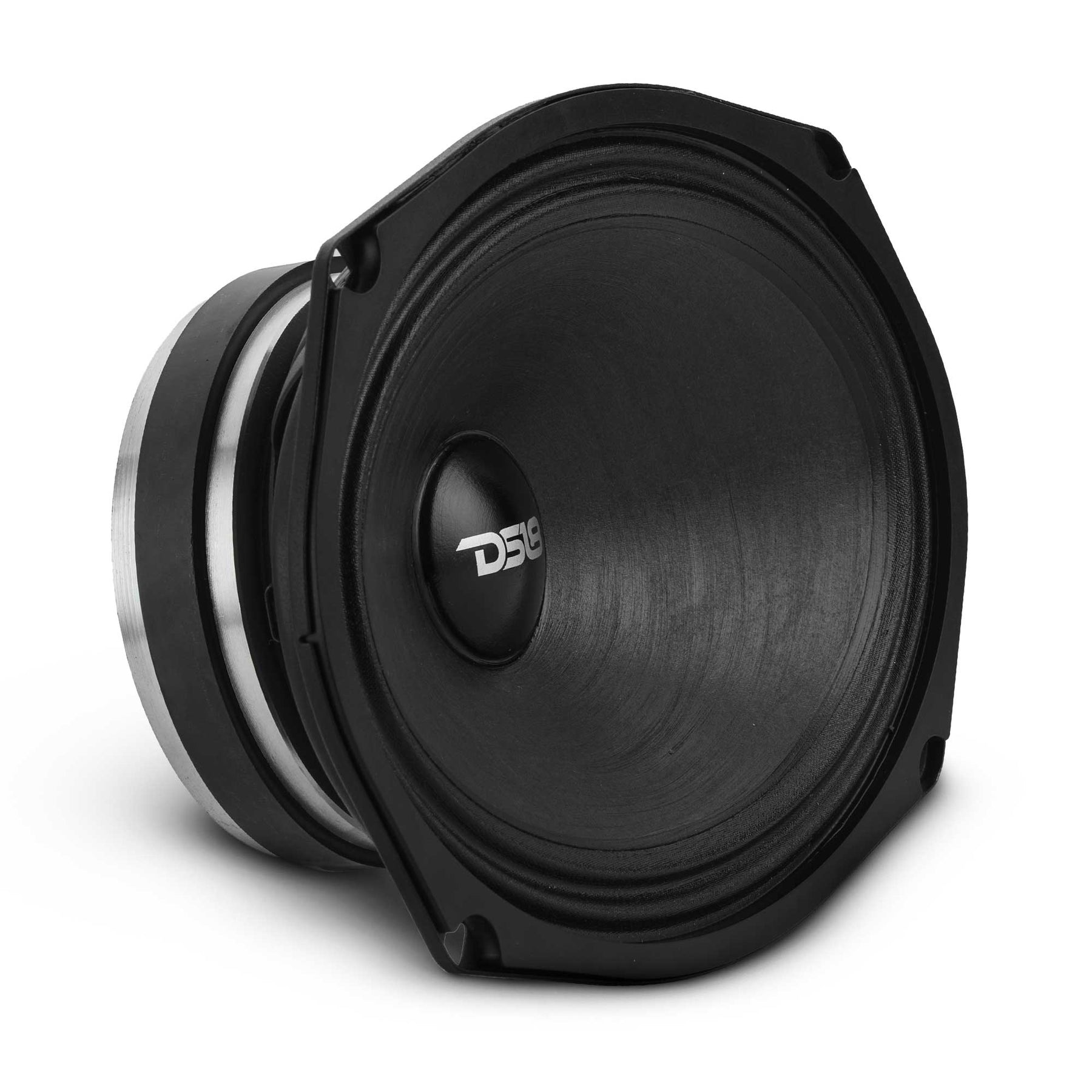

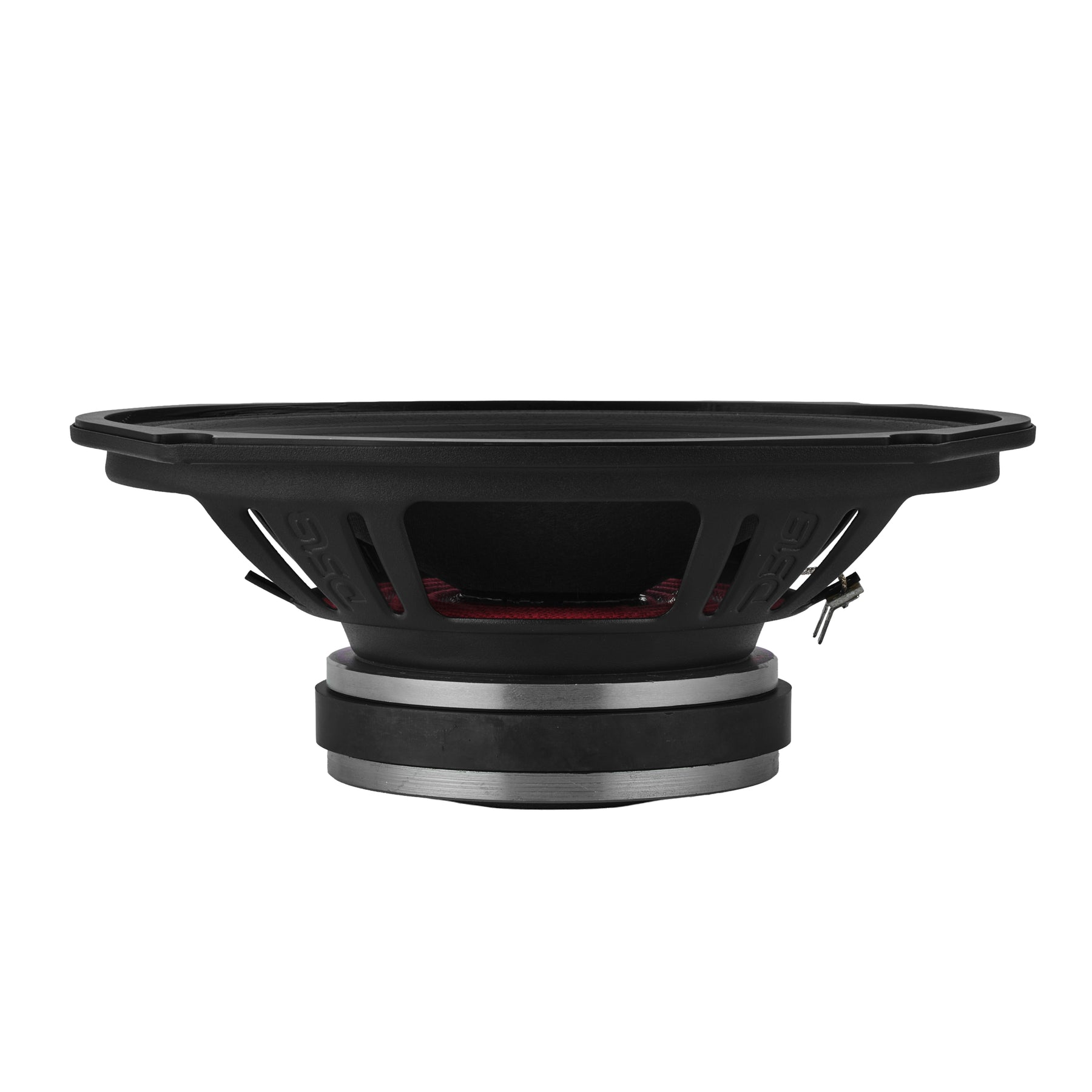

DS18 69PRO300MB-8

The 69PRO300MB‑8 is a 6×9″ professional mid‑bass loudspeaker designed to deliver powerful low‑frequency punch and clear midrange performance. With an 8‑ohm impedance, it pairs efficiently with most pro audio and car audio amplifiers, delivering strong mid‑bass response, punchy vocals, and solid overall audio output. Its reinforced cone, durable motor structure, and optimized voice coil construction make it ideal for pro audio systems, PA setups, custom car audio builds, and SPL‑oriented installations while ensuring reliable performance even at high volume levels.

Specifications

Specification	Value
Nominal Diameter	6×9″ (152×228 mm)
Nominal Impedance	8 Ohms
RMS Power Handling	150W
Max Power Handling	300W
Sensitivity (1w/1m)	98 dB
Frequency Response	50Hz – 12.5 kHz
Recommended Hi-Pass Crossover	80 Hz
Sold In	Single
Grill Included	No
Demodulating Rings	Copper Ring
Cone Shape	Curvilinear
Speaker Terminals	Spade

Motor & Cone Specifications

Specification	Value
Voice Coil Diameter	1.5″ (38.6 mm)
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Paper with Water-Resistant Coat
Dust Cap Material	Paper with Water-Resistant Coat
Surround Material	Cloth
Basket Material	Steel
Basket Color/Finish	Satin Black
Magnet Material	Ferrite
Magnet Weight	20 oz
Displacement Volume	0.48 L / 0.016 ft³

Thiele & Small Parameters

Parameter	Value
Equivalent Volume (Vas)	11.61 L / 0.41 ft³
Excursion (Xmax, one way)	1.6 mm
Free Air Resonance (Fs)	100 Hz
Mechanical Q (Qms)	2.160
Electrical Q (Qes)	1.11
Total Q (Qts)	0.698
Mechanical Mass (Mms)	12 g
Mechanical Compliance (Cms)	0.17 mm/N
BL Factor	7
Voice Coil Inductance (Le)	0.31 mH
Cone Area (Sd)	213.82 cm²
DC Resistance (Re)	5.2 Ohms

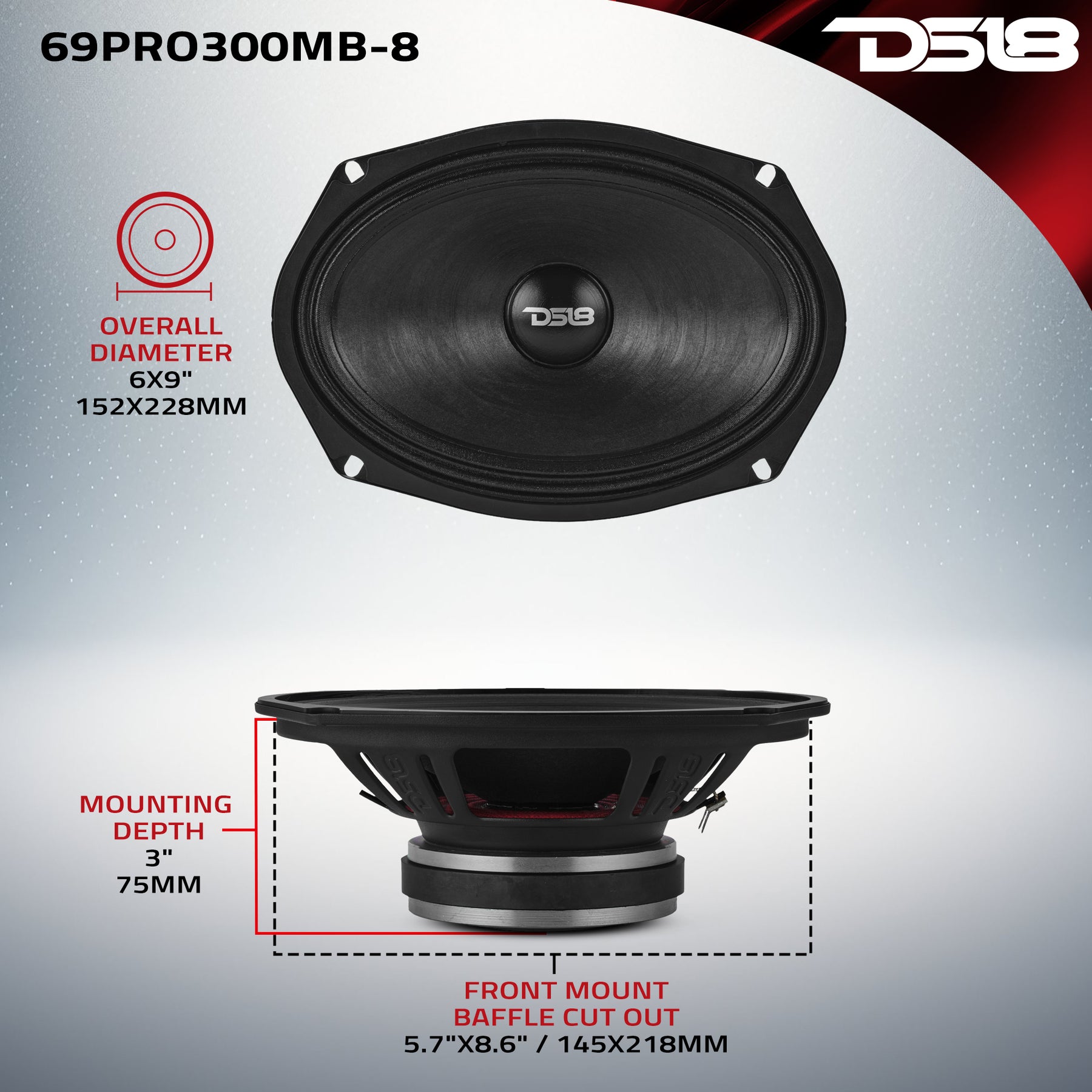

Measurements

Specification	Value
Overall Diameter	6.4 × 9.2″ (164 × 234 mm)
Overall Depth	3.1″ (79 mm)
Front Mount Baffle Cutout	5.7 × 8.6″ (145 × 218 mm)
Mounting Depth	3″ (75 mm)
Motor Diameter	4.5″ (115 mm)

Product Overview

Engineered for Superior Efficiency
With an ultra-high sensitivity of 98dB, this driver gets LOUD with less power, making it an easy upgrade for riders and installers who want MAX output over road and wind noise, without straining their amplifier.

Built for Harsh Environments
A water-resistant coated paper cone and dust cap keep performance strong in any conditions. The 69PRO300MB-8 delivers strength where it counts, while its sealed-back design protects the motor assembly in tight or exposed installs.

Precision Performance with Lower Distortion
Equipped with a demodulating copper ring, the 69PRO300MB-8 maintains a wider, more stable magnetic field for smoother coil movement and significantly reduced distortion. The result is mid-bass response that stays clean and aggressive from 50Hz to 12.5kHz.

Perfect for High-Impact Builds

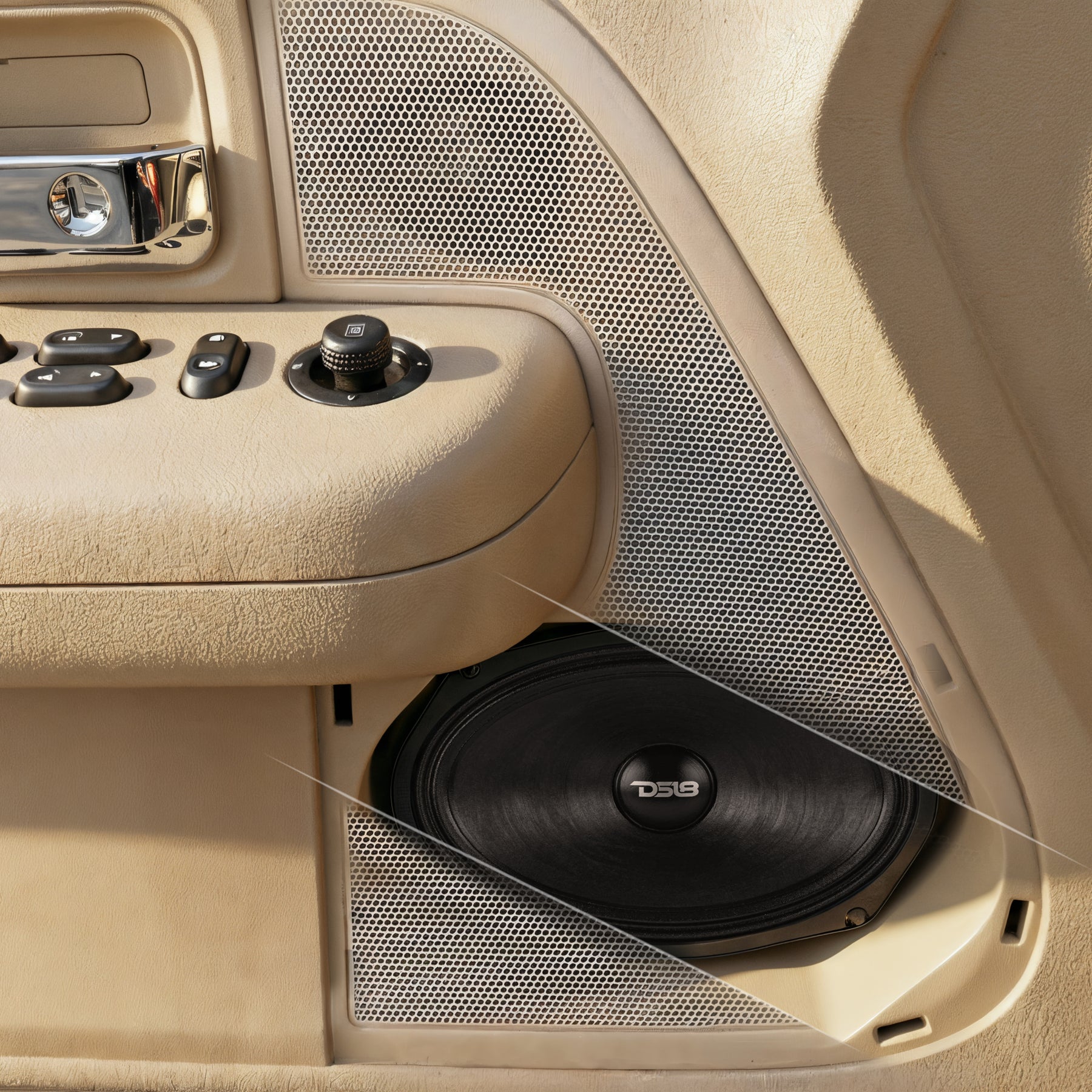

This speaker thrives in motorcycle fairings and car door panels where strong mid-bass is essential for a balanced sound system.

Want a speaker that hits harder, lasts longer, and sounds better than any regular mid-bass? The 69PRO300MB-8 is the most reliable upgrade you can make!
