Description

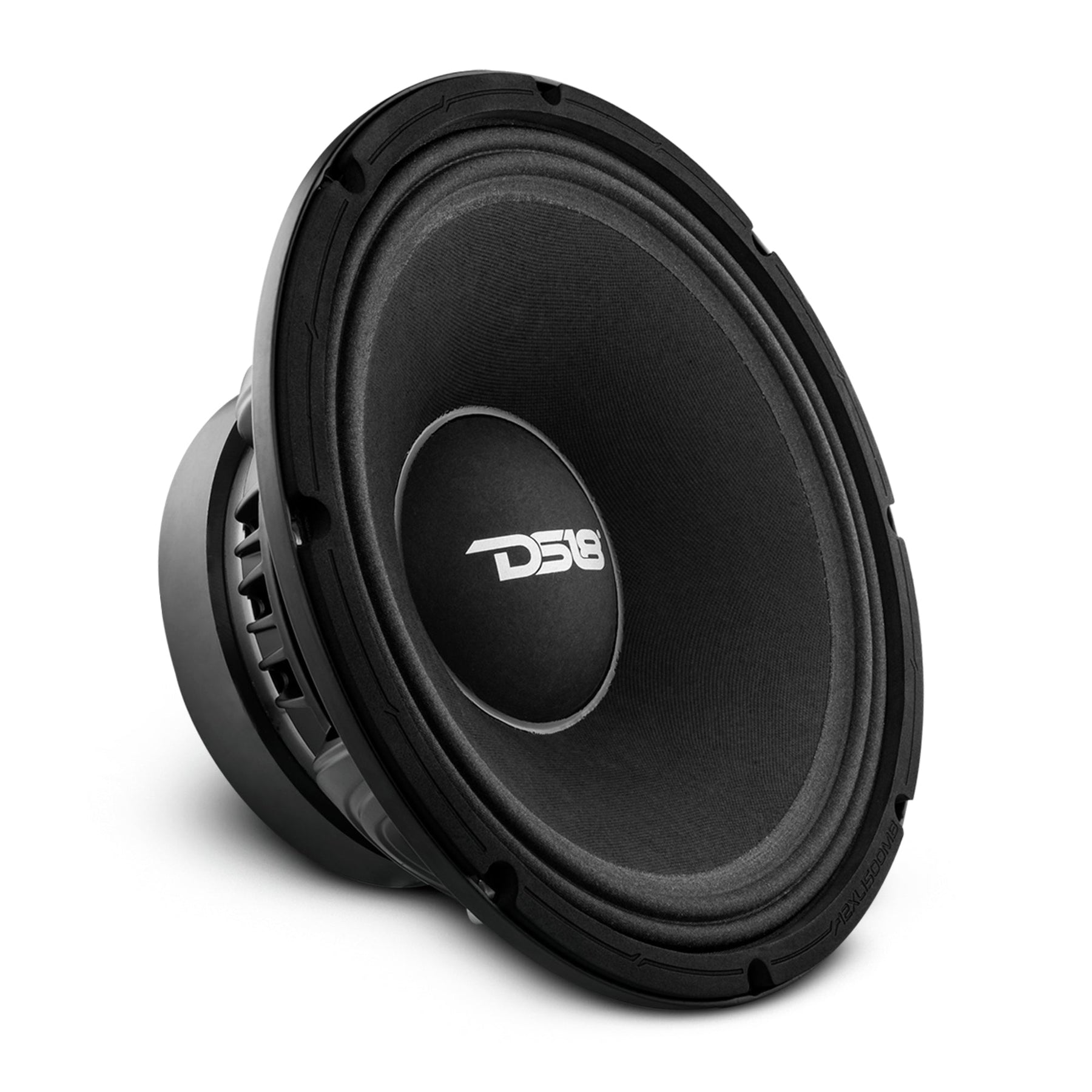

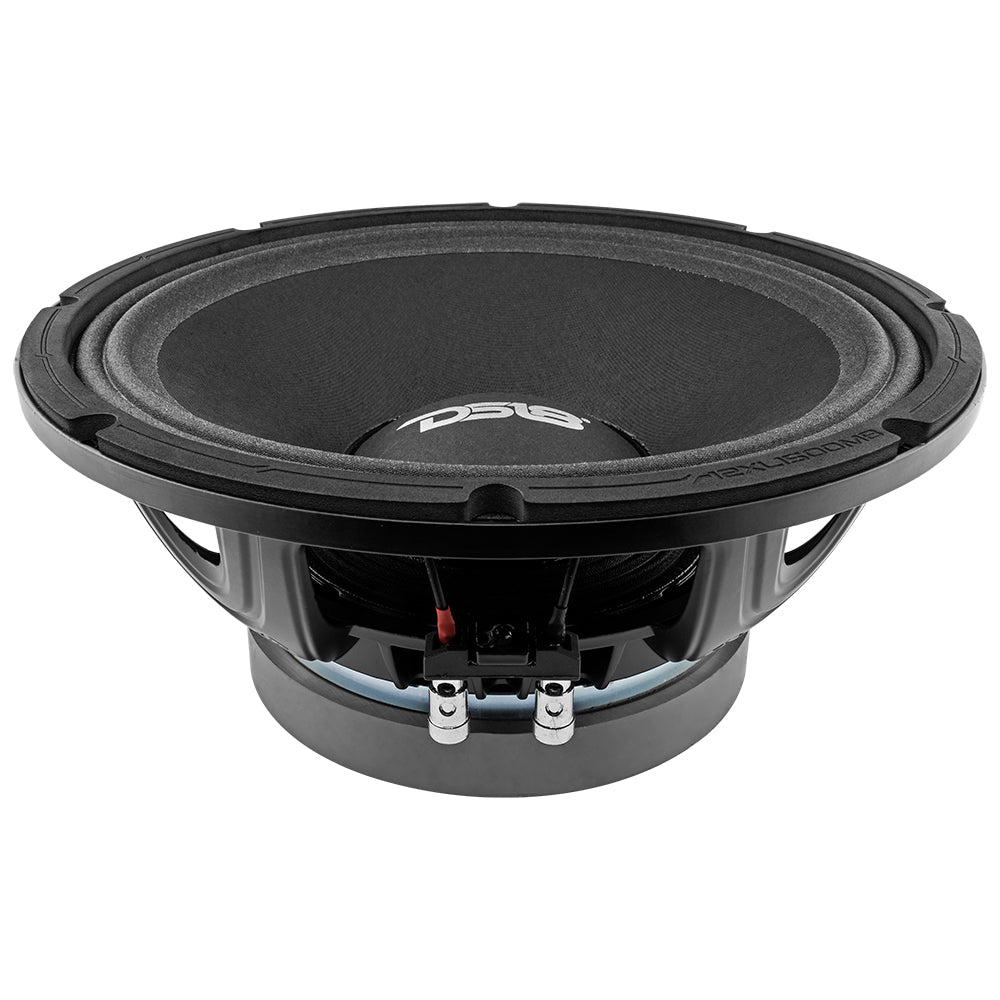

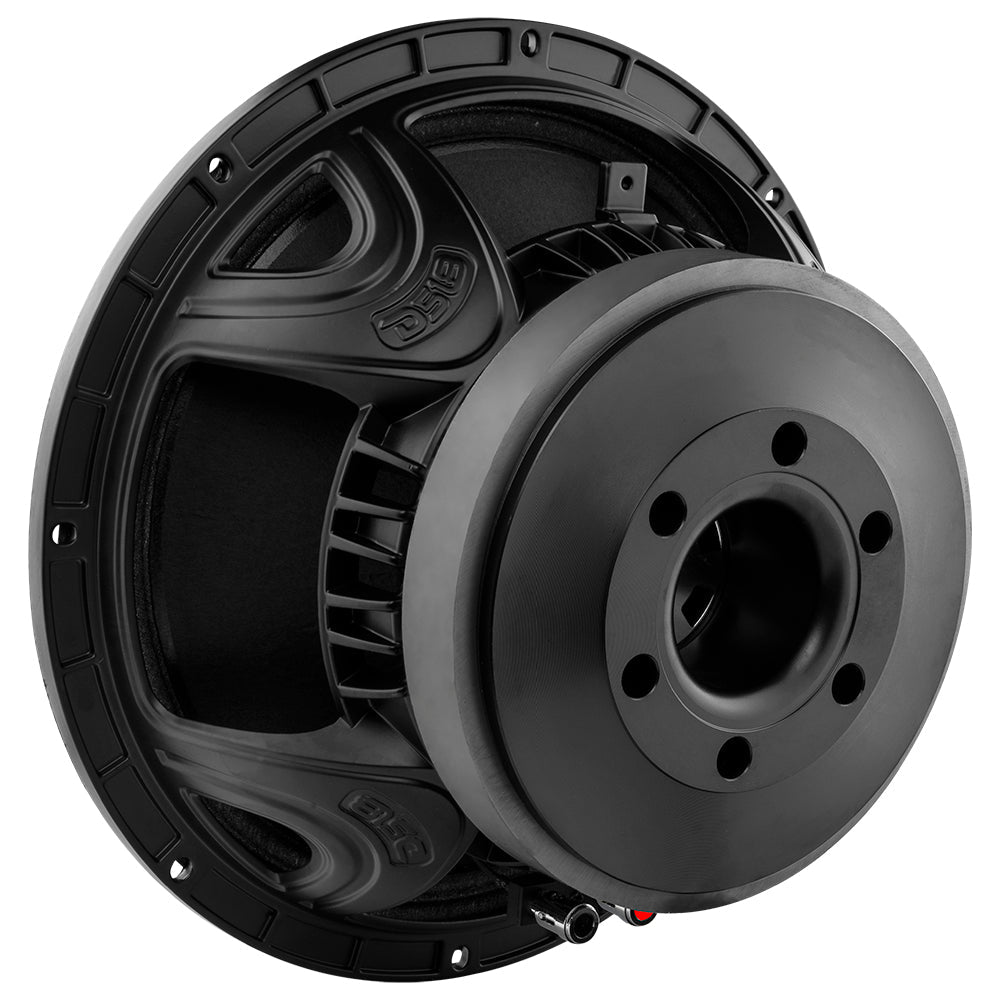

DS18 12XL1500MB-8
The DS18 12XL1500MB‑8 is a 12‑inch professional mid‑bass loudspeaker engineered for powerful, clear, and dynamic mid‑range and mid‑low sound in high‑performance car audio systems and custom installations. Designed for robust performance and wide compatibility, this speaker excels in mid‑bass output with strong sensitivity and efficient power handling.
Specifications
| Parameter | Value |
|---|---|
| SKU | 12XL1500MB-8 |
| Nominal Diameter | 12″ / 305 mm |
| Nominal Impedance | 8 Ω |
| RMS Power Handling | 750 W |
| Max Power Handling | 1500 W |
| Sensitivity (1w/1m) | 98.5 dB |
| Frequency Response | 40 Hz – 3 kHz |
| Recommended High-Pass Crossover | 60 Hz |
| Sold As | Single |
| Grill Included | No |
Motor Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 3.5″ / 89 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW (2 Layers IN/OUT) |
| Cone Material | Non-pressed Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 93 Oz |
| Displacement Volume | 2.2 L / 0.09 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 55.8 L / 1.97 ft³ |
| Excursion (Xmax) | 4.5 mm |
| Free Air Resonance (Fs) | 55 Hz |
| Mechanical Factor (Qms) | 8.92 |
| Electrical Factor (Qes) | 0.44 |
| Total Factor (Qts) | 0.41 |
| Mechanical Mass (Mms) | 56 g |
| Mechanical Compliance (Cms) | 0.14 mm/N |
| BL Factor | 17.23 |
| Voice Coil Inductance (Le) | 0.90 mH |
| Cone Area (Sd) | 526.85 cm² |
| DC Resistance (Re) | 5.8 Ω |
| Mechanical Mass w/o Air (Mmd) | 57 g |

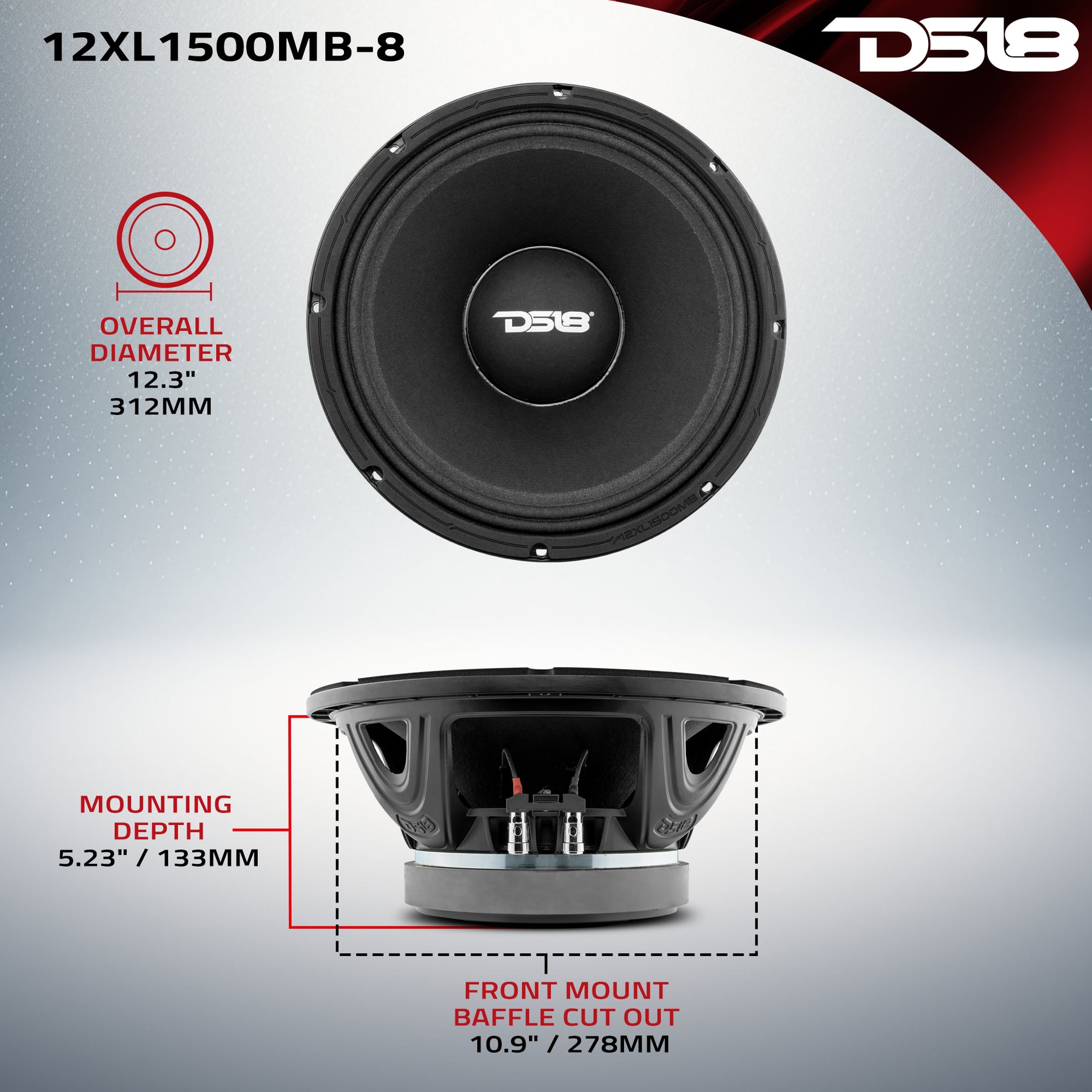

Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 12.3″ / 312 mm |
| Overall Depth | 5.76″ / 146.2 mm |
| Front Mount Baffle Cutout | 10.9″ / 278 mm |
| Mounting Depth | 5.23″ / 133 mm |
| Motor Diameter | 7.48″ / 190 mm |
Product Overview
DS18 12XL1500MB-8
DS18’s 12XL1500MB-8 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music.
DS18’s 12XL1500MB-8 stands head and shoulders above the midbass competition. This 12 inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.
With power handling of 750W RMS and 1500W MAX these speakers are guaranteed to blow you away. The frequency response of 40Hz-3KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 98.5 dB guarantees crystal-clear sound reproduction, even in large venues.
Crafted with precision, DS18’s 12XL1500MB-8 features a 3.5″ Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker’s aesthetics but also provides structural integrity. The ferrite magnet weighing in at a whopping 93 ounces ensures powerful and accurate bass responses that will leave you amazed.
Elevate your audio game with the DS18 12XL1500MB-8 12″ Mid-Bass Loudspeaker. Immerse yourself in the richness and clarity of your favorite music like never before.
